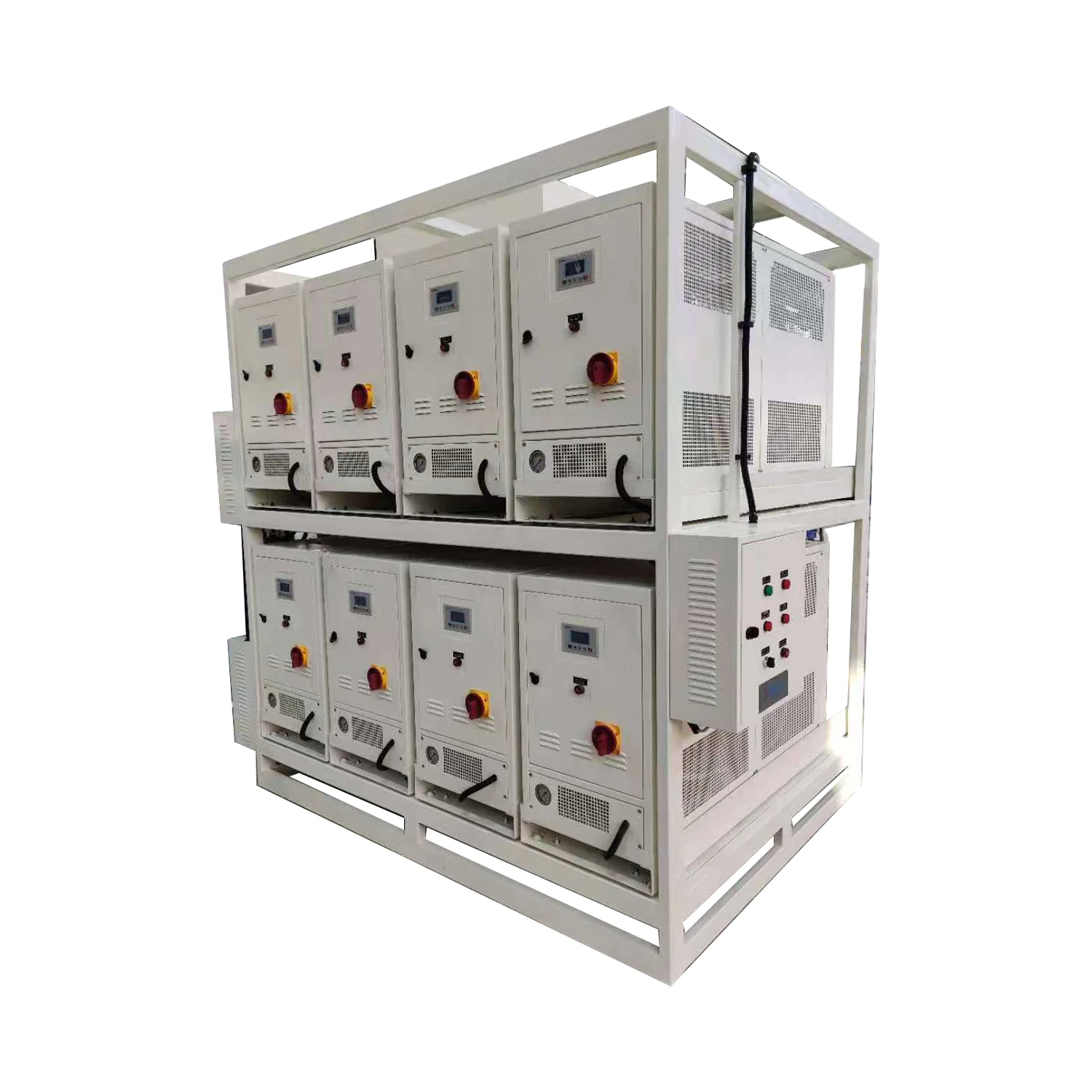

150 Degree 12kw Water Temperature Control Units for Rubber and Inject Machine
- Category: >>>
- Supplier: Kassel Machinery (zhejiang) Co. Ltd.
Share on (1600342232636):
Product Overview
Description
Product Overview:
High temperature water temperature controller
At standard atmospheric pressure, the boiling point of water is 100 ℃. As the pressure increases, the boiling point of water increases. The principle of the high temperature water heater is to increase the pressure in the water heater by pressurizing the system under the action of the system circulating pump and pressure pump, and then raise the water temperature by heating. Because the specific heat of water is greater than that of oil, the medium heat conduction effect of water temperature machine is much better under the same temperature control. High temperature water mold temperature machine is widely used in precision plastic injection molding mold temperature control, optical lens, light guide plate, connector, mold temperature control, roller heating and other industries.
For more detailed information, please contact us anytime!
Specifications:
模型 Model | 单位Unit | KEWH-20 |
温控范围 Temp. Range | ℃ | 150℃ |
温控精度 Temp. Control Accuracy | ℃ | PID±1℃ |
电源 Power Supply | AC3∮380V 50HZ3P+E（5M） | |
传热媒体 Heat Transfer Medium | 水WATER | |
冷却方式 Cooling Method | 直接冷却INDIRECTCOOLING | |
加热能量 Heating Capacity | KW | 12 |
泵浦功率 Pump Power | HP | 2 |
泵浦流量 Pump Flow | L/MIN | 153 |
泵浦压力 Pump Pressure | KG/CM2 | 6 |
最大电力消耗 Power Supply | KW | 13.5 |
警报功能 Alarm Function | 缺相/缺水/超温/过载/反转/高压Open phase/water depletion /Excess temperature/overloading/reverse turn/high voltage | |
冷却水配管 Cooling Water Pipe | INCH | 1/2 |
循环水配管 Circulating Water Pipe | INCH | 3/8*4 |
外型尺寸 Size(LxWxH) | MM | 700*360*815 |
重量 Weight | KG | 85 |
The specifications above are subject to changes without notice, Some special specifications may be customized
Quality Components in Kassel's TCU:
For reference only
Why Choose Us?
1. We provide customization service:
* By simply tell us your requirements, we will be able to design the most suitable TCU that meets all of your requirements.
For example, the refrigerating capacity, temperature range can be designed. We are able to produce TCUs that has temperature ranging from -30 to 200℃.
The price may vary as the detail changing, please do contact us for more information.
2. We provide professional customer service:
Pre-sale:
* As soon as we get your inquiry, we will always reply to your email on time and try our best to recommend you the most suitable temperature control unit. Detailed tech-info will also be provided for you.
After-sale:
* We can provide testing videos if you require.
* We will keep in touch with you, to make sure every parts of the chiller work well. One year warranty, free online service.
Successful Project:
Company History
Hangzhou Kassel Machinery was founded in 2010. In 2018 our company renamed into Kassel Machinery(Zhejiang)Co., Ltd, and moved to Tianzihu Ind. Zone.
Kassel freeze dryer has high production efficiency, high precision and only require simple operation.Our company advocates customizing freeze dryers for customers to meet the different needs of customers. Come and join us!
FAQs:
Q1： Is it all right to make customer's own brand name?
A：Yes, we will meet the needs of customers.
Q2：Are you a manufacturer or trading company?
A: We are the manufacturer with decades of research and development production experience.
Q3: Can you do the design for us?
A: Sure.We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer’s need well.
Q4: How can I get a sample to check your quality?
A: We could send you the samples but the freight and the sample are charged.
Q5: How long can I expect to get the sample?
A:We will send the samples to you within 30 days after confirming your needs, and the sample arrival time depends on our distance.
Q6: Packaging & Shipping:
A:Export Wooden case&FOB Shanghai.
A：Yes, we will meet the needs of customers.
Q2：Are you a manufacturer or trading company?
A: We are the manufacturer with decades of research and development production experience.
Q3: Can you do the design for us?
A: Sure.We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer’s need well.
Q4: How can I get a sample to check your quality?
A: We could send you the samples but the freight and the sample are charged.
Q5: How long can I expect to get the sample?
A:We will send the samples to you within 30 days after confirming your needs, and the sample arrival time depends on our distance.
Q6: Packaging & Shipping:
A:Export Wooden case&FOB Shanghai.
Certificates:
