double shaft coal mixer
US $7999-$8699

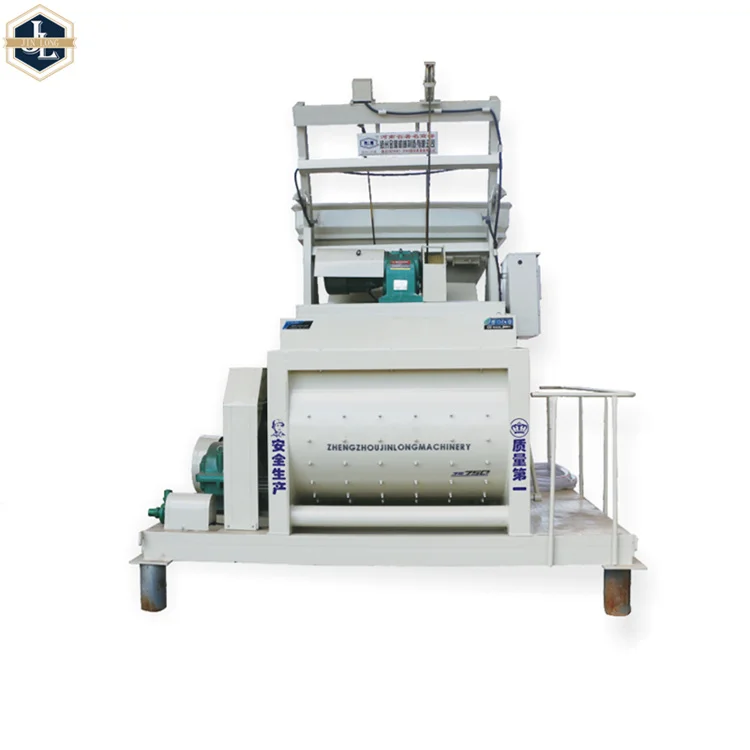

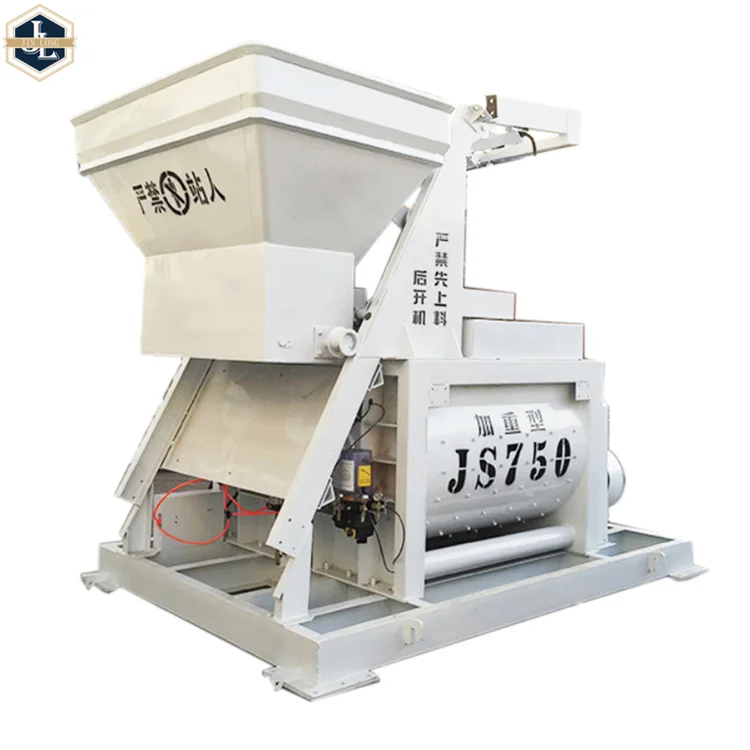

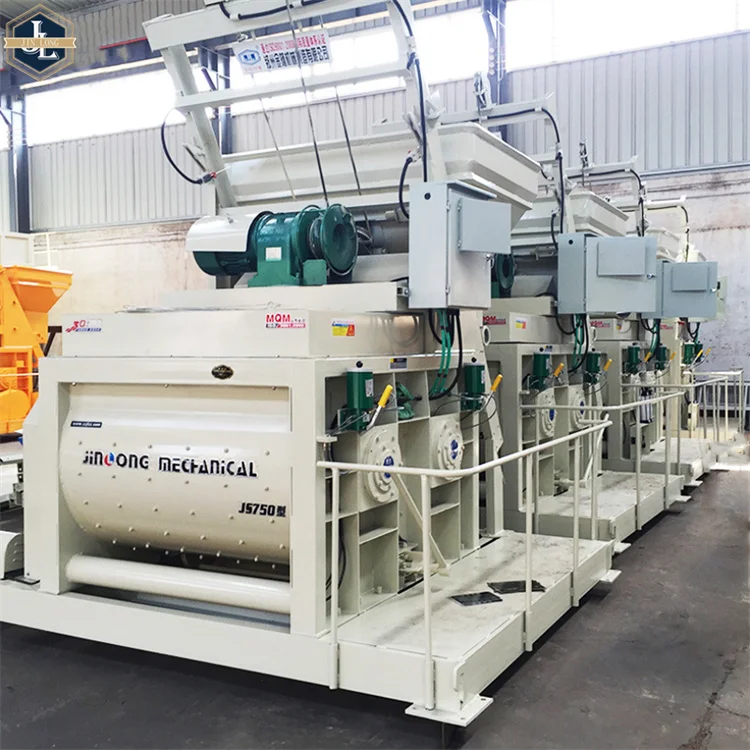

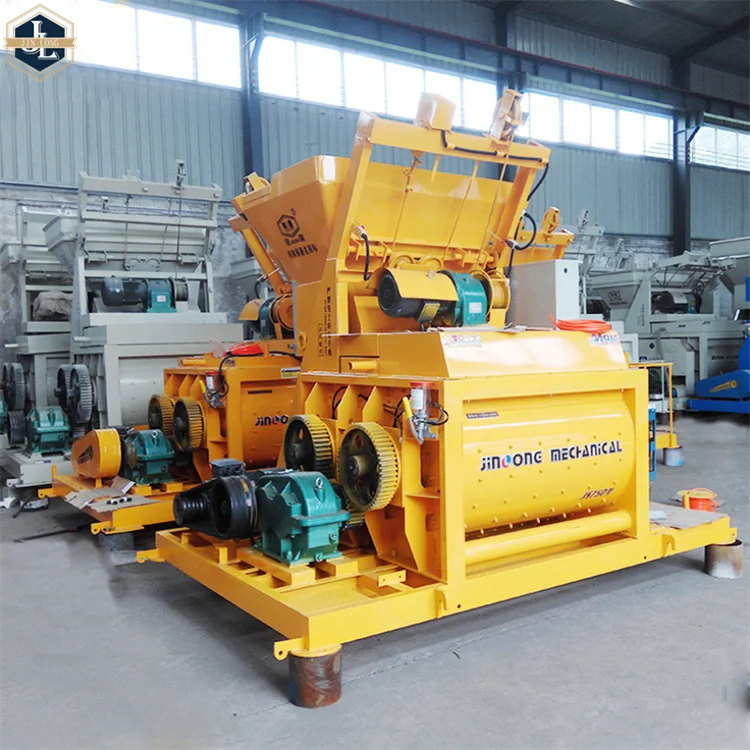

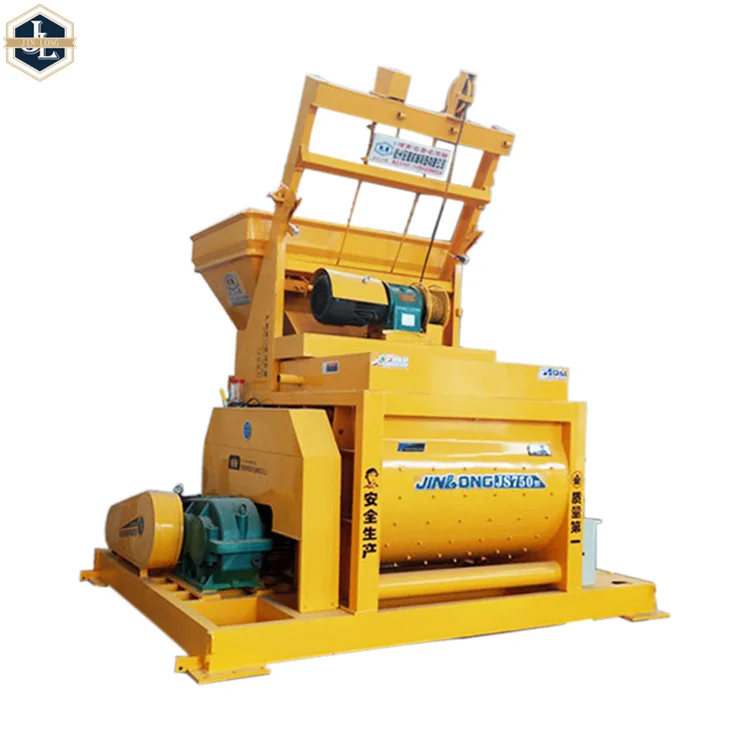

Concrete batching plant concrete cement ready mix double shaft forced js 750 automatic concrete mixer
- Category: Concrete Mixers >>>
- Supplier: Zhengzhou Jinlong Heavy Machinery Co. Ltd.
Share on (1600342262321):
Product Overview
Description
Products Description

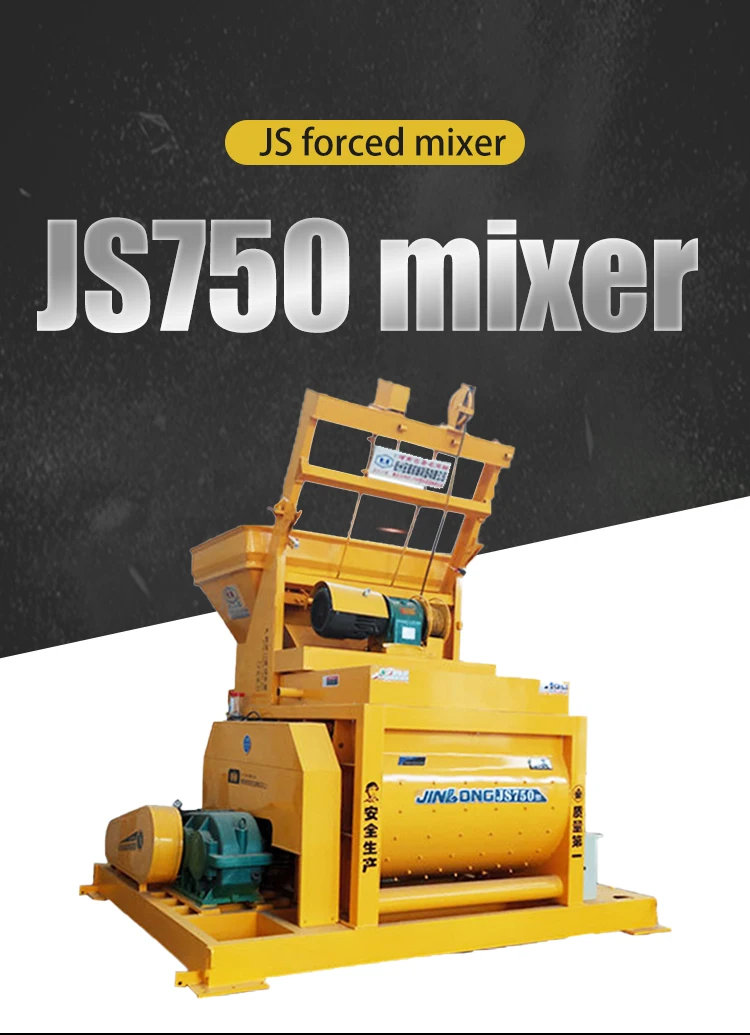

JS Series Cocnrete Mixer
The JS series concrete mixer is a double-horizontal-shaft forced mixer, which has the dual advantages of a single machine independent operation and a simple concrete mixing plant with the PLD series batching machine. It can also provide a supporting main machine for the mixing plant. It can mix dry hard concrete, plastic concrete, fluid concrete, light Aggregate concrete and various mortars. It is a high-efficiency machine with wide range of application.
The height of the outrigger part is designed as 1500 mm for JS500, 1600 mm for JS750, 4600 mm for JS1000 and JS1500, users can equip their own dump trucks, dump trucks, and mixer trucks, and they can also be modified according to user special requirements to meet user needs .
The height of the outrigger part is designed as 1500 mm for JS500, 1600 mm for JS750, 4600 mm for JS1000 and JS1500, users can equip their own dump trucks, dump trucks, and mixer trucks, and they can also be modified according to user special requirements to meet user needs .
Product Specifications

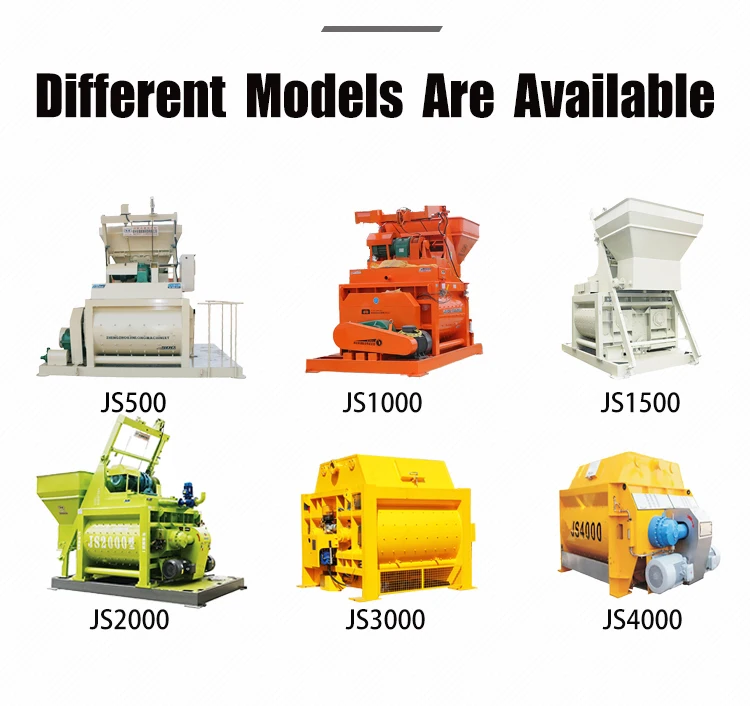

Model | JS500 | JS750 | JS1000 | JS1500 | JS2000 | ||
Output Volume | 500L | 750L | 1000L | 1500L | 2000L | ||
Input Volume | 800L | 1200L | 1600L | 2400L | 3000L | ||
Capacity | 25m3/h | 35m3/h | 50m3/h | 90m3/h | 120m3/h | ||
Max Input size (Pebble/Gravel) | 40/50 | 40/60 | 60/80 | 60/80 | 80/100 | ||
Cycle time | 72s | 72s | 72s | 60s | 60s | ||
Total weight | 4000kg | 5000kg | 6500kg | 8300kg | 7500kg | ||
Dimension (m) | Delivery | 3*2.17*2.9 | 3.14*2.33*2.75 | 3.68*2.25* 3.35 | 4.58*2.38*3.35 | 3.275* 2.3*2.252 | |
8 | Work | 3*2.17*2.9 | 3.14*2.33*2.75 | 3.68*2.25* 3.35 | 4.58*2.38*3.35 | 3.275* 2.3*2.252 | |
Mixing Vane | r/min | 31 | 31 | 26.5 | 26.5 | 24.5 | |
Quantity | 2*7 | 2*7 | 2*7 | 2*8 | 2*8 | ||
Mixing motor | Model | Y180M-4 | 2000L-4 | Y180M-4 | Y180L-4 | Y180S-4 | |
Power | 18.5kw | 30kw | 2*18.5kw | 2*30kw | 2*37kw | ||
Hoisting Motor | Model | YEZ132S-4 | YEZ132M-4 | YEZ160L-4 | YEZ180L-4 | YEZ180L-4 | |
Power | 5.5kw | 7.5kw | 13kw | 18.5kw | 37kw | ||
Pump motor | Power | 1.1kw | 1.1kw | 3kw | 3kw | 4kw | |

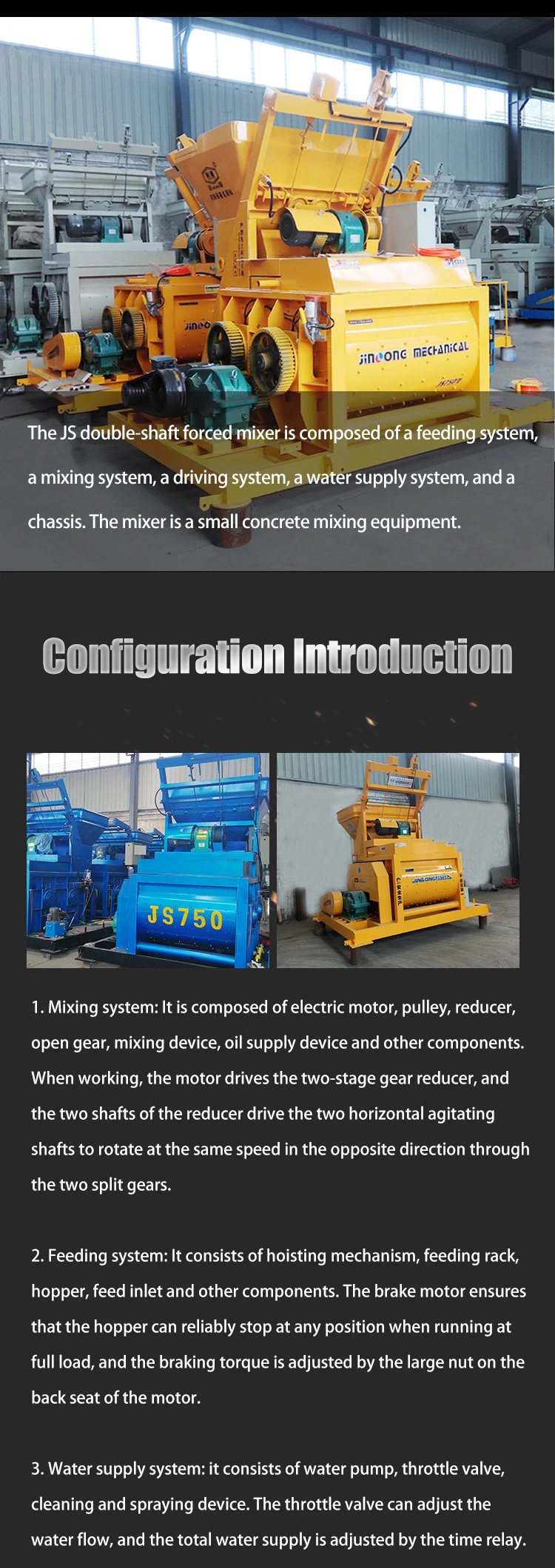

Details Images
