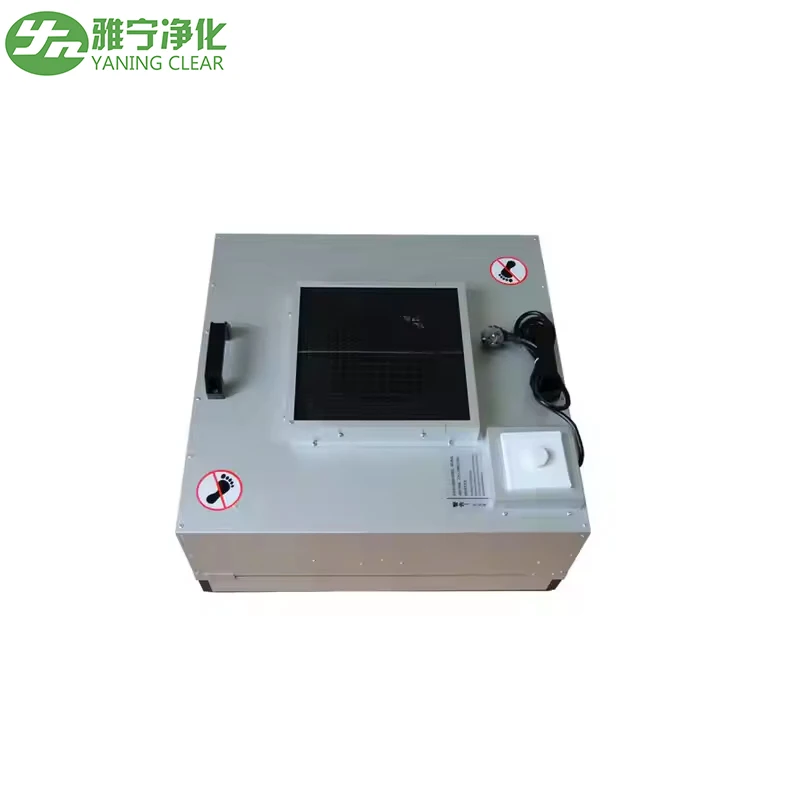

Fan filter unit hepa filter with fan FFU for clean room
- Category: >>>
- Supplier: Dongguan Yaning Purification Equipment Co. Ltd.Dongguan Ltd.
Share on (1600342612593):
Product Overview
Description

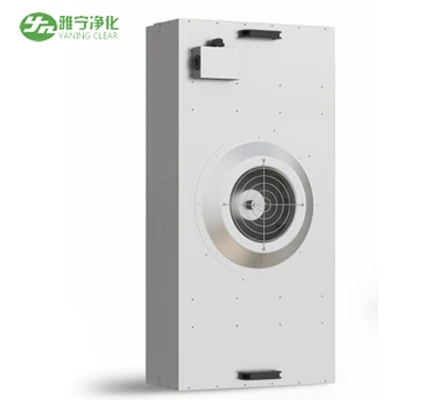

FFU
Product Description
FFU is abbreviation of Fan Filter Unit. It is a modular terminal air supply device with its own power and filtering effect. Its main function is to inhale the air from the top of the FFU by the fan and filter it by HEPA, and the filtered clean air is evenly sent out at the air velocity of 0.45m/s+20% on the entire air outlet surface to meet the cleanliness requirements of the clean environment. It is mainly installed on ceiling keels and equipment machines in clean areas and working areas. It is widely used in semiconductors, optical electronics, precision instruments, biopharmaceuticals, aerospace, and automobiles, hospitals, food, spraying, printing and other fields.

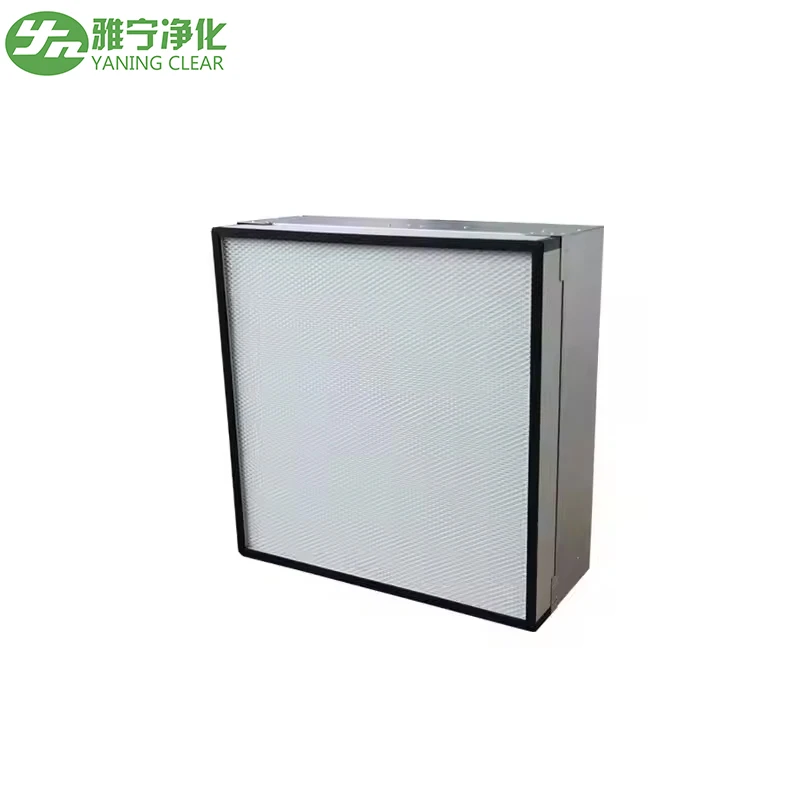

Material Classification | ||
Aluminium zinc plate | Stainless steel plate | |
Aluminum alloy plate | Powder coating steel | |
Rotor Classification | ||
Internal rotor fan | External rotor fan | |
Current Classification | ||
AC fan | EC fan | |
DC fan | ||
System Classification | ||
AC in-situ control | AC PC control system | |
EC PC control system | DC PC control system | |
Filter Level Classificat | ||
99.95%@0.3μm（H13） | 99.995%@0.3μm（H14） | |
99.9995%@0.12μm（U15） | 99.99995%@0.12μm（U16） | |
FFU Features
Although when choosing FFU, the initial investment is higher than using duct ventilation. However, in the later operation, it
prominently shows the characteristics of energy saving and maintenance-free.
prominently shows the characteristics of energy saving and maintenance-free.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Because of its ability to provide static pressure, the clean room is positive pressure relative to the outside world. Therefore, external particles are not subject to leakage into the clean area, makes sealing easy and safe.
Compared to other systems,
FFU system occupies less floor
height in the supply air plenum.
And basically does not occupy
the clean room space.
FFU system occupies less floor
height in the supply air plenum.
And basically does not occupy
the clean room space.
Using FFU saves the production and
installation of air ducts.
Shorten the construction period.
installation of air ducts.
Shorten the construction period.

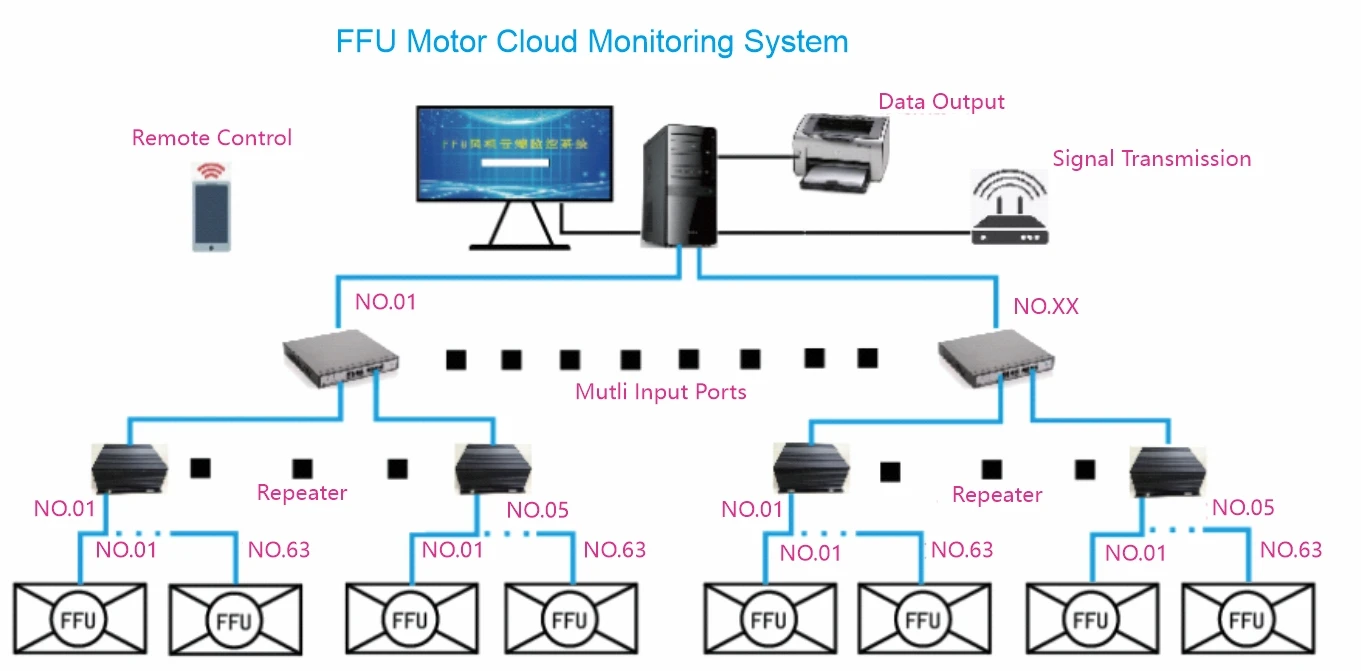

Group Control Features
The system is easy to operate, can monitor the FFU on the computer and touch screen, has strong anti-interference and low construction cost. The system is designed based on 485 bus and adopts hierarchical control. The system can control up to 64516 units, which can be precisely controlled according to the customer's on-site FFU layout.
The FFU can work independently during PC and PLC standby
Supply Power: AC 1N 110,220V/50,60Hz
Control Function: Can control single or group FFU A. Start B. Stop C.Regulation
Monitoring Function: Can monitor single or group FFU A. Working Status B. Error Alarm
Control Function: Can control single or group FFU A. Start B. Stop C.Regulation
Monitoring Function: Can monitor single or group FFU A. Working Status B. Error Alarm

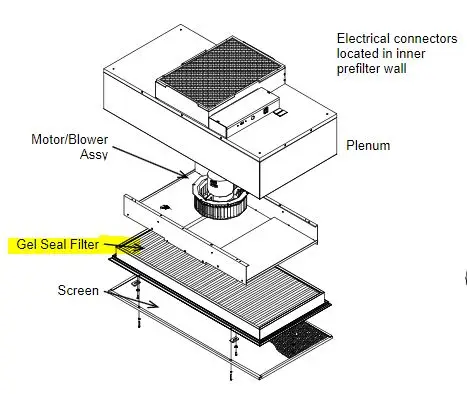

1.Blower filter unit description
The fan filter unit is a ceiling unit with a built-in fan for turbulent flow and laminar flow clean room. The design of the unit is flexible as a whole. According to the specifications of the design, it can easily match any ceiling frame to achieve a clean level of 1000 To level 1 requirements.
The fan filter unit is one of the quietest, best-priced units on the clean market today. With this unit, high-quality air can be
delivered to the clean room. And the air flow is good, it is suitable for semiconductor, electronic, flat panel display and disk drive manufacturers and optical, bio-industry industries such as clean room, clean bench, clean production line, assembled clean room and local hundred and other occasions and Other places with strict control over air pollution require low energy consumption
and lower operating costs.
The fan filter unit is one of the quietest, best-priced units on the clean market today. With this unit, high-quality air can be
delivered to the clean room. And the air flow is good, it is suitable for semiconductor, electronic, flat panel display and disk drive manufacturers and optical, bio-industry industries such as clean room, clean bench, clean production line, assembled clean room and local hundred and other occasions and Other places with strict control over air pollution require low energy consumption
and lower operating costs.
2. Blower filter unit advantages
1). Extremely low operation consumes power and reduces costs.
2, built-in air duct diversion system, reduce noise and pressure loss, improve fan efficiency.
3), can easily match the various brands of T-GRID and HEPA, ULPA.
4). The fan filter unit fan adopts high efficiency centrifugal fan, which can provide high air volume and high static pressure conditions. The service life requirement is up to 50,000 hours.
5), suitable for use in cleanliness class Class 1-1000 class clean room.
6), especially suitable for assembly into ultra-clean production lines, can be arranged according to process needs for a single use, can also be more than one series to form 100 assembly line
7). Before the products leave the factory, they are all tested according to US Federal Standard 209E using dust particle counters to ensure quality.
2, built-in air duct diversion system, reduce noise and pressure loss, improve fan efficiency.
3), can easily match the various brands of T-GRID and HEPA, ULPA.
4). The fan filter unit fan adopts high efficiency centrifugal fan, which can provide high air volume and high static pressure conditions. The service life requirement is up to 50,000 hours.
5), suitable for use in cleanliness class Class 1-1000 class clean room.
6), especially suitable for assembly into ultra-clean production lines, can be arranged according to process needs for a single use, can also be more than one series to form 100 assembly line
7). Before the products leave the factory, they are all tested according to US Federal Standard 209E using dust particle counters to ensure quality.
Product Name | AC FFU | ||||||
Product Model | YN-FFU-A01 | YN-FFU-A02 | YN-FFU-A03 | YN-FFU-A04 | |||
Dimension(mm) | 575x575x220 | 575x1175x220 | 875x1175x275 | 1175x1175x295 | |||
Filter Dimension(mm) | 570x570x69 | 570x1170x69 | 870x1170x69 | 1170x1170x69 | |||
Air Volume | 500m³/h | 1000m³/h | 1500m³/h | 2000m³/h | |||
Noise | 52~62dB(A) | 52~62dB(A) | 52~62dB(A) | 52~62dB(A) | |||
Air Pressure | 200PA | 200PA | 260PA | 290PA | |||
Power | 170W | 170W | 200W | 240W | |||
Weight | 28Kg | 35Kg | 47Kg | 55Kg | |||
Material | Galvanized/powder coated/SUS 304 plate | ||||||
Supply Power | AC 1N 110, 220V/50,60Hz | ||||||
Control System | 3 stage regulation, group reguation | ||||||
Filter Efficiency | 99.95%MPPS above H13-U16@EN1822 | ||||||
Pre Filter | G3/G4 Filter, nylon filter | ||||||
Work Status | power Indicator, work indicator, Error indicator | ||||||
Connection Type | 3 Pin Aviation Male Female socket, terminat blocks | ||||||
Overload Protection | Overload protect of motor and controller | ||||||
Monitor Contact Communication Method | port of reserve and Erro | ||||||
Product Name | EC FFU | ||||||
Product Model | YN-FFU-E01 | YN-FFU-E02 | YN-FFU-E03 | YN-FFU-E04 | |||
Dimension(mm) | 575x575x225 | 575x1175x275 | 875x1175x305 | 1175x1175x305 | |||
Filter Dimension(mm) | 570x570x69 | 570x1170x69 | 870x1170x69 | 1170x1170x69 | |||
Air Volume | 500m³/h | 1000m³/h | 1500m³/h | 2000m³/h | |||
Noise | 48~54dB(A) | 48~54dB(A) | 52~58dB(A) | 52~58dB(A) | |||
Air Pressure | 210PA | 210PA | 280PA | 280PA | |||
Power | 60W | 90W | 140W | 160W | |||
Weight | 28Kg | 35Kg | 47Kg | 55Kg | |||
Material | Galvanized/powder coated/SUS 304 plate | ||||||
Supply Power | AC 1N 110, 220V/50,60Hz | ||||||
Control System | Manual stepless regulation; PC group regulation | ||||||
Filter Efficiency | 99.95%MPPS above H13-U16@EN1822 | ||||||
Pre Filter | G3/G4 Filter, nylon filter | ||||||
Work Status | Work indication; Error indication | ||||||
Connection Type | Terminal Bolcks | ||||||
Overload Protection | Overload protect of motor and controller | ||||||
Monitor Contact Communication Method | R485 TCP | ||||||
Pressure deviation range:±5%
FFU test standard base on; IEST-CCO0361-2014, GB/T388-2012, GB/T1236-20000, GB9068-1988
Noise value is 1.5m below the air outlet of the filter
Above data is laboratory test value,deviation value depend on site situation
can customized acording to client's requierements
FFU test standard base on; IEST-CCO0361-2014, GB/T388-2012, GB/T1236-20000, GB9068-1988
Noise value is 1.5m below the air outlet of the filter
Above data is laboratory test value,deviation value depend on site situation
can customized acording to client's requierements
Product Parameter

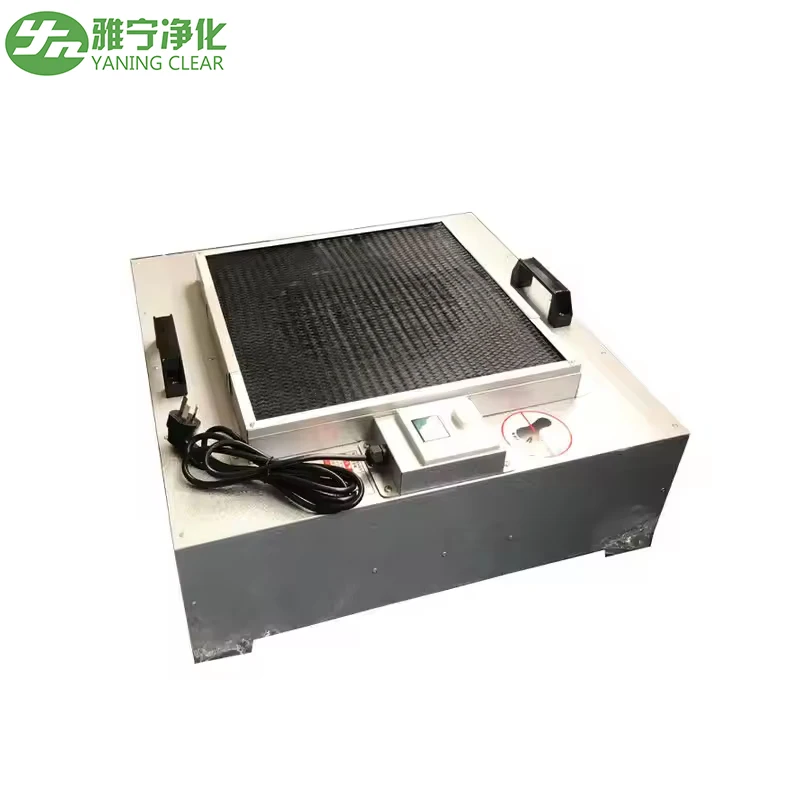

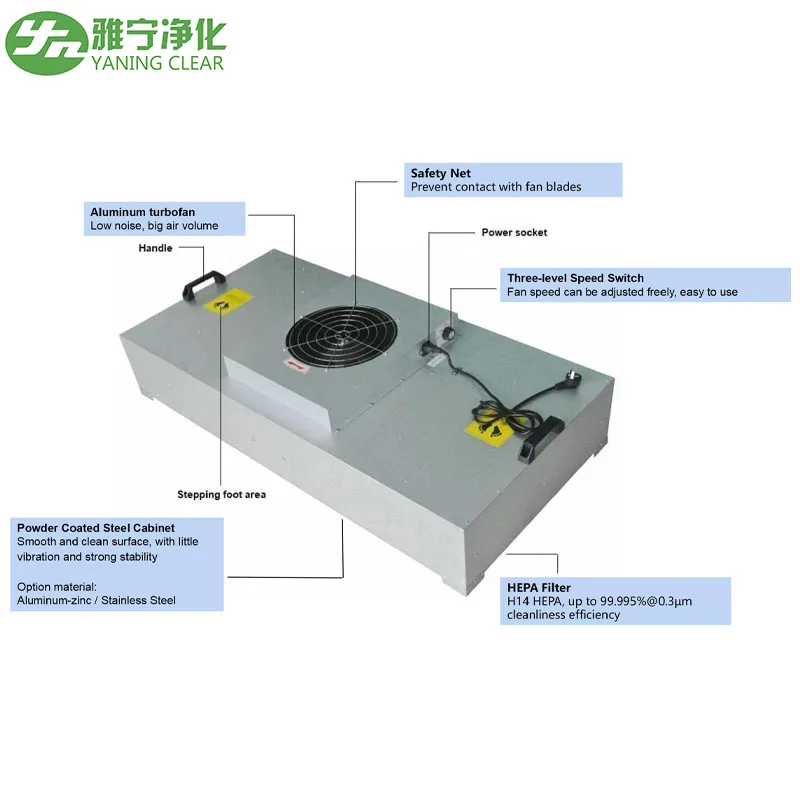

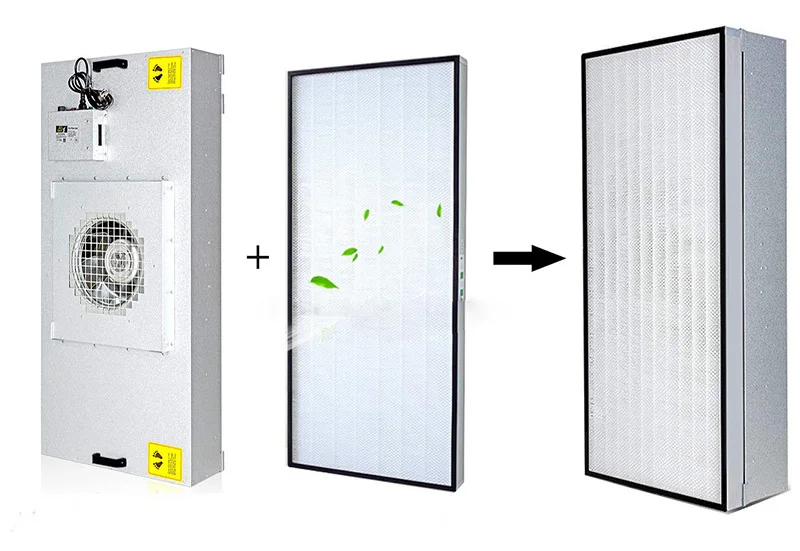

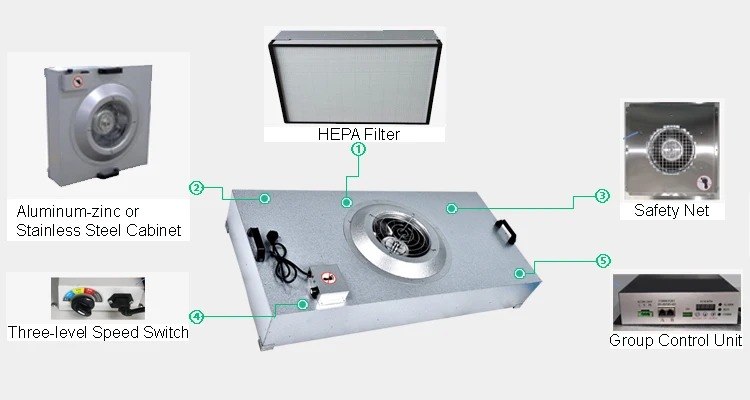

Detail Image:

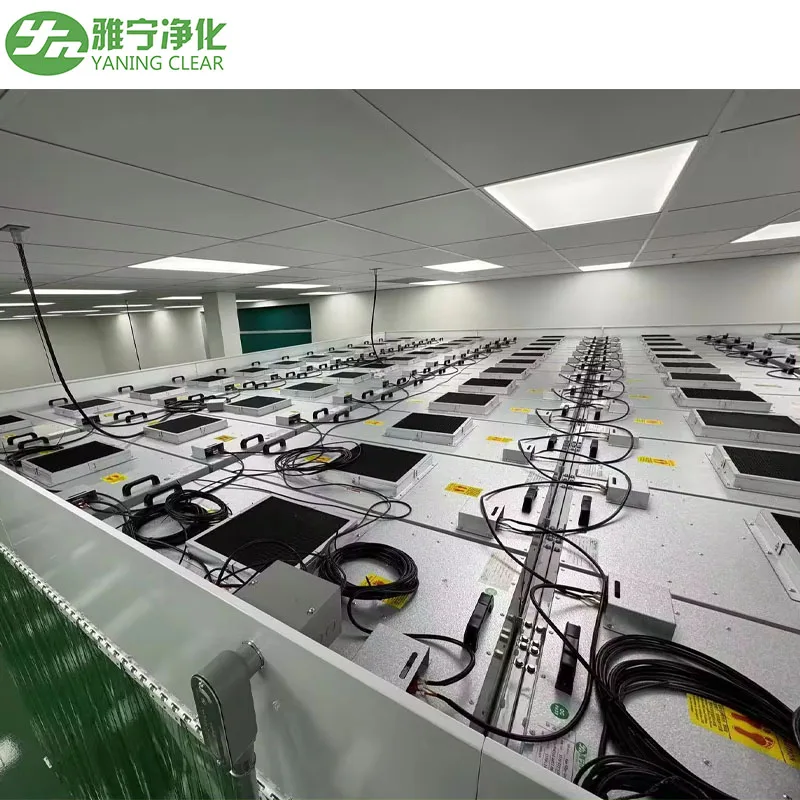

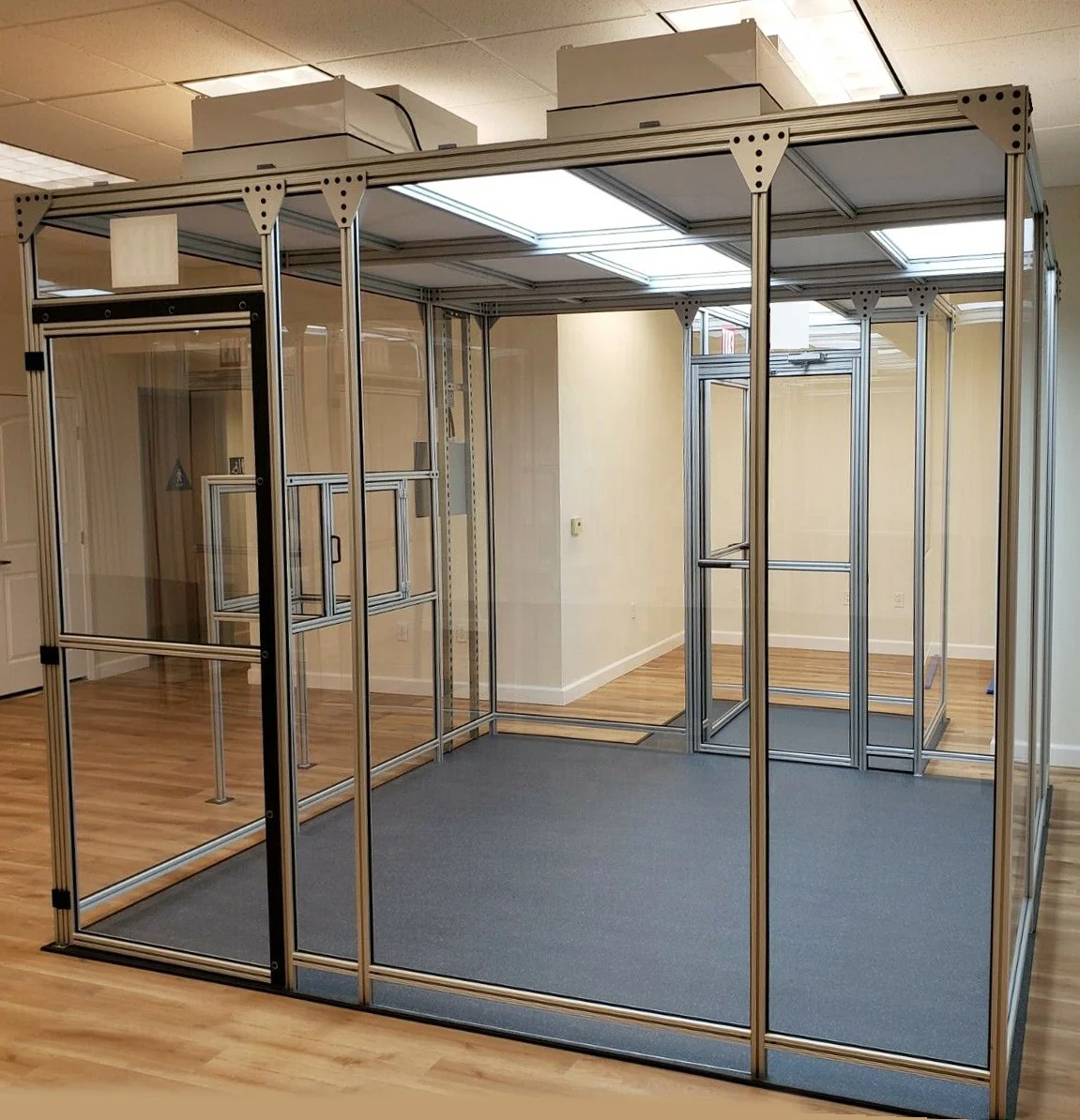

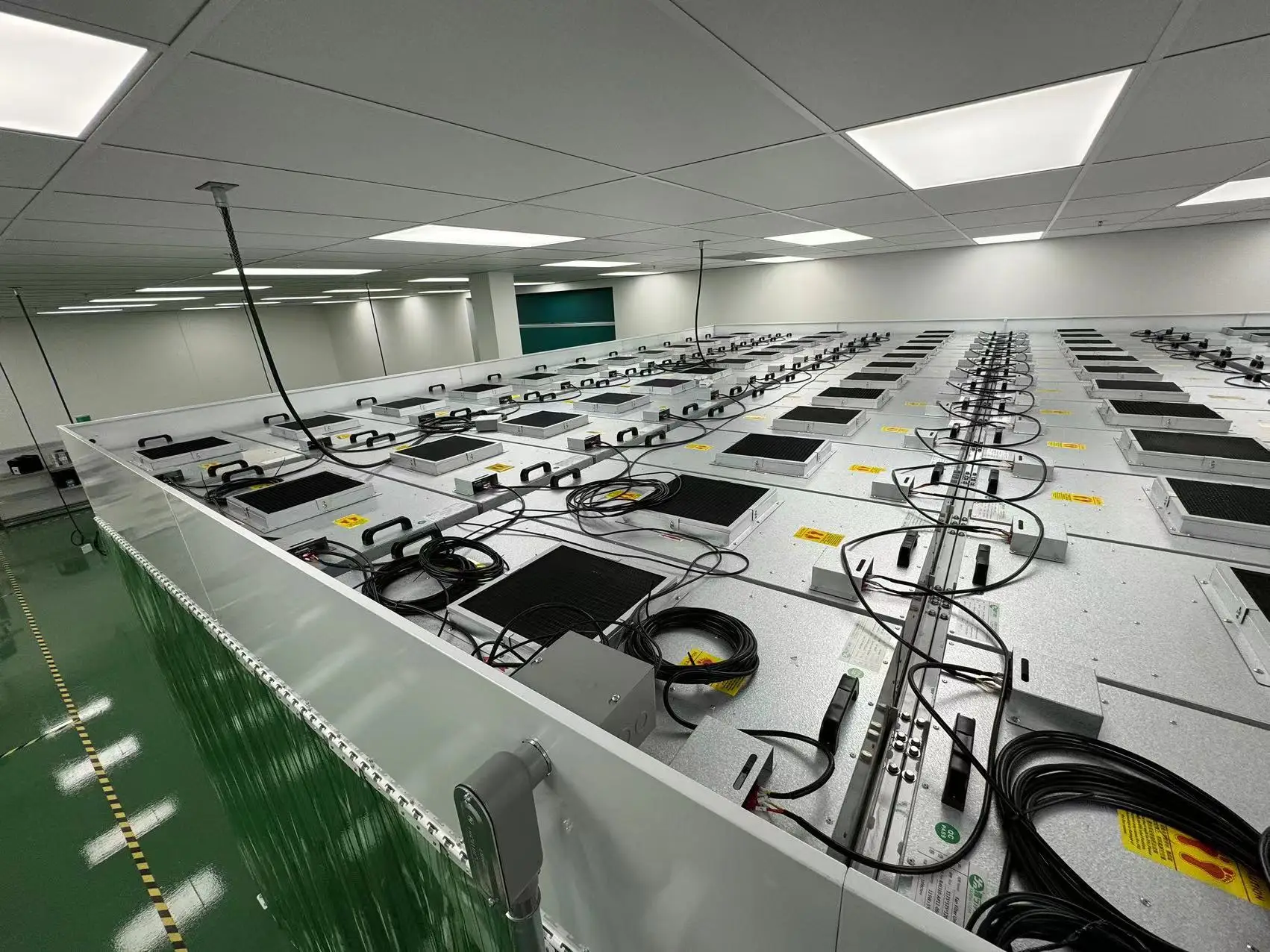

Success case show

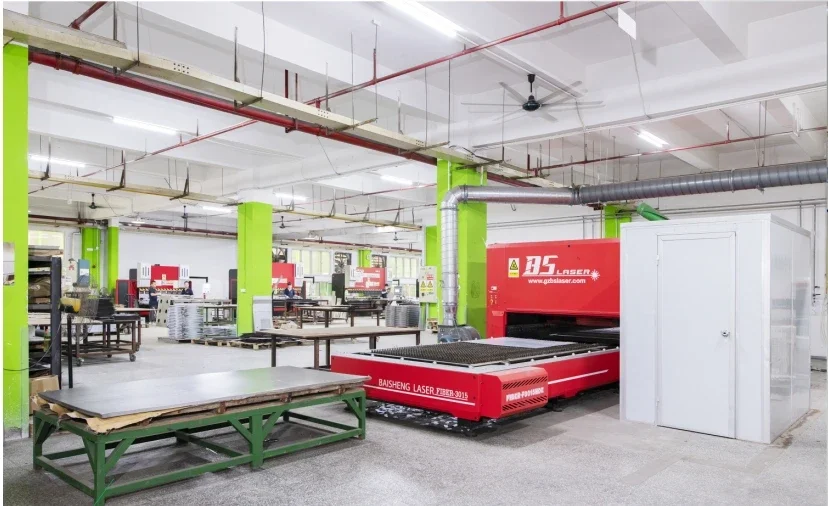

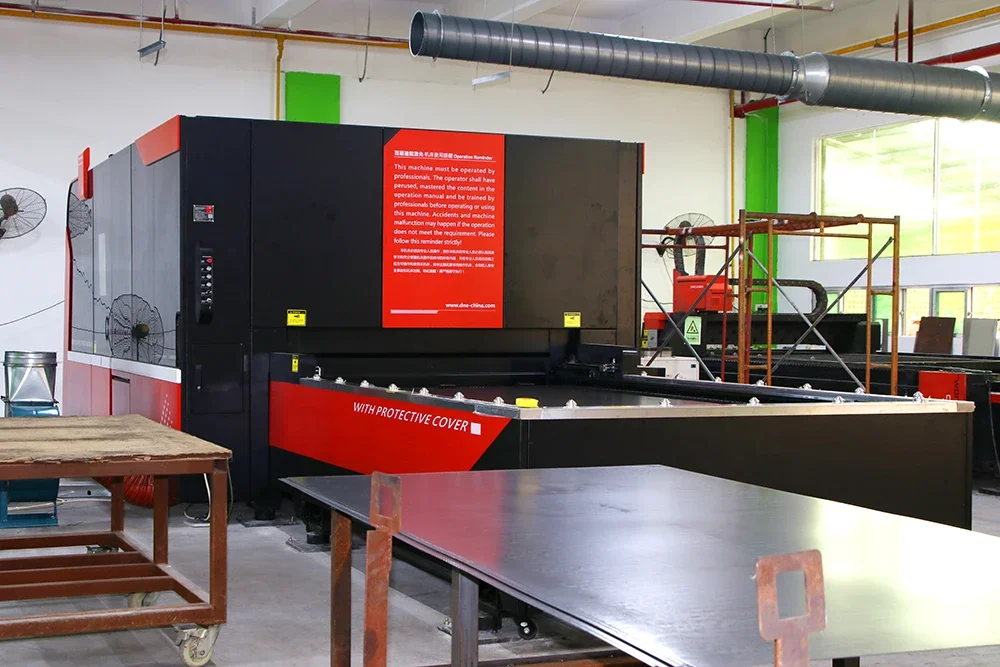

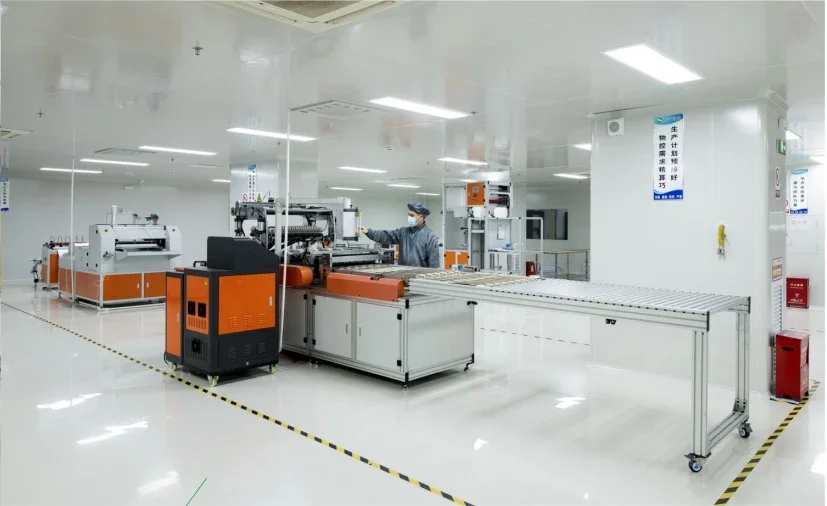

Our Factory
Dongguan Yaning Purification Equipment Co.,Ltd is located in Dongguan, the advanced manufacturing center of the Guangdong-Hong Kong-Macao Greater Bay Area. It is an integrated supplier of clean technology solutions integrating technology, research and development, design, manufacturing, sales and installation. The company has more than 200 employees, a plant area of more than
30,000 square meters, and an annual output value of more than 300 million RMB.
30,000 square meters, and an annual output value of more than 300 million RMB.
Province,With more than ten years of independent R&D and innovation, YANING Purification has obtained more than 30 technical patents and has become a national high-tech enterprise. It has passed the ISO9001:2015 quality management system certification and
ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong
ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong
