Product Overview
Description
Product Description

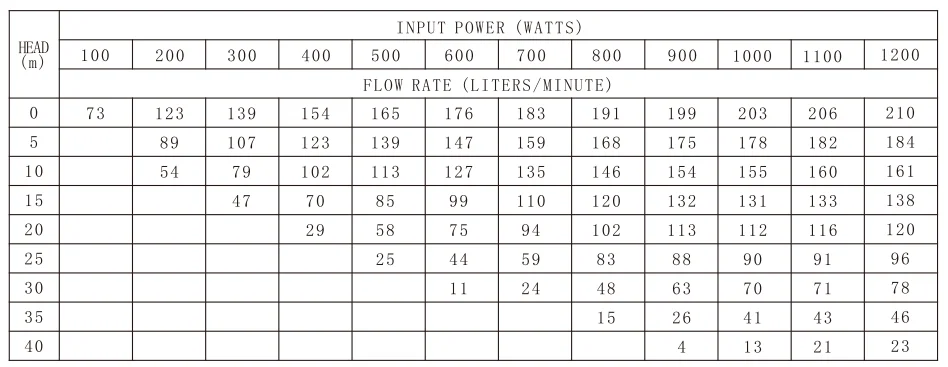

4spw 6-4P | ||
Power | 1HP | |
Head max | 46m | |
Flow max | 210L/min | |
Outlet size | 1.25 inches | |
motor | brushless DC motor | |
DC voltages range | 80-150Vmp（VOCmax=180v) | |
Material | 304 stainless steel | |
Using encapsulate motor(water filled motor)
No risk of leakage ,effectively higher ,life longer than oil motor.
Using thrust bearing, lower parts loss
The thrust bearing effectively higher ,life longer.
Using the brushless DC motor , long service life, low noise and good safety
BLDC motor Efficiency higher 10% than AC motor, higher RPM make pump size smaller than AC motor , much easier installation. The service life of Brushless DC motor can reach 10000 hours, while the brush and slider of Brushless DC motor are worn, and the maximum service life is 2000-3000h. Without MPPT controller, the efficiency of Brushless DC motor is very low, at the same time, there is no protection, the noise is very large, and the safety performance is obviously lower than that of Brushless DC motor.
Obtained a number of certification, reliable quality
Our company obtained ISO9001 & ISO14001 certification, and the products obtained TUV SUD & UL certification.
Voltage range ,we offer much Wider scope than any other factory ,make pump system much more smart .
We offer GPRS RMS ,User could control pump at home ,and got data.
Global official website: www.samkingpump.com
BLDC motor Efficiency higher 10% than AC motor, higher RPM make pump size smaller than AC motor , much easier installation. The service life of Brushless DC motor can reach 10000 hours, while the brush and slider of Brushless DC motor are worn, and the maximum service life is 2000-3000h. Without MPPT controller, the efficiency of Brushless DC motor is very low, at the same time, there is no protection, the noise is very large, and the safety performance is obviously lower than that of Brushless DC motor.
Obtained a number of certification, reliable quality
Our company obtained ISO9001 & ISO14001 certification, and the products obtained TUV SUD & UL certification.
Voltage range ,we offer much Wider scope than any other factory ,make pump system much more smart .
We offer GPRS RMS ,User could control pump at home ,and got data.
Global official website: www.samkingpump.com

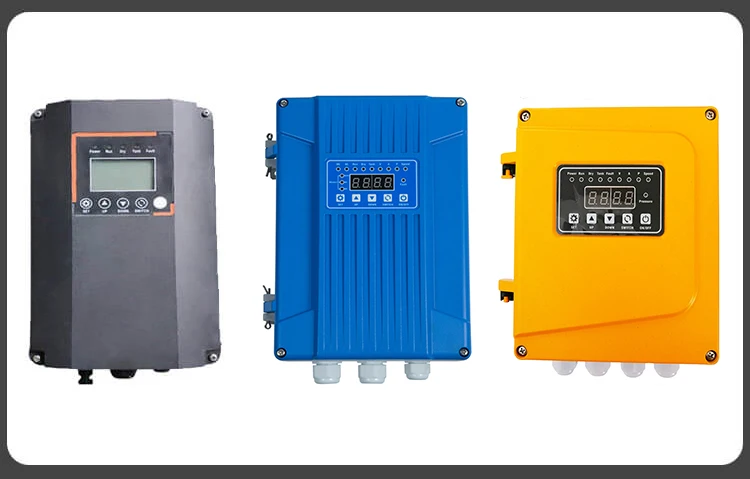

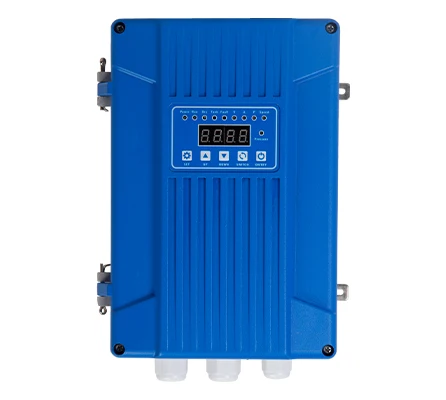

MPPT controller
Main Function
● Brushless, water cooling, frequency converter and controller outside
● Hybrid powered by AC/DC, Power Range: 0.5HP-3HP
● Soft starting running
● Brushless, water cooling, frequency converter and controller outside
● Hybrid powered by AC/DC, Power Range: 0.5HP-3HP
● Soft starting running
● Thrust bearing system
● Supply Voltage Range: 60-380Vmp or 90-240VAC at 50/60 Hz maximum VOC440V
● Motor Efficiency high
● MPPT Efficiency high
● GPRS (optional)
● Generator auto turn on/off (optional)
● Enough protection (Dry protection, Reverse protection, Over head protection, Overload protection, Over-Current protection,
overvoltage protecti on, Over power protection, Lighting protection)
● Motor Efficiency high
● MPPT Efficiency high
● GPRS (optional)
● Generator auto turn on/off (optional)
● Enough protection (Dry protection, Reverse protection, Over head protection, Overload protection, Over-Current protection,
overvoltage protecti on, Over power protection, Lighting protection)
● SS304
● 2 years warranty
● 2 years warranty
Application
Our products are widely used in water supply, pumping, drainage and other applications.The following only shows some application cases. If you don't know what kind of products your needs are suitable for, please leave us a message, and we will recommend the most cost-effective products that match your needs.
Customer Photos
Our solar water pumps are sold in more than 50 countries and regions all over the world and are well received by customers.
Product model table
We are SAMKING, we provide nearly 300 kinds of solar pump models, including DC, AC / DC solar pump, built-in and external controller solar pump, and match the appropriate products according to the specific needs of customers. Voltage range ,we offer much Wider scope than any other factory ,make pump system smarter. We offer GPRS RMS ,User could control pump at home ,and got data.
Product series and parameters | ||
Power | 0.3hp, 0.5hp, 0.75hp, 1hp, 2hp, 2.5hp, 3hp, 5hp | |
Power type | DC, AC/DC option | |
Head | 0 - 450m | |
Flow | 0 - 1545L/min (0 - 92.7m3/h) | |
Diameter | 1inch, 1.25inch, 1.5inch, 2inch, 2.5inch, 3inch, 4inch, 5inch, 6inch | |
Moto type | BLDC ( permanent magnet, encapsulated, water filled thrust bearing ) | |
Controller | external, internal option | |
Pump body | stainless steel 304 | |
Pump length | 44 - 141cm | |
Impeller | stainless steel, plastic optional | |
Impeller type | centrifugal, helical | |
Certification | CE, TUV SUD, UL, ISO9001, ISO14001 | |
Warranty | 2 years | |
Company Profile
Pengyang pump taizhou Co.,Ltd , a leading company in solar pump industry in China . we should say we are china's #1 most trusted solar-powered water pump .we are the first one who make AC/DC hybrid system in china .also is most reliability solar pump manufacturer in china . We have AC/DC built-in electronic hybrid pump We also have DC out-side controller solar pump We also have DC inside-controller solar pump We also have AC BLDC solar pump We sell and install pump to more than 50 countries around the world,we got global friend from our the world ,we are always been copied but never surpassed.
More than 11 patents
We have more than 11 patents of solar water pump technology.
7000 square meters plant
The scale of the factory is over 7000 square meters.
Customers all over the world
Our customers are located in more than 50 countries and regions around the world.
FAQ
1.Are you a trader or a manufacturer?
We are a leading R & D and manufacturer of solar water pumps in China.
2. Where is samking's factory?
Taizhou City, Jiangsu Province, China
3.What is the MOQ?
1pcs,over 10 pcs ,have discount
4. What is the delivery time?
15-30 days after receiving your advanced deposit.
5. Can i print my OEM brand?
Yes, welcome your OEM.
We are a leading R & D and manufacturer of solar water pumps in China.
2. Where is samking's factory?
Taizhou City, Jiangsu Province, China
3.What is the MOQ?
1pcs,over 10 pcs ,have discount
4. What is the delivery time?
15-30 days after receiving your advanced deposit.
5. Can i print my OEM brand?
Yes, welcome your OEM.
