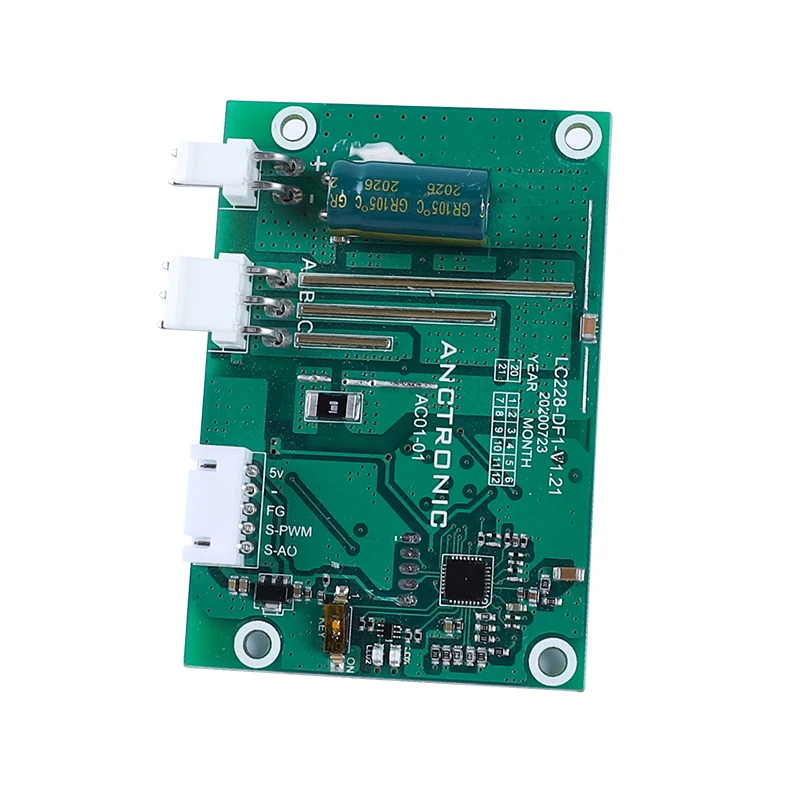

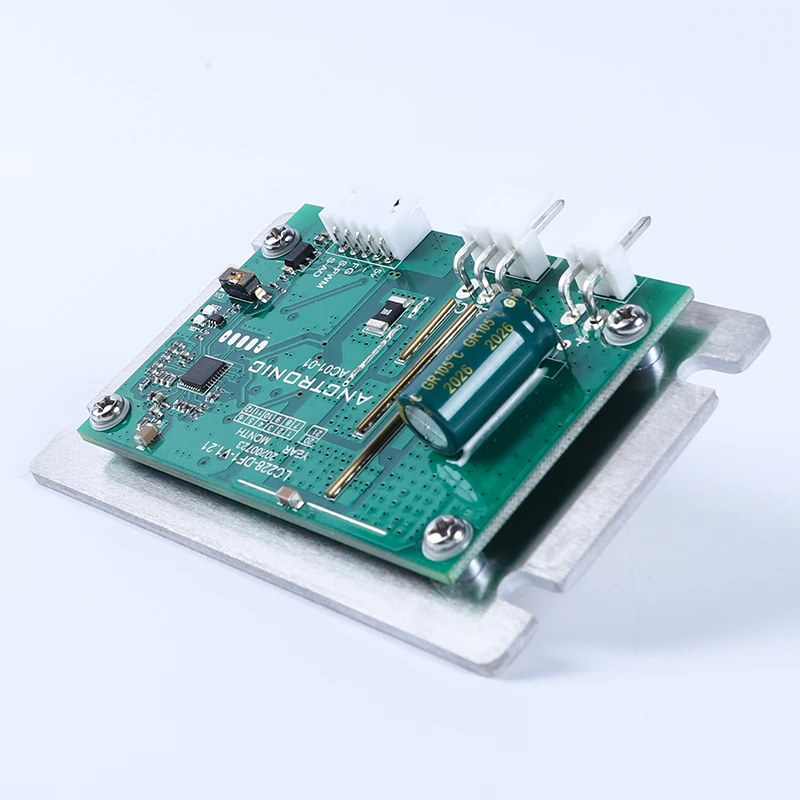

AC01 24V 10A 1motor controller Factory Supply high power electric dc motors controller
- Category: >>>
- Supplier: Ningbo Anchor Drive Technology Co. Ltd.
Share on (1600342903545):
Product Overview
Description
AC01-24V-10A-1motor controller Factory Supply high power electric dc motors controller
Product Parameter

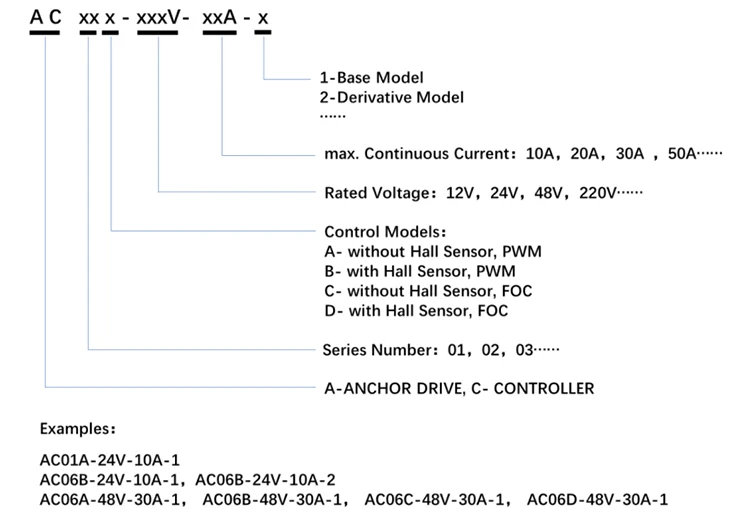

Product Model | AC01-24V-10A-1 | Brand | ANCTRONIC |
Product SPEC | AC01A-24V-240W | Peak Power | 240W |
Part Name | Motor Driver | Rated Voltage | 24V |
Work Temp. | -20℃-60℃ | Voltage Range | 14-28V |
Humidity | ≤85%RH | max.Continuous Current | 10A |
Current limit | 12A | max. Peak Current | 20A |
FG Speed Feedback | 5V speed pulse output between FG port and the GROUND, one pulse per rotation. | Commutation Mode | Hall-less Commutation |
PWM Speed Regulating | PWM frequency 200Hz, can be adjusted between 10%-90%, accordingly motor speed from low to high, less than PWM 10% then stop. | Lock-rotor Protection | Y |

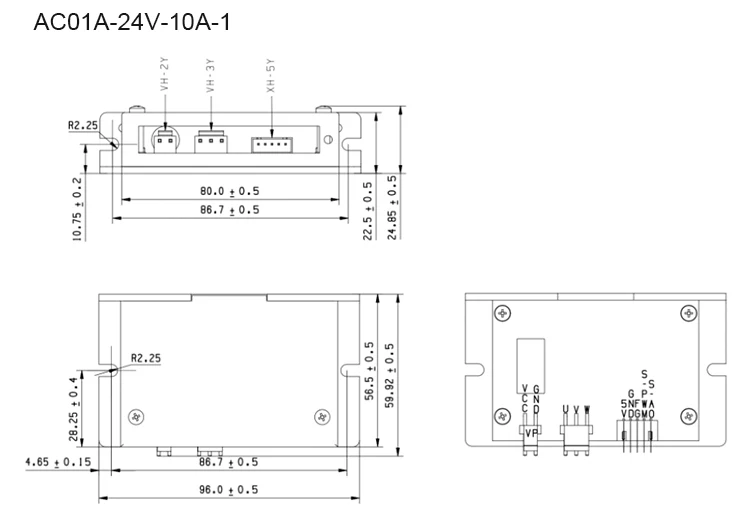

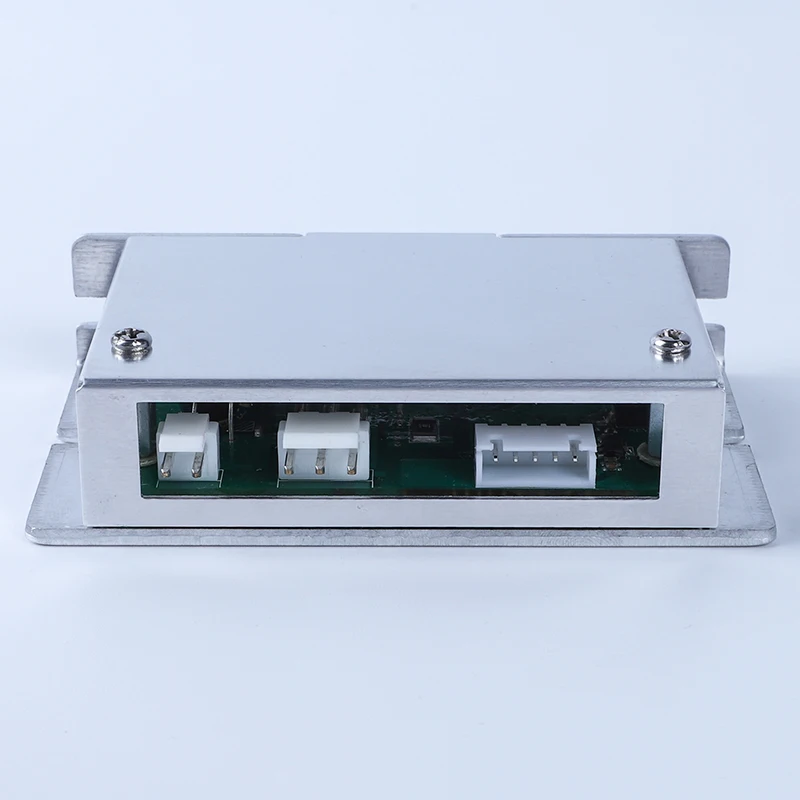

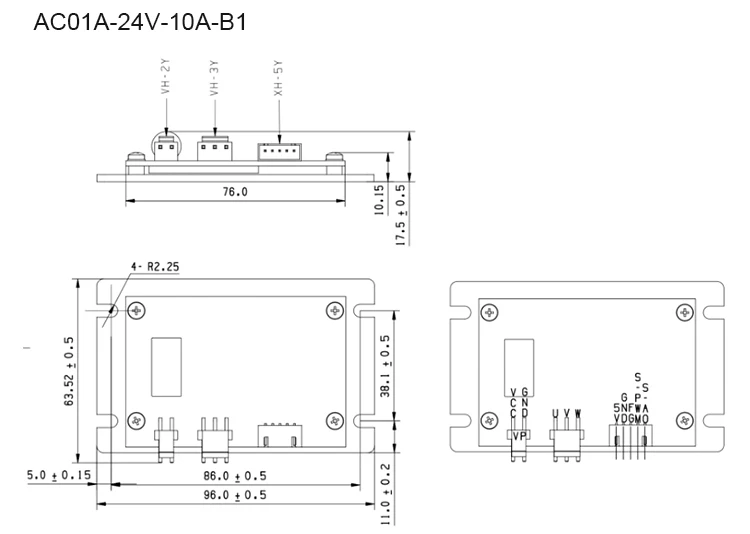

Size | w/ Casing：96.0*59.92*24.85（mm） w/o Casing ：96.0*63.52*15.8（mm） | Start-up Diagnostic | Y |
Mass | w/ Casing：96g （PCBA：27g） w/o Casing：69g | Forward and reverse control | N |
Casing Color | Silver | Speed Regulating | PWM（5V，200Hz） VSP（0-5V） |
Customizable | Y | Control Mode | Constant Speed Constant Power |
Connector | PIN Name | PIN Description | Wire Color (Recommendation) | Wire SPEC (Recommendation) |
VH-2Y | VCC | Power Supply(+) | Red | 16AWG |
GND | Power Supply(-) | Black | 16AWG | |
VH-3Y | U | Phase U | Yellow | 16-20AWG |
V | Phase V | Blue | 16-20AWG | |
W | Phase V | White | 1 6-20AWG | |
XH-5Y | +5V | Potentiometer Power Supply(+) | Red | 24AWG |
GND | Potentiometer Power Supply(-) | Black | 24AWG | |
FG | FG frequency signal(Speed) output | Gray | 24AWG | |
S- PWM | PWM speed regulating signal | Brown | 24AWG | |
S-AO | Potentiometer/0-5V speed control signal | White | 24AWG |

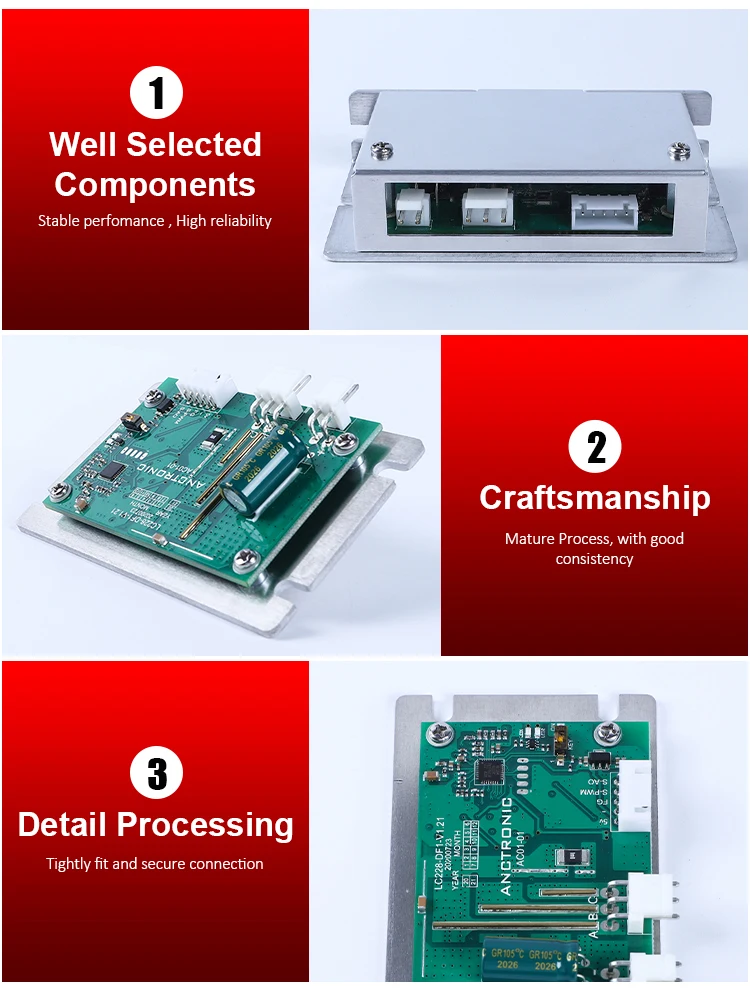

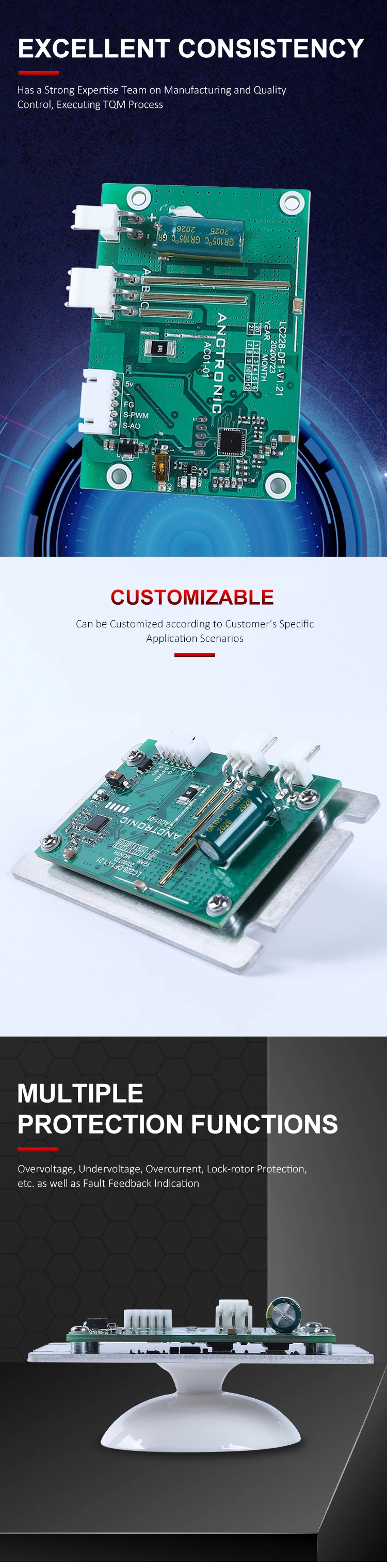

Product Details
Company Profile
Certificates And Honors
Payment Shipping
FAQ
1) Are you a factory or only a trading company?
We have a factory to produce brushless DC blowers, fans, motors and motor drivers.
2) Why to choose us?
a. Professional- we always offer system solutions based on your specific application scenarions.
b. Reliable- we have a robust manufacturing and quality assurance system in place, can offer customers with high quality products with competitive price.
3) How abut the shipping cost?
Out price is an ex-work price. We can quote the price based on FOB, CIF&CNF as you like, then you can choose whether to use our forwarder or yours.
4) How about the price? Can you make it cheaper?
The price depends on product model types and its order size. The final quotation will be based on your full description of SOR or SPEC.
5) How about the lead time? What is the payment?
According to customer's specific requirements, if to choose a base model, then it will take 5-10 days after e-proof confirmed and your payment is received.
We have a factory to produce brushless DC blowers, fans, motors and motor drivers.
2) Why to choose us?
a. Professional- we always offer system solutions based on your specific application scenarions.
b. Reliable- we have a robust manufacturing and quality assurance system in place, can offer customers with high quality products with competitive price.
3) How abut the shipping cost?
Out price is an ex-work price. We can quote the price based on FOB, CIF&CNF as you like, then you can choose whether to use our forwarder or yours.
4) How about the price? Can you make it cheaper?
The price depends on product model types and its order size. The final quotation will be based on your full description of SOR or SPEC.
5) How about the lead time? What is the payment?
According to customer's specific requirements, if to choose a base model, then it will take 5-10 days after e-proof confirmed and your payment is received.
