Product Overview
Description

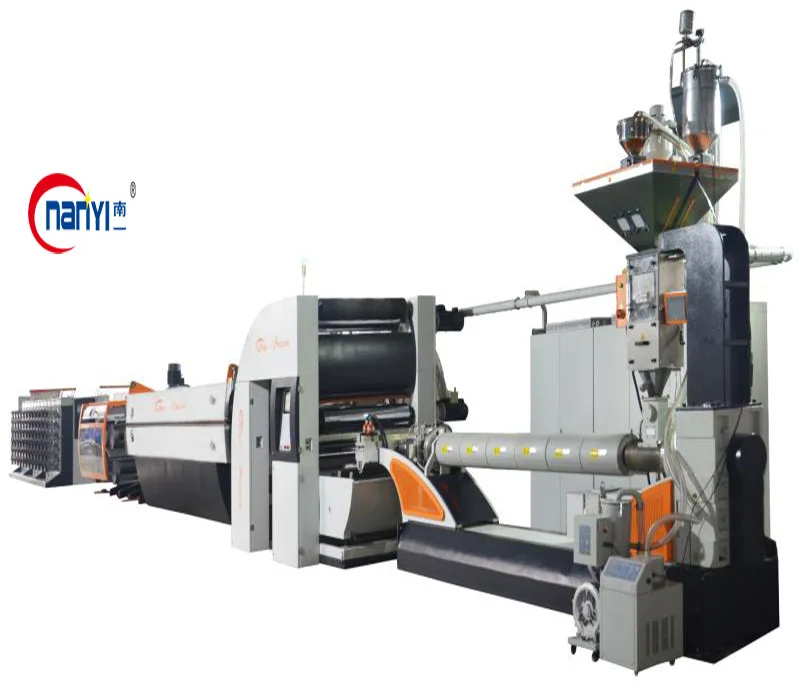

HDPE irrigation pipe production line with tape dripper plastic extrusion machine
Products Description
High Speed Plastic Extrusion Tape Line:
1.Direct drive motor and two stretching unit in tape stretching line application, with automatic adjustment of die and the
thickness online measuring system, a high efficiency and energy saving, hand provides high strength, low Daniel yarn production
regulation.
2.Online thickness measurement system of application so that the film is more uniform, stable, saving the cost of raw materials,
visualization of the automatic adjustment of die lip, has changed the traditional mould head adjusting mode, more intuitive, more
convenient ( optional)
3.Cutting unit adopts six groups of non-stop change form, improve the production efficiency.
4.Auto winding machine use, more suitable for the demand of high speed tape stretching line.
5.Electrical control unit: adopt the European famous-brand processor control (PC) to monitor and control the whole line centrally
and fully, bring the easier operation and more stability. (option)
6.Apply to produce the PP, HDPE normal tape, fibrillated tape, folded tape and some other flat-type tape with various
specifications.
1.Direct drive motor and two stretching unit in tape stretching line application, with automatic adjustment of die and the
thickness online measuring system, a high efficiency and energy saving, hand provides high strength, low Daniel yarn production
regulation.
2.Online thickness measurement system of application so that the film is more uniform, stable, saving the cost of raw materials,
visualization of the automatic adjustment of die lip, has changed the traditional mould head adjusting mode, more intuitive, more
convenient ( optional)
3.Cutting unit adopts six groups of non-stop change form, improve the production efficiency.
4.Auto winding machine use, more suitable for the demand of high speed tape stretching line.
5.Electrical control unit: adopt the European famous-brand processor control (PC) to monitor and control the whole line centrally
and fully, bring the easier operation and more stability. (option)
6.Apply to produce the PP, HDPE normal tape, fibrillated tape, folded tape and some other flat-type tape with various
specifications.
Technical date | ||||||||||
Model No. | SJMS-Z75X33-850*8 | SJMS-Z90X33-1000*8 | SJMS-Z105X33-1500*8 | SJMS-Z120X33-1600*8 | SJMS-Z130X33-2000*8 | |||||
Screw Diameter (mm) | 75 | 90 | 105 | 120 | 130 | |||||
Max. capacity (kg/h) | 200 | 350 | 500 | 600 | 650 | |||||
Screw Revolutions (r/min) | 20-132(r/min) | |||||||||
T-die Width (mm) | 850 | 1000 | 1500 | 1600 | 2000 | |||||
Length of over (m) | 6 m | |||||||||
Max.operating speed (m/min) | 450 m/min | |||||||||
Tape fibre scope | 400-2000D | |||||||||
Details Images
Machine Parts

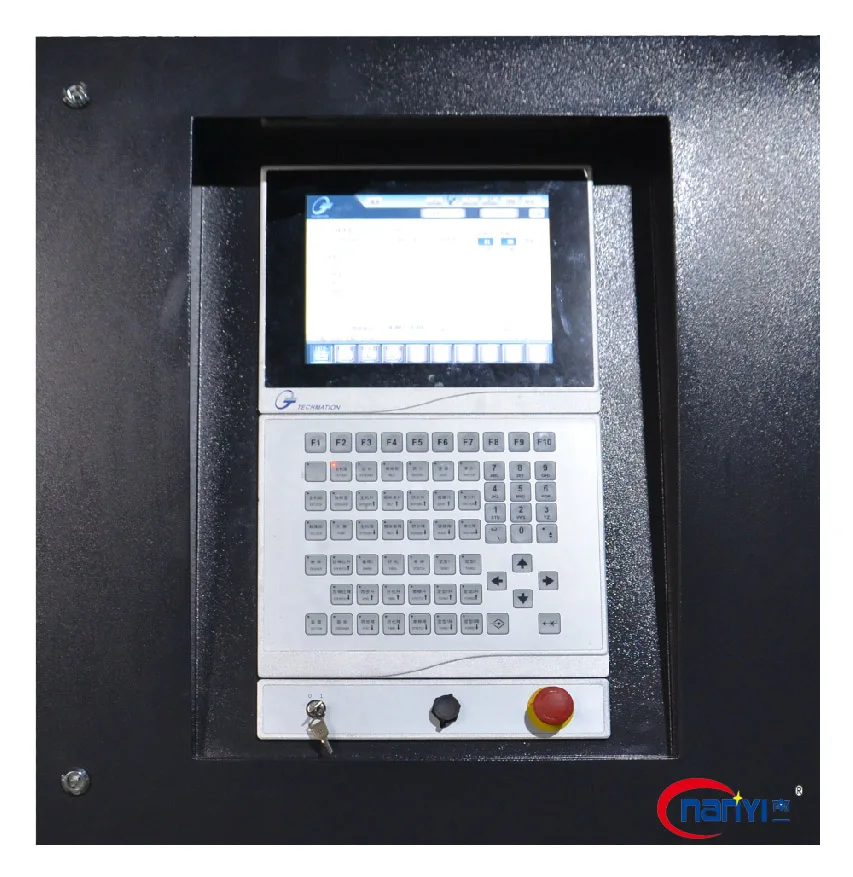

Name: Taiwan brand process controller
Brand: NANYI&PRESION
Original: ChinaIt can realize the monitoring and control of temperature, speed and current of each part
of the whole machine, and the speed can be unified and controlled by sections
Brand: NANYI&PRESION
Original: ChinaIt can realize the monitoring and control of temperature, speed and current of each part
of the whole machine, and the speed can be unified and controlled by sections
Machine Parts
Machine Parts

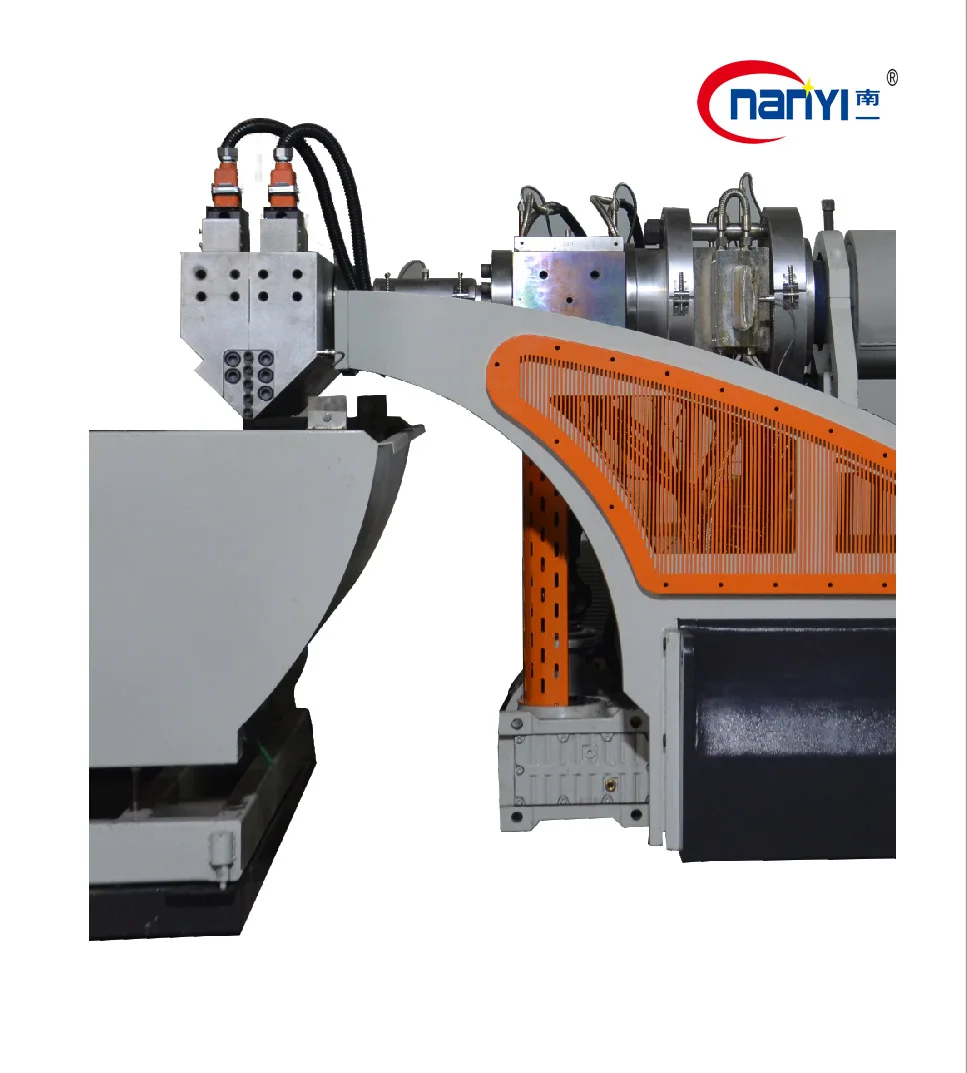

Name: Melt pump& Auto Screen changer
Brand: NANYI&PRESION
Original: China Implementation of melt transfer, pressure stabilization and metering
Name: Melt pump& Auto Screen changer
Brand: NANYI&PRESION
Original: China Implementation of melt transfer, pressure stabilization and metering
Machine Parts

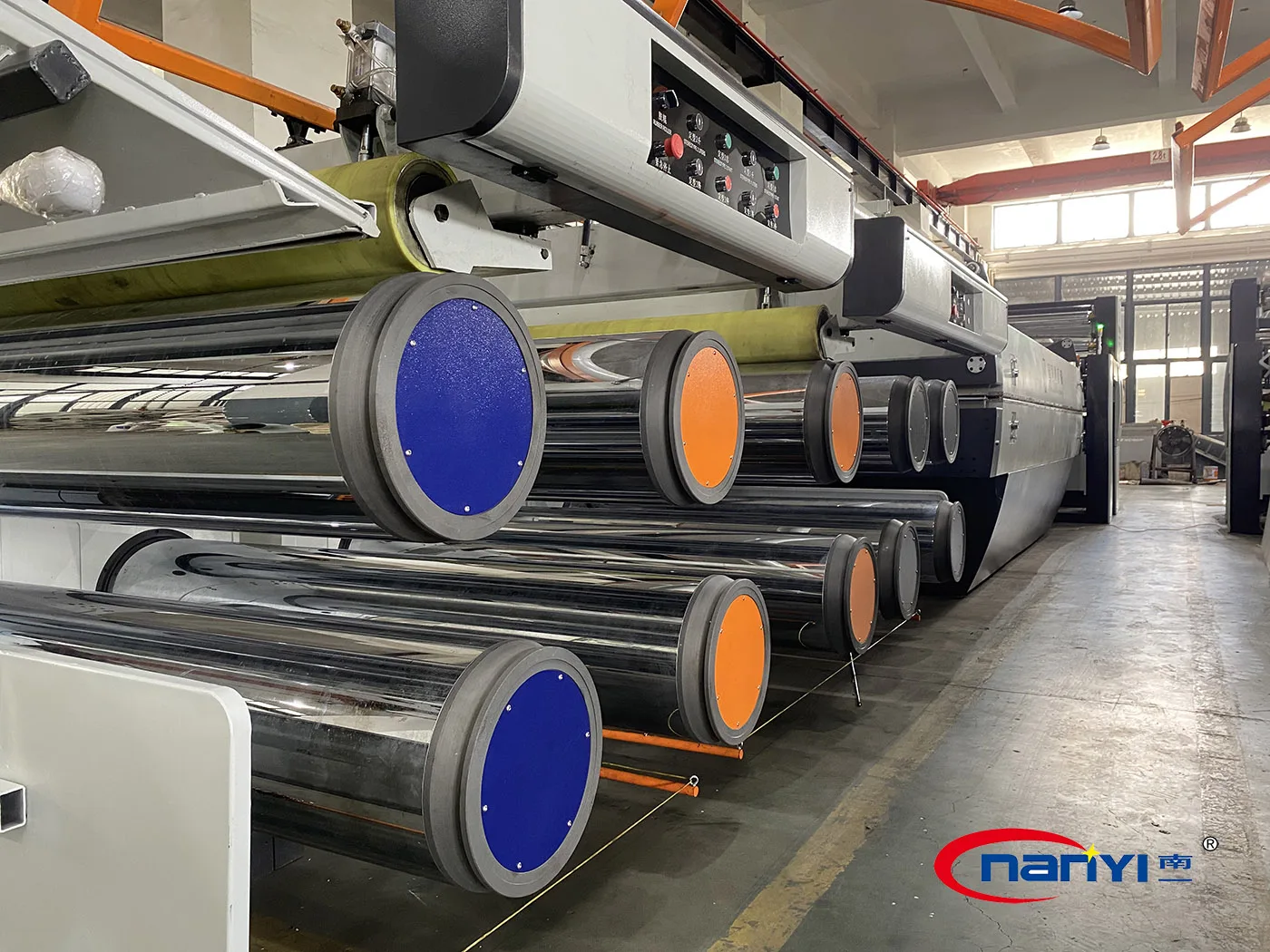

Name: 8 pieces Roller (cool&hot)
Brand: NANYI&PRESION
Original: China Includes heating and cooling double-sided control unit for more uniform diaphragm quality
Brand: NANYI&PRESION
Original: China Includes heating and cooling double-sided control unit for more uniform diaphragm quality
Machine Parts

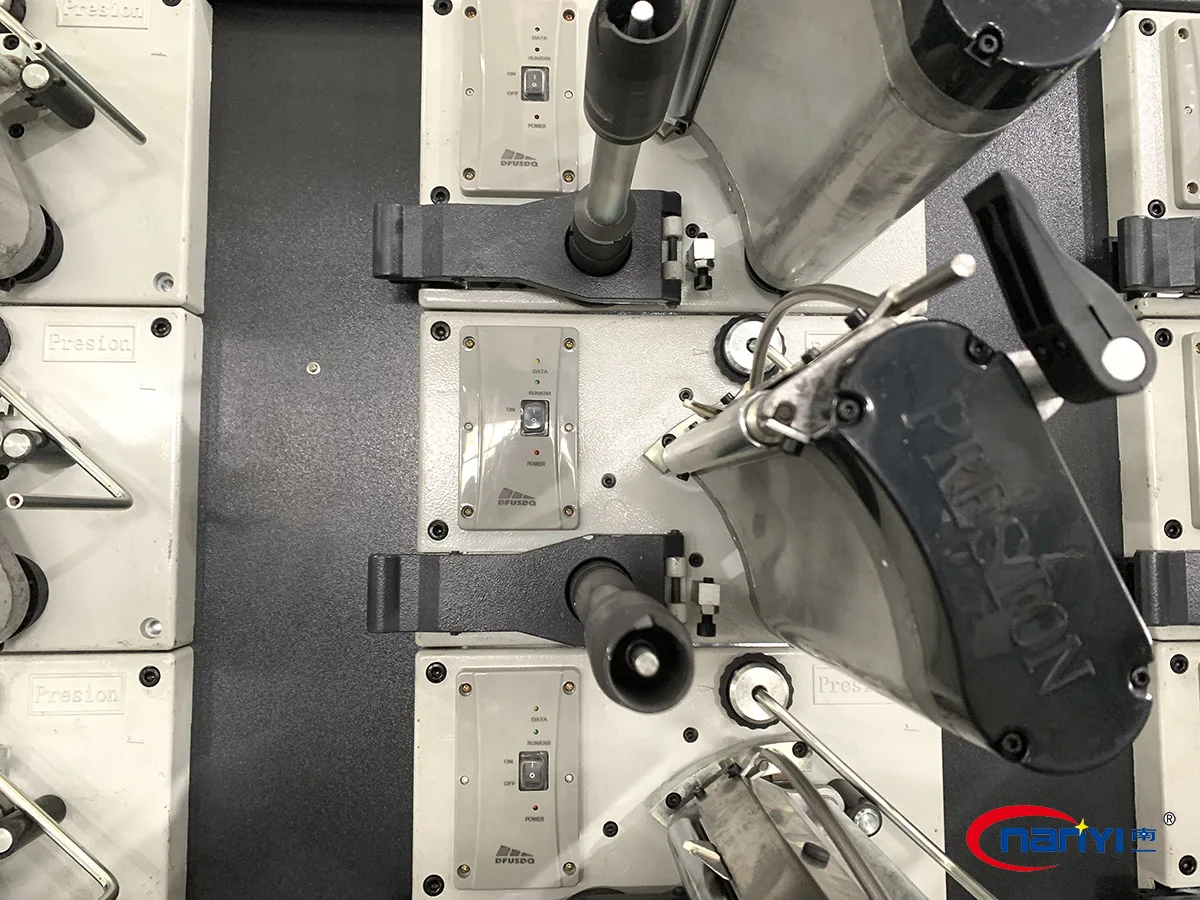

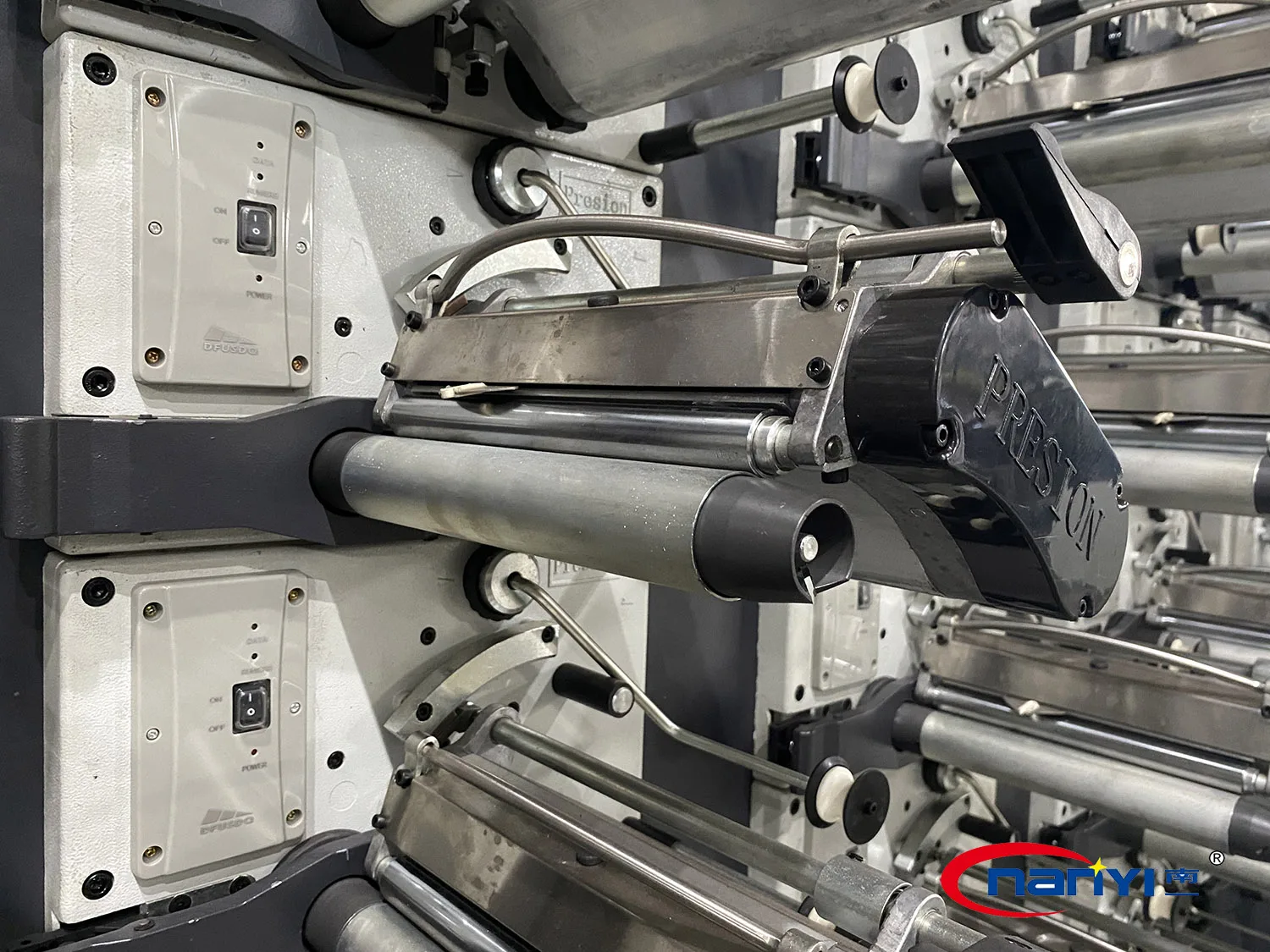

Name: High speed inverter winder
Brand: NANYI&PRESION
Original: ChinaRealizes the digital tension control mode to make the spindle shape better.
At the same time, the single spindle uses variable frequency control to achieve lower energy consumption.high-quality spindles are
used in the production of circular looms to ensure better weaving quality.
Brand: NANYI&PRESION
Original: ChinaRealizes the digital tension control mode to make the spindle shape better.
At the same time, the single spindle uses variable frequency control to achieve lower energy consumption.high-quality spindles are
used in the production of circular looms to ensure better weaving quality.
PP,PE Raw materials
Tape Extrusion Line
circular Loom
hydraulic balling machine
Auto cutting and sewing machine
printig machine

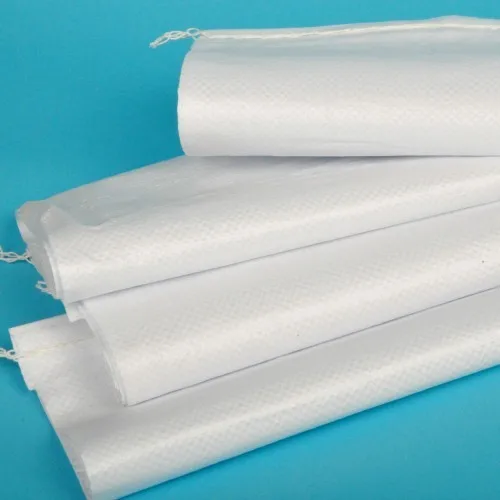

The bags made by the machine
Video

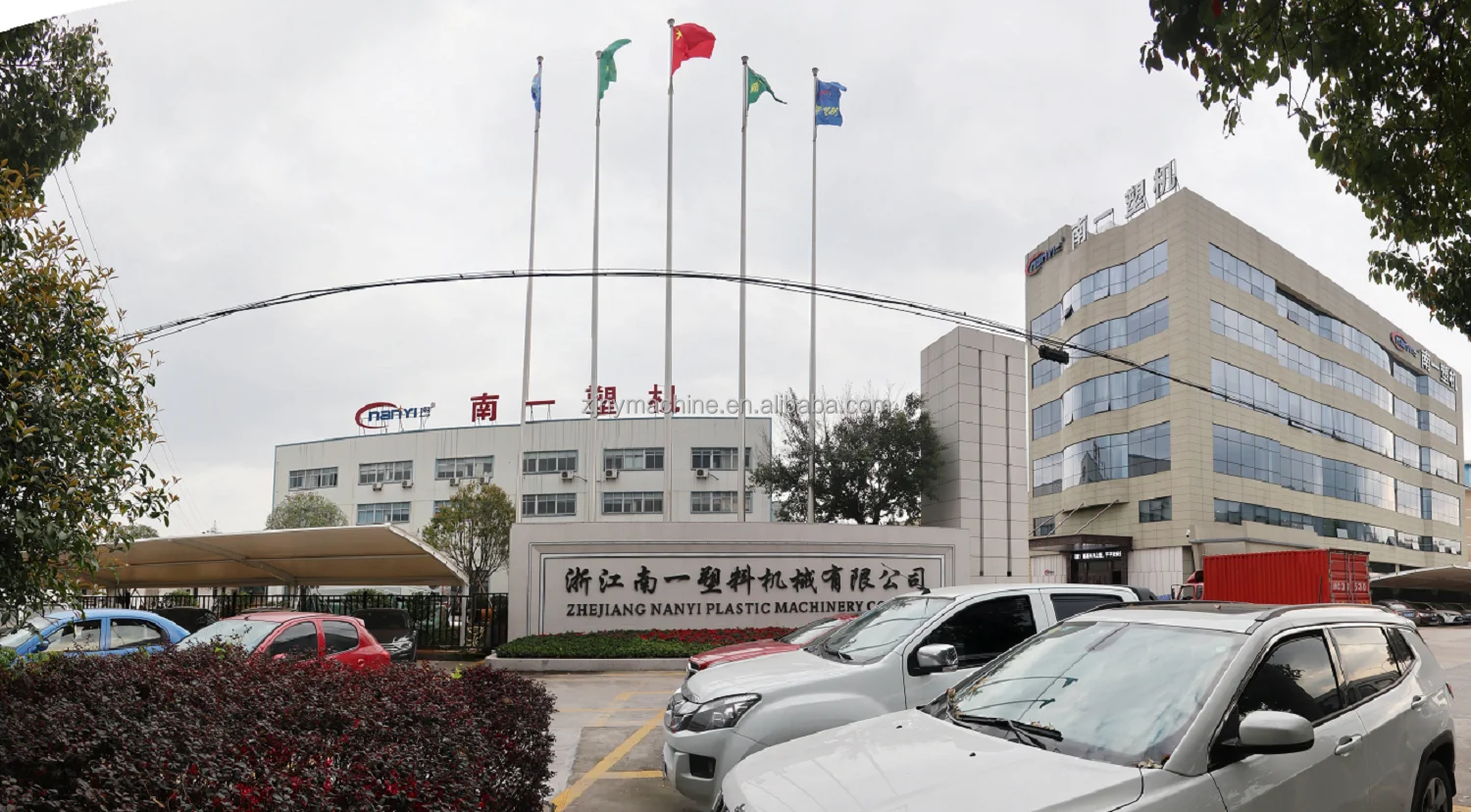

Company Profile
zhejiang nanyi plastic machinery co,ltd is a state -level high anad new technological enterprise which is a professional
manufacturer for whole set of plastic woven bags production line.our company has passed international quality system
authentication of ISO9001:2008 and has R&D center,and obtained more than ten national patents.
manufacturer for whole set of plastic woven bags production line.our company has passed international quality system
authentication of ISO9001:2008 and has R&D center,and obtained more than ten national patents.
Certifications
Recommend Products
FAQ & contact us
1. Are you trading company or manufacturer?
A: We are manufacturer.
2. What certificate do you have?
A: We have ISO9001, SGS, CE certificate.
3. What's the main market of your company?
A: we have customers all over the world.
4. What can you buy from us?
A: Plastic Tape Extrusion Line,Circular Loom,Automatic Cutting and Sewing Machine,Laminating Machine,Printing Machine.
5. How long is your machine's warranty period?
A: All our machine have one year guarantee.
6. How dose your factory do regarding quality control?
A: We have a special QC department in charge of product's quality.
7. What is your delivery time?
A: Normally, It needs about 45 days. The exact time depends on production management.
8. Can we visit your machine operation in your factory?
A: We have own plastic making company, you can see the machine operation.
9. How do we solve the machine problem after your engineer leaving?
A: Generally speaking, there will be no problem after finished installation, if any problems, you can contact our sales at any
time. Our engineer will take the solution video according to your description.
10. Where is your factory located? How can we visit there?
A: Our factory located in Chuiyang Industrial Zone, Aojiang town, Wenzhou City, Zhejiang, China
You can by air to Wenzhou Airport and by High-speed rain to pingyang Station.
We welcome all friends to visit us for future cooperation!
