New design compact structure agv polyurethane drive wheels TZ05 D04S02
- Category: >>>
- Supplier: Zhejiang Tongzhu Technology Co. Ltd.
Share on (1600343207243):
Product Overview
Description
Product Overview
TZ05-D04S02 Small Diameter Drive Wheel
With Steering Motor
The model of this product is TZ05-D04S02. Its rated voltage is 48V. It can be used for various types of AGV vehicles, electric stackers, tractors or other industrial automatic navigation vehicles.
PRODUCT SPECIFICATIONS
Traction Motor Parameters | ||
Rated power (s2-60min) | 400W | |
Rated voltage | 48V | |
Rated speed | 3000 | |
Rated current | 12A | |
Rated torque | 1.27NM | |
Braking torque | 4NM | |
Reduction ratio | 1:26.5 | |
Encoder | 2500PPR | |
Steering Motor Parameters | ||
Rated power (s2-60min) | 200W | |
Rated voltage | 48V | |
Rated speed | 3000 | |
Rated current | 5.5A | |
Rated torque | 0.64NM | |
Reduction ratio | 1:35 | |
Encoder | 2500PPR | |

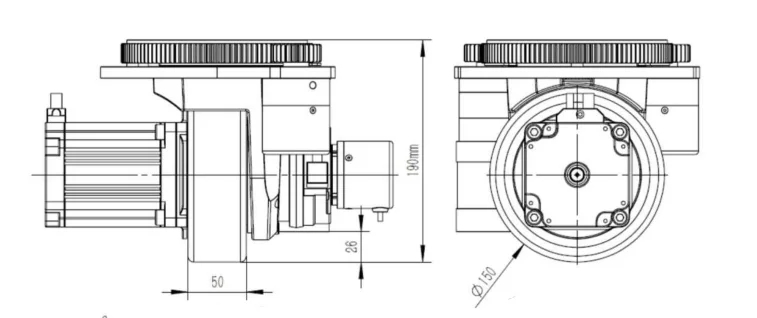

Dimensions
Advantages
Size&Structure
This wheel has a low installation height, drive more smoothly;
small wheel size,
which is ⌀150.
Equipped With
Servo Motor
Servo motor has the advantages of high precision,
good high-speed performance, strong anti-overload ability, and stable operation at low speed.
2500PPR Encoder
Servo motor is equipped with an incremental encoder with a resolution of 2500 PPR,
which can meet most needs.
