Product Overview
Description
GR1 GR2 commercially pure titanium plate
1. Titanium is a kind of rare nonferrous metal. Its density is 4.5g/cm³,it is just 60% of steel.So,it
is very lighter than most other metals.We can use it to make high strength,good rigidity and
light quality products.
2. Excellent corrosion resistance:it can work in the wet air,sea water,strong acid and strong alkai
3. Non magnetic nature:as it is a sort of Non magnetic metal,it cannot be magnetized easily.And
its nontoxic nature,a very good compatibility with human tissue and blood.So,it is widely adopted
in the field of Medical Science.
| Item Name | Titanium plate |
| Type | GR1, GR2, GR3, GR4, GR5, 6AL4V Eli, GR7, GR9, GR12, GR23,TB3, TB6, TC4, TC6, TC11, TC17, TC18 |
| Standard | ASTM B265, AMS4911, AMS4911H, GB/T3621-2007 |
| Specification | Hot Rolling: Length 1000-4000mm,Width 400-3000mm,Thickness 4.1-60mm Cold Rolling :Length 1000-3000mm,Width 400-1500mm,Thickness 0.3-3.0mm |
| Certificate | ISO 9001:2008 |
| Supply Ability | 10 Tons per Month |
| Delivery | Within 5~30 days |
Chemical Composition
| Grade | N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | bal |
| Gr3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | bal |
| Gr4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | / | / | / | / | / | |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
Tensile Requirements
| Grade | Tensile strength(min) | Yield Strength(min) | Elongation(%) | ||
| ksi | MPa | ksi | MPa | ||
| Gr1 | 35 | 240 | 20 | 138 | 24 |
| Gr2 | 50 | 345 | 40 | 275 | 20 |
| Gr3 | 65 | 450 | 55 | 380 | 18 |
| Gr4 | 80 | 550 | 70 | 483 | 15 |
| Gr5 | 130 | 895 | 120 | 828 | 10 |
2.Products shows
3.Quality

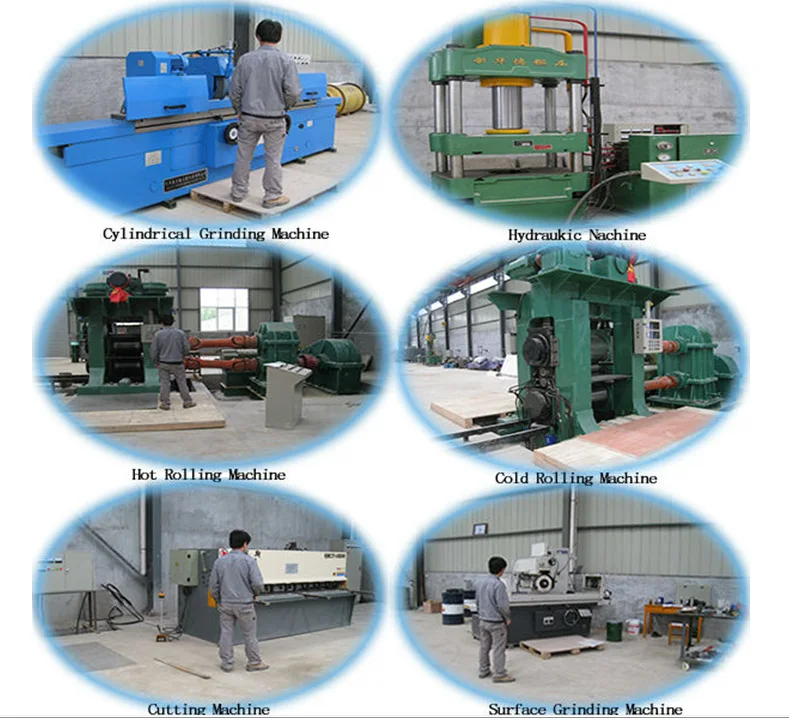

4.Factory
