Small Cassava Starch Airflow Flash Dryer Drying Machine
- Category: Flash Drying Equipment >>>
- Supplier: Zhengzhou,Jiutian,Technology,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Model | Inner Diameter(mm) | Air Volume(m³/h) | Evaporation Capacity(kg/h) | Total Power(kw) | Max Height(m) | Covering Area(㎡) |
XSG-2 | 200 | 350-500 | 12-17 | 10 | 4 | 15 |
XSG-4 | 400 | 1150-2000 | 40-70 | 20 | 4.8 | 20 |
XSG-6 | 600 | 2450-4500 | 80-150 | 40 | 5.8 | 28 |
XSG-8 | 800 | 4450-7550 | 150-250 | 65 | 6.5 | 35 |
XSG-10 | 1000 | 7000-12500 | 230-425 | 85 | 7.1 | 40 |
XSG-12 | 1200 | 10000-20000 | 300-600 | 105 | 7.8 | 52 |
XSG-16 | 1600 | 18000-36000 | 600-1000 | 150 | 8.8 | 80 |
XSG-20 | 2000 | 28200-56500 | 1000-1500 | 230 | 10.1 | 150 |
Introduction
The flash dryer is widely used in the dispersion and drying of granular, powdery, paste-like and filter cake-like false
agglomerates in the chemical, pharmaceutical, building materials, food, feed, and other industries.
The flash dryer has the advantages of the small occupied area, low energy consumption, high thermal efficiency, and continuous mass production. The flash dryer body is provided with a rotary cutting device, and the dry material is subjected to shearing,rotating, collision, friction, etc., so that the material is pulverized and refined, and is highly dispersed, thereby achieving the effect of efficiently and rapidly evaporating water. The dryer is equipped with an air filter to achieve the cleanliness of the hot air and to provide production conditions for the hygiene requirements of the food industry. The machine sets the cyclone separation and collecting materials. In addition, the bag dust removal receipt is added to increase the material recovery rate. It can improve the economic efficiency of enterprises. The dryer can be customized according to user needs.
agglomerates in the chemical, pharmaceutical, building materials, food, feed, and other industries.
The flash dryer has the advantages of the small occupied area, low energy consumption, high thermal efficiency, and continuous mass production. The flash dryer body is provided with a rotary cutting device, and the dry material is subjected to shearing,rotating, collision, friction, etc., so that the material is pulverized and refined, and is highly dispersed, thereby achieving the effect of efficiently and rapidly evaporating water. The dryer is equipped with an air filter to achieve the cleanliness of the hot air and to provide production conditions for the hygiene requirements of the food industry. The machine sets the cyclone separation and collecting materials. In addition, the bag dust removal receipt is added to increase the material recovery rate. It can improve the economic efficiency of enterprises. The dryer can be customized according to user needs.
Working Principle
The flash dryer comprising：

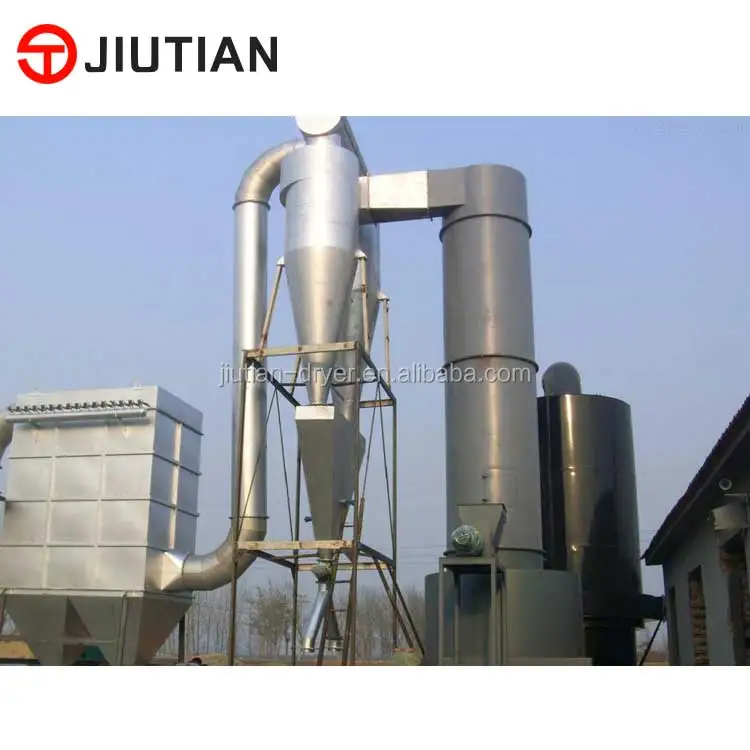

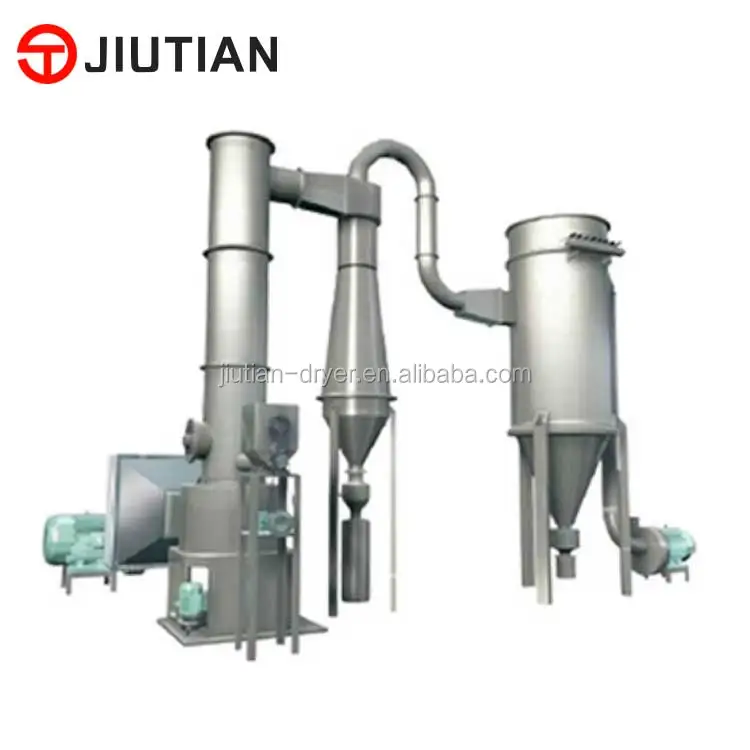

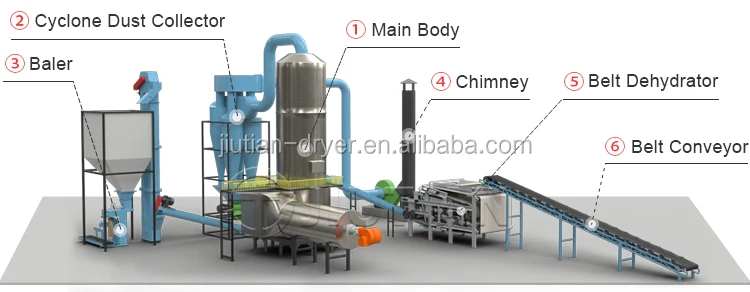

The flash dryer consists of a dry main engine, feeder, heat source device (hot air furnace or steam), air filter, air blower, cyclone separator, bag filter, and induced draft fan.
Air Stream Flow Process：
The hot air tangentially enters the bottom of the dryer and is driven by the agitator to form a powerful rotating wind field. The paste material enters the dryer by the screw feeder. Under the strong action of the high-speed rotating stirring paddle, the material is dispersed under the action of impact, friction and shearing force, the block material is rapidly pulverized, and it is fully contacted with hot air and heated, and dry. The dehydrated dry material rises with the hot gas flow, and the classification ring intercepts the large particles. The small particles are discharged from the center of the ring to the outside of the dryer and are recovered by the cyclone separator and the dust collector. The dry material is not dried or the bulk material is subjected to centrifugal force, fell to the bottom and was crushed and dried.
The flash dryer consists of a dry main engine, feeder, heat source device (hot air furnace or steam), air filter, air blower, cyclone separator, bag filter, and induced draft fan.
Air Stream Flow Process：
The hot air tangentially enters the bottom of the dryer and is driven by the agitator to form a powerful rotating wind field. The paste material enters the dryer by the screw feeder. Under the strong action of the high-speed rotating stirring paddle, the material is dispersed under the action of impact, friction and shearing force, the block material is rapidly pulverized, and it is fully contacted with hot air and heated, and dry. The dehydrated dry material rises with the hot gas flow, and the classification ring intercepts the large particles. The small particles are discharged from the center of the ring to the outside of the dryer and are recovered by the cyclone separator and the dust collector. The dry material is not dried or the bulk material is subjected to centrifugal force, fell to the bottom and was crushed and dried.
Zhengzhou Jiutian Machinery Equipment Co.,Ltd covers coal drying system equipment for slime, lignite, Mongolian coal, clean coal and fly ash;Dregs drying equipment for Brewer’s grains,corn shell,kitchen waste,cassava residue,fruit residue,sauce residue,potato residue,bagasse residue,medicine residue;drying equipment for corn,sorghum, rice,soybean, peanut seedling and wheat straw;haydrying equipment for alfalfa,oats,dog tail grass,etc;complete wood processing leftovers drying and pelletizing production line for sawdust, shavings,wood flour,wood bran and wood chips etc;other drying product for gypsum, slag materials, bentonite,sludge etc.
Q: What is your Business Model? Trading company or factory?
A: We are a 15 years factory, all our machinery is manufactured by ourselves, factory direct sales, product quality, and
after-sales service can be guaranteed.
Q: What is the Quality of your products?
A: Zhengzhou Jiutian products come with the best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, India, Italy, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia,South Africa, etc. You can rest assured of the quality absolutely.
Q: How long is the Warranty of your equipment?
A: Our warranty period is one year generally.
A: We are a 15 years factory, all our machinery is manufactured by ourselves, factory direct sales, product quality, and
after-sales service can be guaranteed.
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is located in Zhengzhou Henan province, China, you can come here by air or train. The nearest airport is Zhengzhou Xinzheng International Airport, and the Airport Code is CGO.We will pick you up at the airport. Welcome to visit our factory.
A: Yes. Many domestic and international customers visit our factory every year. Our company is located in Zhengzhou Henan province, China, you can come here by air or train. The nearest airport is Zhengzhou Xinzheng International Airport, and the Airport Code is CGO.We will pick you up at the airport. Welcome to visit our factory.
Q: What is the Quality of your products?
A: Zhengzhou Jiutian products come with the best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, India, Italy, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia,South Africa, etc. You can rest assured of the quality absolutely.
Q: How long is the Warranty of your equipment?
A: Our warranty period is one year generally.
