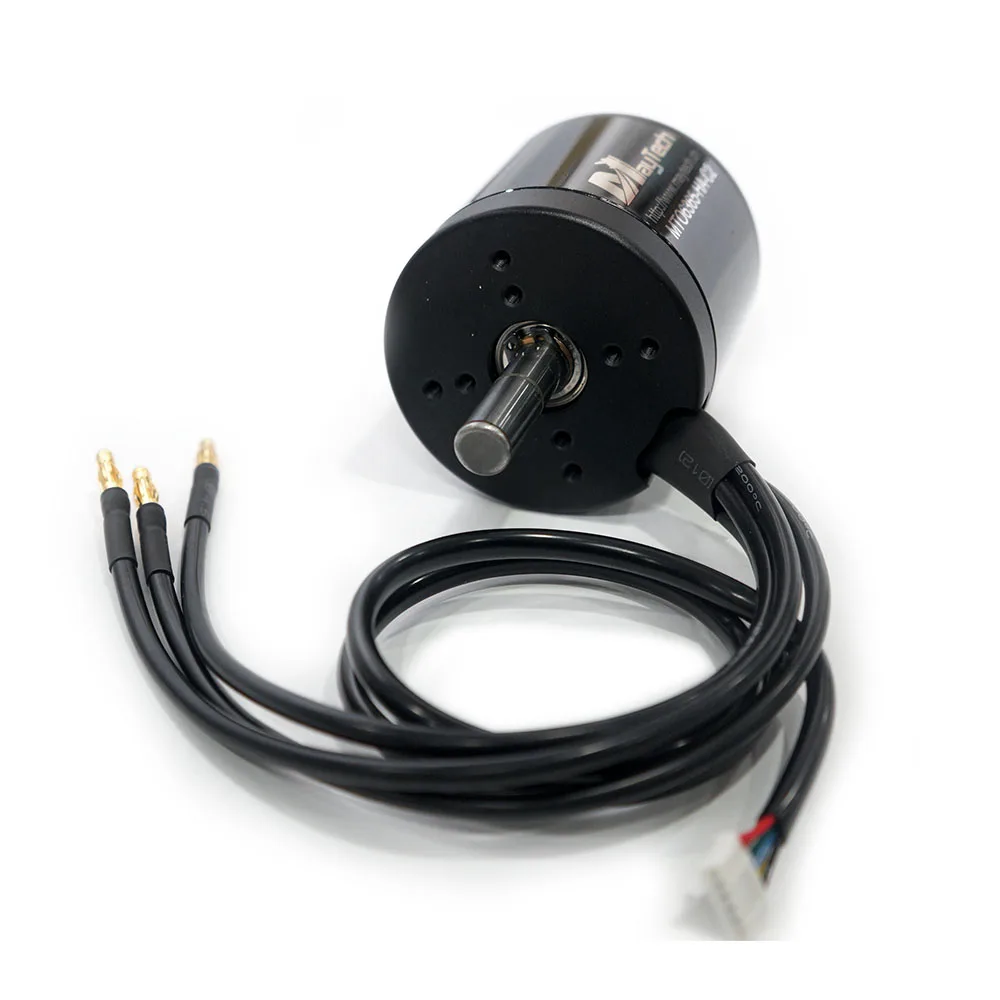

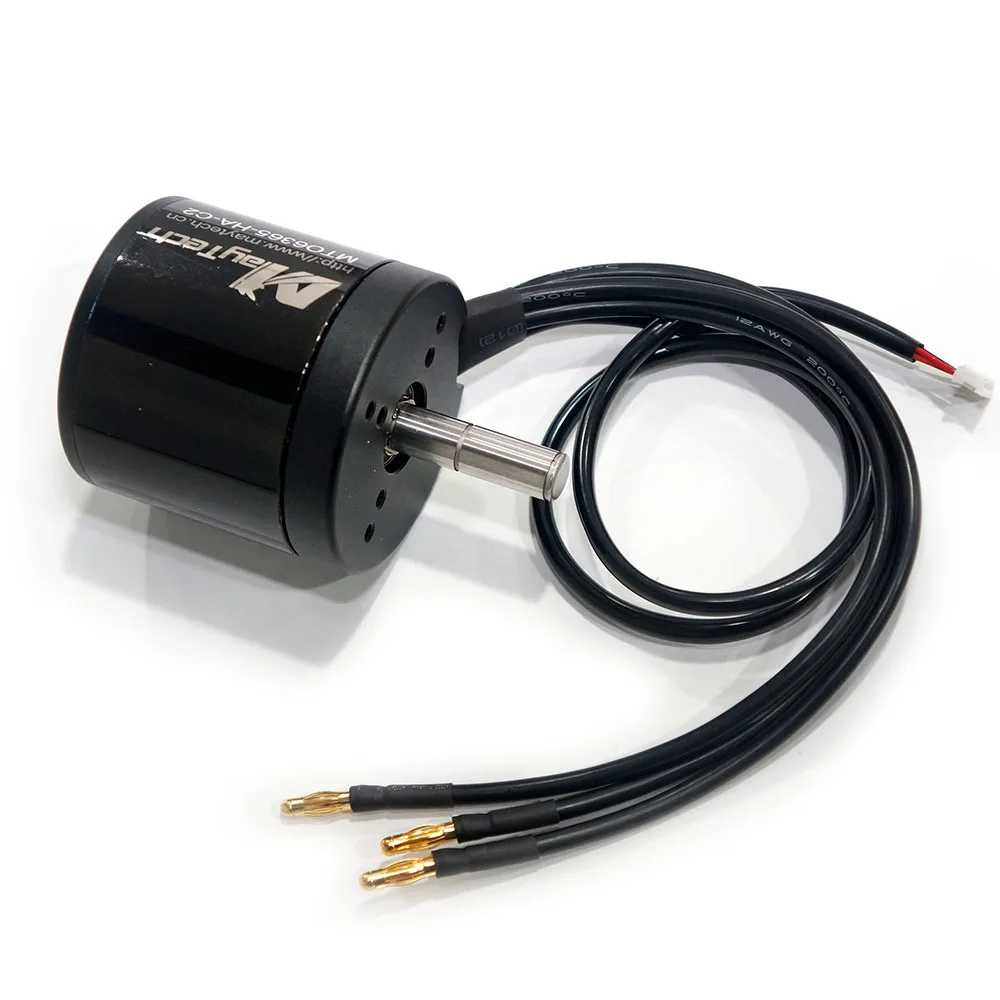

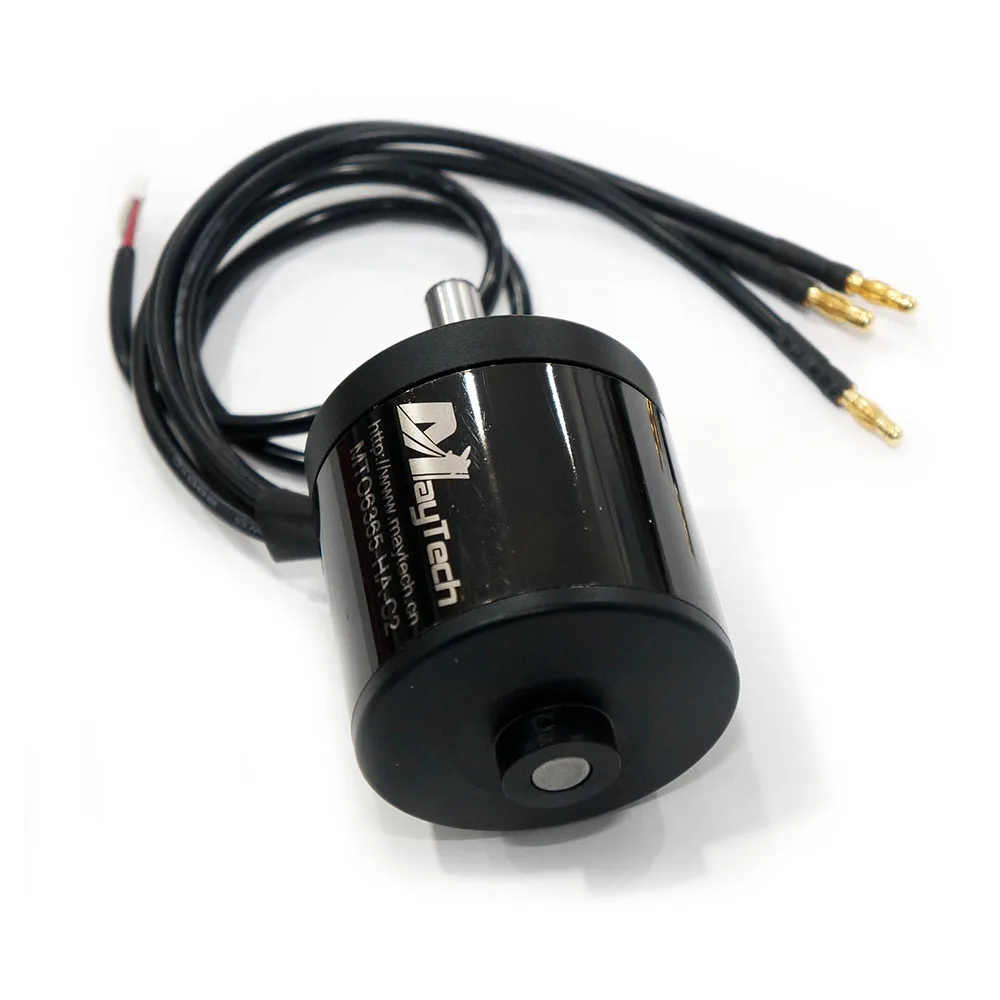

Maytech 6365 170KV Motor 10mm Shaft Outrunner Brushless Motors for Cable Camera Bike Robotics Closed Cover Electric Engine
- Category: >>>
- Supplier: MayRC Industrial Co. Ltd.
Share on (1600343465664):
Product Overview
Description
Products Description

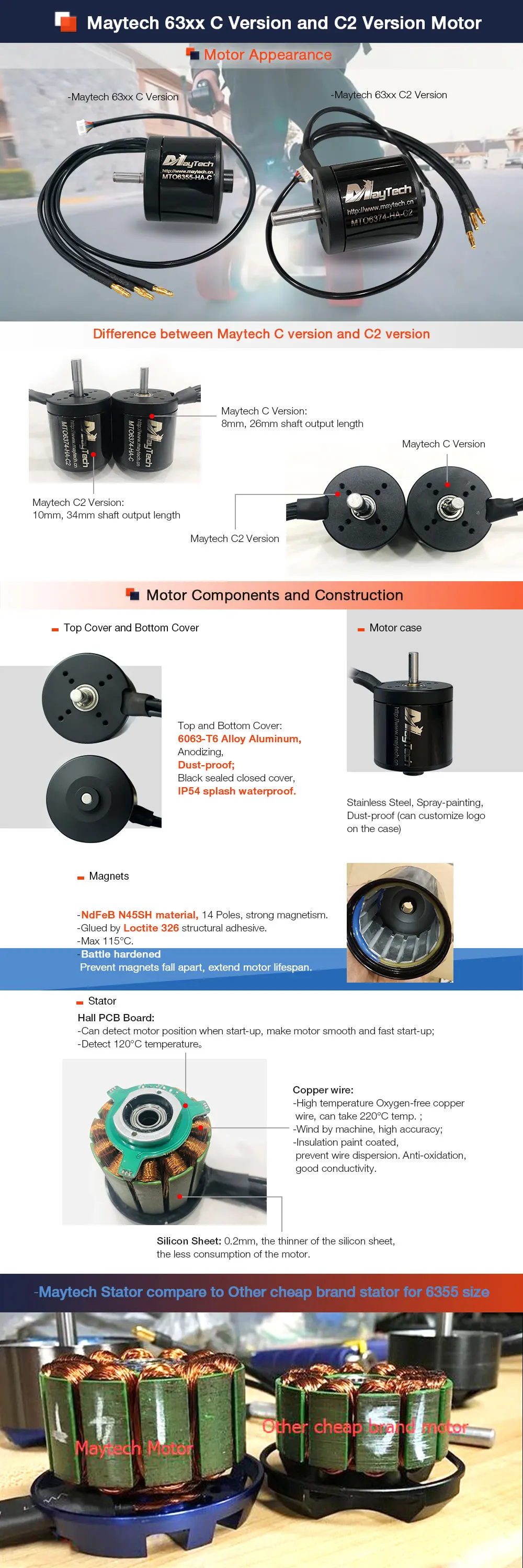

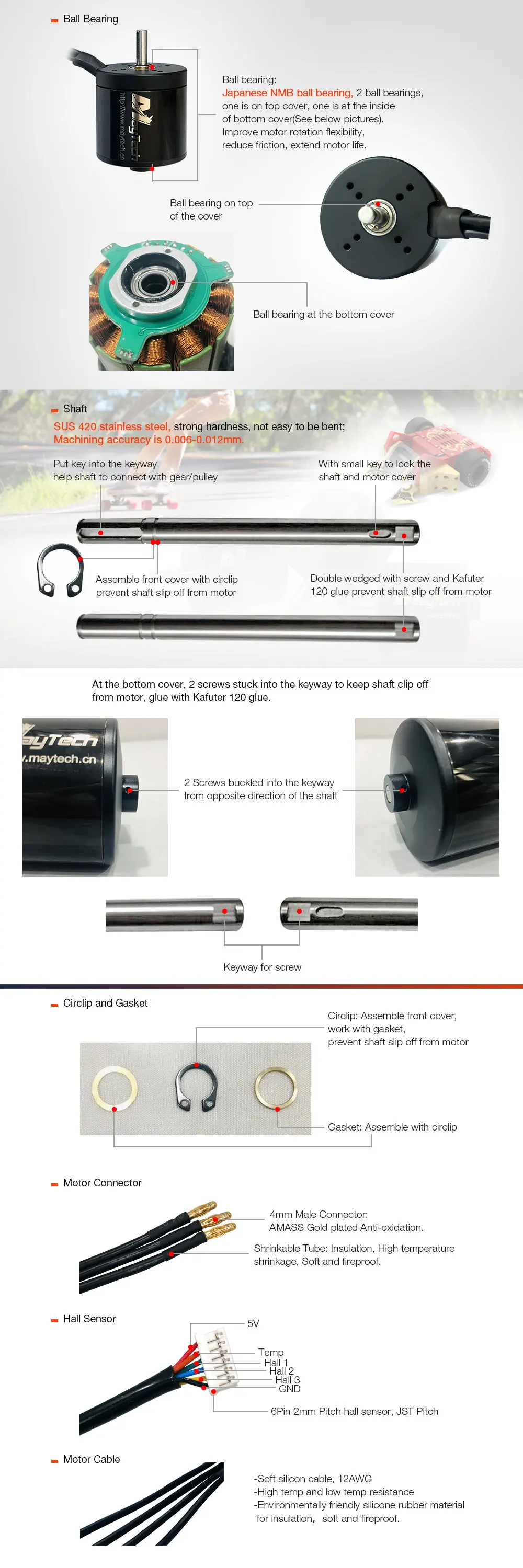

Features
The up and bottom covers are made of aluminium alloy, motor case is steel. Use high temperature and oxygen-free copper wire.
NMB Japanese bearings.
Magnets is 45h sintered ndfeb magnet.
Stator is stacked with silicon steel.
Stainless steel shaft.
4mm AMASS Male Connector.
12AWG motor cable.
NMB Japanese bearings.
Magnets is 45h sintered ndfeb magnet.
Stator is stacked with silicon steel.
Stainless steel shaft.
4mm AMASS Male Connector.
12AWG motor cable.

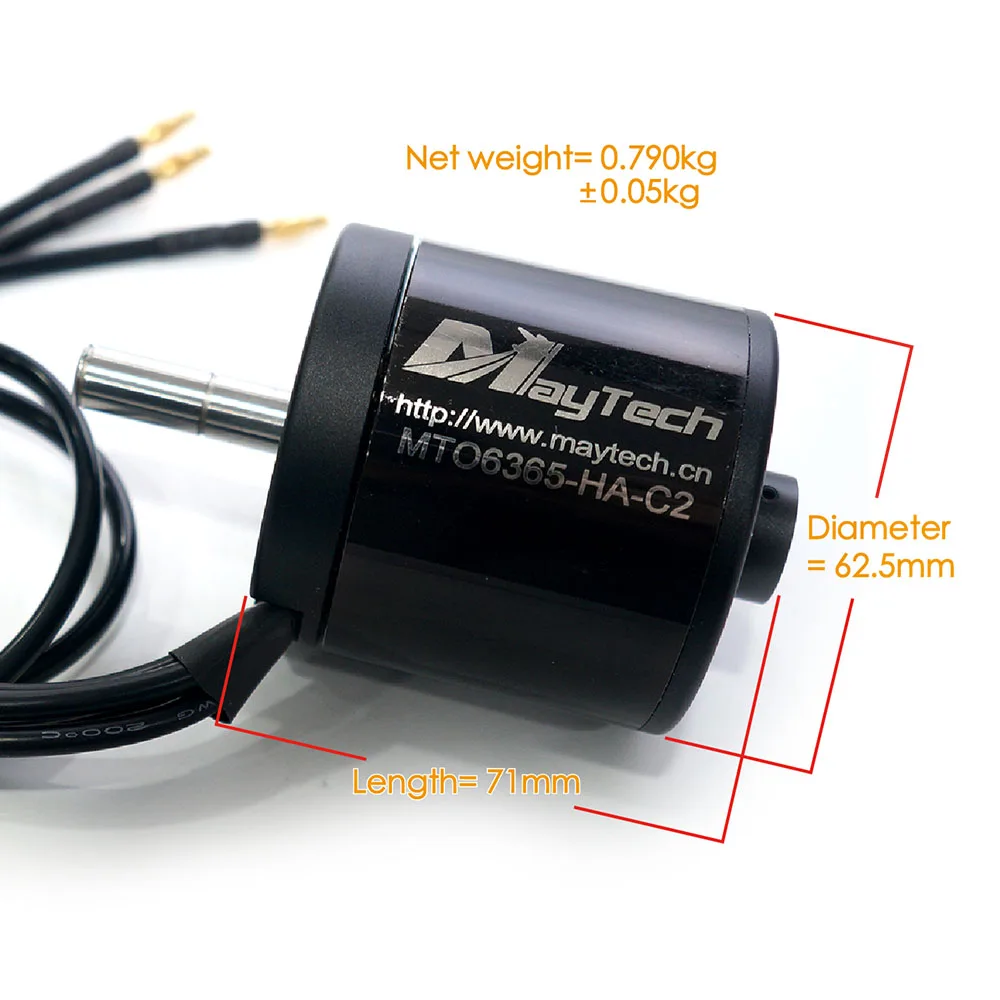

Model No. | MTO6365-170-HA-C2 | KV | 170KV | ||
Idle Current | 0.8A | Max Current | 65A | ||
Input Volt | 2-12S | Max Output Watt | 3520W | ||
Rated Current | 60A | Shaft | 10mm | ||
Output Shaft Length | 34mm | Internal Resistance | 0.0402 | ||
Hall Sensor | Yes | Motor Cable Length | 240mm | ||
Sensor Cable Length | 500mm | Motor Connector | 4mm Male Connector | ||

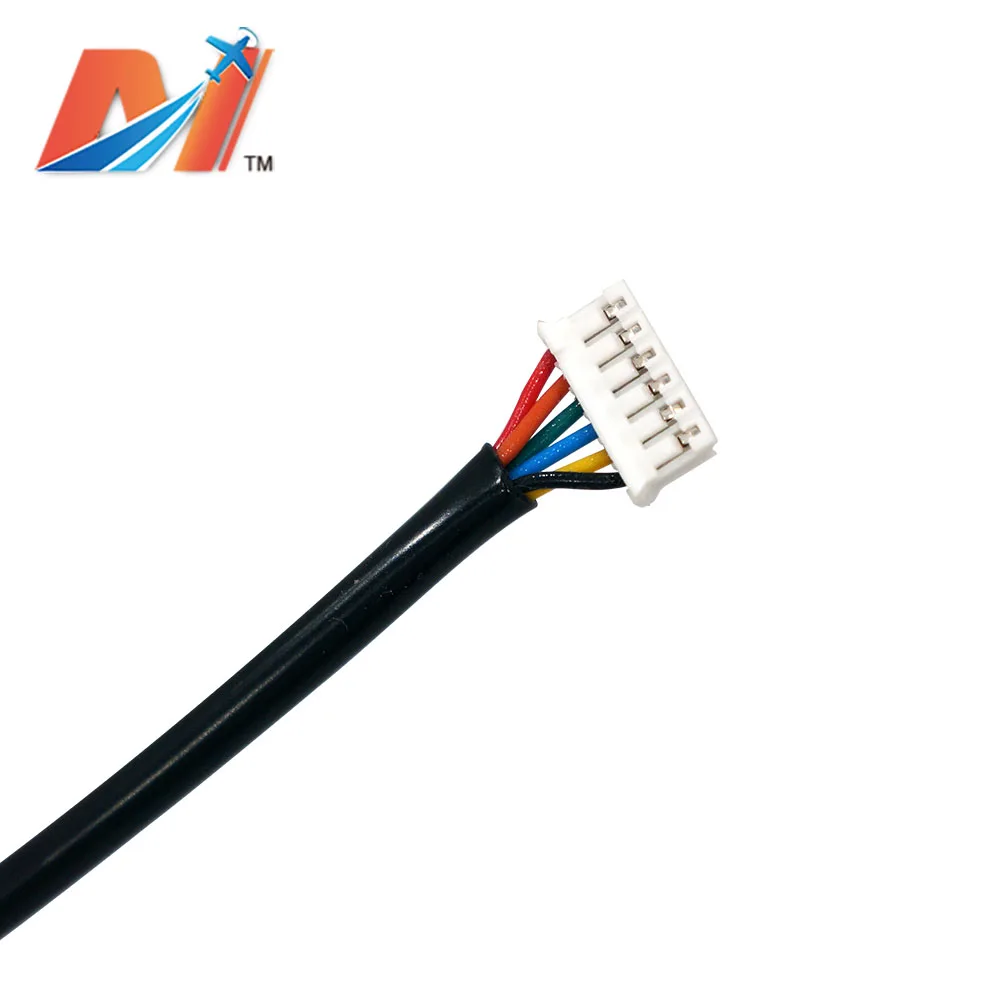

Hall Sensor Connect | 6pin 2mm Pitch JST Connector | Battle Hardened | Yes | ||
Keyway | With 3mm keyway, key is not included | Cover | Sealed Cover, splash proof and dustproof | ||
Application | Electric skateboard, longboard, mountainboard, fighting robots, e-bike, e-scooter, walking robots, delivery robots, etc., | ||||

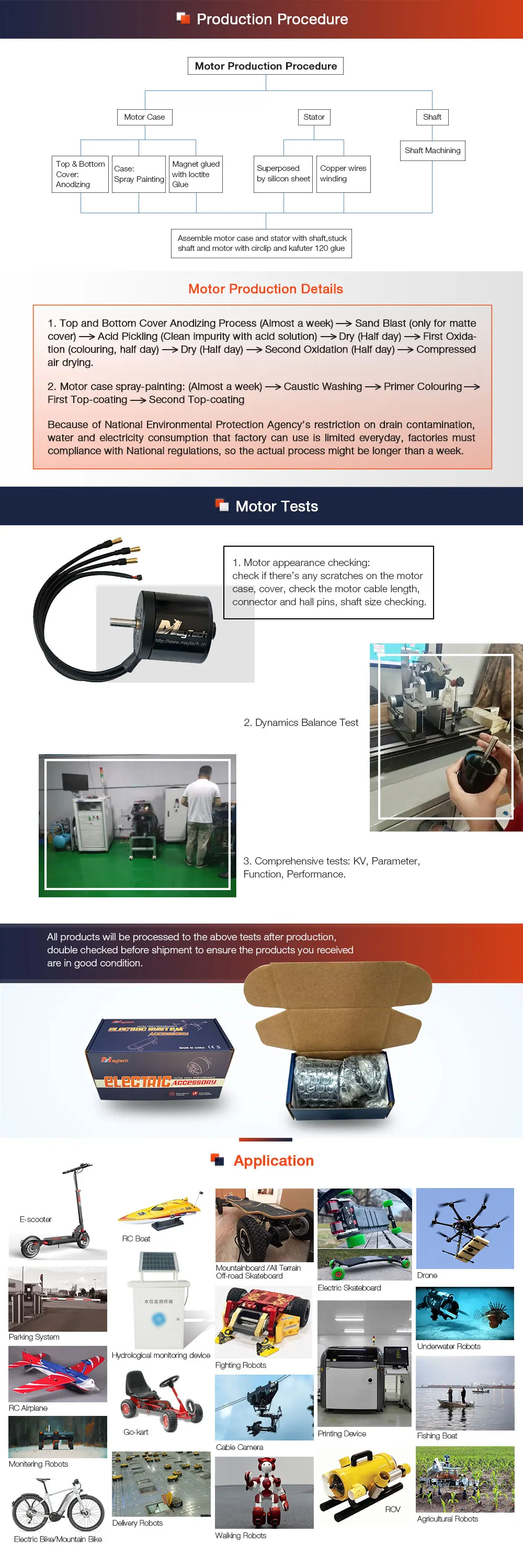

Production
