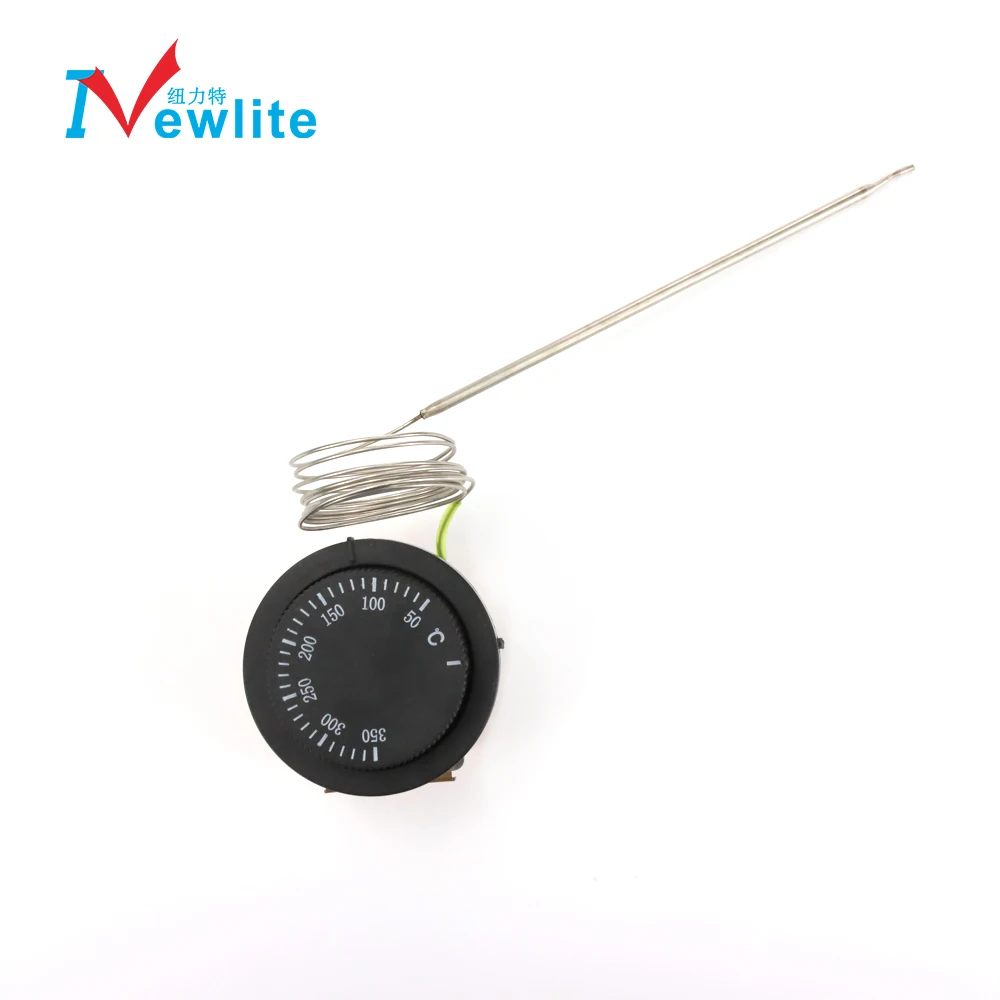

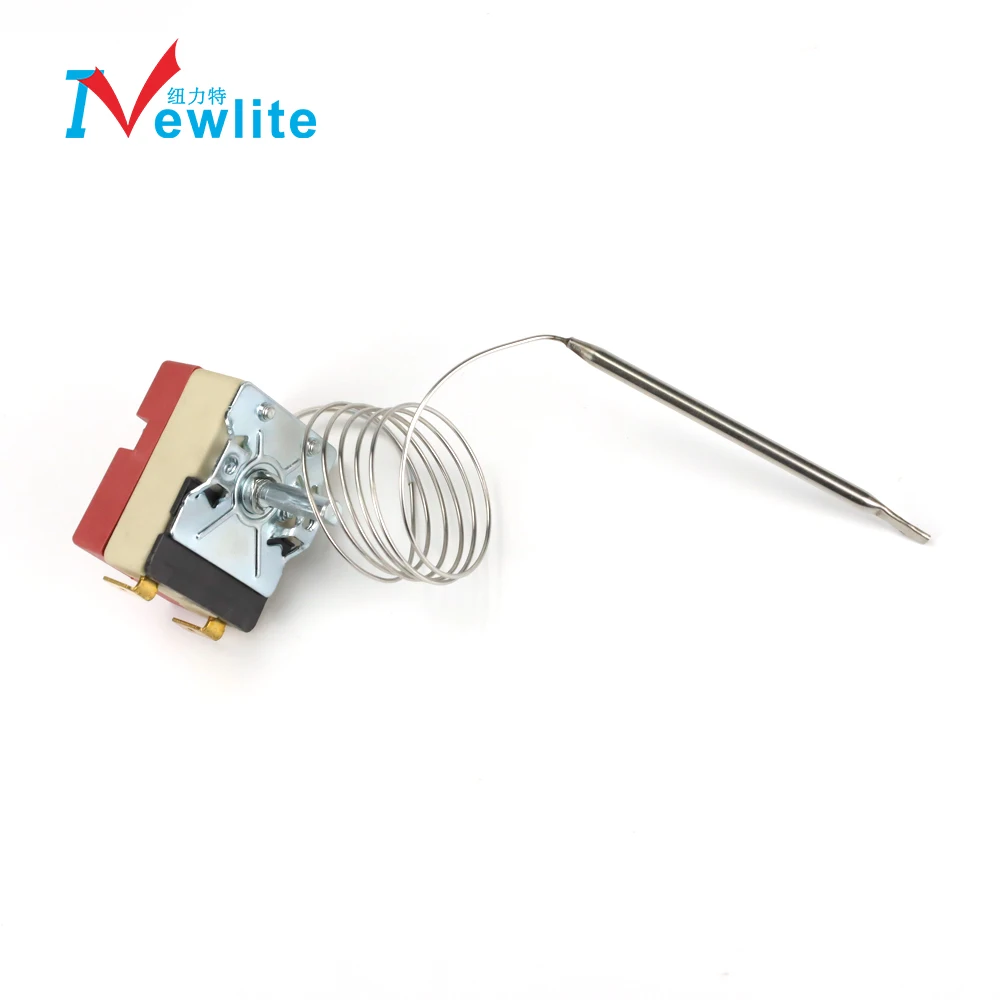

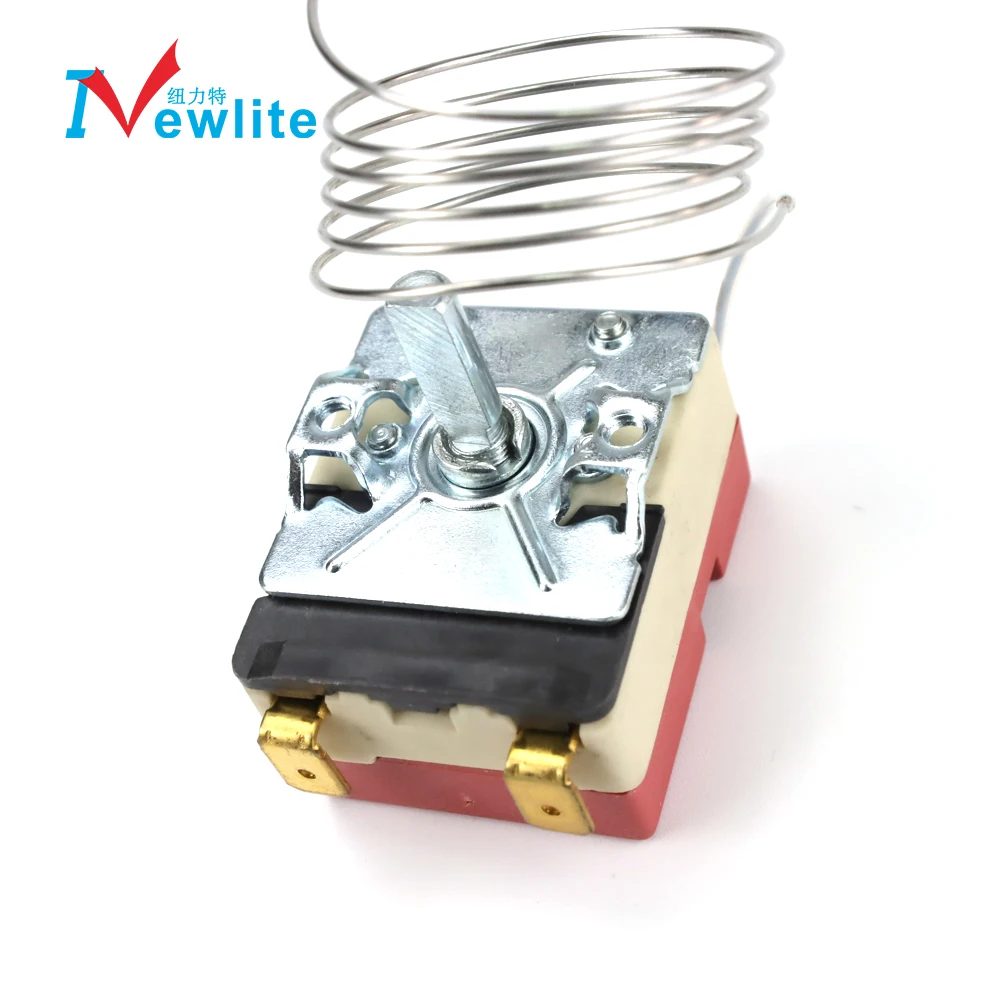

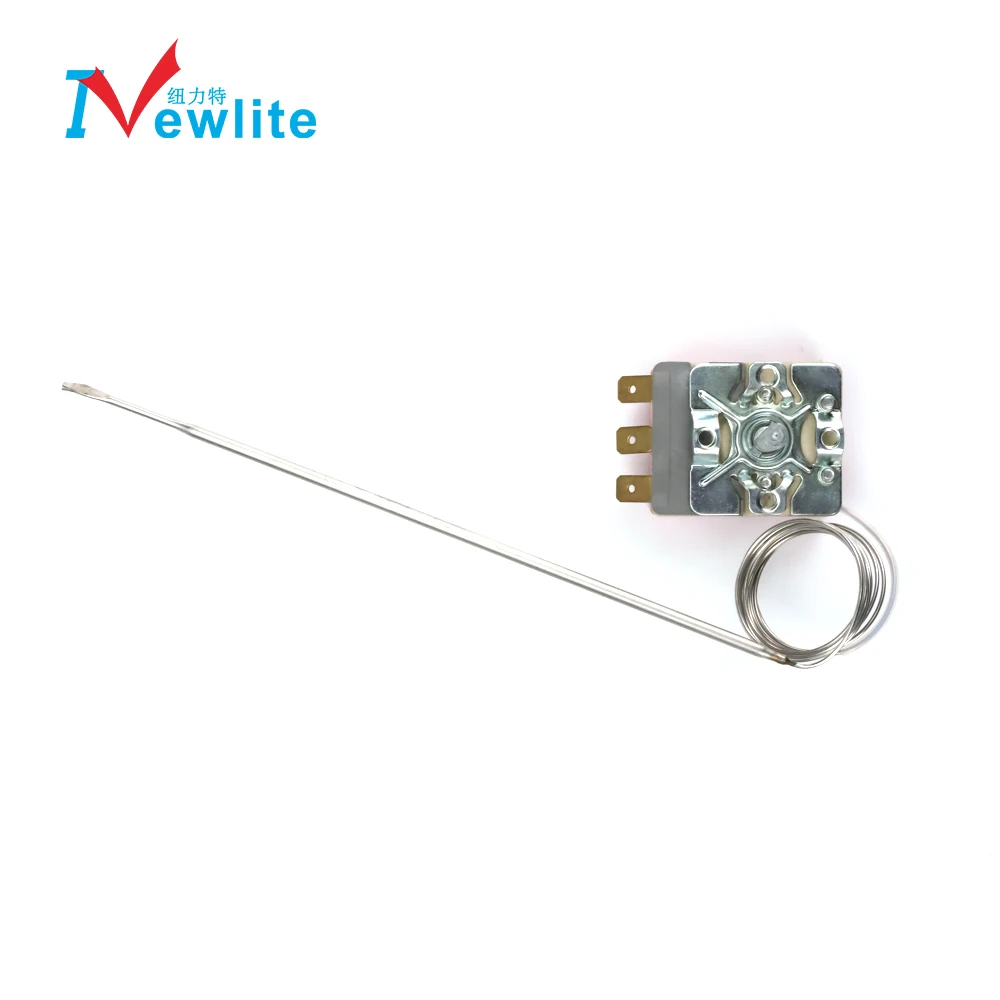

capillary thermostat with knob

Thermostat Features:
1)  (high-temperature thermostat)
2) Widely used for electric water heaters, washers, electric ovens, fried pans
and water boilers
3) Designed temperature range: 30 - 350
4) On-off temperature difference: 2 - 15
5) Rated at 15A / 250V, 50 / 60HZ
6) The center of installing hole: 28±0.25mm
7) Operating life: ≥100,000 times
8) Manufactured on request

Changheng possesses whole set of integrated after-sales system for your any consultation or questions for using products or occured problems .

1,electric property:16(3)A-250V~ 10(1.8)A-400V~
2,(-35°C~+320°C)
3,product life:>100000
4,AC2000V/1min
5,resistance:≥100MΩ
6,contact resistance:≤50mΩ
7,insulation resistance:≥10MΩ
8,speed of response:≤1.0°C/min
9,minimum current :200mA
