Trustworthy Supplier flawless aseptic Sachet liquid stainless steel filling machines
- Category: >>>
- Supplier: Nantong Bolang Machinery Technology Co. Ltd.
Share on (1600343553673):
Product Overview
Description
Our Product Advantages
1.We have many high quality and reliable suppliers.
2.We have young and powerful sales team, and have enough exported experience.
3. Our products are of excellent quality and fast processing speed.
4.Rich experience, more than 1,500 global customers, more than 20 years of factory history.
5. Rich product categories, products support OEM and customer customization.
6. One-year warranty, can provide overseas installation and debugging services.
7.We all hope all of our clients will enjoy doing business with us. We look forward to be your reliable partner.
Product Description

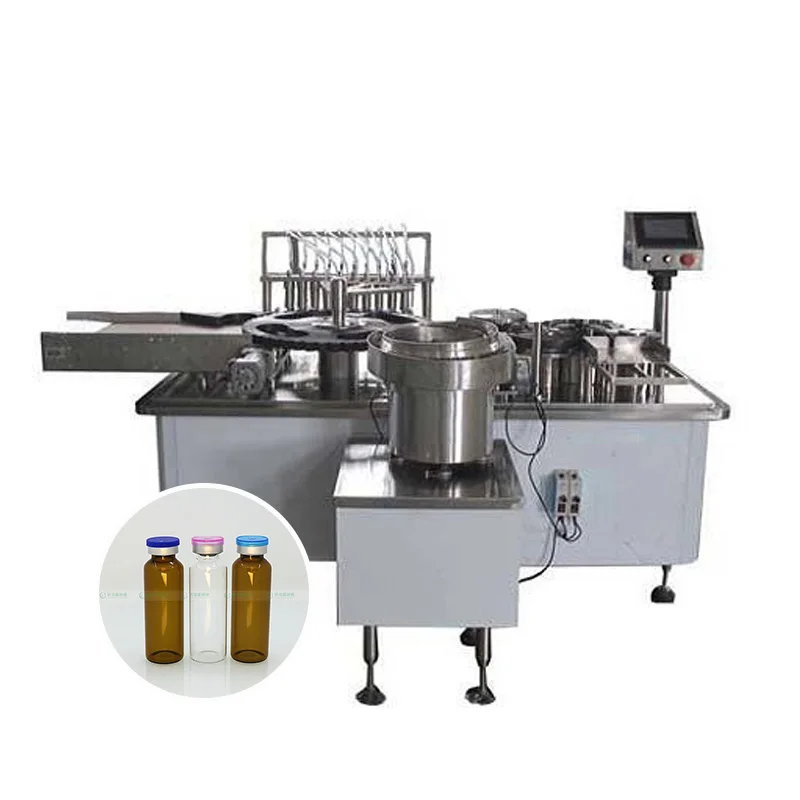

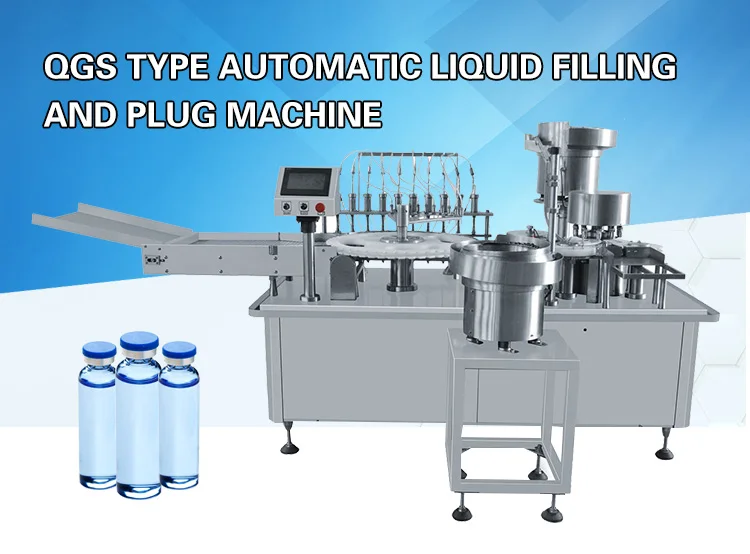

Trustworthy Supplier flawless aseptic Sachet liquid stainless steel filling machines
Product Function

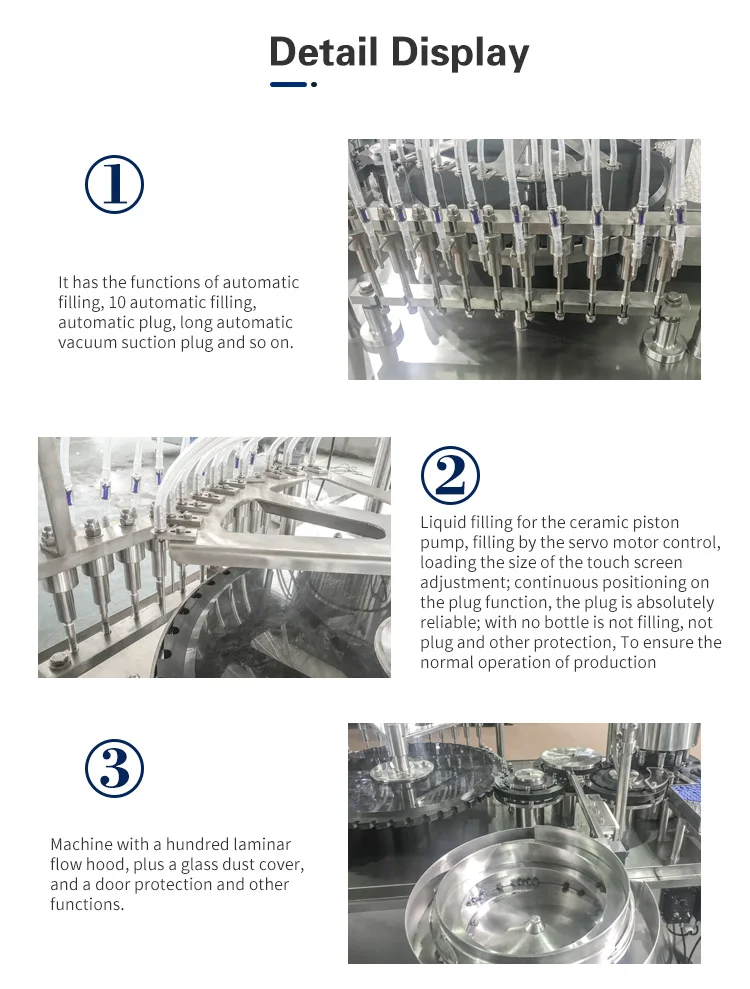

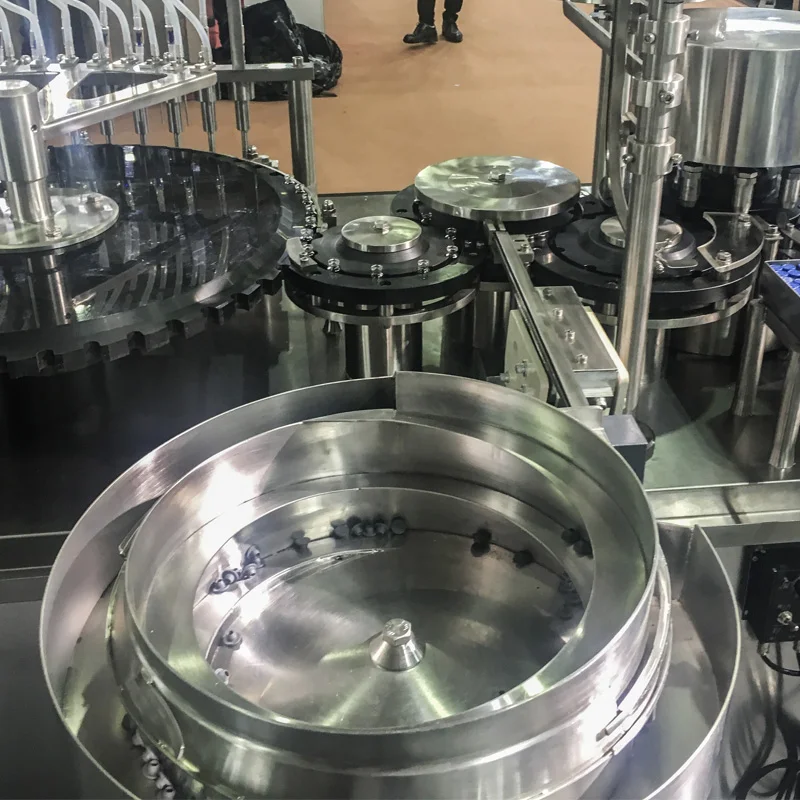

1.This machine is the main machine of freeze-dried products or liquid filling line of Xilin bottle.It has the fynctions of automatic feeding,auotomatic filling,automatic feeding,automatic vacuum suction and pressure plug.2.The whole machine adopts advanced technology such as frequency conversion speed regulation,programmable controller and touch operation interface.

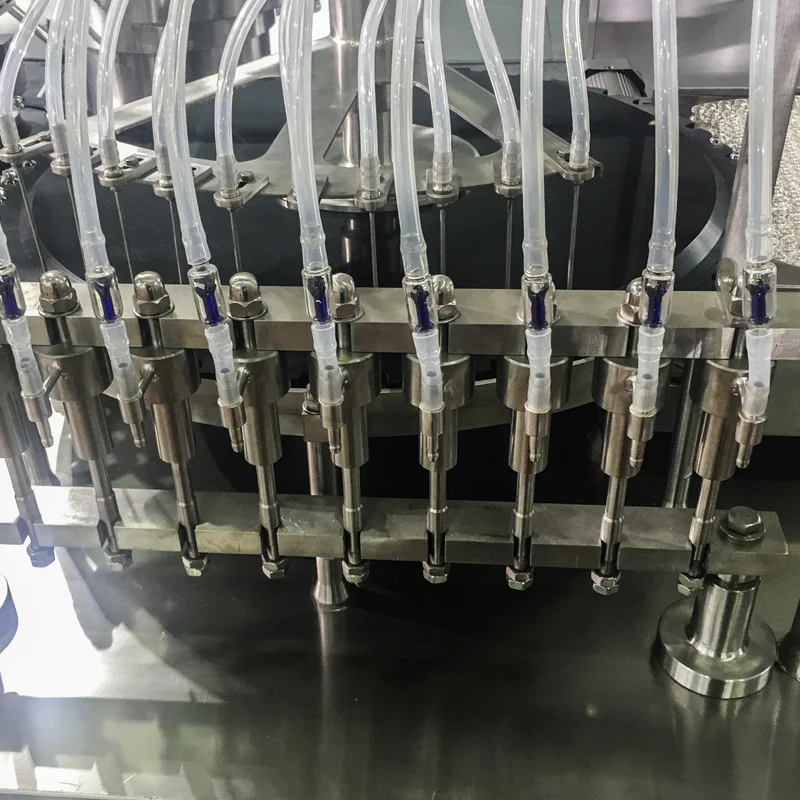

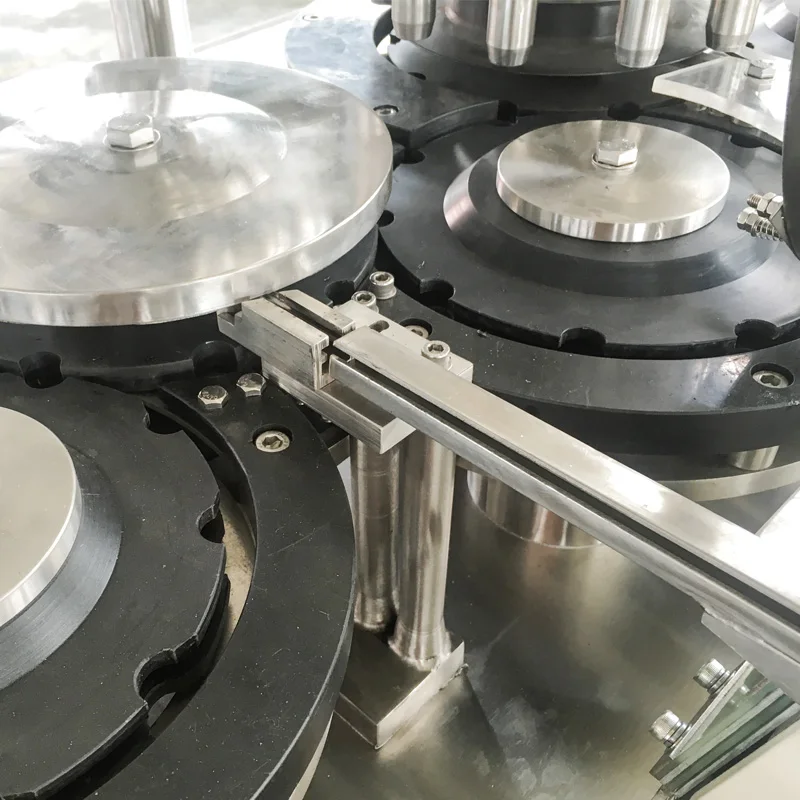

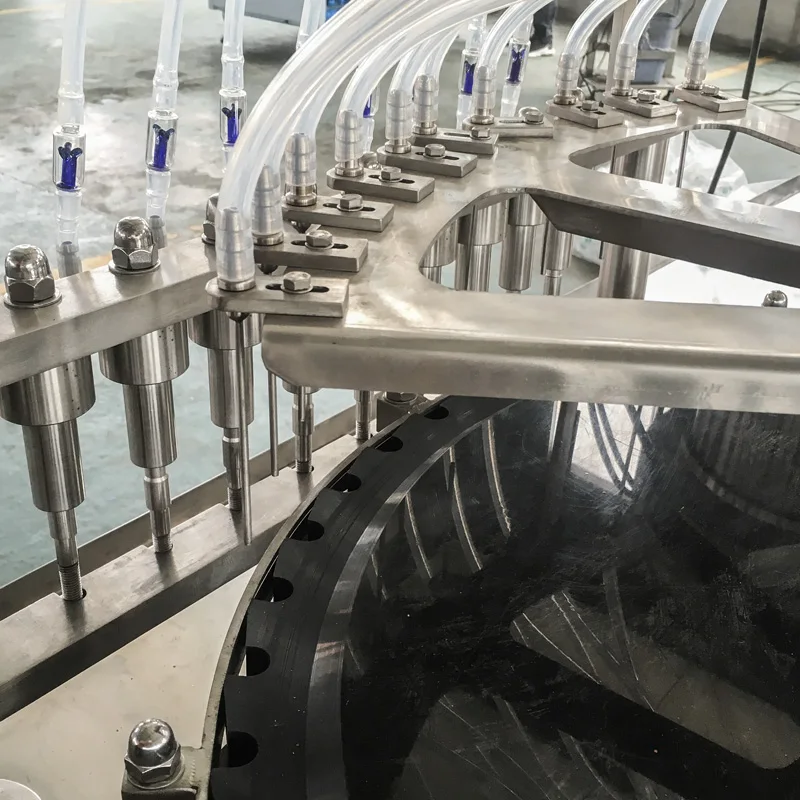

3. Liquid filling is accomplished by plunger pump or peristaltic pimp with accurate measurement;bottle wheel positioning and plugging is absolutely reliable;it has functions of no bottle filling,no plug alarm and automatic shutdown protection to ensuare the normal operation of production.
Production capacity | 150 bottles / min (4ml) 100 bottles / min (10ml,13ml,25ml) |
Applicable bottles | 1ml~30ml vials |
On the plug way | full plug or half plug (adjustable) |
Pumping rate | 8L / S |
Capacity | 0 ~ 2% |
acuum degree | 6 × 10-2Pa |
Power | 380V 50Hz three-phase four-wire system |
Power | 1Kw |
Dimensions | 1950 × 1440 × 1850 |

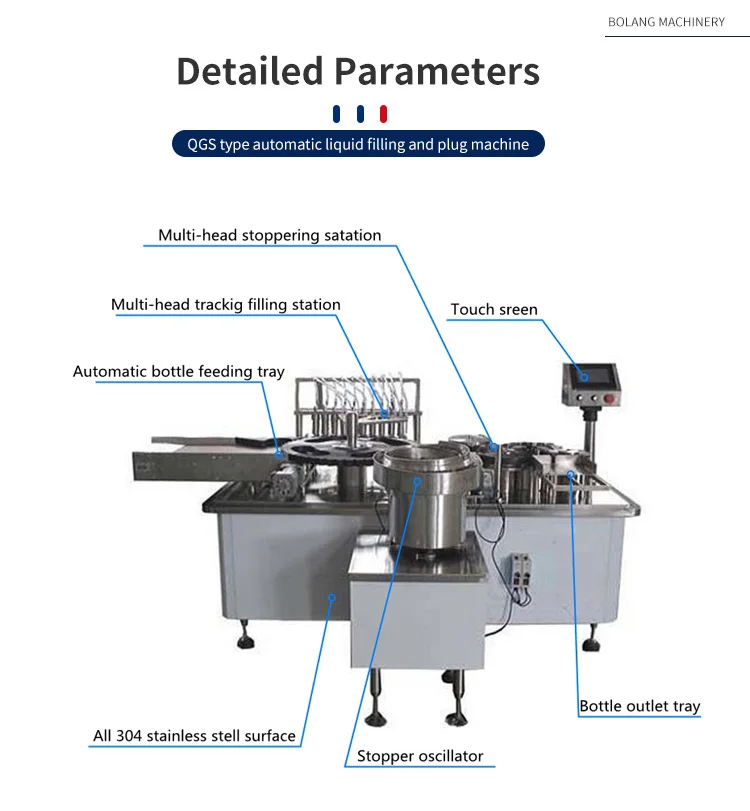

Main device component configuration
No. | Name | Model or Material | Supplier |
1 | PLC | FX3U-30MT | Japan Mitsubishi |
2 | touch screen | GS2107 | Japan Mitsubishi |
3 | inverter | FR-A740-0.75K | Japan Mitsubishi |
4 | Servo Motor | 0.75kw | Japan Fuji |
5 | photoelectric switch | E3X-NA11 | Japan Omron |
6 | vacuum pump | KRX5-P-V-03 | Japan |
7 | ceramic pump | 4ml / 26ml | DACANG |
8 | main motor | 100YYJT180 | JINWEIDA motor |
9 | Dessert | 500 (304 #) | Shanghai Dinghua Automation |
10 | other electrical components | France Schneider | |
11 | mesh feed bottle system | components | Nantong Bo Lang |
12 | bottle conveying system | components | Nantong Bo Lang |
13 | Quantitative Filling System | components | Nantong Bo Lang |
14 | send plug system | components | Nantong Bo Lang |
15 | drive mechanism | components | Nantong Bo Lang |
16 | Rack, Platen | Assembly (A3) | Nantong Bo Lang |
17 | side panels, panel | components (304 #) | Nantong Bolang |
18 | laminar flow hood | assembly | Nantong Bolang |
Company Profile
Our company is one of the member units of China Pharmaceutical Equipment Industry Association. Its predecessor is Haimen Nantong Precision Machinery Co.,Ltd.It has a history of more than 20 years.It specializes in the design and manufacture of pharmaceutical,food and chemical machinery,and has a far-reaching impact on the national pharmaceutical and food industries.The company has strong design ability.The products are also exported to Southeast Asia,Central Asia and other countries and regions,and are favored by users.
