Fast Mini Manufacturer Imaging Blue tooth Wireless 1d Linear Barcode Scanner For Locker With Display
- Category: Computer Hardware >>>
- Supplier: Shenzhen,Honor,Way,Electronic,Co.,Ltd.
Share on:
Product Overview
Description
Fast Mini Manufacturer Imaging Blue tooth Wireless 1d Linear Barcode Scanner For Locker With Display
Product Description

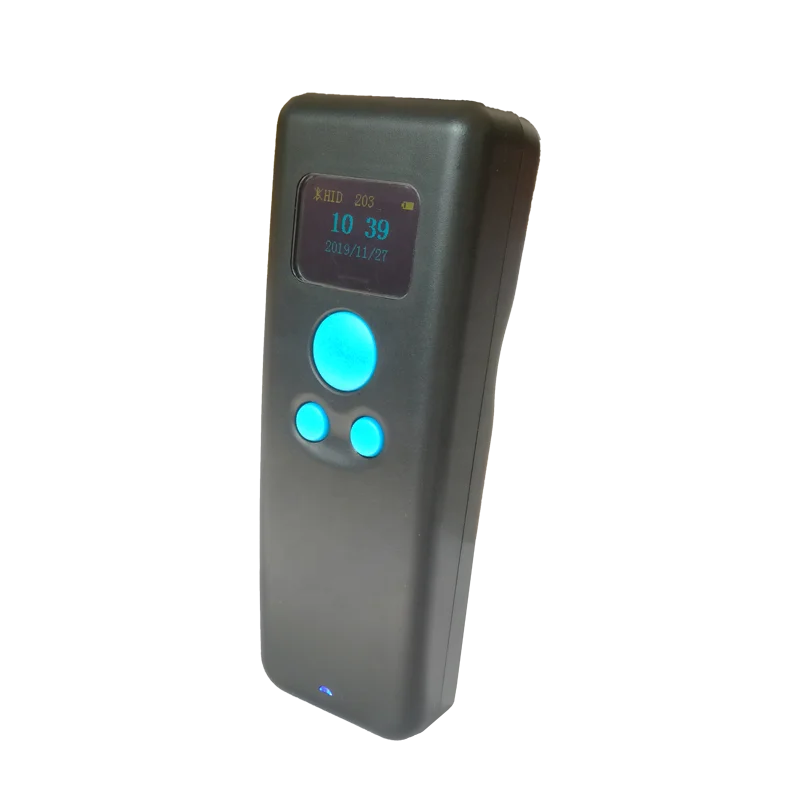

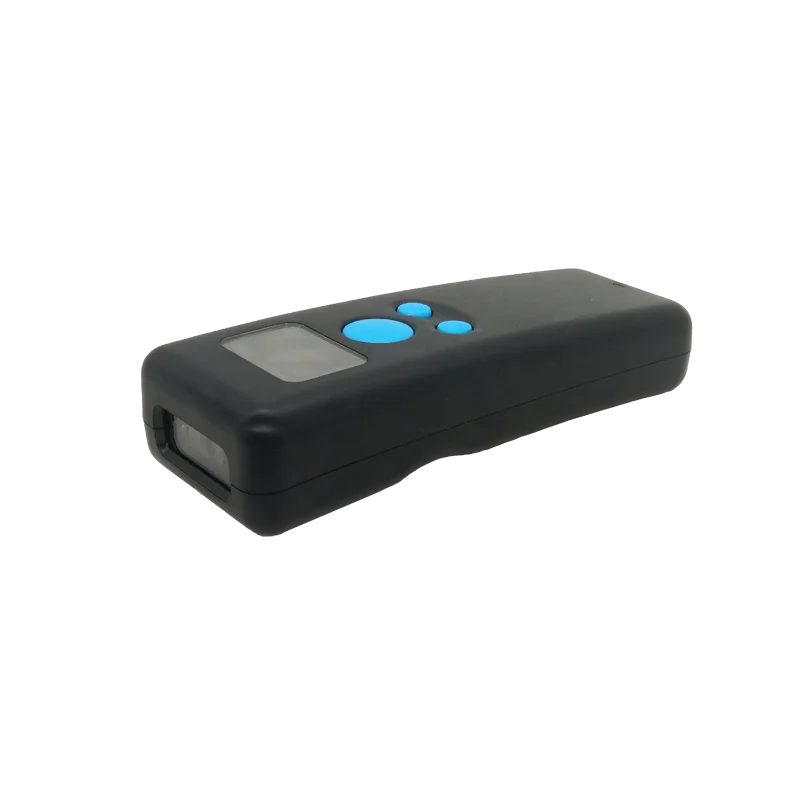

1D Mini CCD Blue tooth Bar code Reader Portable Wireless Barcode Scanner
Feature
l 32-bit CPU,752*480pixels CMOS sensor
l Decoding min barcode density:4mil
l Support 1D barcode on paper
l Extremely high sensitivity, quick scanning
l 2.4GHz wireless+Blue tooth4.0+USB wired
l OLED display, can set the scanner directly
l 1200mAH battery, mini size, potable
Parameter
25 Language, Full ASCII character editing | |||
Model: | HW-6200L:Blue tooth(HID+BLE) +2.4G+USB-wire | ||
TYPE: | Blue tooth | 2.4G | |
Distance: | ≤50m | ≤100m | |
Storage: | 16M | ||
Mode:Blue tooth+2.4G+USB-wire | Interface:USB,USB-COM | ||
Working current:3.5Vx50mA | Standby current :0 mA | ||
Battery:3.7V-1200mAh | Charging power:5V-400mA | ||
Working time:Full load≈20hours,Normal use ≈3 to 7days | |||
Decoder parameters | |
Scanning type :bi-directional | Light source:650nm laser diode |
Scanning width :30cm | BER : 1/20million |
Printing Contract :>25% | Trigger Mode:Button,Continuous |
Indication:Buzzer & LED & Vibration& Display | |
Depth of Field | 3.3mil | 2mm-100mm | CPU:ARM 32-bit Cortex Resolution :3.3mil Decoding speed:200/sec |
10mil | 2mm-350mm | ||
15mil | 5mm-500mm | ||
30mil | 10mm-800mm | ||
Scanning angle:Angle of rotation±30°,inclination± 45°,declination ± 60° | |||
Anti-interference:No influence working under strong light and sunshine | |||
Decode Capability:UPC/EAN,Code128,Code39,Code 39Full ASCII,Code32,Coda bar,industrial /Interleaved 2 of 5,Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Data Bar,etc. | |
Button life :500,000 times | LED life:100000 hours |
Drop test :1.8m | Certificate :CE,FCC,RoHS,Class I |
Working temperature:-20℃-50℃ | Relative humidity:5%-95% |
