Automatic Electric Dried Dry Dates bag Packing Machine with stand up zipper pouch
- Category: >>>
- Supplier: ZHEJIANG LEADTOP PHARMACEUTICAL MACHINERY CO. LTD
Share on (1600343753897):
Product Overview
Description
Products Description

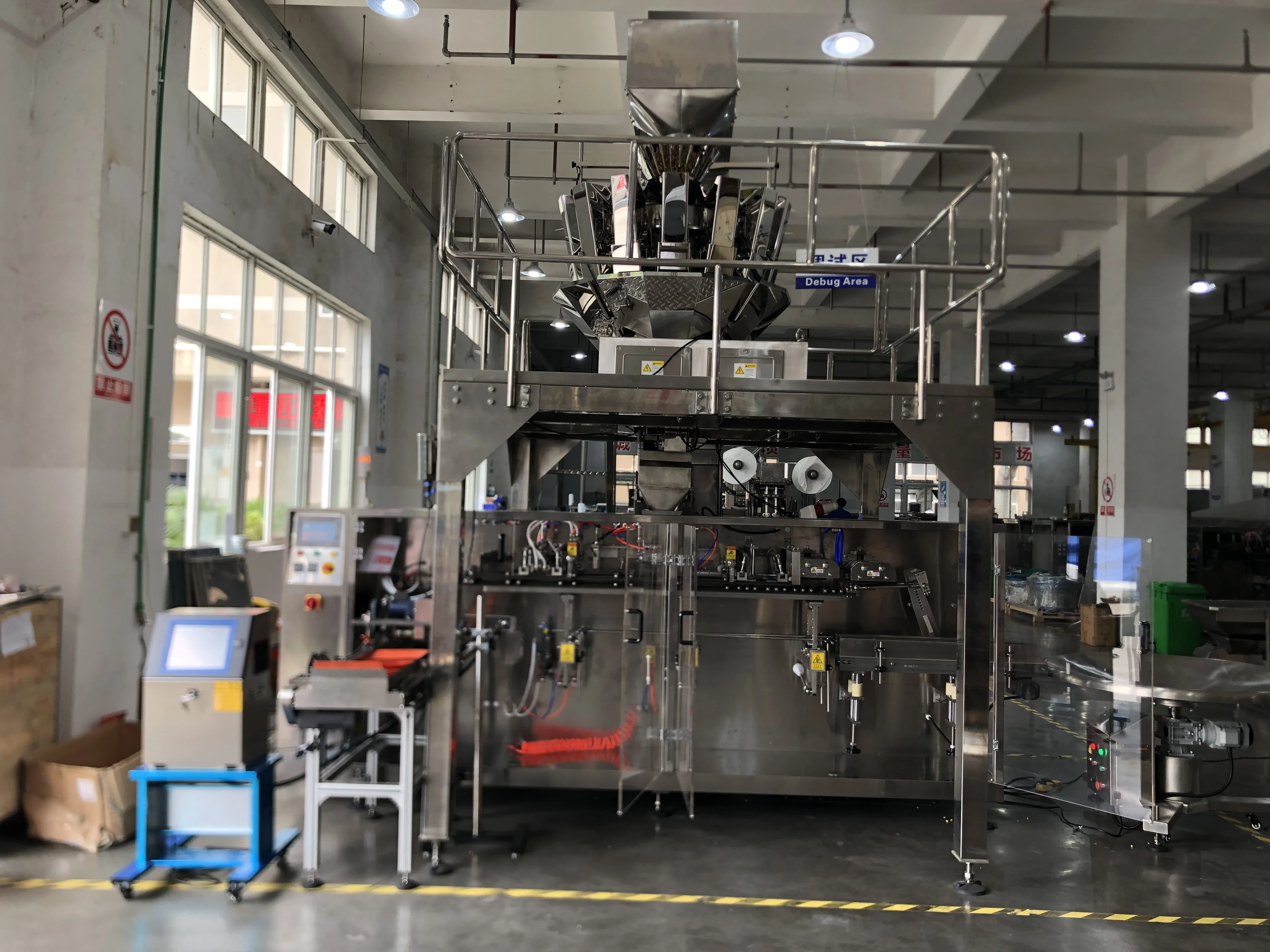

HorizonTop-series Horizontal Packaging Machine
- Horizontal pre-made pouch automatic packing machines series produced by our company adopted international advanced technology and derives from European classical packing machine. With blend of current packing technology, reasonable design and stable running, it is able to pack various sizes of pre-made pouch.
- Equipped with flexible processing unit, it can automatically complete pouch forming, feeding, measuring, filling, sealing, date printing, nitrogen filling, counting, finished product delivery.
- Premade pouch packing series is the most optimum choice to realize economic and reasonable packing.
Data
Model | HorizonTop--210 | HorizonTop--250 | HorizonTop--360 | HorizonTop--450 | HorizonTop--500 |
Speed | 30-50 bags/min | 30-45 bags/min | 15-35 bags/min | 40-80 bags/min | 3-15 bags/min |
Accuracy | ± 1.5% | ± 1.5% | ± 1.5% | ± 1.5% | ± 1.5% |
Bag width | 55-200mm | 80-250mm | 120-350mm | 100~200mm | 120-400mm |
Bag height | 100-280mm | 100-280mm | 100-280mm | 100~280mm | 150-500mm |
capacity | 1-5kg | 1-5kg | 1-5kg | 1-5kg | 1-15kg |
Power | 4kw | 4kw | 4kw | 6kw | 4kw |
Gas consumption | 0.6m3/min | 0.6m3/min | 0.6m3/min | 0.6m3/min | 0.6m3/min |
Air pressure value | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa |
Weight | 1450kg | 1700kg | 2200kg | 2000kg | 800kg |
Size（mm） | 2900*1000*1390 | 3500*1000*1390 | 3900*1000*1390 | 3800*1000*1200 | 2300*1000*1390 |
Warranty | 5 years | 5 years | 5 years | 5 years | 5 years |
Packable Products
- Horizontal pre-made pouch automatic packaging machine with different feeder can package different products, such as powder, granule, candy, tablets, liquid, viscous liquid, cream etc.
- It is applied to a wide range of packages, such as pre-made pouch, prefabricated bags, zipper pouch, spouted pouch, and shaped pouch etc. Up to 15kg can be filled.

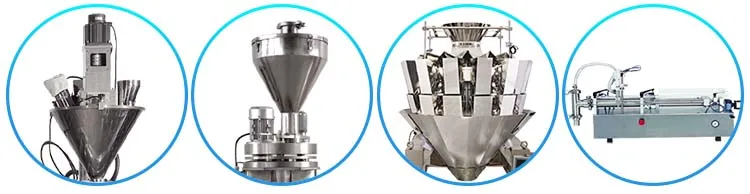

Assistant device:
1.Servo Motor Auger Filler :
Auger Filler driven by servo motor with features of stable,reliable and easy adjustment;suitable for
powder,granule product filling.
2.Volumetric Cup Filler :
Volumetric Cup Filler can do automatic measurement and filling,suitable for granule product filling.
3.Multi-head Linear Weigher :
Multihead Weigher is an ideal solution for quantitative weighing and filling of puffed food,nuts,snacks or frozen food,candy
etc.with various produce shapes like granule,Block or conglobation.
4.Piston Pump Filler :
Piston Pump Filler is suitable for liquid product:viscous or colloidal liquid,cream and other non free-flowing liquid.
powder,granule product filling.
2.Volumetric Cup Filler :
Volumetric Cup Filler can do automatic measurement and filling,suitable for granule product filling.
3.Multi-head Linear Weigher :
Multihead Weigher is an ideal solution for quantitative weighing and filling of puffed food,nuts,snacks or frozen food,candy
etc.with various produce shapes like granule,Block or conglobation.
4.Piston Pump Filler :
Piston Pump Filler is suitable for liquid product:viscous or colloidal liquid,cream and other non free-flowing liquid.
Hot Tip
- All of our machines support customization, and can installation of two filling heads at the same time, filling speed is faster.Send an inquiry for more information.
- All of our machines support customization, and can installation of two filling heads at the same time, filling speed is faster.Send an inquiry for more information.
Product Details
01. Scale
- Each adjustment station has a scale, so that the size can be adjusted quickly when filling bags of different specifications.
02. Food grade 304 stainless steel and Pharmaceutical grade painting
- The main parts are made of food grade 304 stainless steel, corrosion-resistant and rust free.
- The painting of the whole rack reaches the drug grade.
03. Dual Filling Station
- Reduce filling time by half, and improved filling accuracy.
- Can filling 2 products simultaneously.
04. Dividing box
- Indexing box running spindle, vibration only 3 microns, almost no vibration.
- The noise is low when the machine is running at high speed.
05. LED lights
- There is an LED light on the back, so we can see it more clearly during maintenance.
06. Waterproof trough
- There is a waterproof trough on the back, so we can wash the whole body directly with water.
07. Weighing material conveyor
- Applied for cheese ball,cookies,potato slice,fried chips,prawn cracker, grain, crispy rice,dog food,fish feed,almonds,pistachio
etc.
etc.
Features
1. The horizontal pouch packing machine has a wide range of size adjustment. Especially when making big pouch, it can be customized accordingly, and the pouch width can be 500mm. The pouch width of vertical rotary pouch packing machine model 200 and model 300 is only 200mm and 300mm.
2. The horizontal pouch packing machine runs horizontally, with faster speed. The production capacity WITH suitable size can be DOUBLE---TWO FILLING OF TWO POUCH AT THE SAME TIME. The vertical rotary pouch packing machine stabilizes the speed from 35 - 40 pcs/min due to centrifugal force. In addition, when loading a large dose, the speed will be
slower due to centrifugal force.
slower due to centrifugal force.
3. All the transmission mechanism and mechanical structure of the horizontal pouch packing machine are behind the machine, which is easier to clean and more in line with the requirements of clean production. The vertical rotary pouch packing machine is mechanically driven at the bottom. If powder or liquid is produced, it is not easy to clean and
corrode in case of leakage.
corrode in case of leakage.
Company Profile
Our Company
- Since year 1996, LTPM CHINA had started manufacturing Pharmaceutical and food packaging machines such as Capsule Filling Machine, Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc.
- LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand
- LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand
Our Workshop
Our Certificates
ISO, CE, SGS, BV Certified Company.
Our Team
Our Customers
Orders from Alibaba
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shiping affordable wooden box.
FAQ
Warm hint:
1 -- Because the exchange rate is changing, the specific price of the machine will also change.
1 -- Because the exchange rate is changing, the specific price of the machine will also change.
2 -- Our machines can be customized according to your requirements, we also provide you with complete packaging line design services. Each of your products has its own optional solution.
3 -- Because of the time difference, online chat may not get a reply. Please click "contact supplier" or "send inquiry" to contact us.
Q: How many different type of bags your machine can work with?
Q: How many different type of bags your machine can work with?

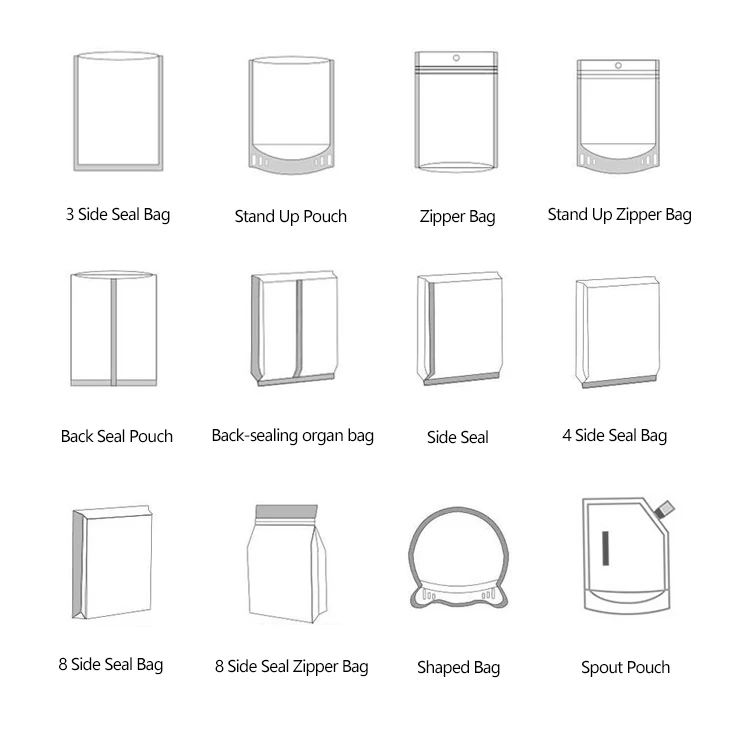

A: Four side seal pouch, Three side seal pouch, Back side seal pouch, Zipper bag, Irregular premade bags, etc.
Q: How many different product your machine can work with?
A: Our machine can work for all kinds of products that client want to pack into Premade Bags by changing Feeder. Such as, Liquid, Paste, Powder, Granular, Biscuits, Rice, pop corn, Sea food, cosmetic, etc.
Q: What we should do when we have different sizes of bags, do we need any change parts?
A: No need to buy any change parts. Before we ship the machine to client, we will commission the machine with all different product sample from client, then save the data as a receipt in PLC. When the client is going to use different sizes, just read out the data, then the machine will have the correct size to catch the bag.
Q: what is your annually production capacity for Rotary Packing Machine?
A: We ship More Than 20sets rotary packing machine every month, totally around 300sets per year. We are expanding our facility in 2020, aim for 500sets in 2021. Our clients include Pharmaceutical Factory, Food factory and Cosmetic factory.
Q: What is the warranty period for your machine?
A: 5 years free warranty.
Q: Do you have manual or operation video for us to know more about the machine?
Q: How many different product your machine can work with?
A: Our machine can work for all kinds of products that client want to pack into Premade Bags by changing Feeder. Such as, Liquid, Paste, Powder, Granular, Biscuits, Rice, pop corn, Sea food, cosmetic, etc.
Q: What we should do when we have different sizes of bags, do we need any change parts?
A: No need to buy any change parts. Before we ship the machine to client, we will commission the machine with all different product sample from client, then save the data as a receipt in PLC. When the client is going to use different sizes, just read out the data, then the machine will have the correct size to catch the bag.
Q: what is your annually production capacity for Rotary Packing Machine?
A: We ship More Than 20sets rotary packing machine every month, totally around 300sets per year. We are expanding our facility in 2020, aim for 500sets in 2021. Our clients include Pharmaceutical Factory, Food factory and Cosmetic factory.
Q: What is the warranty period for your machine?
A: 5 years free warranty.
Q: Do you have manual or operation video for us to know more about the machine?
A: Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q: How can I trust you for the first time business ?
A: if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q: Is engineer available to serve oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q: How can we make sure about the machine quality after we put the order?
A: Before delivery, we will run the machine for half an hour - 1 hour to ensure that the machine is OK. And we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
