Nucleon Electric Semi Gantry Crane is developed on the basis of gantry crane. It is a track traveling small and medium-sized crane. Gernerally, it is always used together with CD MD model electric hoist. It has one leg special design, so it needs to use one side of warehouse to fininsh its work. At the same time, one leg special design can also save the cost.
Contact us for more information !
He has single beam and double beam two types of gantry crane

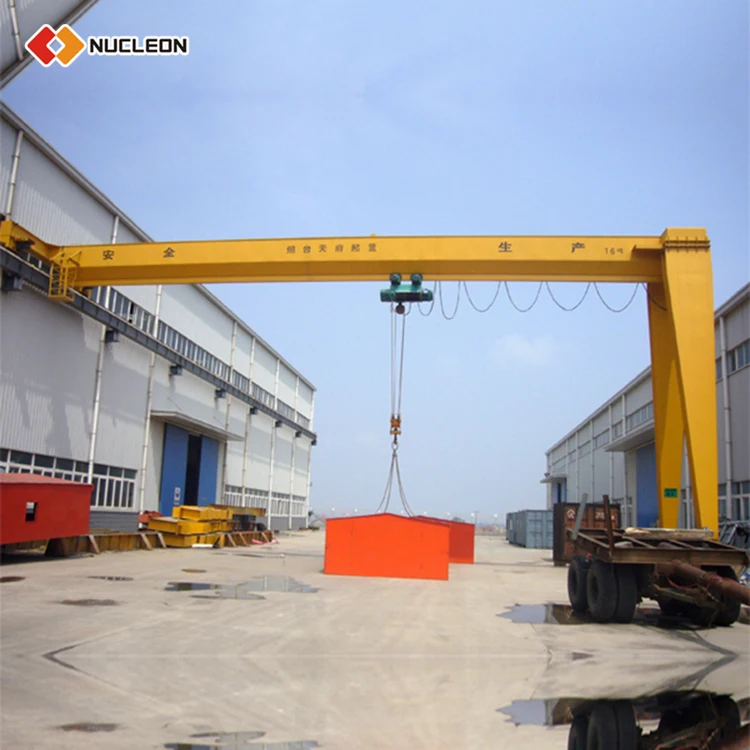

Single Girder Semi-Gantry Crane

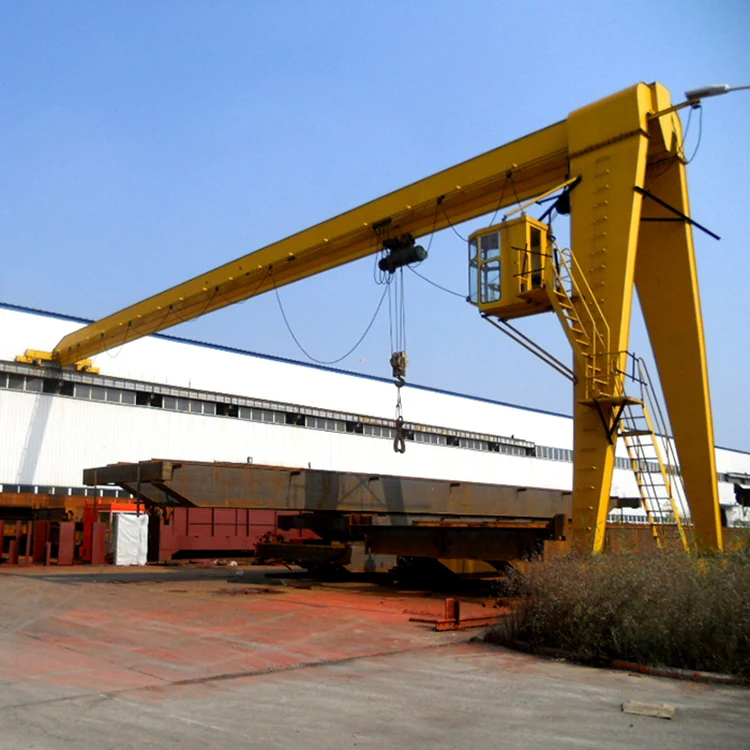

Double Girder Semi-Gantry Crane
1. it should proper matching use CD1 and MD1 type ele
2.Its proper lifting weight is 2~16t, proper span is 5~20m.
3. it is usually used in machine shop to carry materials. The crane has two operation modes including control on ground and remote control.
4.Compact dimensions, low weight, easy to operate and easy to maintain, steady performance, safety, less wastage, low cost and so on.
Contact us for more information !
Semi gantry crane is a kind of light type crane, commonly used in modern production. In workshops where part utilization of shop bay is required (as in a tool room attached to a press shop), a Semi-Goliath/Gantry Crane is used. In such a configuration, one end-carriage of the crane will travel on the regular gantry rail while the opposite end-carriage will travel on a rail mounted typically on the ground or at a lower elevation. Compared with the electric single-girder gantry crane, it can save the investment and space.
Application: This crane is mainly used in steel stock yard, mine, the concrete industry, warehouse, factory, harbor and ship building, etc.
Technical Parameter & Drawing :
Please contact me for customized parameters !
|Span(rail to rail center)||6m~data reduired|
|Cantilevers||According to your demand, but not more than 1/3 of span|
|Lifting height||as required|
|Capacity||3t, 5t||10t||15t, 16t||20t, 25t||30t, 32t|
|Lifting speed(m/min)||8, 8/0.8||7/0.7||3.5,||4, 4/0.4||3, 3/0.3|
|Cross travelling speed(m/min)||10 or 20||10 or 20||10 or 20||10 or 20||10 or 20|
|Long travelling speed(m/min)||20, 30||20, 30||20, 30||20, 30||20, 30|
|Power source||380V, 50HZ, 3 phase (or other standard)|
|Power supply mode||Cable reel / Bus bar|
|Control model||Pendant pushbutton control, cabin control or remote control|
1. Variable speed through VVF Drive
2. Soft starter
3. Wireless Radio Remote control
5. Remote control
• Don't require a runway structure.
• Nor do they usually require concrete foundations.
• Their installation is fast and simple.
• Simple and compact structure
• Light weight and less wastage
• Steady performance and easy maintenance
• Crane traveling limit switch
• Weight overload protection device
• Lifting height limit device
• Voltage lower protection function
• Phase sequence protection function
• Emergency stop function
• Wireless infra-detector for anti-collusion
