refrigeration mini condensing unit with scroll 2HP compressor for cold storage room monoblock refrigeration unit
- Category: Other Refrigeration & Heat Exchange Equipment >>>
- Supplier: Hangzhou Xuantong Machinery Co. Ltd.
Share on (1600343923902):
Product Overview
Description

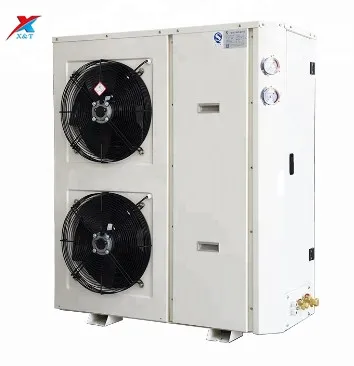

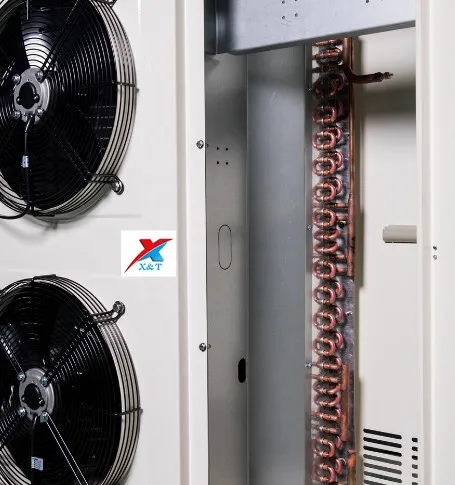

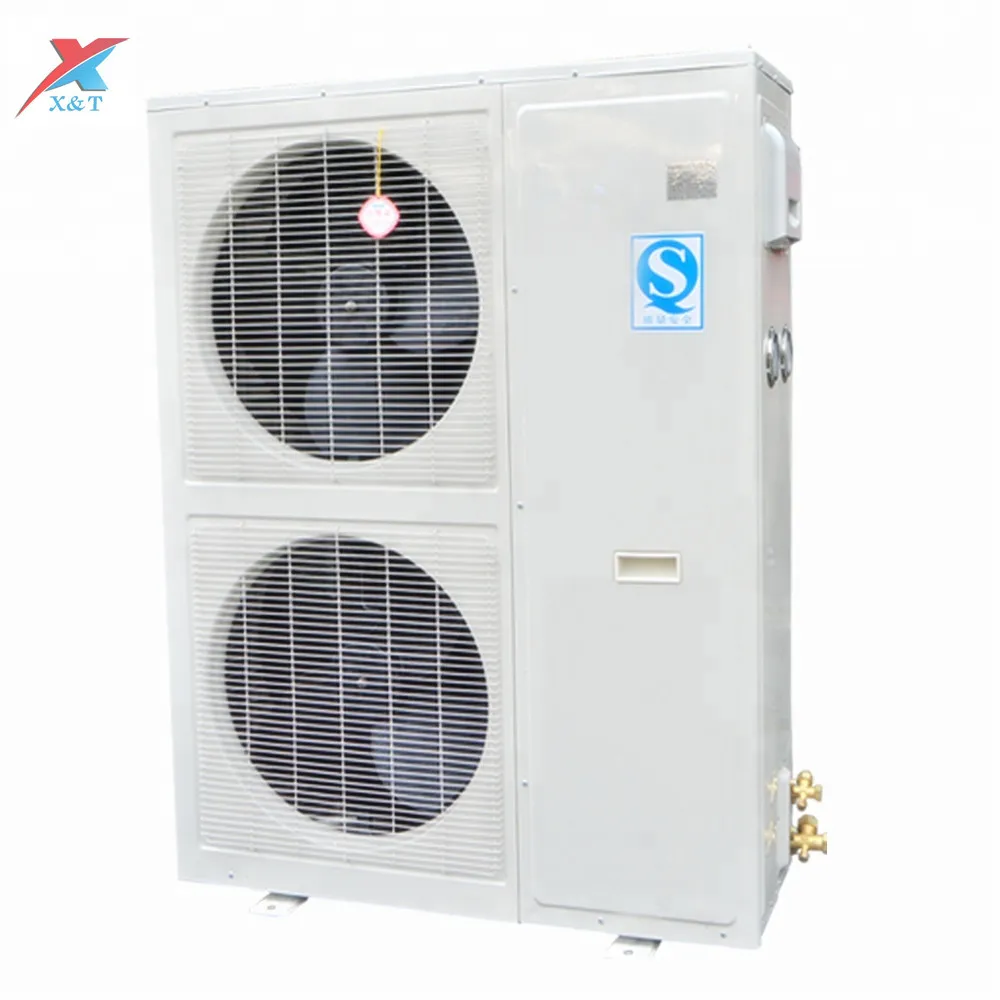

refrigeration mini condensing unit with scroll 2HP compressor for cold storage room monoblock refrigeration unit
XT-MSCY series
Parameter data sheet
M:middle temperature -5-5C S:side wind blow C:ZB series compresor Y R404
| Model | XT | ||||||
| 02MSCY | 03MSCY | 04MSCY | 05MSCY | 06MSCY | |||
| Compressor model | ZB15KQE | ZB21KQE | ZB29KQE | ZB38KQE | ZB45KQE | ||
| Cooling capacity and power | Evaporating temperature -5C | Cooling capacity W | 3660 | 5630 | 7680 | 9550 | 11200 |
| Power W | 2030 | 2810 | 3740 | 4680 | 5340 | ||
| Evaporating temperature -7C | Cooling capacity W | 3630 | 5180 | 7070 | 8790 | 10350 | |
| Power W | 2060 | 2820 | 3750 | 4680 | 5350 | ||
| Evaporating temperature -10C | Cooling capacity W | 2920 | 4570 | 6210 | 7740 | 9120 | |
| Power W | 2100 | 2820 | 3770 | 4680 | 5360 | ||
| Applicable temperature | -5-5C | ||||||
| Refrigerant | R404A | ||||||
| Power supply | 380V/3PH/50HZ | ||||||

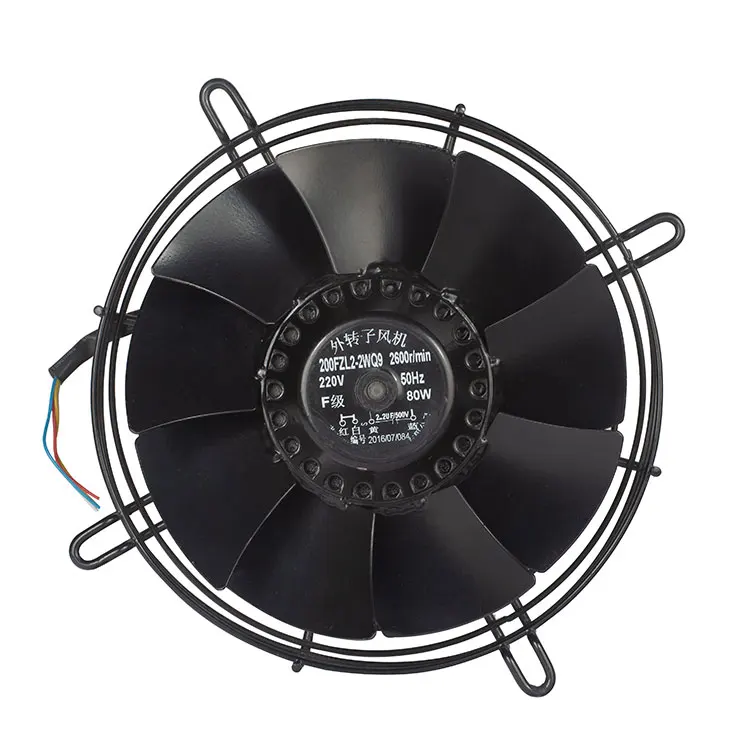

| Condenser | Fan quantity | 1 | 1 | 1 | 2 | 2 | |
| Fan voltage V | 220 | 220 | 220 | 220 | 220 | ||
| Fan power W | 60 | 60 | 60 | 60*2 | 60*2 | ||
| coupling | Suction coupling mm | 19 | 19 | 19 | 19 | 19 | |
| Tube coupling mm | 10 | 10 | 12 | 12 | 12 | ||
| Overall size | 1020*420*840 | 1020*420*1240 | |||||
| Dimension size | 580*380 | ||||||
V
XT-HSCY series
Parameter data sheet
H:high temperature 5-10C S:side wind blow C:ZB series compresor Y: R404A
| Model | XT | |||||
| 02HSCY | 03HSCY | 04HSCY | 05HSCY | |||
| Compressor model | ZB15KQE | ZB21KQE | ZB29KQE | ZB38KQE | ||
| Cooling capacity and power | Evaporating temperature 7C | Cooling capacity w | 5940 | 8930 | 12350 | 15250 |
| Power W | 1910 | 2760 | 3670 | 4640 | ||
| Evaporating temperature 5C | Cooling capacity W | 5510 | 8300 | 11450 | ||
| Power W | 1920 | 2770 | 3680 | 4650 | ||
| Evaporating temperature 10C | Cooling capacity W | 4520 | 6860 | 9420 | 11650 | |
| Power W | 1960 | 2790 | 3710 | 4670 | ||
| Applicable temperature | 5-10C | |||||
| Refrigerant | R404A | |||||
| Power supply | 380V/3PH/50HZ | |||||
| Condenser | Fan quantity | 1 | 1 | 2 | 2 | |
| Fan voltage V | 220 | 220 | 220 | 220 | ||
| Fan power W | 60 | 60 | 60*2 | 60*2 | ||
| Coupling | Suction coupling mm | 19 | 19 | 19 | 19 | |
| Tube coupling mm | 10 | 10 | 12 | 12 | ||
| Overall size | 1020*420*840 | 1020*420*1240 | ||||
| Dimension size | 580*380 | |||||
Product Description

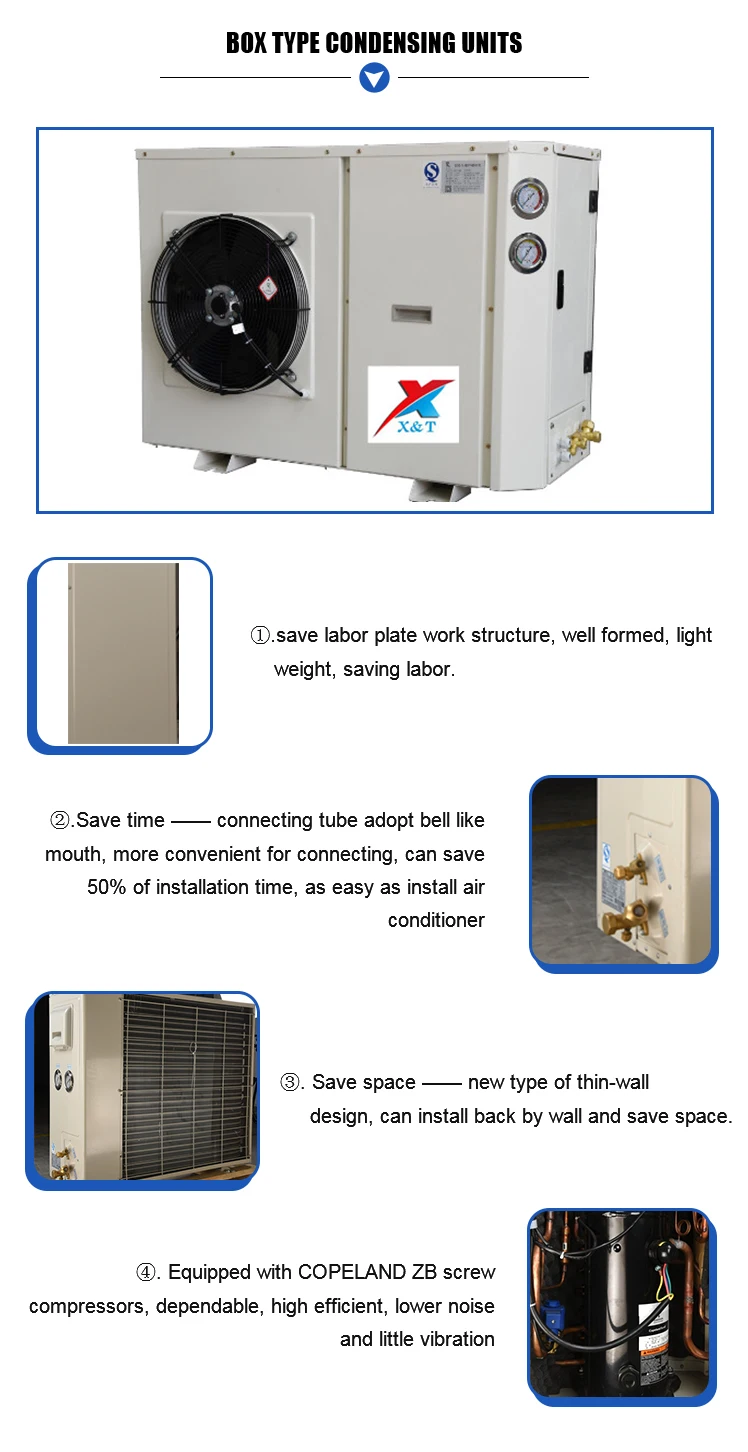

ZB38KQE Condensing units cold room condensing unit
Parameter data sheet
H:high temperature 5-10C S:side wind blow C:ZB series compresor R22
| Model | XT | |||||
| 02HSC | 03HSC | 04HSC | 05HSC | |||
| Compressor model | ZB15KQ | ZB21KQ | ZB29KQ | ZB38KQ | ||
| Cooling capacity and power | Evaporating temperature -5C | Cooling capacity W | 6150 | 8870 | 12000 | 14700 |
| Cooling capacity and power | Power W | 1480 | 2570 | 3300 | 4050 | |
| Evaporating temperature -7C | Cooling capacity W | 5730 | 8260 | 11050 | 13700 | |
| Power W | 1550 | 2560 | 3300 | 4010 | ||
| Evaporating temperature -10C | Cooling capacity W | 4770 | 3940 | 5150 | 5910 | |
| Power w | 1690 | 2530 | 3290 | 3940 | ||
| Applicable temperature | 5-10C | |||||
| Refrigerant | R22 | |||||
| Power supply | 380v/3ph/50hz | |||||
| condenser | fan quantity | 1 | 1 | 2 | 2 | |
| fan volatge V | 220 | 220 | 220 | 220 | ||
| fan power W | 60 | 60 | 60*2 | 60*2 | ||
| Coupling | suction coupling mm | 19 | 19 | 19 | 19 | |
| tube coupling mm | 10 | 10 | 12 | 12 | ||
| overall size | 1020*420*840 | 1020*420*840 | 1020*420*1240 | 1020*420*1240 | ||
| dimension size | 580*380 | 580*380 | 580*380 | 580*380 | ||
zx
