Ecotec LPG Dispenser Pump for LPG Station

Product Overview

Description

LYB-2000 lpg dispenser pump Vane Truck Pumps,for LPG,NH3 is specially designed to perform in such severe operating conditions as high differential pressure,pump over speeding,poor suction conditions.

Advantage of lpg dispenser pump
Innovative cam design virtually eliminates cavitation
New materials utilized in cam and blades and heavy duty bearings extend pump life
Single mechanical seal,very easy seal replacement and maintenance
Large diameter non-metallic pins are suitable for higher pump speeds

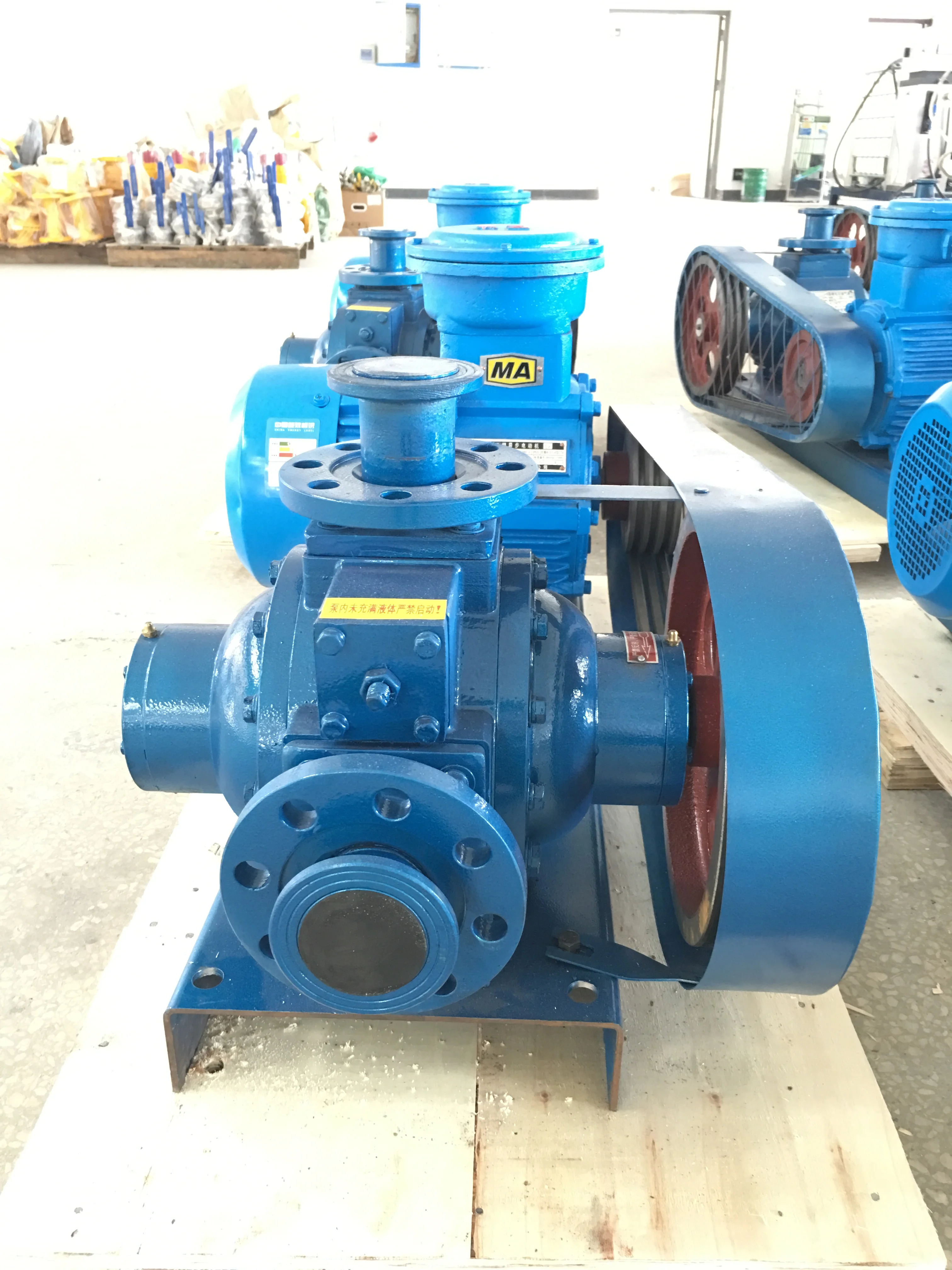

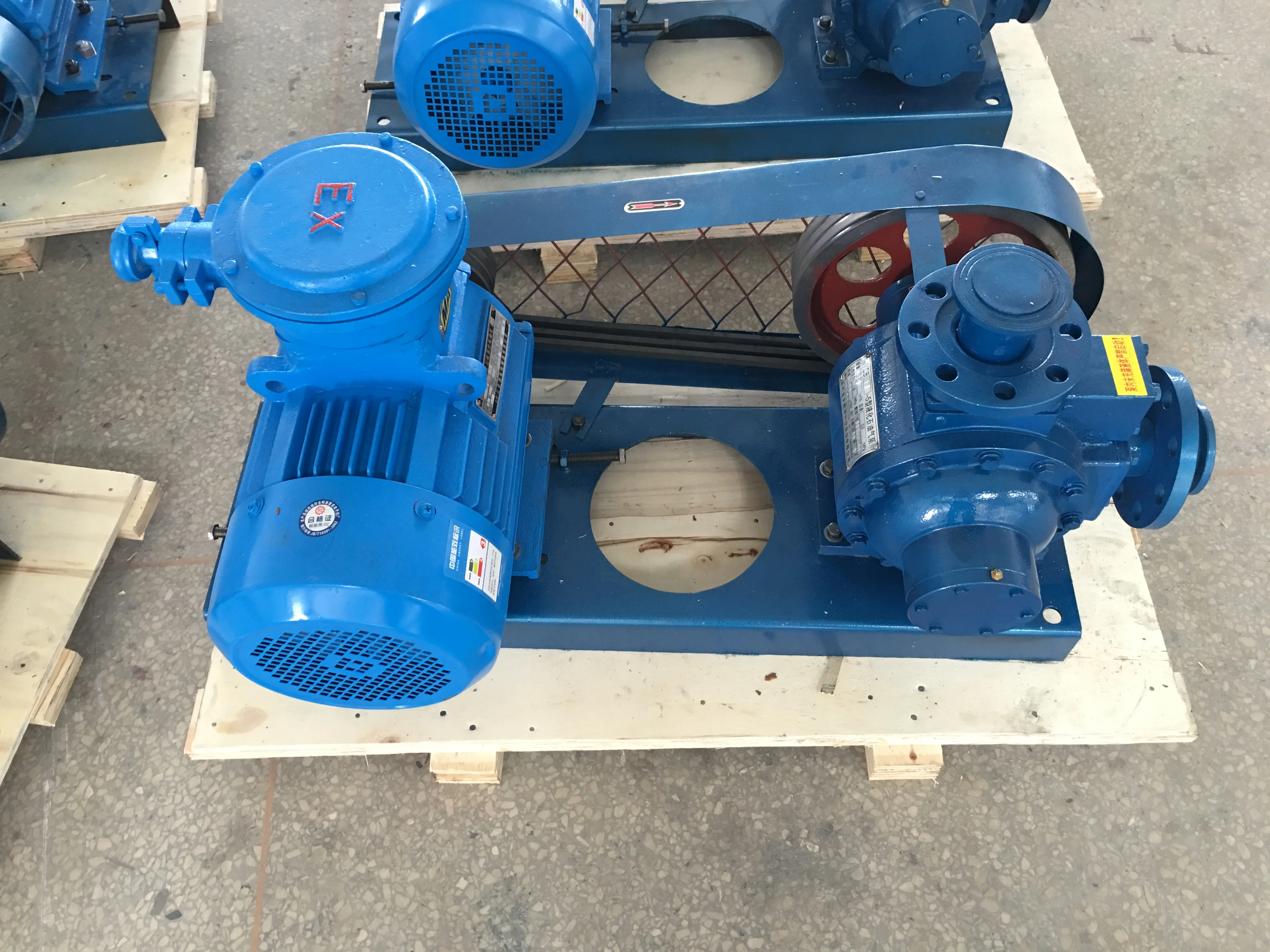

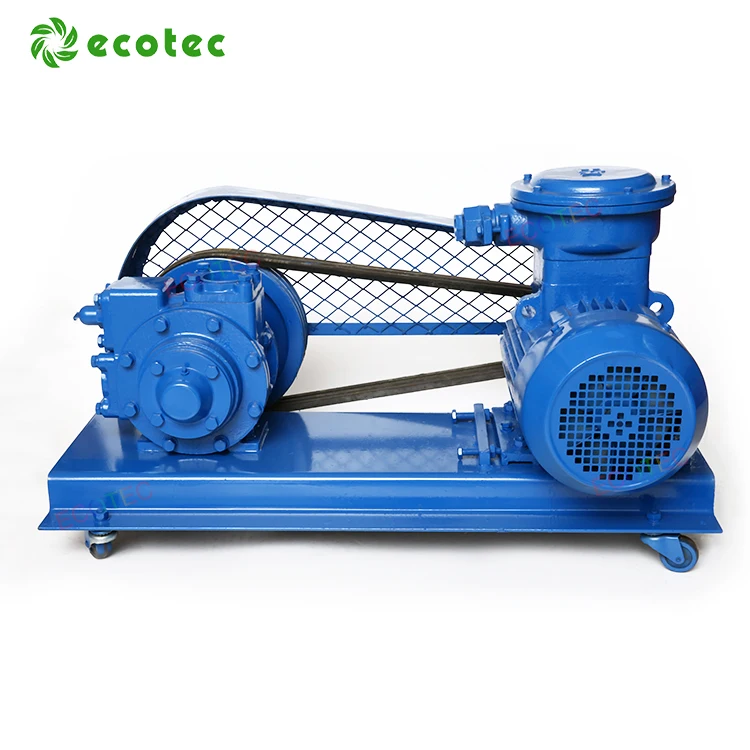

lpg dispenser pump YTB-5-5
Inlet : 1 inch flange
Outlet : 1 inch flange
Motor Power: 220V/380v, 2KW, 50HZ
Speed: 780R/M
Working pressure: 1.6Mpa
Flow rate: 80 L/M

lpg dispenser pump Option 1/2/3 inch

lpg dispenser pump Techinical specification



Rotation speed	680 RPM
Flow rate	300 L/min
Motor power	7.5KW 380V
Import import	NPT 2"
Export export	NPT 2"
Maximum speed	800 RPM
Temperature range temperature range	-32℃-107℃
Max. working pressure	28.6bar
Max. differential pressure	12bar
Built-in relief valve Built-in safety valve

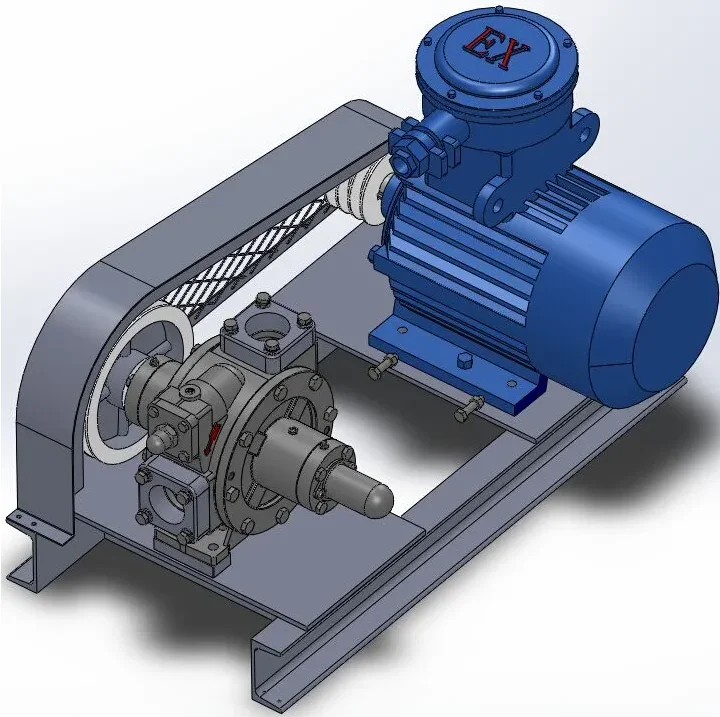

Drawing
