Din Rail 380V 80A 3 Phase 4 Wire Electronic Watt Power Energy Meter Wattmeter kWh LCD Backlight Display With Transparent Cover
- Category: >>>
- Supplier: Yueqing Open Imp. & Exp. Co. Ltd.
Share on (1600344222895):
Product Overview
Description
Product Description
Din Rail 3 Phase 4 Wire Electronic Watt Power Consumption Energy Meter Wattmeter kWh 5-80A 380V AC 50Hz LCD Backlight Display
Descriptions:
The meter is fully in conformity with the relevant technical requirements of GB/T17215.321-2008 national standard and the IEC62053
international standard of grade 1 or level 2 single-phase energy meter, which can directly and accurately measure active energy of
the energy consumption. It features high reliability, small volume, lightweight, beautiful appearance, advanced technology, and
35mm DIN standard guide rail installation, etc.
Features:
The meter is fully in conformity with the relevant technical requirements of GB/T17215.321-2008 national standard and the IEC62053
international standard of grade 1 or level 2 single-phase energy meter, which can directly and accurately measure active energy of
the energy consumption.
6+2 digits LCD display shows the total power consumption.
It features high reliability, small volume, light weight, beautiful appearance, advanced technology, and 35mmDIN standard guide
rail installation, etc.
It has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability, anti
electricity-stolen and long life.
This table is suitable for the measurement of rated frequency 50 Hz or 60 Hz single-phase ac active electricity, used for fixed
installation indoors, apply to the environment temperature is -25 °C ~ 55 °C, relative humidity is ≤ 95%, and in the air does not
contain corrosive gases and avoid dust, mold, salt fog, condensation, insects, etc.
Specifications:
Materiel: Metal + ABS
Reference Voltage: 3 X 220/380(V), 3 X 230/400(V)
Reference Current: 3 X 5(80A)
Accuracy Level: 1.0
Rated Frequency: 50Hz
Constant Pulse: 400imp / kWh
Display: LCD 6 + 2
Power Consumption: ≤2W, 10VA
Starting Current: 0.004Ib
Operating Temperature: -20 ~ 55°
Storage Temperature: 25 ~ 70°
Operating Voltage: 0.9-1.1 Rated Voltage
Utmost Voltage: 0.8-1.15 Rated Voltage
Average Humidity Value of Year: ≤75%
Type: Three Phase Four Wire Electronic Type

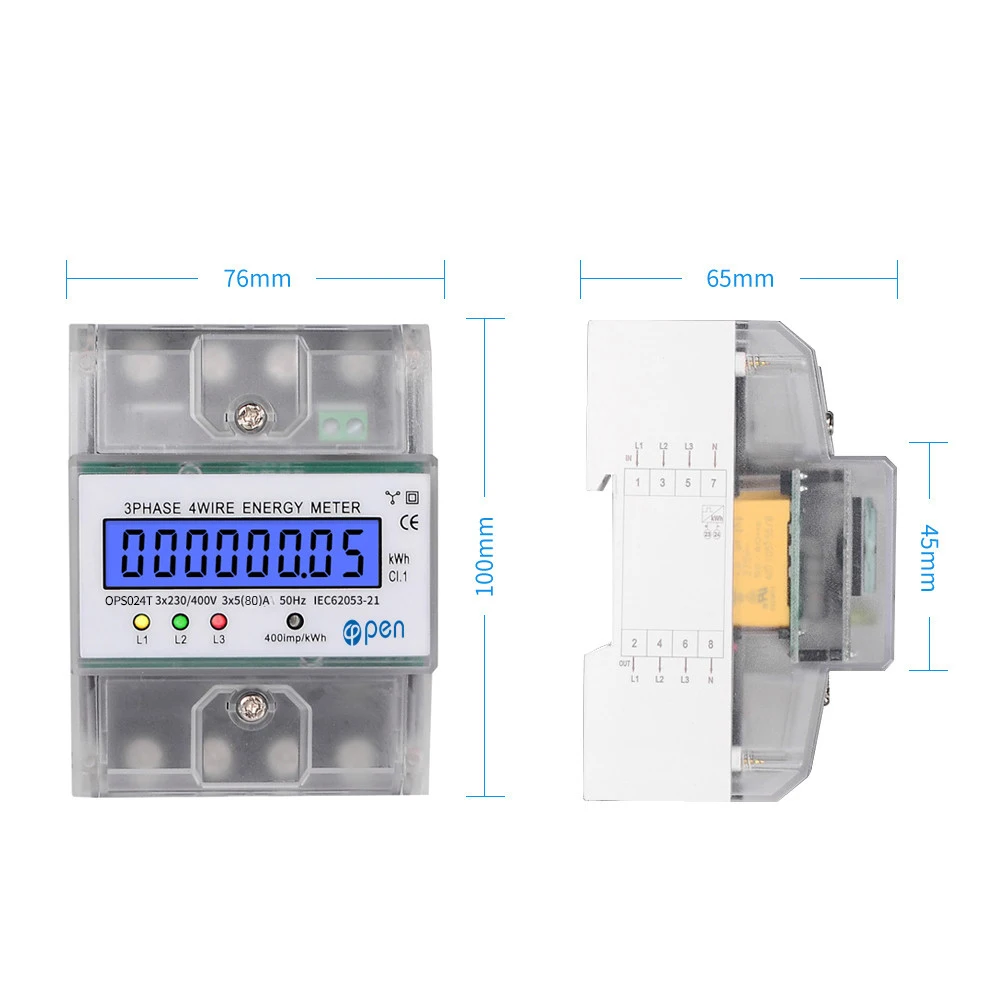

Size: Approx. 10.1 X 7.6 X 6.5cm / 3.97 X 2.99 X 2.55in
Weight: 400g
Package will include:
1 pcs Energy meter DDS024T
1 pcs English operation manual
The meter is fully in conformity with the relevant technical requirements of GB/T17215.321-2008 national standard and the IEC62053
international standard of grade 1 or level 2 single-phase energy meter, which can directly and accurately measure active energy of
the energy consumption. It features high reliability, small volume, lightweight, beautiful appearance, advanced technology, and
35mm DIN standard guide rail installation, etc.
Features:
The meter is fully in conformity with the relevant technical requirements of GB/T17215.321-2008 national standard and the IEC62053
international standard of grade 1 or level 2 single-phase energy meter, which can directly and accurately measure active energy of
the energy consumption.
6+2 digits LCD display shows the total power consumption.
It features high reliability, small volume, light weight, beautiful appearance, advanced technology, and 35mmDIN standard guide
rail installation, etc.
It has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability, anti
electricity-stolen and long life.
This table is suitable for the measurement of rated frequency 50 Hz or 60 Hz single-phase ac active electricity, used for fixed
installation indoors, apply to the environment temperature is -25 °C ~ 55 °C, relative humidity is ≤ 95%, and in the air does not
contain corrosive gases and avoid dust, mold, salt fog, condensation, insects, etc.
Specifications:
Materiel: Metal + ABS
Reference Voltage: 3 X 220/380(V), 3 X 230/400(V)
Reference Current: 3 X 5(80A)
Accuracy Level: 1.0
Rated Frequency: 50Hz
Constant Pulse: 400imp / kWh
Display: LCD 6 + 2
Power Consumption: ≤2W, 10VA
Starting Current: 0.004Ib
Operating Temperature: -20 ~ 55°
Storage Temperature: 25 ~ 70°
Operating Voltage: 0.9-1.1 Rated Voltage
Utmost Voltage: 0.8-1.15 Rated Voltage
Average Humidity Value of Year: ≤75%
Type: Three Phase Four Wire Electronic Type
Size: Approx. 10.1 X 7.6 X 6.5cm / 3.97 X 2.99 X 2.55in
Weight: 400g
Package will include:
1 pcs Energy meter DDS024T
1 pcs English operation manual
