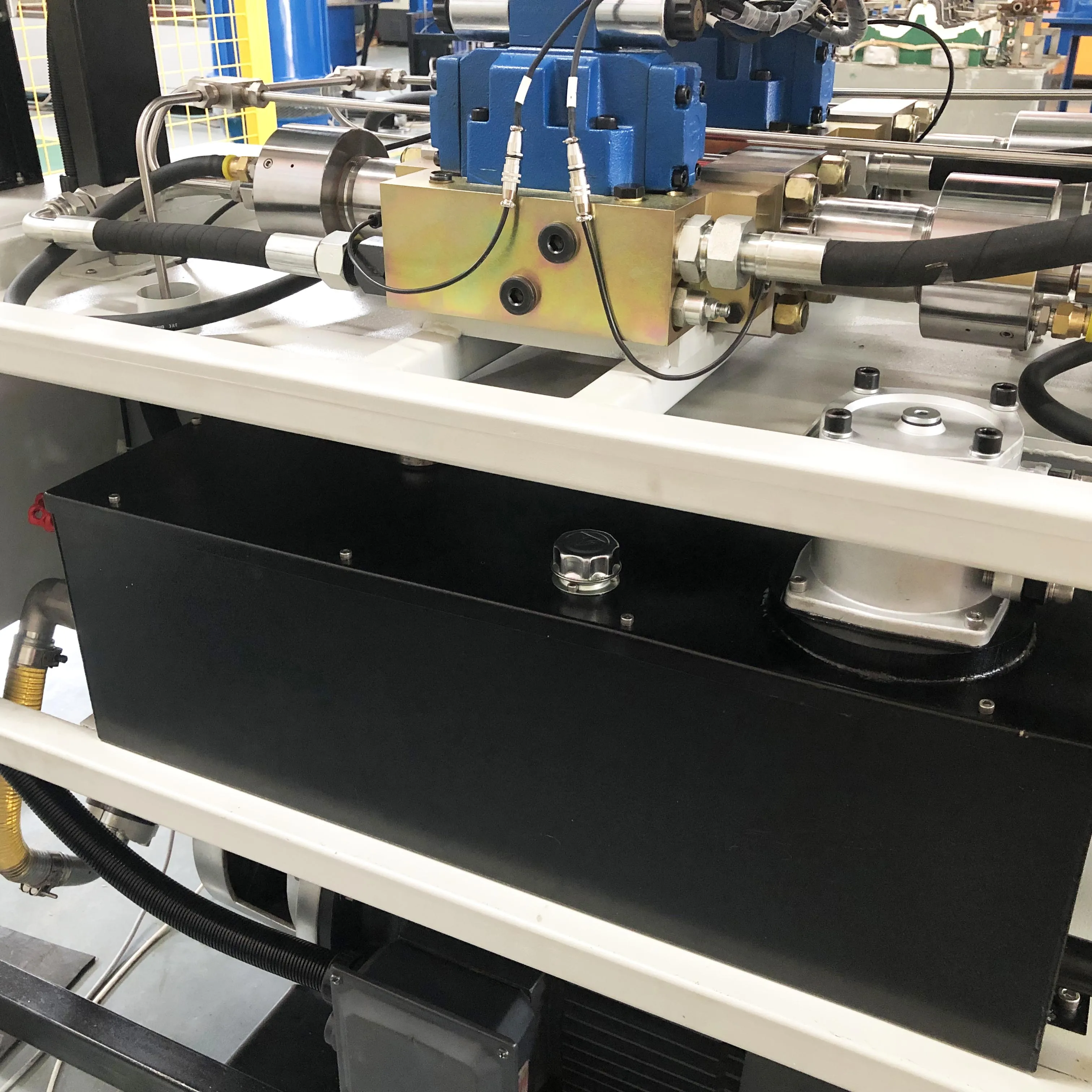

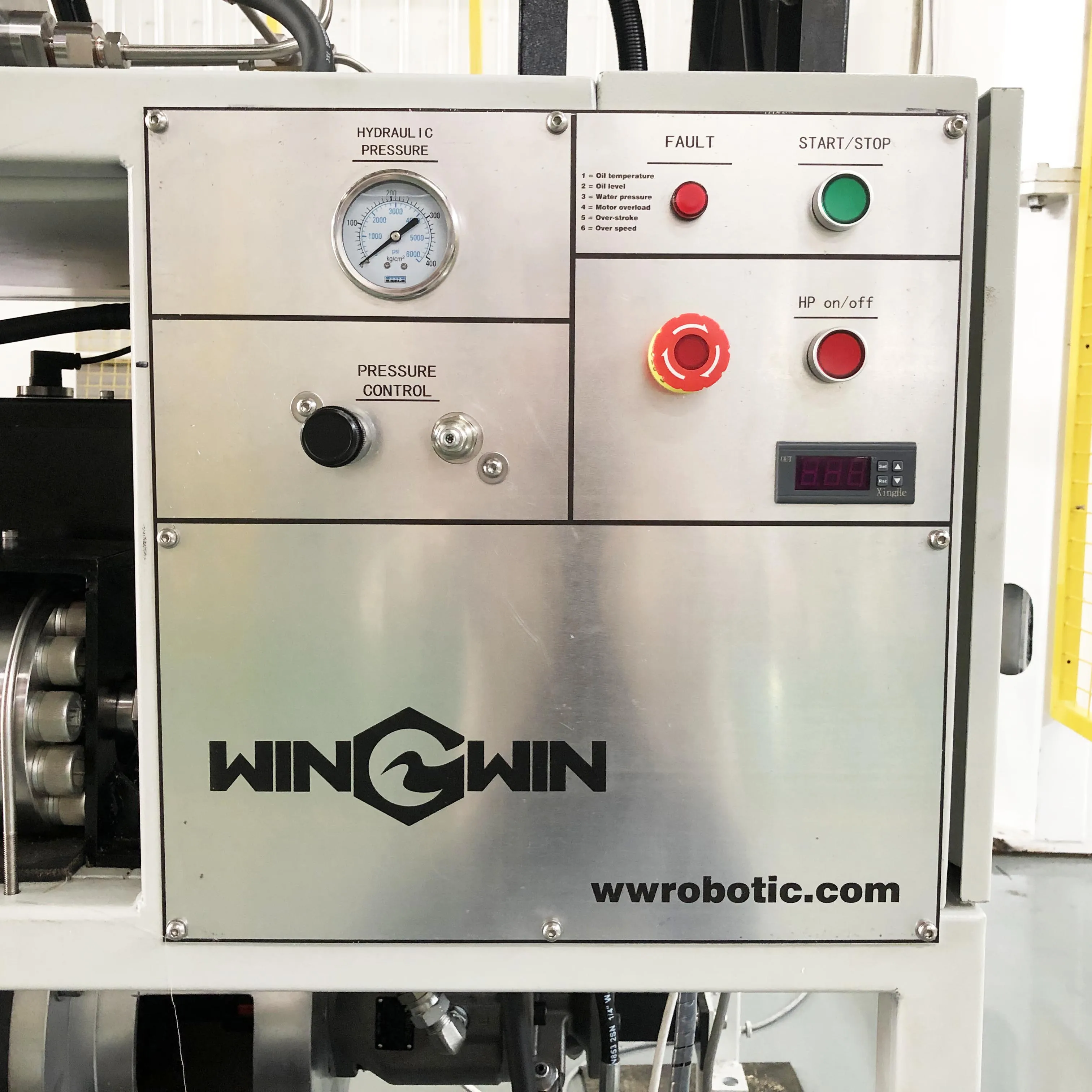

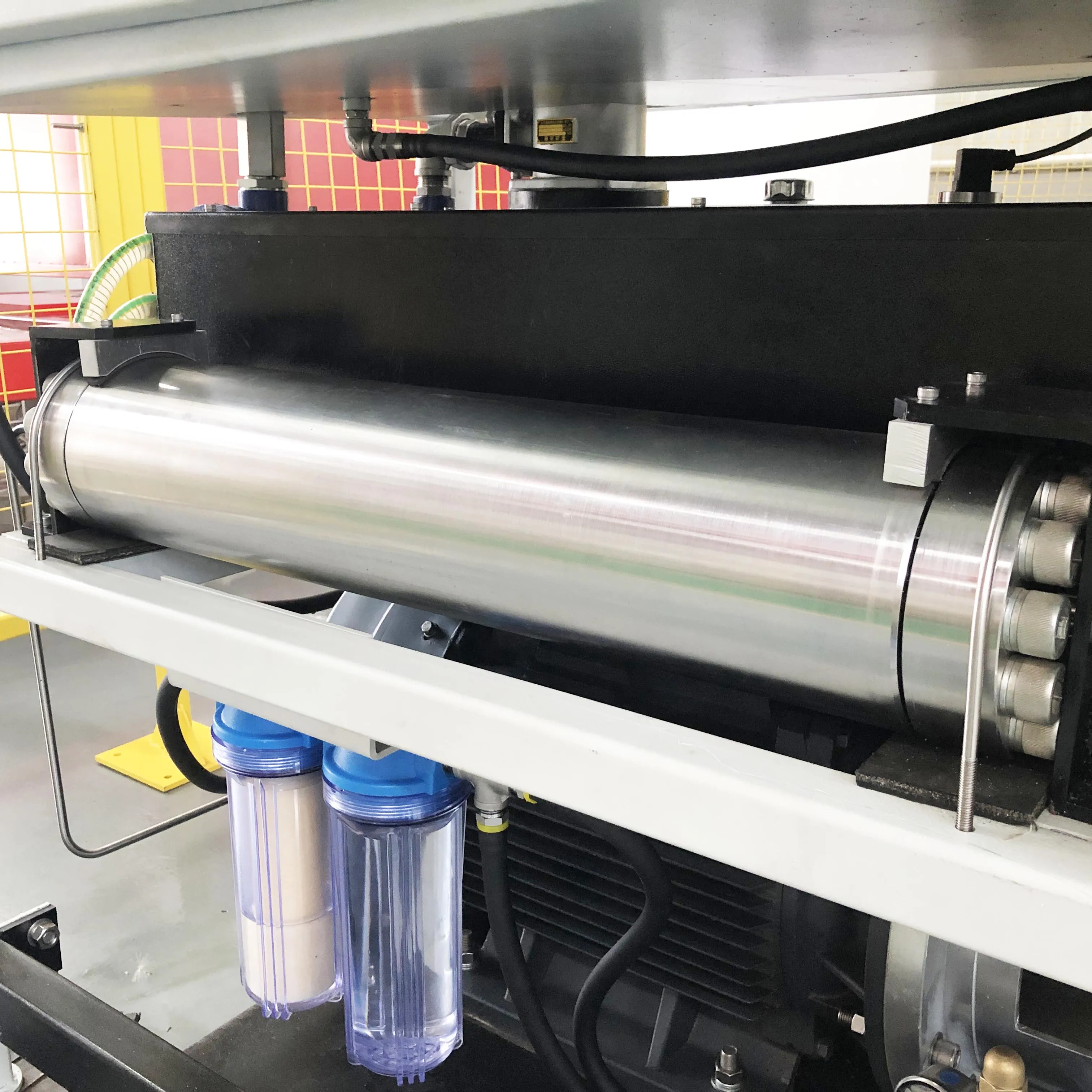

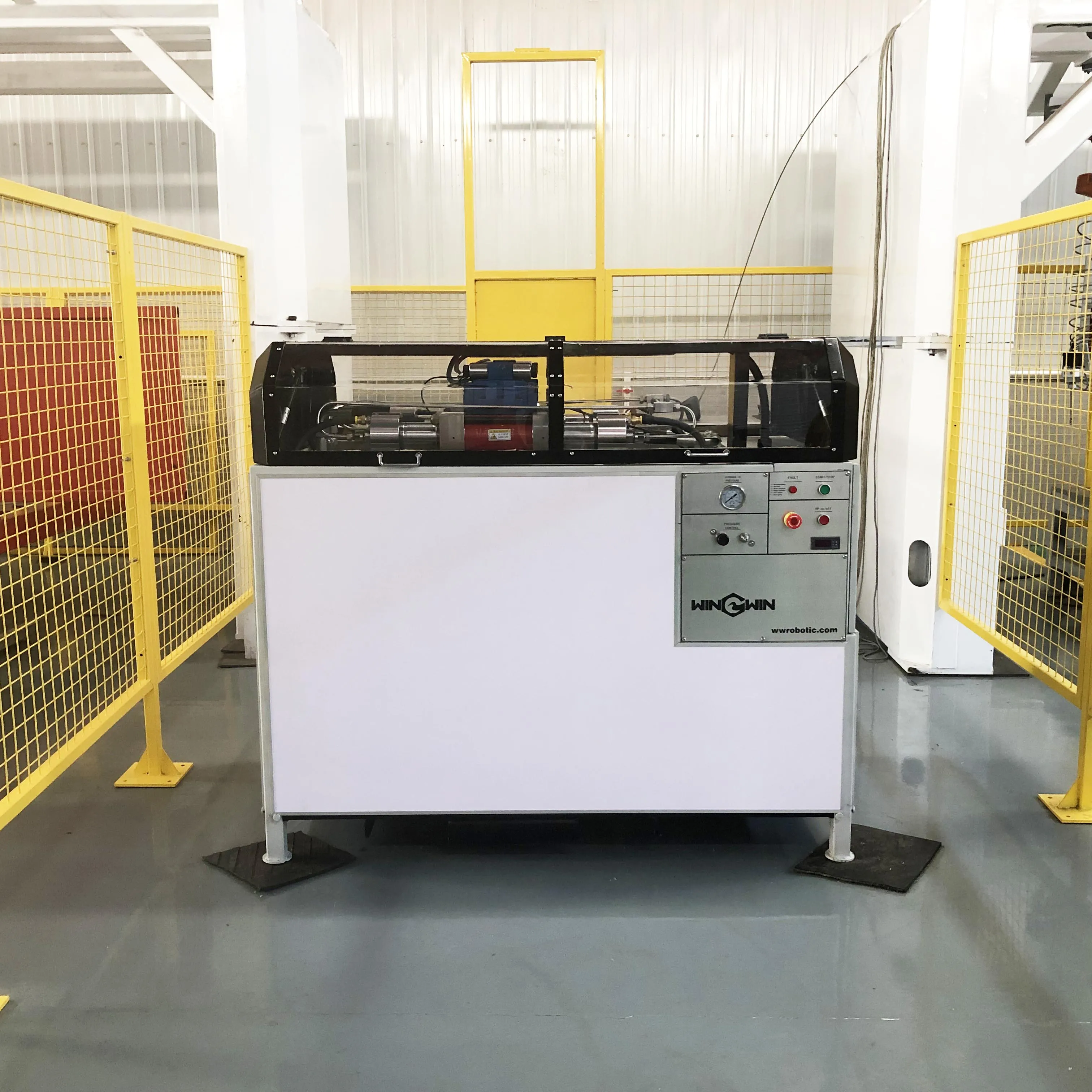

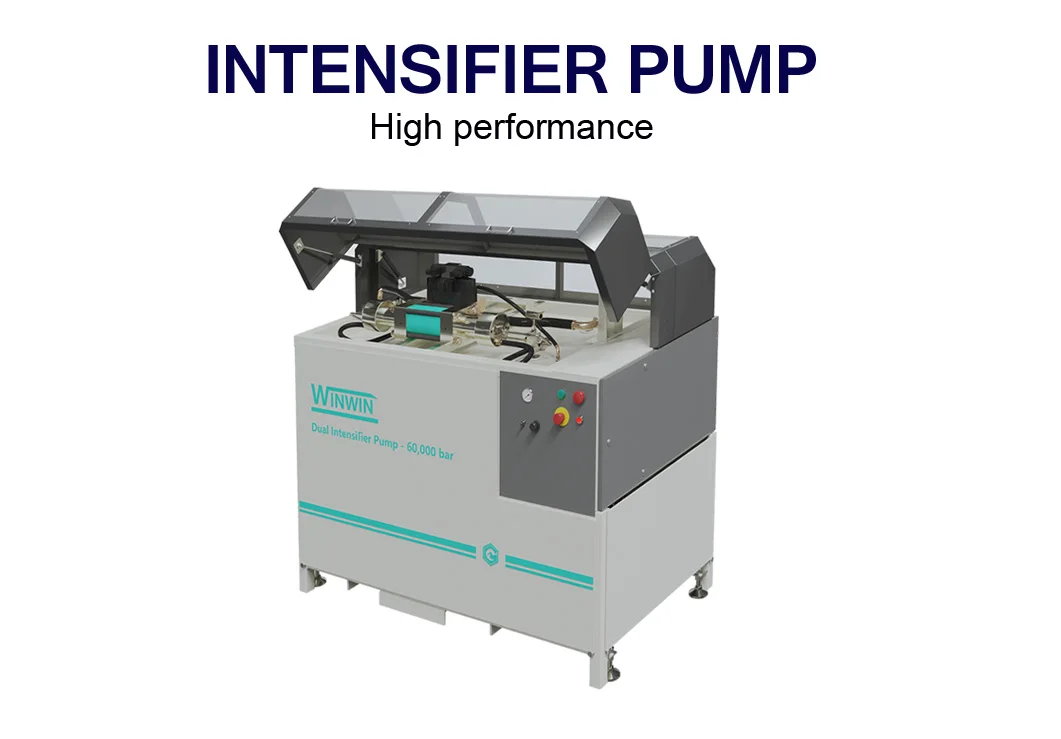

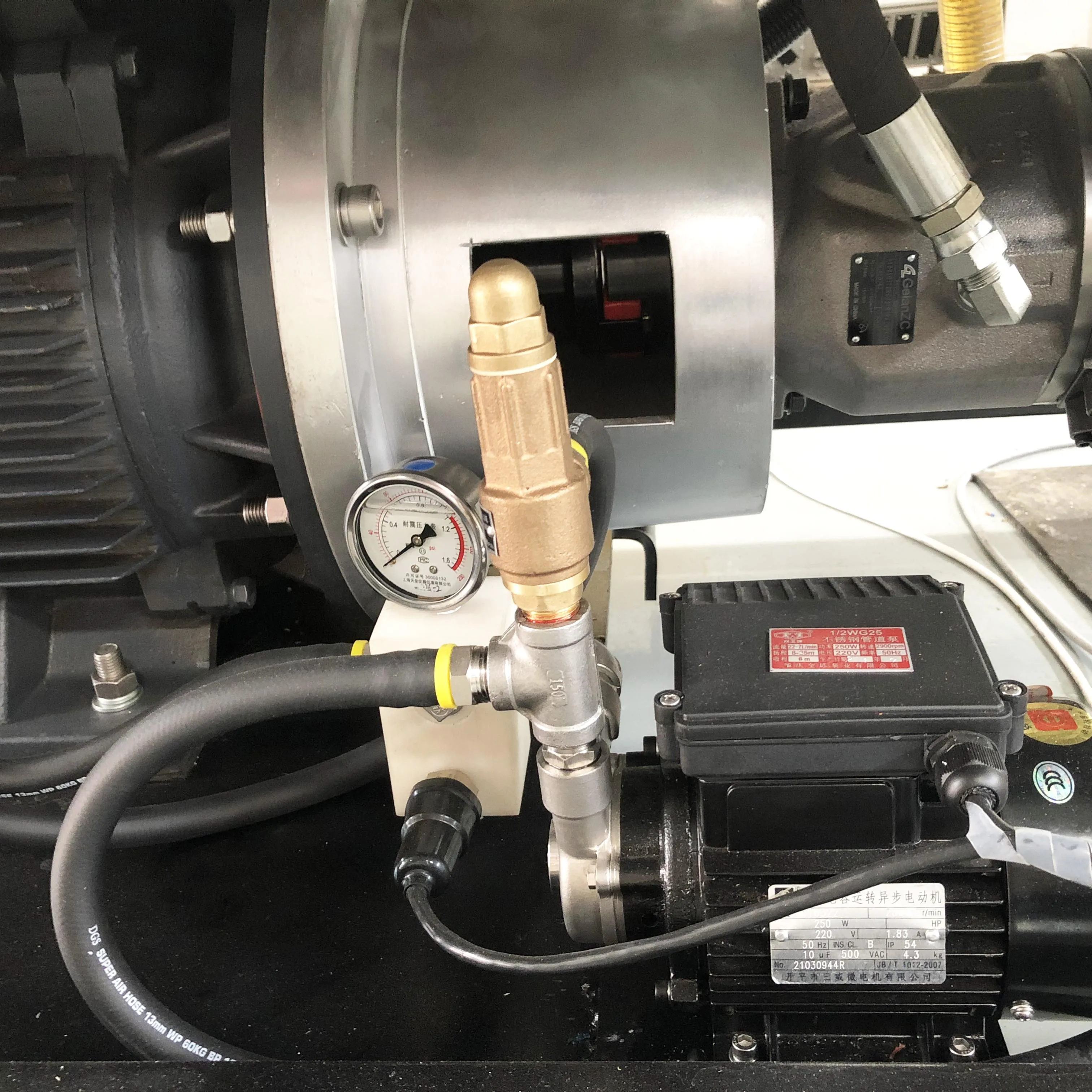

HP water jet cutting machine pump high pressure intensifier cutter pump
- Category: Water Jet Cutters >>>
- Supplier: A & V (Shenyang) Industry Group
Share on (1600344228463):
Product Overview
Description
Products Description
Dual Intensifier |
Suitable for multiple cutter heads |
High system stability |
Dual intensifier work at the same time |
Continuous 24-hour operation |

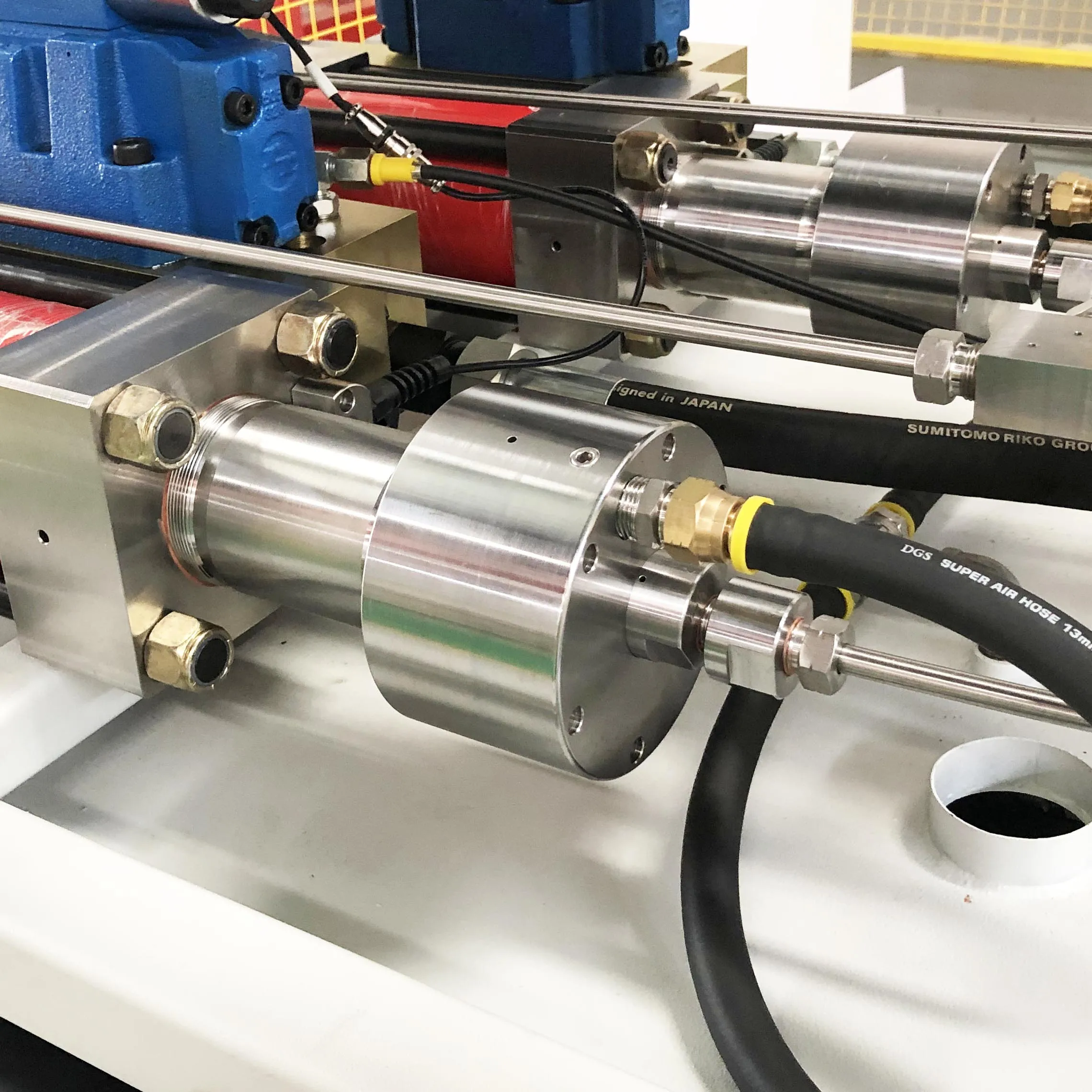

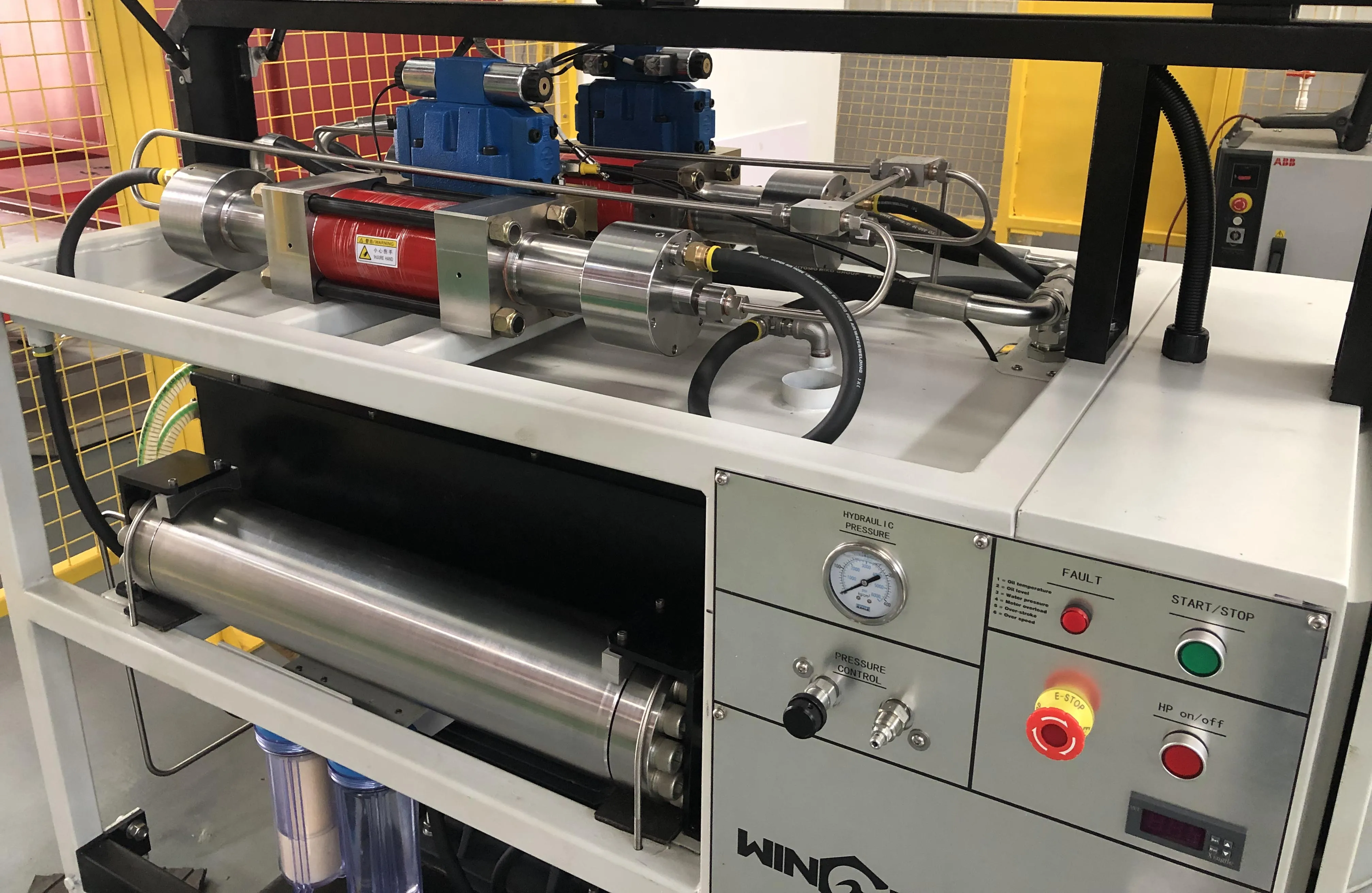

Features of Servo Motor WW60JET
1. Double supercharger booster pump, please select ww60jet.
2. The core is international standard universal supercharger and imported supercharger parts.
3. The linkage design of double superchargers perfectly reflects the ultra-high pressure water cutting performance.
4. Use automatic variable displacement pump to reduce power consumption and improve system efficiency,
5. Reduce system heating and prolong the service life of hydraulic components.
6. Double filtration system for oil inlet and return of oil pump to ensure the optimization of oil quality.
7. Automatic shutdown protection systems such as water shortage and overheating can ensure customers to work safely and continuously.
2. The core is international standard universal supercharger and imported supercharger parts.
3. The linkage design of double superchargers perfectly reflects the ultra-high pressure water cutting performance.
4. Use automatic variable displacement pump to reduce power consumption and improve system efficiency,
5. Reduce system heating and prolong the service life of hydraulic components.
6. Double filtration system for oil inlet and return of oil pump to ensure the optimization of oil quality.
7. Automatic shutdown protection systems such as water shortage and overheating can ensure customers to work safely and continuously.
Product Paramenters
Description | Unit | |
Motor Power Rate | KW/HP | 45/60 |
Max. Flow Rate | L/min | 6.5 |
Pressure Enhancement Factor | 20.21 | |
Max. Reversing Rate | Times/min | 60 |
Capacity of Attenuator | L | 2 |
Inlet Water Pressure | psi | 35-100 |
Inlet Water Filter | μ m abs | 10 |
Voltage | V | 380 |
Intensifier Quantity | Pieces | 2 |
Oil Tank Volume | L | 150 |
Temp. Control Method | Sensor | |
Reversing Control Method | Sensor | |
Cooling Method | Cold-Heat Exchanger | |
Environment Temperature | 5-40°C | |
Motor Drive Mode | Sevro/Standard Oil | |
Hydraulic Oil | Type 45 Hydraulic Oil | |
Orifice Quantity | piece | 1-5 |
L | m | 1.7 |
W | m | 1.1 |
H | m | 1.4 |
Why Choose Us
15 YEARS | With 15 years of experience in the waterjet cutting industry, we have the most advanced technical reserves and the most complete installation and commissioning procedures. Committed to manufacturing high-quality, high-stability waterjet cutting machines. |
SERVICE | The machine will be accomplished within one week after arriving at user's site, we can provide free training for your operator. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support. |
PARTNER | We have world-class parterns working with us, inorder to make top quality machine, such as: ABB, WEIHONG, SIEMENS, OMRON, YASKAWA, REXROTH, HIWIN, SCHNEIDER, etc |
GUARANTEE | 1 YEAR for the whole machine, within 1 year under normal use and maintenance, if something is wrong with the machine, you will get spare parts FOR FREE, consumable parts are excluded. Out of 1 year, you will get spare parts at cost price. You will also get technical support and service all the lifetime. |
QUALITY | Every part of waterjet cutting machine are checked before install, the entire equipment will be tested and run for a few days to ensure that all functions are working and the machine is in its best condition. |
TRUST | 1. Video and picture inspection equipment packaging 2. All parts are made of soft materials to avoid all possible damage during delivery 3. Fine packaging,waterproof and anti-rust 4. The bottom of the wooden box is strengthened to facilitate handling and transportation 5. Take photos to record the loading and unloading process and methods 6. Using fumigation treated wooden case. No need timber inspection,saving shipping time. |
Exhibition & Costomer Visit

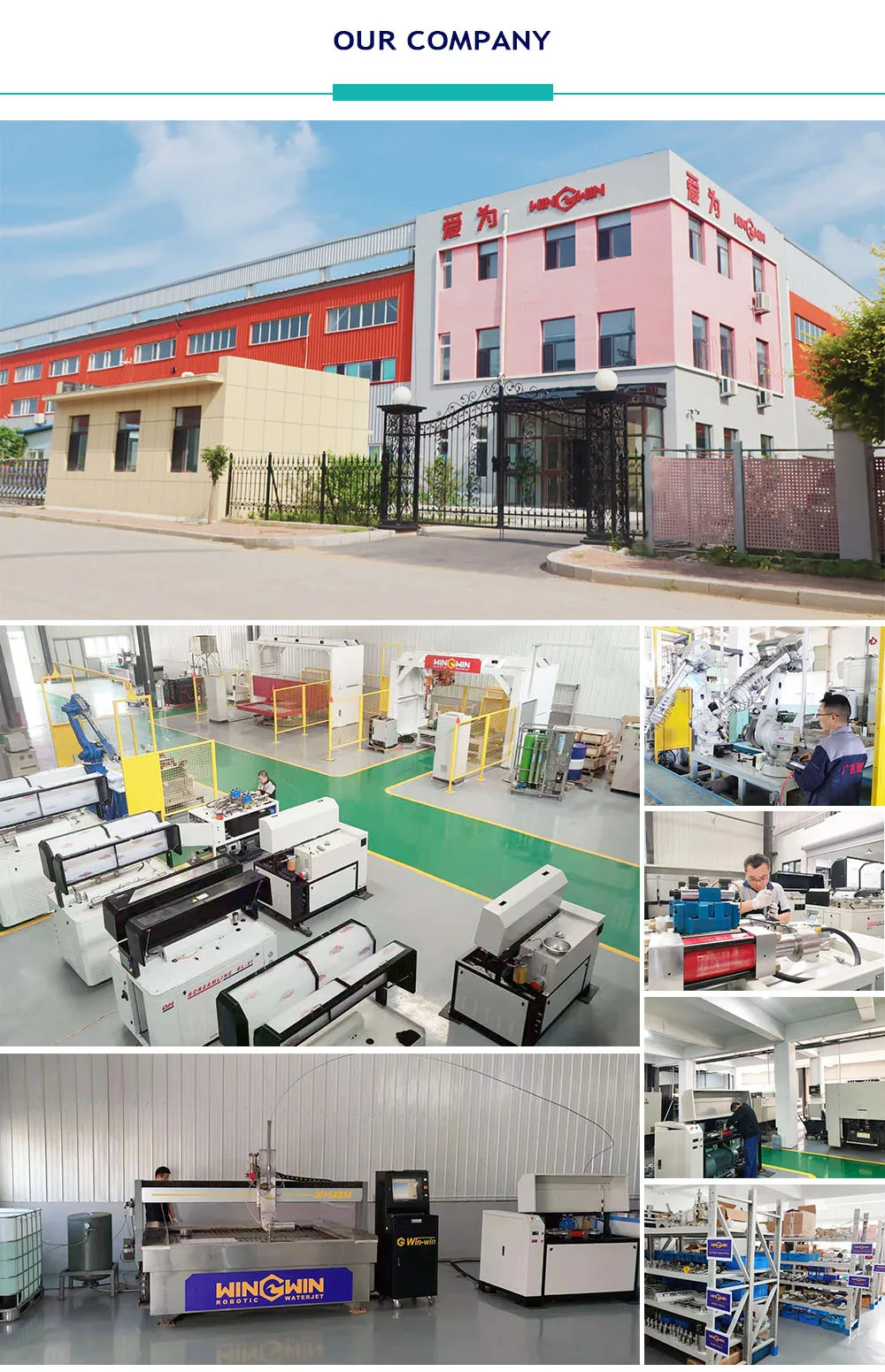

About US
For more than 15 years,we has been engaged in waterjet cutting industry. specialized in design, R & D and manufacture of ultra-high pressure water cutting equipment and accessories. Committed to providing global customers with first-class waterjet cutting products.
Our founders are industry pioneers, a group of lovely engineers, fascinated by the breakthrough and progress of ultra-high pressure technology. In our own 25000 square meter standardized workshop, you can see automated production lines,
standardized inspection process, 100% pre-sales testing, especially the best R & D and design team which has mastered more than ten ultra-high pressure core technologies and processes.
standardized inspection process, 100% pre-sales testing, especially the best R & D and design team which has mastered more than ten ultra-high pressure core technologies and processes.
We are not only a supplier of durable and high-quality ultra-high pressure waterjet cutting equipment and parts, but also your reliable partner in China.
FAQ
1,Q:How about your products quality?
A: All parts and raw materials are all supplied by professional and reputable companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
2,Q:Are you a manufacturer ?
A:We are a professional manufacturer and have our own International Trade Department, so we can better understand customer's needs and offer a reasonable price.
3,Q:Is the price negotiable ?
A:We always offer high quality products to our customers. so prices are reasonable. but could be negotiated depends on purchasing amount and other factors.
4,Q:How many material can your machine cut?
A:Our cutting machines apply on many industries, such as car decoration, metal, stone, glass, tiles and so on.
5,Q:When are you shipping after payment?
A:Delivery time is 3-5 days after got payment.
2,Q:Are you a manufacturer ?
A:We are a professional manufacturer and have our own International Trade Department, so we can better understand customer's needs and offer a reasonable price.
3,Q:Is the price negotiable ?
A:We always offer high quality products to our customers. so prices are reasonable. but could be negotiated depends on purchasing amount and other factors.
4,Q:How many material can your machine cut?
A:Our cutting machines apply on many industries, such as car decoration, metal, stone, glass, tiles and so on.
5,Q:When are you shipping after payment?
A:Delivery time is 3-5 days after got payment.
