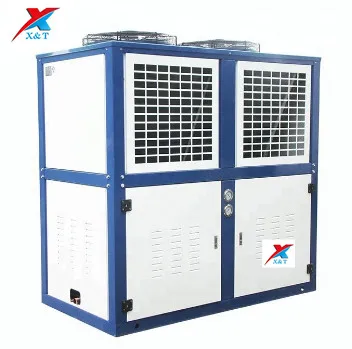

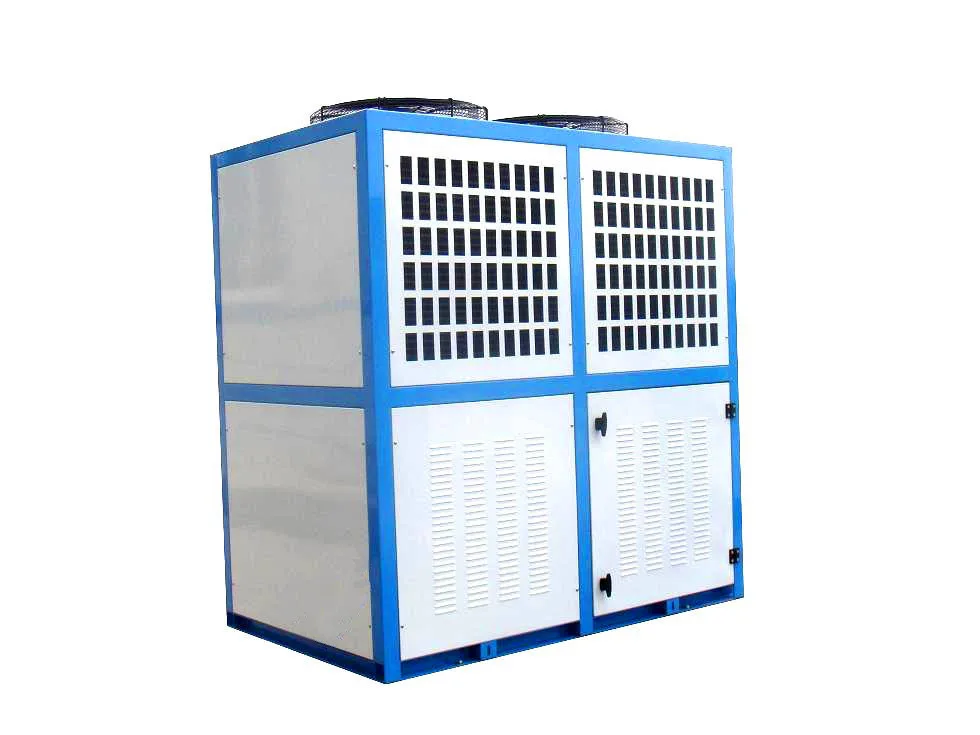

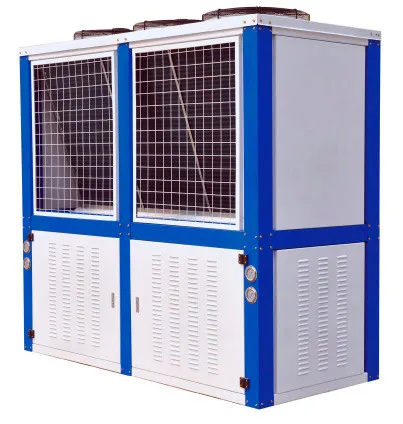

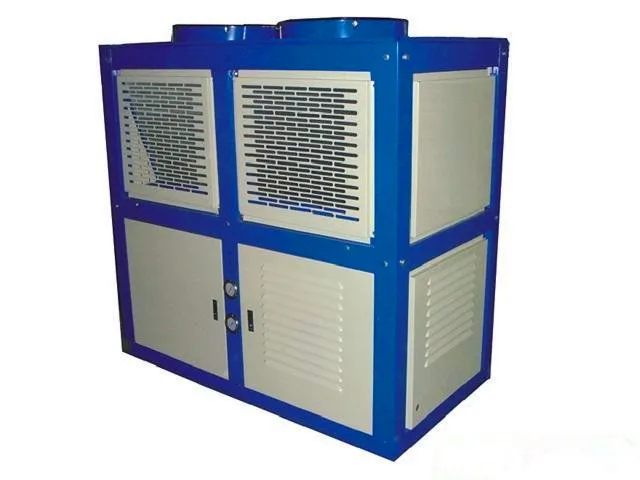

ZB29KQ box type monoblock Condensing Unit and freon Condensing Unit top wind blow
- Category: >>>
- Supplier: Hangzhou Xuantong Machinery Co. Ltd.
Share on (1600344328447):
Product Overview
Description
ZB29KQ box type monoblock Condensing Unit and freon Condensing Unit top wind blow
XT-MTC Series
| Model | XT | ||||||
| 02MTC | 03MTC | 04MTC | 05MTC | 06MTC | |||
| Compressor model | ZB15KQ | ZB21KQ | ZB29KQ | ZB38KQ | ZB45KQ | ||
| Cooling capacity and power | Evaporating temperature -5C | Cooling capacity W | 3920 | 5700 | 7000 | 9100 | 11550 |
| Power W | 1790 | 2500 | 3290 | 3990 | 4780 | ||
| Evaporating temperature -7C | Cooling capacity W | 3620 | 5270 | 6320 | 8300 | 10650 | |
| Power W | 1820 | 2490 | 3290 | 3900 | 4790 | ||
| Evaporating temperature -10C | Cooling capacity W | 3190 | 4660 | 5390 | 7200 | 9390 | |
| Power W | 1850 | 2480 | 3280 | 3890 | 4800 | ||
| Applicable temperature | -5-5C | ||||||
| Refrigerant | R22 | ||||||
| Power supply | 380V/3PH/50HZ | ||||||
| Condenser | Fan quantity | 1 | 1 | 1 | 1 | 2 | |
| Fan voltage V | 380 | 380 | 380 | 380 | 380 | ||
| Fan Power w | 200 | 200 | 250 | 250 | 200*2 | ||
| Coupling | Suction coupling mm | 19 | 19 | 22 | 22 | 22 | |
| Tube coupling mm | 10 | 10 | 10 | 12 | 12 | ||
| Overall size | 788*756*657 | 938*756*867 | |||||
| dimension size | 472*726 | 582*826 | |||||
| Model | XT | |||||||
| 08MTC | 09MTC | 10MTC | 12MTC | 13MTC | 15MTC | |||
| Compressor model | ZB58KQ | ZB66KQ | ZB76KQ | ZB88KQ | ZB95KQ | ZB114KQ | ||
| Cooling capacity and power | Evaporating temperature-5C | Cooling capacity W | 14700 | 17200 | 20300 | 21400 | 23700 | 28900 |
| Power W | 6120 | 6740 | 8000 | 9040 | 9770 | 11750 | ||
| Evaporating temperature -7C | Cooling capacity W | 13400 | 15900 | 18700 | 19750 | 22000 | 26800 | |
| Power W | 6120 | 6730 | 7990 | 9010 | 9630 | 11600 | ||
| Evaporating temperature -10C | Cooling capacity W | 11550 | 14000 | 16500 | 17400 | 19600 | 23800 | |
| Power W | 6140 | 6720 | 7950 | 8960 | 9420 | 11350 | ||
| Applicable temperature | -5-5C | |||||||
| Refrigerant | R22 | |||||||
| Power supply | 380V/3PH/50HZ | |||||||
| Condenser | Fan quantity | 1 | 2 | 2 | 2 | 2 | 2 | |
| Fan Voltage V | 380 | 380 | 380 | 380 | 380 | 380 | ||
| Fan power W | 600 | 250*2 | 450*2 | 450*2 | 450*2 | 600*2 | ||
| Coupling | Suction coupling mm | 28 | 28 | 28 | 28 | 28 | 28 | |
| Tube coupling mm | 16 | 16 | 16 | 16 | 16 | 16 | ||
| overall size | 1488*856*867 | 1388*856*967 | 1488*856*967 | 1536*856*892 | ||||
| dimension size | 832*826 | 832*856 | 932*826 | 982*826 | ||||
XT-MTCY series
Parameter data sheet
M:middel temperature-5-5C T:Top side blow C:ZB series compressor
Y:R404a 380V.3PH.50HZ
| Model | XT | ||||||
| 02MTCY | 03MTCY | 04MTCY | 05MTCY | 06MTCY | |||
| Compressor model | ZB15KQE | ZB21KQE | ZB29KQE | ZB38KQE | ZB45KQE | ||
| Cooling capacity and power W | Evaporative temperature -5C | cooling capacity w | 3660 | 5630 | 7680 | 9300 | 11200 |
| power w | 2030 | 2810 | 3740 | 5182 | 5340 | ||
| Evaporative temperature -7C | cooling capacity | 3630 | 5180 | 7070 | 8600 | 10350 | |
| power W | 2060 | 2820 | 3750 | 5166 | 5350 | ||
| Evaporation temperature -10C | Cooling capacity w | 2920 | 4570 | 6210 | 7600 | 9120 | |
| power W | 2100 | 2820 | 3770 | 5143 | 5360 | ||
| Condenser | Fan quantity | 1 | |||||
| Fan voltage V | 380 | ||||||
| Fan power W | 180 | 250 | 450
| ||||
| Coupling | Suction coupling mm | 19 | 22 | 22 | |||
| Tube coupling mm | 10 | 10 | 12 | ||||
| Overall size | 788*756*657 | 938*756*667 | 938*756*767 | 938*856*867 | |||
| Dimension size | 472*726 | 582*726 | 582*826 | ||||
| Refrigerant | R404a | ||||||
| Model | XT | ||||||
| Compressor model | 08MTCY | 09MTCY | 10MTCY | 13MTCY | 15MTCY | ||
| cooling capacity | Evaporating temperature -5C | cooling capacityW | 14450 | 16800 | 19100 | 23600 | 28900 |
Evaporating temperature -7C | Cooling capacity W | 13200 | 15500 | 17650 | 21800 | 26600 | |
Evaporating temperature -10C | Cooling capacity W | 11500 | 13700 | 15700 | 19300 | 23600 | |
| condenser | fan quantity | 1 | 2 | 2 | 2 | 2 | |
| fan voltage v | 380 | ||||||
| fan power W | 600 | 250*2 | 450*2 | 600*2 | |||
| overall size | 1158*856*867 | 1288*856*867 | 1488*856*867 | 1488*856*967 | |||
