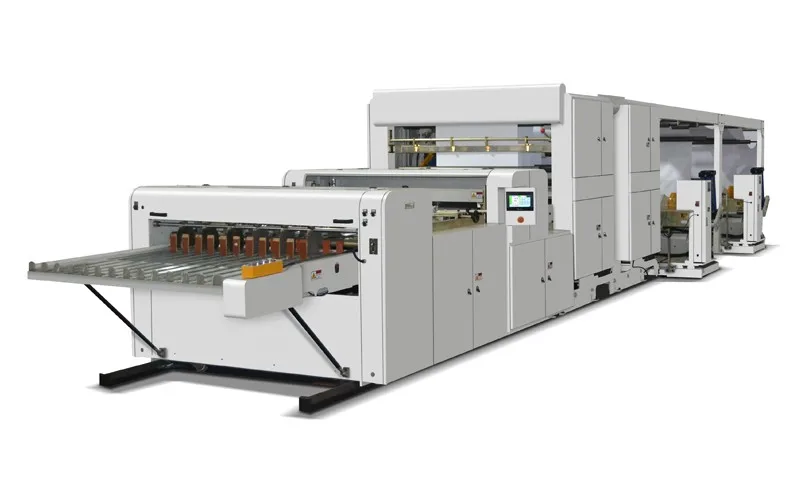

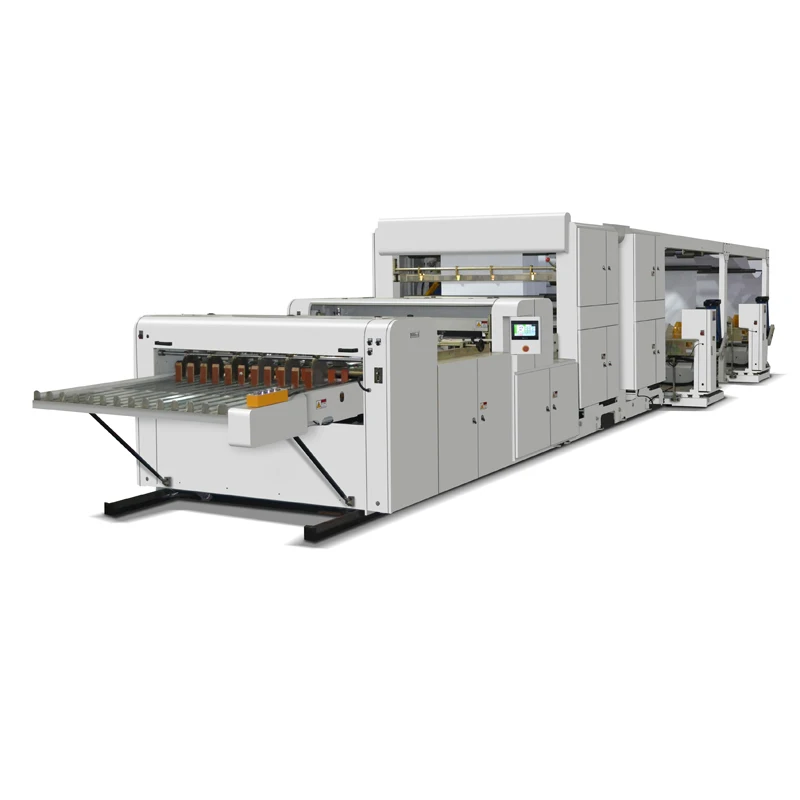

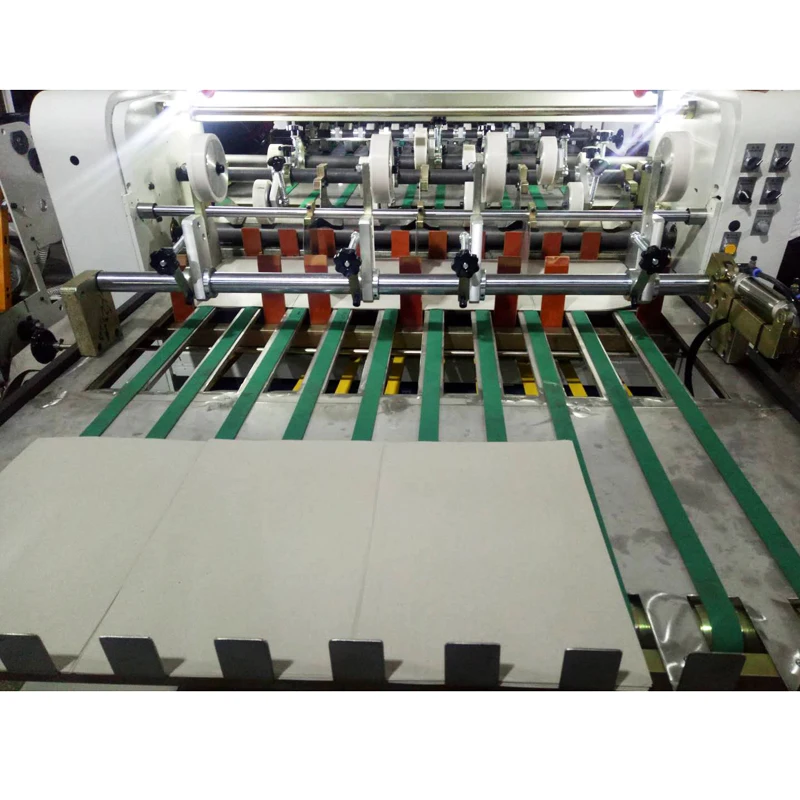

Chinese Manufacture High Speed Automatic 2 Rolls A4 Size Paper Cutting Machine factory price

Product Overview

Description

Professional for the A4, A3 paper automatic cutting usage.

1)     Main engine frequency adjust speed, PLC touch screen control system, auto counter quantity, auto fixed length, auto machine stop when had alarm , auto tension control etc function.

2)     Traction drive fixed position use servo motor system, traction driver roller use steel structure. Feeding traction way is through motor move the chain wheel to drag the rubber roller. The receiving platform is normal automatic finished materials table, control by motor.



Technical Parameters:

Model	HQJ-1100
Max.Diameter of Unwinding	φ1400mm
Max. Cutting Width	1100mm
Cutting Length	A4/A3
Cutting Speed	0-200times/min
Cutting Precision	±0.2mm
Height of Stacking	20kw
Total Power	7000kg
Machine Size(L*W*H)	11000×3200×2200



Main machine part:

1. Unwinding Unit: Auto magnetic tension control, air shaft (or shaftless), auto loading.

2. Feeding Unit: Control by servo motor

3. Cutting Unit: Cutting way: bottom cutter fixed, Top cutter make cutting, adjust cutter position by manual

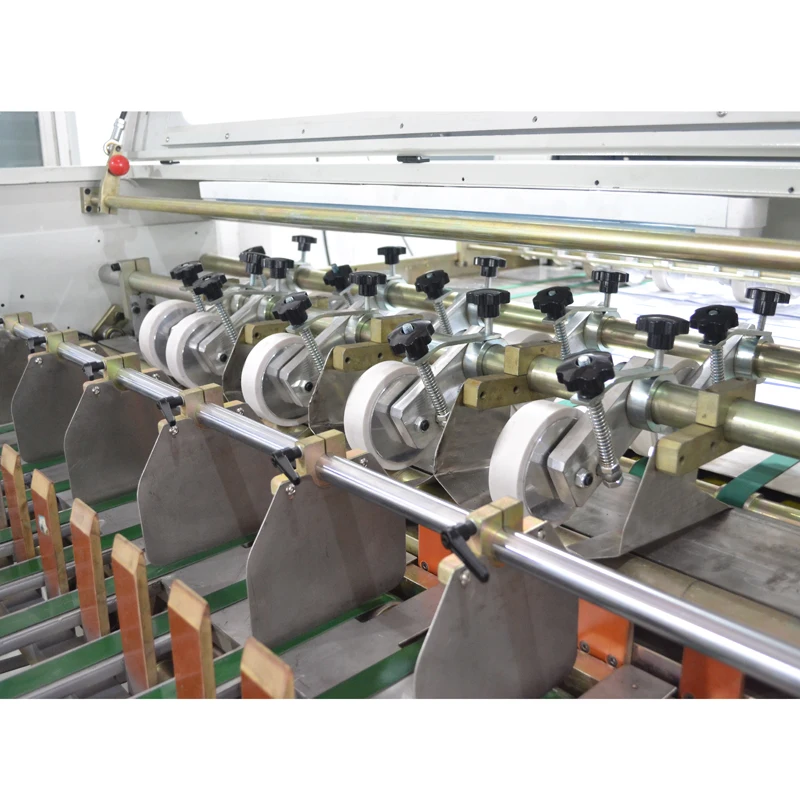

4. Slitting Unit: Slitting way: active bottom of knife, drag the up of knife to slitting;

5. Automatic finishing material equipment

6. Control System: PLC from Japan and Touch screen from Taiwan.

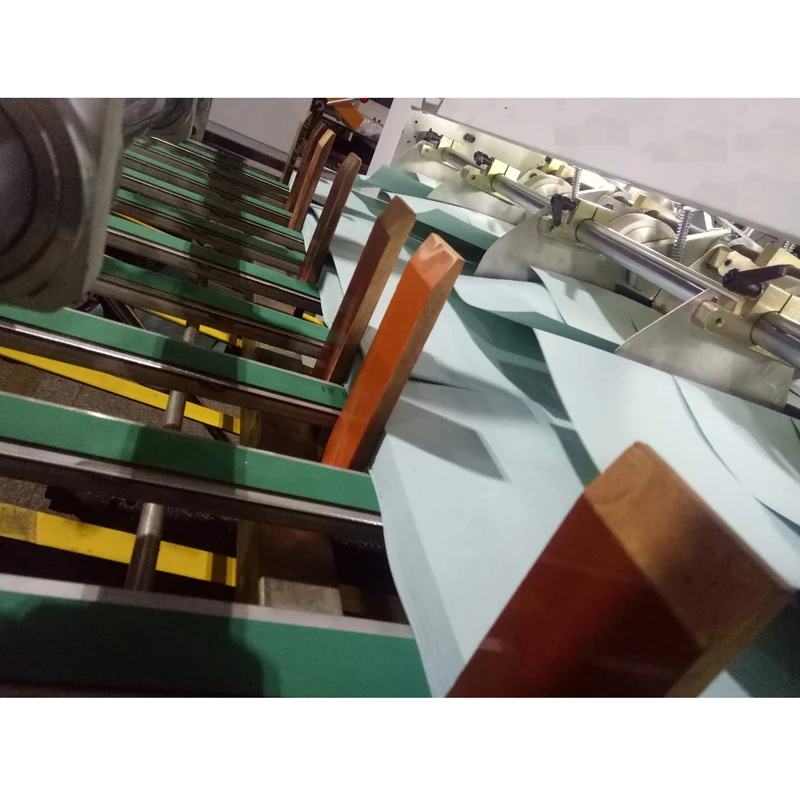

Detailed Images
