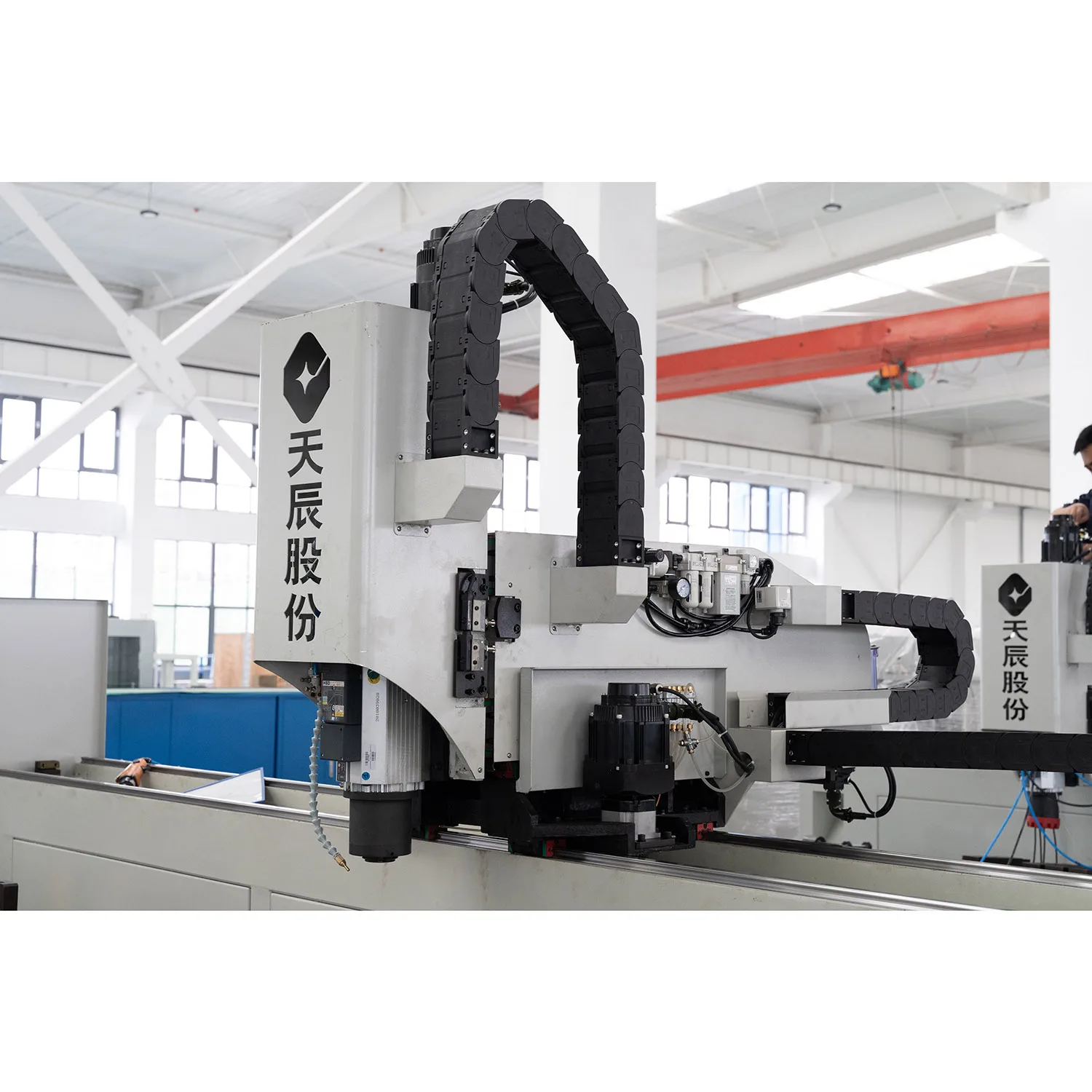

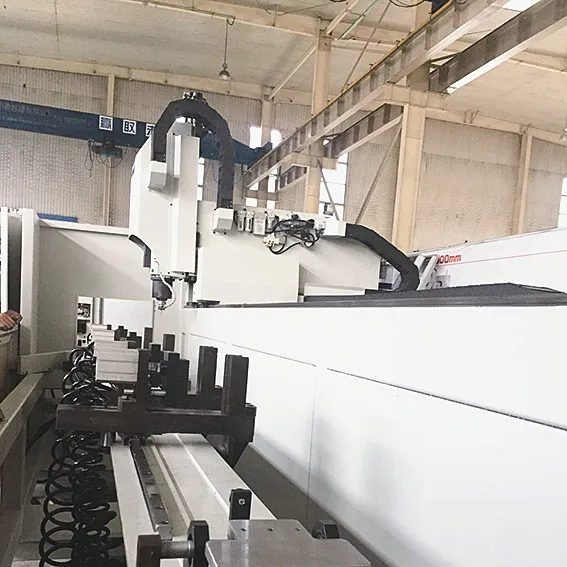

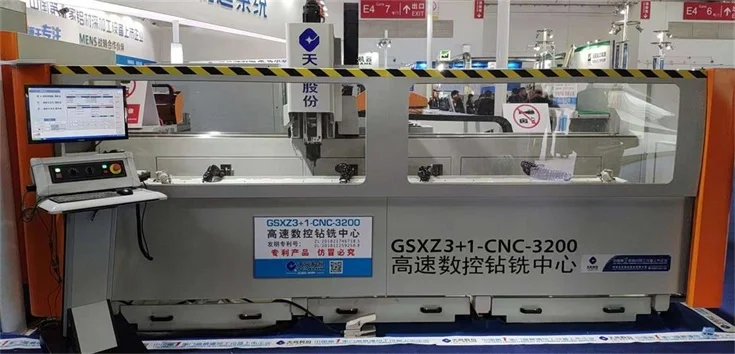

china cnc milling machine Aluminum profile CNC drilling and milling machine High precision Door and window equipment
- Category: >>>
- Supplier: Jinan Tianchen Smart Machine Co. ltd.
Share on (1600344368202):
Product Overview
Description
MACHINE FEATURES
◆ Applicable for CNC milling and drilling processing for multiple parts of aluminum window and door curtain wall or industrial
aluminum profile, copper, PVC profile and etc.
◆Adopt high precision guide rail pair, ball screw, gear rack and imported high quality servo system, make sure the stable working,
with better positioning and processing accuracy.

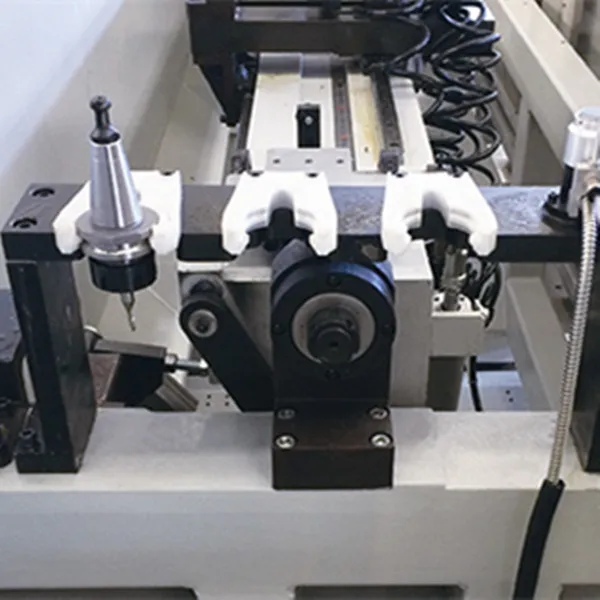

◆Adopting high speed electrical auto switching tool spindle, with good and reliable performance.

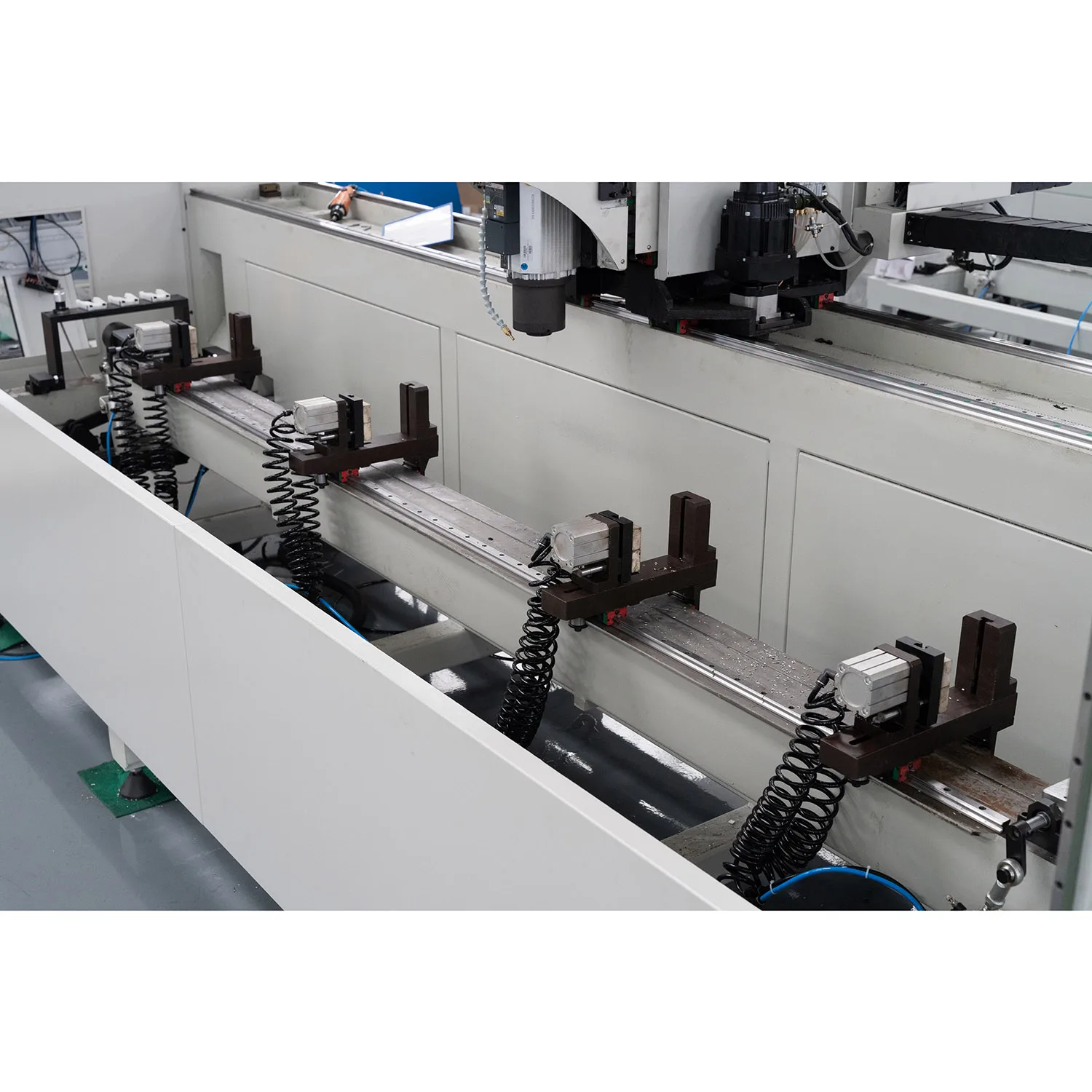

◆There are positioning devices at double ends of the worktable separately. It can realize the dual processing in two areas for
short profile, which greatly improve the working efficiency.
◆Adopting semi-closed protective shield and receiver at the bottom, with better safety. And effectively avoid the chippings
pollution to the environment; help building a good working environment.
◆ It is convenient to operate with intelligent CNC system and brief intuitive interface
◆The rotary work table is able to change among the -90°,0°, and 90°, realized the milling and drilling processing at three
surfaces for one time clamping.
aluminum profile, copper, PVC profile and etc.
◆Adopt high precision guide rail pair, ball screw, gear rack and imported high quality servo system, make sure the stable working,
with better positioning and processing accuracy.
◆Adopting high speed electrical auto switching tool spindle, with good and reliable performance.
◆There are positioning devices at double ends of the worktable separately. It can realize the dual processing in two areas for
short profile, which greatly improve the working efficiency.
◆Adopting semi-closed protective shield and receiver at the bottom, with better safety. And effectively avoid the chippings
pollution to the environment; help building a good working environment.
◆ It is convenient to operate with intelligent CNC system and brief intuitive interface
◆The rotary work table is able to change among the -90°,0°, and 90°, realized the milling and drilling processing at three
surfaces for one time clamping.
TECHNICAL PARAMETERS
X-axis range | 3500mm |
Y-axis range | 450mm |
Z-axis range | 350mm |
X axis moving speed | 0-60m/min |
Y axis moving speed | 0-30m/min |
Z axis moving speed | 0-30m/min |
Spindle power | 7.5kw/9kw |
Spindle max rev | 24000r/min |
Spindle taper | ISO30 |
Max processing range | 160x160x3200mm |
Tool magazine capacity | 3 pcs |
Quantity of clamp | 4 |
Area | 4500x2300 mm |
Weight | About 2500 kg |

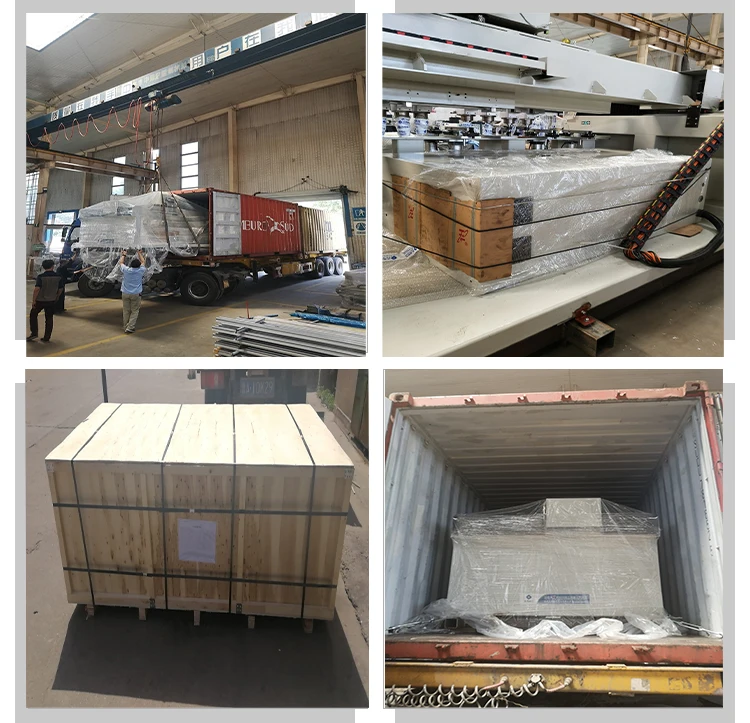

Q : When can you arrange shipment?
A : We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days.
Q : What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can assign our engineers to repair your machines
Q : Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine’s installation, commissioning, and operation training.
A : We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days.
Q : What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can assign our engineers to repair your machines
Q : Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine’s installation, commissioning, and operation training.
All of our engineers have passport.
Q : Which machine model shall I choose when I purchase from you?
We have both high-end machines and normal machines. Please inform us your estimated production capacity (how many windows you plan to produce per year) and your budget plan, we will recommend our machine models best for your request.
Q : Which machine model shall I choose when I purchase from you?
We have both high-end machines and normal machines. Please inform us your estimated production capacity (how many windows you plan to produce per year) and your budget plan, we will recommend our machine models best for your request.
