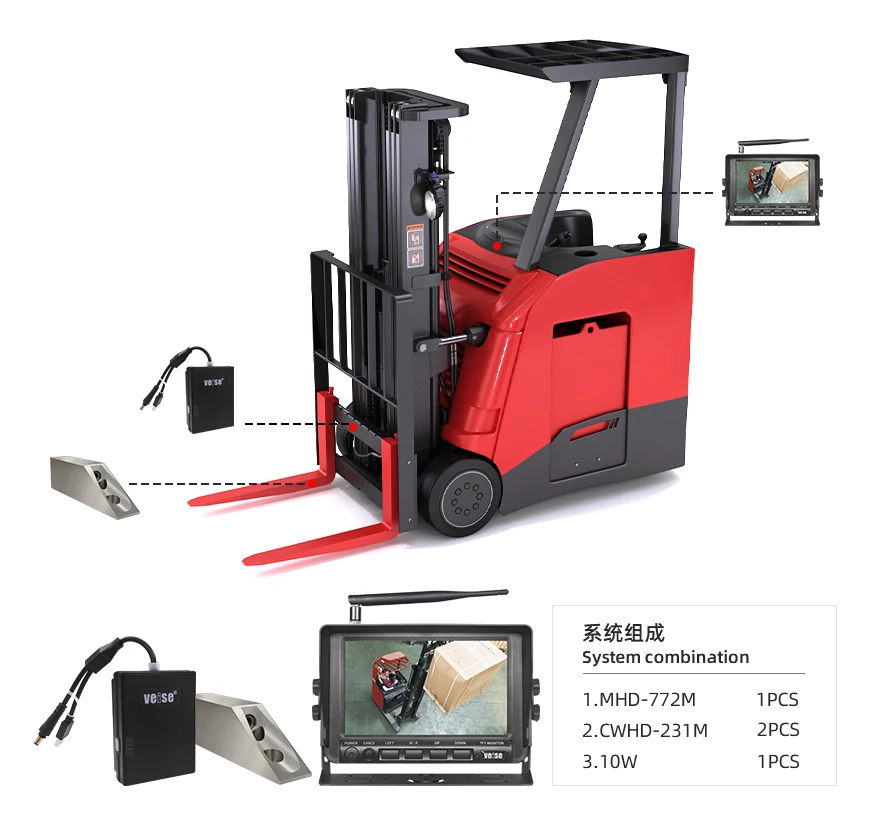

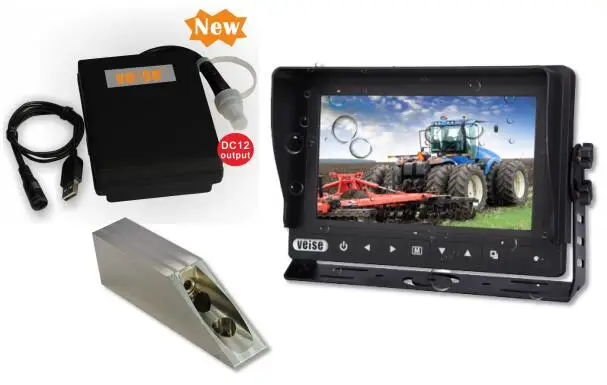

Wireless 2.4G HD Forklift Camera System with 7 Inch Monitor and Removable Sun Visor
- Category: >>>
- Supplier: Veise (guangzhou) Electronics Co. Ltd.
Share on (1600344434587):
Product Overview
Description
Wireless 2.4G HD Forklift Camera System with
7 Inch Monitor and Removable Sun Visor
Brief introduction
♦ Multi-frequency hopping frequency automatic code matching, good anti-channeling interference, open transmission distance 100 meters
♦ Graphical OSD menu to set the screen mirroring and front image, reversing ruler, trigger priority application functions
♦ Independent design appearance patent, the shell is made of ABS+PC material, which has the characteristics of high temperature resistance
♦ Load dump pulse voltage DC24V+174V (350ms) designed to protect the vehicle from transient pulse damage
♦ 720P 2.4GHz digital wireless camera, car standard DSP million high-definition pixels
Parameter
System model | HDWS-772M231M1-10W |

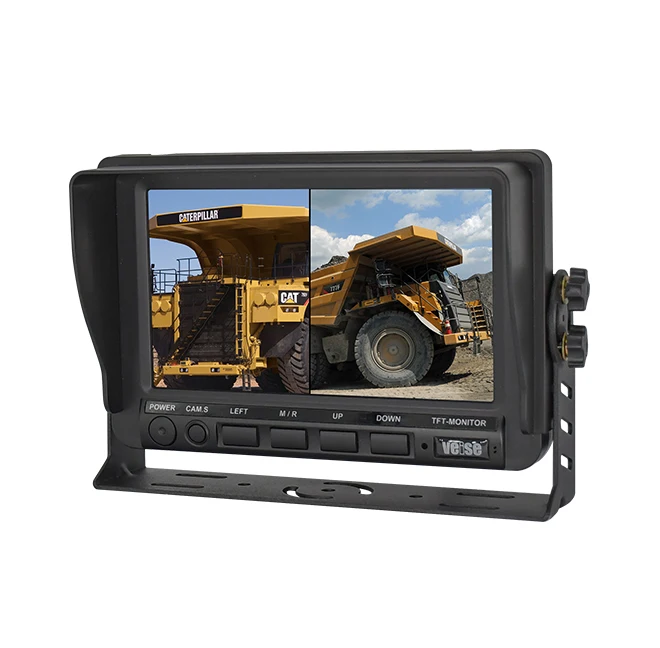

Monitor model | Waterproof Wireless High-Definition LCD Monitor (MWHD-772M) |
Color LCD screen | 7-inch IPS screen |
Color system | PAL/NTSC (AUTO) |
| Wireless reception | Built-in 2.4G wireless receiver |
| Picture mode | Single screen switching + 2 split |
working frequency | 2400~2483.5MHZ |
Receiving sensitivity | ≤-86 dB |
Receiving distance | Open ≤100m |
Multi-frequency automatic frequency hopping channel code | 80 |
Resolution | 1024(H) X 600(V)dot |
Brightness(cd/m2) | 600 |
Load dump | DC24+174V(Td350mS) 5pulses |
Vibration resistance level | 5G (conforms to GB-T2423056-2006 standard) |
Working temperature | -20℃ to +70℃ |
Storage temperature | -30℃ to +80℃ |
Working voltage | DC8-32V |
Dimensions | (L x W x T) (216 x 150 x 80mm) |

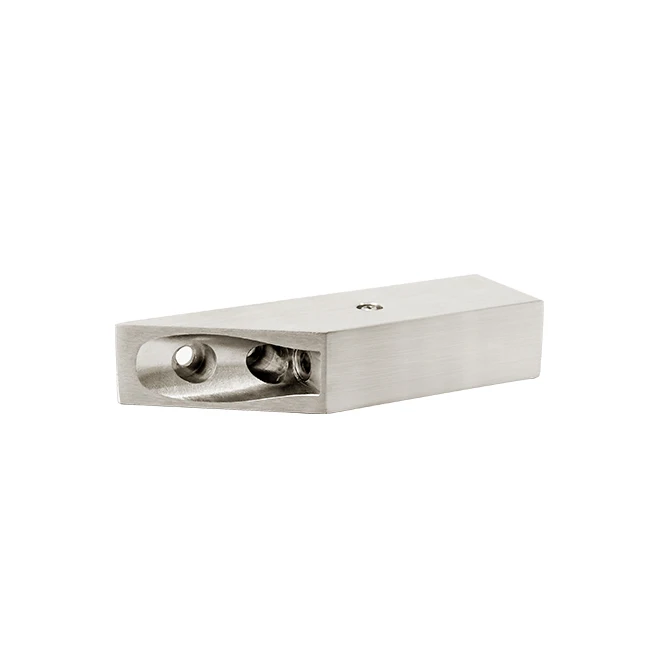

MODEL | Wireless HD Car Waterproof Camera(CWHD-231M) |
Image sensor | 1/3.7 Color DSP |
Wireless transmission | Built-in 2.4G digital wireless transmitter |
Transmit power | 18dBm |
Launch distance | Open area≤100m |
Resolution | 720P |
effective pixels | 1280(H) X 960(V) |
Viewing angle | 45° |
shell material | 304 stainless steel, anti-collision design |
Waterproof rating | IP69K |
Working voltage | DC12V |
Working temperature | -20℃ to +60℃ |
Storage temperature | -30℃ to +70℃ |
Vibration resistance level | 5G (conforms to GB-T2423056-2006 standard) |
Dimensions | 25(W) x 37(H) x 124(D) mm |

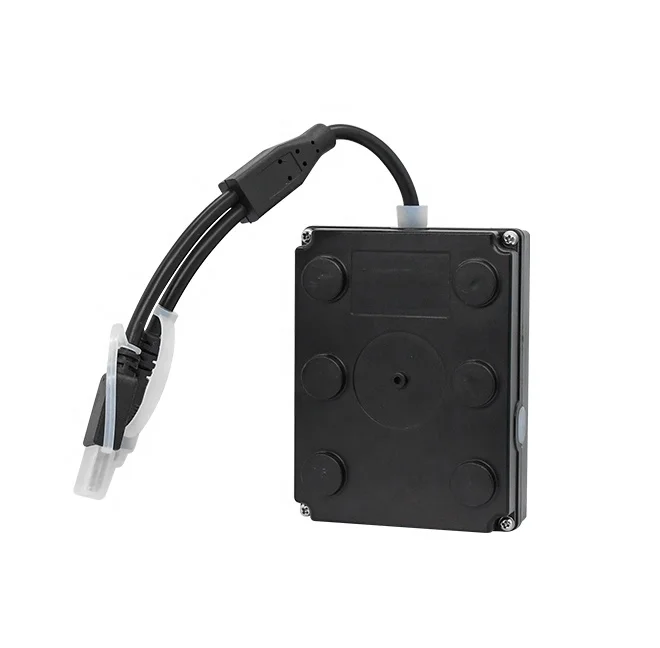

| Mobile Rechargeable Power Supply (MP-01A10W1) | |
| Cell type | Imported Panasonic lithium ion battery with original packaging |
| Product Capacity | 10000maH |
| USB input (support fast charging) | 5V/3.5A-9V/(2A)-12V(1.5A) |
| DC output | 12V(0.8A) |
| Waterproof rating | IP66 |
| Charging cycle temperature | 0°~+40° |
| Discharge working temperature | -10°~+50° |
| Dimensions | 95(W) x 72(H) x 29(D) mm |
