carton compactor scrap metal hydraul press machine hydraulic press for aluminum for baling
- Category: >>>
- Supplier: Foshan Nanhai Keshang Hydraulic Machinery Factory
Share on (1600344472000):
Product Overview
Description
Products Description

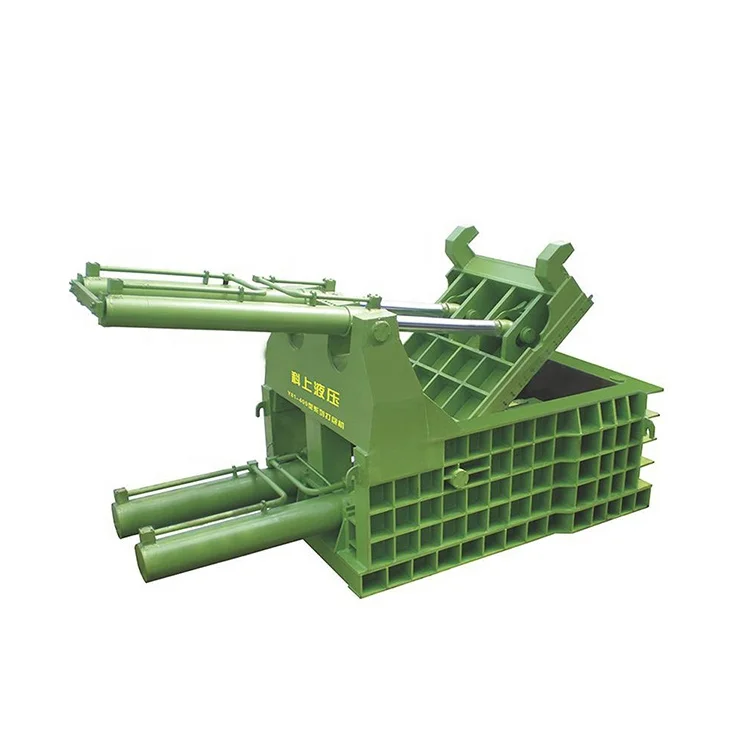

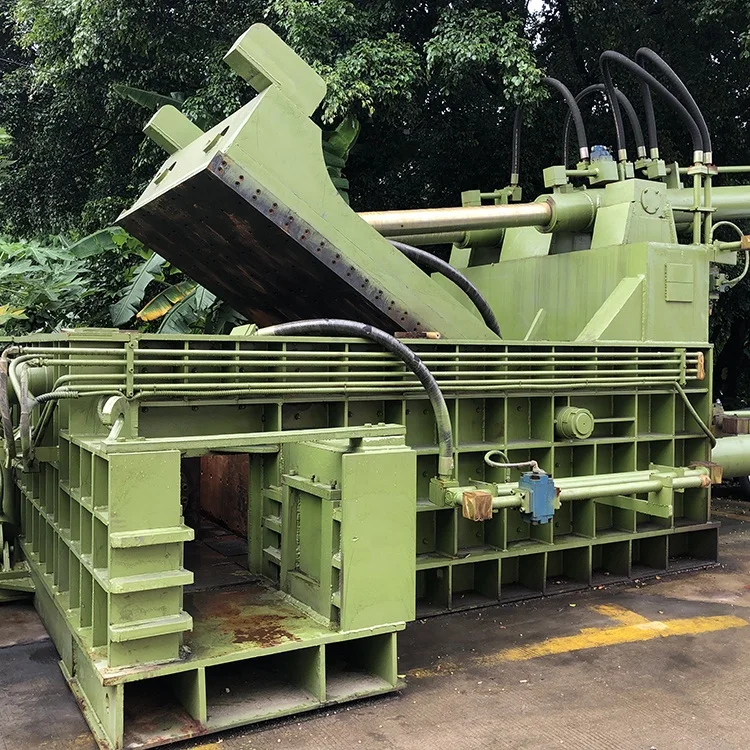

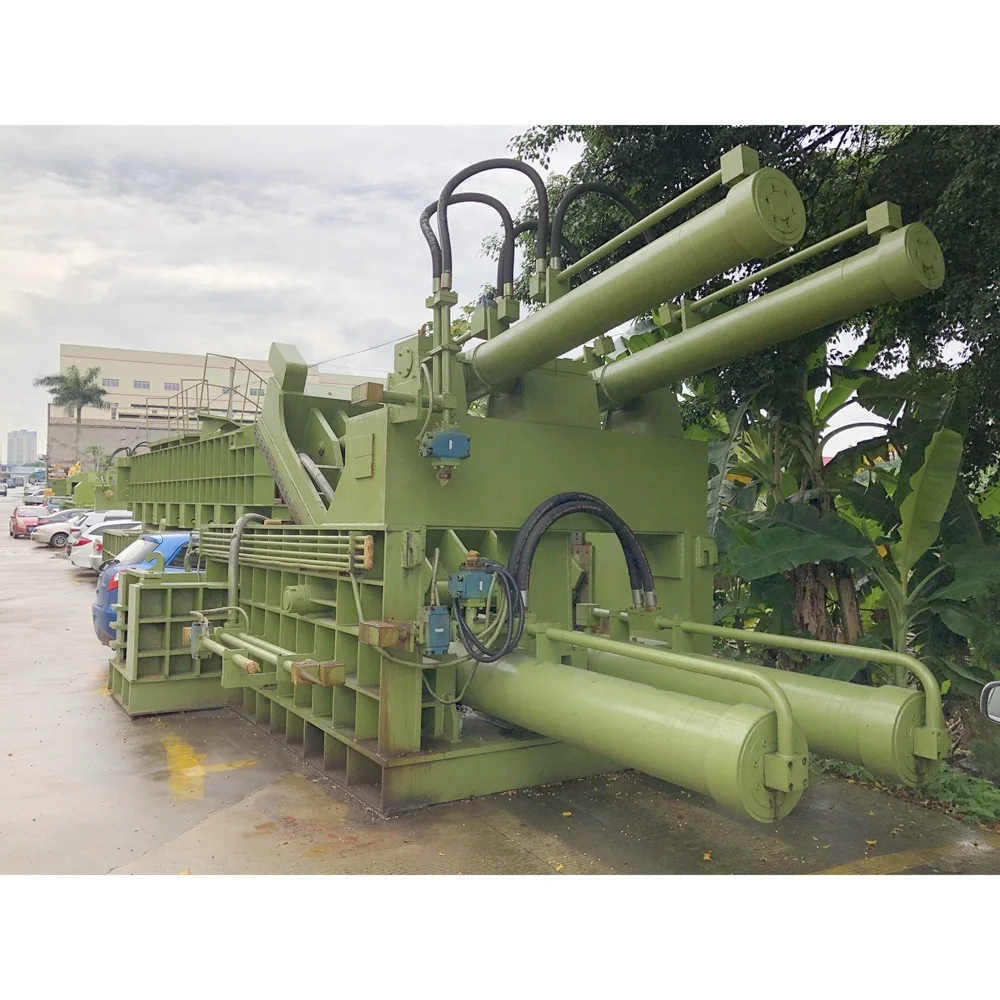

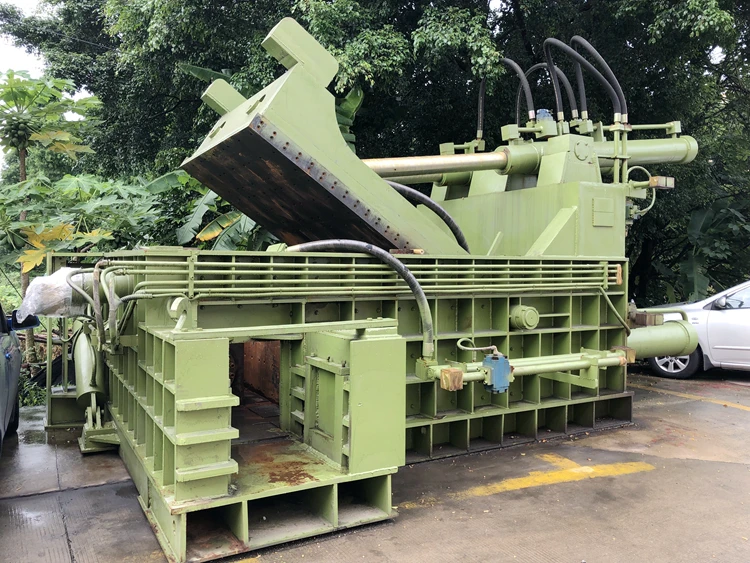

Y81-400 horizontal hydraulic scrap metal press
Y81 series hydraulic metal balers press the leftover of all kinds of metal material,including steel shavings,scrap tel, scrap aluminum,scrap copper,scrap stainless steel to be qualified in the shape of cuboid,octagon,cylinder and so on, which not only decreases the speed of casting.
This machine is mainly applicable to steel mills,recycling industries and ferrous metallurgical works.
Compression box size,bale size,bale shape can be customized according to clients requirement.
Main technical parameters | ||||||||||||
No. | Item | Unit | Y81-400 | |||||||||
1 | Nominal pressure | Main cylinder | KN | 4000 | 4000 | 4000 | ||||||
Auxiliary cylinder | KN | 2000×3 | 2000×2 | 1600×2 | ||||||||
2 | Maximum working pressure | Mpa | 25 | 25 | 25 | |||||||
3 | Processing box size | Length | mm | 3000 | 2500 | 2200 | ||||||
Width | mm | 2500 | 2000 | 1800 | ||||||||
Height | mm | 1200 | 1200 | 1050 | ||||||||
4 | Bale size | Length | mm | 1300～1600 | 1000～1600 | 900～1300 | ||||||
Width | mm | 600（700） | 600 | 550 | ||||||||
Height | mm | 600（700） | 600 | 550 | ||||||||
5 | Bale density | kg/m3 | Zron≥2200 | Zron≥2200 | Zron≥2200 | |||||||
6 | Single-cycle time | S | ≈150 | ≈100 | ≈95 | |||||||
7 | Motor power | KW | 45×2 | 45×2 | 37×2 | |||||||
8 | Oil pump | YCY | A7V160x2 | A7V160x2 | A7V160x2 | |||||||
9 | Overall dimensions | Length | mm | 8000 | 7500 | 7000 | ||||||
Width | mm | 5800 | 5300 | 4800 | ||||||||
Height | mm | 3500 | 3400 | 3300 | ||||||||
10 | Total weight | T | ≈55 | ≈43 | ≈33 | |||||||
Application
Company Profile
Why Choose Us
Company Photos

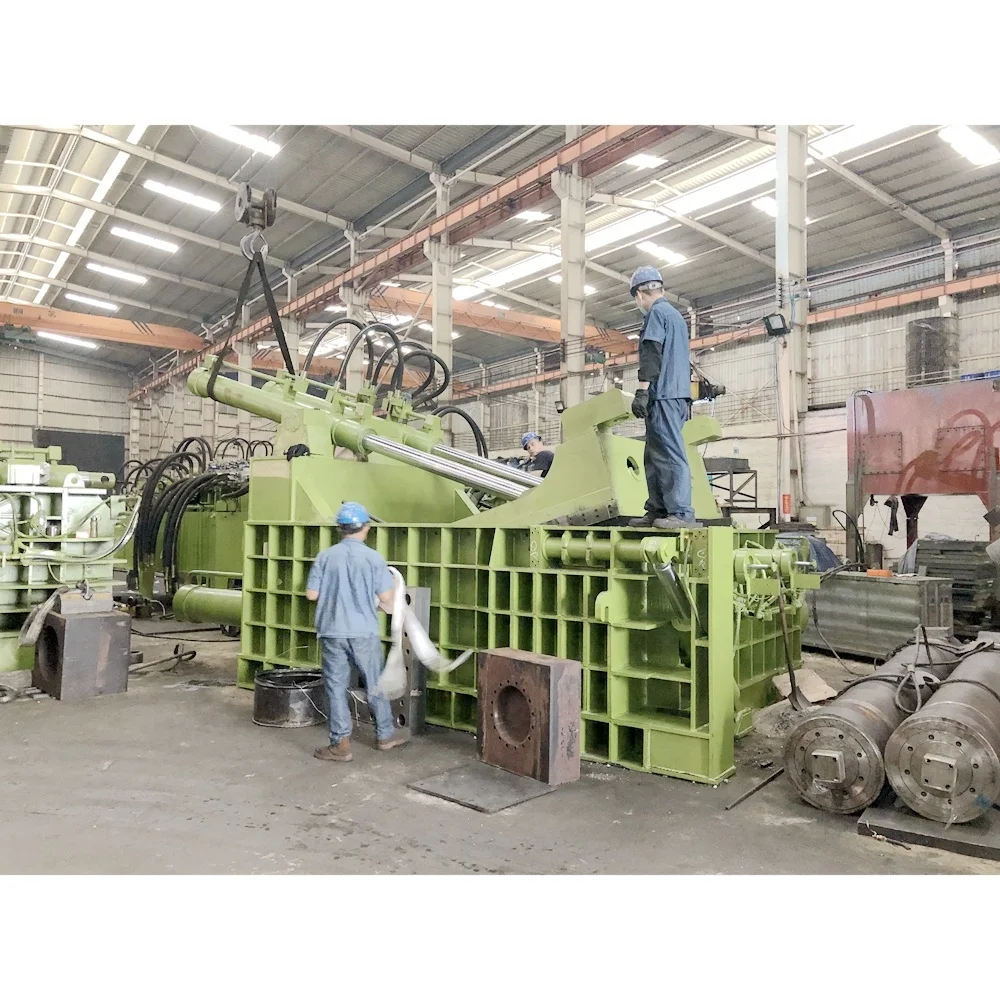

Workshop Photos
Loading Photos
FAQ
We have many different models, which have different baling capacity. Also we can suggest the suitable model according to your
capacity requirements.
2.Voltage
Usually it requires 380V, 3 phase,50-60Hz.
We also can design different voltages according to your requirement, such as 220V,415V, 450V etc. You just need to tell us your
voltage value before manufacturing.
3.How to Install ?
a.For vertical baler machines, no need to install. This kind of machine is exported by complete unit.
When you receive the machine, you only need to connect it with the power (usually 3 phase, 380V), and fill the hydraulic oil
(HF#46or #68) as per user manual.
b.For horizontal machines, we can provide installation service. Installation and training are free, but our technician’s charges
of freight tickets, hotels and food etc are on your account.
4.What Payment terms we accept ?
We usually accept 30% deposit by TT as deposit for regular size machine, balance before shipment.
And 50% deposit by TT as deposit for customized machine, balance before shipment.
5.Services
a. We have our own brand, currently the sales region covers many countries and regions around the world.
All of our metal baling are quite popular and welcomed by the clients all over the world.
It will be our great honor if you become one of our dealers
b. We provide OEM/ODM services
We can do OEM lasers of your brand based on your special requirements.
c. Timely after-sale service
We have a professional technology supporting team for providing timely services.
If you have any problems, please contact us by telephone, email or Skype.
6.What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, however,we can send you
catalog, warmly welcome you to come visit our company.
7.What is the delivery time of your machine?
In general, the delivery time of our machine is about 50 days, customized machine will be delivered as the negotiation with our
clients.
8.Can the machine be customized as our need, such as put on our logo?
Surely our machine can be customized as your need, Put on your logo is also available.
9. As the shipping period will take long time, how can you make sure the machine won’t be broken?
Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix
the machine with the container.
10.Are you a manufacturer, trading company or a third party?
We are a manufacturer, and we have builded up our company since 1989.
11.What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, however,we can send you
catalog, warmly welcome you to come visit our company.
