HKN 2200 Mobile Digital Digital Colposcope Imaging System HD Video Colposcope for Gynecology
- Category: >>>
- Supplier: Nanjing Healicom Medical Equipment Co. Ltd.
Share on (1600344498718):
Product Overview
Description
Products Description

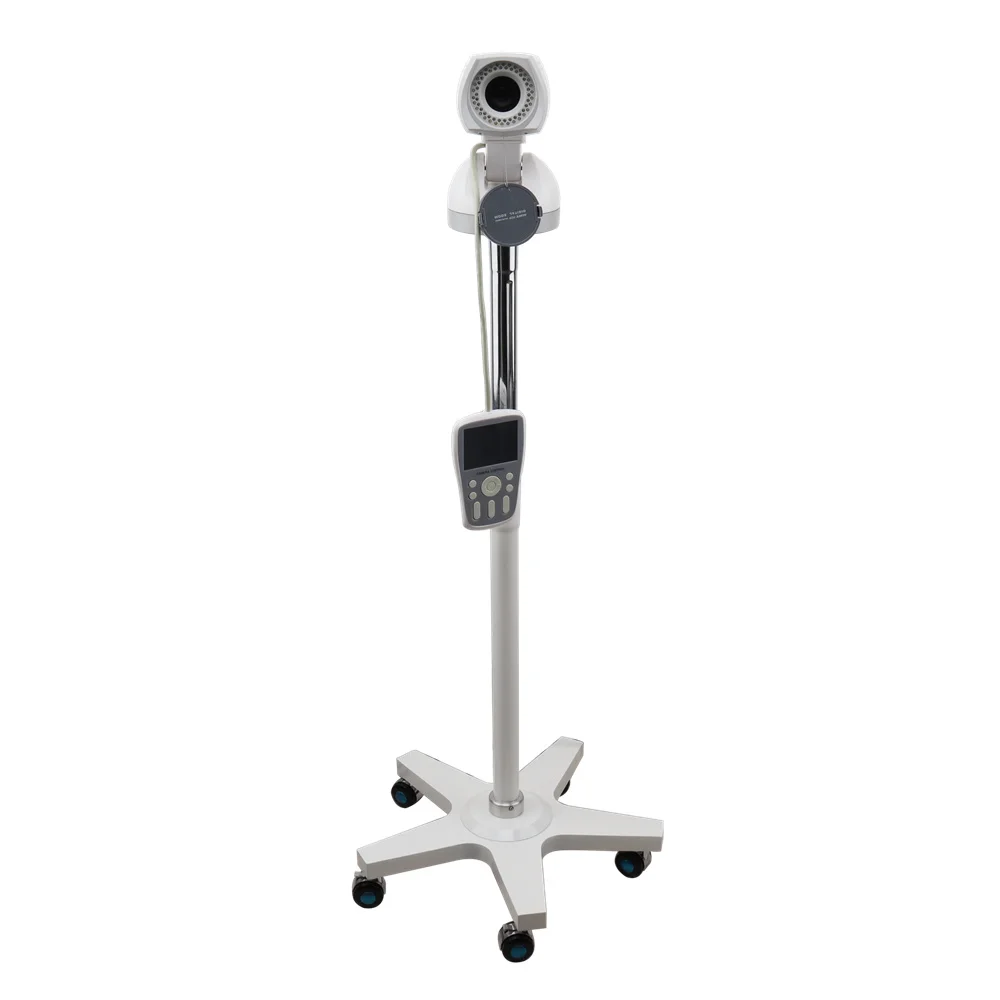

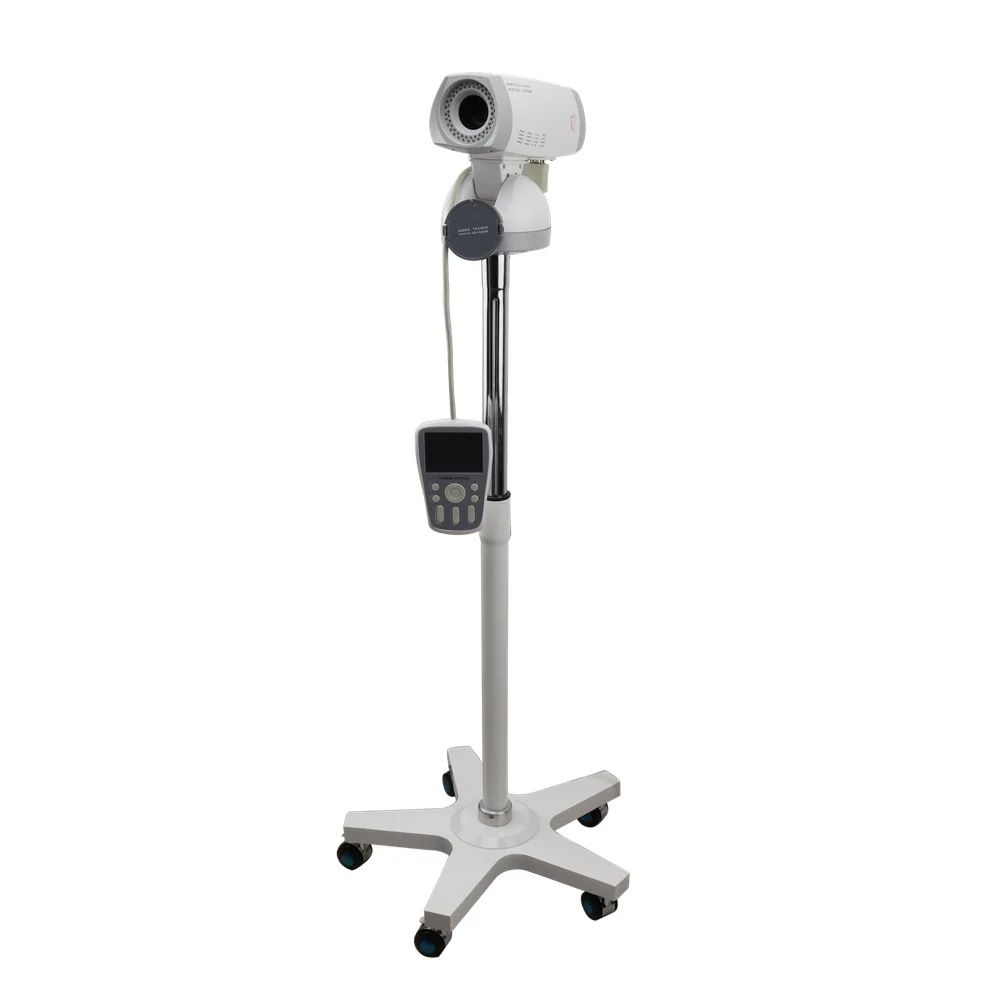

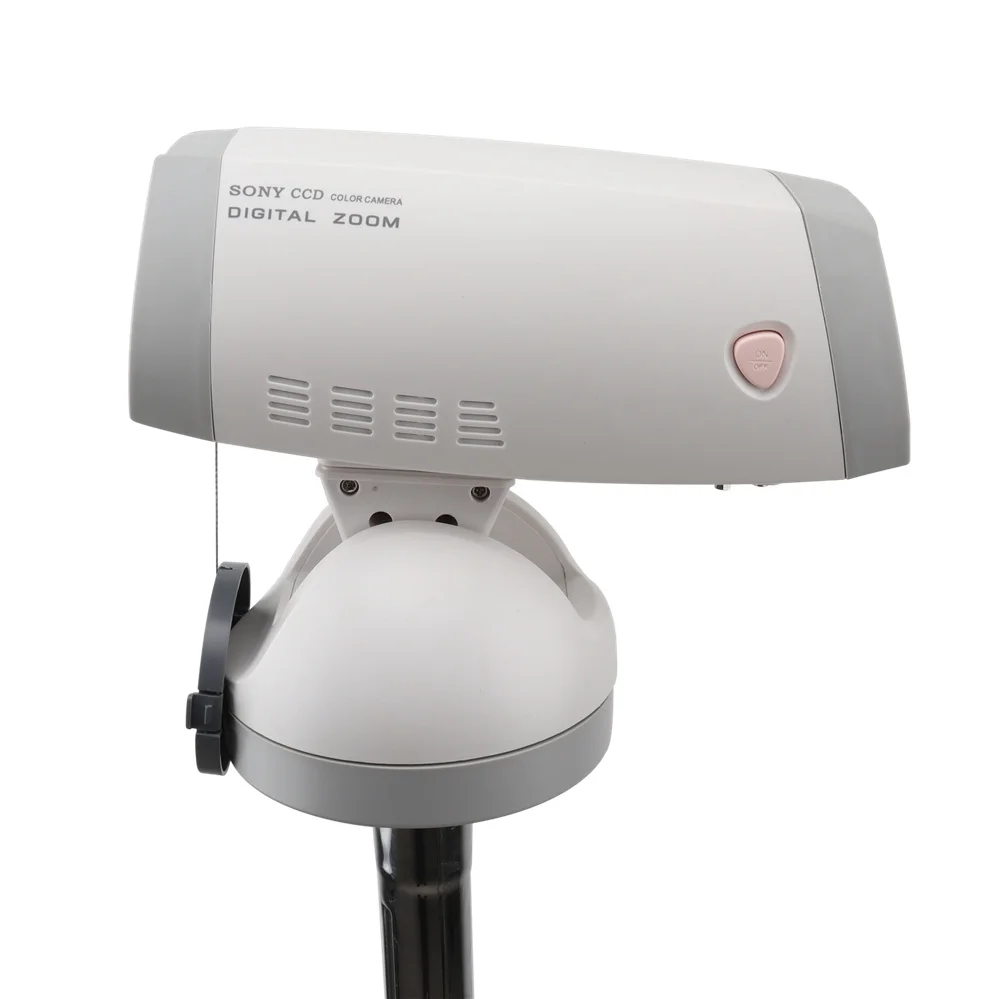

HKN-2200 Mobile Digital Video Colposcope for Gynecology
Descriptions
· Colposcope is a gynecological clinical diagnostic instruments .
· For the diagnosis of cervical disease, it can be observed 10 to 60 times magnification images, found small lesions the naked eye can not find .
· Through this amplification effect, the doctor can clearly see the cervix blood vessels on the skin, detection of cervical cancer precursor lesions, to provide the basis for early diagnosis of cervical cancer, so that patients receive effective treatment in advance, so that the cure rate of cervical cancer greatly increased.
Application
The device is used for checking pathological changes in vulva, vagina and cervix, filtering cervix cancer by fluorescence indirectly and images management.
· Colposcope is a gynecological clinical diagnostic instruments .
· For the diagnosis of cervical disease, it can be observed 10 to 60 times magnification images, found small lesions the naked eye can not find .
· Through this amplification effect, the doctor can clearly see the cervix blood vessels on the skin, detection of cervical cancer precursor lesions, to provide the basis for early diagnosis of cervical cancer, so that patients receive effective treatment in advance, so that the cure rate of cervical cancer greatly increased.
Application
The device is used for checking pathological changes in vulva, vagina and cervix, filtering cervix cancer by fluorescence indirectly and images management.
Features
· Adopting the ring fiber lens;
· Adopting the halogen cold light source (15V, 150W);
· Adjustable brightness and a green filter;
· Advanced image processing technology, can achieve the functions of marking, calculation of areas, zooming images;
· With the editing functions of access images, freezing, collection, delete images, etc;
· Images can be collected continuously, and display a number of images on the same screen and convenient to contrast, full-screen display;
· The reports can be printed into multiple formats.
· Adopting the ring fiber lens;
· Adopting the halogen cold light source (15V, 150W);
· Adjustable brightness and a green filter;
· Advanced image processing technology, can achieve the functions of marking, calculation of areas, zooming images;
· With the editing functions of access images, freezing, collection, delete images, etc;
· Images can be collected continuously, and display a number of images on the same screen and convenient to contrast, full-screen display;
· The reports can be printed into multiple formats.
Product Parameters | ||

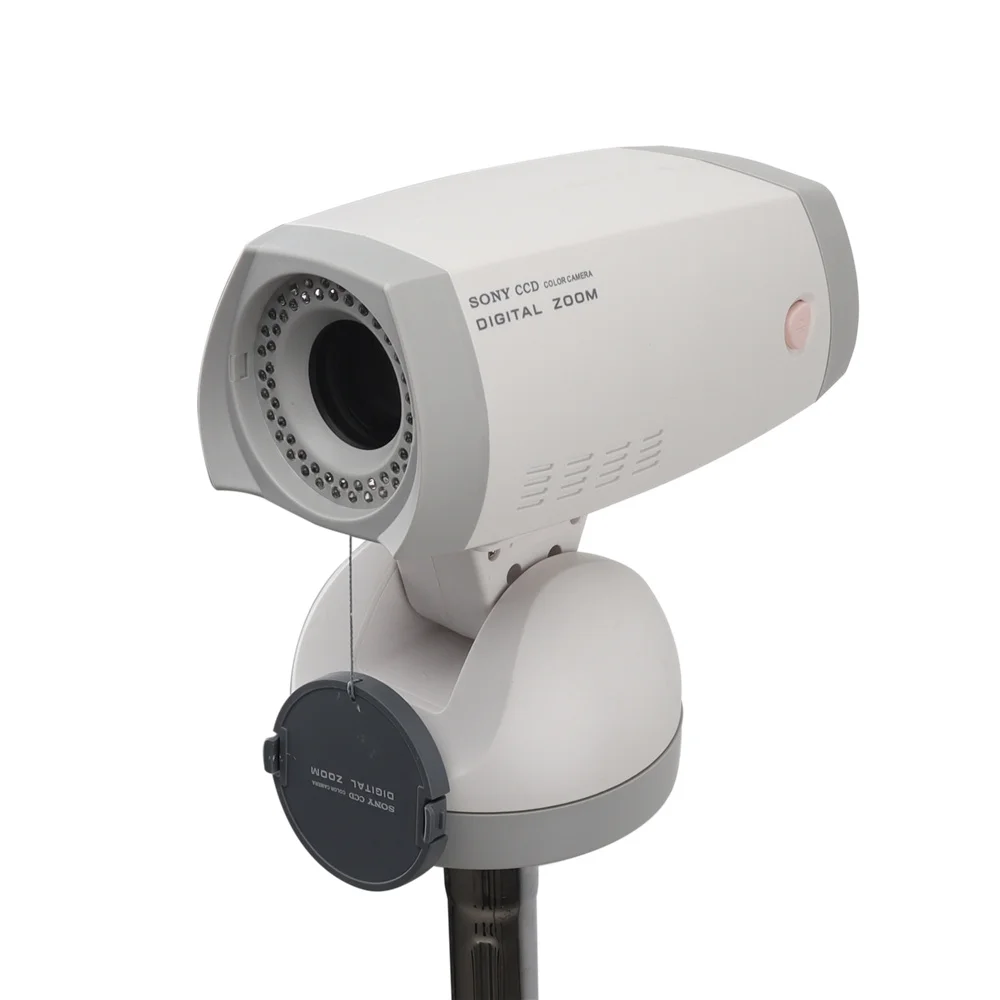

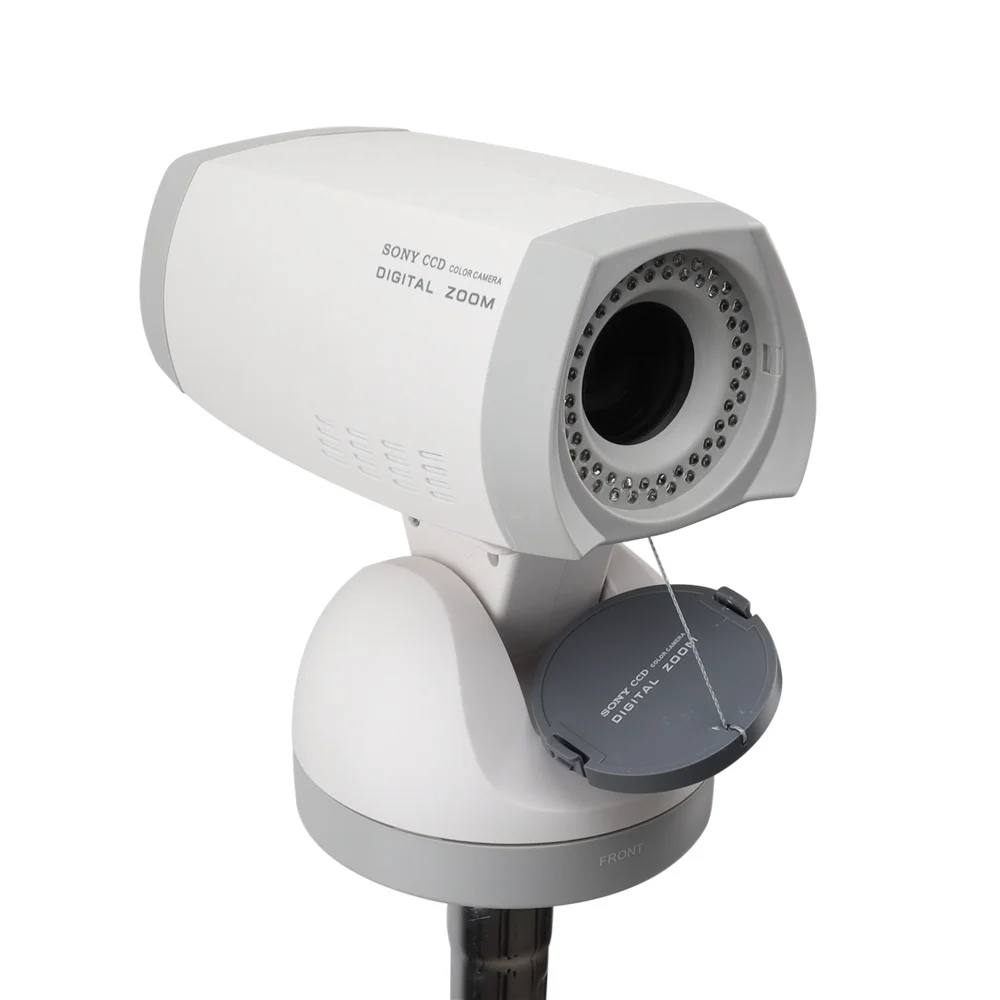

SONY color digital CCD, 800,000 pixel | ||
1-128 magnification image continuously variable adjustment | ||
White LED power with super and even brightness | ||
More than 60% than the traditional halogen lamp in the brightness and color temperature | ||
Vivid color | ||
Special designed image halo filtering tech ensure clearer image | ||
Easy edit and maintenance of diagnostic words, easy operation | ||
Storage of normal clinical images for easy diagnostic contrast | ||
Support video-out of diagnostic report and true color image | ||
Super-large memory, max. 1 million cases can be stored | ||
Convenient check of cases and statistics | ||
Lifetime | 100 ,000 hours | |
Lens resolution | 1/4"super HAD color CCD,80,0000 pixel | |
Lens axial resolution | 470 lines | |
Lens S/N | 50dB | |
Lens focus distance | standard 100~400mm; support: 10~1000mm | |
Scan range | 2.5mm-20mm-320mm | |
Depth of Field | 15mm-40mm 15mm-480mm | |
Lens zoom | 1~128 | |
Lens fouse | AF/MF | |
Lens white balance | AWB | |
Lens lighter type | LED | |
Lens image output interface | Video, S-video, PAL | |
Lens lighter type | LED ring , phosphorus gallium arsenide high brightness , longevity light source group (average life 100,000 hours) | |
Lens video-output | PAL, VBS-standard 1.0Vp-p | |
Power Requirements | AC220V ±10% | |
Power Rating | 500W | |
Brightness adjustment | Automatic electronic shutter | |
Ambient temperature | -40°C to +50°C | |
Storage temperature | -20°C to +60°C | |
Relative Humidity | 30~80%RH | |

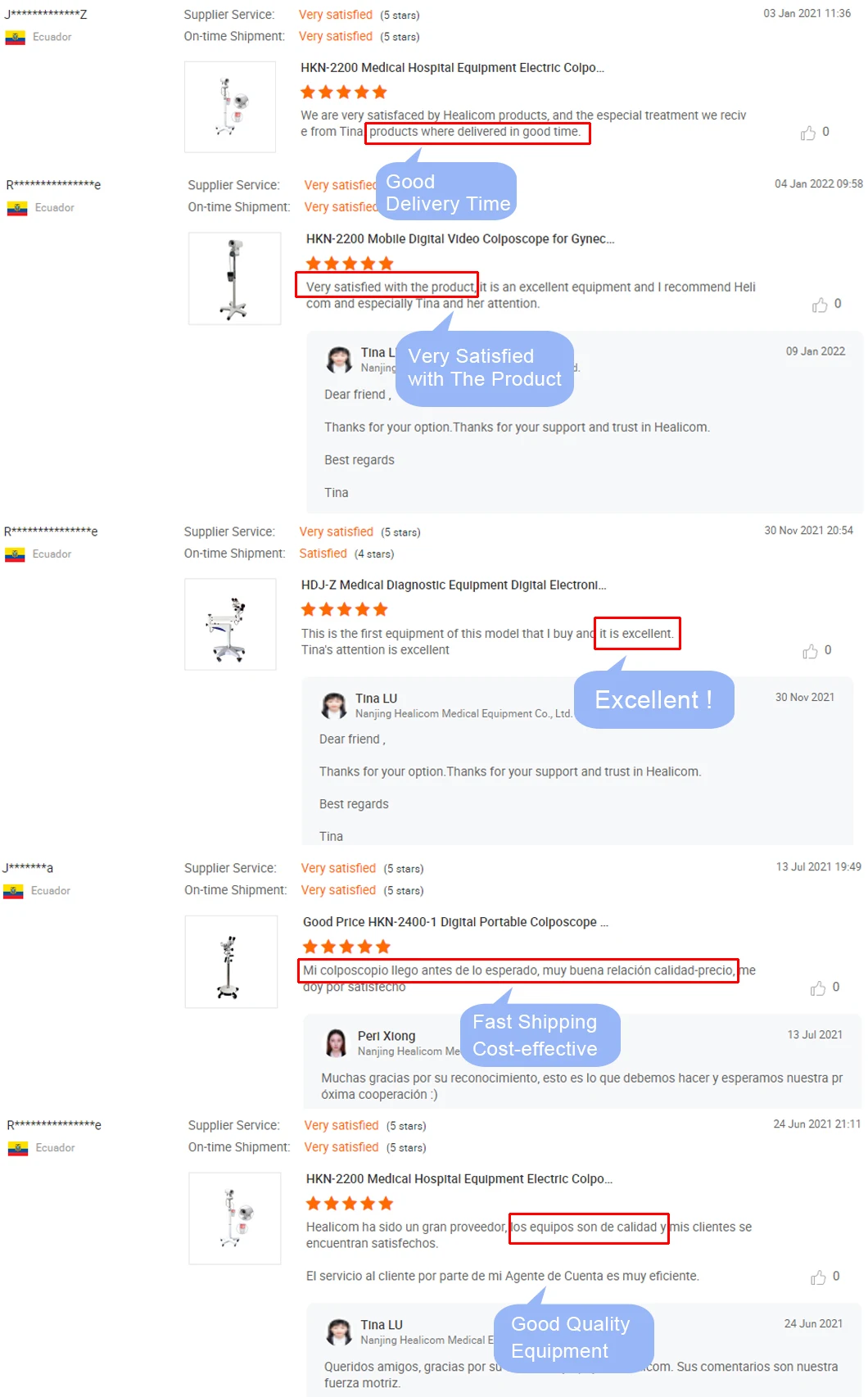

Customer Feedbacks
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
