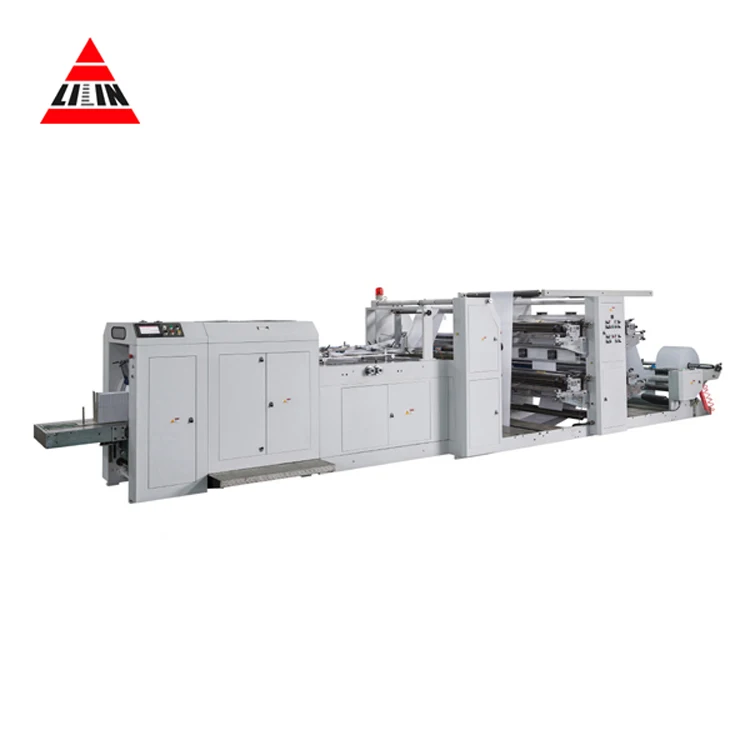

Fully automatic LSB 450XL R Paper bag machine with flat rope handle with round rope handle with pasting bottom
- Category: >>>
- Supplier: Ruian Lilin Machinery Co. Ltd.
Share on (1600344608079):
Product Overview
Description
Products Description

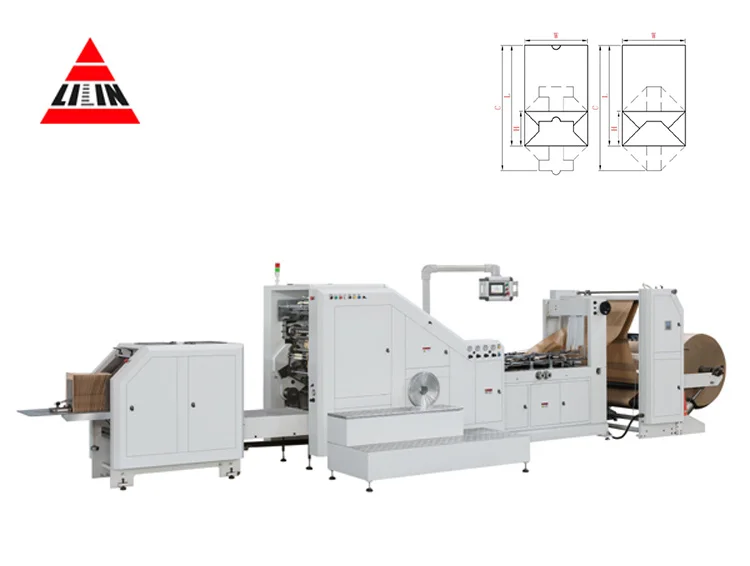

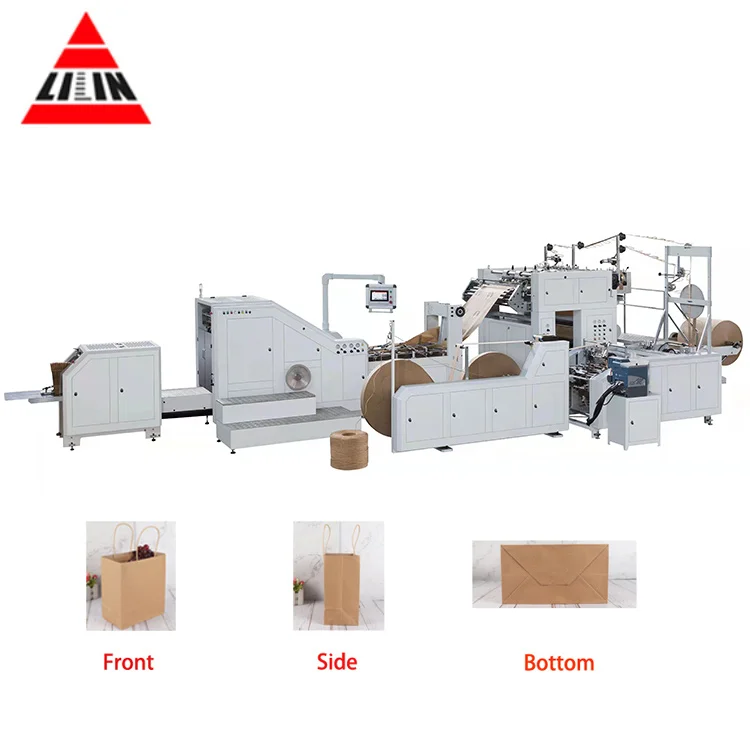

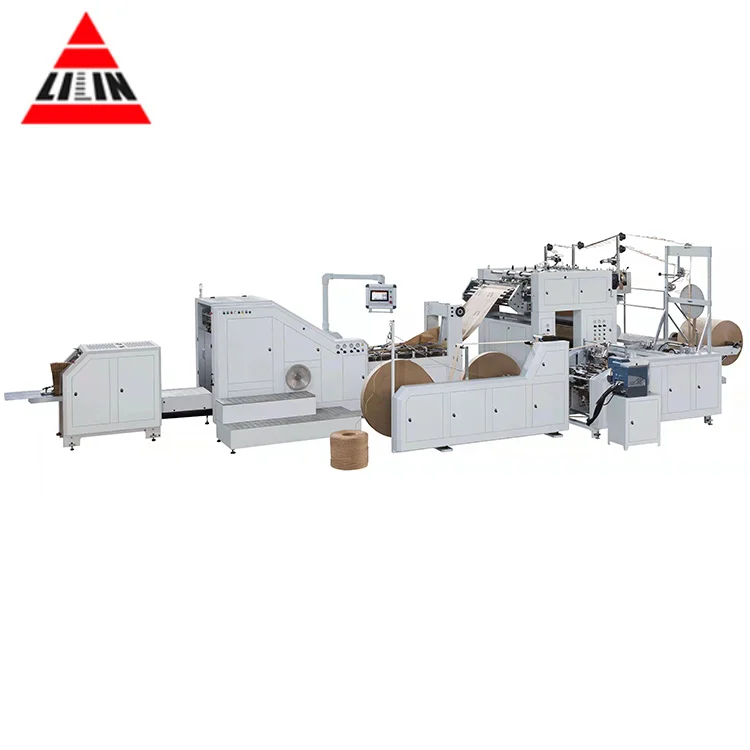

Fully automatic LSB-450XL-R Paper bag machine with flat rope handle with round rope handle with pasting bottom
Introduction:

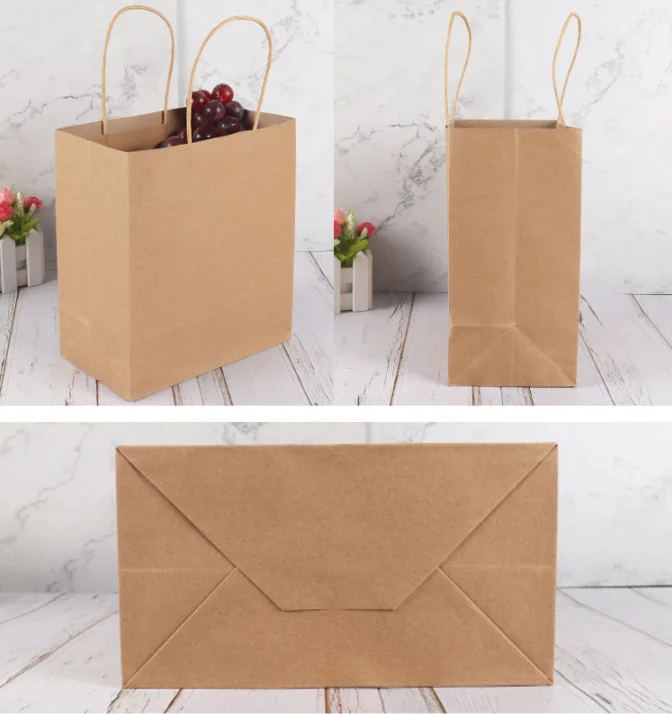

This machine is designed to manufacture square bottom paper bags with twisted handle from paper roll, paper patch roll and paper rope. YASKAWA PLC Control system imported from Japan and adjustable dual-moulds structure, ensure that the machine can perform quickly and stably, as well as reduce adjusting

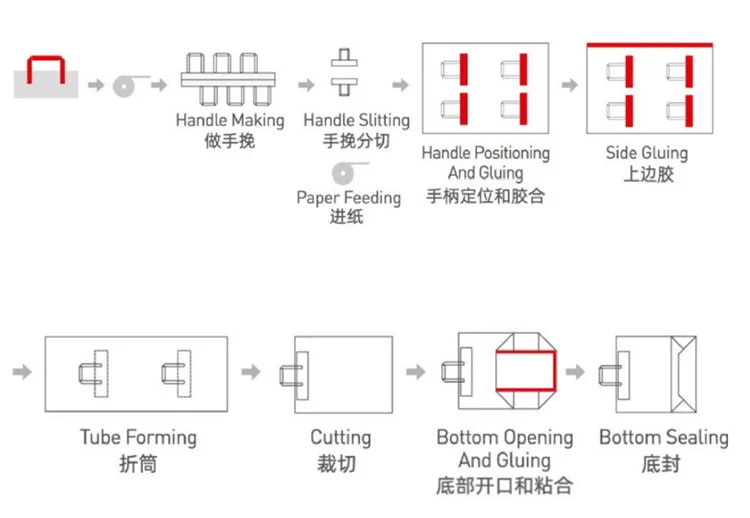

time for different bag sizes. Front bags collection platform and counting function, improve packing efficiency of paper bags packing. By implementing steps including handle making. handle application, tube forming, tube cutting, and bottom forming with a fully automatic process. That is especially suitable for foodstuff, clothing and luxury branding products.
time for different bag sizes. Front bags collection platform and counting function, improve packing efficiency of paper bags packing. By implementing steps including handle making. handle application, tube forming, tube cutting, and bottom forming with a fully automatic process. That is especially suitable for foodstuff, clothing and luxury branding products.
Features:
1. The human-machine touch screen interface, the work condition can be shown in real- time.
2. Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3. Material loading and unloading adopts pneumatic or hydraulic lifting structure.
4. Automatic constant tension control system. The tension will be just right from beginning to end.
5. Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving, long life.

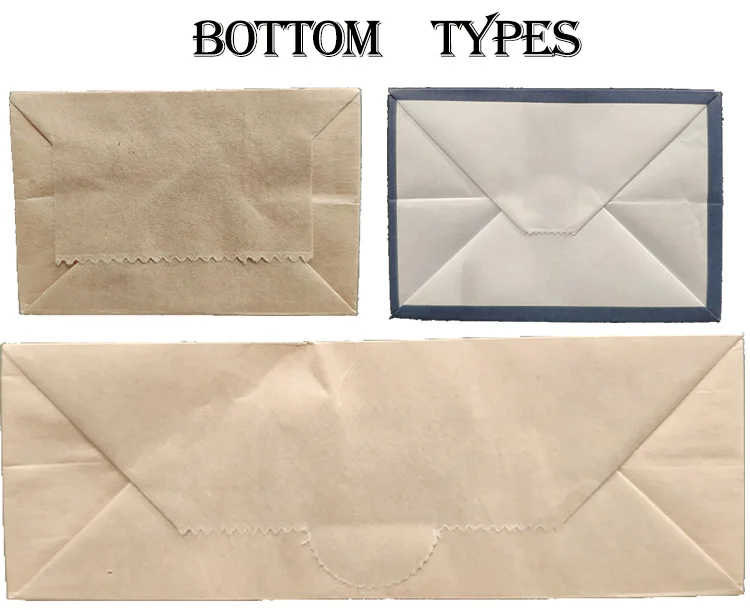

6. Thumb buttons, appressed bottom cutting device, bag type have many choices.
7. Don't stop machine adjust double bottom structure, the adjustment will become more intuitive, more simple, more time saving.
8. Glue roller air defense coating control, avoid gluing on besmear brushs hub surface directly, reduce unnecessary trouble.
9. Accurate color tracking system, automatic alarm prompt when color is wrong.
10. Adjustable forming mould structure (side sealing is above the forming mould).
11. Handle production unit, paper handle cutting and gluing are all controlled by servo motor
2. Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3. Material loading and unloading adopts pneumatic or hydraulic lifting structure.
4. Automatic constant tension control system. The tension will be just right from beginning to end.
5. Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving, long life.
6. Thumb buttons, appressed bottom cutting device, bag type have many choices.
7. Don't stop machine adjust double bottom structure, the adjustment will become more intuitive, more simple, more time saving.
8. Glue roller air defense coating control, avoid gluing on besmear brushs hub surface directly, reduce unnecessary trouble.
9. Accurate color tracking system, automatic alarm prompt when color is wrong.
10. Adjustable forming mould structure (side sealing is above the forming mould).
11. Handle production unit, paper handle cutting and gluing are all controlled by servo motor

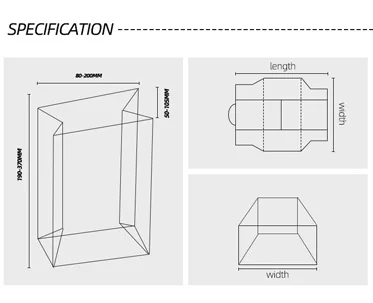

Product Paramenters
Type | LSB-450XL-R | ||
Bag Width (W) | 260-450 mm | ||
Bottom Size(H) | 85-180 mm | ||
Cutting Length(C) | 450-820 mm（No handle） | 450-720 mm（With handle） | |
Bag Length(L) | L=C－(H÷2＋15~25) | ||
Max. Speed | 120 pcs/min | ||
Paper Roll Width | 700-1300 mm | ||
Max. reel weight | 800 Kg | ||
Max.Roll Diametr | 1200 mm | ||
Reel inner diameter | 76 mm | ||
Paper specification | 80-180 gsm | ||
Handle Rope Height | 100 mm | ||
Handle Rope Diameter | 4-6 mm | ||
Paper rope spacing | 95.2 mm | ||
Handle Patch Length | 190.5 mm | ||
Handle Patch Width | 40-50 mm | ||
Paper Patch Roll Diameter | 1200 mm | ||
Paper Patch Roll Width | 80-100 mm | ||
Paper Patch Thickness | 100-150 gsm | ||
Web edge control system | Double photoelectric automatic correction control system | ||
Web tension control system | automatic constant tension control system | ||
Air pressure | ≥0.12cmm, 0.6~1.2Mpa | ||
Driven motor | Seven servo motors | ||
Electric | 380V, 50Hz, 3 phase | ||
Power | 27 KW | ||
Weight | 15800 Kg | ||
Overall dimension（L×W×H） | 13000×6000×2500 mm | ||
Man-machine Interface Touch Screen
Adopt Japanese Original Yaskawa Servo Control System
Independent Glue Coating System
Automatic Edge Control System
Automatic lubrication system
Independent Servo Pre-cutting System
Color Mark Tracing System
Compact Design of Mechanical Transmission
Automatic Constant Tension Control System
Automatic Constant Tension Control System
Pneumatic Paper Reel Lifting Device
Overall Electric Adjustment Structure
Width-adjustable Paper Handle Conveying Structure
Independent Servo Gluing System
Gluing Automatic Clutch Control
Company Profile
About us

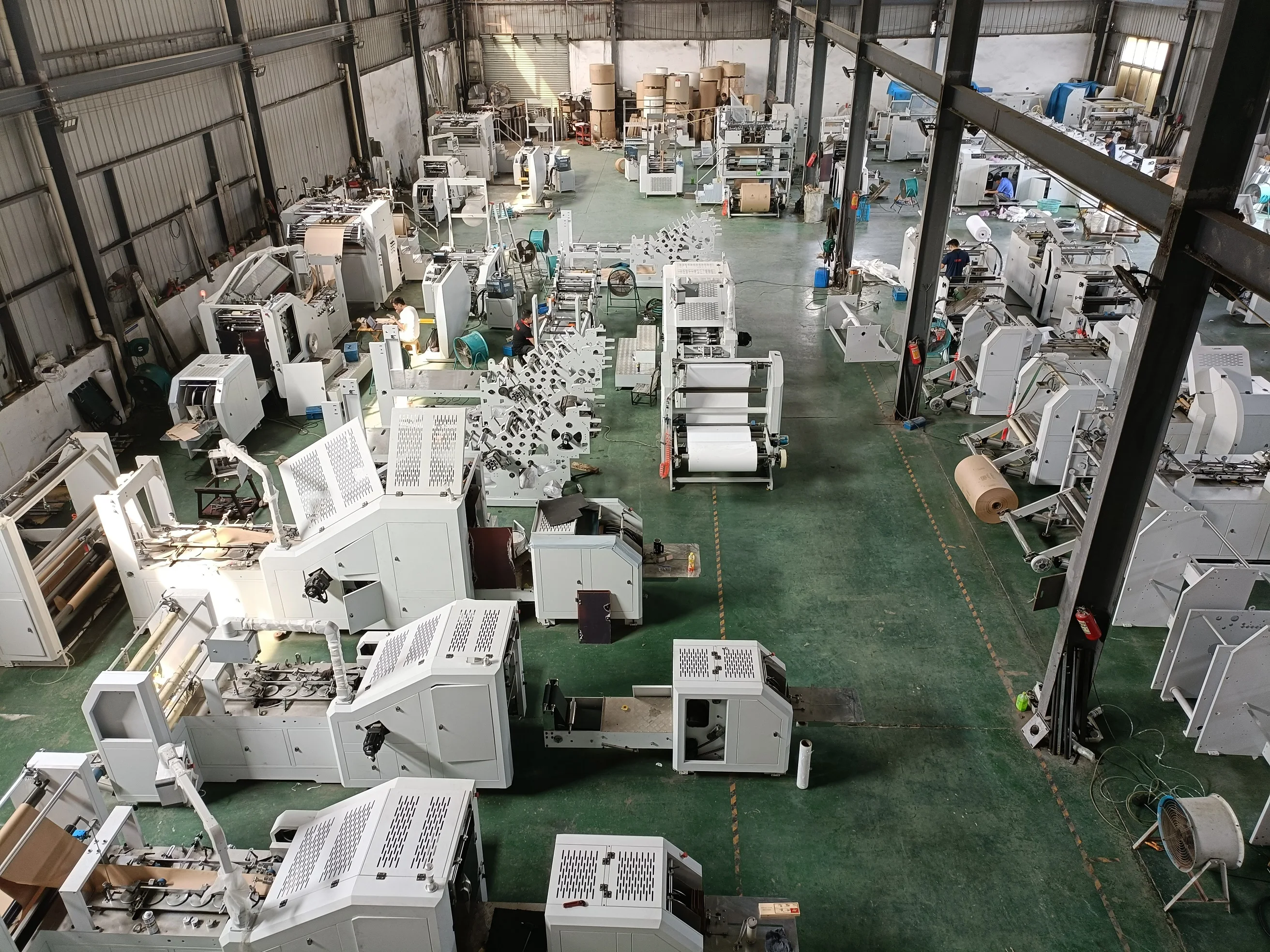

Ruian Lilin machinery Co., LTD., is a professional paper bag machine manufacturer.It was founded in 2006, since its inception,the company has been committed to the r&d and production of paper bag making machine, constantly introducing new and high technology,combined with market demands and constantly develop new products, higher quality, higher efficiency to meet the market demands.Main products: LSB series roll paper square bottom paper bag machine,LSD series automatic high-speed paper bag machine, LMD series automatic high-speed paper bag machine, LST series flexo printing machine, and other paper bag related supporting products.The products have been sold to Southeast Asia and Europe. , Middle East, Africa, South America and more than 60 countries and regions. Since its inception, the enterprise always adhere to the "technology first, quality first" business philosophy, with honest and trustworthy operating style,excellent product quality and excellent service to win for the principle, for the user to achieve maximum value to reflect my value. Wholeheartedly welcome the domestic and foreign merchants to come to visit or inquire.
Ruian Lilin machinery Co., LTD., is a professional paper bag machine manufacturer.It was founded in 2006, since its inception,the company has been committed to the r&d and production of paper bag making machine, constantly introducing new and high technology,combined with market demands and constantly develop new products, higher quality, higher efficiency to meet the market demands.Main products: LSB series roll paper square bottom paper bag machine,LSD series automatic high-speed paper bag machine, LMD series automatic high-speed paper bag machine, LST series flexo printing machine, and other paper bag related supporting products.The products have been sold to Southeast Asia and Europe. , Middle East, Africa, South America and more than 60 countries and regions. Since its inception, the enterprise always adhere to the "technology first, quality first" business philosophy, with honest and trustworthy operating style,excellent product quality and excellent service to win for the principle, for the user to achieve maximum value to reflect my value. Wholeheartedly welcome the domestic and foreign merchants to come to visit or inquire.
Exhibition
Certifications
Product packaging
FAQ
1.Are you trading company or manufacturer?
We are manufacturer, we have our own worker and factory.
2.How long has your factory been in this field?
In China, As one of the earliest manufacturers in paper bag machine, we have more than 10 years professional experience.
3.What types of machine do you have?
Commonly are paper bag machine V shape bottom or square bottom ,flexo printing machine,slitting machines according to clients'needs.
4.Where is your factory located? how can l visit there?
Our factory is located in ruian city.zhejiang province china.our local airport is Wenzhou Longwan Airportthe nearest international
airport is shanghai Pudong Airport about 40 minutes by plane from shanghai (4 hours by train
5.Can i get some samples? how can l get it?
Yes,we can send you some free samples, but you need to bear the courier cost by DHL, TNT etc.
sincerely welcome all clients to visit us!
We are manufacturer, we have our own worker and factory.
2.How long has your factory been in this field?
In China, As one of the earliest manufacturers in paper bag machine, we have more than 10 years professional experience.
3.What types of machine do you have?
Commonly are paper bag machine V shape bottom or square bottom ,flexo printing machine,slitting machines according to clients'needs.
4.Where is your factory located? how can l visit there?
Our factory is located in ruian city.zhejiang province china.our local airport is Wenzhou Longwan Airportthe nearest international
airport is shanghai Pudong Airport about 40 minutes by plane from shanghai (4 hours by train
5.Can i get some samples? how can l get it?
Yes,we can send you some free samples, but you need to bear the courier cost by DHL, TNT etc.
sincerely welcome all clients to visit us!
