Trussed Type Double Girder Rail Traveling Gantry Crane
- Category: Other Cranes >>>
- Supplier: Henan Yuntian Crane Co. Ltd.
Share on (1600344653122):
Product Overview
Description
Products Description

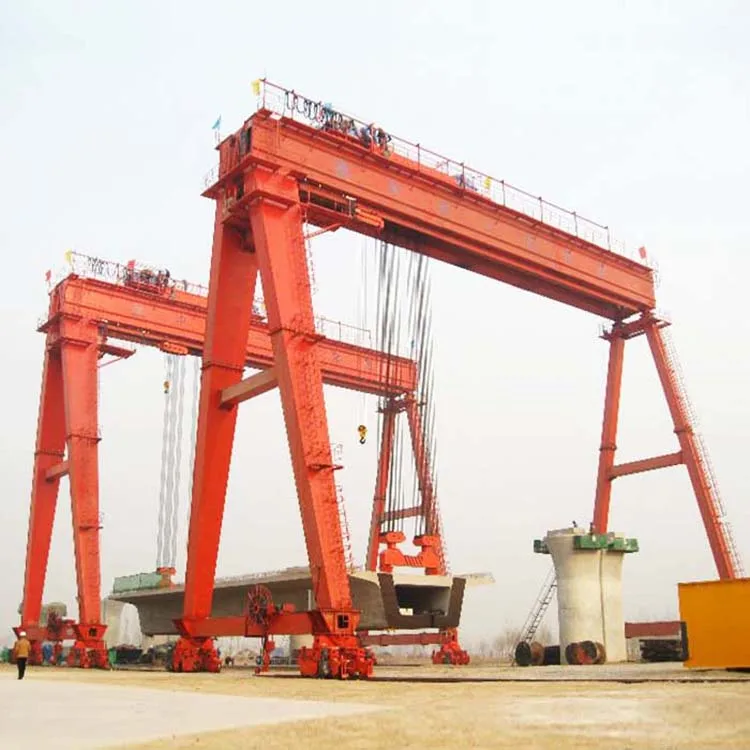

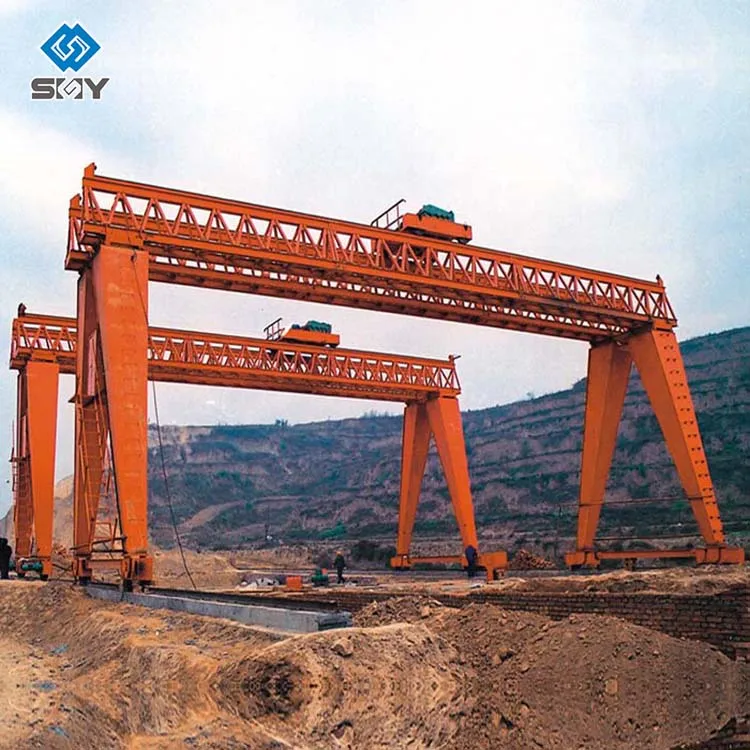

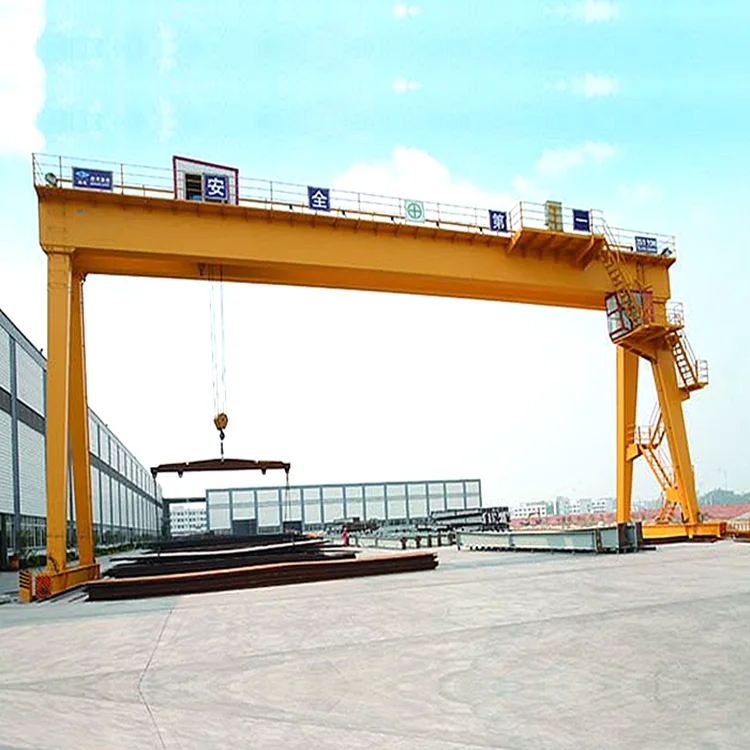

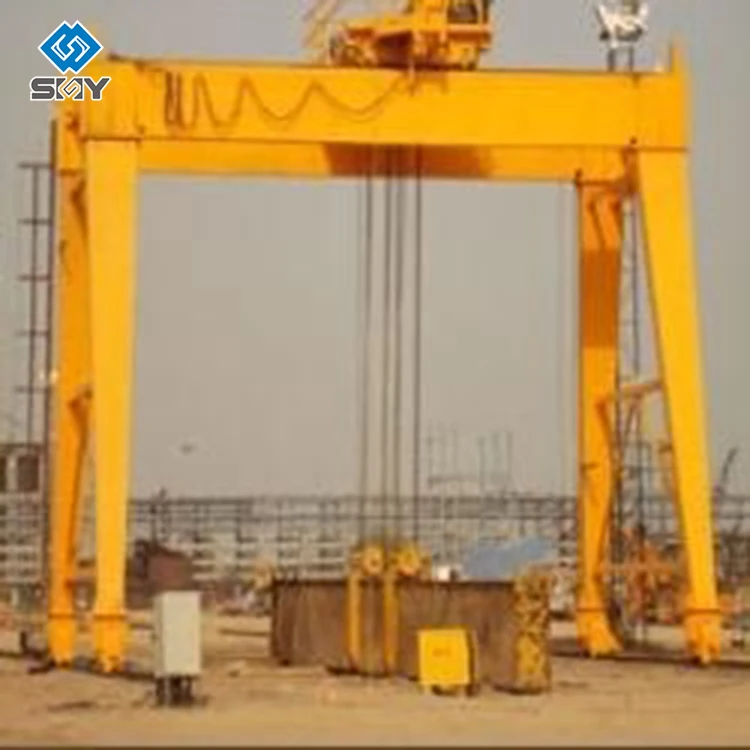

Trussed Type Double Girder Rail Traveling Gantry Crane

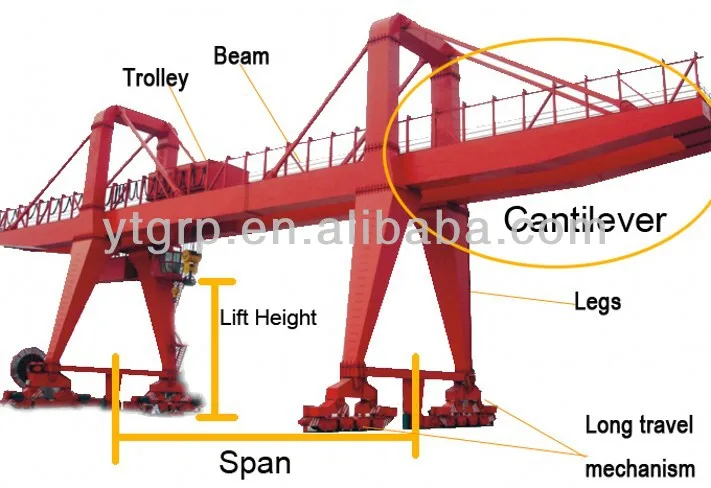

Double Girder Gantry Crane：
The rated lifting weight is 5~50ton;
It can be with cantilever on both side of crane;
The working duty is heavy A5~A7 class (CE ISO);
Lifting hook can be grab, magnet, hanging-beam for special industry;
The ambient working temperature could be -40~50 degree;
Electrical part could be China brand and Europe brand, customers could tell us their choices.
The rated lifting weight is 5~50ton;
It can be with cantilever on both side of crane;
The working duty is heavy A5~A7 class (CE ISO);
Lifting hook can be grab, magnet, hanging-beam for special industry;
The ambient working temperature could be -40~50 degree;
Electrical part could be China brand and Europe brand, customers could tell us their choices.
Double girder gantry crane Features：
1. The box-shaped double beam welding structure is adopted to increase the working space and facilitate transportation, installation and maintenance.
2. The trolley adopts special-shaped steel rail cable conductive device.
3. Standardization, serialization and generalization of parts and components.
4. There are two types of crane power supply: cable reel type (divided into left and right ends) and sliding contact line type (divided into left and right ends), which can be selected by users.
5. The driver's cab has a wide field of vision, with a linkage console inside, which is flexible, stable and comfortable. Fans, heaters, air coolers, air conditioners, walkie-talkies, etc. can also be added according to user requirements.
2. The trolley adopts special-shaped steel rail cable conductive device.
3. Standardization, serialization and generalization of parts and components.
4. There are two types of crane power supply: cable reel type (divided into left and right ends) and sliding contact line type (divided into left and right ends), which can be selected by users.
5. The driver's cab has a wide field of vision, with a linkage console inside, which is flexible, stable and comfortable. Fans, heaters, air coolers, air conditioners, walkie-talkies, etc. can also be added according to user requirements.
Specification
Marketing Type | Hot Product 2021 |
Warranty of core components | 1.5 years |
Core Components | Main beam, Legs, End beam, Saddle, Driver's room, Trolley operation system, Trolley power supply cable |
Application | Outdoor Yard Stockyard Bulk Yard |
Rated Loading Capacity | 5~45T |
Max. Lifting Height | 12M |
Span | 18~35M |
Place of Origin | China |
Brand Name | YT |
Certification | ISO CE |
Warranty | 1.5 years |
Type | MG/A |
Lifting Weight | 5~50/10T |
Working Class | A5 |
Span | 18~35m |
Lifting Height | 10~12m |
Lifting speed | 5.9~11.3m/min |
Motor Total Power | 40.8~126.5KW |
Total Weight | 48~162T |
Power Supply | 3-Phase A.C. 50Hz 380V |
Color | Red Yellow |
Packing & Delivery
The electrical part is packed in wooden boxes, and the rest is packed in woven plastic.
Company Profile
Henan Yuntian Crane Co.,Ltd. located in crane hometown of China (cover more than 2/3 crane market in China), could supply you all kinds of industry cranes and other lifting equipment,more than 110 types, and capacity could be from 0.25tons to 900tons, pass GB/T 19001-2000 idt ISO 9001:2000, GB/T 24001-2004 idt ISO 14001:2004, GB/T 28001-2001,OHSAS 18001:1999, CE, GOST, SGS, TUV, BV and so on.
Main Products
YunTian Group products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace,military and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grabcrane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.
Contact Us
Thank you for your interests in YunTian Group. Please feel free to submit your inquiry information to us. We love to talk and are
not afraid to discuss any question about your crane, Hydraulic platform, hoist, winch need. After your inquiry, our sales manager
will contact with you as soon as possible.
