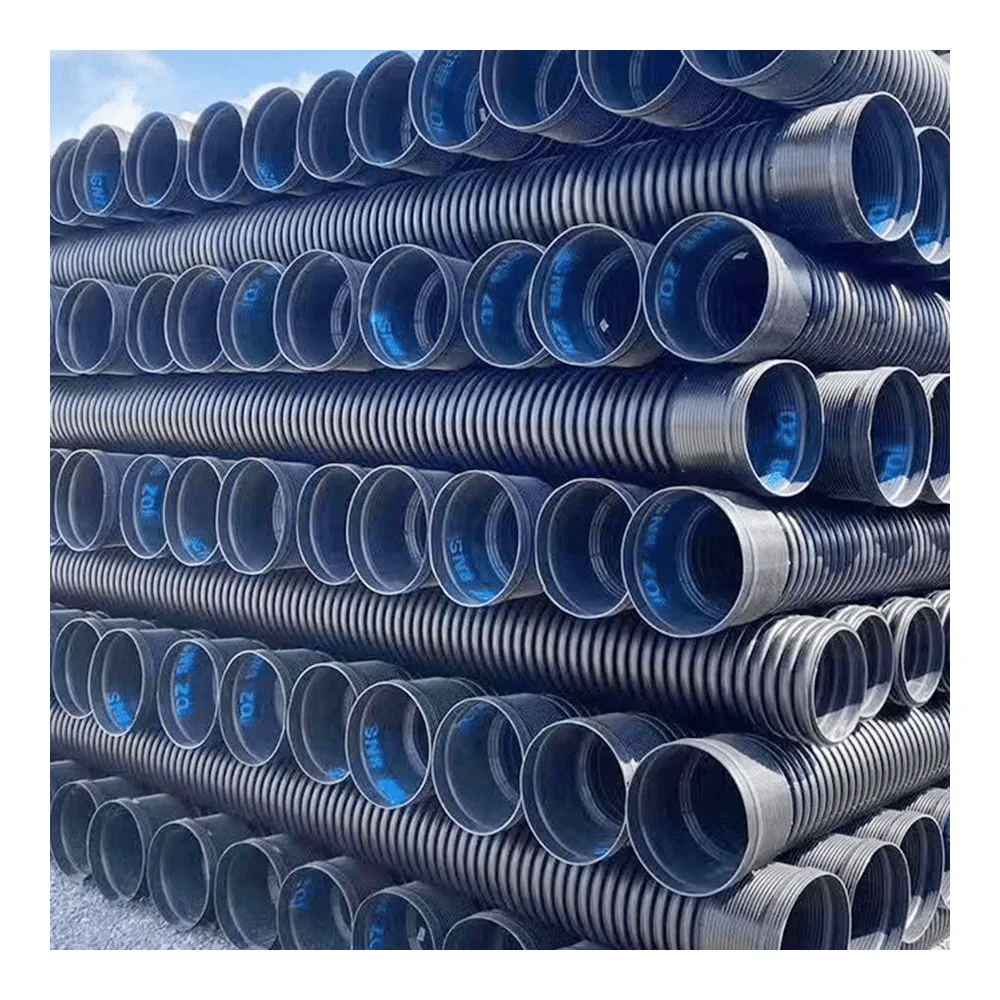

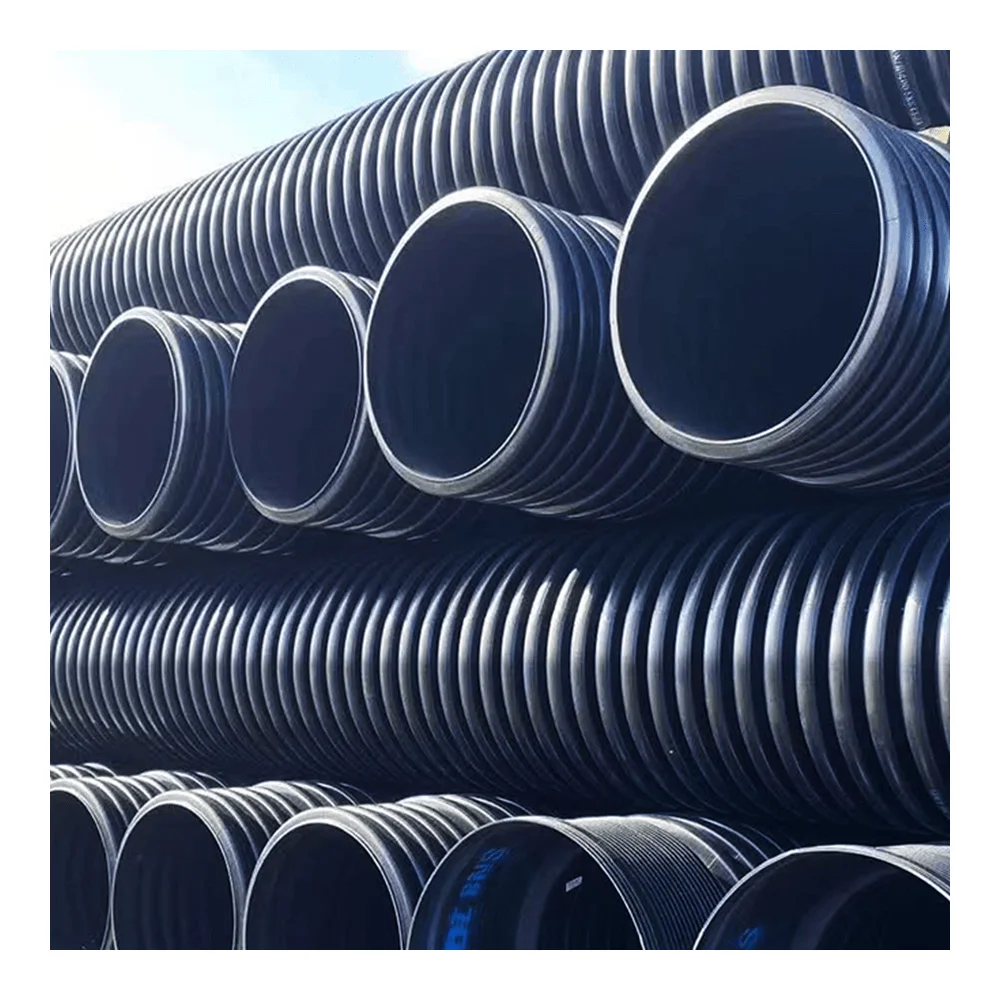

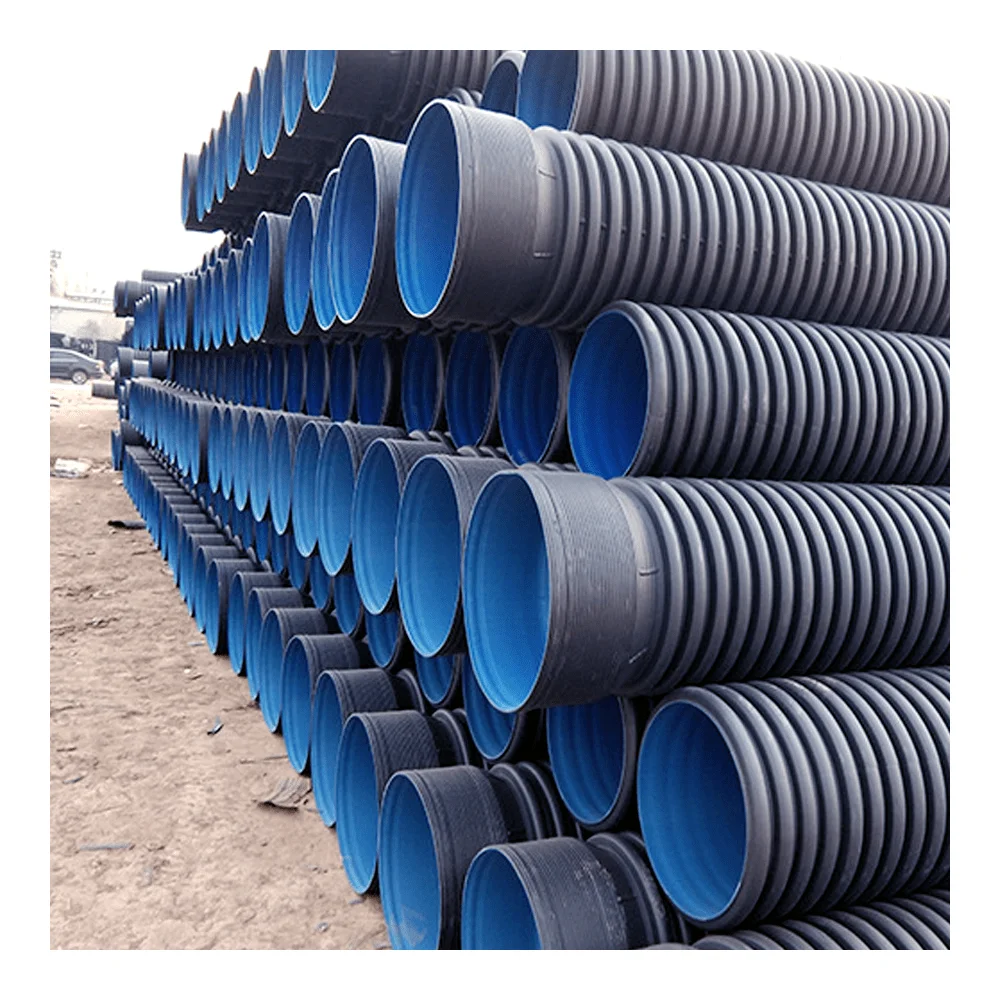

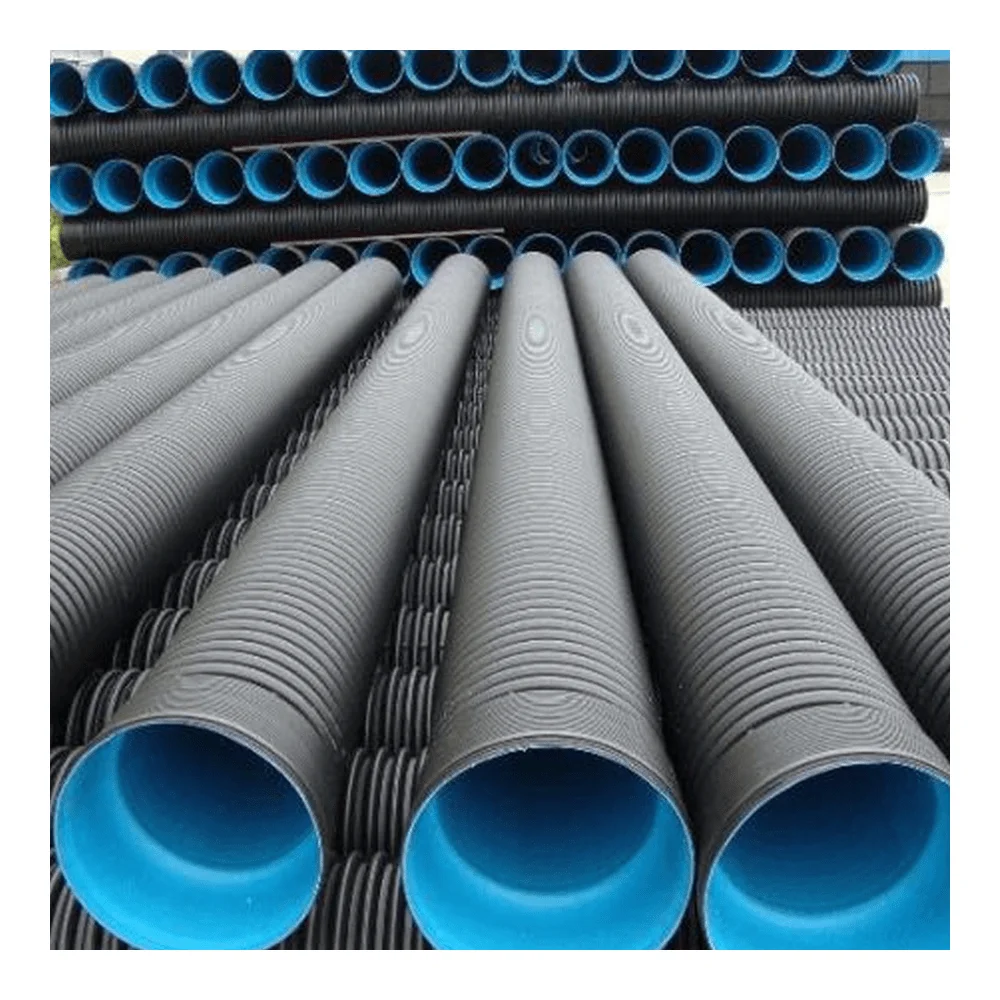

28 1500Mm 24 Inch 200Mm 500Mm 800Mm Sn4 Pe Material Perforated Sewer Double Wall Corrugated Hdpe Drain Drainage Pipe Price List
- Category: >>>
- Supplier: Henan Exlon Environmental Protection Technology Co. Ltd.
Share on (1600344692908):
Product Overview
Description
28 1500Mm 24 Inch 200Mm 500Mm 800Mm Sn4 Pe Material Perforated Sewer Double Wall Corrugated Hdpe Drain Drainage Pipe Price List
Products Description
Name | HDPE Double Wall Corrugated Pipe |
Size: | DN110-DN2000mm or custom |
Application | Hdpe Water Drain Pipe |
Type | Round Pipe |
Color | Blue and black or custom |
Standard | ISO4427/ IPS/DIPS |
Certification | ISO 9001:2000/ISO 14001:2004 |
HDPE double-wall corrugated pipe is a flexible pipe. Our company can provide users with various specifications of rein- forced plastic pipe and related fittings with DN160mm-DN800mm and standard length of 6m and 12m. The products are strictly in accordance with standard GB/T19472.1-2004.
Product Paramenters
Specification parameters of Smooth Inner Surface Underground Drainage HDPE Double Wall Corrugated Pipe DWC Pipe
DN/ID | MIN.EVE.OD | MIN.EVE.OD | MIN.LAYER WALL THICKNESS | MIN.LAYER WALL THICKNESS | MIN. FLARING LENGTH |
BN/ID200 | 230 | 195 | 2 | 0.8 | 60 |
BN/ID300 | 345 | 294 | 2.5 | 1.2 | 69 |
BN/ID400 | 465 | 392 | 3 | 1.6 | 77 |
BN/ID500 | 580 | 490 | 3.5 | 2 | 85 |
BN/ID600 | 700 | 588 | 4 | 3.5 | 96 |
BN/ID800 | 930 | 785 | 4.5 | 4.5 | 118 |
BN/ID1000 | 1160 | 985 | 6 | 5 | 140 |
BN/ID1200 | 1400 | 1185 | 8 | 5.5 | 162 |
BN/ID1500 | 1755 | 1485 | 10 | 6.5 | 178 |

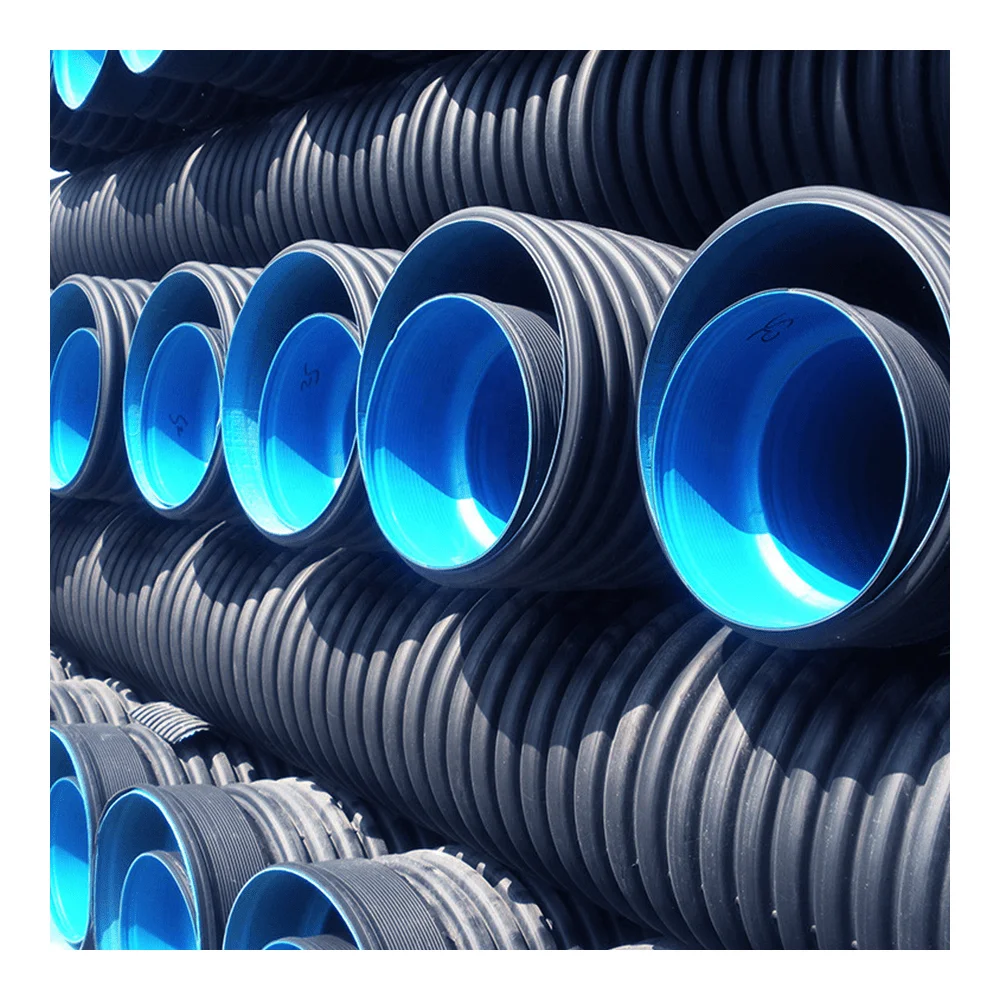

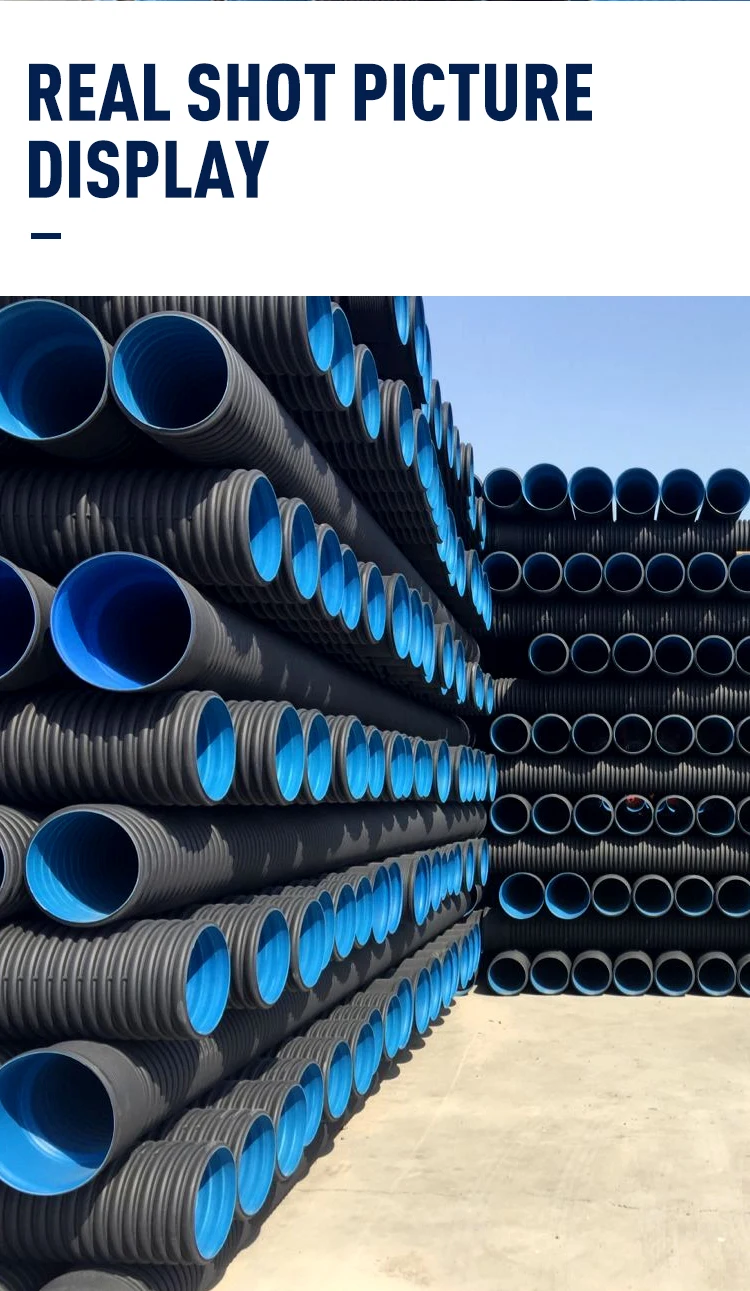

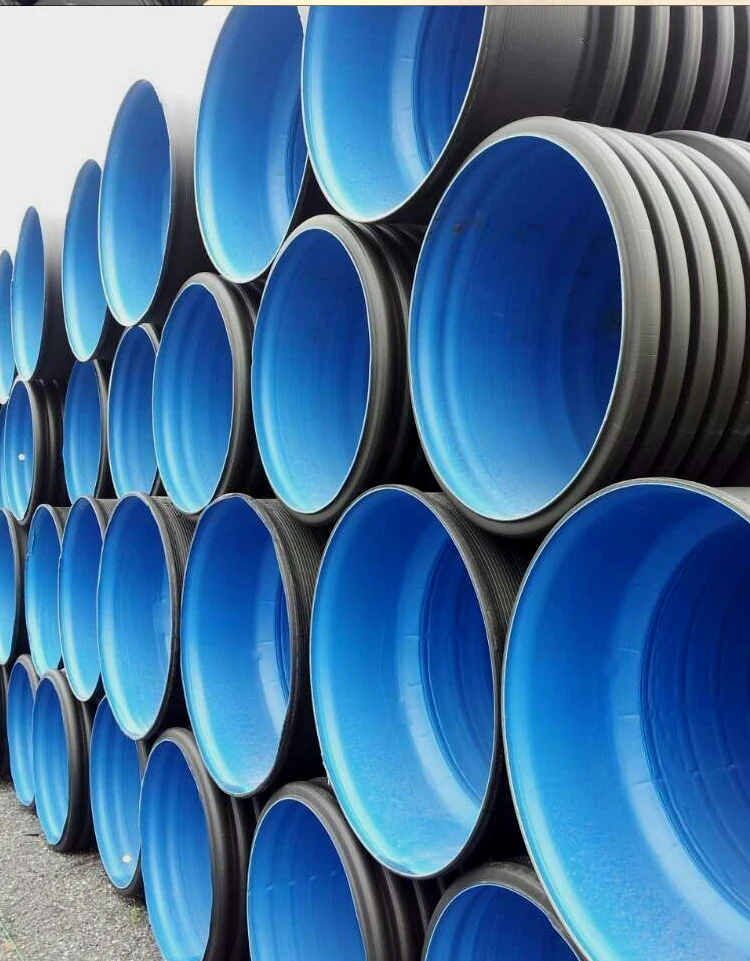

Details Images
HANDLING
Do✔
Store pipe on firm and flat surfaces.
Keep pipe and fttings away from sharp objects, heat,and toxic and aggressive materials.
Take carenot tocut,kink,abrade,or otherwise damage the pipe during handling.
Keep protective packaging intact until pipes and fittings are required for use.
Release coils carefully,keeping in mind they may be coiled under tension.
Keep pipe and fttings away from sharp objects, heat,and toxic and aggressive materials.
Take carenot tocut,kink,abrade,or otherwise damage the pipe during handling.
Keep protective packaging intact until pipes and fittings are required for use.
Release coils carefully,keeping in mind they may be coiled under tension.
Take care when handling pipe under wet or frosty conditions,as the pipe may become slippery.
Temporarily cap cut pipe ends to prevent dirt or other material from entering the pipe.
Temporarily cap cut pipe ends to prevent dirt or other material from entering the pipe.
Uncoil pipe and allow it to warm in the sun before burial for ease of installation.
DON"T❌
Throw pipe from delivery vehicles.· Drag pipe or roll pipe coils.
Place pipeand fittings incontact withlubricating oil,gasoline,solvents,or other aggressive materials.Heat pipe with an open flame.
Place pipeand fittings incontact withlubricating oil,gasoline,solvents,or other aggressive materials.Heat pipe with an open flame.

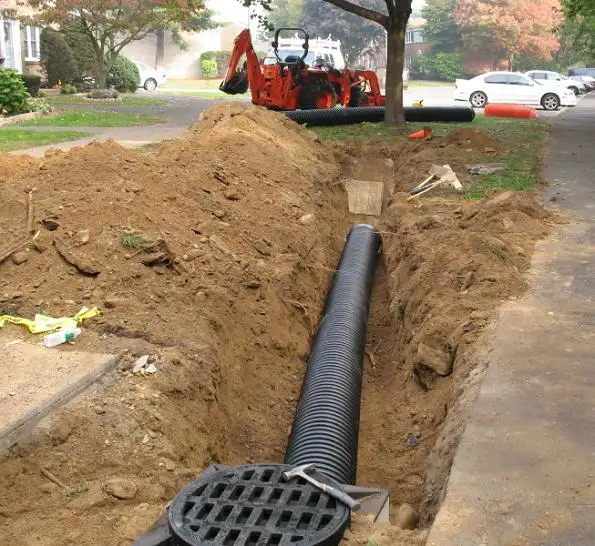

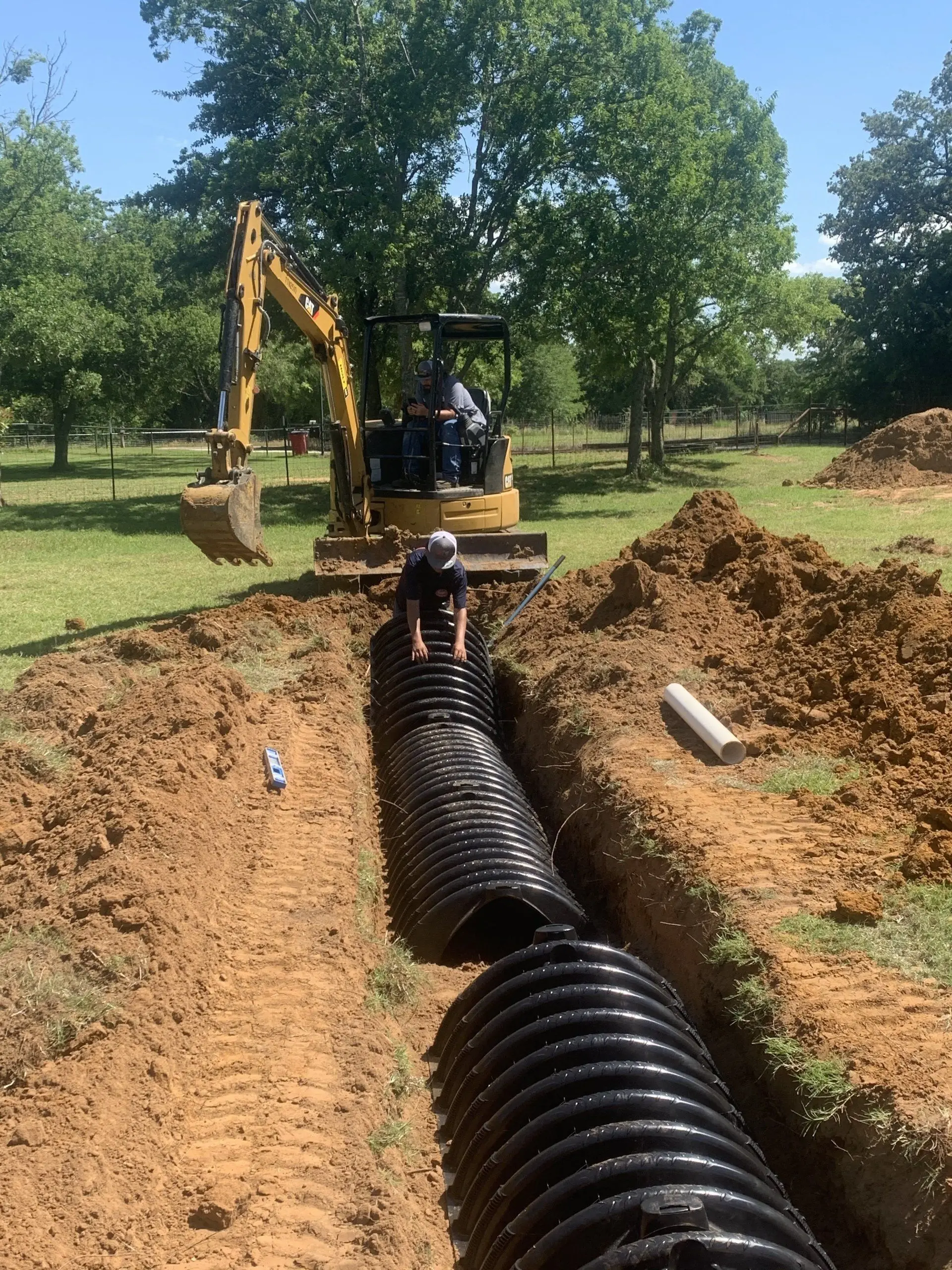

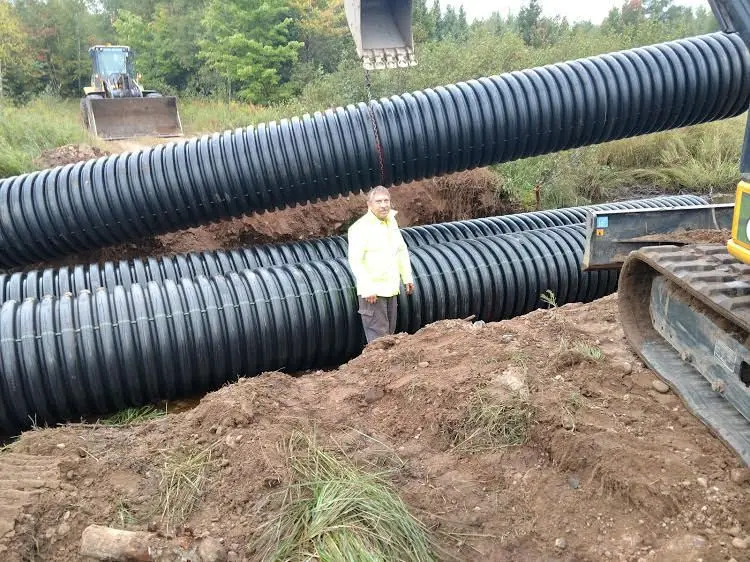

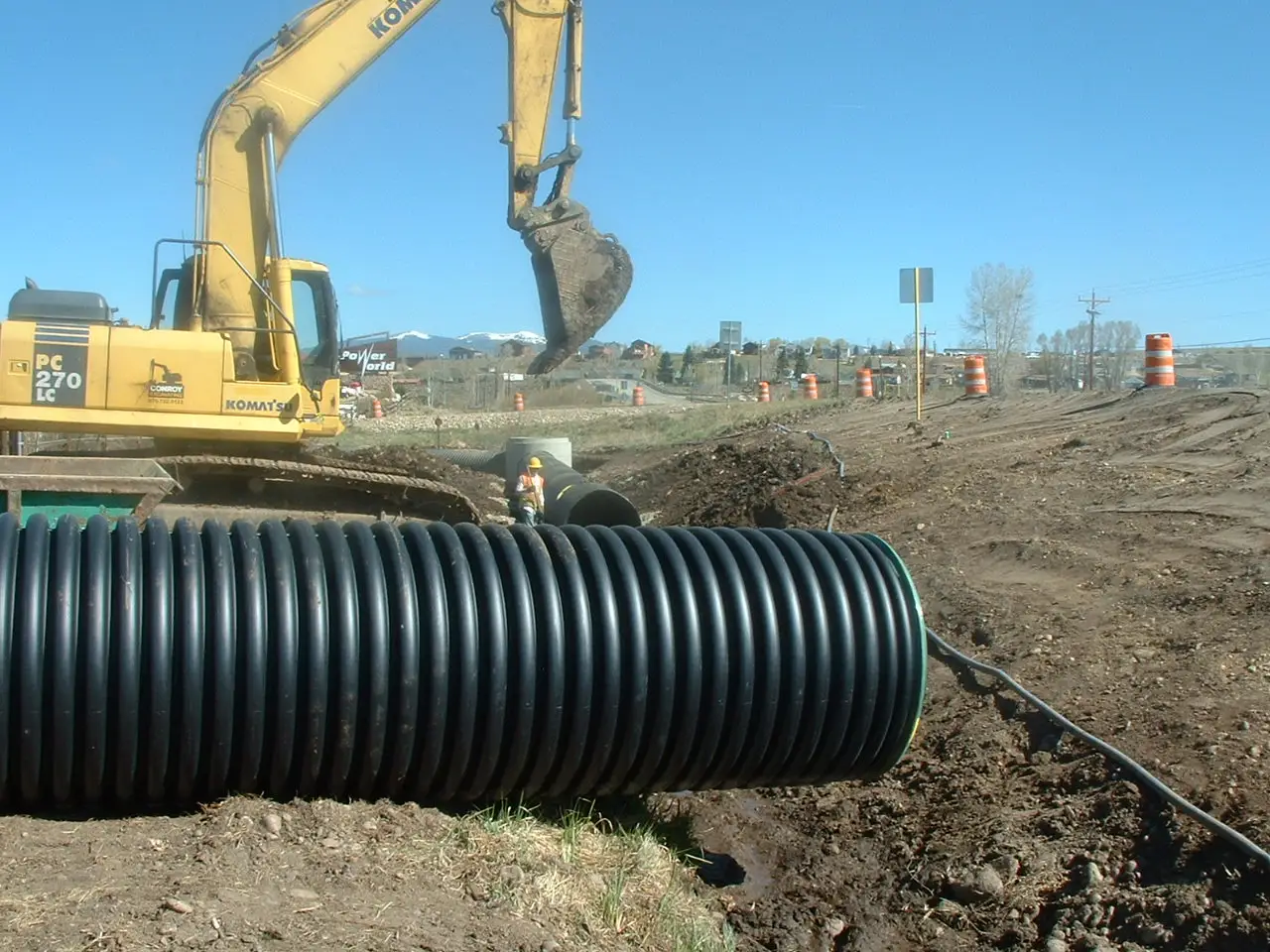

Customer Photos
HDPE Pipe Applications
HDPE Black 2 wall Corrugated Plastic Drainage Pipes are used in varied industries like Agriculture, Chemical, Industrial, Sewage and Drainage, Sprinkler Irrigation, Industrial Effluents and House services connection works as well.
HDPE Black 2 wall Corrugated Plastic Drainage Pipes are used in varied industries like Agriculture, Chemical, Industrial, Sewage and Drainage, Sprinkler Irrigation, Industrial Effluents and House services connection works as well.
Company Profile
Certifications
Product packaging
FAQ
Q: What is your MOQ?
A: As customer's request.
Q: Why choose us?
A: We are a professional and leader of HDPE pipe factory, we offer pipeline system one stop services with competitive price and fast delivery time, and we insure our quality is the second to none.
Q: How to buy the product?
A: Contact with us by email or by Trade Manager, and inform us which product and quantity that you need, we will contact you immediately. More specify the information that you provided more faster and easier you will get the quotation.
Q: Can I make my own design and logo on the product?
A: Yes, we do OEM. Welcome partner from globally, we can make your product in China.
Q: Do you have customized pipe fittings?
A: We can make any plastic pipe fittings according customer drawings.
Q: What's the payment term?
A: Order amount <=1,000USD, 100% in advance.
Order amount>=1,000USD, 30% T/T in advance, balance before shipment.
Order amount>20,000USD, 30% T/T in advance, balance L/C at sight acceptable.
Order amount>100,000USD, 100% L/C at sight acceptable.
Q: Why choose us?
A: We are a professional and leader of HDPE pipe factory, we offer pipeline system one stop services with competitive price and fast delivery time, and we insure our quality is the second to none.
Q: How to buy the product?
A: Contact with us by email or by Trade Manager, and inform us which product and quantity that you need, we will contact you immediately. More specify the information that you provided more faster and easier you will get the quotation.
Q: Can I make my own design and logo on the product?
A: Yes, we do OEM. Welcome partner from globally, we can make your product in China.
Q: Do you have customized pipe fittings?
A: We can make any plastic pipe fittings according customer drawings.
Q: What's the payment term?
A: Order amount <=1,000USD, 100% in advance.
Order amount>=1,000USD, 30% T/T in advance, balance before shipment.
Order amount>20,000USD, 30% T/T in advance, balance L/C at sight acceptable.
Order amount>100,000USD, 100% L/C at sight acceptable.
