For CATV Telecommunications Engineering Maintenance Connector Termination InGaAs Photodiode ROSA With SC

Share on (1600344705777):


Price:$1.25 - $3.25

Quantity:


Product Overview

Description


Product Description

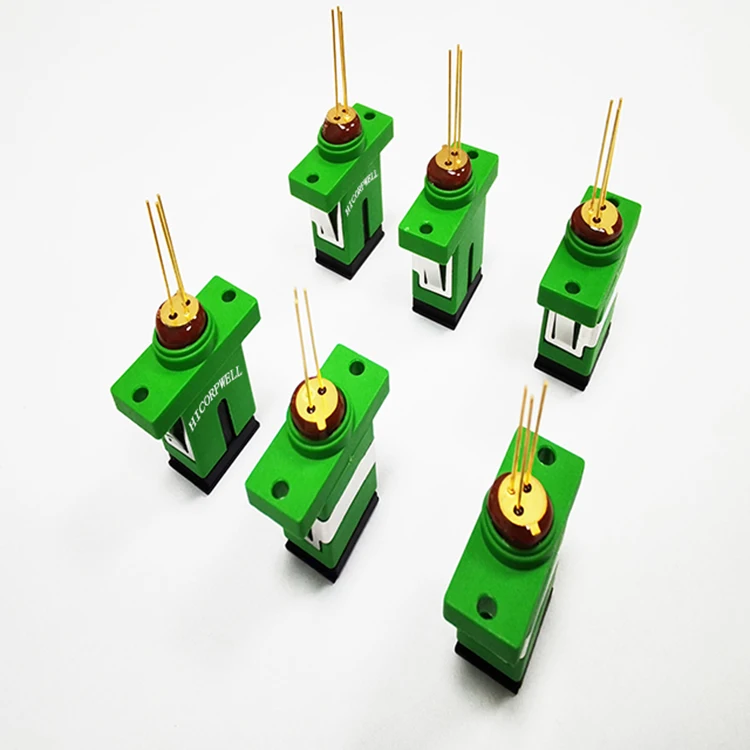

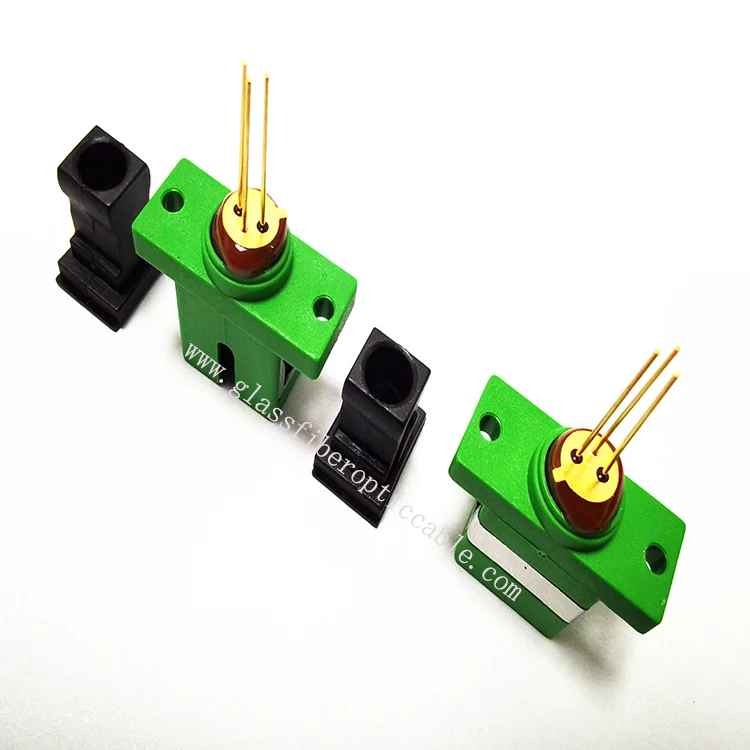

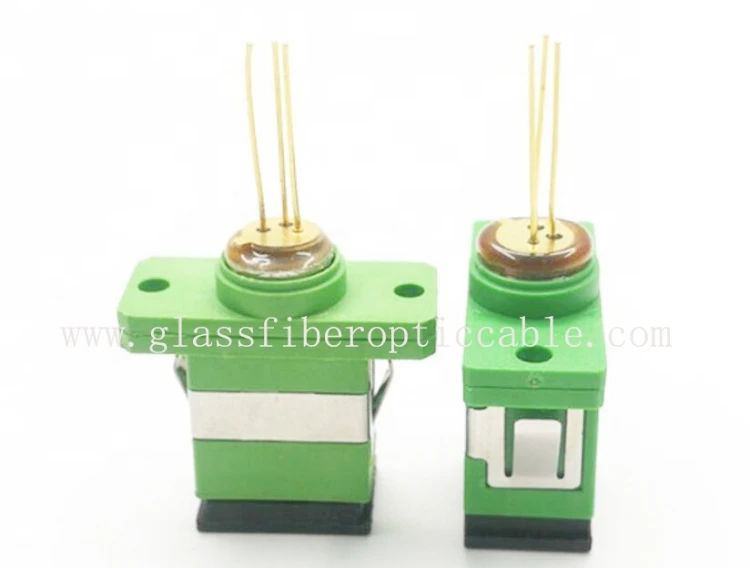

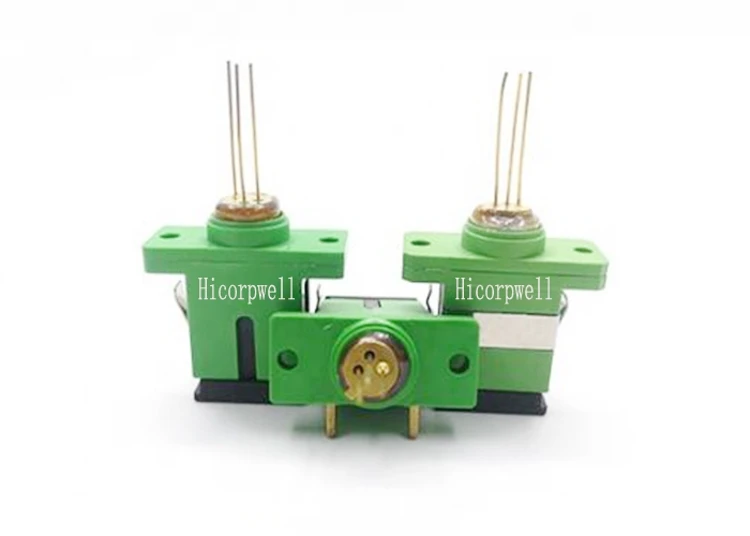

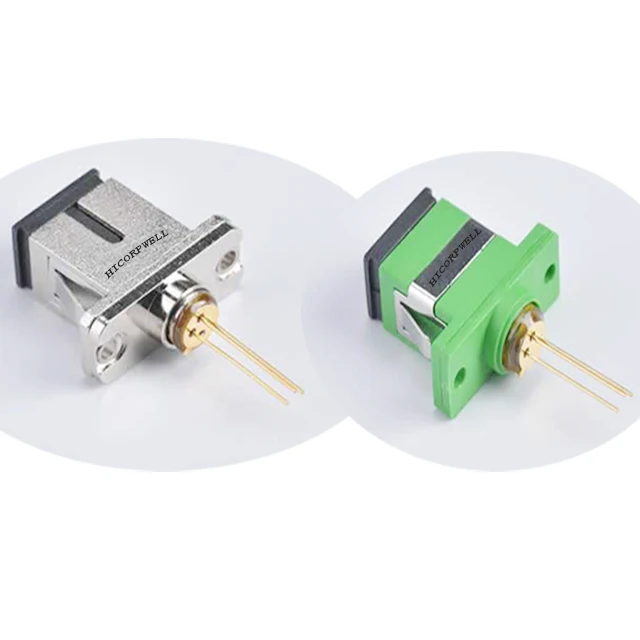

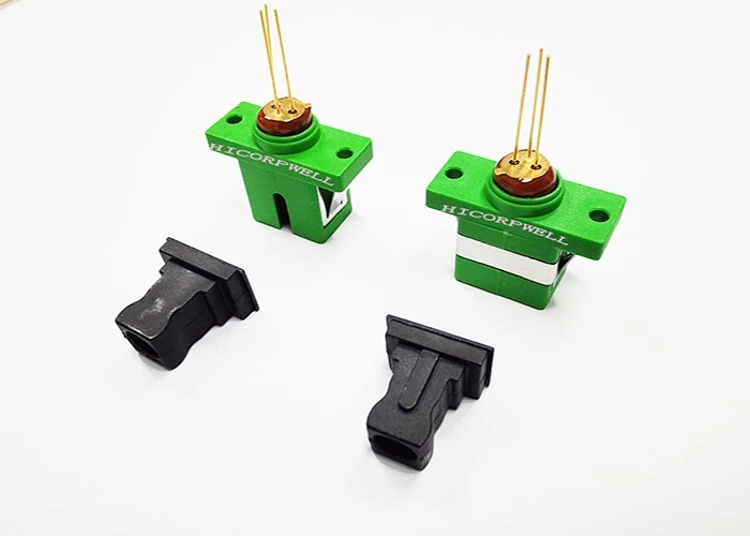

For CATV Telecommunications Engineering Maintenance Connector Termination InGaAs Photodiode ROSA With SC






ingaas photodiode rosa with sc connector terminationingaas photodiode rosa with sc connector terminationingaas photodiode rosa with sc connector terminationingaas photodiode rosa with sc connector terminationingaas photodiode rosa with sc connector termination



ROSA module is InGaAs PIN photodiode with high responsibility. It is suitable for data and analog communication.

Product Detail


Keywords InGaAs Pin diode 3 PINs ROSA pigtail Receptacle
Product name InGaAs Pin diode 3 PINs ROSA pigtail Receptacle
Structure Type Planar incident structure,1550nm
Package Type Coaxial package
Application Video Transmission & Digital Communication
Type ROSA module
CATV Equipment Analog Optical Receiver
Reverser voltage 30V


InGaAs Photodiode ROSA with SC connectorFeatures

Ø High response,flat structure of InGaAs PIN detector
Ø Low capacitance and low dark current
Ø Operating wavelength of 1100~1650nm

Ø Power detector


Applications

Video Transmission & Digital Communication


Optical & Electrical Characteristics
Parameter
Symbol
Min.
Typ.
Max.
Unit
Test Condition
Wavelength Range
λ
1100
-
1650
nm
-
Power Range
P
-70
-
+4
dBm
V,=5V
Active Diameter
Ad
-
75
-
um
-
Dark Current
Id
-
0.2
0.5
nA
-
Responsivity
R
-
0.85
0.90
A/W
λ=1310 nm
-
0.90
0.95
λ=1550 nm
Frequency Bandwidth
Bw
1
2000
MHz
-
Frequency Response
Fr
-
±0.5
-
dB
-
Capacitance
Ct
-
0.65
0.75
Pf
-
Response Time
Tr
0.1
-
ns
-
Return loss
Rl
-
-
-45
dB
-
CSO
-
-
-70
-
dBc
45~860MHz
CTB
-
-
-80
-
dBc
45~860MHz
