HANA Thermal automotive PVD evaporation vacuum coating machine Small metal coating machinery e beam coating machine factory
- Category: >>>
- Supplier: Shanghai HANA Technology Co. Ltd.
Share on (1600344711019):
Product Overview
Description
Products Description
Equipment Introduction

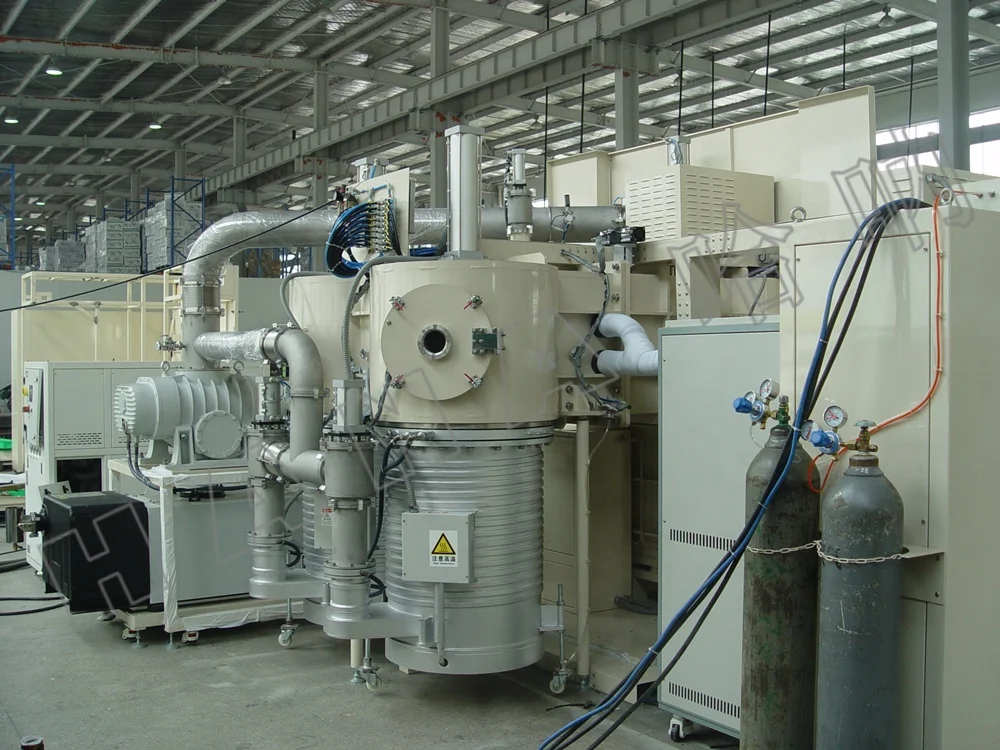

This equipment is a fully automatic heating wire evaporation coating equipment that performs metal coating on the surface of plastics, glass, etc., while directly coating the surface of the plated metal film with an oxide protective film(siox).In the vacuum chamber carry out the process of low vacuum exhaust automatically and continuously,Electric arc bombardment pretreatment(Product surface activity),high vacuum exhaust(X10-5pa), Aluminum evapotranspiration ( aluminum plating film ),Anti
oxidation film coating(Aluminum film cover the monox sclerotic film prevent Aluminum film oxide fall off).

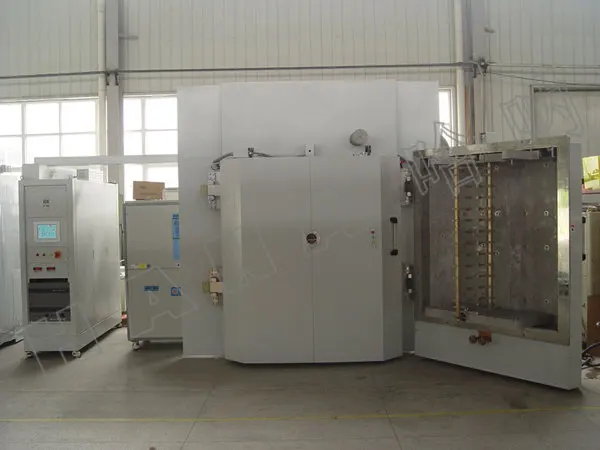

Vacuum chamber is vertical double door.
Model | VPD 1015 S | ||||
Dimension | 1000x1500 | ||||
Material | SUS304 stainless steel or carbon steel | ||||
Vacuum system | Diffusion pump +Roots pump +Rotary pump(3.0*10-4Pa) | ||||
Working cycle | Public rotation Frequency control: 0-20 rotation per minute | ||||
Process power | MF power supply | ||||
Cooling system | CHILLER / POLY cold unit( reaching under 130°C) | ||||
Control system | PLC and one touch screen | ||||
Remark | All can be designed according to customer's requests. | ||||
Advantages
1. Super high yield : fast production cycle time —10 minutes /chamber 30m2/h
2. No need to clean after coating :No need of cleaning process, can be delivered directly
3. Hydraulic angle, has good abrasion resistance:The hydraulic angle is greater than 100 degrees after 10000 times abrasion tests.
4. Fast film forming speed of SiOx layer:The patented chemical vapor deposition method can reach the film thickness in 3-5 minutes.
5. Equipment structure:Patented structure design, stable product quality, convenient operation and simple maintenance.
Company Profile
Shanghai HANA Technology Co., Ltd. is a high-tech enterprise established in 2004 in Shanghai. As an experienced manufacturer, HANA has our own R&D team, laboratory and marketing.
Our product mainly include evaporation vacuum coating equipment, magnetron sputtering coating equipment, battery vacuum dryer, vacuum exhaust machine, accessories and consumable of vacuum coating equipment.

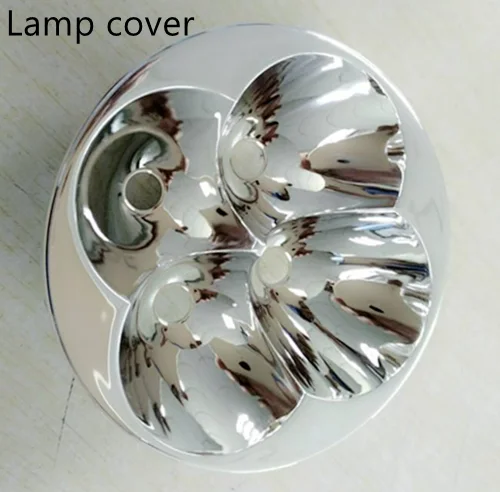

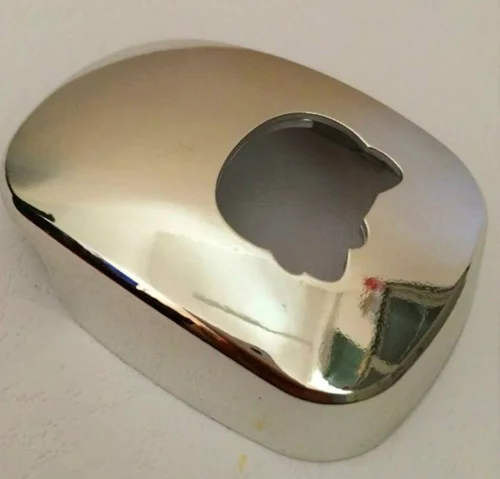

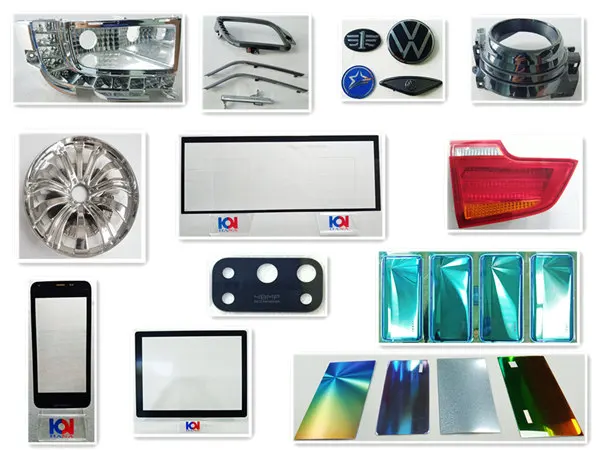

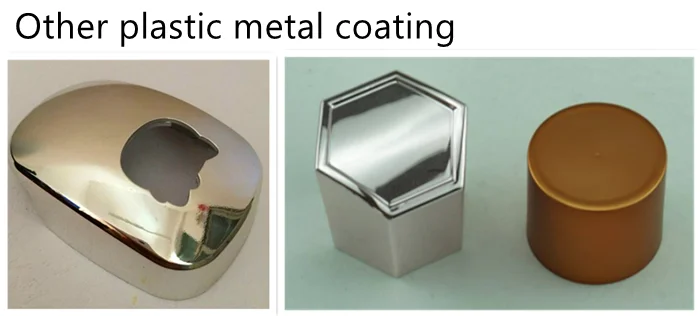

It is used in the coating of metallized film, AF film, AR film, color film on the surface of various plastic / glass / metal products, such as automotive lamp, automotive accessories, mobile phone shell, phone glass, phone semiconductor, touch screen/panel, camera, battery and so on.
The core competence of our company is to provide customized technical solutions according to the requirements of different industry and product, and give professional guidance and training, to meet and solve the various needs from the customer.
ABOUT HANA

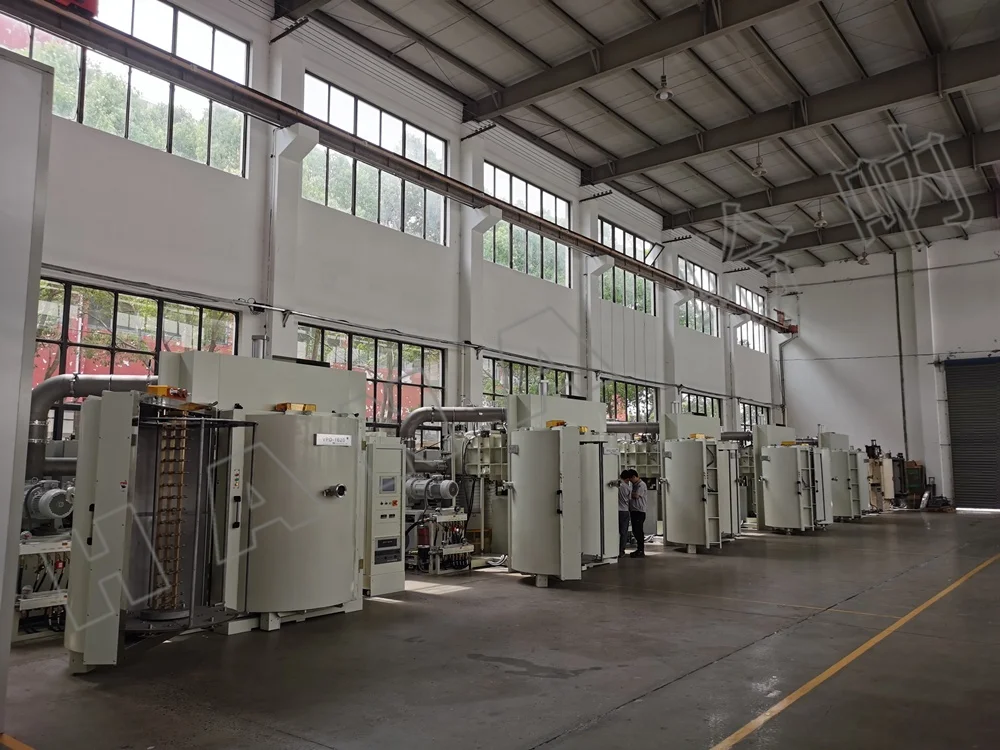

Production Process
Customer Visit

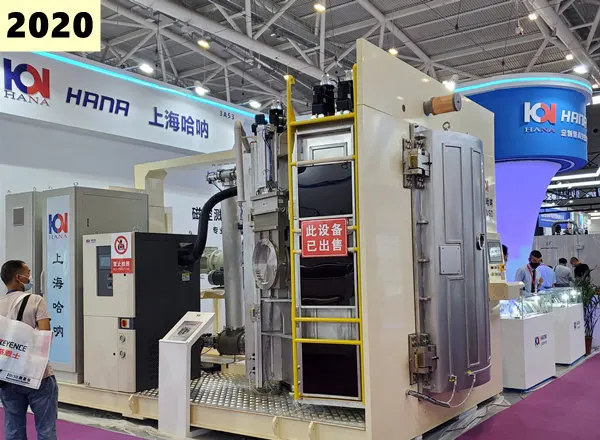

Exhibition
FAQ
Q: Are you a manufacturer?
A: Yes, we are the manufacturer having 20 years experience of vacuum coating machine. Welcome to visit our factory.
Q: Is it hard to operate the machine?
A: Not at all. Our machine has two operate methods: the Manual and Auto.
Under the Auto process, machine will start automatically and complete the whole process by itself.
Q: When is the delivery time?
A: Delivery will occur 90 days from order date. Faster delivery time can be arranged if needed.
Q: Can we test the machine before shipment?
A: Yes, of course! You are warmly welcomed to our factory.
Q: Do you provide after-sales service?
A: After-sales problems shall be solved online within 24 hours.
Long-term product solution and remote technical support is provided.
A: Yes, we are the manufacturer having 20 years experience of vacuum coating machine. Welcome to visit our factory.
Q: Is it hard to operate the machine?
A: Not at all. Our machine has two operate methods: the Manual and Auto.
Under the Auto process, machine will start automatically and complete the whole process by itself.
Q: When is the delivery time?
A: Delivery will occur 90 days from order date. Faster delivery time can be arranged if needed.
Q: Can we test the machine before shipment?
A: Yes, of course! You are warmly welcomed to our factory.
Q: Do you provide after-sales service?
A: After-sales problems shall be solved online within 24 hours.
Long-term product solution and remote technical support is provided.
Q: Do you provide the second-hand machine?
A: Yes, we also provide second-hand machine. You can provide your requirement.
A: Yes, we also provide second-hand machine. You can provide your requirement.
