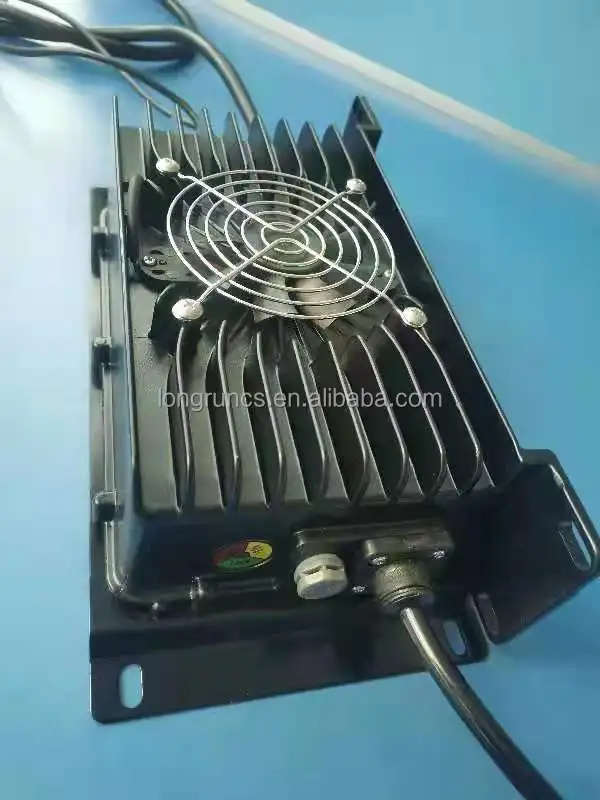

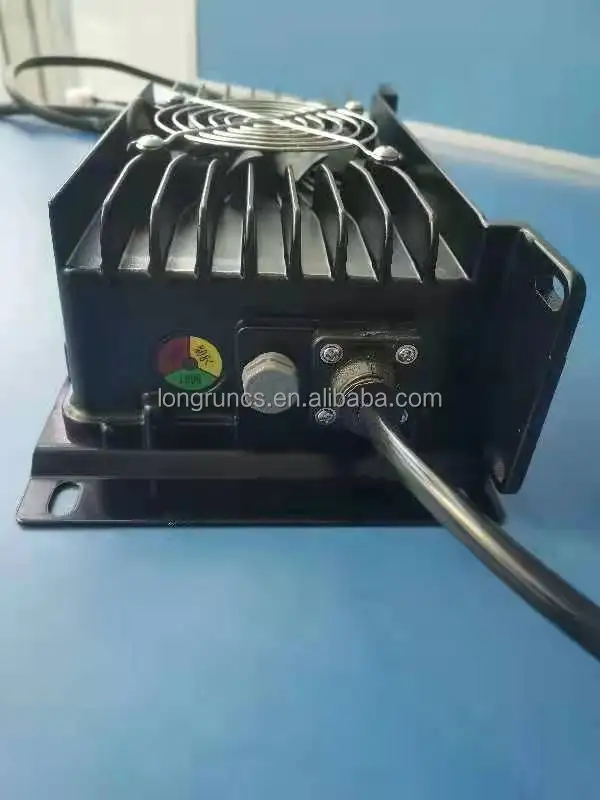

Longrun 1.5kw 12v 24v 36v 48v 60v 72v On Board Obc Lithium Battery Charger For Electric Vehicle
- Category: >>>
- Supplier: Chengdu Longrun Chuangshi Technology Co. Ltd.
Share on (1600344720385):
Product Overview
Description
Product Description

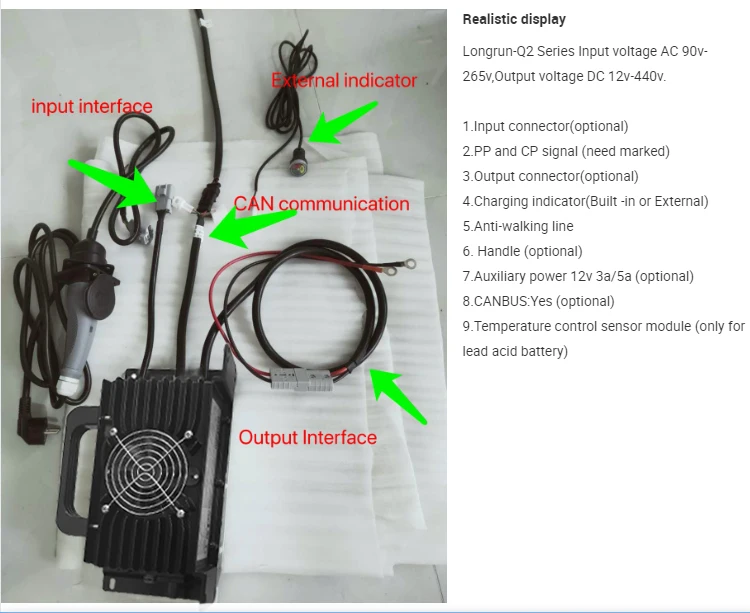

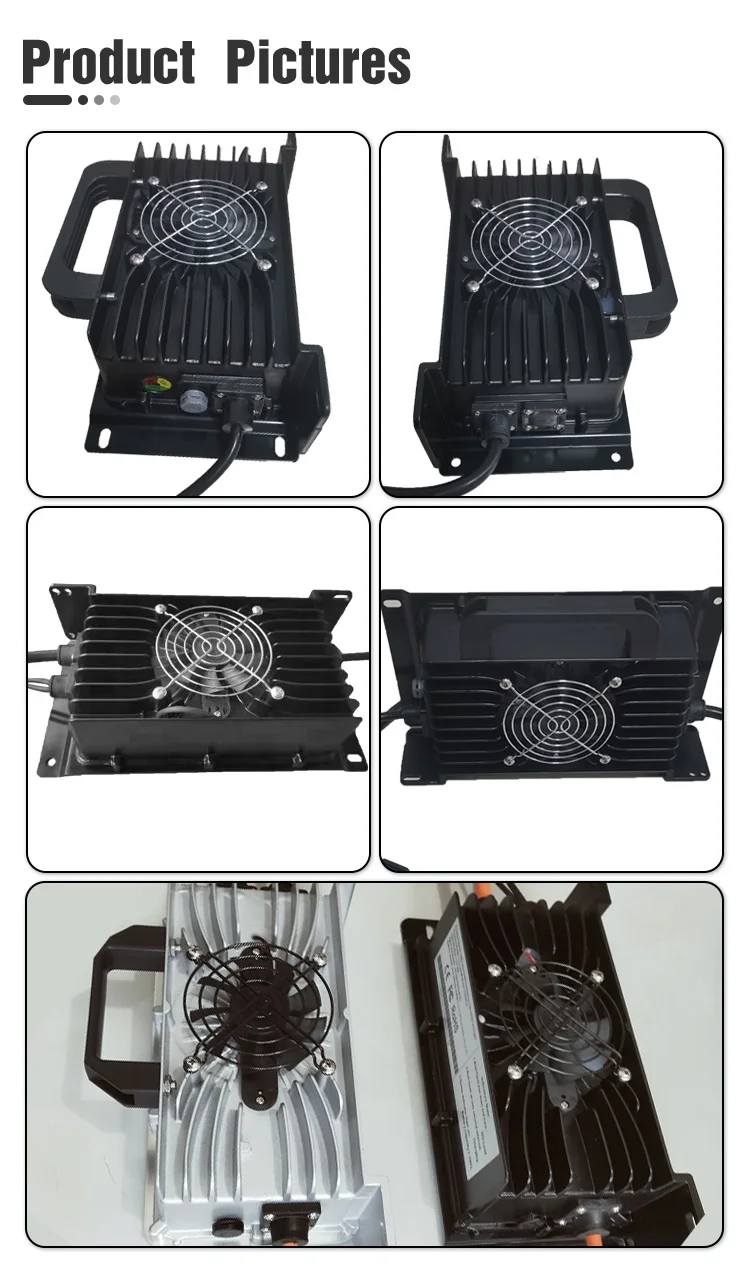

Realistic display

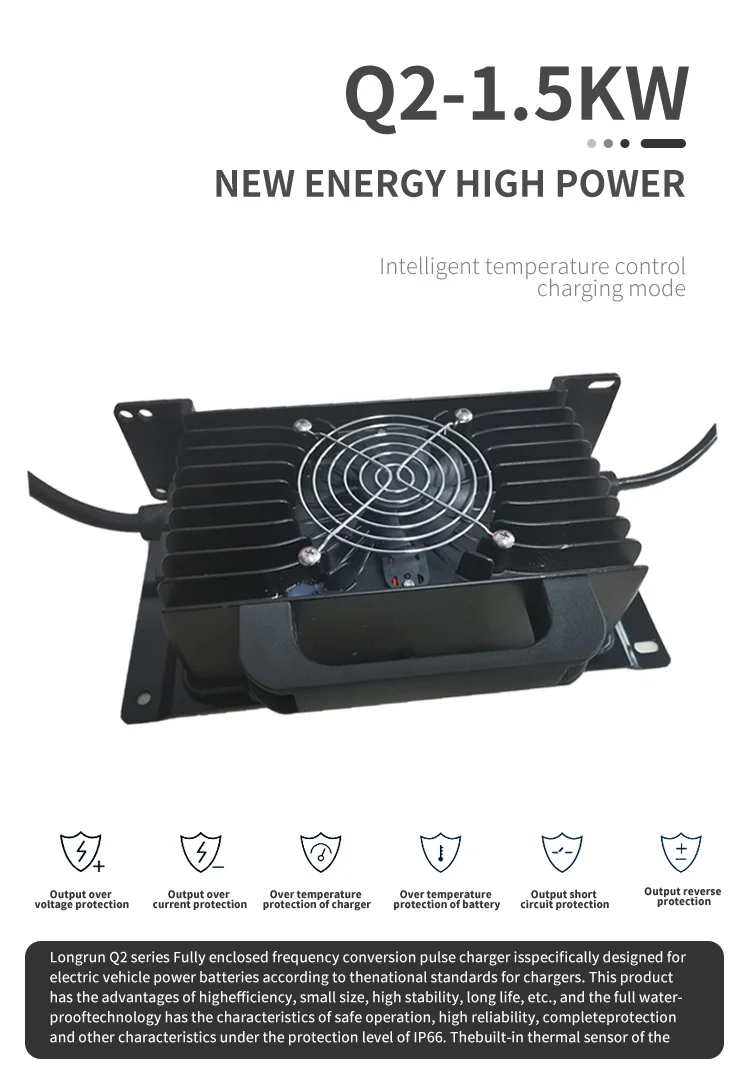

Longrun-Q2 Series
Input voltage AC 90v-265v,
Output voltage DC 12v-440v.
1.Input connector(optional)
2.PP and CP signal (need marked)
3.Output connector(optional)
4.Charging indicator(Built -in or External)
5.Anti-walking line
6. Handle (optional)
7.Auxiliary power 12v 3a/5a (optional)
8.CANBUS:Yes (optional)
9.Temperature control sensor module (only for lead acid battery)
4.Charging indicator(Built -in or External)
5.Anti-walking line
6. Handle (optional)
7.Auxiliary power 12v 3a/5a (optional)
8.CANBUS:Yes (optional)
9.Temperature control sensor module (only for lead acid battery)
Model | Max Current (A) | Size | Weight | ||||
220V AC | 110V AC | ||||||
Q2-1.5kw | 12 | 20 | 25 | 25 | 281*146*82 mm | 2.7 Kg | |
24 | 29.2 | 30 | 30 | ||||
36 | 43.8 | 25 | 20 | ||||
48 | 54.75 | 25 | 15 | ||||
60 | 84 | 20 | 15 | ||||
72 | 88 | 18 | |||||
80 | 99 | 15 | |||||
96/102 | 108/110 | 10/7 | |||||
Application
Lifepo4,NCM, Lithium ion battery lead-acid battery Nickel-metal hydride, nickel-cadmium, nickel-chromium batteries, etc | |||||||
Electric sightseeing car, golf cart, club car,patrol car, electric cleaning equipment, sweeper, lawn mower; Material handling equipments: electric forklift, electric lift truck, electric pallet truck and stacking truck,lift. Electric boat ,ATV,Kart,cars,Vans and buses; Others: marine, aerospace, military, Solar energy storage batteries, power station energy storage batteries,UPS uniterruptible power supply, etc. | |||||||
Specification
Model Number | Q2-1.5KW |
Brand Name | Longrun |
Product name | 48v 25a waterproof battery charger |
Cell type | Lifepo4,NCM,lead-acid battery and lithium ion battery |
Certiification | CE/FCC/ROHS |
Type | Air Cooling |
Place of Origin | sichuan,china |
IP | 66 |
Efficiency | >95% |
Size | 281*130*83mm |
N.W | 2.8kg |

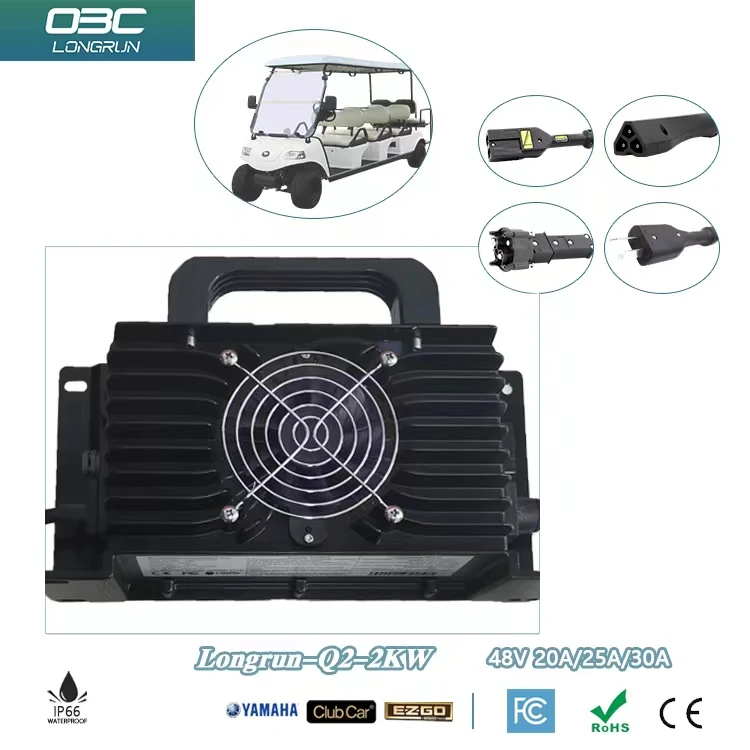

Application | Electric golf cart , Scooter, Ebike ,motorcycle, surfboard ,boat |
Customer Feedback
Company Profile
Chengdu Longrun Chuangshi Technology Co., Ltd was established in 2016 and is located in Chengdu, China. The company is mainly engaged in electric vehicle charging system, AC servo control system, and electronic information and battery internalization system. As a high-tech enterprise, it is a national key and major project.We have independent patented technology and R&D team. The team consists of 8-10 engineers who have been in the industry for more than 20 years, top software technicians and sales elites, with high efficiency and good product quality, which has been well received by our customers |
Packing & Delivery
FAQ
1. Who are we?
Chengdu Longrun Chuangshi Technology Co., LTD.Located in Chengdu, China, Engaged in Electric Vehicle Charging System, AC Servo Control System,as well as electronic information and the battery internalizes system.
2. How can we guarantee quality?
Always a pre-production sample before mass production.Always final Inspection before shipment.
3.What can you buy from us?
On board charger,ev charger,car charger,Lifepo4,Lithium ion etc.We offer OEM and ODM.
4. Why choose us?
Chengdu Longrun Chuangshi Technology Co., LTD.Located in Chengdu, China, Engaged in Electric Vehicle Charging System, AC Servo Control System,as well as electronic information and the battery internalizes system.
2. How can we guarantee quality?
Always a pre-production sample before mass production.Always final Inspection before shipment.
3.What can you buy from us?
On board charger,ev charger,car charger,Lifepo4,Lithium ion etc.We offer OEM and ODM.
4. Why choose us?
*More competitive price! As a manufacturer, we have our own factory and R&D team, so the price will be more competitive.
*Fast delivery! Mature factory, experienced engineers and efficient workers. *Good shipping service! We have long
term cooperation with DHL, UPS and EMS, so we can promise to save more shipping cost and provide better service. *Experienced and professional service! Over 20 years of professional R&D team and experience. Keep good relationship with more than 200 distributors. Have a good reputation in the industry.
term cooperation with DHL, UPS and EMS, so we can promise to save more shipping cost and provide better service. *Experienced and professional service! Over 20 years of professional R&D team and experience. Keep good relationship with more than 200 distributors. Have a good reputation in the industry.
