Price:$0.23 - $2.65

Quantity:


Product Overview

Description



6M Length Sdr 21 3 4 Inch 6 Inches 48 Inch 32 90Mm 1200Mm 24 Huge Diameter Square Cpvc Upvc Pvc Pipe Water Price In Philippines


Standard
ISO and SCH40 & SCH80
Supply
PVC pipe and fittings
Sizes
1/2 inch to 40 inch (DN20-DN1000mm)


Products Description


Material
Chlorinated polyvinyl chloride
PVC pipe Sizes
DN20mm to 1000mm
PVC pipe length
4m,6m or other on request
Certification
ISO9001, ISO14001
Standard
GB/T10002.1-2006(ISO4422.1:1996)；SCH40 & SCH80


Product Paramenters


OD DN
0.6MPa
0.8MPa
1.0MPa
1.25MPa
1.6MPa
2.0MPa
2.5MPa
Thickness
(mm)
Thickness
(mm)
Thickness
(mm)
Thickness
(mm)
Thickness
(mm)
Thickness
(mm)
Thickness
(mm)
20
2
2.3
25
2
2.3
2.8
32
2
2.4
2.9
3.6
40
2
2.4
3
3.7
4.5
50
2
2.4
3
3.7
4.6
5.6
63
2
2.5
3
3.8
4.7
5.8
7.1
75
2.3
2.9
3.6
4.5
5.6
6.9
8.4
90
2.8
3.5
4.3
5.4
6.7
8.2
10.1
110
2.7
3.4
4.2
5.3
6.6
8.1
10
125
3.1
3.9
4.8
6
7.4
9.2
11.4
140
3.5
4.3
5.4
6.7
8.3
10.3
12.7
160
4
4.9
6.2
7.7
9.5
11.8
14.6
180
4.4
5.5
6.9
8.6
10.7
13.3
16.4
200
4.9
6.2
7.7
9.6
11.9
14.7
18.2
225
5.5
6.9
8.6
10.8
13.4
16.6
250
6.2
7.7
9.6
11.9
14.8
18.4
280
6.9
8.6
10.7
13.4
16.6
20.6
315
7.7
9.7
12.1
15
18.7
23.2
355
8.7
10.9
13.6
16.9
21.1
26.1
400
9.8
12.3
15.3
19.1
23.7
29.4
450
11
13.8
17.2
21.5
26.7
33.1
500
12.3
15.3
19.1
23.9
29.7
36.8
560
13.7
17.2
21.4
26.7
630
15.4
19.3
24.1
30
710
17.4
21.8
27.2
800
19.6
24.5
30.6
900
22
27.6
1000
24.5
30.6


Details Images




In addition to good physical and chemical properties of PVC-U drain pipes and fittings, the following outstanding features are also available.
1.Sanitary & Non-toxic
Products are made from sanitary resin and non-toxic additive. No harmful substance is produced in the processing course. The secondary pollution to the tap water can be avoided during the using course. Detected by the health and epidemic prevention departments, products can comply with national health standards and obtains health permits.
2.Good Pressure Resistance
Product's wall thickness complies with standard GB/T10002.1-2006, and the air-tightness is good.
3.Long Service Life
In normal installation and use conditions, SIFFO water supply series can serve customers for 50 years.
4.Low Cost
PVC-U water supply pipeline can save about 20% material costs than traditional pipes, the installation cost are also relatively low. More importantly, pipeline has a long service life, so maintenance and replacement costs can be reduced to the greatest extent.


Applications


Applications :
PVC PIPE is widely used in industrial and civil building, including indoor and out door drainage,sewage pipe project, agricultural irrigation system, chemical drainage, sewage, it also suitable for ventilation pipe and drainage pipeline, etc.




HANDLING


Do
Store pipe on firm and flat surfaces.
Keep pipe and fttings away from sharp objects, heat,and toxic and aggressive materials.
Take carenot tocut,kink,abrade,or otherwise damage the pipe during handling.
Keep protective packaging intact until pipes and fittings are required for use.
Release coils carefully,keeping in mind they may be coiled under tension.
Take care when handling pipe under wet or frosty conditions,as the pipe may become slippery.
Temporarily cap cut pipe ends to prevent dirt or other material from entering the pipe.
Uncoil pipe and allow it to warm in the sun before burial for ease of installation.


DON"T
Throw pipe from delivery vehicles.· Drag pipe or roll pipe coils.
Place pipeand fittings incontact withlubricating oil,gasoline,solvents,or other aggressive materials.Heat pipe with an open flame.

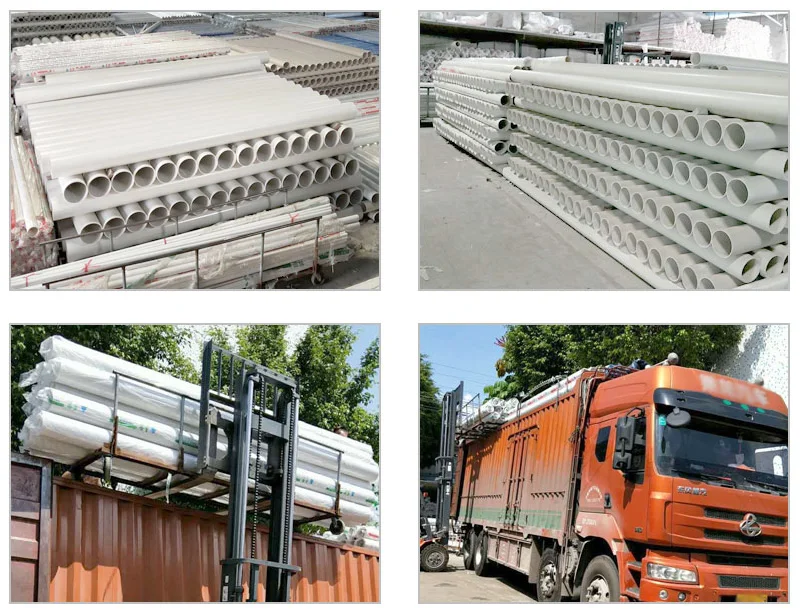

Packing&Shipping




Company Profile






Certifications




FAQ


Q: What is your MOQ?
A: As customer's request.

Q: Why choose us?
A: We are a professional and leader of HDPE pipe factory, we offer pipeline system one stop services with competitive price and fast delivery time, and we insure our quality is the second to none.

Q: How to buy the product?
A: Contact with us by email or by Trade Manager, and inform us which product and quantity that you need, we will contact you immediately. More specify the information that you provided more faster and easier you will get the quotation.

Q: Can I make my own design and logo on the product?
A: Yes, we do OEM. Welcome partner from globally, we can make your product in China.

Q: Do you have customized pipe fittings?
A: We can make any plastic pipe fittings according customer drawings.

Q: What's the payment term?
A: Order amount <=1,000USD, 100% in advance.
Order amount>=1,000USD, 30% T/T in advance, balance before shipment.
Order amount>20,000USD, 30% T/T in advance, balance L/C at sight acceptable.
Order amount>100,000USD, 100% L/C at sight acceptable.
