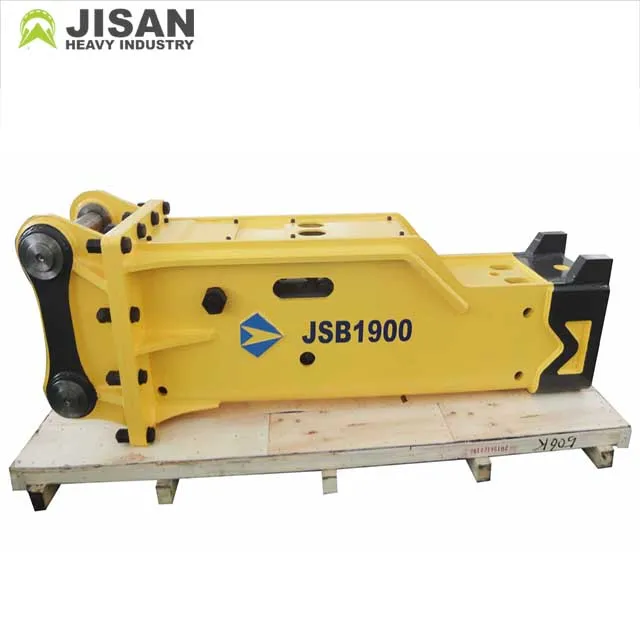

JSB hydraulic rock breaker, JISAN Top type Rock Hammer
- Category: >>>
- Supplier: Yantai Jisan Heavy Industry Ltd.
Share on (1600344762073):
Product Overview
Description
Feature Details
1. Selected raw material - high quality heavy duty wear resistant steel.
2. Leading heat treatment technology. Heat resistance and abrasion resistance are enhanced.
3. The device can adjust the flow fromexcavator and power source, so it can adjust the impact force and beat frequency according
to different working situation.
4. High-quality and durable wear parts ,longer use, easy maintenance.
5. Strong " hydraulic + nitrogen " impact system, increase stability.
6. Advanced manufacturing facilities and technology, introduced from South Korea.
7. High energy and impact frequency, High-performance optimized hydraulic unit.non-pollution and non-damage to piles, etc.
JISAN Hydraulic Breaker has 3 main types:
Silenced Hydraulic Breaker:
Low noise, saving energy and protecting environment.

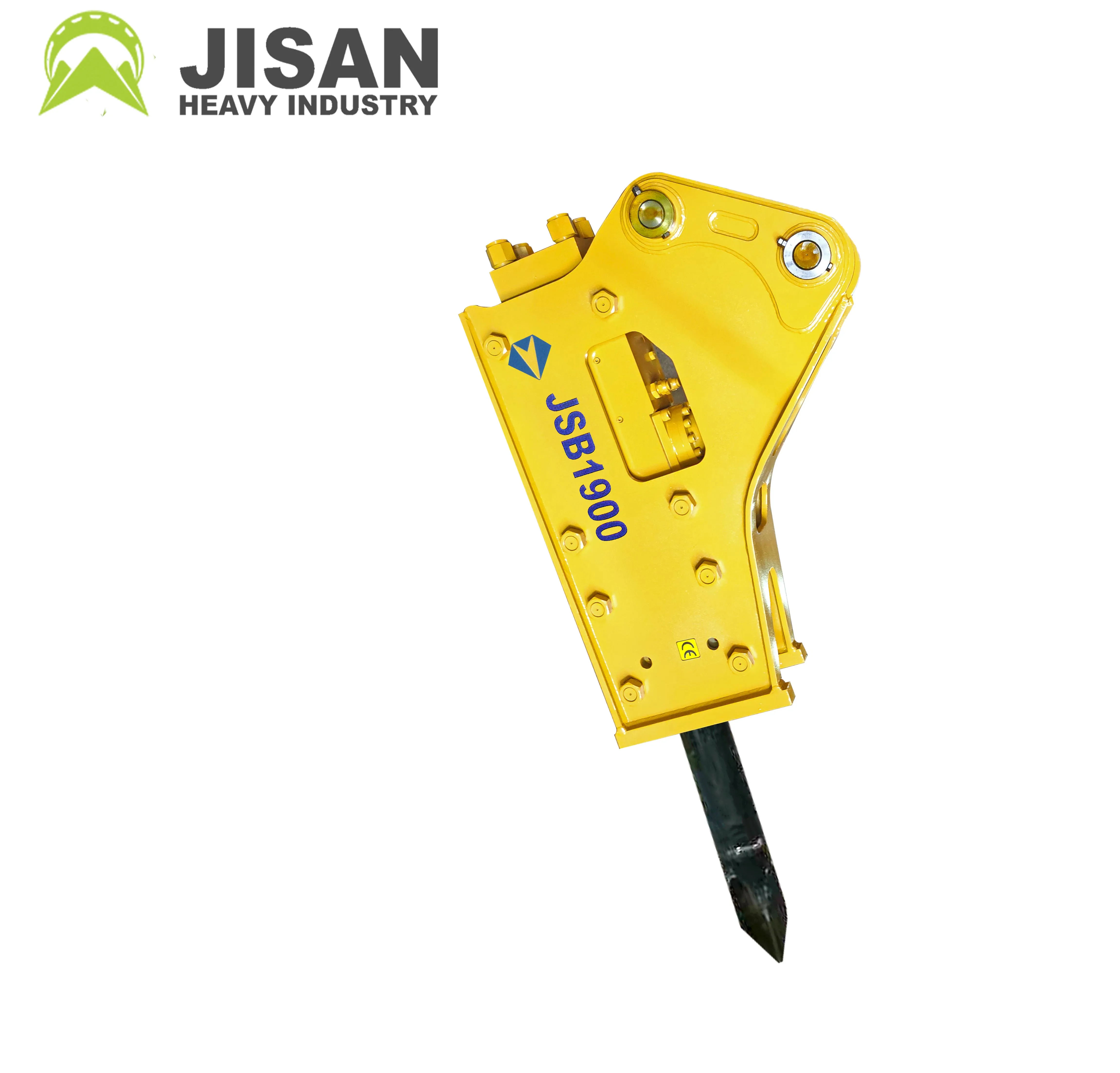

Side Type Hydraulic Breaker:
Versatile application including rock broken, paving road, building demolition etc.

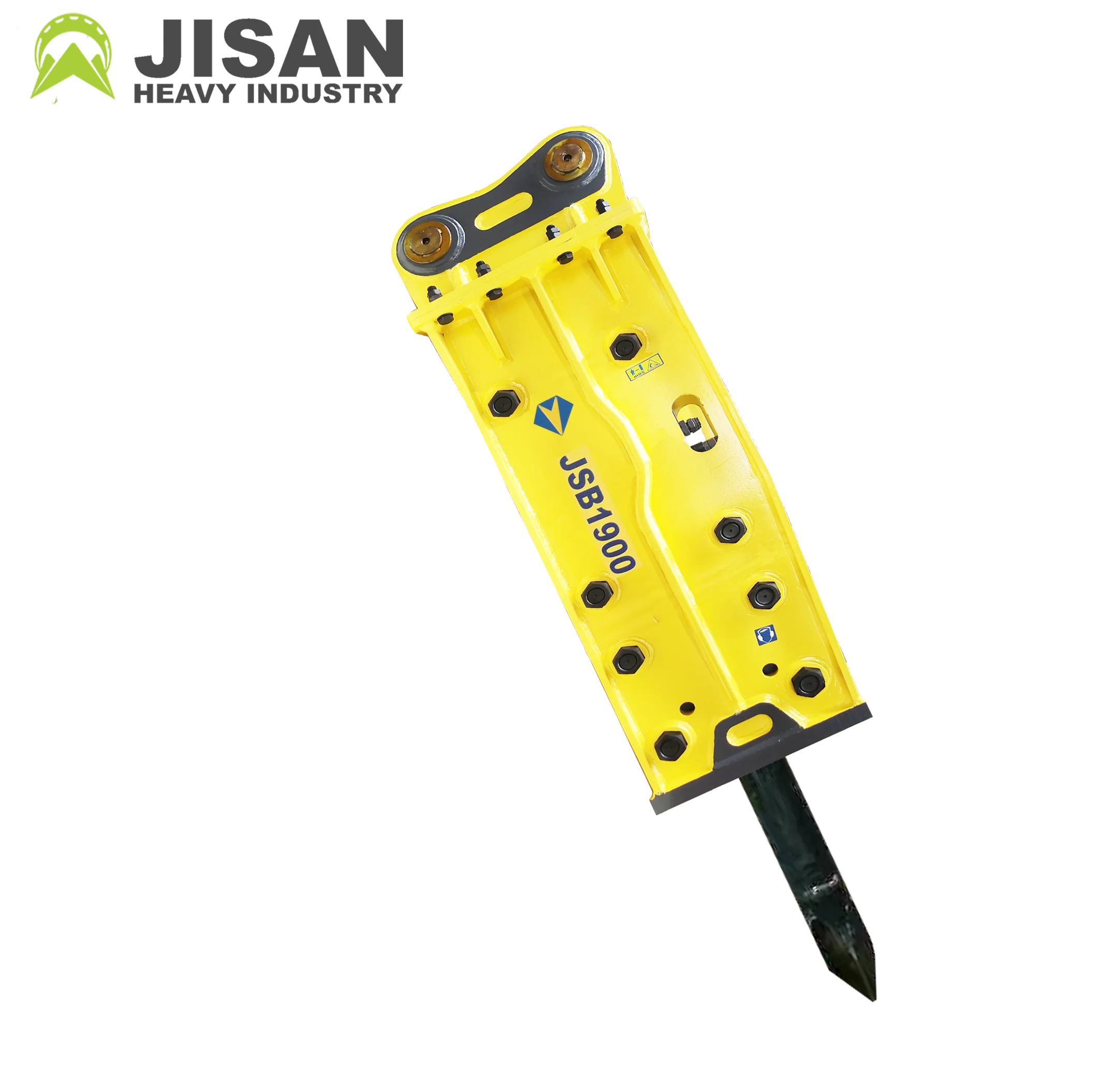

Top Type Hydraulic Breaker:
Applied to special operation that in large elevation angle.
Product Paramenters
Item/Model | weight (kg) | length (mm) | pressure (bar) | flow (lpm) | rate (bmp) | hose (inch) | chisel (mm) | suit(ton) |
JSB100 | 100 | 1000 | 90-120 | 15-25 | 900-1400 | 1/2 | 40 | 0.8-2.0 |
JSB200 | 167 | 1300 | 90-120 | 20-40 | 700-1200 | 1/2 | 45 | 1.2-3.0 |
JSB300 | 194 | 1400 | 90-120 | 25-50 | 600-1100 | 1/2 | 53 | 2.5-4.5 |
JSB400 | 363 | 1700 | 110-140 | 40-70 | 500-900 | 1/2 | 68/70 | 4-7 |
JSB600 | 450 | 1750 | 110-160 | 50-90 | 500-800 | 1/2 | 75 | 6-9 |
JSB800 | 730 | 2100 | 120-170 | 60-100 | 400-700 | 3/4 | 85 | 7-14 |
JSB900 | 970 | 2400 | 150-170 | 80-120 | 400-700 | 3/4 | 100 | 11-16 |
JSB1600 | 1950 | 2700 | 160-180 | 120-160 | 400-700 | 1 | 135 | 19-26 |
JSB1900 | 2050 | 2860 | 160-180 | 130-170 | 400-600 | 1 | 140 | 19-26 |
JSB3500 | 3000 | 3100 | 160-180 | 170-220 | 250-400 | 1 | 155 | 28-40 |
JSB4500 | 3300 | 3286 | 160-180 | 200-300 | 250-350 | 1 ¼ | 165 | 36-45 |
JSB5000 | 4250 | 3800 | 160-180 | 210-290 | 200-350 | 1 ¼ | 175 | 40-55 |
JSB5000 | 4900 | 3700 | 180-220 | 220-300 | 200-250 | 1 ¼ | 185 | 50-60 |
JSB6000 | 5400 | 4200 | 200-240 | 230-320 | 150-200 | 1 ¼ | 195 | 55-65 |
JSB6500 | 7400 | 4300 | 200-240 | 320-490 | 150-200 | 1 ¼ | 205 | 65-100 |

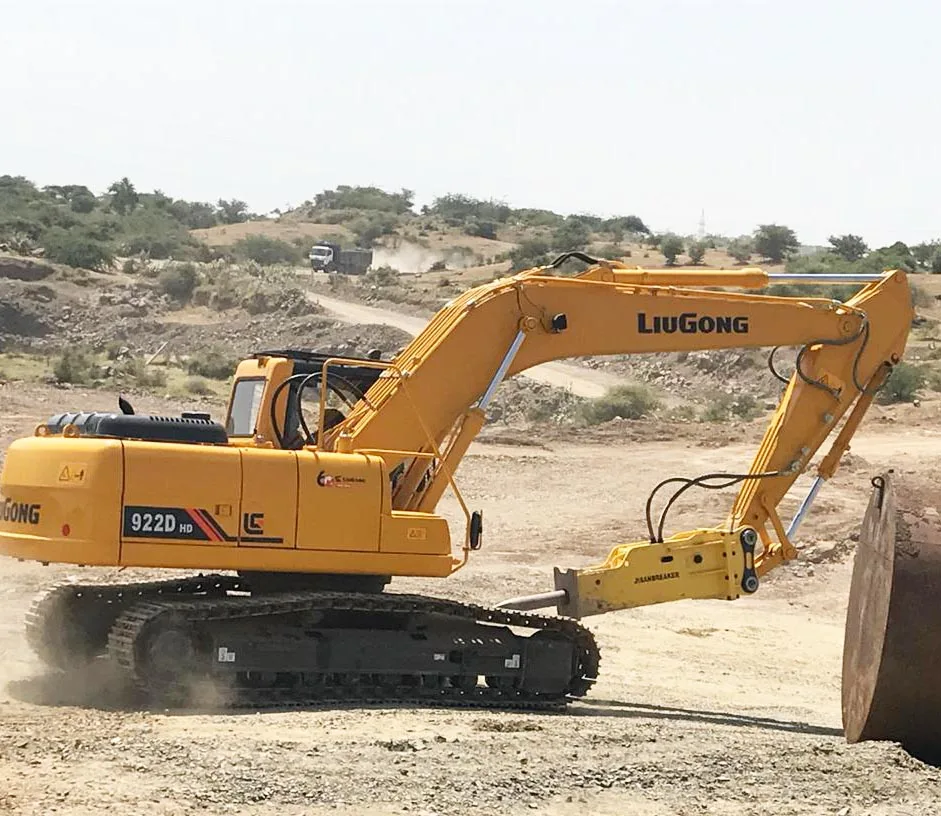

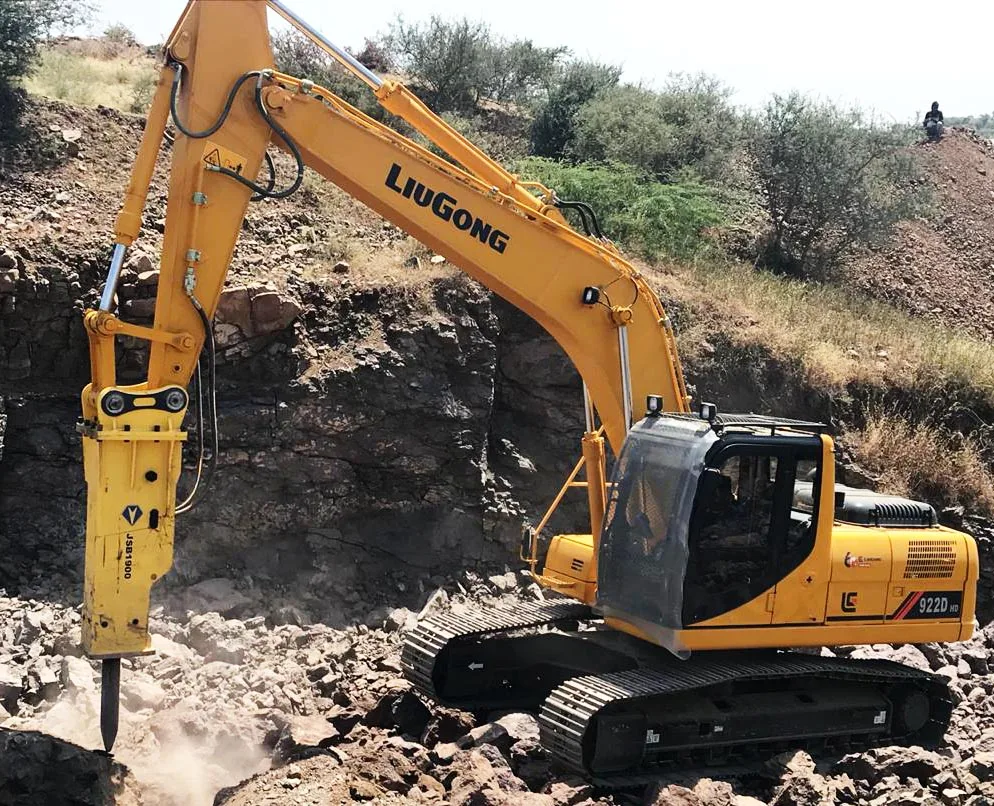

Applications

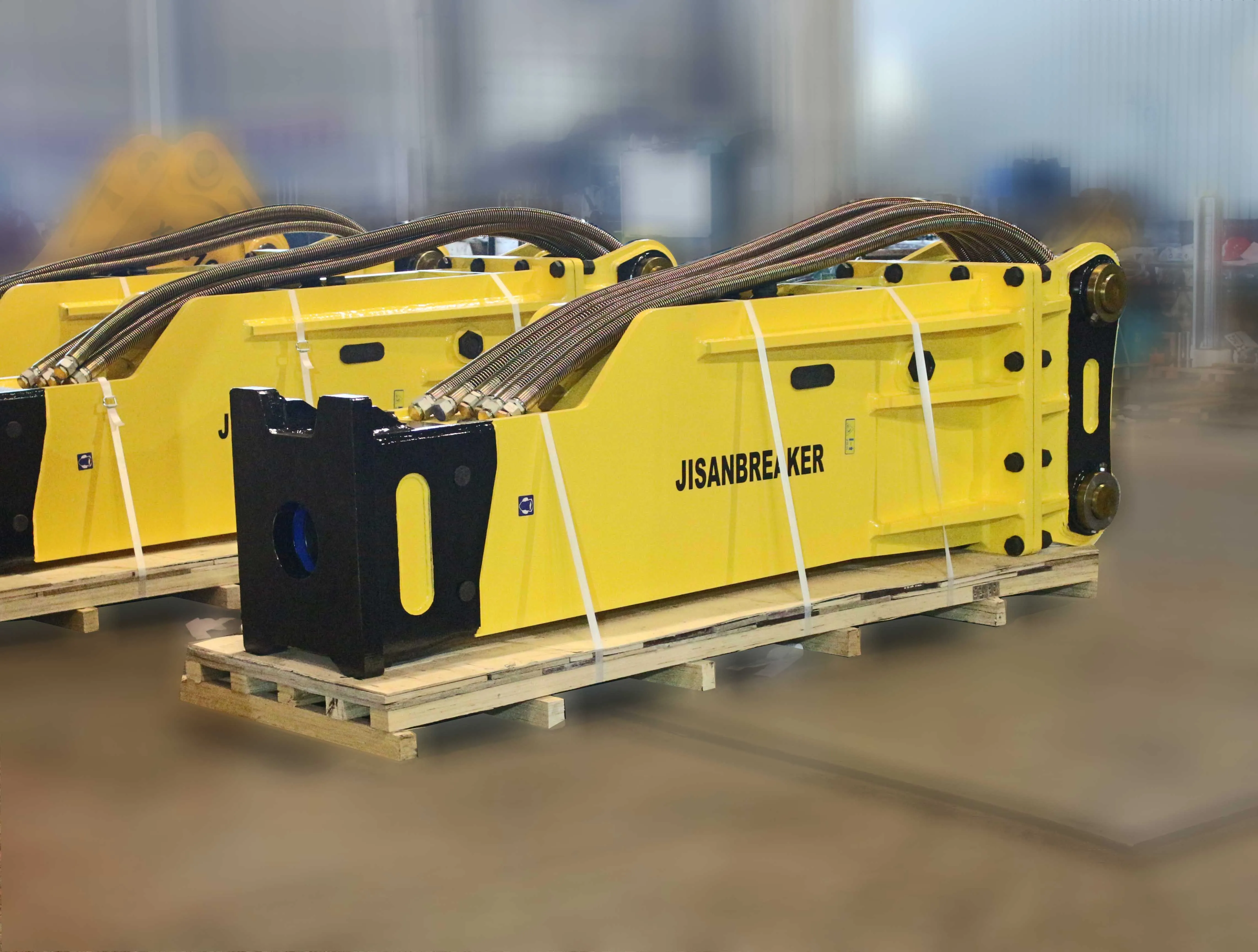

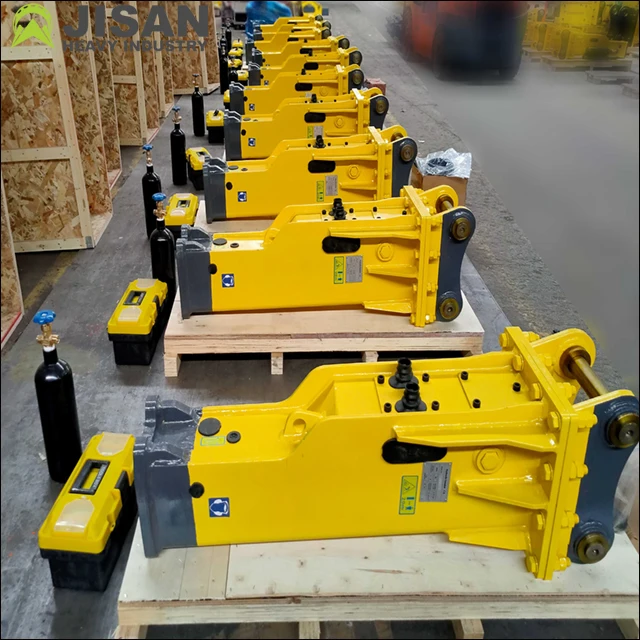

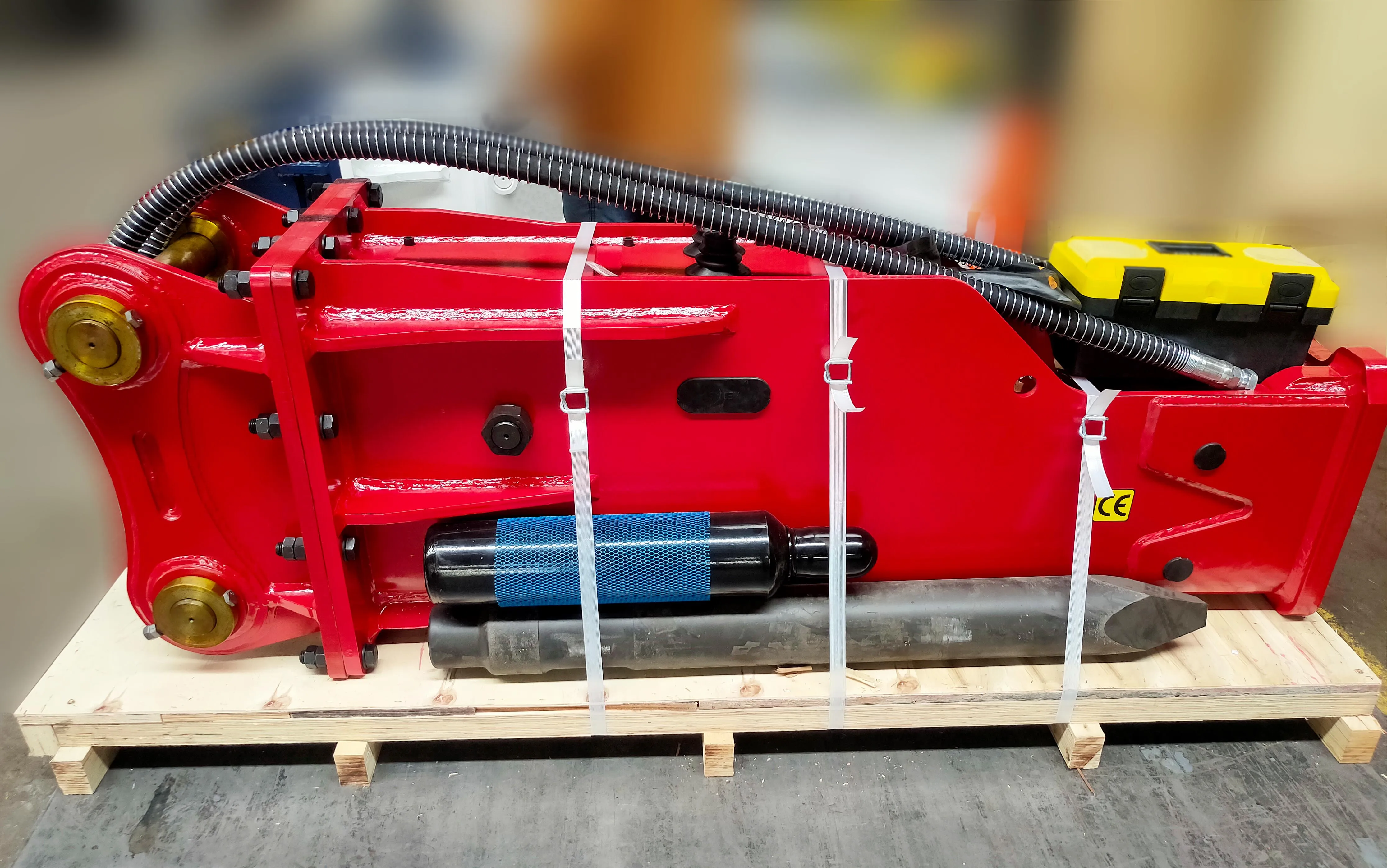

Product packaging

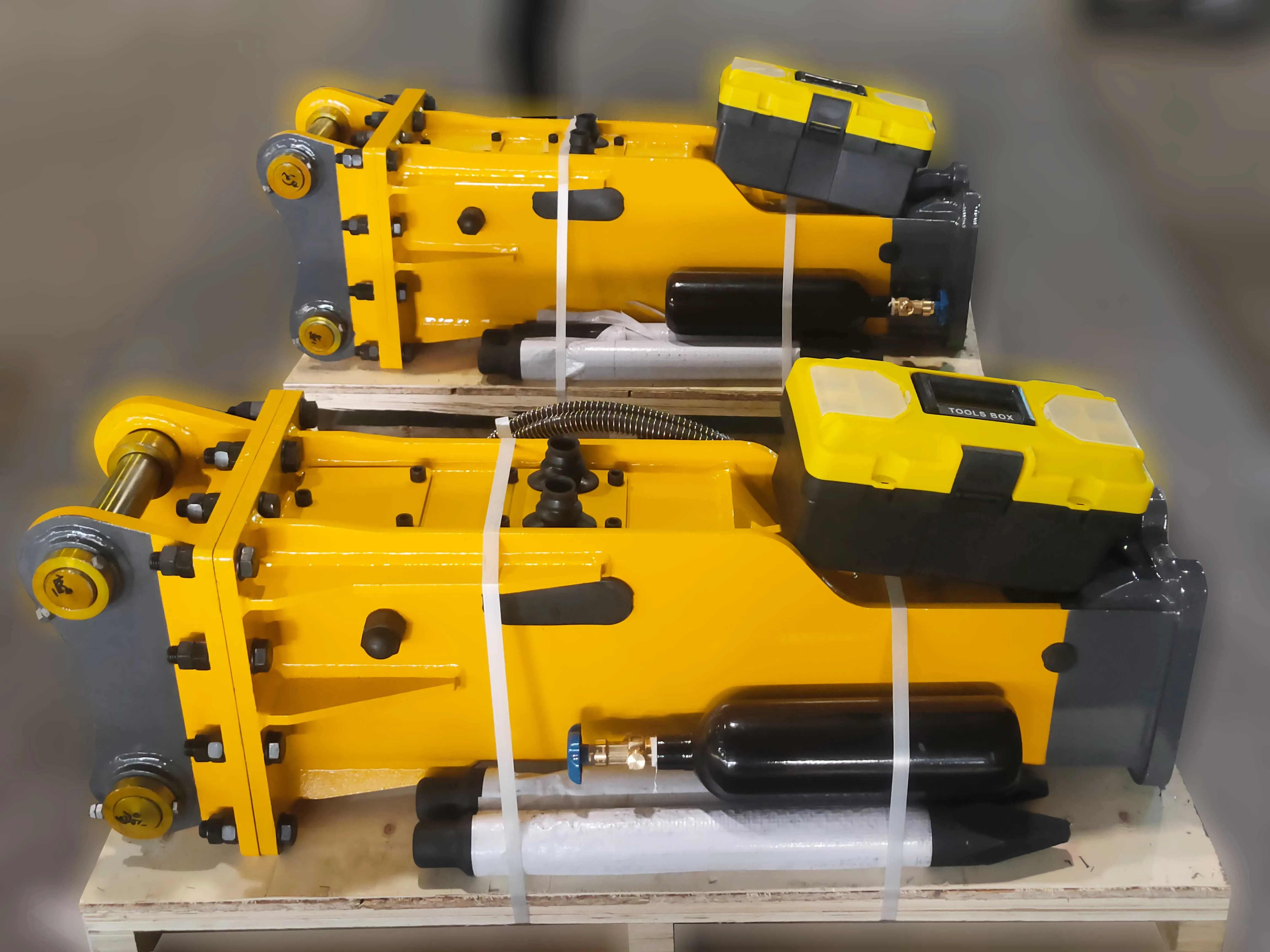

1. Inner is stretch film, outside is export wooden case or as customer's request.
2.The standard free spare parts: two Chisels, twohoses, one set of repair tools with tool box,one Nitrogen bottle, one Nitrogen
3.Other accessories are shown below：
How to choose breaker model, please click here.
Our Advantages
-Yantai Jisan Heavy Industry Ltd.-
Yantai Jisan Heavey Industry Ltd. is a modernized manufacture enterprise which is fully committed to research
The company has independent import and export rights.Products are sold all over the world.The company provi
des supporting and proccessing services for the domestic and forign many excavator manufacturers to maximiz
e meet customer's requirements.
In the future,Jisan Company will make full use of rich experience accumulated and the core competitive advanta
ge formed in the past few years,to stride forward the world first-class enterprise.
and developments.The main products include:Hydraulic breaker,Pile hammer,Hydraulic power shear,Multi shear,
Hyraulic roating log grapple,Hyraulic rock grapple,Hydraulic quick hitch etc.
The company has independent import and export rights.Products are sold all over the world.The company provi
des supporting and proccessing services for the domestic and forign many excavator manufacturers to maximiz
e meet customer's requirements.
In the future,Jisan Company will make full use of rich experience accumulated and the core competitive advanta
ge formed in the past few years,to stride forward the world first-class enterprise.
JISAN HEAVY INDUSTRY LTD. is one of the largest and most professional hydraulic breaker manufacturers with 11 years
experience,specialized in R&D and manufacture of JISAN Series Hydraulic Breaker.
Our products have been exported to many countries in the world including India, Saudi Arabia, South America, Australia,
New Zealand, Southeast Asia, USA, Europe, and South Africa etc.
experience,specialized in R&D and manufacture of JISAN Series Hydraulic Breaker.
Our products have been exported to many countries in the world including India, Saudi Arabia, South America, Australia,
New Zealand, Southeast Asia, USA, Europe, and South Africa etc.
Main Advantages of JISAN Hydraulic Breaker:
Korea made cylinder;NOK oil seal, Oil seal durability design;
Low noisy. Full-closed housing to protect the main body;
Strong impact;
Longer lifetime of usage;
