Product Overview
Description
Products Description
ABXLED R&D team developed our SM series led products, which focus on indoor front maintenance led video wall market. SM supports 3840 high refresh rate, SMD1010 led types, supports from P2.5 to P1.2, if you have high image demand on the control room, hotel, airport etc, ABXLED is your best choice.
Pixel Pitch: 1.25/P1.5625/P1.875/P2.5
Panel Size: 640*480mm
Panel Material: Die-casting Aluminum
Panel Weight: 8kgs
Brightness: 800nits
Warranty: 2 Years
Certificate: CE/(EMC+LVD)/FCC/ETL/CETL
Applications: Studio rooms LED video wall, Conference Rooms LED video wall, TV Station LED video wall, Monitoring Rooms LED Video wall, Shopping malls led video display etc.
Indoor HD 4K and 2k LED Display front service Panel Small Pixel Pitch LED Video Wall Display
It ultra light weight and thin narrow pixel pitch series designed for full front access purpose and wall-mounted
application. It supports both front and rear installation with easy connection, easy installation and easy maintenance.
It ultra light weight and thin narrow pixel pitch series designed for full front access purpose and wall-mounted
application. It supports both front and rear installation with easy connection, easy installation and easy maintenance.
Magnets module support front service. The panel back cover can be opened from the back side for rear service purpose as well
The small pixel pitch led panel support both front and rear side installation. Make your installation ways to be flexible.
The small pixel pitch led panel support both front and rear side installation. Make your installation ways to be flexible.
Low brightness with high grey level make the fine pixel pitch led display images more vivid.
High refresh frequency ≥3840hz makes the narrow pixel pitch led display with no flickers when take photos
High refresh frequency ≥3840hz makes the narrow pixel pitch led display with no flickers when take photos
Aluminum die casting led cabinet enables fine pixel pitch LED led video wall achieve full 2K/4K/8K displaying effect without compression.
Resolution chart of full HD / 2k led video wall / 4k Litestar small pixel pitch LED video wall
our service
Pre-sales service
A. Quick Response to Inquires and Demands
B. Technical Solution with Quotation and specification
C. Professional Salesman and Engineers recommendation
C. Professional Salesman and Engineers recommendation
After-Sales Service
A. Timely solution for any questions
B. Spare Parts IS sent together with LED display
C. software upgrade and hardware maintenance life time
C. software upgrade and hardware maintenance life time
In-Sales Service
A. Installation Guidance and User Manual
B. Software Control on Site or Remote support
C. Training and Important Notice
C. Training and Important Notice
Warranty |Maintenance
ABXLED guarantee all our LED display for 2~5 yeas. we will be responsible for repairing led display including led modules,power supply receiver cards under warranty and supply technical support.
Design Drawing
ABXLED design the cad drawing on how to fix up the led display for free and some other expert suggestion,we will send our engineers to your place if we are expected after our negotiation.
Installation | Control
ABXLED provide the operation training and maintenance training for free in the factory or we can send our engineers to your site by negotiation manual control solutions,software,etc is provided together.
Feature
More Features & More Advantages
* 3 times aging process
* Salty spray test, high voltage test, varying temperature test, waterproof test, vibration test
* Long service time and low attenuation by applying dual channels for heat dissipation
* High protection grade of IP65 achieved by patented mask design with waterproof and dustproof function
* No deformation under sunlight by the use of Anti-UV module mask, Anti-Oxidation module frame with protection from deformation
* Salty spray test, high voltage test, varying temperature test, waterproof test, vibration test
* Long service time and low attenuation by applying dual channels for heat dissipation
* High protection grade of IP65 achieved by patented mask design with waterproof and dustproof function
* No deformation under sunlight by the use of Anti-UV module mask, Anti-Oxidation module frame with protection from deformation
Specification
Model | SM1.2 | SM1.5 | SM1.87 | SM2.5 | |||
Pixel Pitch(mm) | 1.25 | 1.53 | 1.875 | 2.5 | |||
Pixel Density(dot/m2) | 640000 | 422500 | 284089 | 160000 | |||
LED Type | SMD1010 | SMD1010 | SMD1010 | SMD2121 | |||
Module Size(mm*mm) | 320*160 | 320*160 | 320*160 | 320*160 | |||
Cabinet Size(mm*mm*mm) | 640*480*90 | 640*480*90 | 640*480*90 | 640*480*90 | |||
Cabinet Weight(±0.25kg) | 7.5 | 7.5 | 7.5 | 7.5 | |||
Cabinet Resolution(px*px) | 512*384 | 416*312 | 341*256 | 256*192 | |||
Horizontal Viewing Angle(Deg) | 140 | 140 | 140 | 140 | |||
Vertical Viewing Angle(Deg) | 140 | 140 | 140 | 140 | |||
Brightness(cd/m2) | 500 | 500 | 500 | 900 | |||
Gray Scale(bit) | 16 | 16 | 16 | 16 | |||
Refresh Rate(Hz) | 3840 | 3840 | 3840 | 3840 | |||
Max Power Consumption(W/sqm) | 700 | 700 | 700 | 700 | |||
Average Power Consumption(W/sqm) | 210 | 210 | 210 | 210 | |||
Input Voltage(V) | AC 100-240 | AC 100-240 | AC 100-240 | AC 100-240 | |||
Ingress Protection | IP20 | IP20 | IP20 | IP20 | |||
Working Environment | Indoor | ||||||
Led Display System Control
Certifications

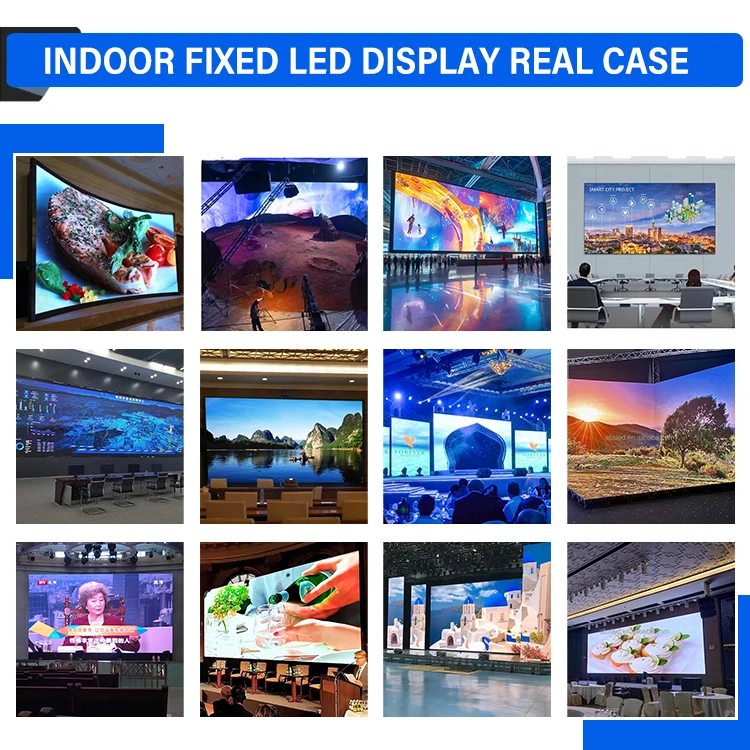

LED display case

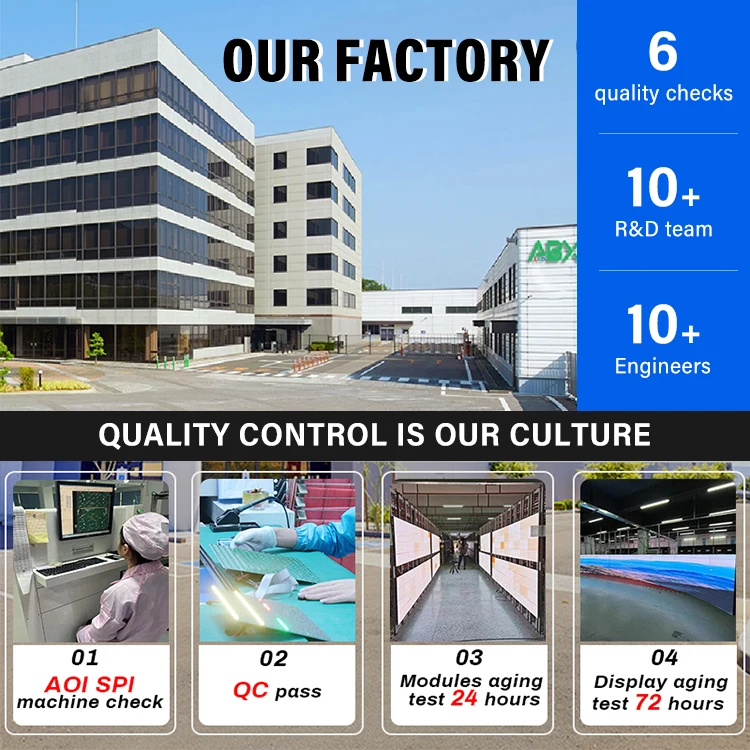

Factory
Shenzhen Abxled Industrial Co., LTD. (ABXLED) is the leading supplier of LED display who specialize in LED Display R&D,
manufacture, sales and service. Also provide integrated LED display solutions. 3,000 square meters production capacity with 7 modernized dust-free and static-free production lines, by 6 new high speed SMT machines, 2 large leadless reflow oven, and more than 300 skilled workers. Various indoor and outdoor products such as UHD LED Display, Indoor & Outdoor Rental LED Display, Indoor & Outdoor Commercial LED Display, Smart Terminal LED Display, Stadium LED Display, Customized irregular LED Display, Transparent led display ,Indoor and outdoor poster screen etc, which achieved professional international authority of CE, ROHS, FCC, UL and CCC certifications and so on. We strictly carry out ISO9001 and 2008 quality management system. ABXLED keep long term friendly relationship with our customers and achieved high reputation from our customers around the world.ABXLED is always your reliable partner.
manufacture, sales and service. Also provide integrated LED display solutions. 3,000 square meters production capacity with 7 modernized dust-free and static-free production lines, by 6 new high speed SMT machines, 2 large leadless reflow oven, and more than 300 skilled workers. Various indoor and outdoor products such as UHD LED Display, Indoor & Outdoor Rental LED Display, Indoor & Outdoor Commercial LED Display, Smart Terminal LED Display, Stadium LED Display, Customized irregular LED Display, Transparent led display ,Indoor and outdoor poster screen etc, which achieved professional international authority of CE, ROHS, FCC, UL and CCC certifications and so on. We strictly carry out ISO9001 and 2008 quality management system. ABXLED keep long term friendly relationship with our customers and achieved high reputation from our customers around the world.ABXLED is always your reliable partner.
Packaging and shipping
FAQ
Q1:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the
desired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,
free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5:What about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers in the world,
strictly control the production process, and pass the multiple quality inspection to ensure that every product is qualified.
Q6:What about the warranty?
A:Two year warranty
Q7:What about the lead time?
A:Orders less than 50 square meter display, lead time is 15 working days.
Q8:Can I order a sample?
A:Yes,We welcome customers to order samples to check our product quality of our products and service.
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the
desired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,
free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5:What about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers in the world,
strictly control the production process, and pass the multiple quality inspection to ensure that every product is qualified.
Q6:What about the warranty?
A:Two year warranty
Q7:What about the lead time?
A:Orders less than 50 square meter display, lead time is 15 working days.
Q8:Can I order a sample?
A:Yes,We welcome customers to order samples to check our product quality of our products and service.
