Product Overview

Description

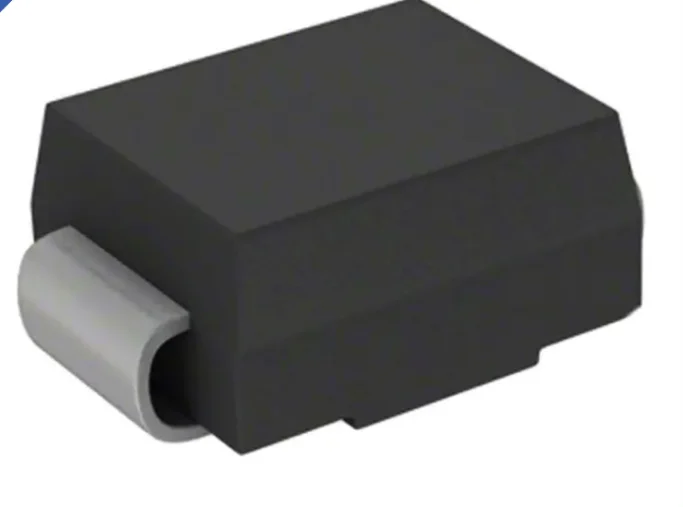

SMAJ5.0A 5V Unidirectional TVS Diodes 400W SMA,DO-214AC Package in stock

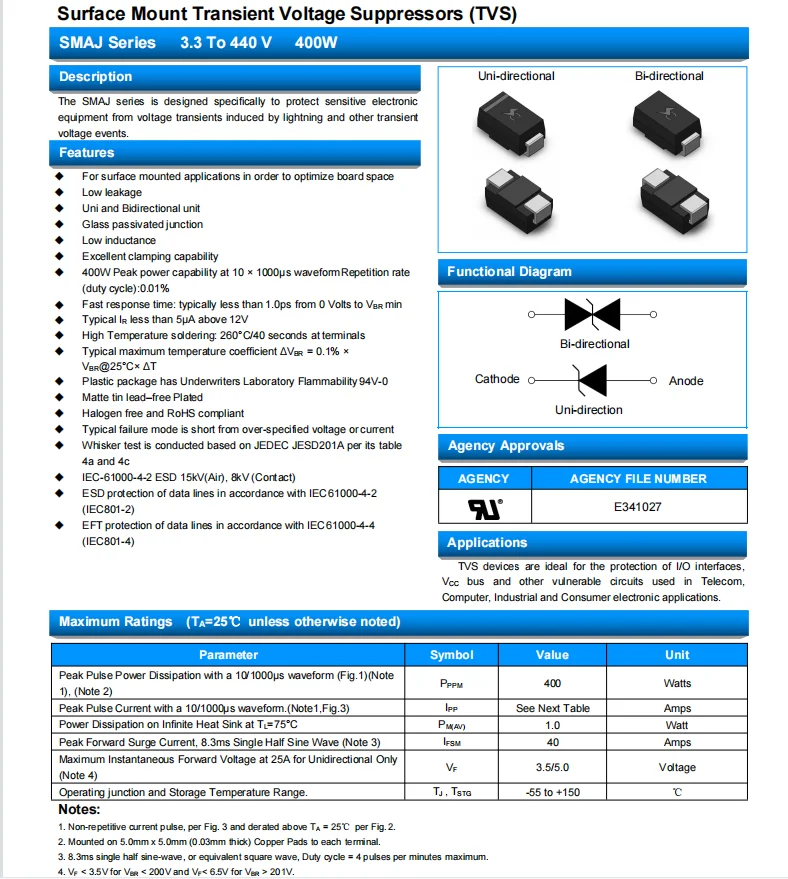

Surface Mount Transient Voltage Suppressors (TVS)

Description :


The SMAJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by

lightning and other transient voltage events.

Features:




For surface mounted applications in order to optimize board space



Low leakage



Uni and Bidirectional unit



Glass passivated junction



Low inductance



Excellent clamping capability



400W Peak power capability at 10 × 1000µs waveformRepetition rate (duty cycle):0.01%



Fast response time: typically less than 1.0ps from 0 Volts to VBR min



Typical IR less than 5μA above 12V



High Temperature soldering: 260°C/40 seconds at terminals



Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25°C× ΔT



Plastic package has Underwriters Laboratory Flammability 94V-0



Matte tin lead–free Plated



Halgen free and RoHS compliant



Typical failure mode is short from over-specified voltage or current



Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c



IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)



ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)



EFT protection of data lines in accordance with IEC61000-4-4 (IEC801-4)




Application :


TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in Telecom,

Computer, Industrial and Consumer electronic applications.




Notes:

1. Non-repetitive current pulse, per Fig. 3 and derated above TA = 25℃ per Fig. 2.

2. Mounted on 5.0mm x 5.0mm (0.03mm thick) Copper Pads to each terminal.

3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle = 4 pulses per minutes maximum.

4. VF < 3.5V for VBR < 200V and VF< 6.5V for

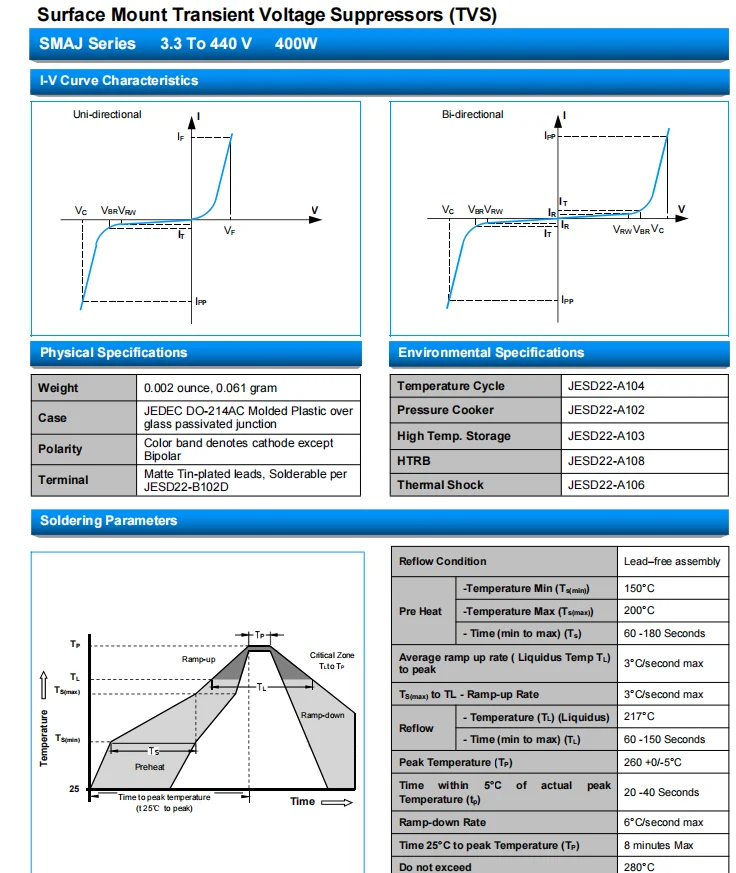

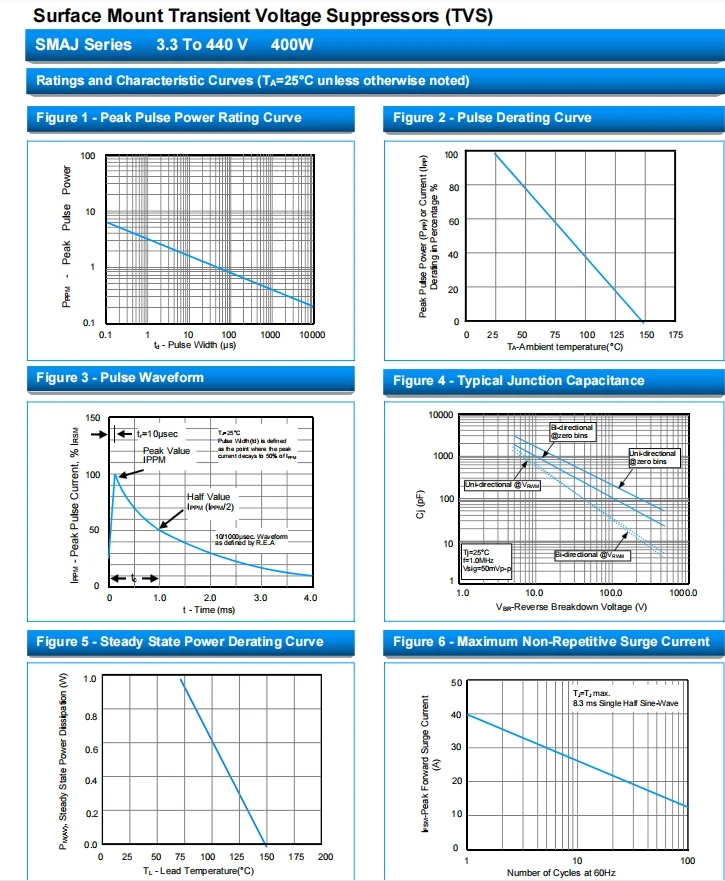

SMAJ1.pngSMAJ2.pngSMAJ3.pngSMAJ4.pngSMAJ5.pngSMAJ6.pngSMAJ7.png.png2.png3.png_20210625112305.jpg

Contact information :


Wechat/what's APP:+86 13434746463







Parameter

Symbol

Value

Unit






3.3 To 440 V

400W
