Factory Price high quality engine mini lathe lathe CT800 manual lathe mill combo

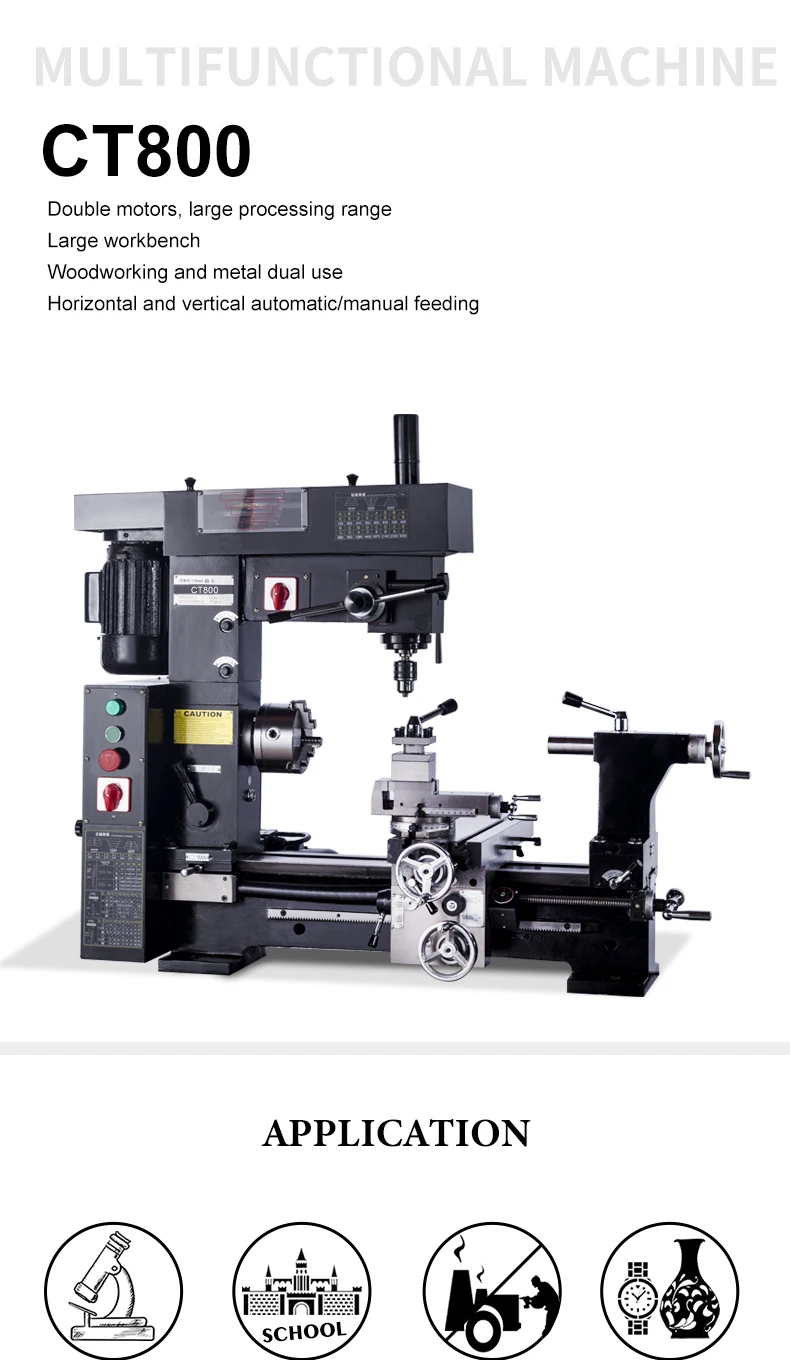

CT800 Mill Drill Combo Lathe

Model: CT800

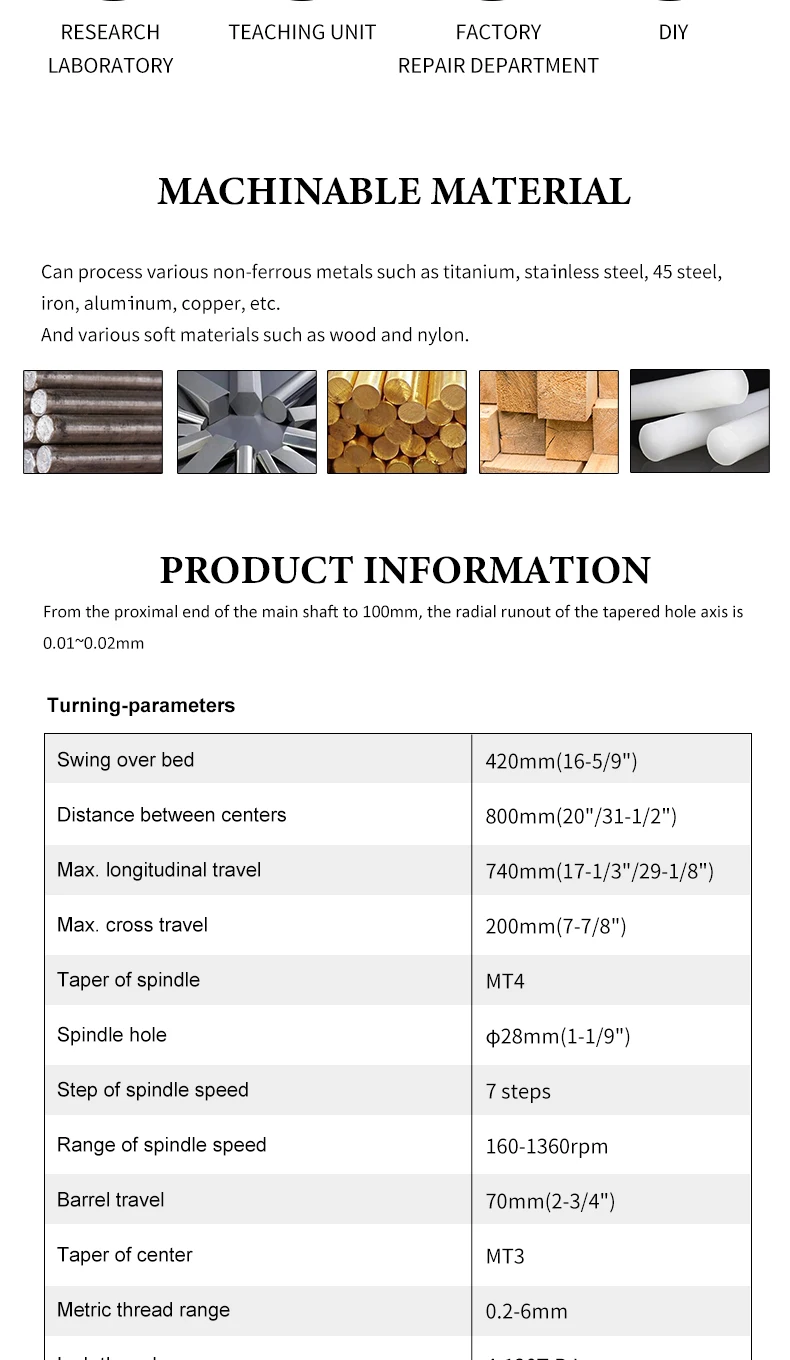

Turning-parameters

Swing Over Bed

420mm

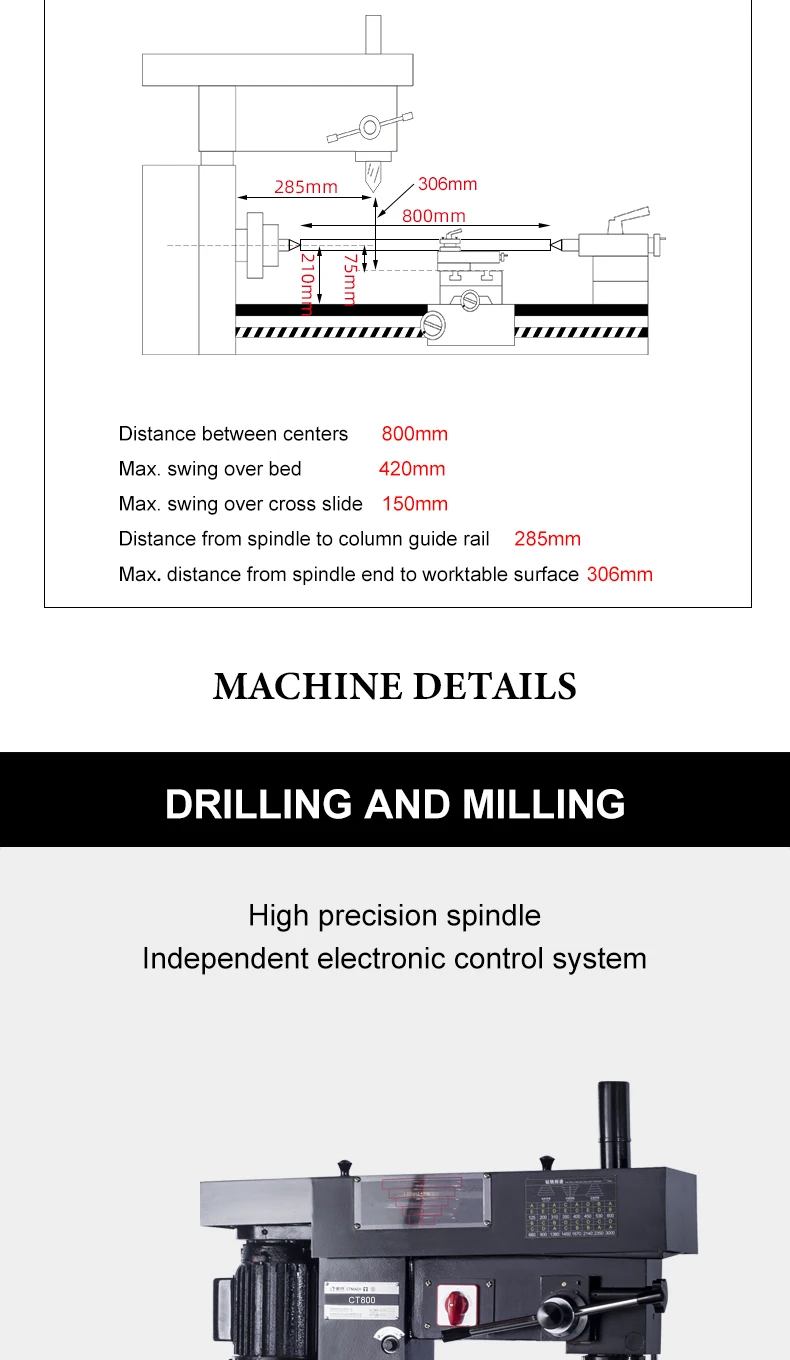

Distance Between Centers

800mm

Longitudinal Travel

740mm

Cross Travel

200mm

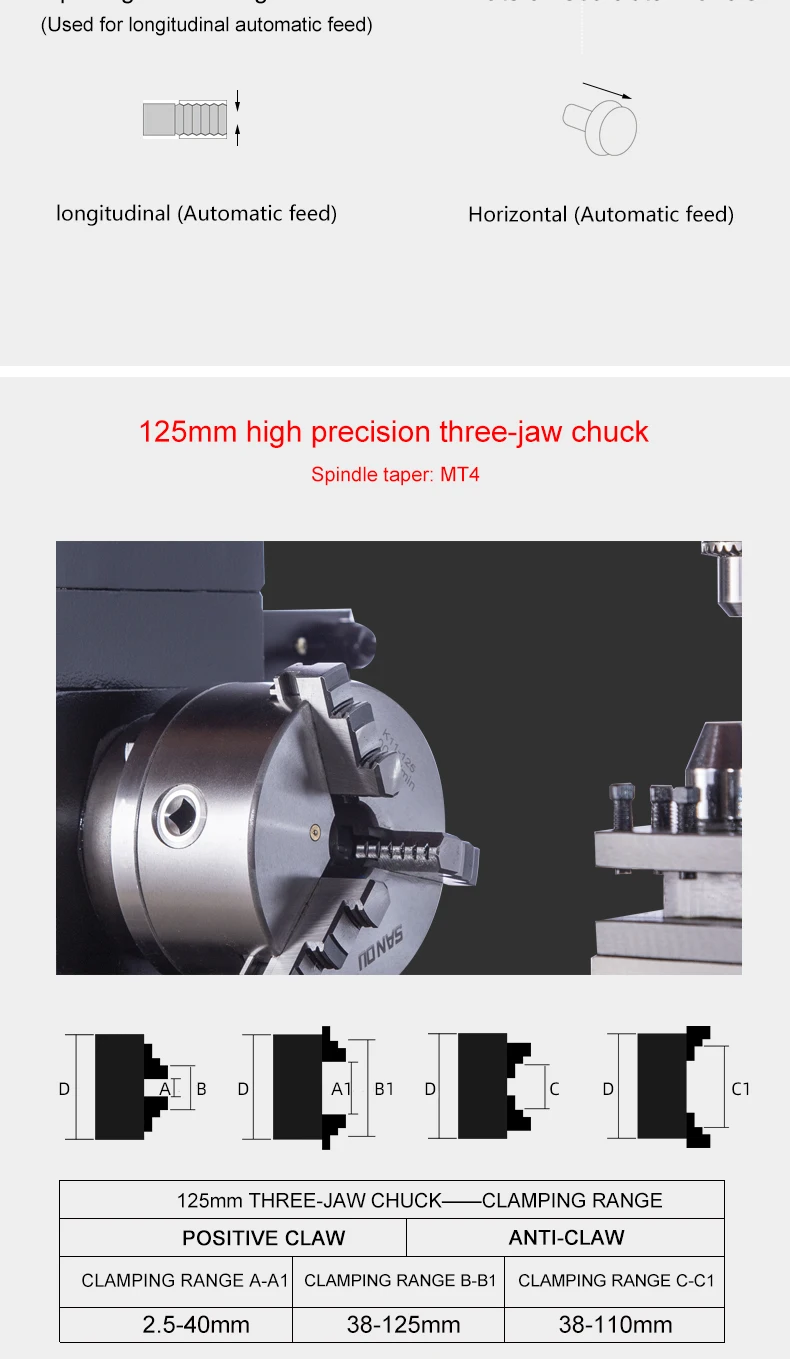

Taper of Spindle

MT4

Spindle Hole

Φ28mm

Step of Spindle Speed

7 Steps

Range of Spindle Speed

160-1360rpm

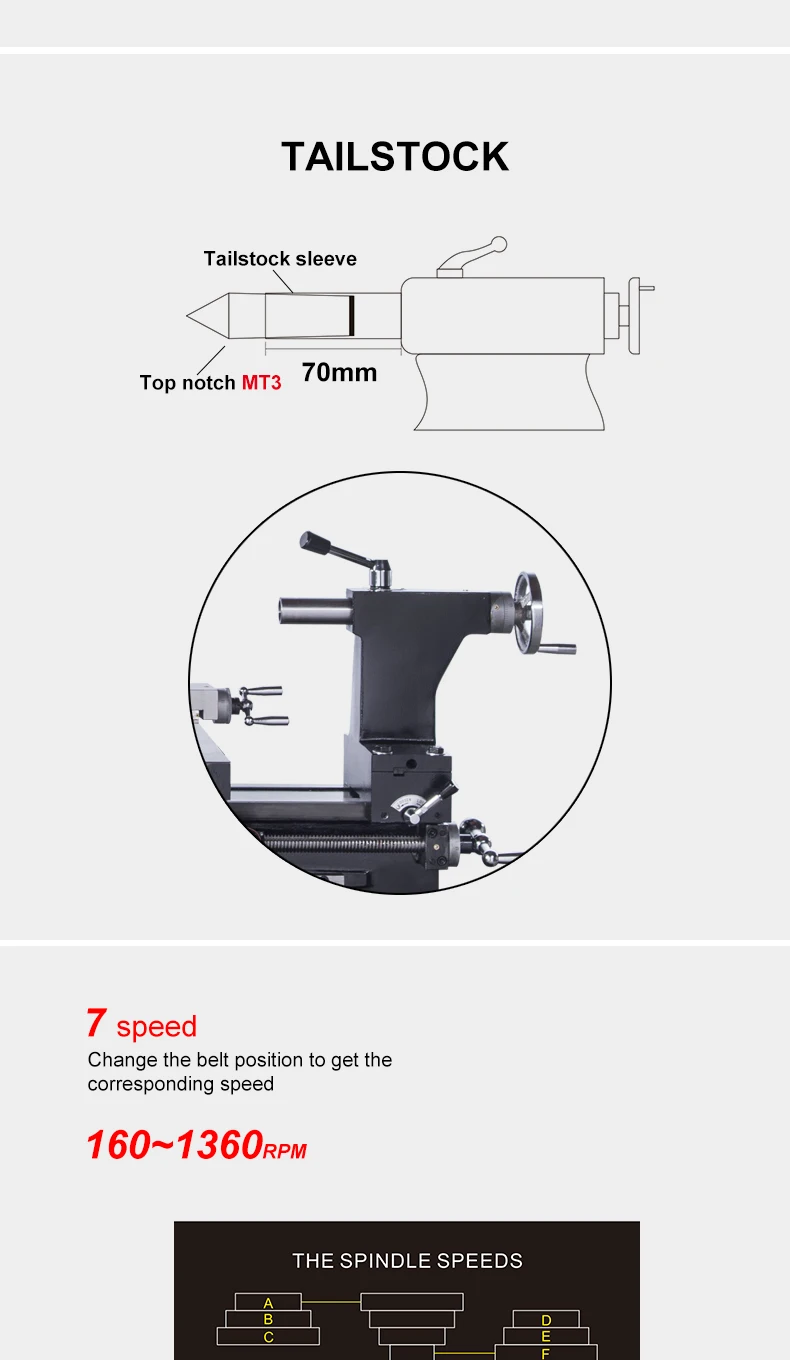

Barrel Travel

70mm

Taper of Center

MT3

Metric Thread Range

0.2-6mm

Inch Thread Range

4-120T.P.I

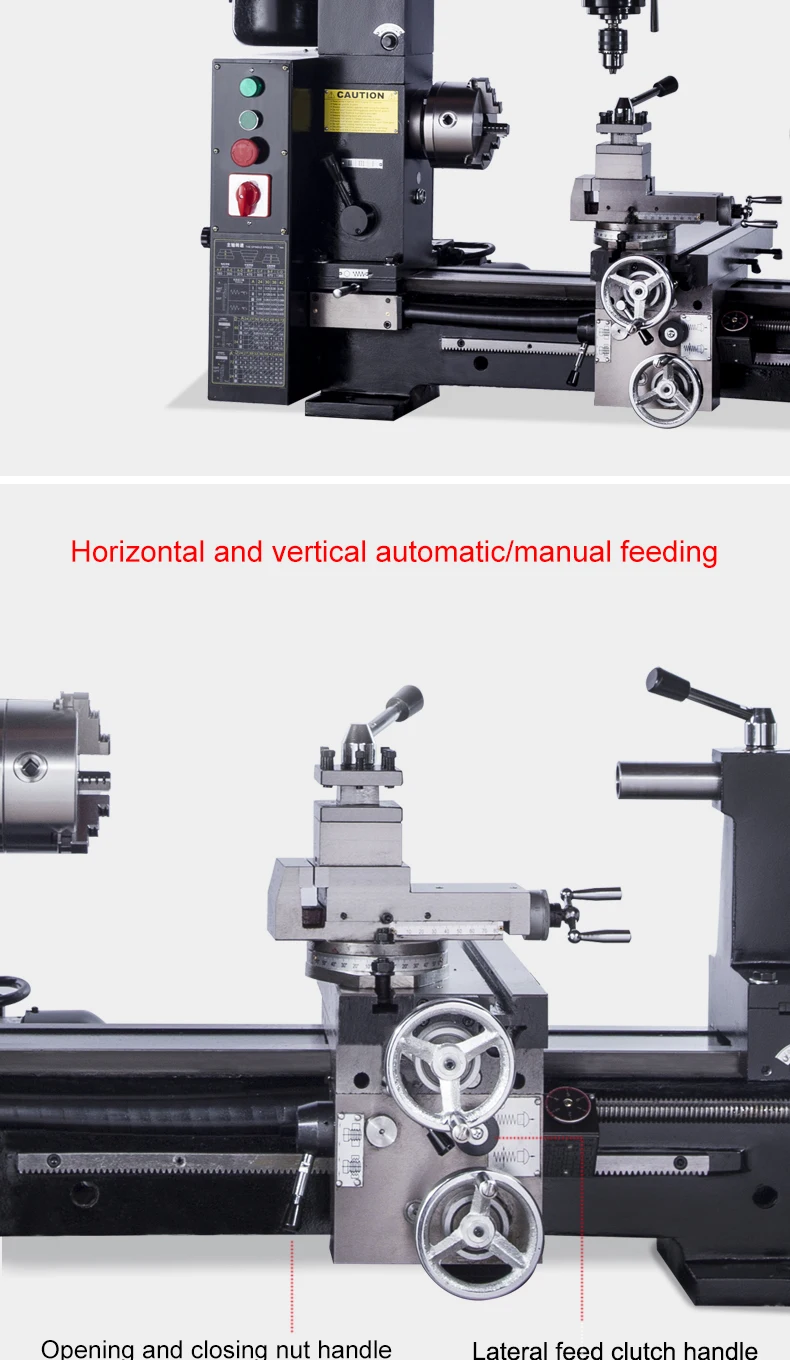

Longitudinal Range of Automatic Feeding

0.05-0.35mm

Cross Range Of Automatic Feeding

0.05-0.35mm

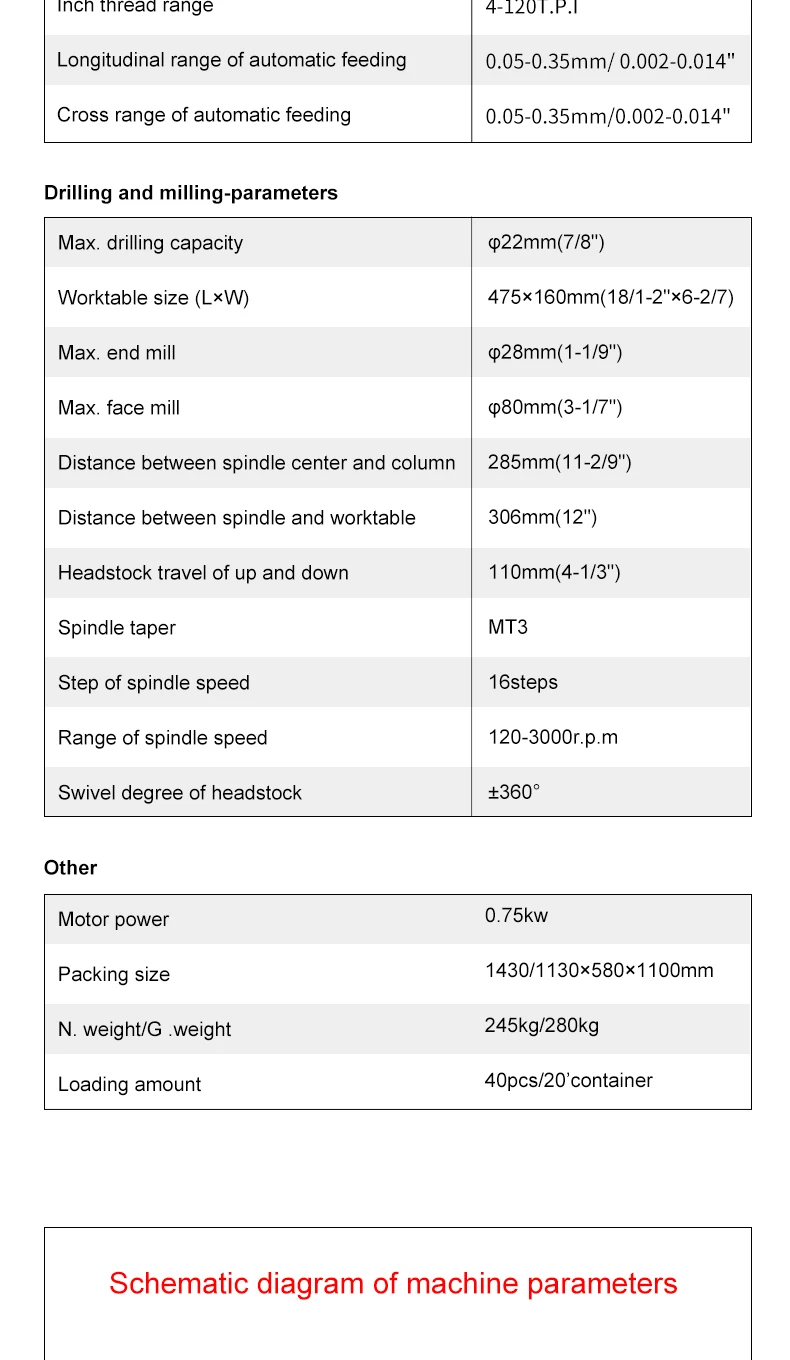

Drilling and Milling-parameters

Drilling Capacity

Φ22mm

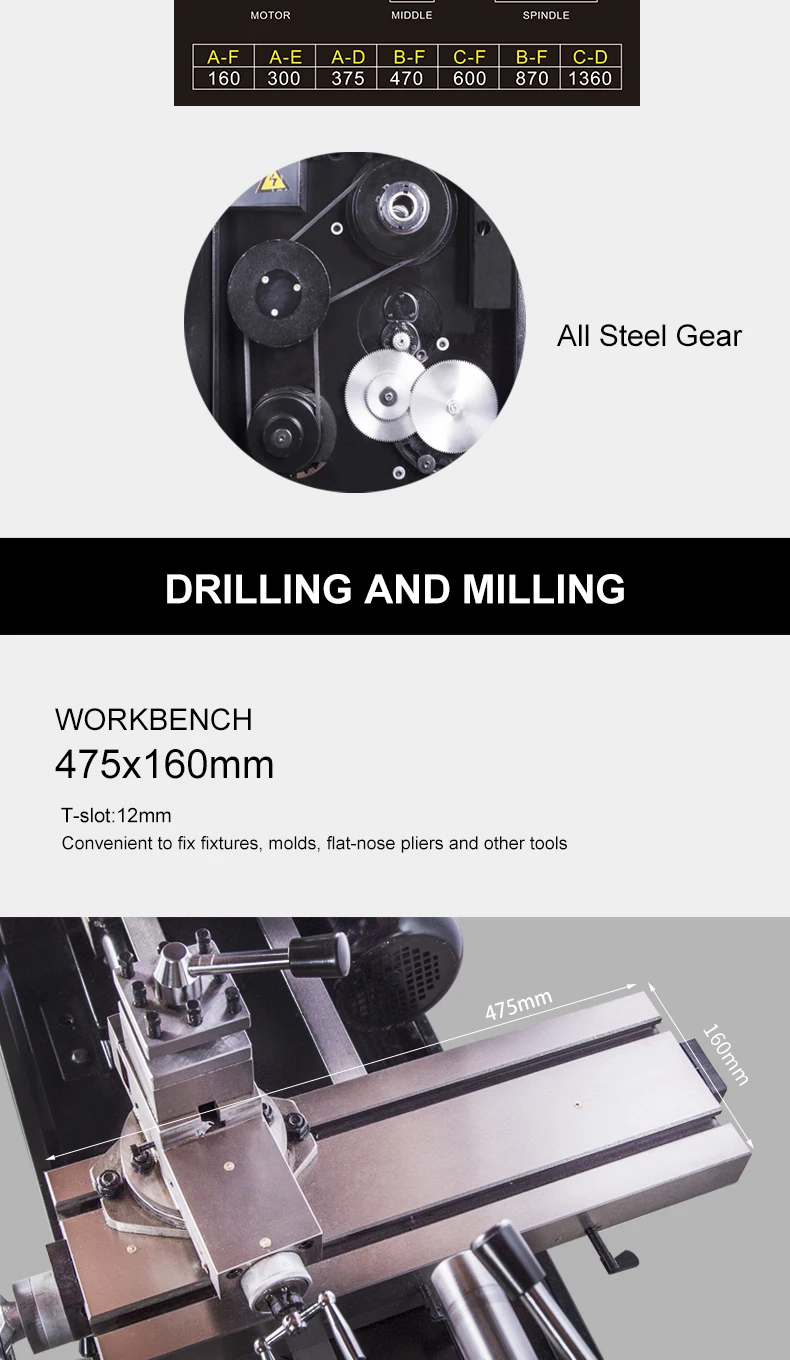

Worktable Size

475*160mm

End Mill

Φ28mm

Face Mill

Φ80mm

Distance Between Spindle Center and Column

285mm

Distance Between Spindle And Worktable

306mm

Headstock Travel of Up and Down

110mm

Spindle Taper

MT3

Step of Spindle Speed

16 Steps

Range of Spindle Speed

120-3000rpm

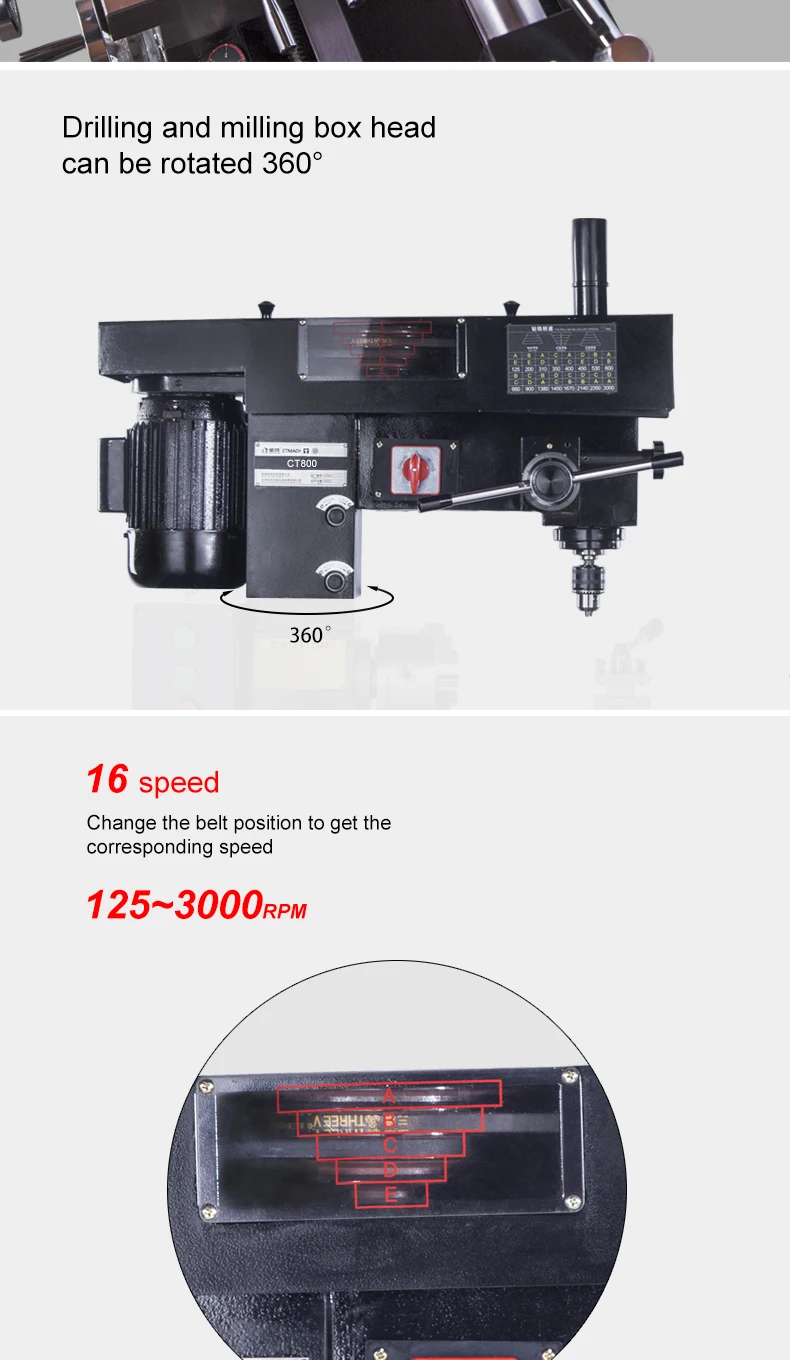

Swivel degree of headstock

±360°

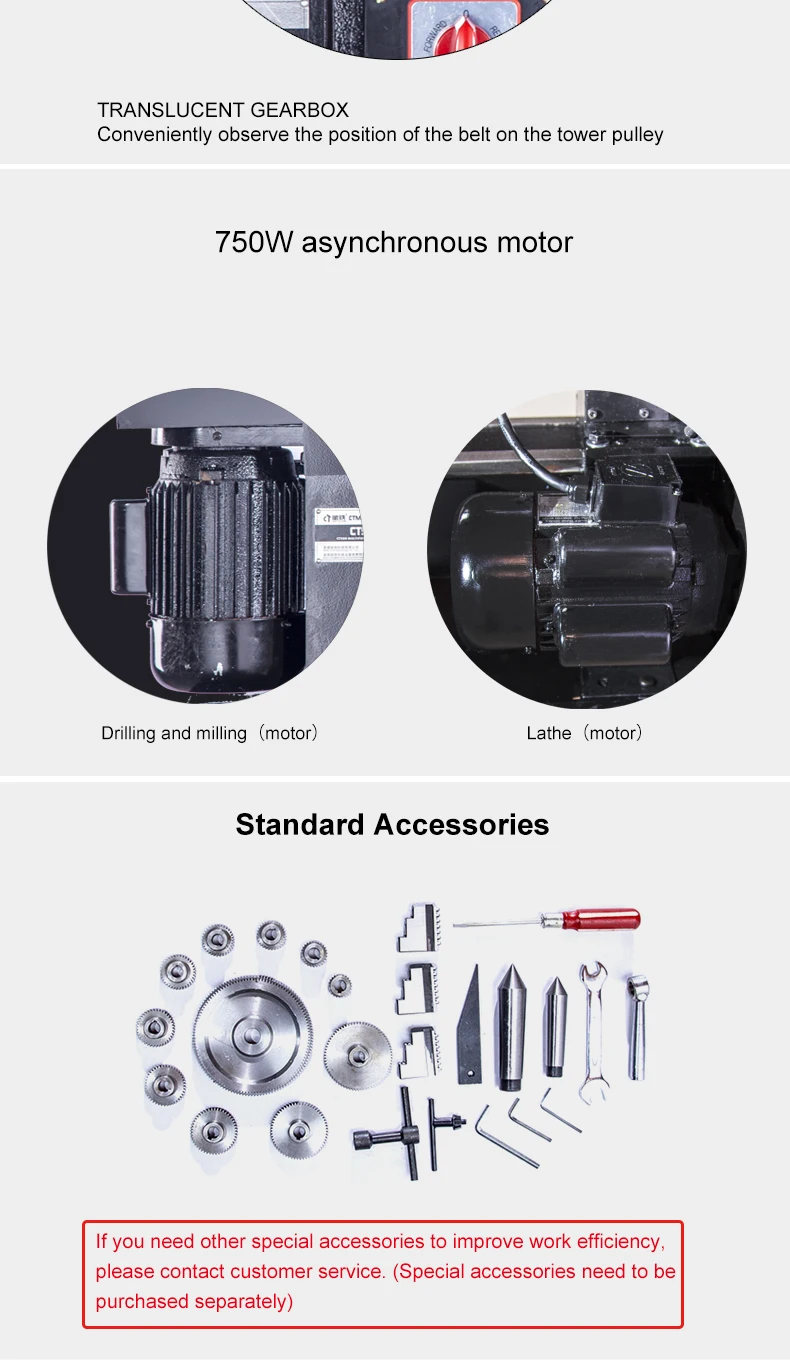

Motor Power

0.75KW

Other

N.W./G.W.

245KG/280KG

Packing Size

1430*580*1100mm
