Hot Sale Professional Low Price 5kw Medical Mobile Integrated X-Ray Machine Veterinary Portable X-Ray Machine
- Category: Radiology Equipment & Accessories >>>
- Supplier: Raecho,International,Limited
Share on:
Product Overview
Description
Order with Trade Assurance
Product Description

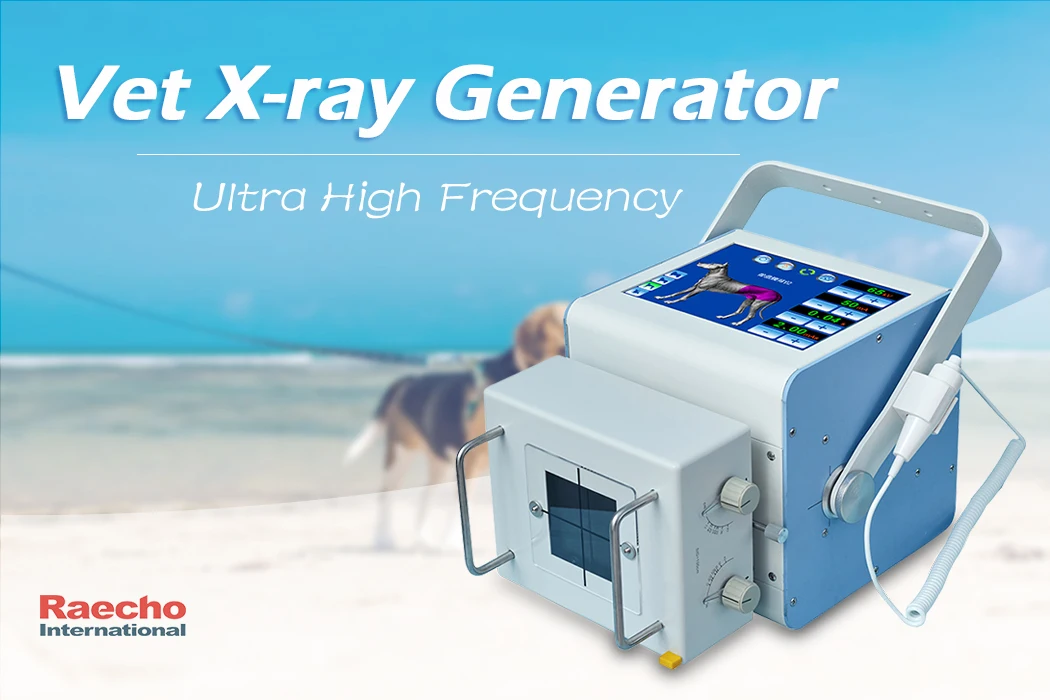

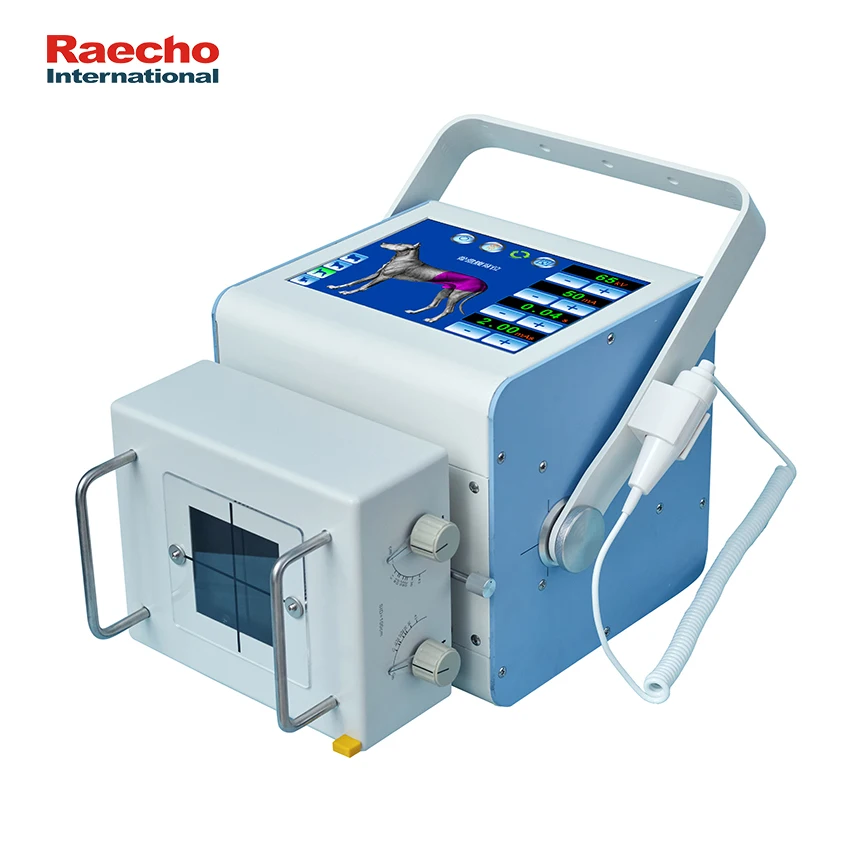

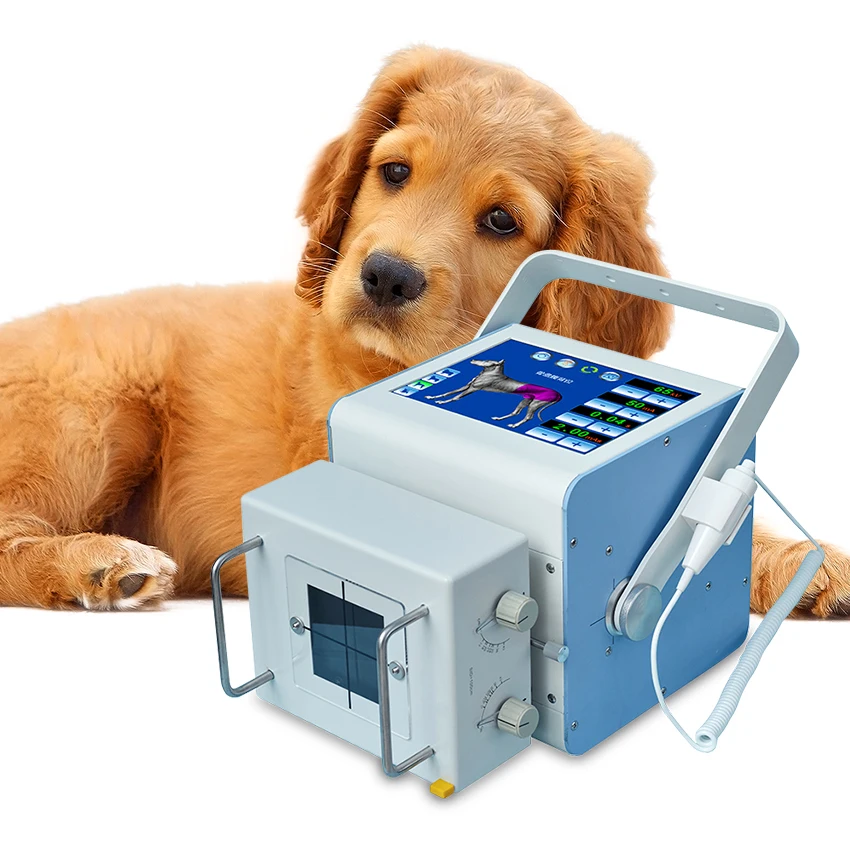

This machine is a portable equipment for medical x-ray examination and diagnosis for animal, like dog, horse, cat, etc.
Product features.
1. Using high-frequency inverter technology together with the stable high-voltage output for obtaining good images quality.
2. Compact design makes it more easier to be carried out to work conveniently in different areas and locations.
3. With three exposure control modes: remote control, hand brake and panel button.
4. Fault self-diagnosis, self-protection.
5. With flexible digital interface and the SDK protocol. Users can control the core programming deeply and the machine can be suitable for different DR detectors.
2. Compact design makes it more easier to be carried out to work conveniently in different areas and locations.
3. With three exposure control modes: remote control, hand brake and panel button.
4. Fault self-diagnosis, self-protection.
5. With flexible digital interface and the SDK protocol. Users can control the core programming deeply and the machine can be suitable for different DR detectors.
Technical Parameters | ||||||
Model | RDX-35-Vet | RDX-50-Vet | RDX-80-Vet | |||
Maximum output power | 3.5 kW | 5.0 kW | 8.0 kW | |||
Operating frequency | ≥30kHz | |||||
Power capacity | 70kV@50 mA | 100kV@50 mA | 100kV@80 mA | |||
Radiographic kV range | 40-100 kV | 40-110 kV | 40-125 kV | |||
Radiographic mA range | 50, 40, 32 (mA) | 100, 80, 63, 50, 40, 32 (mA) | 125, 100, 80, 63, 50, 40, 32 (mA) | |||
mAs range | 0.32-200 mAs | 0.32-315 mAs | 0.32-400 mAs | |||
Exposure time range | 0.01-6.3 s | |||||
Input power type | 220V AC±10%, 50Hz/60Hz Option: 110V AC±10%, 50Hz/60Hz | 220V AC±10%, 50Hz/60Hz | ||||
Dimensions (L*W*H) | 370 mm*260 mm*230 mm | |||||
Optional Configurations | ||||

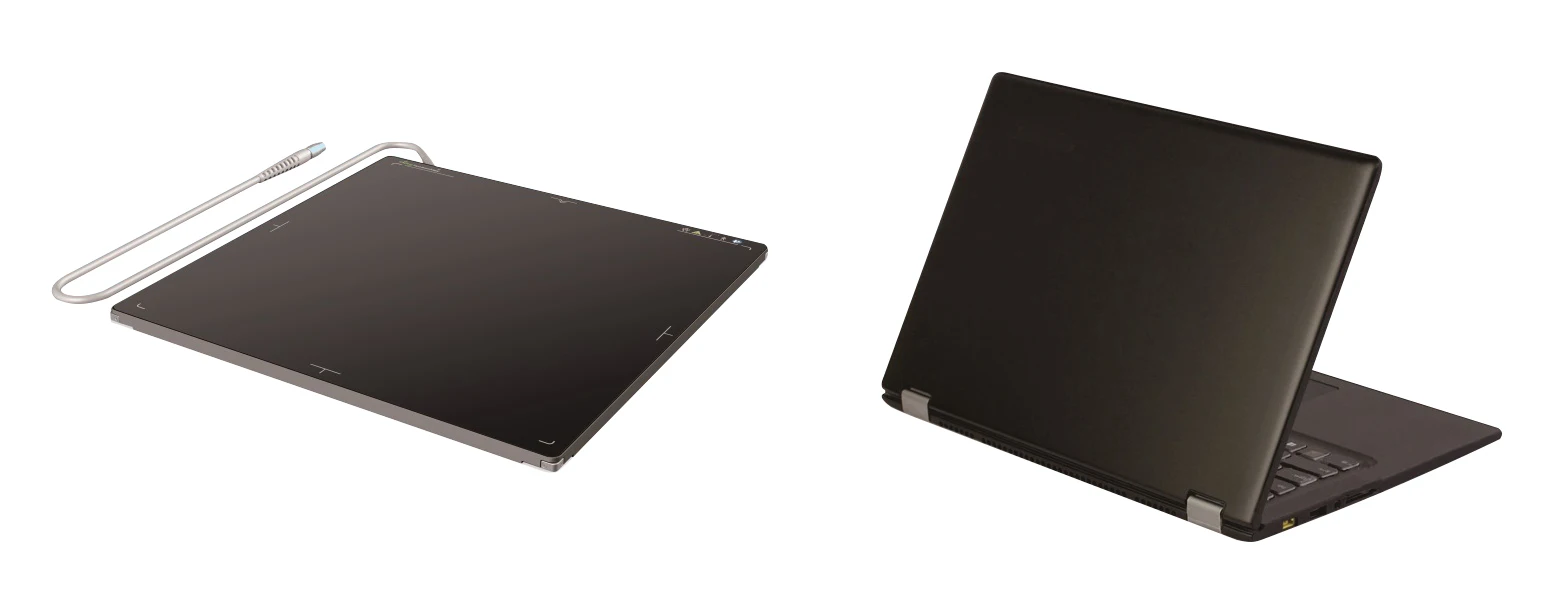

Flat Panel Detector | ||||
Detector technology | Amorphous Silicon (Csl) | |||
Active area | 430mm*430mm (17"*17") | 360mm*430mm (14"*17") | ||
Imaging Working Station | ||||
CPU | Intel i5 | |||
RAM | 8G | |||
Hard disk | 1TB | |||
