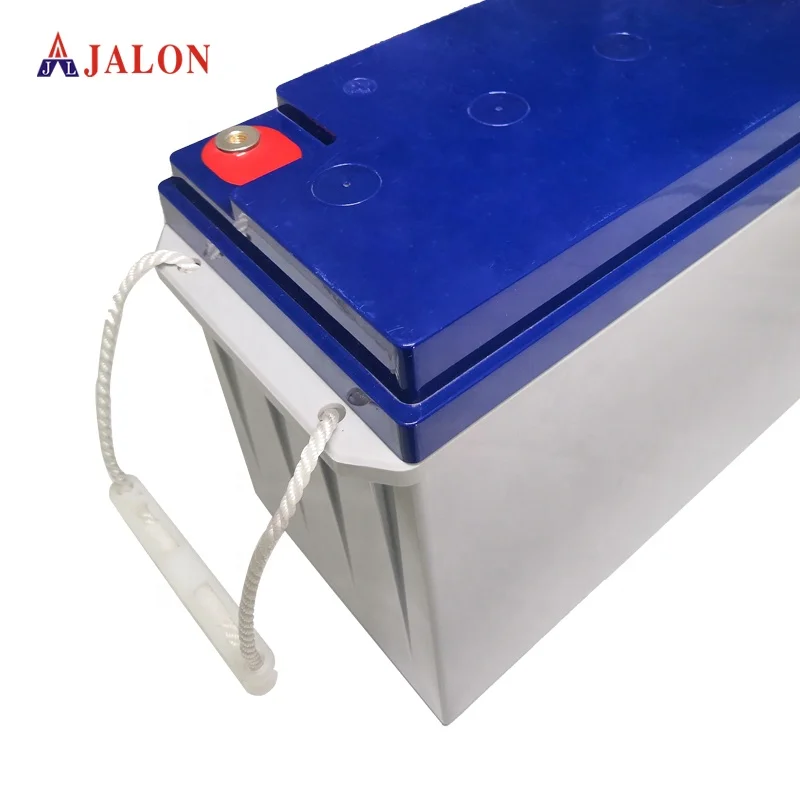

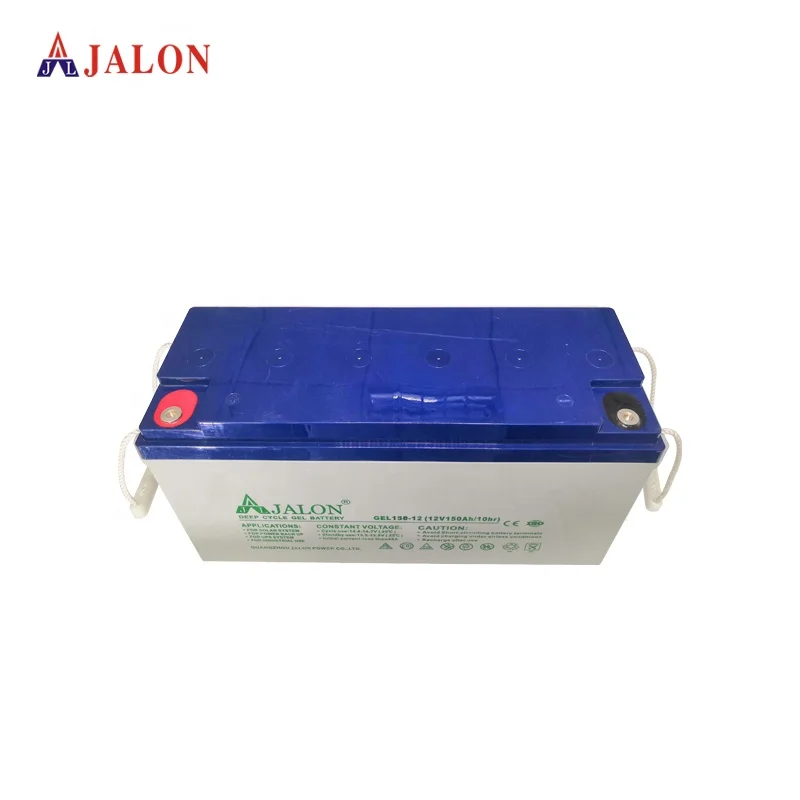

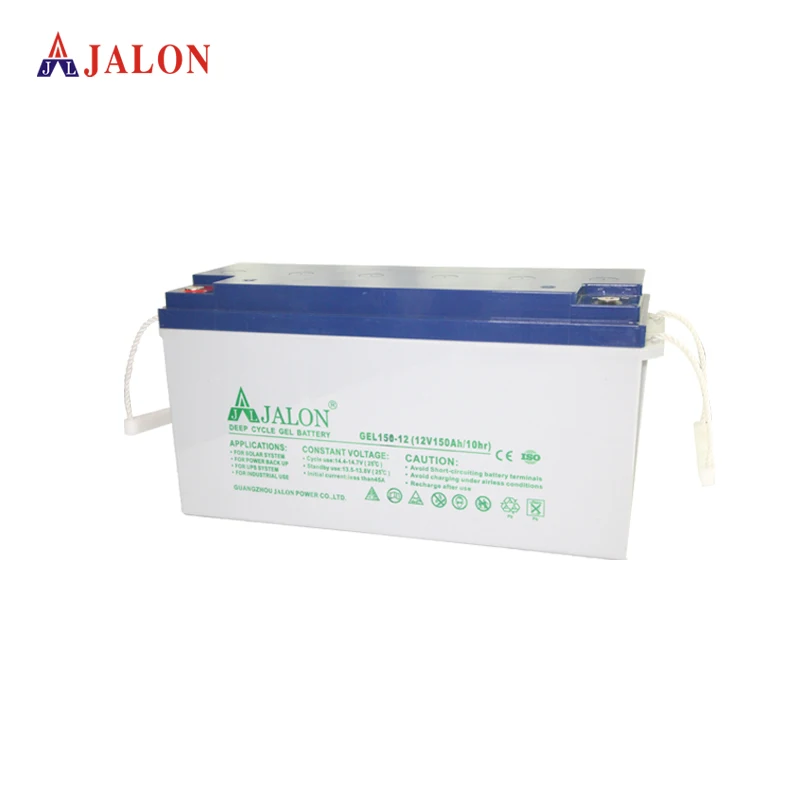

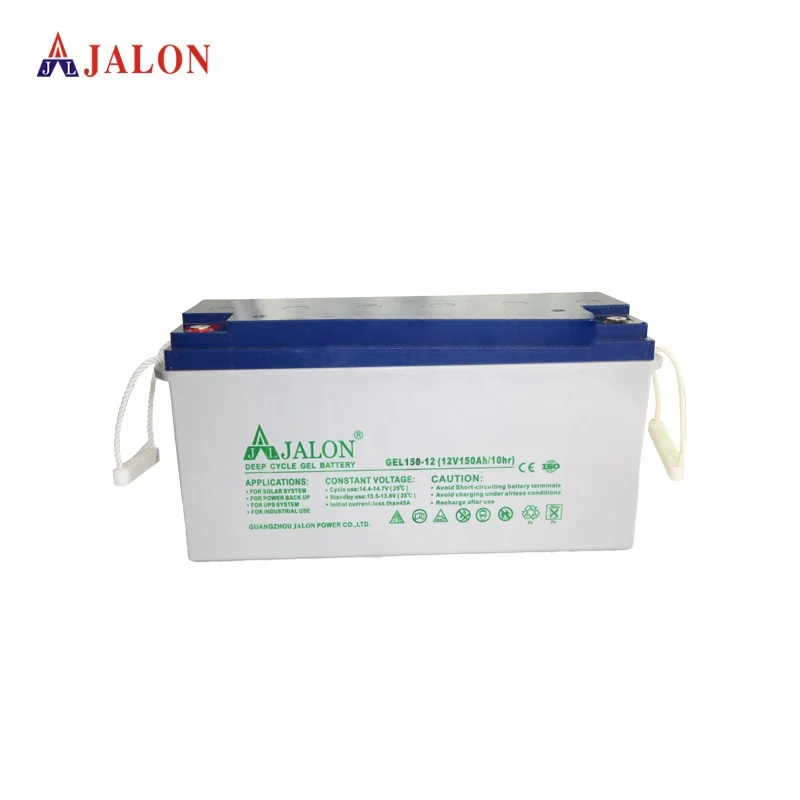

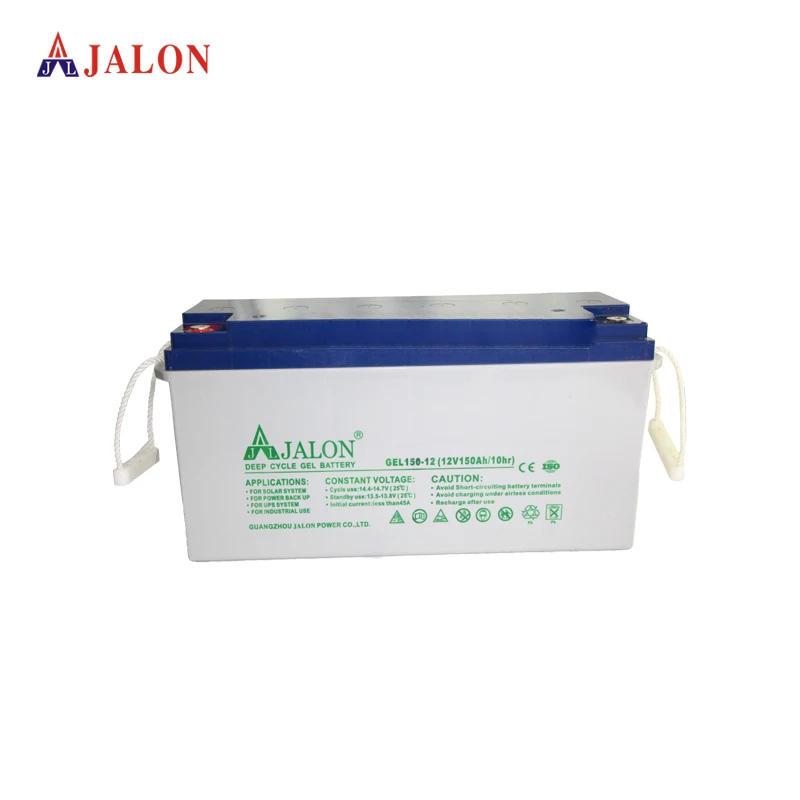

AGM 12v 100ah 150ah 200ah GEL battery for home solar system storage batteries use 12v 150ah
- Category: >>>
- Supplier: Guangzhou Jalon Power Co. Ltd.
Share on (1600345110466):
Product Overview
Description
Product Description
Model | Nominal Voltage (V) | Capacity (Ah) | Dimension (mm/Kg[(±5%)]) | Weight(Kg) |
GEL24-12 | 12 | 24/10HR | 165*126*174 | 7.8 |
GEL26-12 | 12 | 26/10HR | 165*175*126 | 8.4 |
GEL33-12 | 12 | 33/10HR | 196*130*155 | 10.1 |
GEL38-12 | 12 | 38/10HR | 197*166*174 | 12.4 |
GEL42-12 | 12 | 42/10HR | 198*166*174 | 13.0 |
GEL50-12 | 12 | 50/10HR | 229*138*212 | 15.9 |
GEL55-12 | 12 | 55/10HR | 229*138*212 | 16.4 |
GEL65-12 | 12 | 65/10HR | 351*167*178 | 24.3 |
GEL70-12 | 12 | 70/10HR | 260*169*215 | 21.8 |
GEL80-12 | 12 | 80/20HR | 260*169*215 | 23.5 |
GEL90-12 | 12 | 90/10HR | 307*169*215 | 26.7 |
GEL100-12 | 12 | 100/10HR | 331*174*219 | 29.2 |
GEL120-12 | 12 | 120/10HR | 407*174*233 | 34.4 |
GEL150-12 | 12 | 150/20HR | 484*171*241 | 43.7 |
GEL160-12 | 12 | 160/10HR | 532*206*222 | 48.5 |
GEL180-12 | 12 | 180/10HR | 532*206*222 | 52.4 |
GEL200-12 | 12 | 200/10HR | 522*240*224 | 58.5 |
GEL220-12 | 12 | 220/10HR | 522*240*224 | 60.8 |
GEL250-12 | 12 | 250/10HR | 520*268*225 | 70.3 |

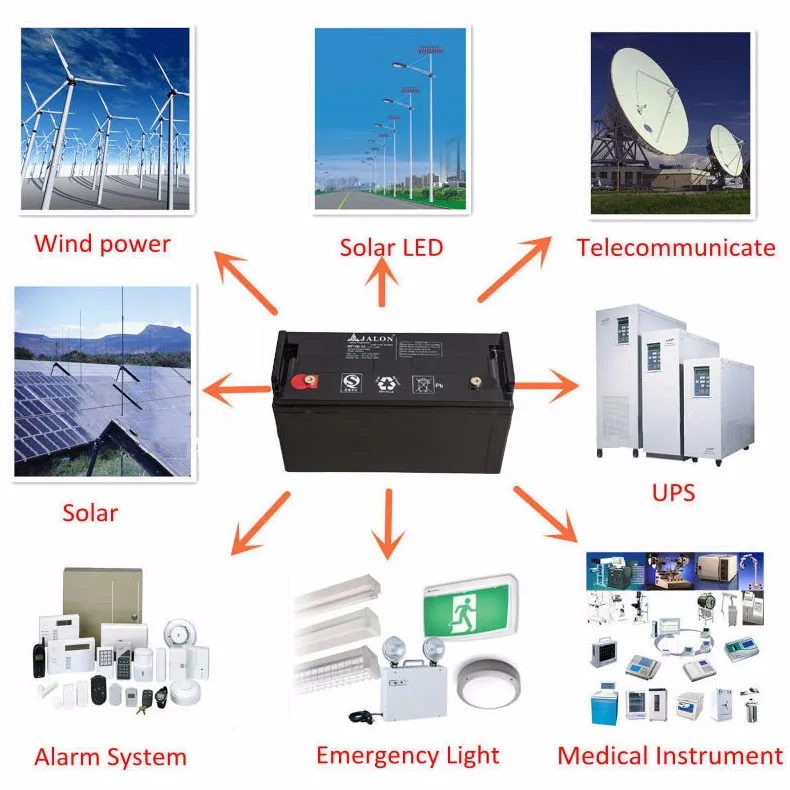

Application & Product features
Nominal Voltage | 12V | ||
Nominal Capacity(10HR) | 150AH | ||
Length | 484±3mm | ||
Width | 171 ±2mm | ||
Container Height | 240 ±2mm | ||
Total Height (withTerminal) | 241±2mm | ||
Approx Weight | Approx 43.2kg | ||
Terminal | T4 | ||
Container Material | ABS | ||
Rated Capacity | 156.0 AH/7.80A | (20hr ,1.80V/cell,25℃/77℉) | |
150.0 AH/15.0A | (10hr,1.80V/cell,25℃/77℉) | ||
Internal Resistance | Approx 3.5 mΩ | ||
Operating Temp.Range | Discharge : -15∼45℃ Charge : -10∼40℃ Aircraft signal Storage : -20∼40℃ | ||
Nominal Operating Temp. Range | 25 ±3℃ (77 ±5℉ ) | ||
Cycle Use | Initial Charging Current less than 45.0A.Voltage14.4V~14.9V at 25℃(77℉)Temp. Coefficient -30mV/℃ | ||
Standby Use | No limit on Initial Charging Current Voltage Auto controlsystem 13.6V~13.8V at 25℃(77℉)Temp. Coefficient -20mV/℃ | ||
Capacity affectedby Temperature | 40℃ (104 ℉)103% 25℃ ( 77 ℉ )100% 0℃ ( 32℉ ) 86% | ||
Self Discharge | Techfine batteries may be stored for up to 6 months at 25℃(77℉) and battery should be recharge before use . For higher temperatures the time interval will be shorter. | ||

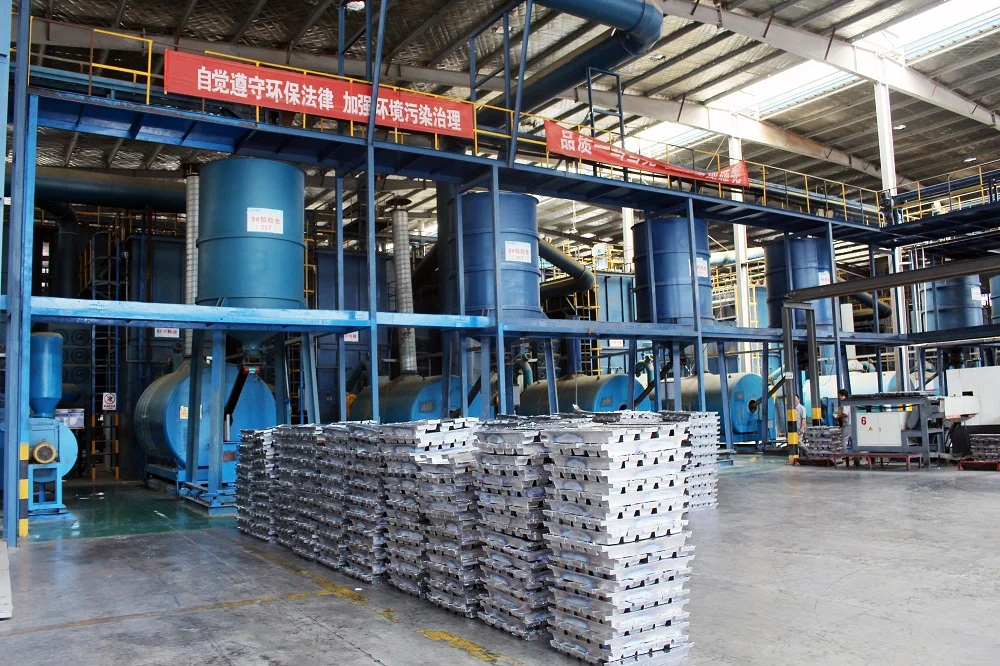

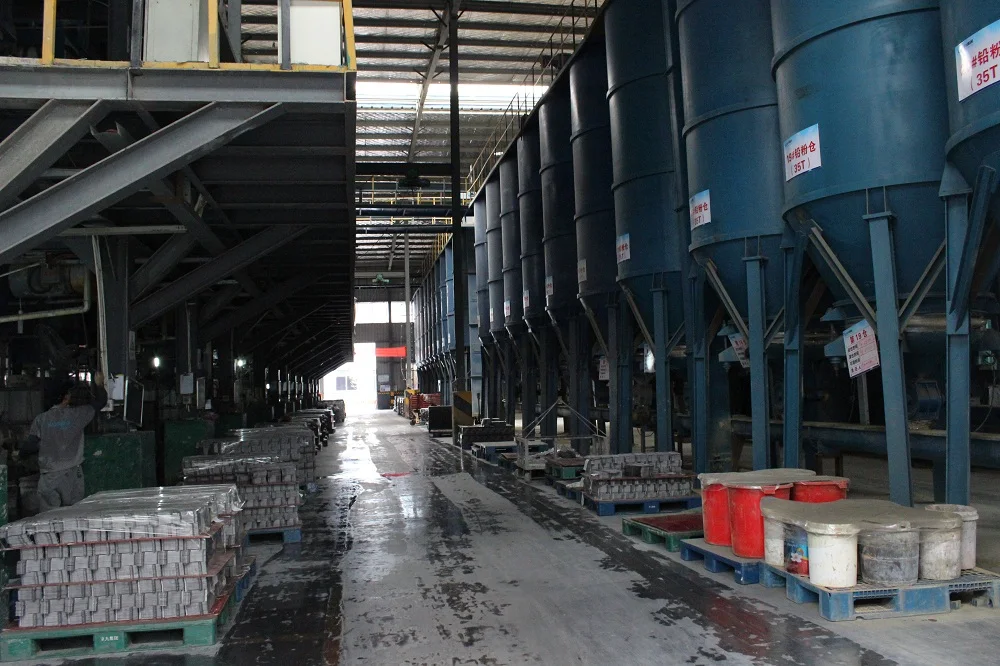

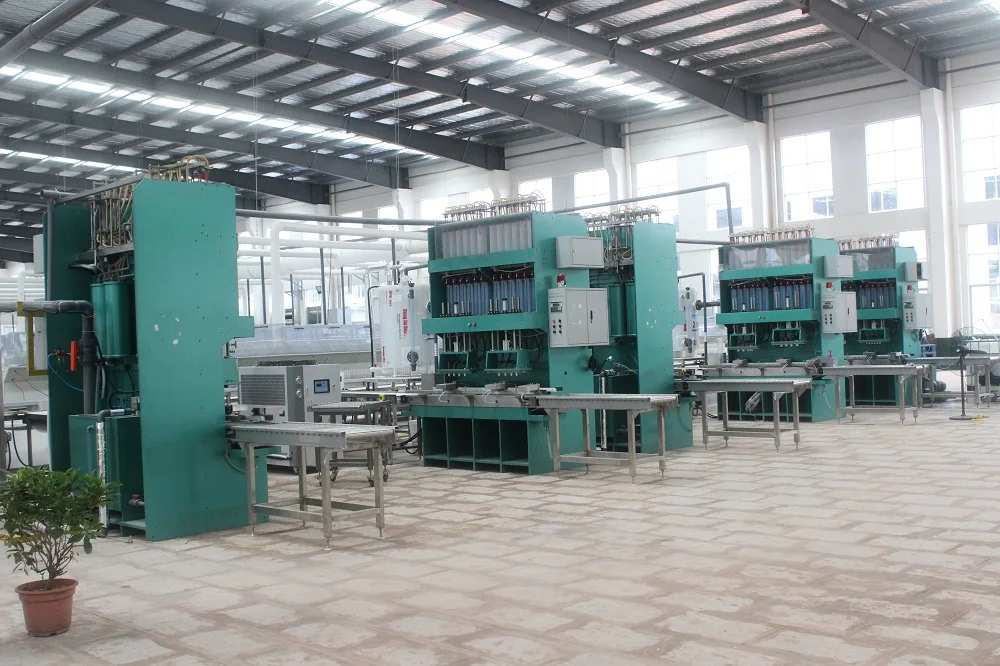

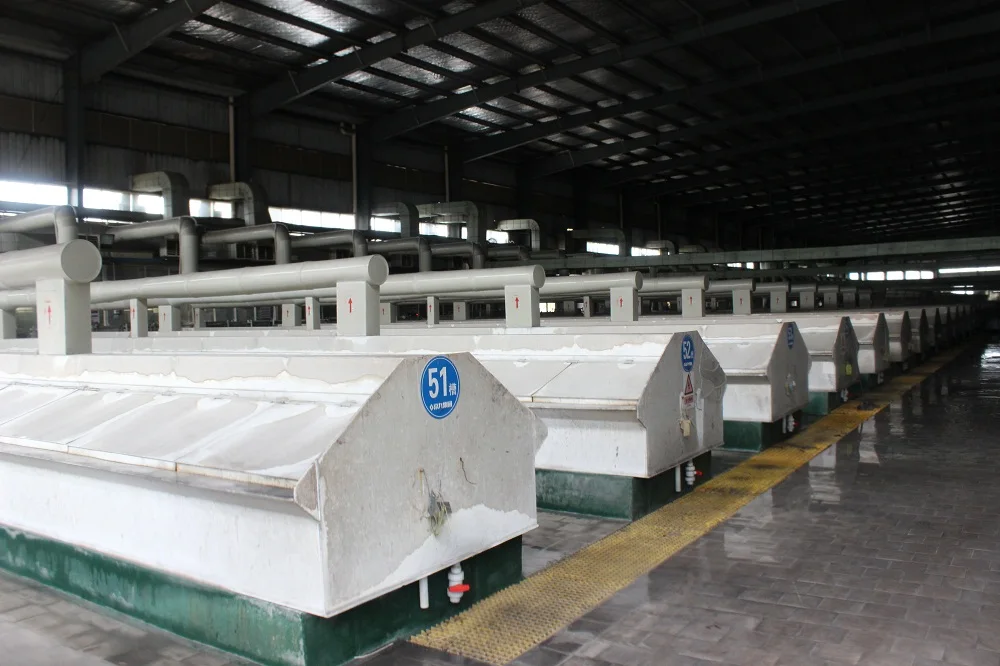

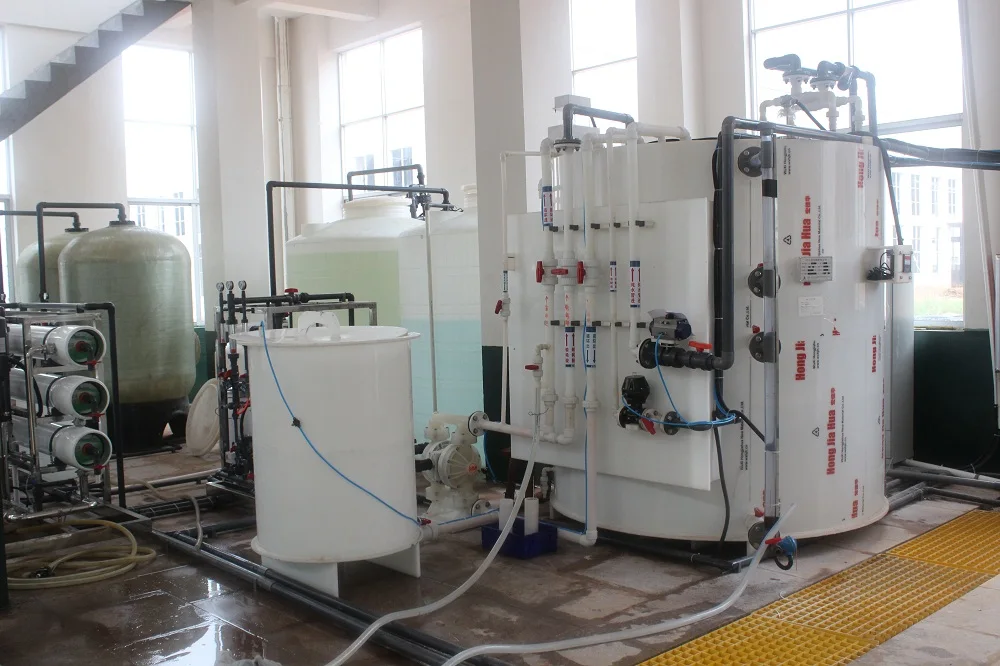

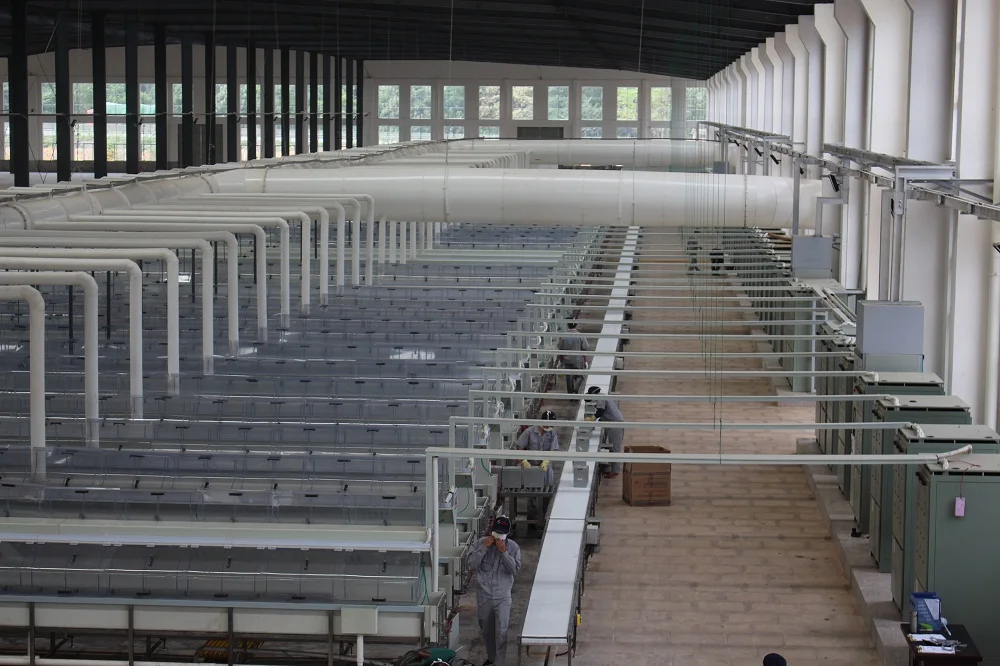

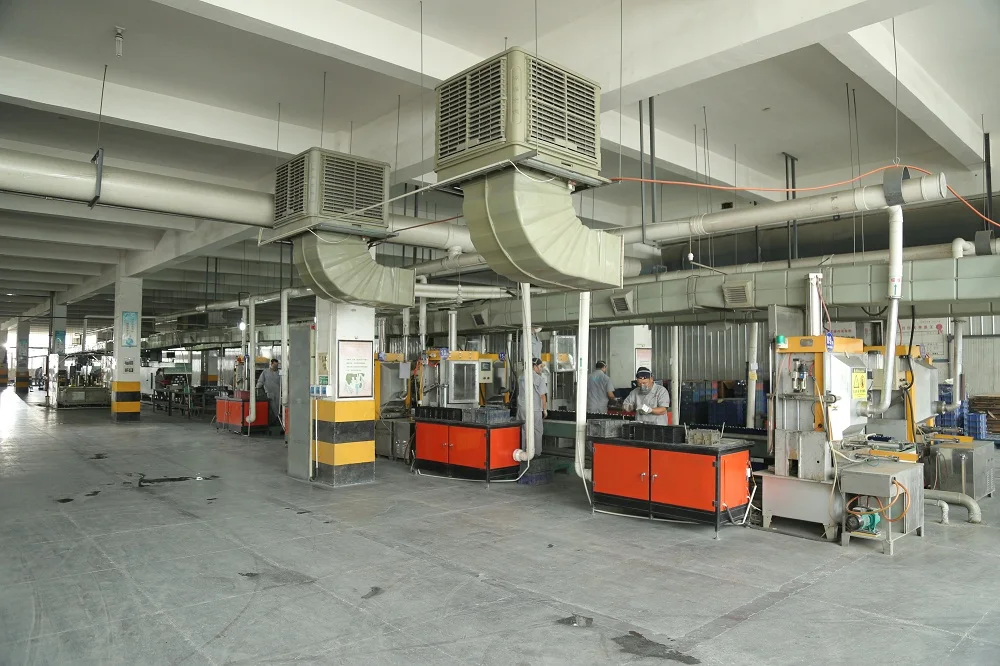

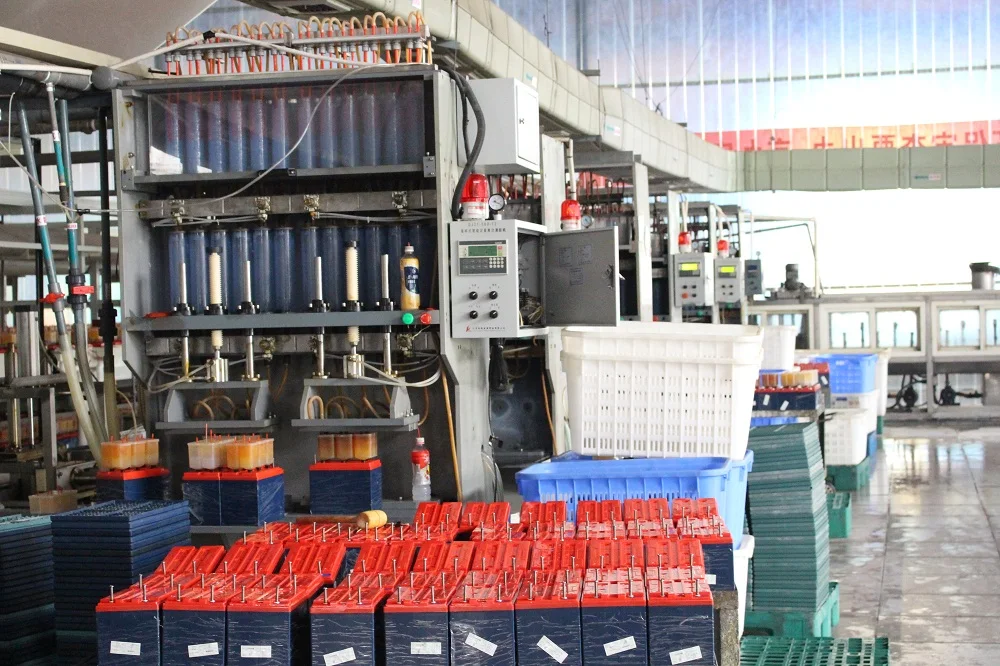

Factory Images
