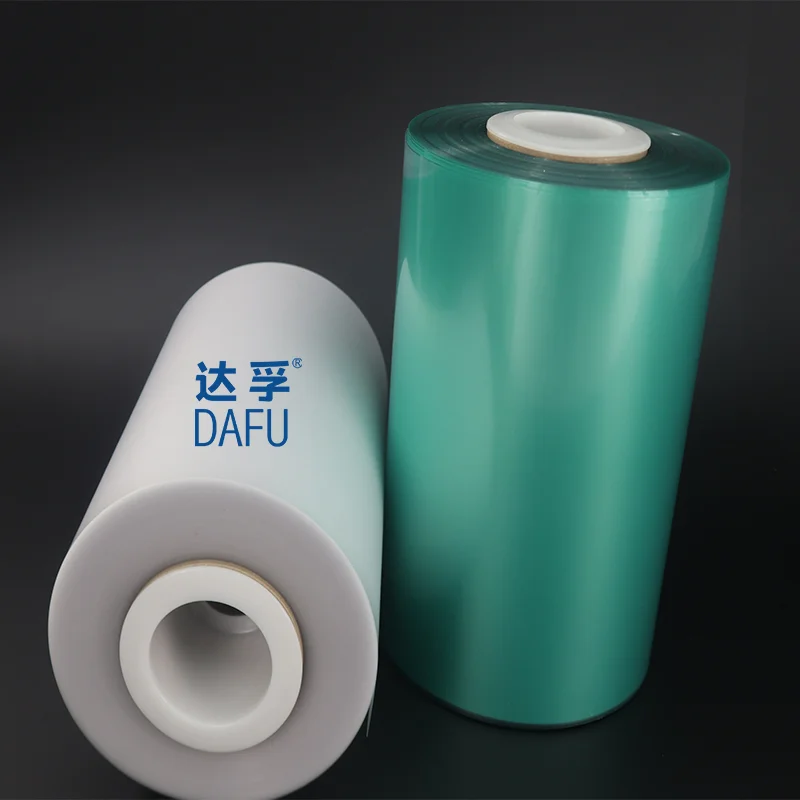

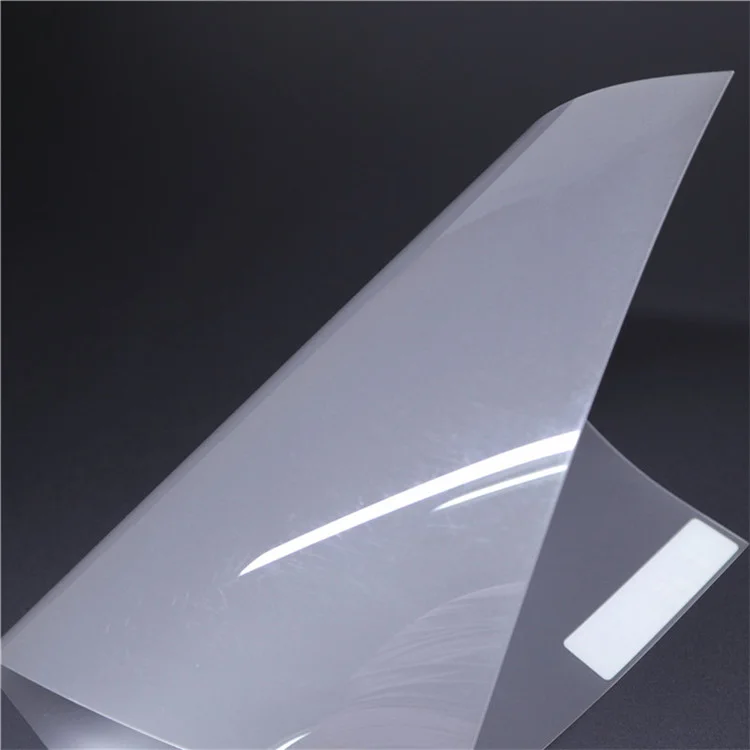

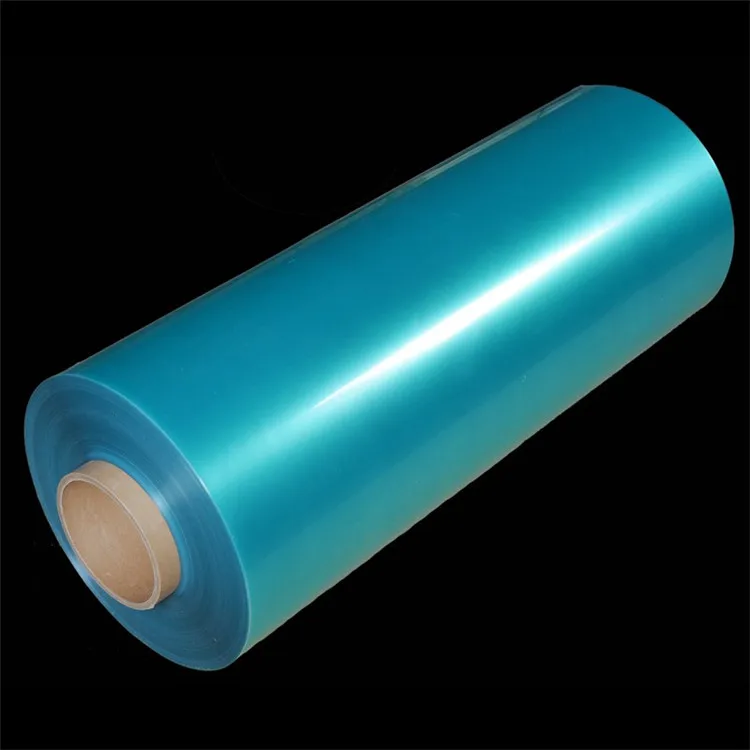

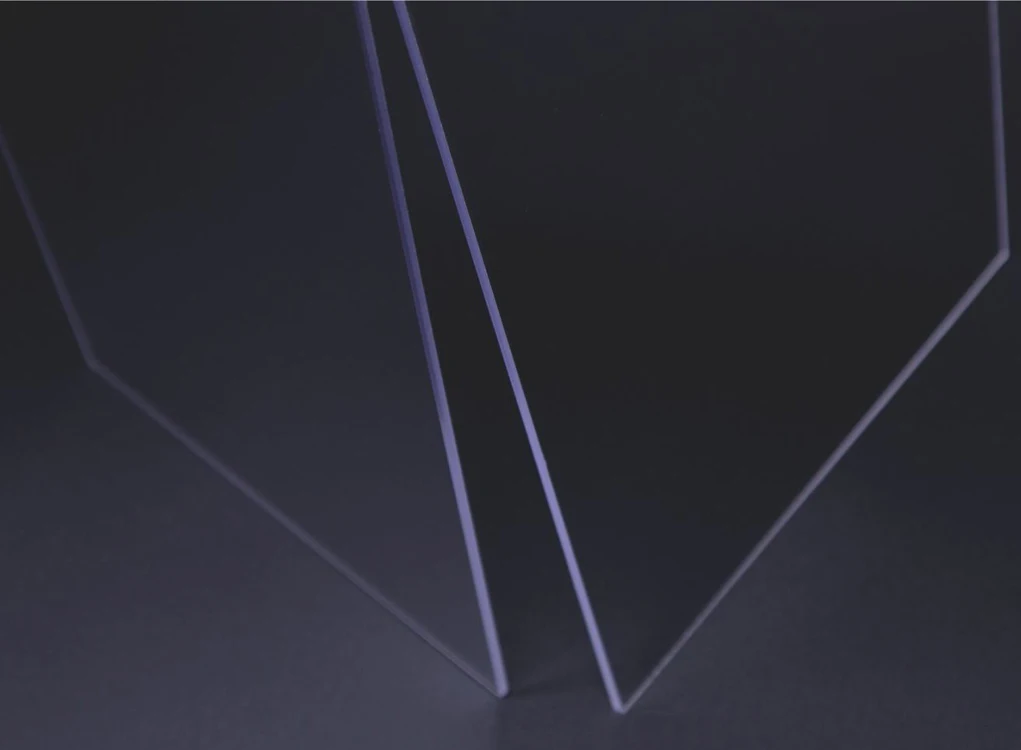

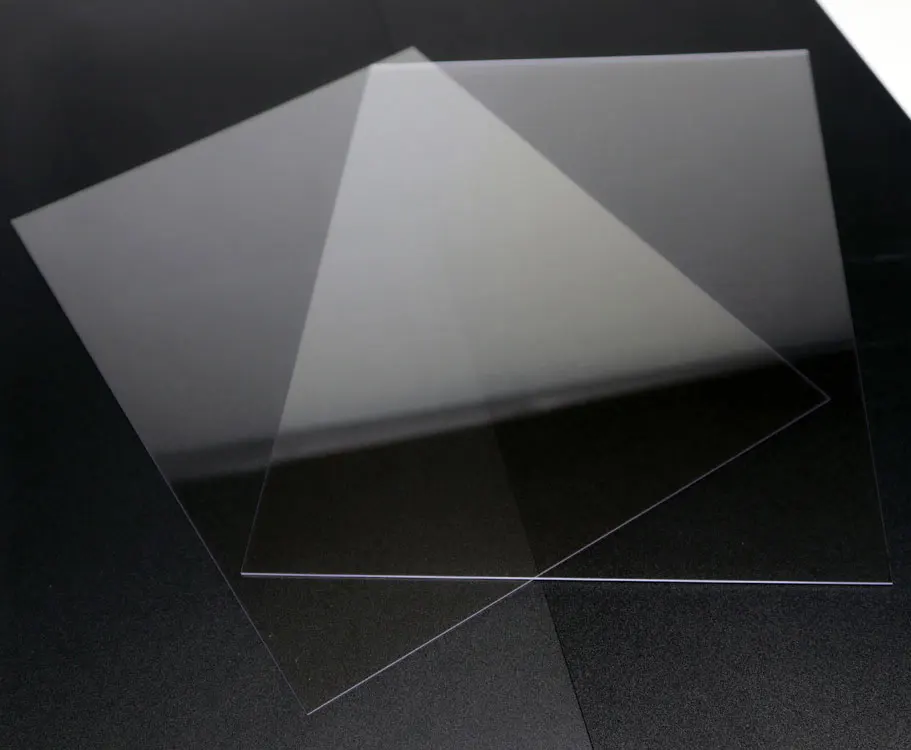

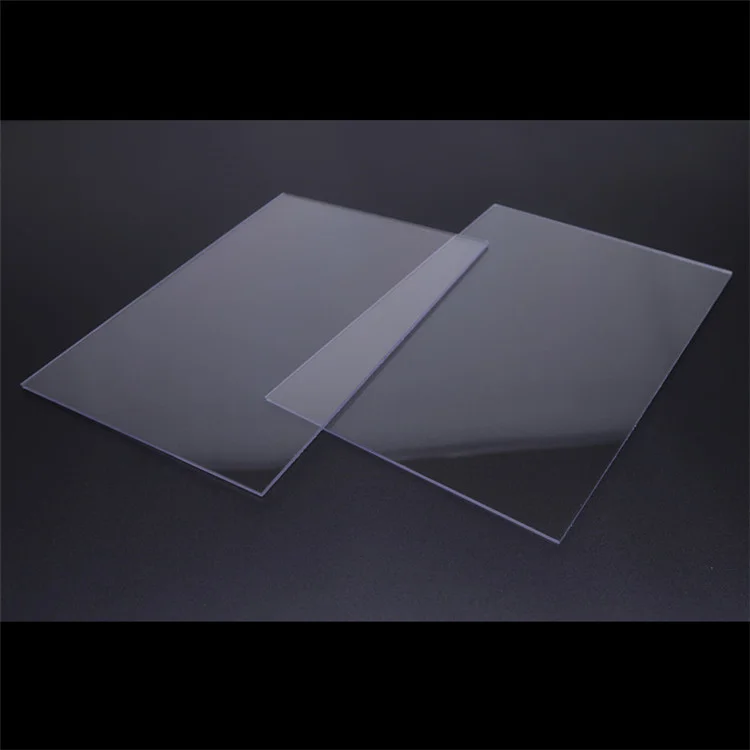

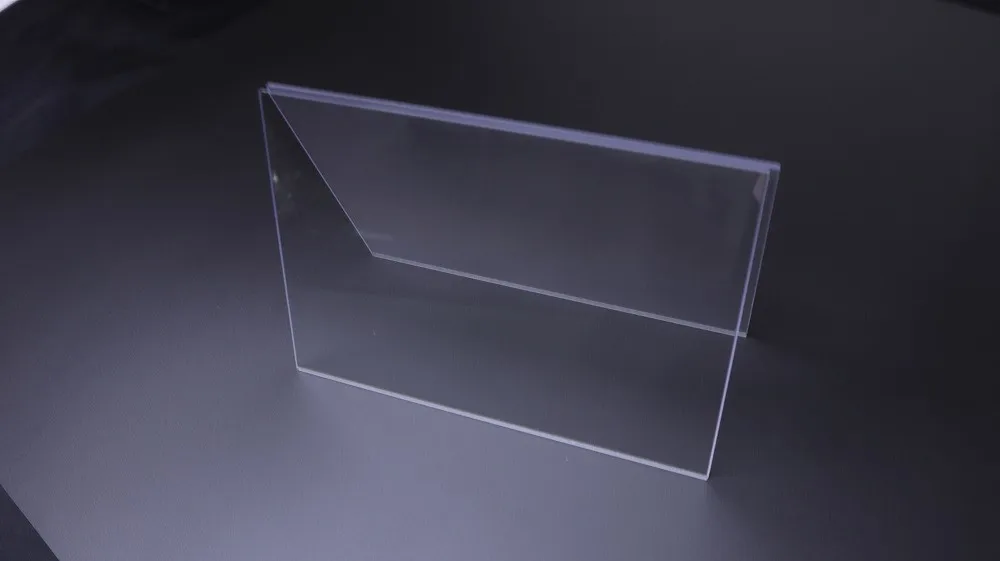

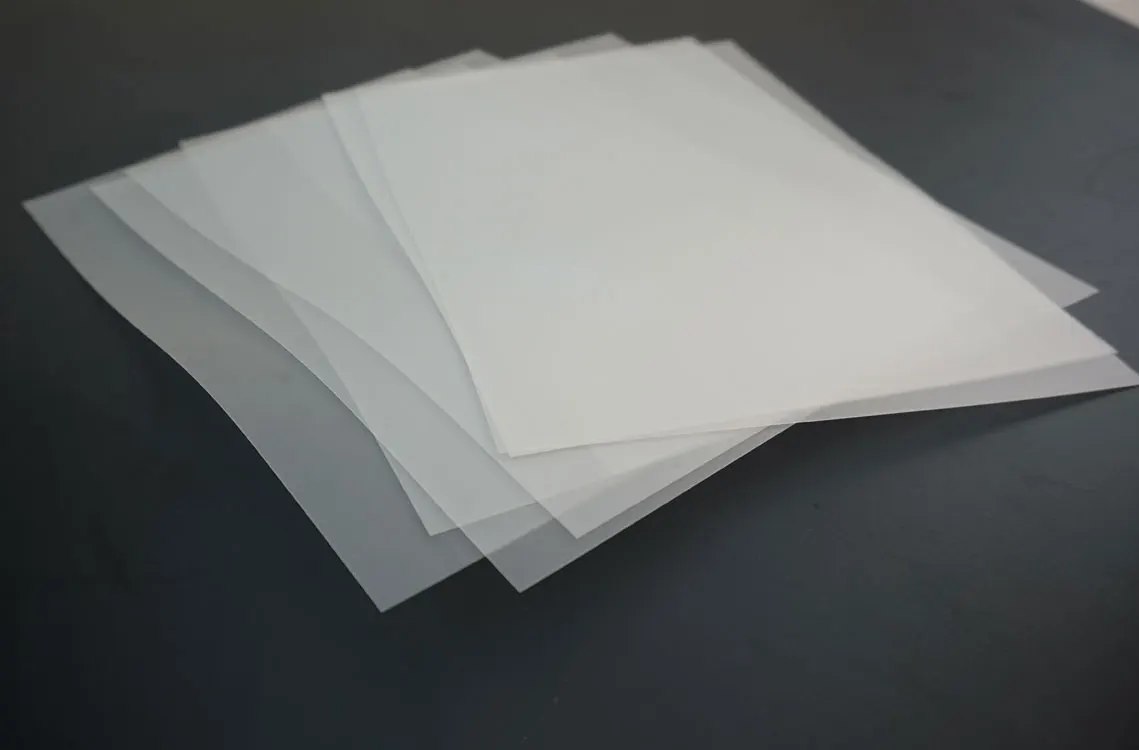

100% bayer raw material polycarbonate sheet roll

Product Overview

Description

Product Description









Product Applications

Good printing performance, low water absorption, high temperature resistance and flame retardant performance, good dimensional stability and creep resistance, impact resistance and folding performance.







SPECIFICATION

ITEM NO.	COLOR	TEXTURE	THICKNESS (mm)	WIDTH (mm)
DFPCD11	NATURAL	POLISHED/ POLISHED	0.100-4.000 (0.004''-0.157'')	915 & 1220 (3' & 4')
GAUGE VARIATION	D<0.5MM  ±10um 0.5≤d≤1.2mm ±15um d≥1.2mm ±25um



TYPICAL PROPERTY VALUES

FEATURE	TEST METHOD	UNITS	VALUE
PHYSICAL
Specific Gravity	ASTM D792	g/cm2	1.2
Light transmition	ASTM D1003	%	≥89
Water Absorption Equilibrium, 24HRS	ASTM D570	%	0.35
MECHANICAL
Tensile Strength	ASTM D882	Mpa	≥60
Elongation Ultimate	ASTM D882	%	≥90
THERMAL
Vicat Softening Temperture	ASTM D1525	℃	135
Strain Relief @135℃	ASTM D1204	%	≤1
ELECTRICAL
Dielectric Strength (@10 mils)	ASTM D149	KV/mm	≥30
Volume Resistivity @25℃, 50% RH	ASTM D257	Ω-cm	>1*10^-17
Surface Resistivity @25℃, 50% RH	ASTM D257	Ω	>1*10^-15
FLAMMABILITY
UL Flammability @≥20 mils	UL94	----	V-2
Foreign matter
Diameter	≤0.1mm	0.1<d≤0.25mm	0.25<d≤0.64mm	>0.64mm
Amount (in an area of 1m2	Allowed	≤22	≤7	Not allowed



NOTES: The data is guaranteed only in lab test.
