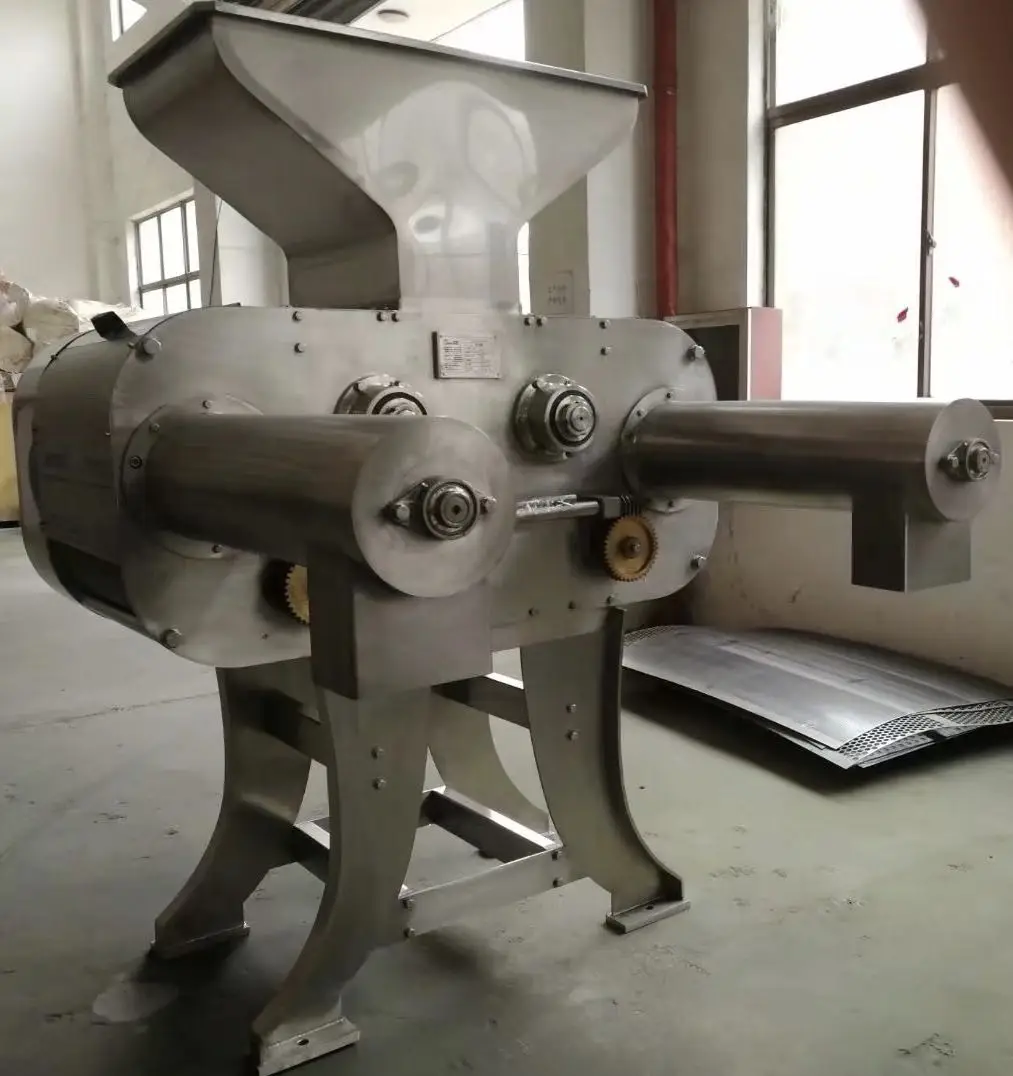

Full automatic juicer machine manual food grade industrial juicer machine




Product Description

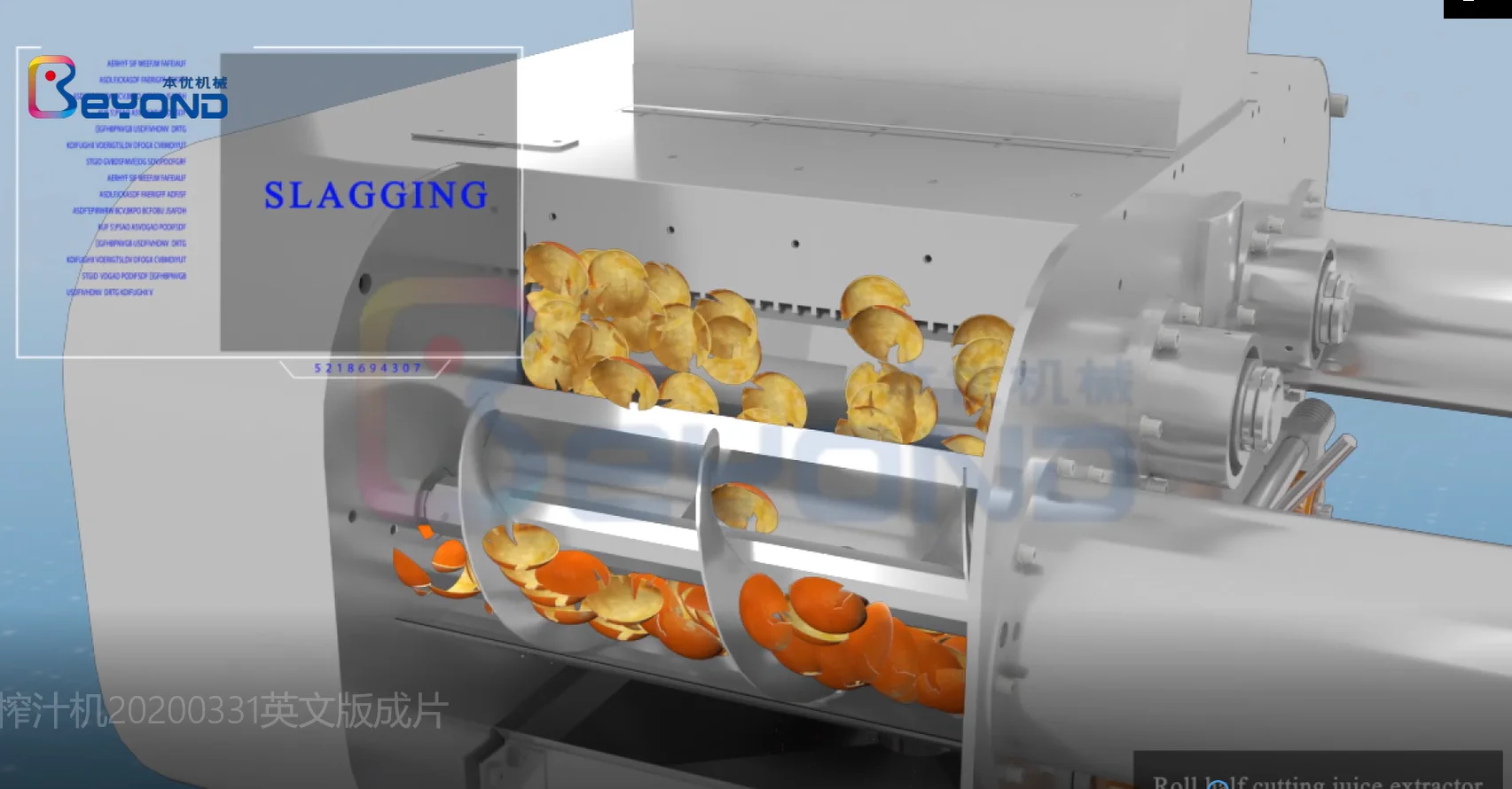

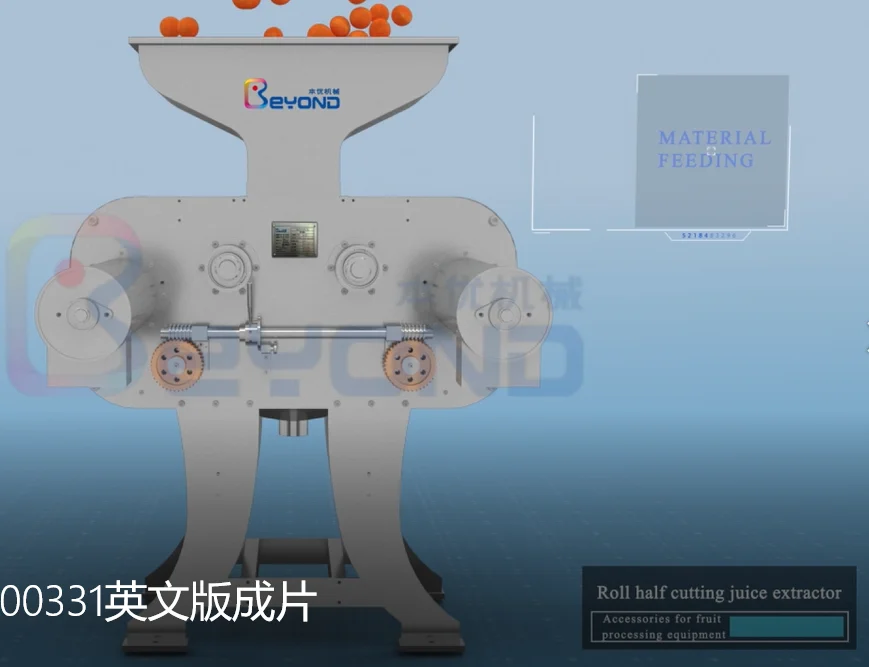

Roller half-cut juice extractor is the international advanced continuous automatic juice extracting machine used for orange, lemon, grapefruit, etc. After the grading and oil extracting, the fruit(orange, lemon, grapefruit) will be fed into this machine, and transported through the bowl-shape conveyor , it will cut them in to two halves, and separately send to two vertical rotating hubs to get the juice, and automatically separate the peel and juice. This machine is continuous type automatic rotation coning juice, it is advanced in structure, stable in transmission, high in production efficiency. During the juicing extracting process, it will not crush the peel of fruit, thus it will provide the high quality juice with high juice yield.


1
Master machine
2
Auto control Cabinet
3
Extraction of pineapple,apple,pear,berry etc.
4
High jucing rate
5
Energy saving
6
continuous working




Direction for use

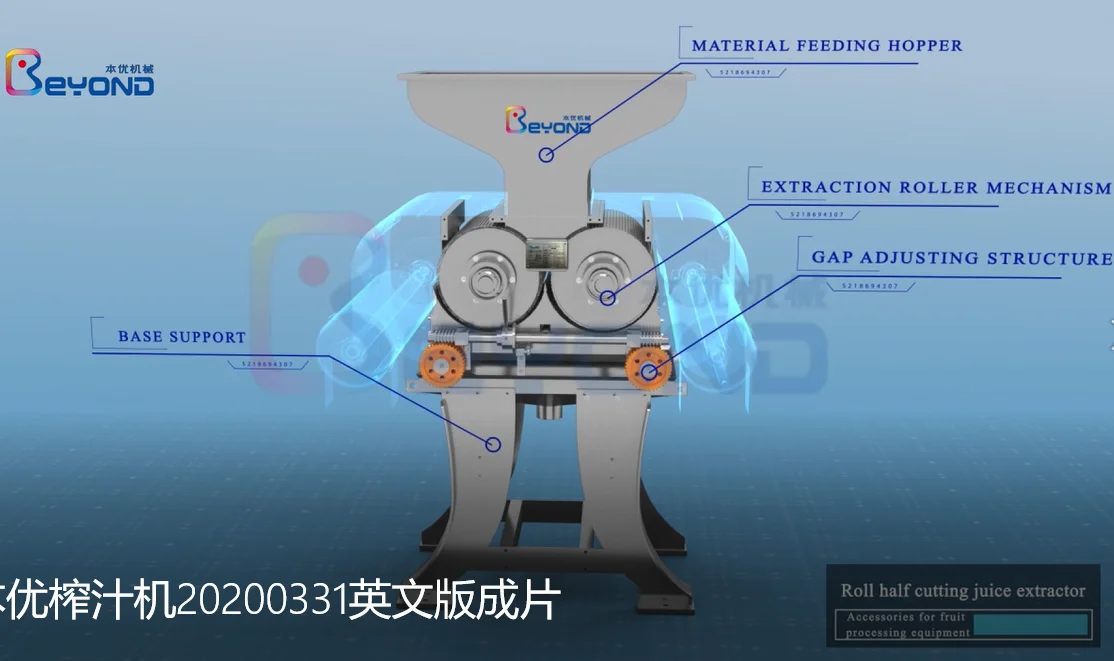

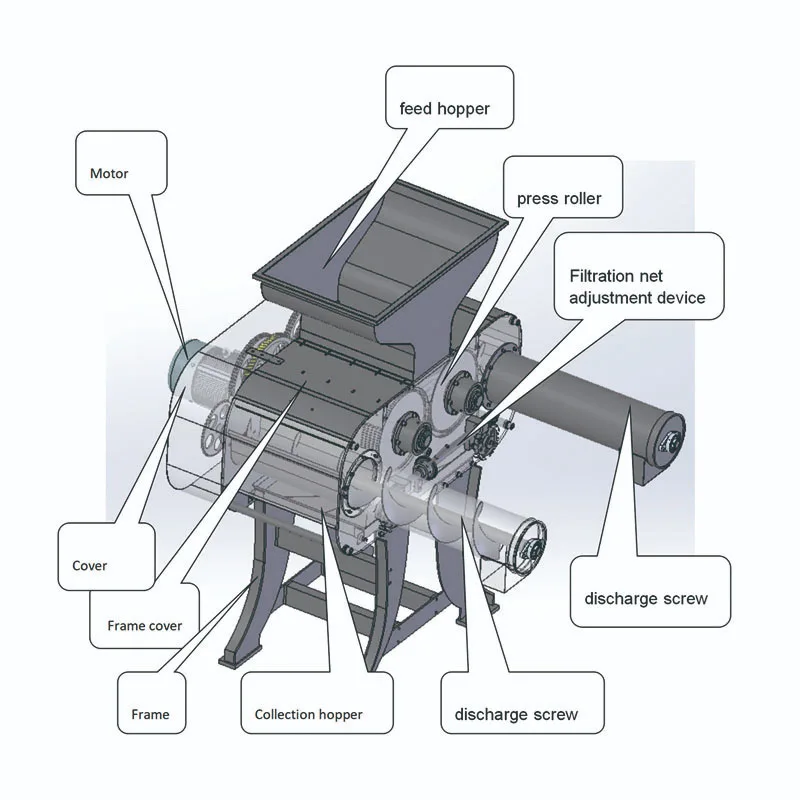

It adopts the foreign advanced technology, can be applicable for fresh juice extracting from tangerine, orange, grapefruit, lemon, etc., and avoid the bitter vegetable oil remained in fruit cells and residue from fruit peels.This machine is composed of the parts: machine frame, gear box, juice collecting bucket, left rotor drum, blades, 4-opens rotary tables, right rotor drum, bowl-shape conveyor, safety cover, driving motor, etc. The working theory is the motor drives the main shaft through the V-belt pulley, the main shaft will transfer the power to the following structures: bowl-shape conveyor, 4-opens rotary tables, left rotor drum, and right rotor drum.


  • Description of application effect

The machine is suitable for fresh juice extracting from tangerine, orange, grapefruit, lemon, etc.
Features:
Machine capacity: 300-320 pcs/mins;
Juice extracting rotor drum: 2 numbers;
Extracting heads: 7 pcs/ drum;
Motor power: 5.5kw, 960r/min;
Machine size: 1700×1670×1600mm(Length×Width×Height);
Machine net weight: 2T;
This machine is continuous type automatic rotation coning juice, it is advanced in structure, stable in transmission, high in production efficiency. During the juicing extracting process, it will not crush the peel of fruit, thus it will provide the high quality juice with high juice yield.
The materials contacting with product is made of good quality stainless steel, comply with food hygienic standard;
The whole frame structure, good rigidity, stable working, and small vibration;
It is equipped with centralized CIP cleaning device.

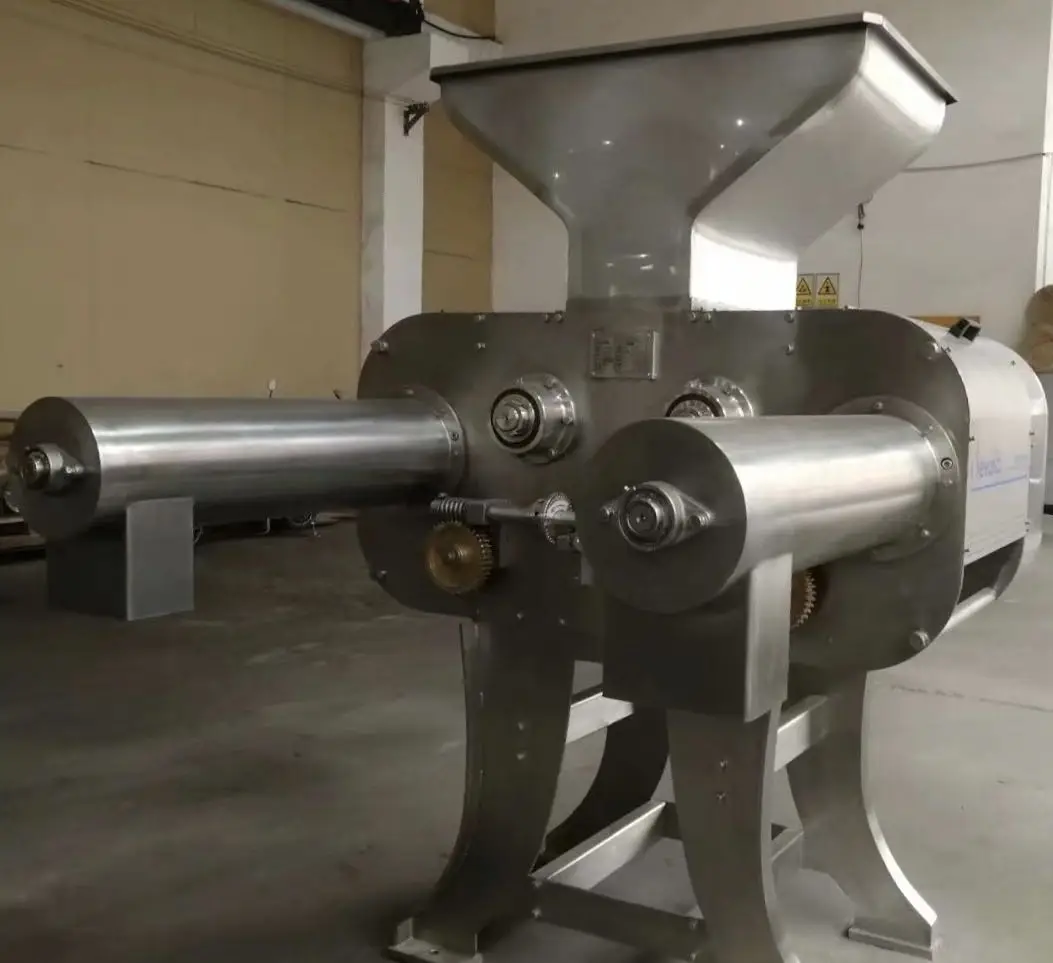

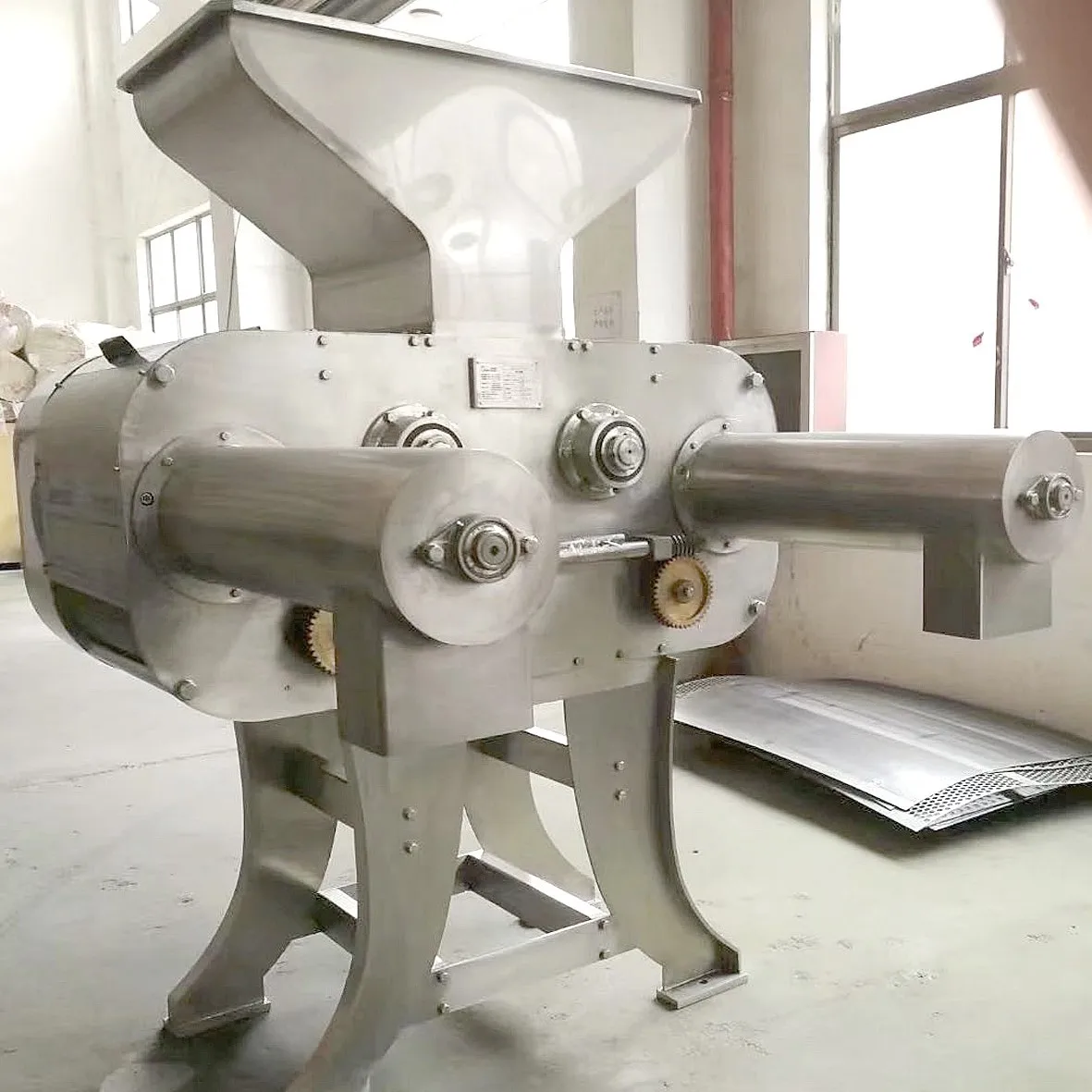

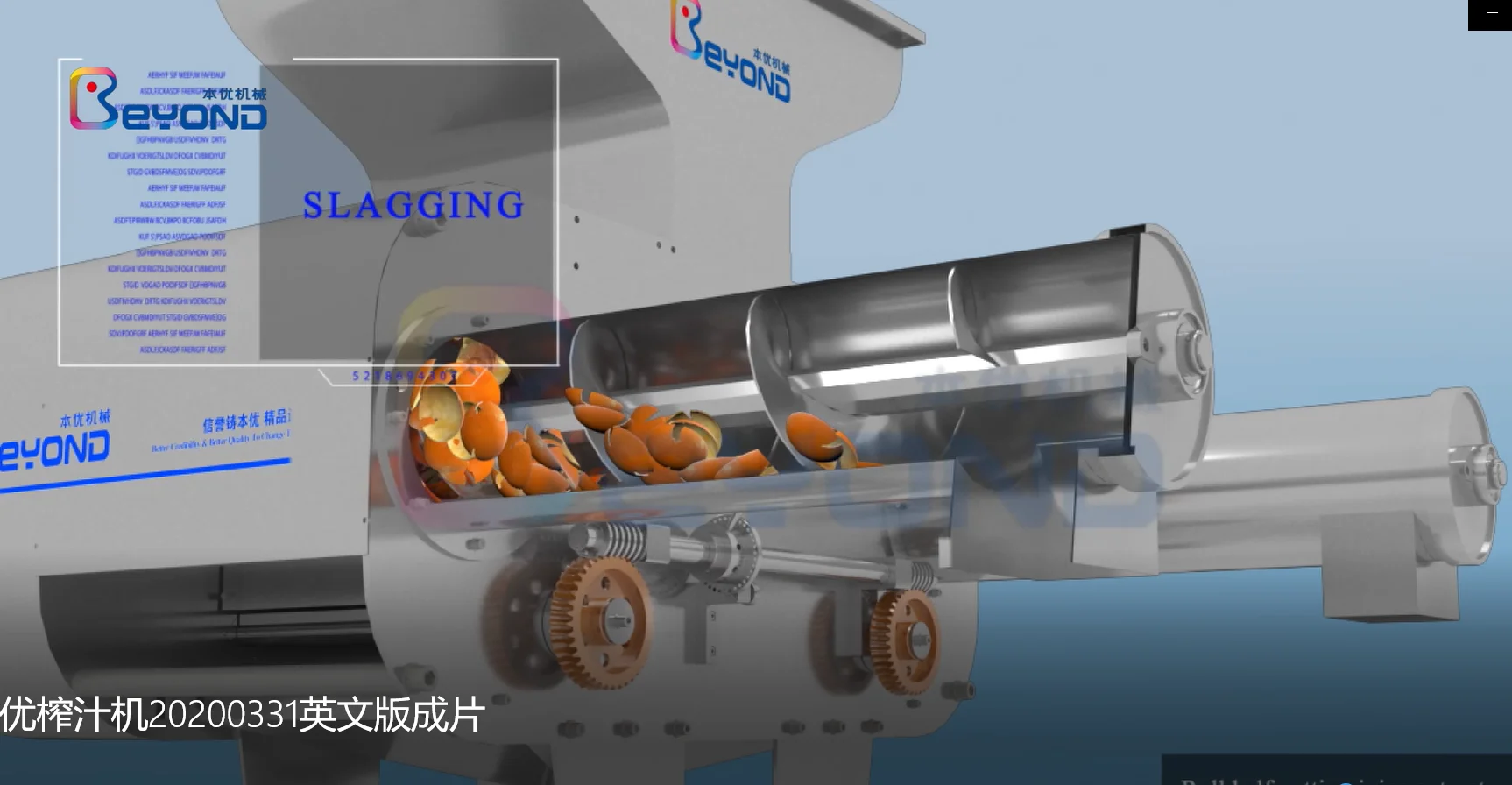

Detailed Images


This machine is continuous type automatic rotation coning juice, it is advanced in structure, stable in transmission, high in production efficiency. During the juicing extracting process, it will not crush the peel of fruit, thus it will provide the high quality juice with high juice yield.The materials contacting with product is made of good quality stainless steel, comply with food hygienic standard.






Size Information


Size Chart of This Design


Model
Capacity
Motor power:
Mechanical size
Extracting heads
ZZJ-5
5TPH

5.5KW,960r/min
1700*1670*1600mm
7 pcs/ drum
ZZJ-10
10TPH

9KW,960r/min
2200*2250*2800mm
7 pcs/ drum
