Wood Thicknesser Solid 4 Sides Planer Moulder Solidwood Planer For Solid Wood Panels Four Side Moulder
- Category: >>>
- Supplier: Foshan Zhong Er CNC Machinery Co. Ltd.
Share on (1600345192511):
Product Overview
Description
Product Description
All main spindle adjustments are carried out from outside the enclosure.
As our standard, short pieces device with pneumatic double-direction(press and raise), you can make the work pieces feeding or back in anytime.
Adjustable out-feed side pressure plate can meet the different thickness of material output steadily.
The front and rear labial plate of the first bottom spindle is made of special alloy steel material, and with two heat treatment processes, the wear resistance is extremely strong..
Individual motor to each spindle to ensure maximum power transmission.
Multi-group bottom driving roller to improve the feed effect.
Manual bed lubrication to reduce friction and improve feeding difficult timbers.
in-feed bottom helical roller is more suitable for large deformation and high moisture of the wood to feed.
A group of side pressure wheels on the right side of the left spindle, adjusted the pressure flexible by pneumatic.
Specification
Model | 423 | 523 | 623 | ||
working width(mm) | 20 ~230mm | ||||
max cutting thickness | 8~160mm | ||||
number of spindles | 4 | 5 | 6 | ||
spindle speed(r/min) | 6000 | ||||
cutting circles (max-min)mm first bottom spindle | dia108-dia145 | 3910rpm | 3910rpm | ||
right side spindle | dia108-dia145 | dia180mm | dia180mm | ||
left side spindle | dia108-dia145 | dia30mm | dia30mm | ||
first top spindle | dia108-dia145 | 5860rpm | 5860rpm | ||
second top spindle | dia108-dia145 | 1-80m/min | 1-80m/min | ||
second bottom spindle | dia108-dia145 | 120m/min | 120m/min | ||
main saw motor | 5.5kW/7.5HP | ||||
basic motor power(kw) first bottom spindle | 5.5kW/7.5HP | ||||
right side spindle | 1.5KW(Ac Servo motor) | ||||
left side spindle | 1.5KW(Ac Servo motor) | ||||
first top spindle | 7.5kw/10HP | ||||
second top spindle | 7.5kw/10HP | ||||
second bottom spindle | 7.5kw/10HP | ||||
feed | 4kw/1HP | ||||
feed beam rise & fall | 0.75KW/1HP | ||||
total motor power(KW) | 45.75KW/61HP | ||||
(m/min)feed speed(Inverter for feed) | 6-30m/min | ||||
dust outlet diameter(mm) vertical spindles | dia150 | ||||
Dimension | 4730*1730*1730 | ||||
weight | 4600kg | ||||
Company Profile
Foshan Zhonger CNC machinery Co.,Ltd .is an enterprise based on Woodworking equipment manufacturing, which has the high -tech industry development direction. The company has many years of woodworking machinery production experience , its main product”Sliding Table Saw , Precision Panel Saw”also gets a high reputation in the industry. The company has been adhering to the purpose of “ quality first, customer is supreme”, in order to make full use of technology and brand advantages, set up sales management system and zstrong the marketing team .The high-quality after-sale service personnel and professional installation team can provide high-quality and timely technical consulaation and installation maintenance service to our customers v All the staff of Foshan Zhonger CNC Marchinery Co.,Ltd .welcome to enterprises come to visit our company and negotiate the business , we are willing to move forward with you an create the bright future together!

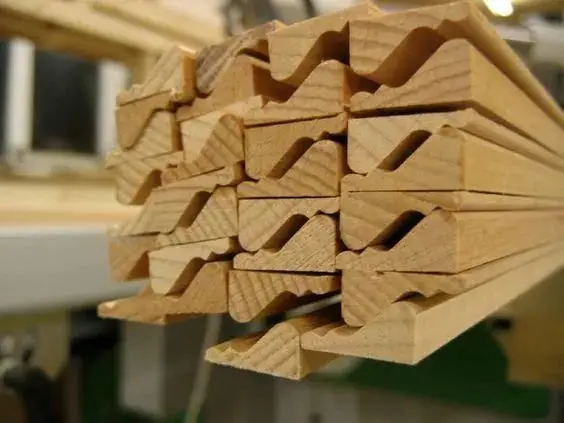

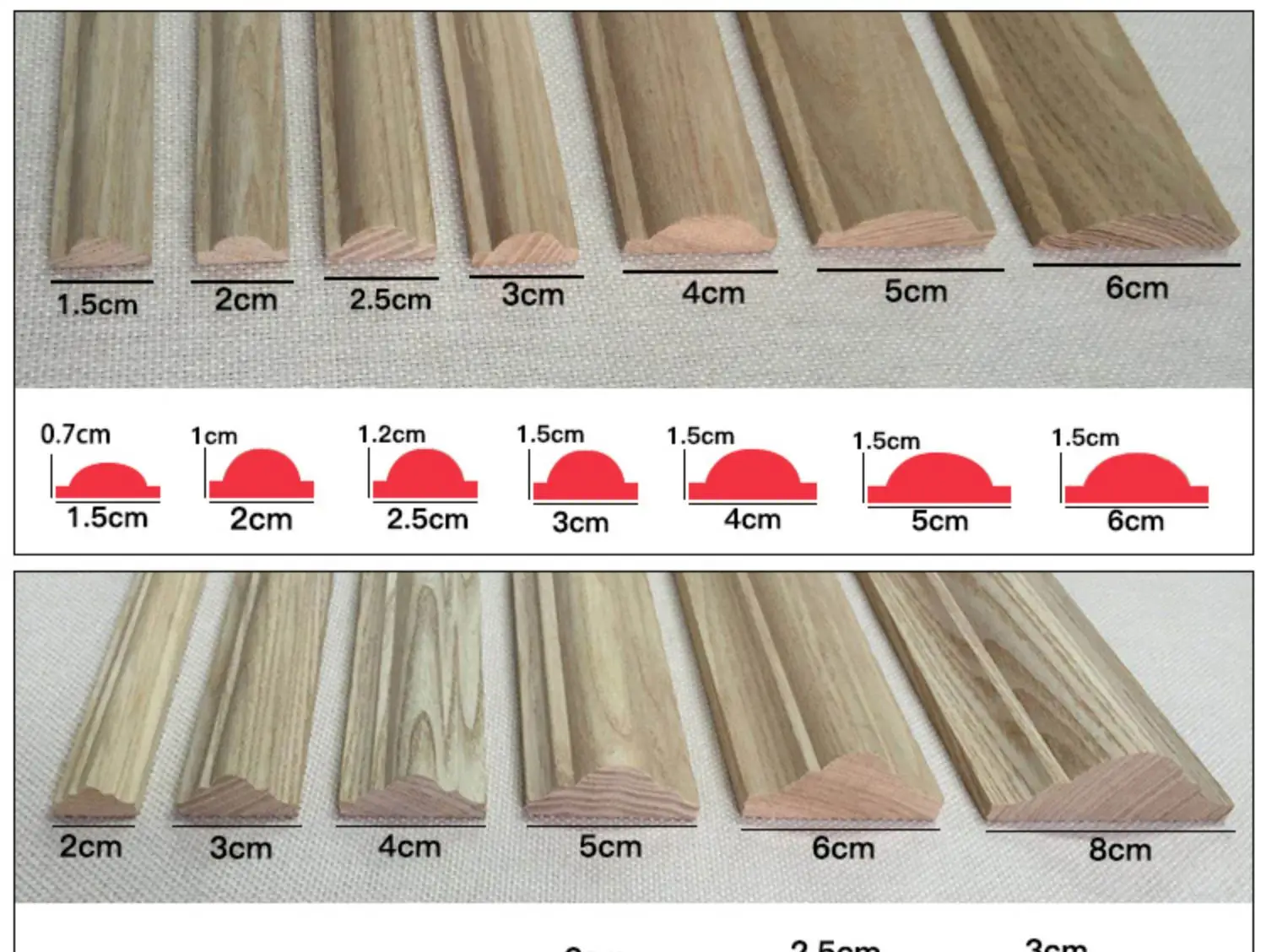

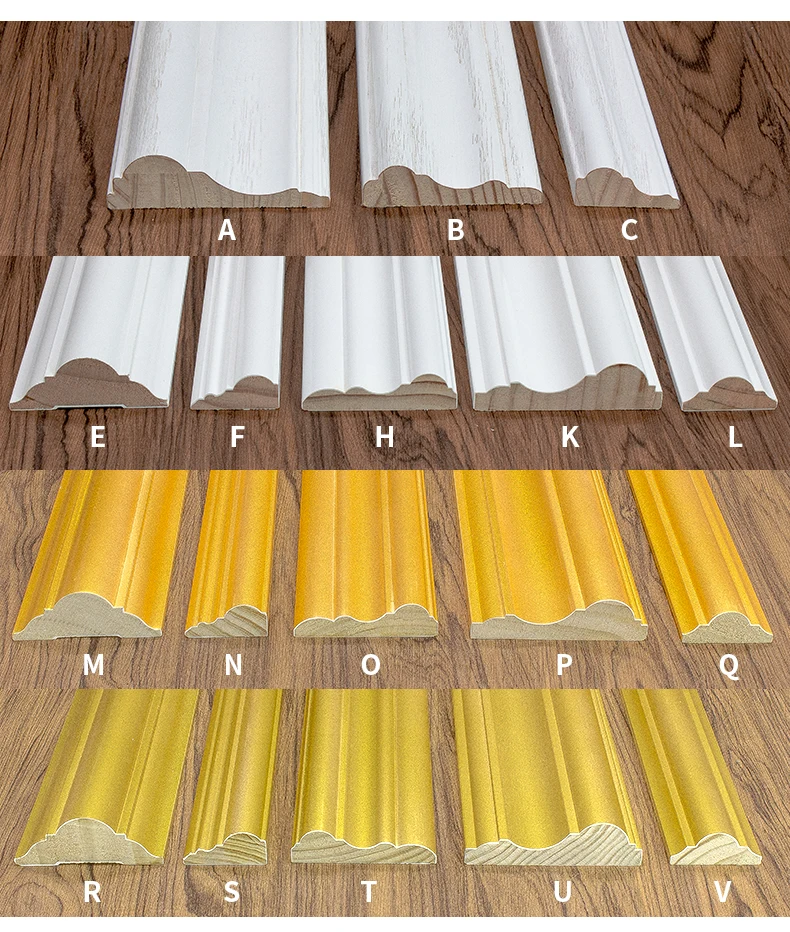

Sample Room

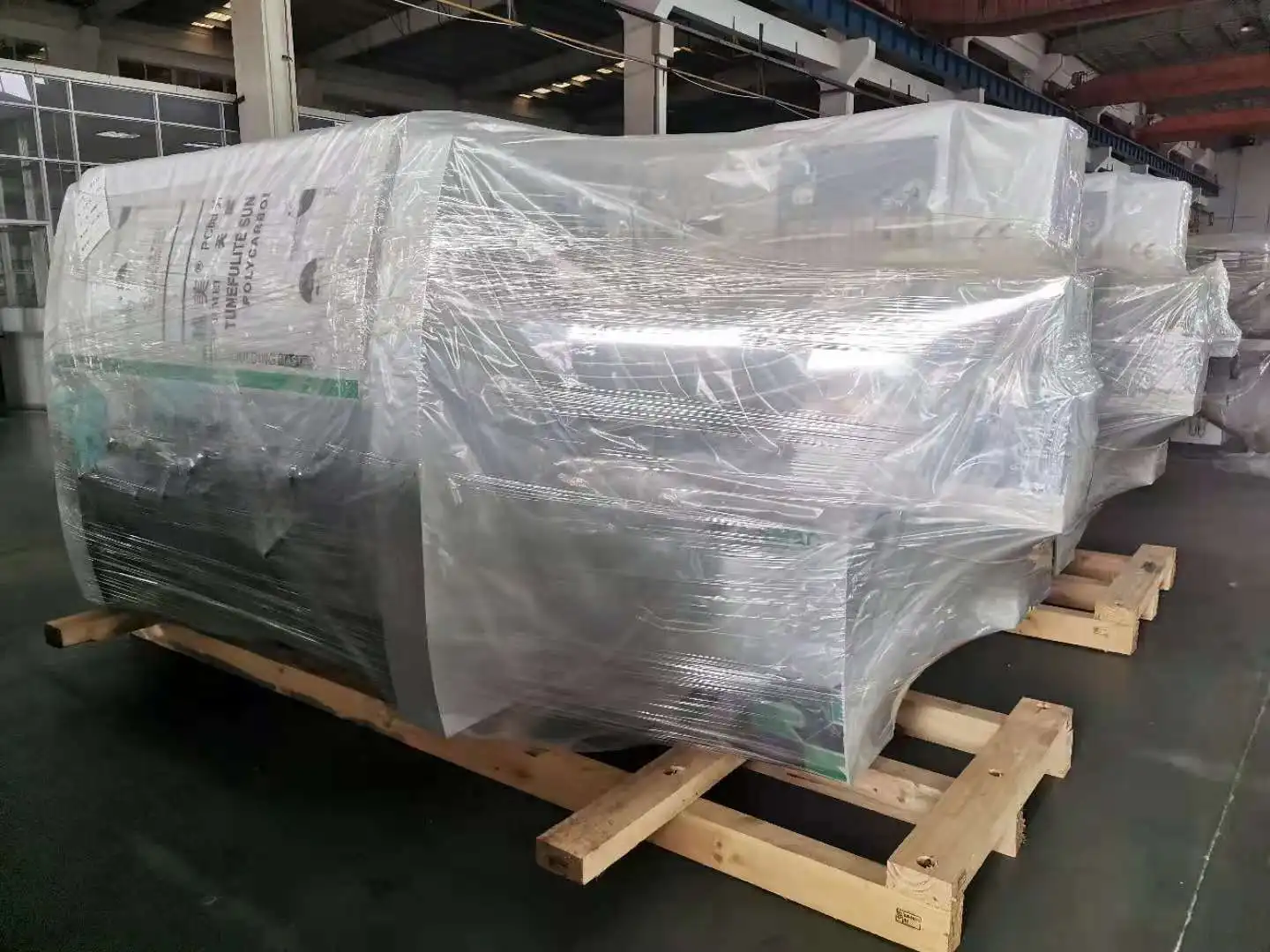

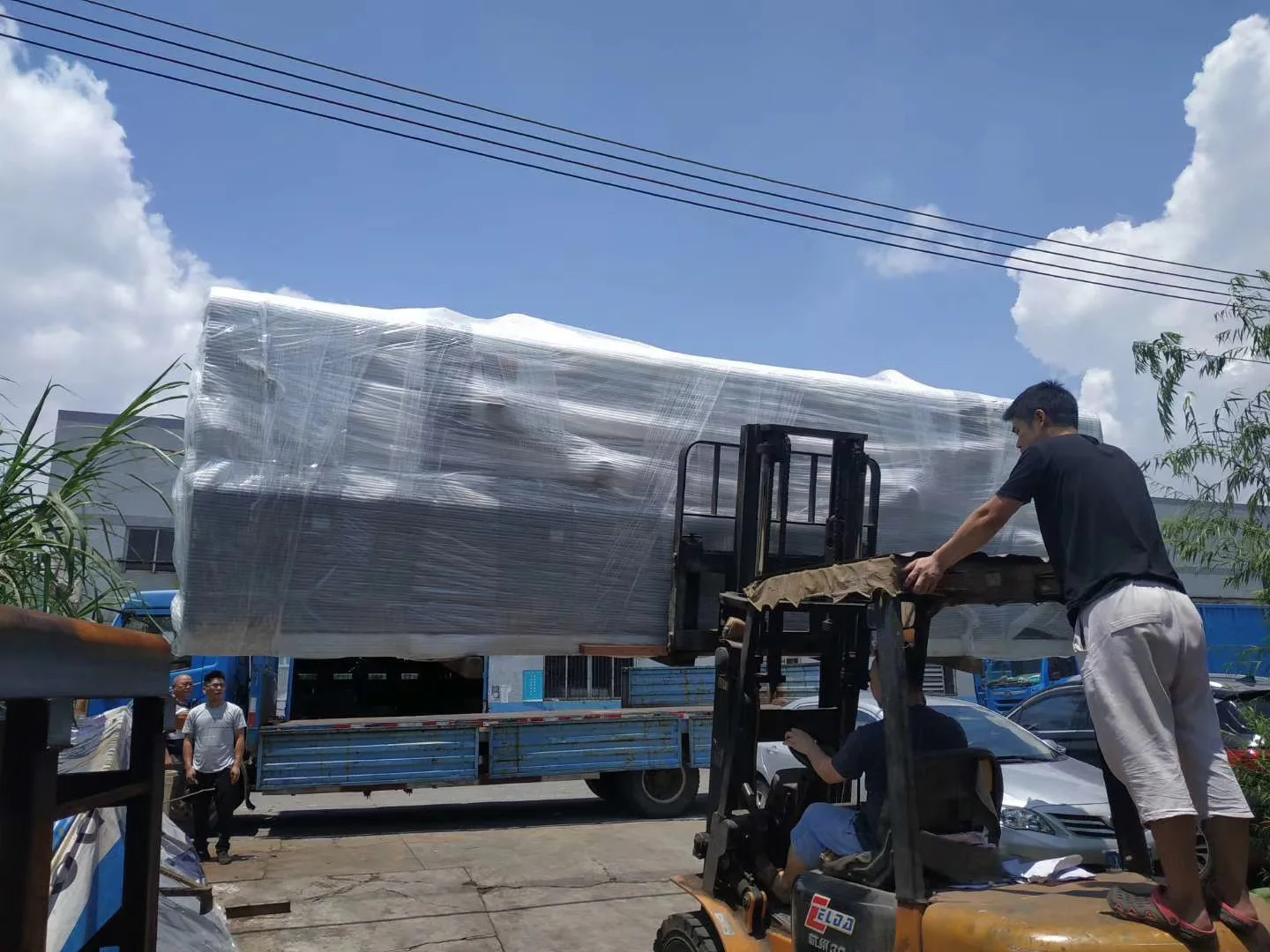

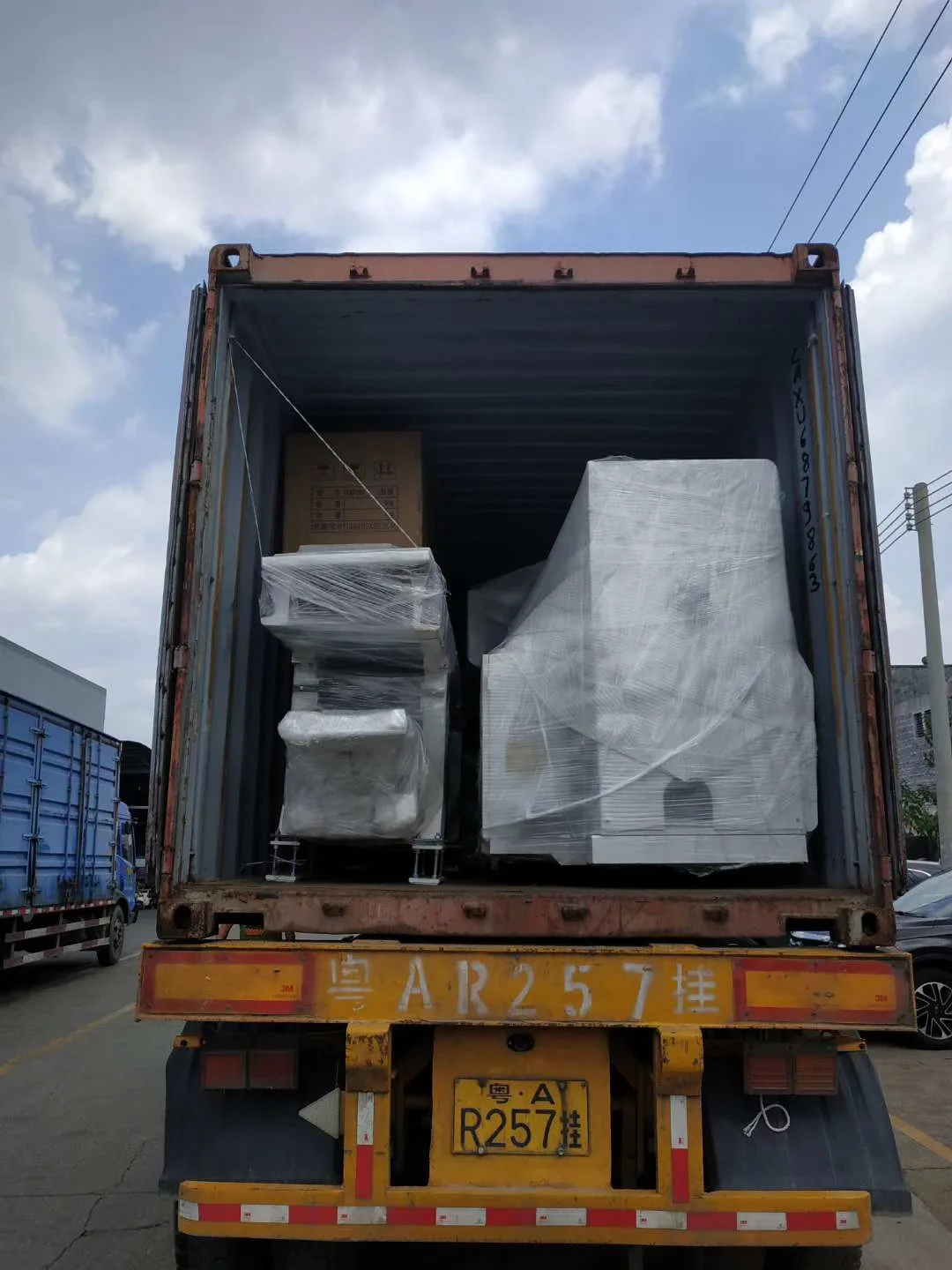

Packing & Delivery

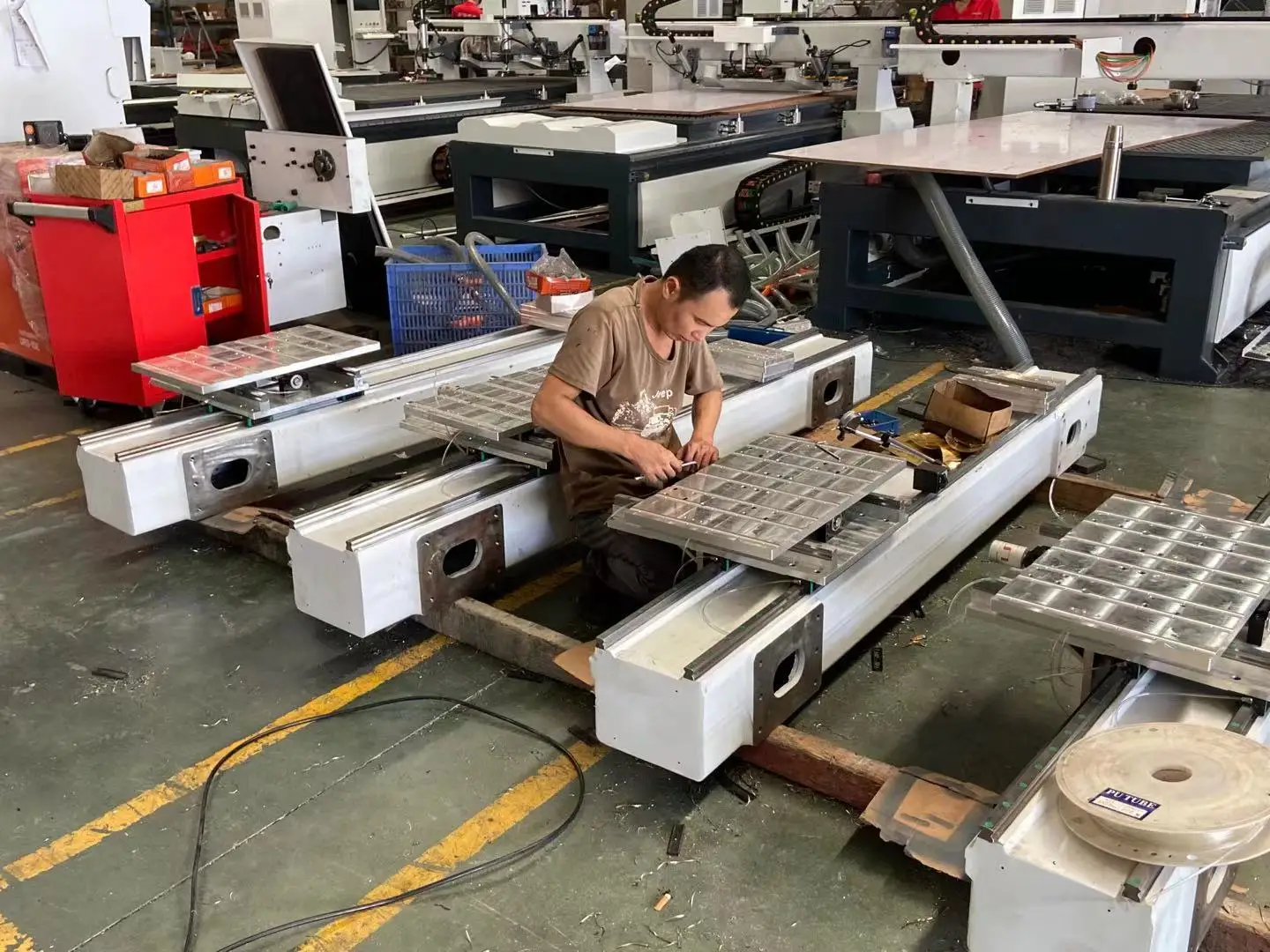

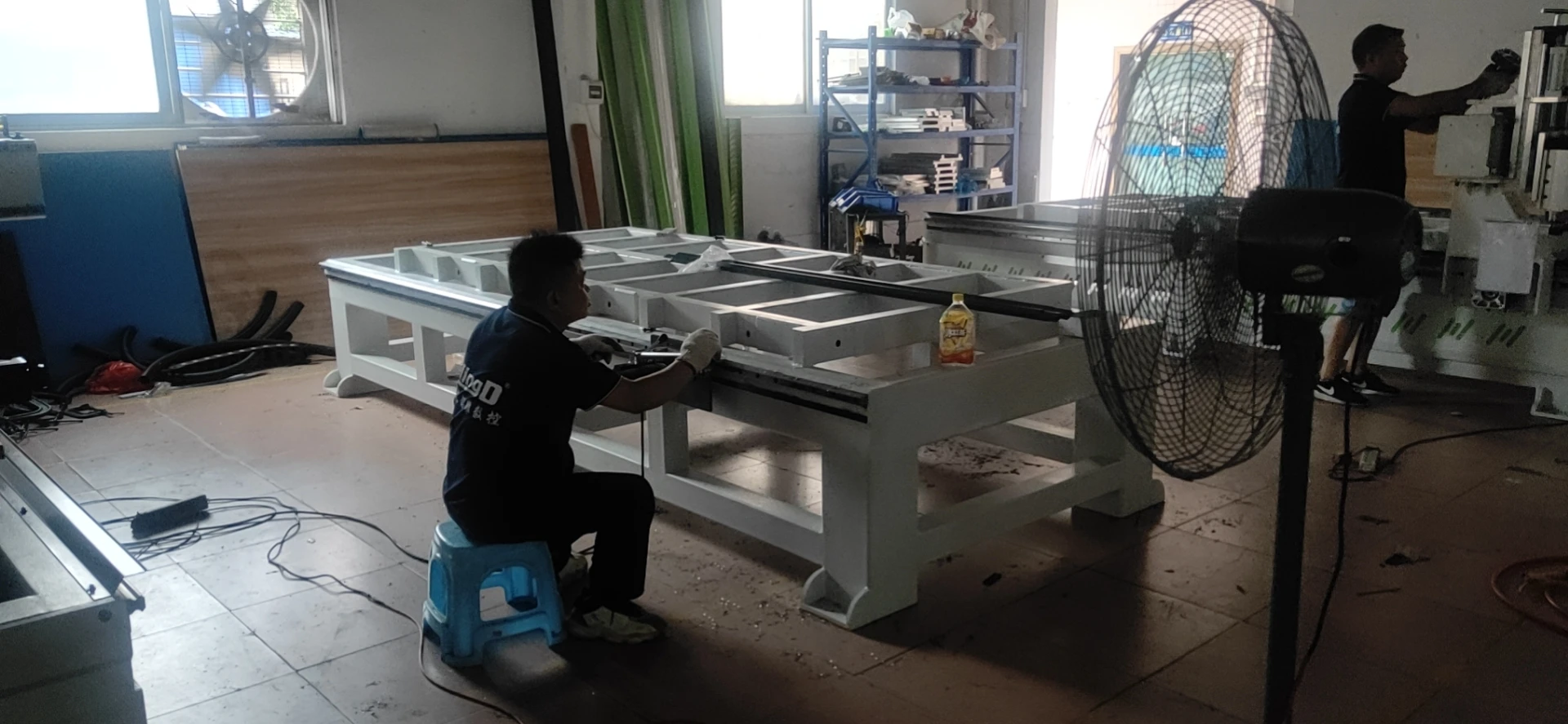

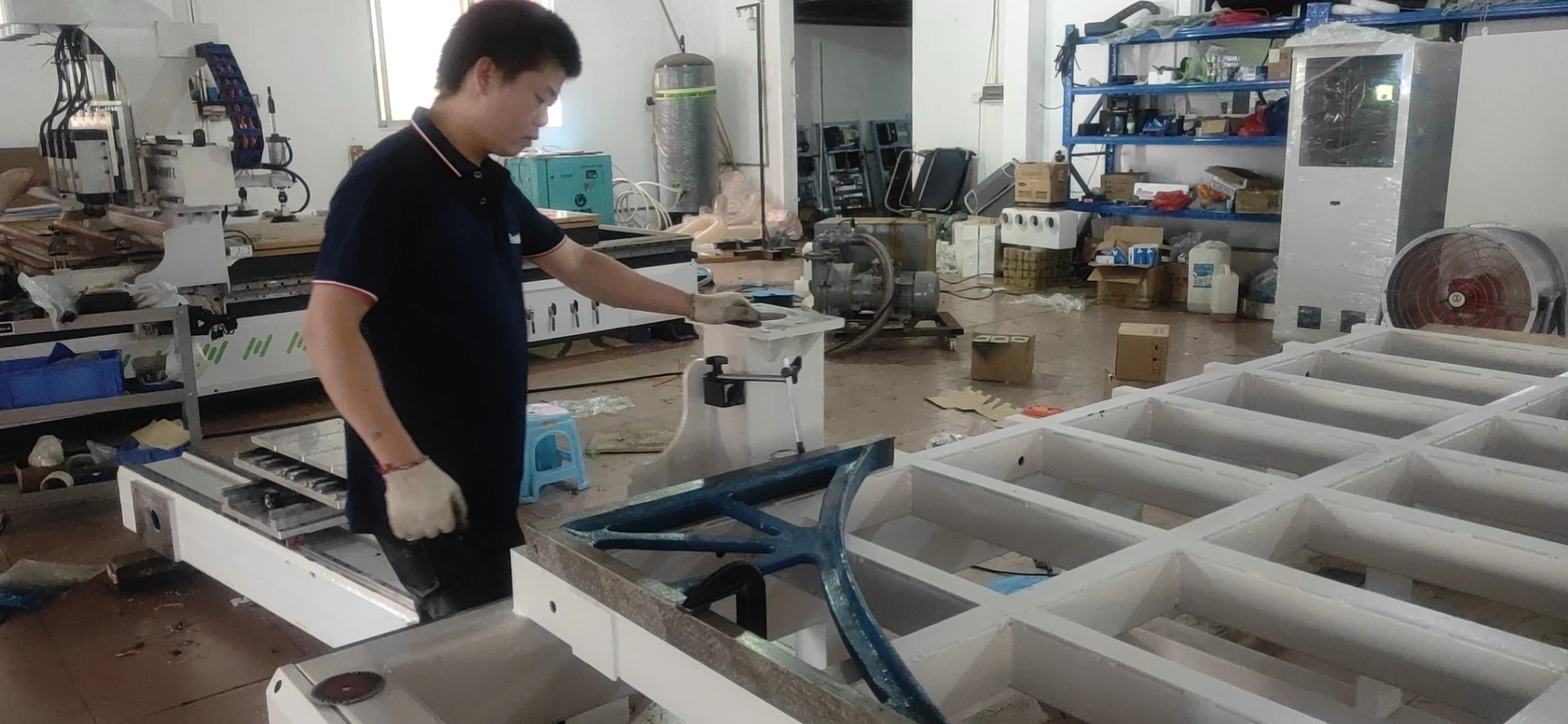

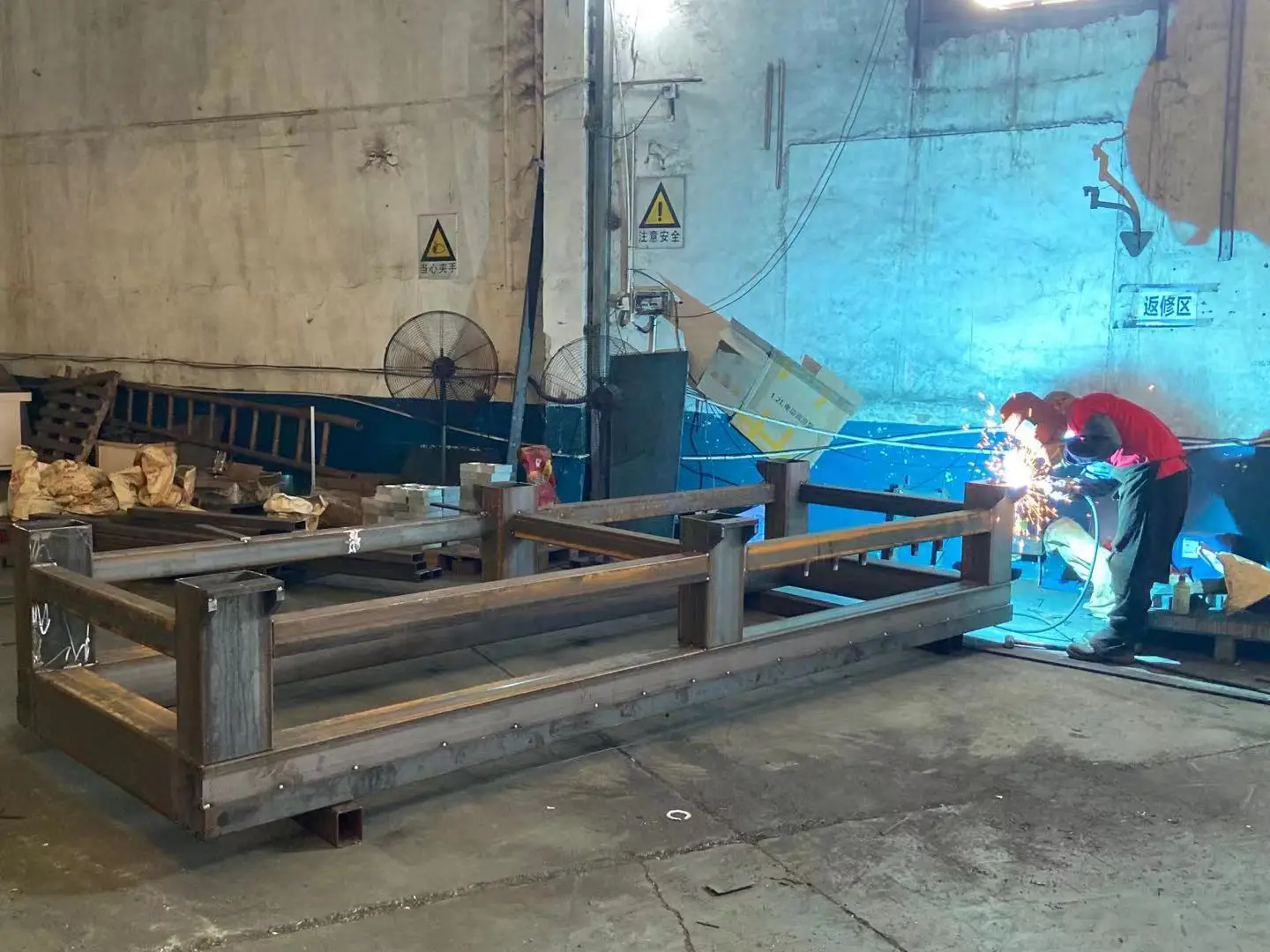

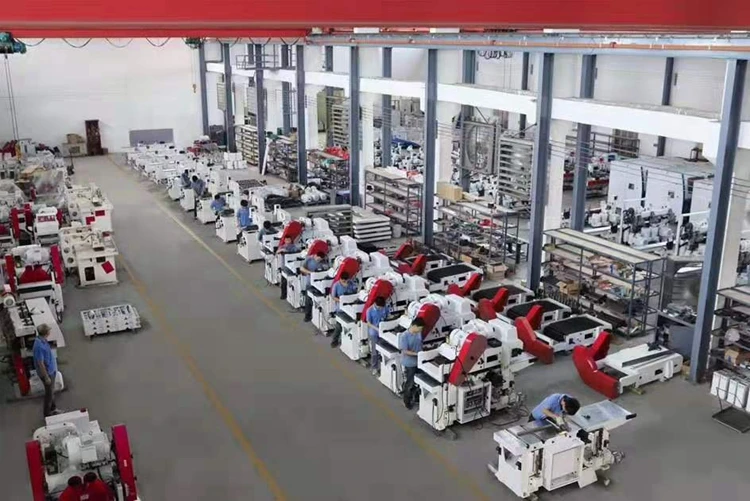

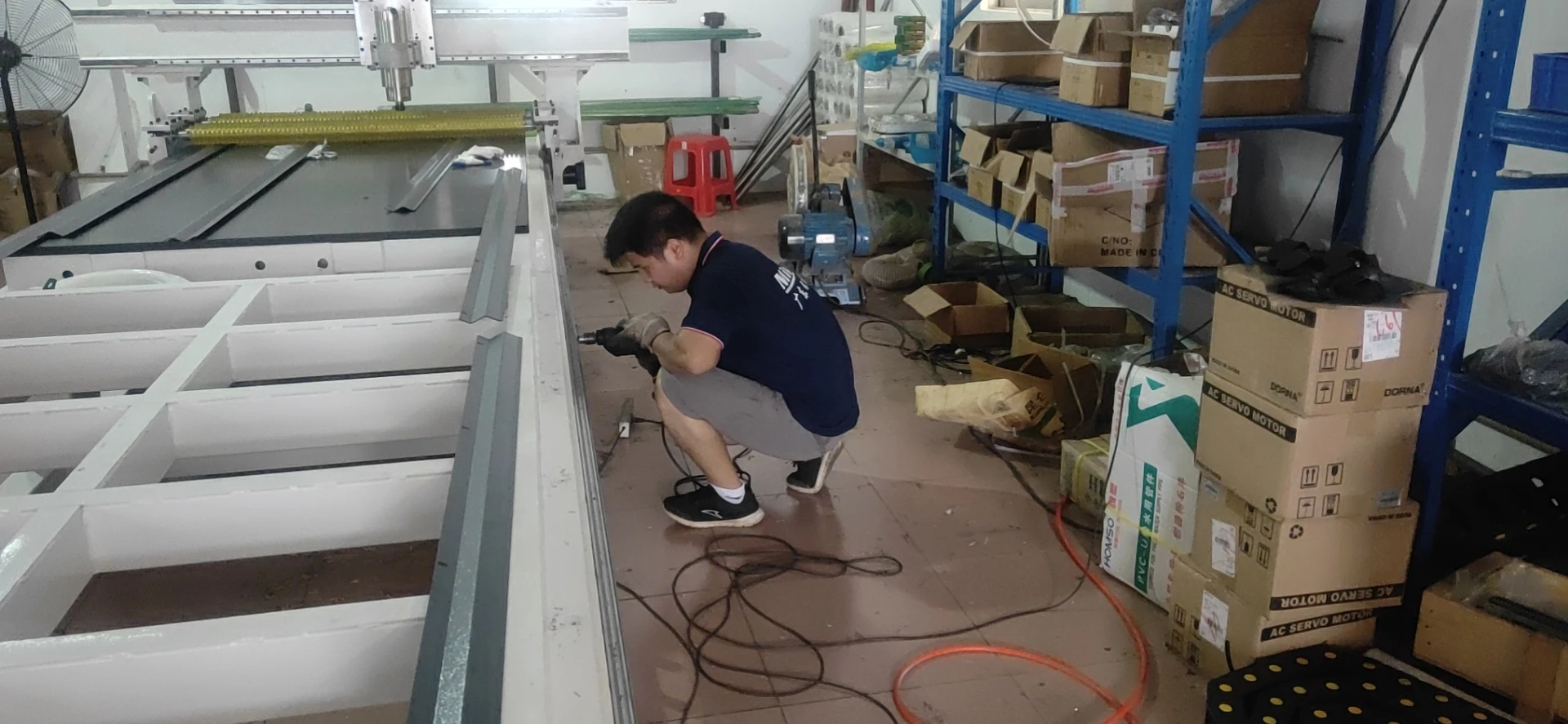

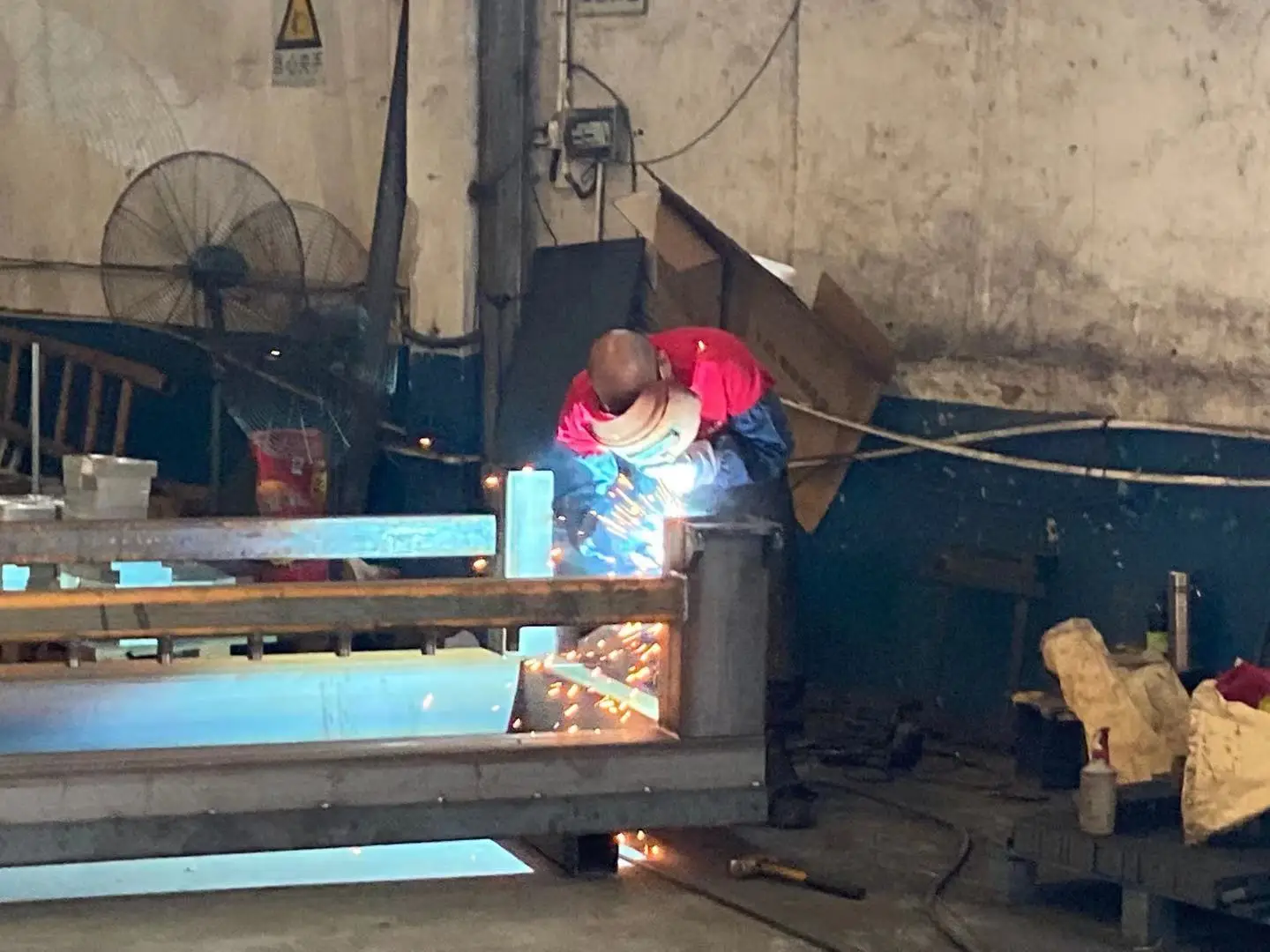

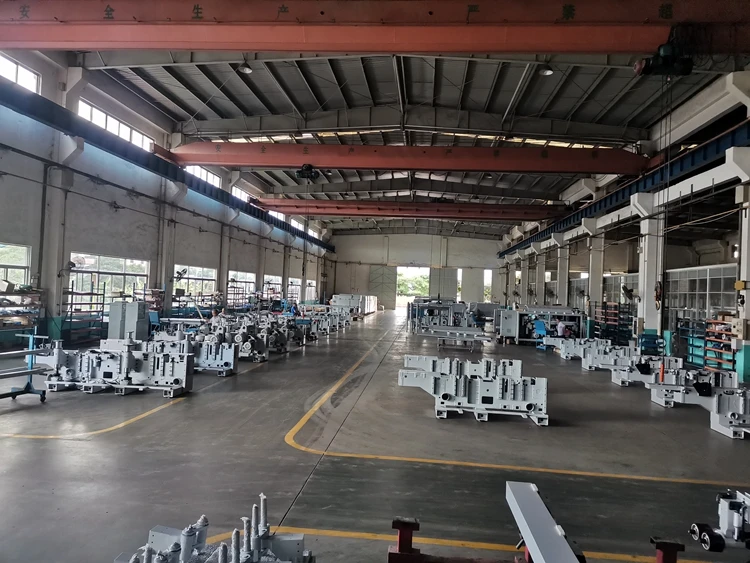

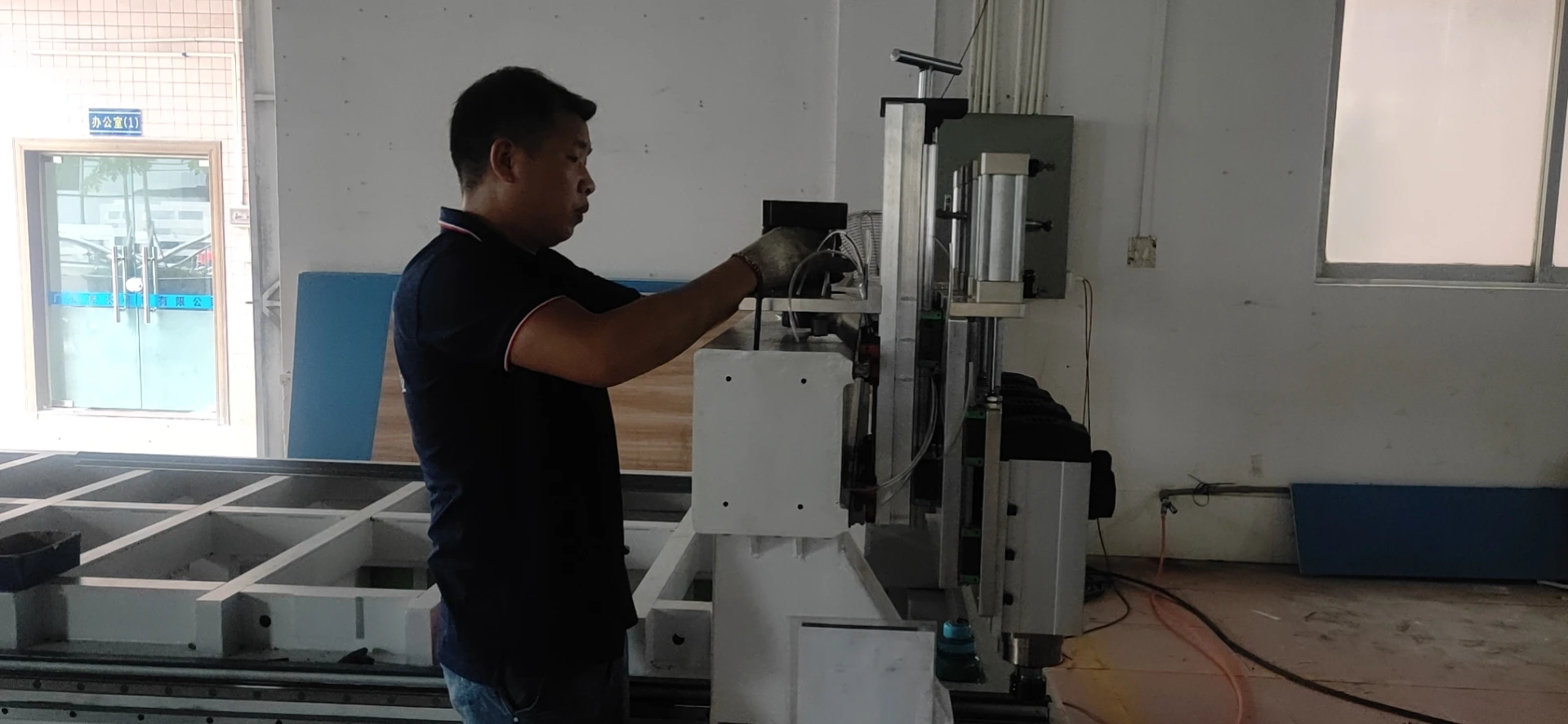

Production Process
Why Choose Us
1.How do I order a product that works for me?
:2.Can you provide designers to help you design ?
5.What is the payment term？
We recommend that you consult with our customer service staff before ordering and inform customer service I have a large order, can I place an order first at a low price? In your case, we may charge the normal price in the first order, but we guarantee that the difference will be refunded after a certain number of orders are placed.
:2.Can you provide designers to help you design ?
Yes, we can provide you with a technical engineer to complete your solution.Please send us pictures or related scheme sketches on the Internet.
3.Can I produce if I want a different configuration?
Yes ,We are manufacturers and fully support customization! Customers who require customization will check the details with our sales staff in advance to avoid deviations and errors!
4.What is the delivery time?
Normal 380V voltage 10-15 days, other voltage is 15 days.
5.What is the payment term？
T/T 30% in advance and balance before shipment, LC or by negotiation.
6.What is the guarantee?
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service
all the lifetime.
all the lifetime.
7.What is the technical support?
1) Technical support by phone, email or MSN/Skype around the clock
2) Friendly English version manual
3) Engineer available to service machinery oversea
8.What is the after sales services?
you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel etc. We can also send our engineer to your factory, but need you take charge of all travelling cost and labour cost 100USD/day
