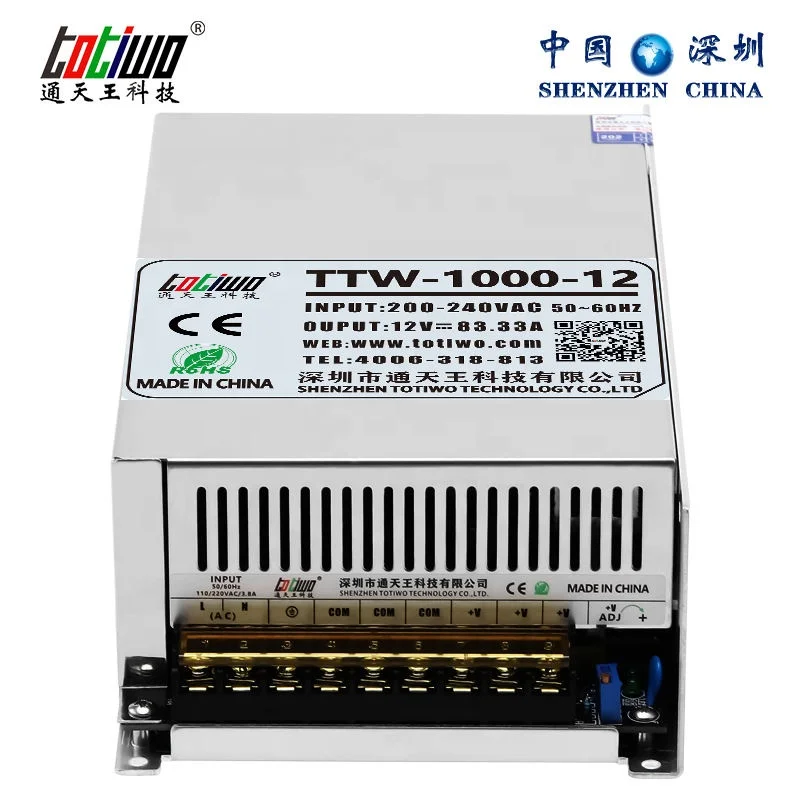

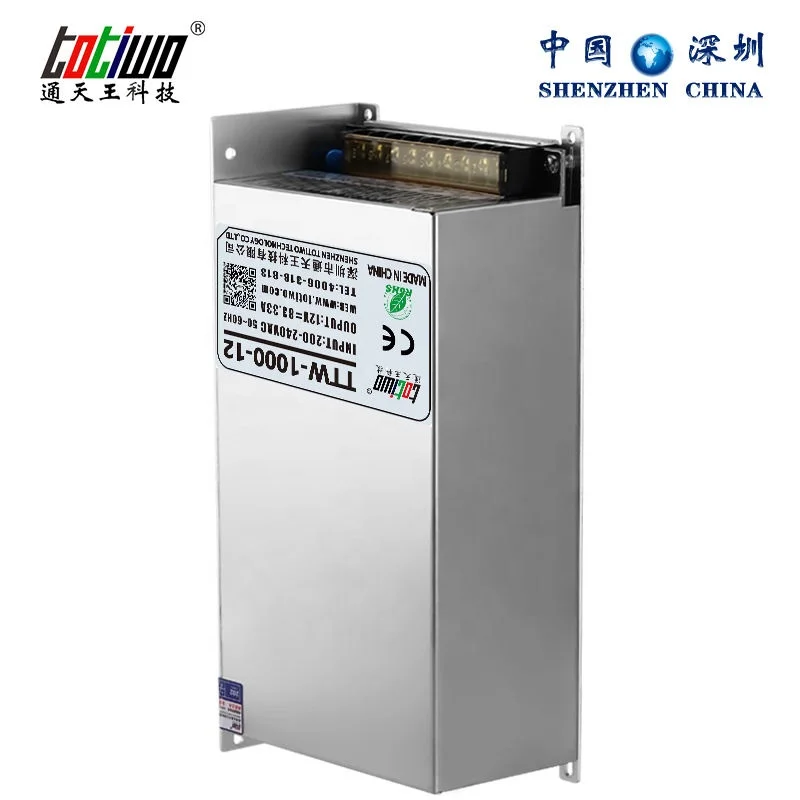

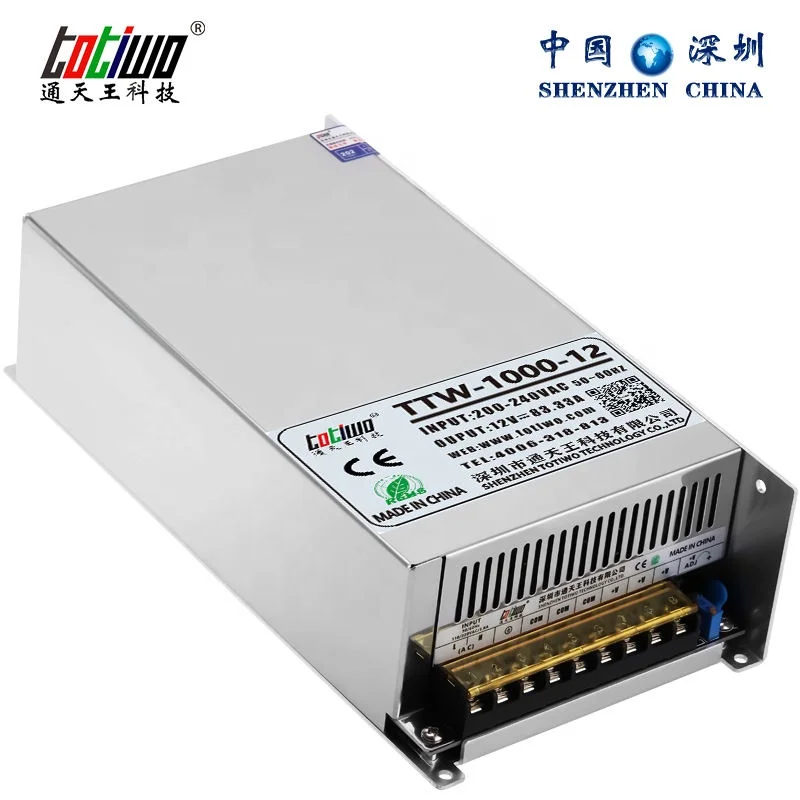

Switching Power Supply 1000W, AC to DC 1000Watt 71V 72V 73V 74V 75V 76V 77V 78V 79V 80V Transformer
- Category: >>>
- Supplier: Shenzhen Totiwo Technology Co. Ltd.
Share on (1600345225149):
Product Overview
Description
Switching Power Supply 1000W, AC to DC 1000Watt 71V 72V 73V 74V 75V 76V 77V 78V 79V 80V Transformer
Product Description
FEATURES

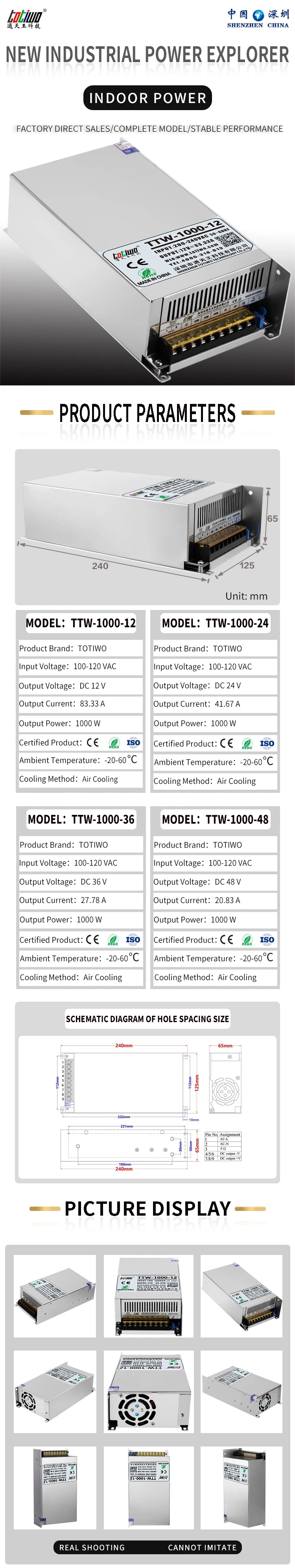

SPECIFICATION
Model No. | TTW-1000-71 | TTW-1000-73 | TTW-1000-75 | TTW-1000-80 | |
Output | DC Voltage | 71V | 73V | 75V | 80V |
Current Range | 0~14.08A | 0~13.69A | 0~13.33A | 0~12.50A | |
Power | 1000W | 1000W | 1000W | 1000W | |
Ripple And Noise |
Max 200mVp-p
| ||||
Voltage ADJ.Range | 69~72V | 72~74V | 74~76V | 79~81V | |
Voltage Tolerance | ±5%
| ||||
Setup, Rise Time | 800ms, 30ms,24ms / 220VAC
| ||||
Input | Voltage Range | 110/220VAC
| |||
Frequency Range | 47~63Hz
| ||||
Efficiency | >0.85
| ||||
PF | 0.86
| ||||
Current | 2.5A/220VAC
| ||||
Surge Current | 40A/230VAC
| ||||
Leakage Current | Max 3.5mA/240VAC
| ||||
Protection | Overload | Above 110%-150% of rated power
| |||
Shut-down output voltage, auto recovery after fault condition is removed
| |||||
Overvoltage | Above Max. Voltage (105% of rated voltage)
| ||||
Shut-down output voltage, auto recovery after fault condition is removed
| |||||
Over temperature | 90℃ ± 5℃(5~12V) 80℃ ± 5℃(24V)
| ||||
Shut-down output voltage, auto recovery after fault condition is removed
| |||||
Environment | Working Temp. & humidity | "-20°C~+60°C, 20%~90%RH
| |||
Storage Temp. & humidity | "-40°C~+85°C, 10%~95%RH
| ||||
Safety | Withstand Voltage | I/P-O/P: 1.5KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min;
| |||
Safety | GB4943 ;IEC60950-1; EN60950-1
| ||||
EMC | EN55032:2015/AC:2016; EN61000-3-2:2014; EN61000-3-3:2013; EN55024:2010+A1:2015
| ||||
LVD | EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
| ||||
Other | Cooling |
free air
| |||
Lifespan |
20000hrs
| ||||
Dimensions (L*W*H) | 240*125*65mm | 240*125*65mm | 240*125*65mm | 240*125*65mm | |
Weight | 1.43kg | 1.43kg | 1.43kg | 1.43kg | |
Note | 1. The above mentioned data were measured at 230VAC input and 25°C. | ||||
Company Information
FAQ
Q1: What's your main products?
A: we focus on constant voltage ac-dc power supply from 10w to 2000w with different output voltage(5v, 12v, 24v, 36v, 48v, 60v, 90v, 110v etc), IP rate (IP20, IP43, IP67) and size (standard, thin, slim).
Q2: How long will it take to ship?
A: We have a big warehouse, 90% of goods will be shipped within 3 days.
Q3: Do you accept custom service?
A: We accept custom-made label, colorful box and product.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products with free replacement.
