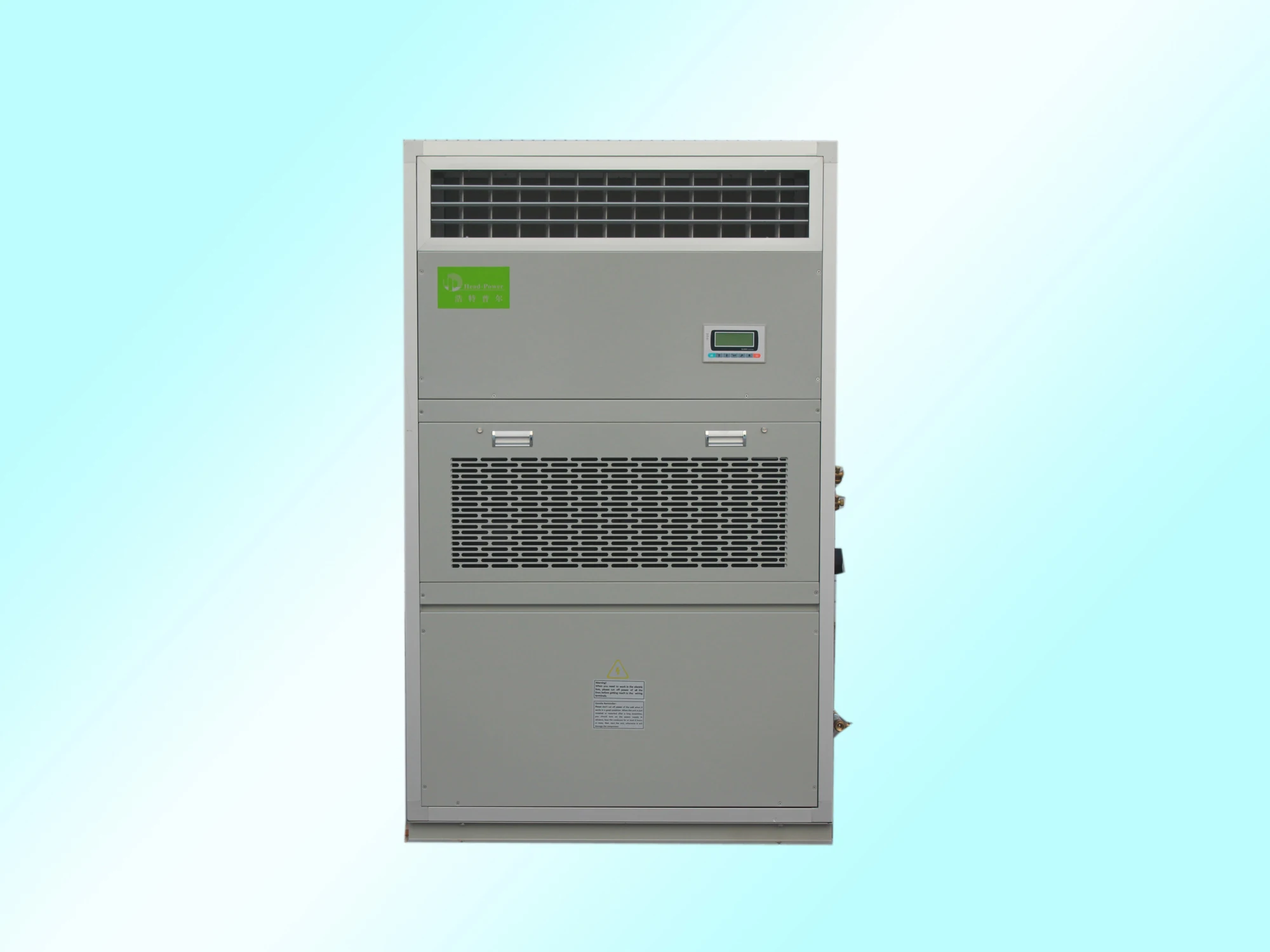

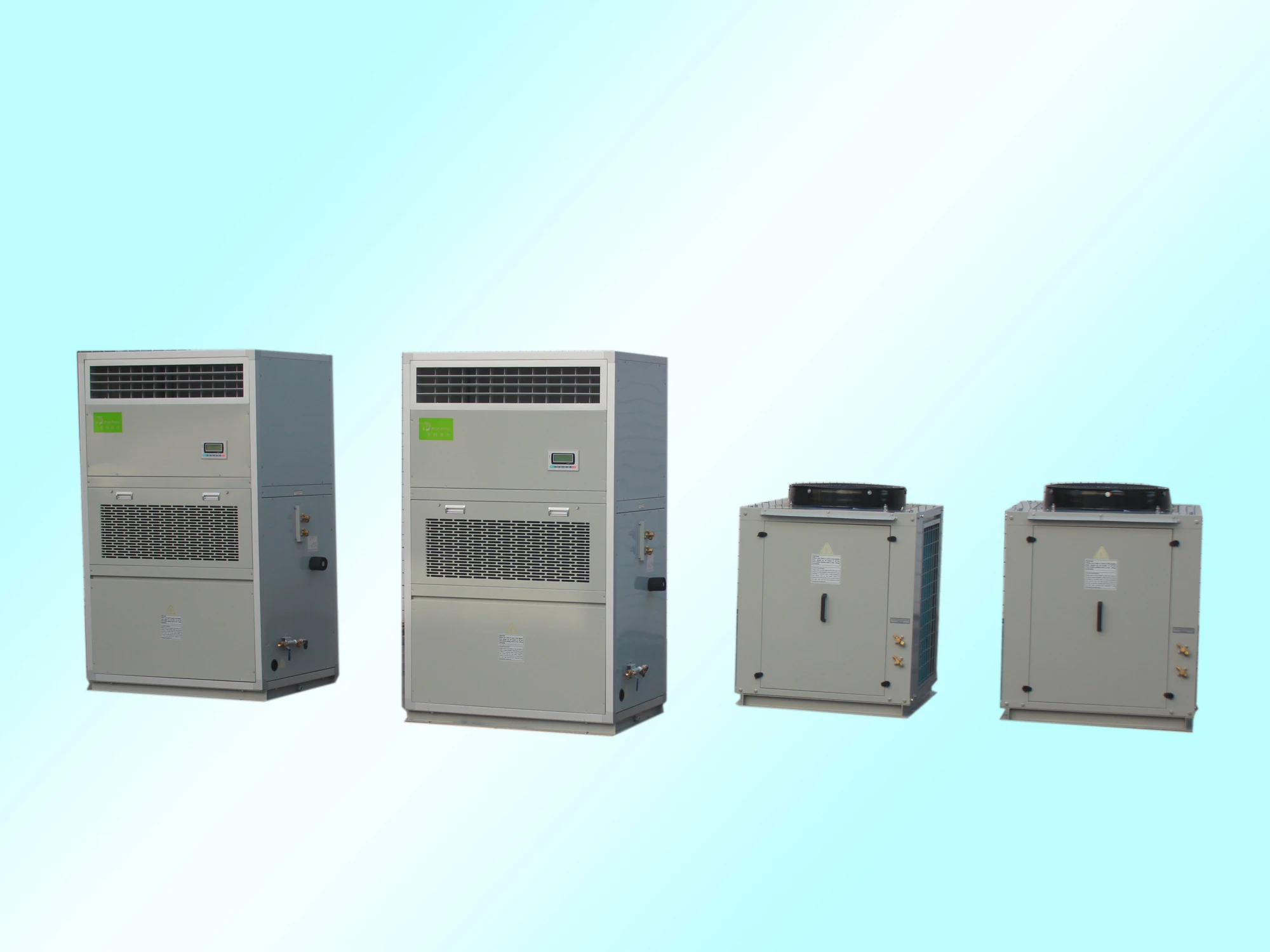

data center cooling system R410A room precision air conditioner

Product Overview

Description

The laboratory is the cradle of science, the base of scientific research, the source of scientific and technological development, and it plays a very important role in the development of science and technology. HEAD-POWER AIR CONDITIONING has a wealth of experience in the application of laboratory central air-conditioning systems. The self-developed laboratory-specific air-conditioning products have the characteristics of precise temperature and humidity control, high multi-stage purification efficiency, wide operating conditions, and high system stability. According to the needs of different laboratories, it can also provide tailor-made matching solutions, which is deeply trusted by users.



High Adaptability

•     Various en ergy-savi ng designs

•     Various air distributi on patter ns to meet demands from d iff ere nt airflow orga nizatioins

•     Various cooling patter ns, in cludi ng air cooling, water cooling, glycol cooling and cold water etc., ben efiti ng adaptability of on-the-spot

con ditions

•     Adapt to different cooling media such as R22, R407C and R410a

•     Various supervision patterns

•     - Air cooli ng conden ser offers devices for different temperatures and environ merits (includi ng start in low temperature).

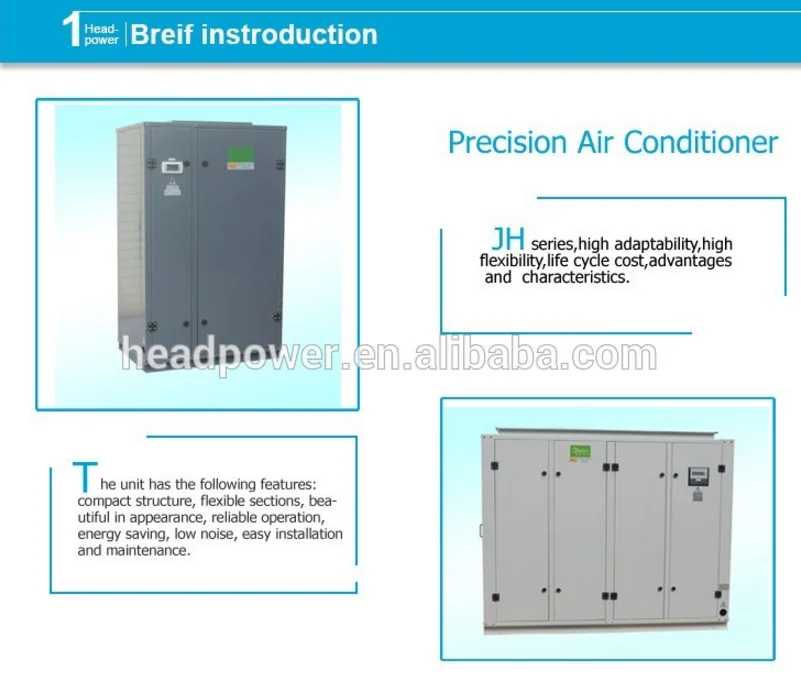

High Reliability, High Flexibility, Life Cycle Cost

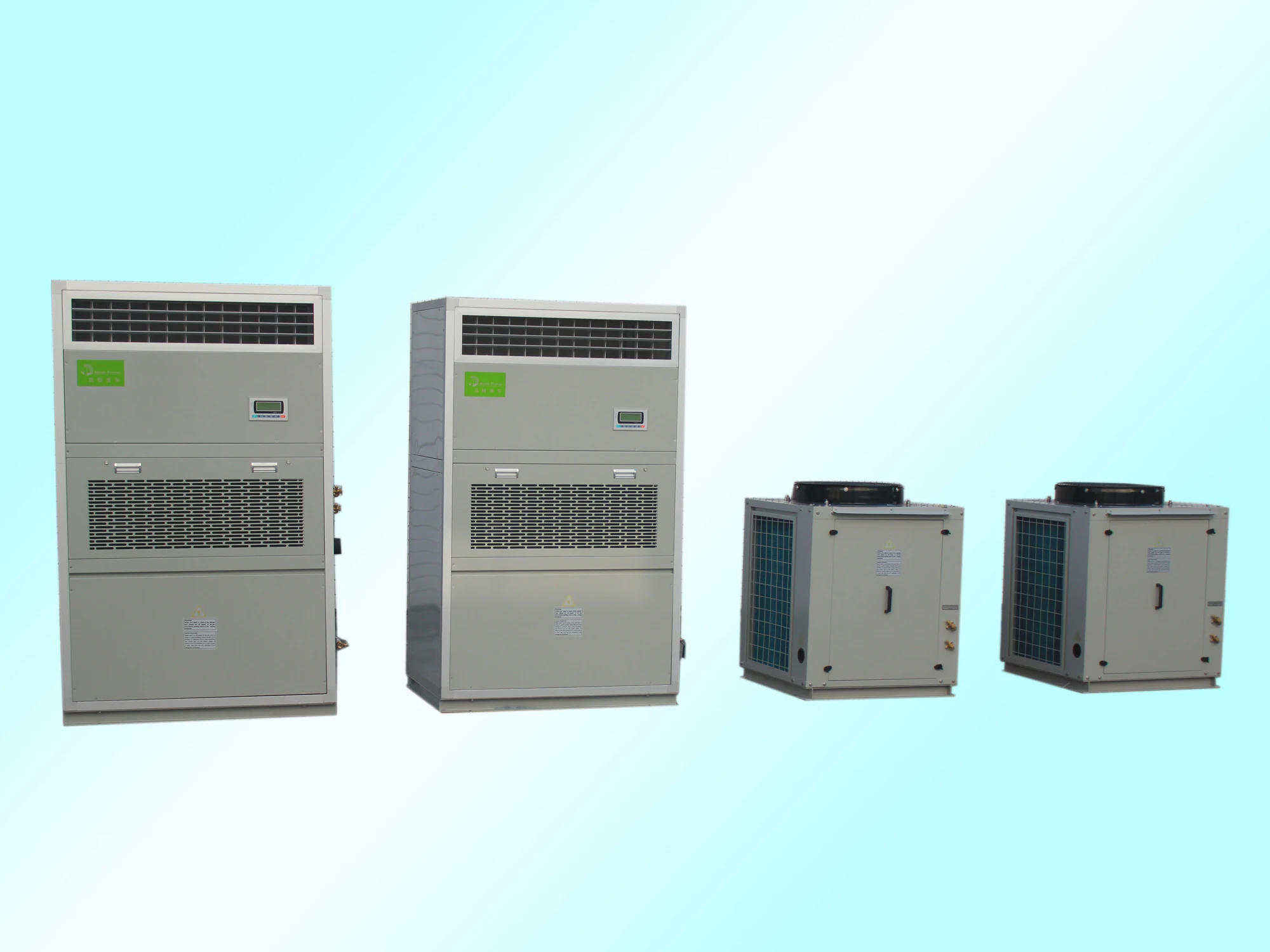

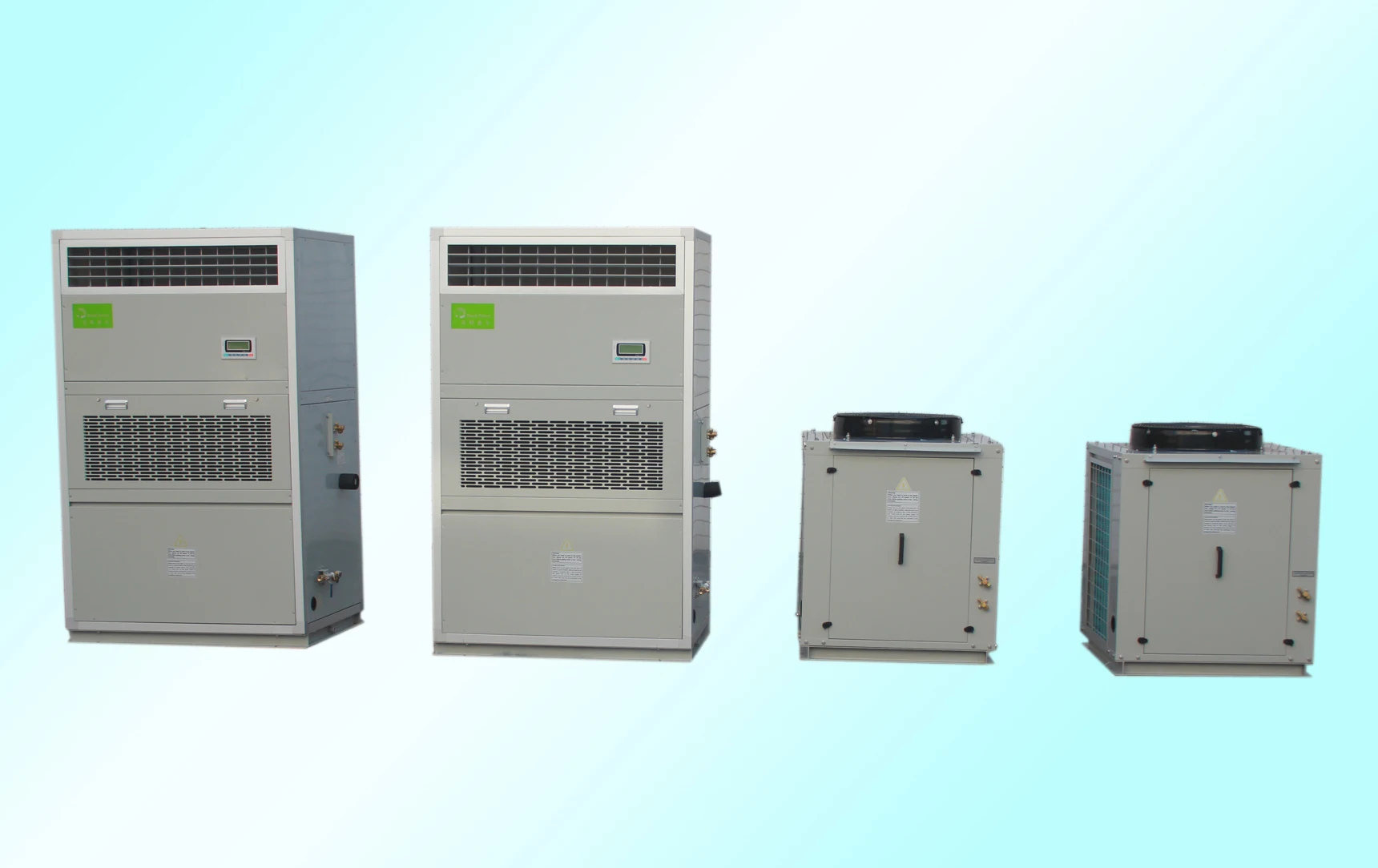

1.    complete series of products, including models of air cooling, glycol cooling, water cooling and cold water

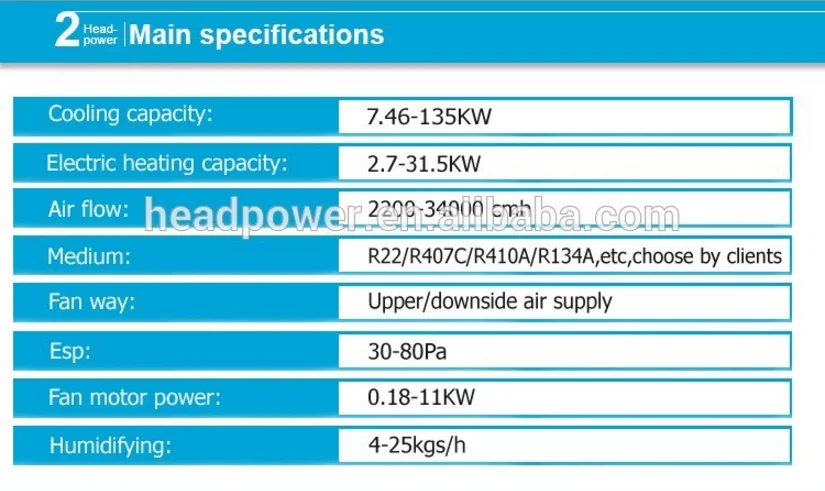

2.        wide refrigerating range, 5kW-100kW for air cooling, water cooling, glycol cooling machines, and 12-151kW for cold water machines

Advantages and Characteristics

1.    High Reliability, High Flexibility, Life Cycle Low Cost

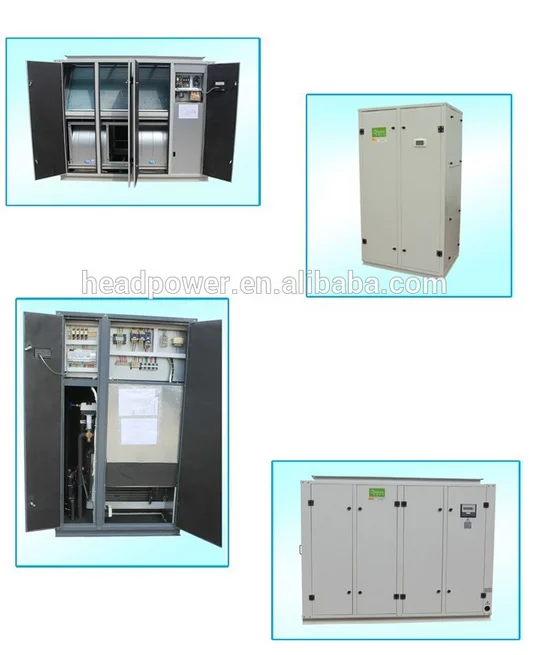

2.     removable structure for transportation, 100% all front maintenance, room space saving

3.     High-efficient scroll compressor, suitable for environment-friendly refrigerant

4.     tension adjustment fan, meeting dema nds from different ext. static pressure

5.     large V-shaped evaporator, quick dehumidification design, ensuring energy saving

6.     unique high-efficient electrode humidification system, quick humidification speed, adapt to bad water quality, low maintenance

7.     ultra big screen and all-Chinese character monitor

8.     strong united control and telecommunicational function

9.     brand new air cooling speed regulating condenser, low noise

It can break through the impact of site selection on energy saving of data center, meet the construction of data center in high heat and humidity area, and the pue is lower than 1.25.

The realization of clean, low-carbon and green data center has become an important direction for the sustainable development of data center industry. Head-power air conditioning products are selected by many well-known data center bases in China with diversified and efficient cooling system solutions.

Data center plays an important role in one of the seven major areas of new infrastructure construction. Head-power air conditioning is based on technology, constantly innovating and integrating, and is committed to providing green, energy-saving and efficient cooling solutions, helping the development of data center industry to further speed up and improve quality, and building a new generation of green intelligent data center, Provide strong support for the green and sustainable development of China's data center industry.

Computer Room Precision Air Conditioning Unit

Parameter table



JH48/JHF43	47.5/43.3	42.5/38.8	18(3)	12000	downside	70	14.6	15.9	3	≤68	2"	11.0	0.085	8	6.1	2320	940	2100	730	720	SW-5N*3
JH64/JHF58	64.4/58.3	57.6/52.1	18(3)	15000	downside	70	20.4	21.9	4	≤69	2"	14.5	0.09	8	6.1	2320	940	2100	752	731	SW-10N*2
JH73/JHF67	73/66.4	67.2/61	30(3)	17000	downside	70	22.1	25.1	4	≤71	2"	17.7	0.073	13	9.8	2320	940	2100	1271	1040	SW-13N*2
JH92/JHF85	92/83.2	85/76.5	36(3)	24000	downside	70	29.2	31.8	5.5	≤71	2-1/2"	22.0	0.078	13	9.8	2500	940	2100	1271	1040	SW-10N*3
JH108/JHF102	108/98.5	102/91.8	36(4)	28000	downside	80	33.5	37.9	7.5	≤72	2-1/2"	27.5	0.082	25	18.75	2550	940	2100	1271	1040	SW-13N*3
JH146/JHF135	146/131	135/122.3	56(5)	34000	downside	80	44.3	50.3	11	≤72	3"	35.5	0.092	25	18.75	4500	940	2100	1271	1040	SW-13N*4
