Domestic heating control systems 220V heating thermostats
- Category: >>>
- Supplier: Jiaxing Forward Trade Co. Ltd.
Share on (1600345261055):
Product Overview
Description
Product Description

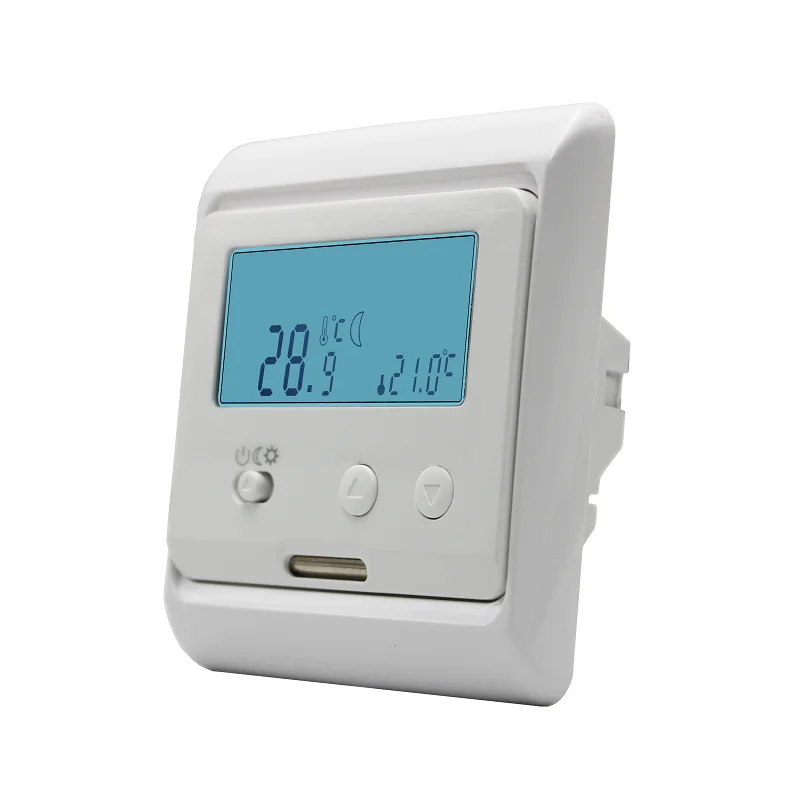

E31 Heating Thermostat with LCD Screen
Instruction Sheet General
Heating thermostat with LCD screen. Which has manual mode and energy saving mode. The thermostat Is recommended for the control of electric heating device or on/off valve actuator in hydronic underfloor heating.
Instruction Sheet General

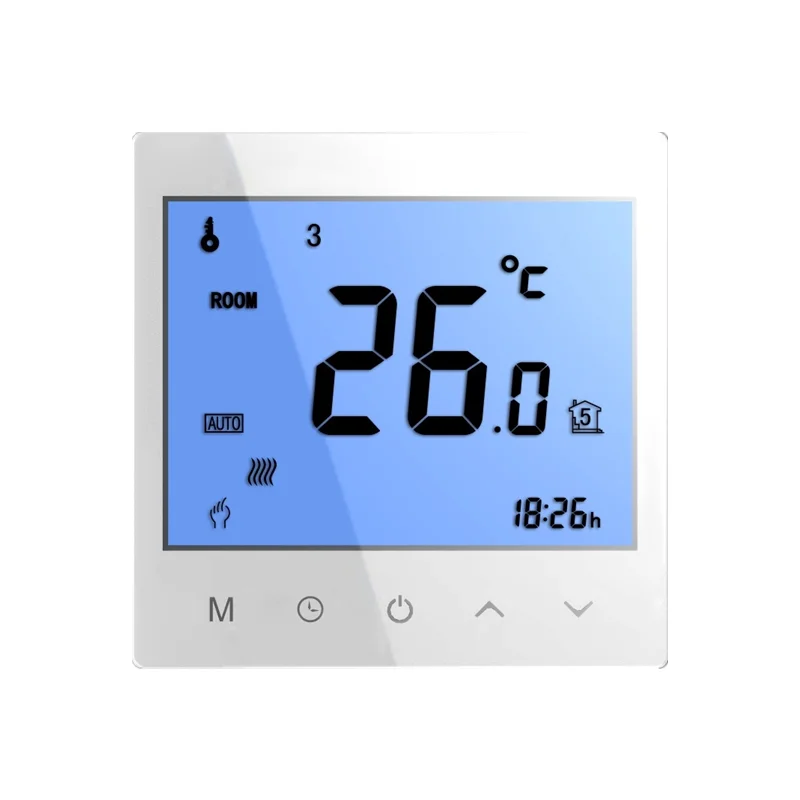

The AC3385 series room thermostats are designed for intelligently controlling fan coils unites (FCU), motorized valve, motorized
damper valves, dampers or heating equipment in industrial, commercial and residential environment. With large-screen LCD display
measuring the ambient temperature by built-in NTC sensor and comparing it with set-point, AC3385 Series Digital Room Thermostats
could automatically adjust the air inflow volume of cooling I heating , or switch on /off motorized valves to keep a constant
ambient temperature. Recommended match with V2016, V4016, V6016, and V8016 Series motorized valves.
damper valves, dampers or heating equipment in industrial, commercial and residential environment. With large-screen LCD display
measuring the ambient temperature by built-in NTC sensor and comparing it with set-point, AC3385 Series Digital Room Thermostats
could automatically adjust the air inflow volume of cooling I heating , or switch on /off motorized valves to keep a constant
ambient temperature. Recommended match with V2016, V4016, V6016, and V8016 Series motorized valves.

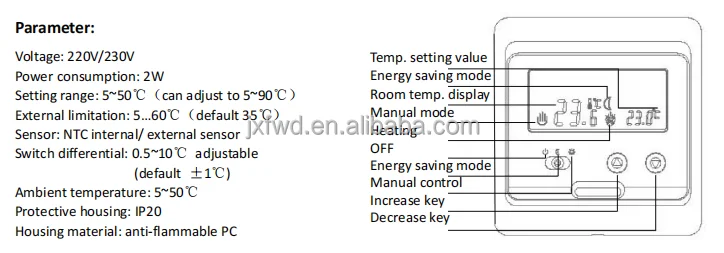

Product name | E31 room thermostat |
Power consumption | 2w |
Housing material | Anti-flammable PC |
Voltage | 220v/230v |
Protective housing | IP20 |
Temperature Range | 5℃ - 50℃ |
Accuracy | ±1 ℃ |

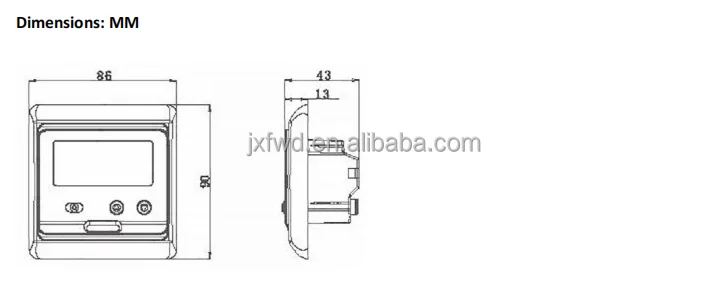

Size | 86mmx90mmx43mm(H*W*T) |
Product name | R3385 Room thermostat |
Power Consumption | <1.5W |
Time Error | <1% |
Power Supply | AC100-240V,50/60HZ |
Load current | 1A(Inductive Load) 2A(Resistive Load) |
Temperature Range | 10℃ - 30℃ |
Accuracy | ±0.5 ℃ |
Size | 87mmx87mmx15mm(H*W*T) |
