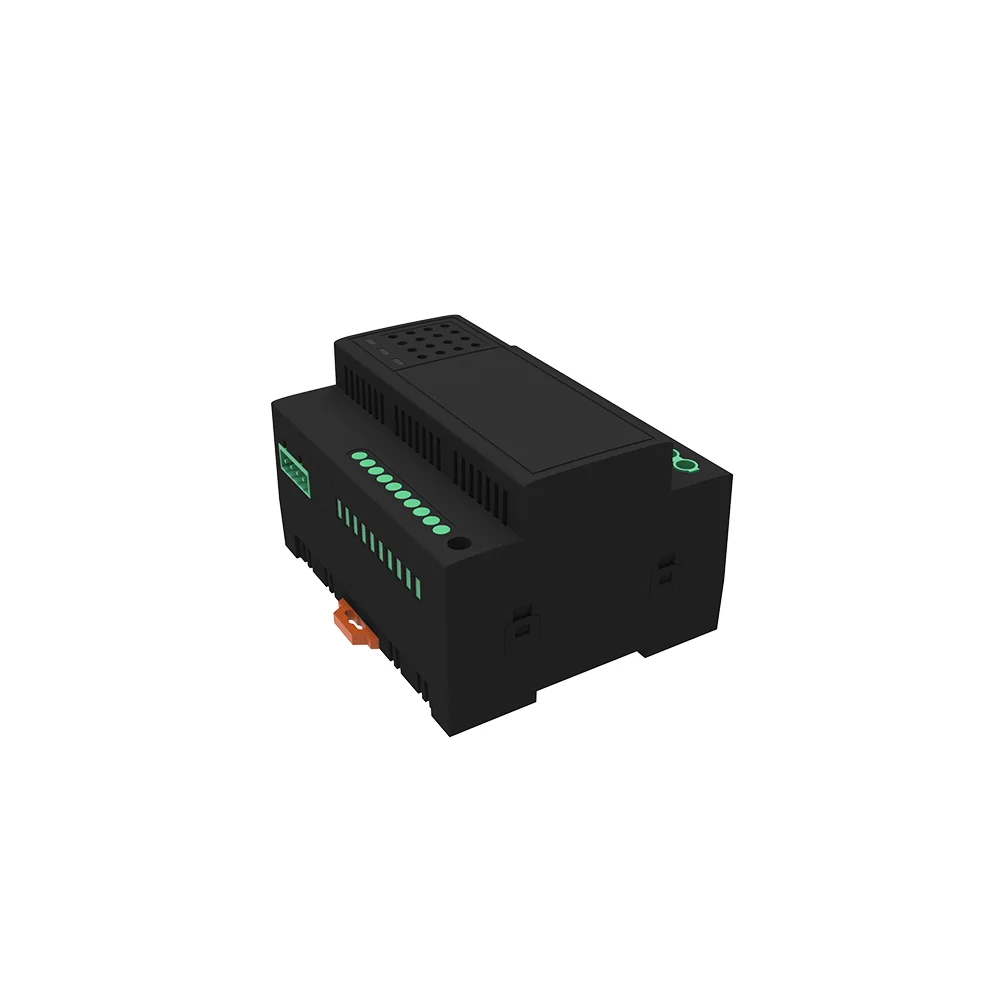

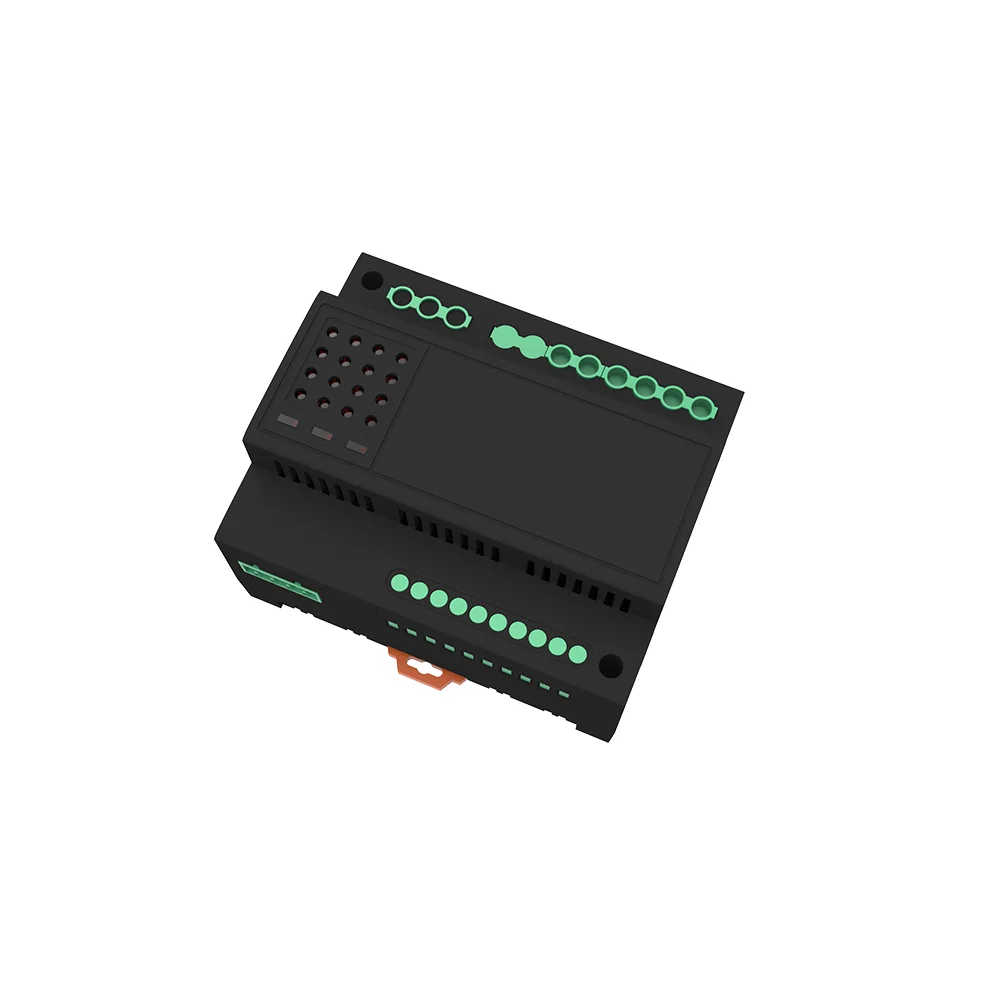

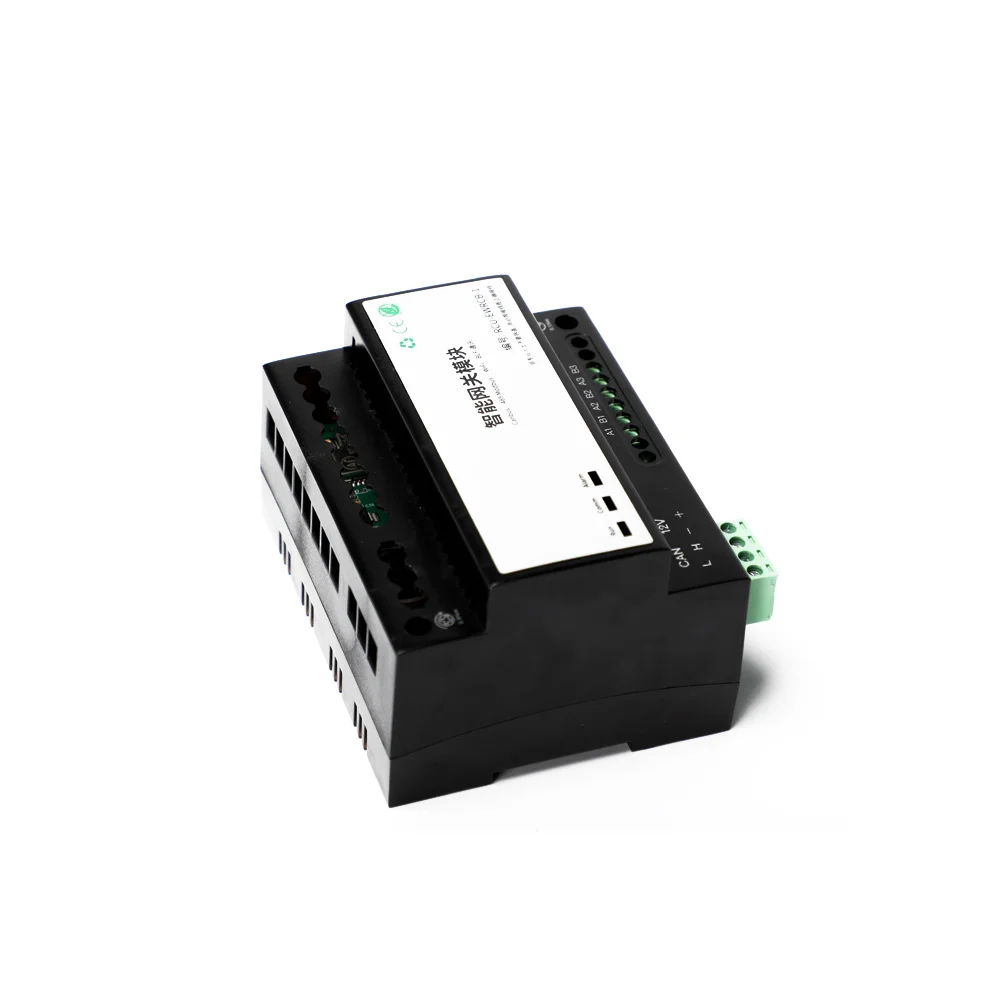

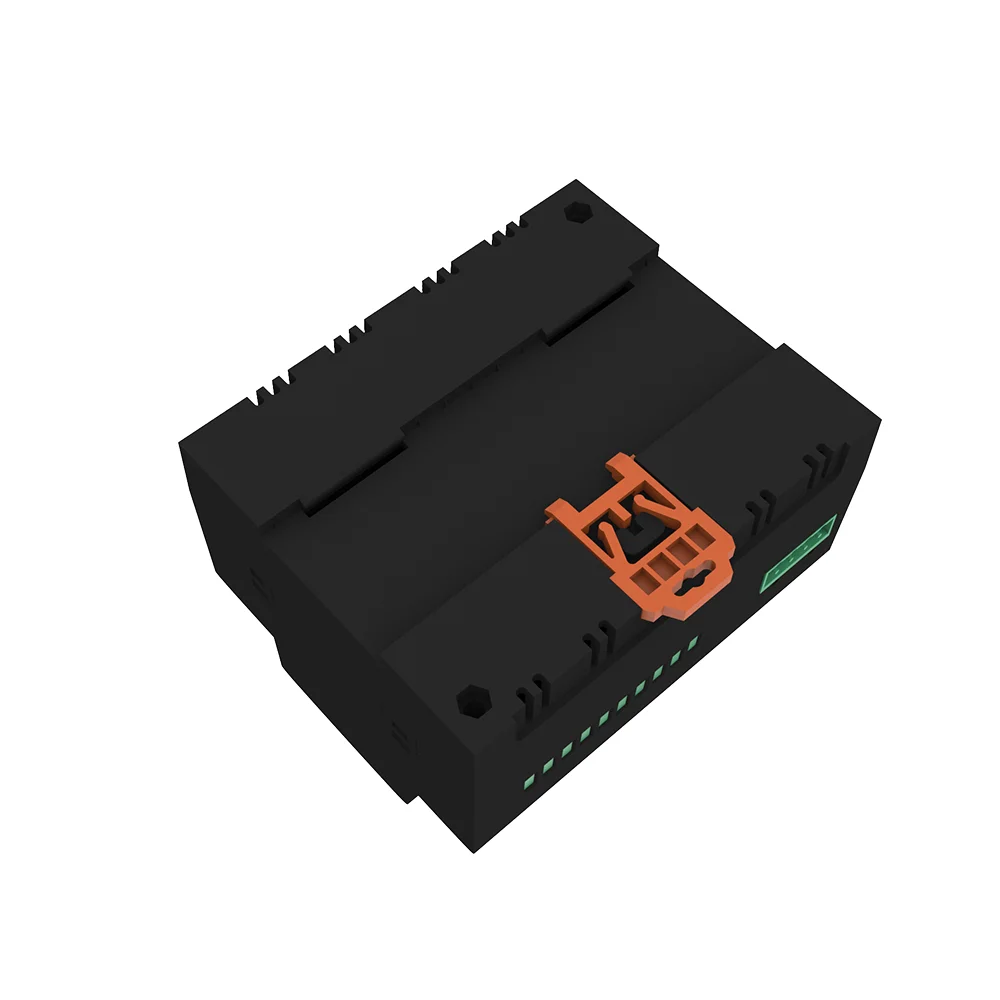

Iot gateway industrial Smart device wifi blue app control 12V RS485 modbus gateway for building
- Category: >>>
- Supplier: Shenzhen Omni Intelligent Technology Co. Ltd.
Share on (1600345337138):
Product Overview
Description
Iot gateway industrial Smart device wifi blue app control 12V RS485 modbus gateway for building
Product Description

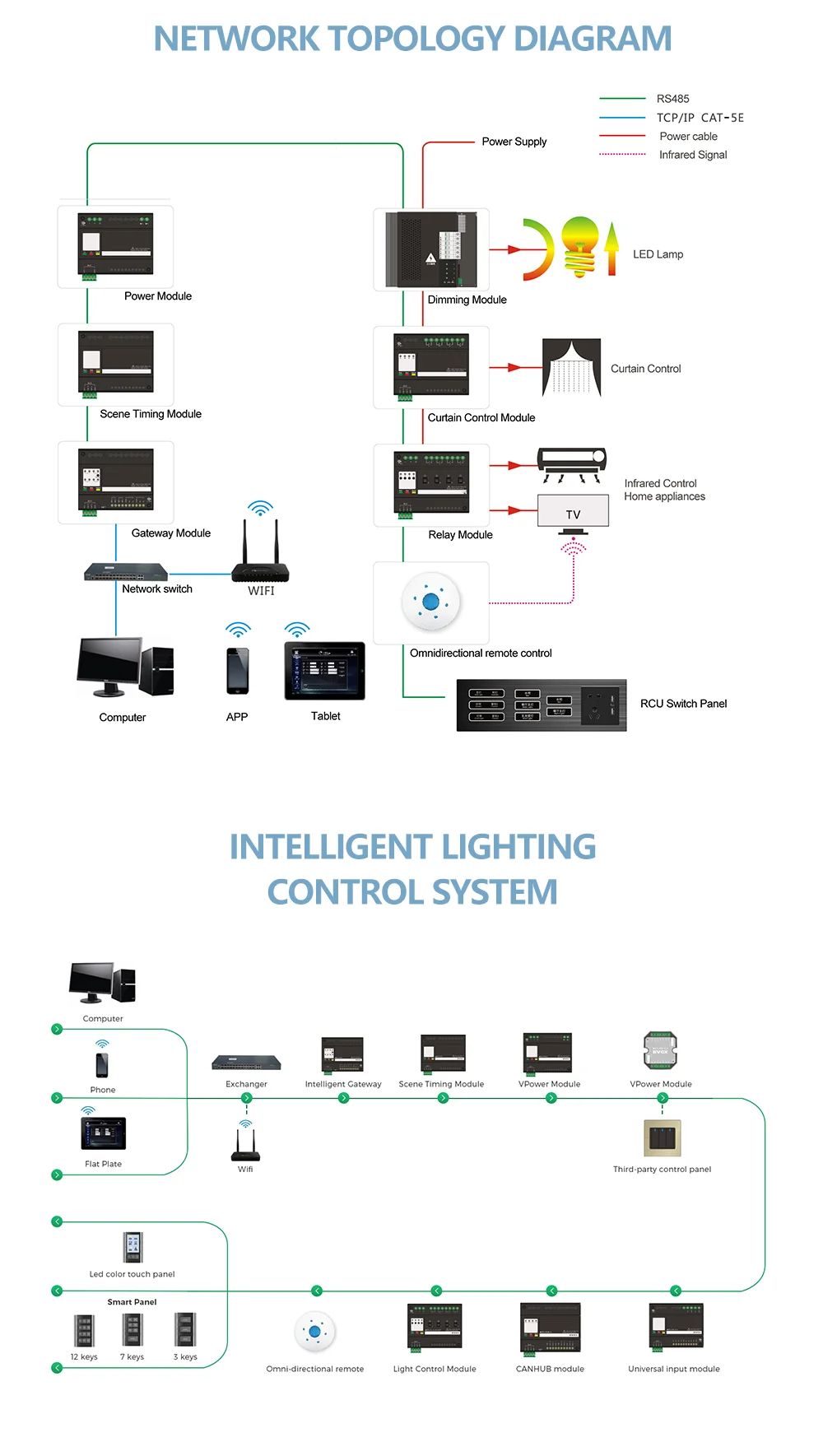

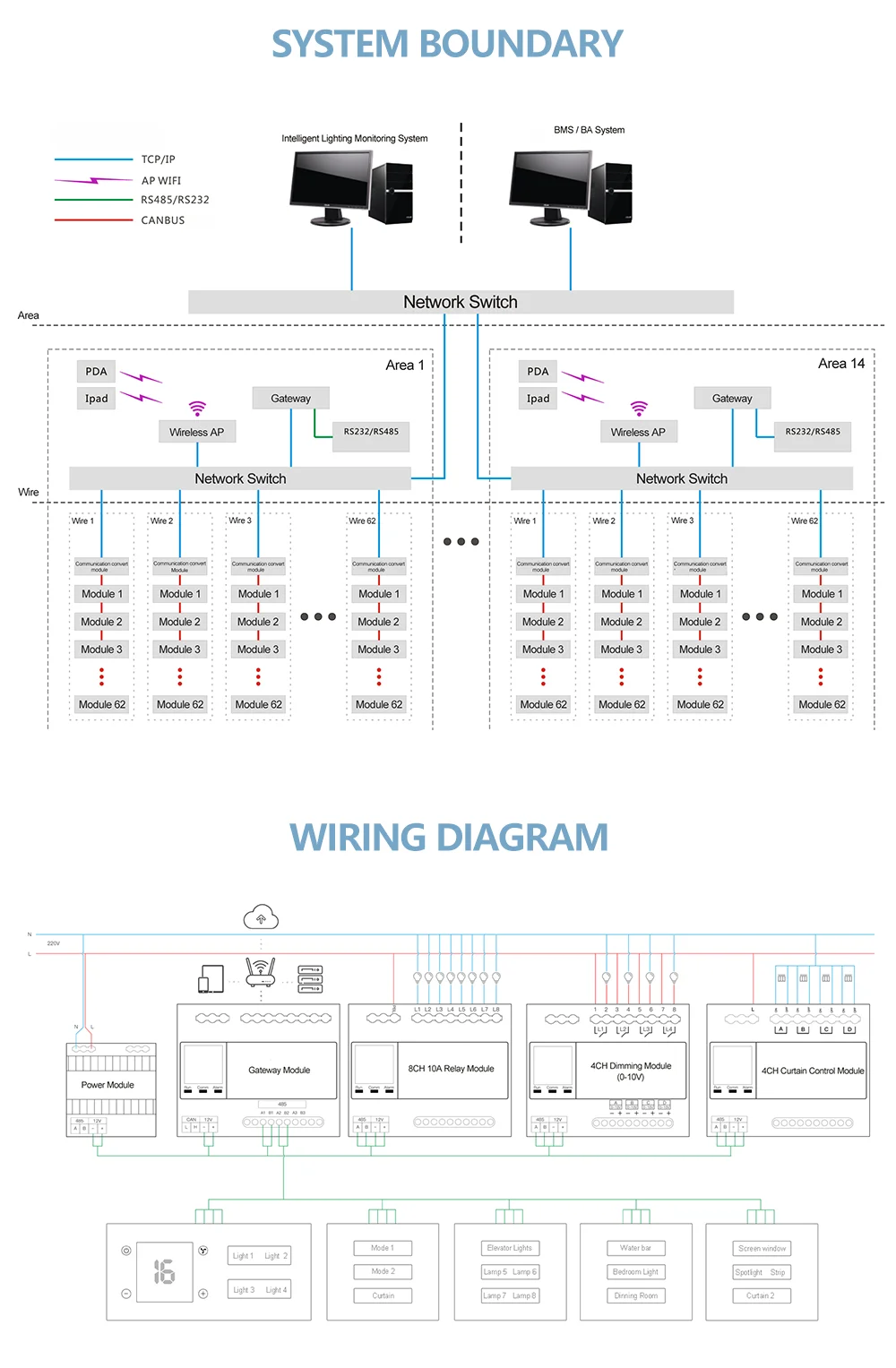

The gateway module is used for the communication and network management of the intelligent control system. It is often used as the host. It has the functions of IP network, scene and timing, wifi and RS232/485 data processing, and communicates with the operation management platform through TCP/UDP. It has being widely used for building automation and smart home/hotel light control, and provide energy saving service with customized building management system. App could be used for adding/delete device and customized settings.
Features
● 32 Scene Definitions
● RTC real-time clock, support scene timing function.
● RS485 communication: 3 groups of 485 Interface, each 485 port supports 32 sub-devices, support mounts relay drive module, window control module, dimming module, switch panel, sensor, central air conditioning controller, etc.
● CAN communication: support scene linkage function between gateways
● WIFI communication: connect to the cloud server via wifi, and operate the device through the mobile app/backend server
● Mobile APP: You can use APP to add/delete devices, set 485 addresses, device pairing, set device relationship attributes, control device switches, device online upgrades, etc.
● RTC real-time clock, support scene timing function.
● RS485 communication: 3 groups of 485 Interface, each 485 port supports 32 sub-devices, support mounts relay drive module, window control module, dimming module, switch panel, sensor, central air conditioning controller, etc.
● CAN communication: support scene linkage function between gateways
● WIFI communication: connect to the cloud server via wifi, and operate the device through the mobile app/backend server
● Mobile APP: You can use APP to add/delete devices, set 485 addresses, device pairing, set device relationship attributes, control device switches, device online upgrades, etc.

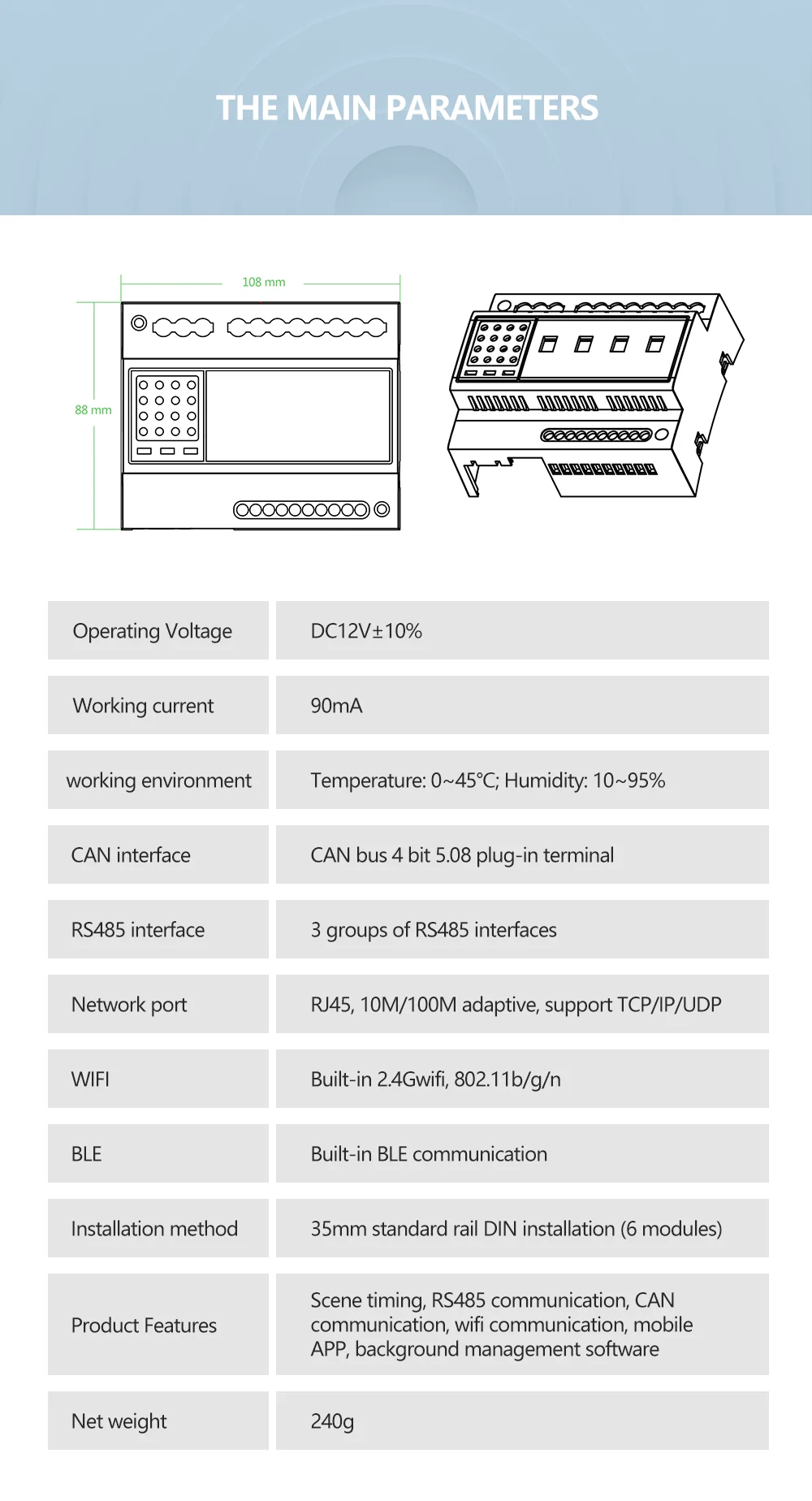

Specification
Usage | General Purpose |
Size | 108mm*88mm*66mm |
Operating Voltage | 12VDC±10% |
Working Current | 90mA |
CAN interface | CAN bus 4 bit 5.08 plug-in Terminal |
RS485 Interface | 3 groups RS485 Interface |
Network Port | RJ45, 10M/100M adaptive, support TCP/IP/UDP |
Wifi | Build-in 2.4G wifi, 802.11 b/g/n |
Working Environment | Temperature: 0℃~45℃, humidity: 10~95% |
Installation method | 35mm standard guide rail installation (6 modules) |
Recommend Products
Company Profile
Omni intelligent technology is a professional solution provider for intelligent lighting control systems, mainly provides
solutions for hotel lighting control, education lighting control, home lighting control, venue lighting control, landscape
lighting control, commercial lighting control and so on. Integrating software development, hardware design and manufacturing issues, Omni aims to provide high efficiency lighting control solutions based on IoT technology.
Omni has a modern management model, efficient automated production lines, perfect after-sales tracking service, stable technical service support and professional development team, so as to ensure the efficient landing of the project. The company obtained 258pcs certificate, the Utility Model Patent, the invention patent, the appearance patent, CE, Rohs and so on.
Cooperated with NVC, omni has cooperated with many customers home and abroad to improve the lighting environment, saving electric energy and leading to an intelligent life style.
solutions for hotel lighting control, education lighting control, home lighting control, venue lighting control, landscape
lighting control, commercial lighting control and so on. Integrating software development, hardware design and manufacturing issues, Omni aims to provide high efficiency lighting control solutions based on IoT technology.
Omni has a modern management model, efficient automated production lines, perfect after-sales tracking service, stable technical service support and professional development team, so as to ensure the efficient landing of the project. The company obtained 258pcs certificate, the Utility Model Patent, the invention patent, the appearance patent, CE, Rohs and so on.
Cooperated with NVC, omni has cooperated with many customers home and abroad to improve the lighting environment, saving electric energy and leading to an intelligent life style.
Packing & Delivery
FAQ
1: Are you factory or trading company?
A: We are factory with more than 6 years manufacture experience in intelliegent control system, welcome to visit our factory!
2: What is Rs485 control system? What device can the system control?
A: Omni Rs485 intelligent control system conbine with power supply, smart circuit breaker, gateway module, relay module, curtains control module, dry contact input module, smart air-conditioner panel, smart switch panel, temprature&humidity sensor, IF detector sensor, or custom any functions what you want.
3. How can we guarantee quality?
Omni always manufacture a pre-production sample, 100% final inspection before shipment.
4. Except Rs control system, what else can you buy from us?
RF remote control, Cabinet Lock,Finger Printer Lock,GPS Tracker,U Lock,
5. How can I get a sample to check your quality?
A: After order confirmation, Omni would provide the sample to check quality. Blank sample for free, only freight collected. Existing samples would shipping 3-5 days, custom sample would finishing 15 to 20 days in usual.
6. Can you custom packaging for us?
A: Yes. Omni have a professional team with rich experience in gift box design and manufacturing. Just tell us your ideas and we will help to carry out your ideas into perfect gift boxes. It does not matter if you ado not have someone to complete files. Send us high resolution images, your Logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
7. What about the lead time for mass production?
A. Omni would made a schdule for per customer, 25 to 35 days inusual after confirm with payment. Specilly will more days in peak season.
8. What is your terms of delivery?
A: We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
