Custom size rf shield box mobile phone bluetooth router set top box wifi gsm testing RF manual shielding box
- Category: >>>
- Supplier: Shenzhen Osbay Technology Co. Ltd.
Share on (1600345345656):
Product Overview
Description
Office:1st Floor, Sanwei ,Baoan, Shenzhen Factory: Sukeng, Changping, Dongguan Hq: RM14 29/F,HO King Commercial Centre,Mongkok, KL, Hongkong www.rfshieldingbox.com | Silo Head-Sales Division Shenzhen Osbay Technology Co.,LTD Tel.: +86 13670169390 sales@rfshieldingbox.com | |
What products Osbay do ? Shielding chamber, shielding room,EMI room, power divider, signal amplifier/ attenuator, Rf coupler&cable,etc. What service Osbay provide? Strict Quality; No MOQ; Video Technician & assembling Training ; Customized chamber size & Filter module; Contact us now if any of our product interest you. | ||
Brief Introductions
This rf shield box is an economical Manual shielding box, which is suitable for building modules and terminal tests in smart phones, WI-FI, wireless, smart grid equipment, automotive electronics, drones, smart homes and other fields & Solution platform.The shield rf test box is made of high-quality large-scale plate laser CNC cutting, sheet metal molding,electroplating,electrostatic spraying paint, assembly and commissioning, aging, testing and other dozens strict process.
Function:
* This EMI/RFI-shielded box has up to 80 dB reduction of RF signals up to 8 GHz. This makes the shielded box ideal for testing cellular handsets, RFID, Bluetooth, Zigbee, WiMax, WLAN or similar wireless devices.
* The box can be constructed in any size required.
* The box is well suited for the cases where the current state of an electronic device needs to be frozen by blocking all wireless contact with the outside world
* Many other shielded conduits are available on request. They may optionally also be added later.
* The box is well suited for the cases where the current state of an electronic device needs to be frozen by blocking all wireless contact with the outside world
* Many other shielded conduits are available on request. They may optionally also be added later.
Features:
* Wireless communication test system
* For BT, WiFi, 3G, wireless test, RFID
* High level of shielded attenuation,up than 80dB
* Flexible operation in Lab and production line
* R&D, custom design& size
* Box can be equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
* By default, it comes with 4 shielded SMA penetrations, 12 VDC, data line filter (RJ45), 2 times USB and a VGA penetration.
* For BT, WiFi, 3G, wireless test, RFID
* High level of shielded attenuation,up than 80dB
* Flexible operation in Lab and production line
* R&D, custom design& size
* Box can be equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
* By default, it comes with 4 shielded SMA penetrations, 12 VDC, data line filter (RJ45), 2 times USB and a VGA penetration.

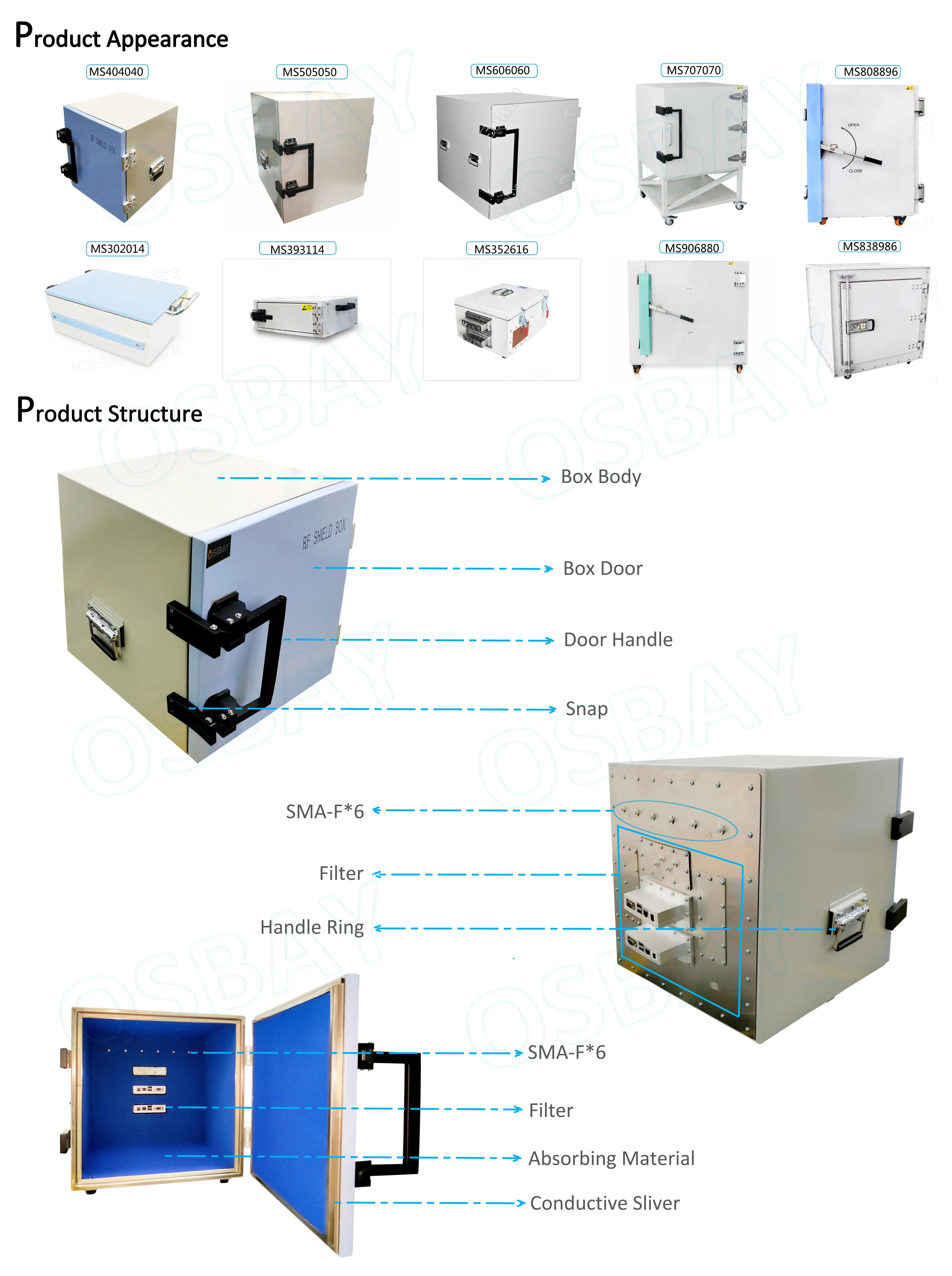

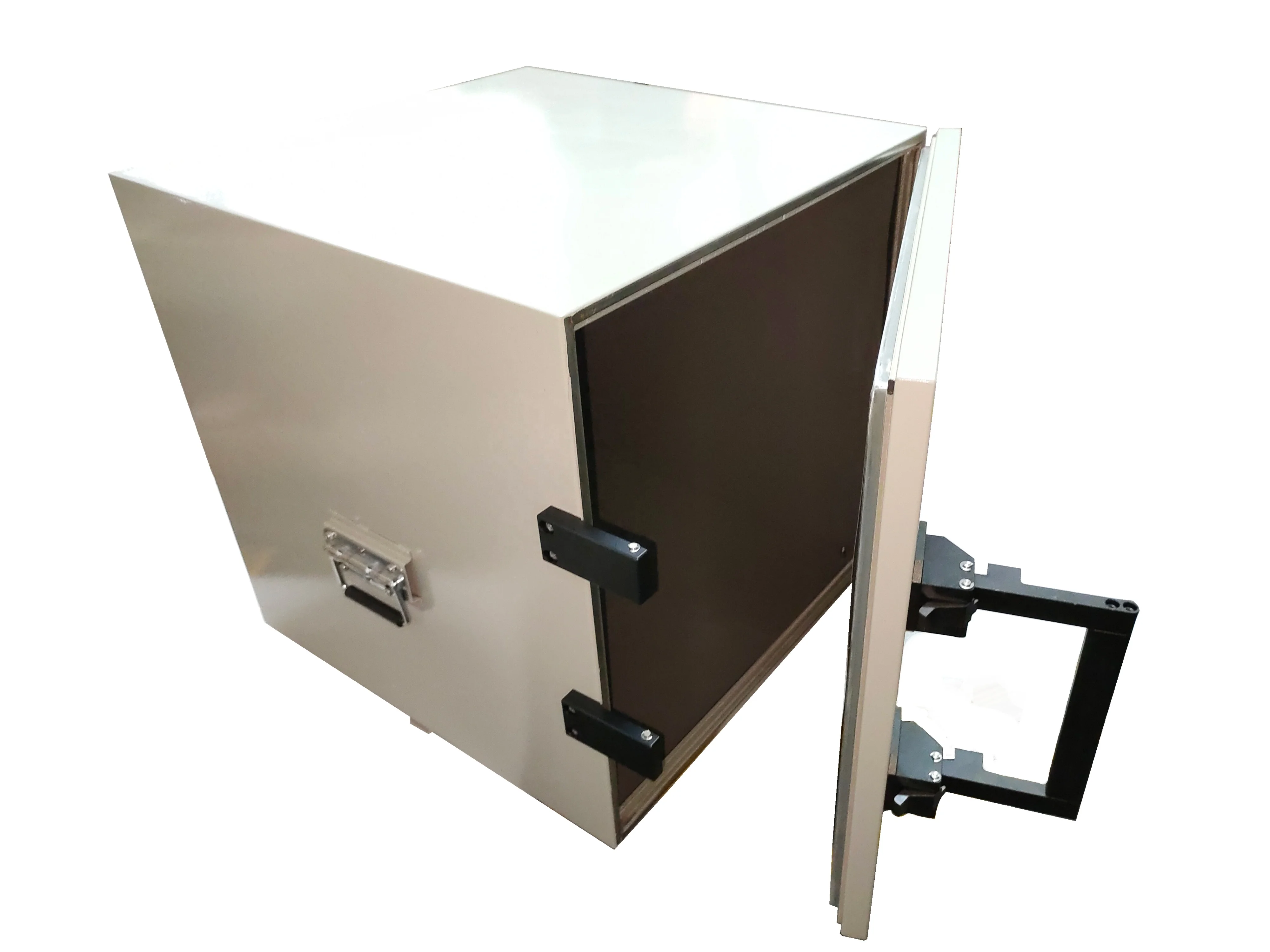

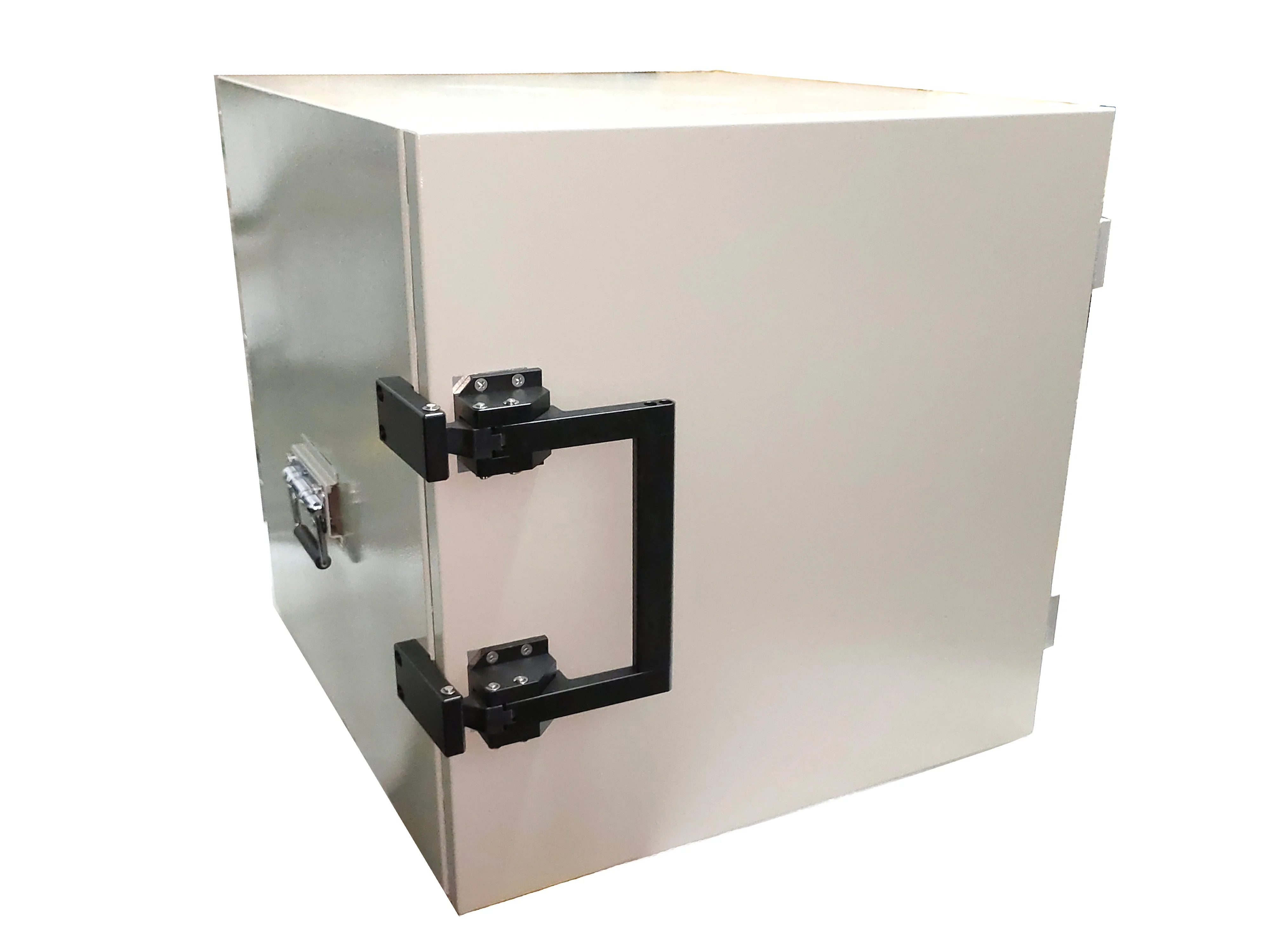

Front Overview

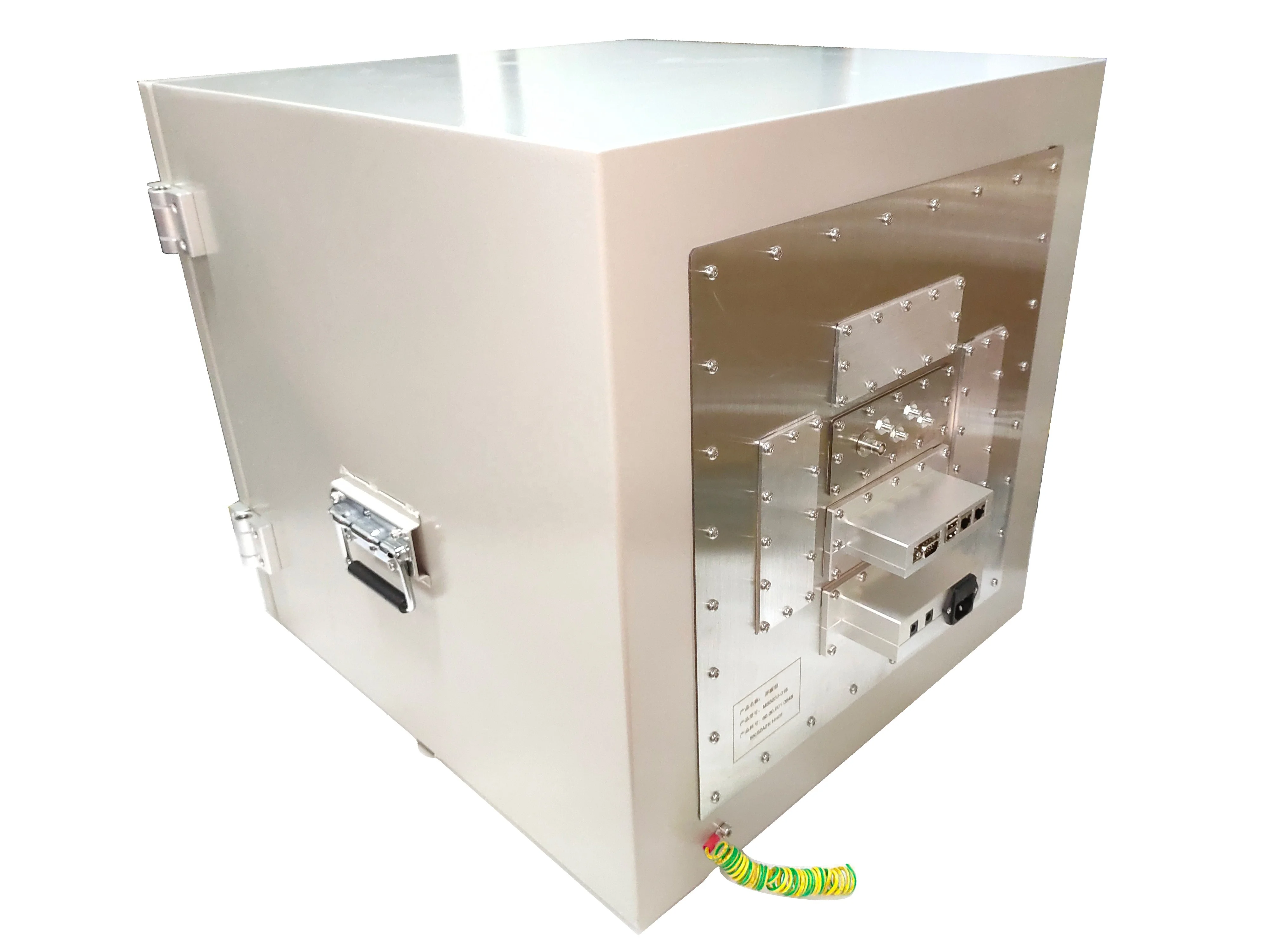

Back View

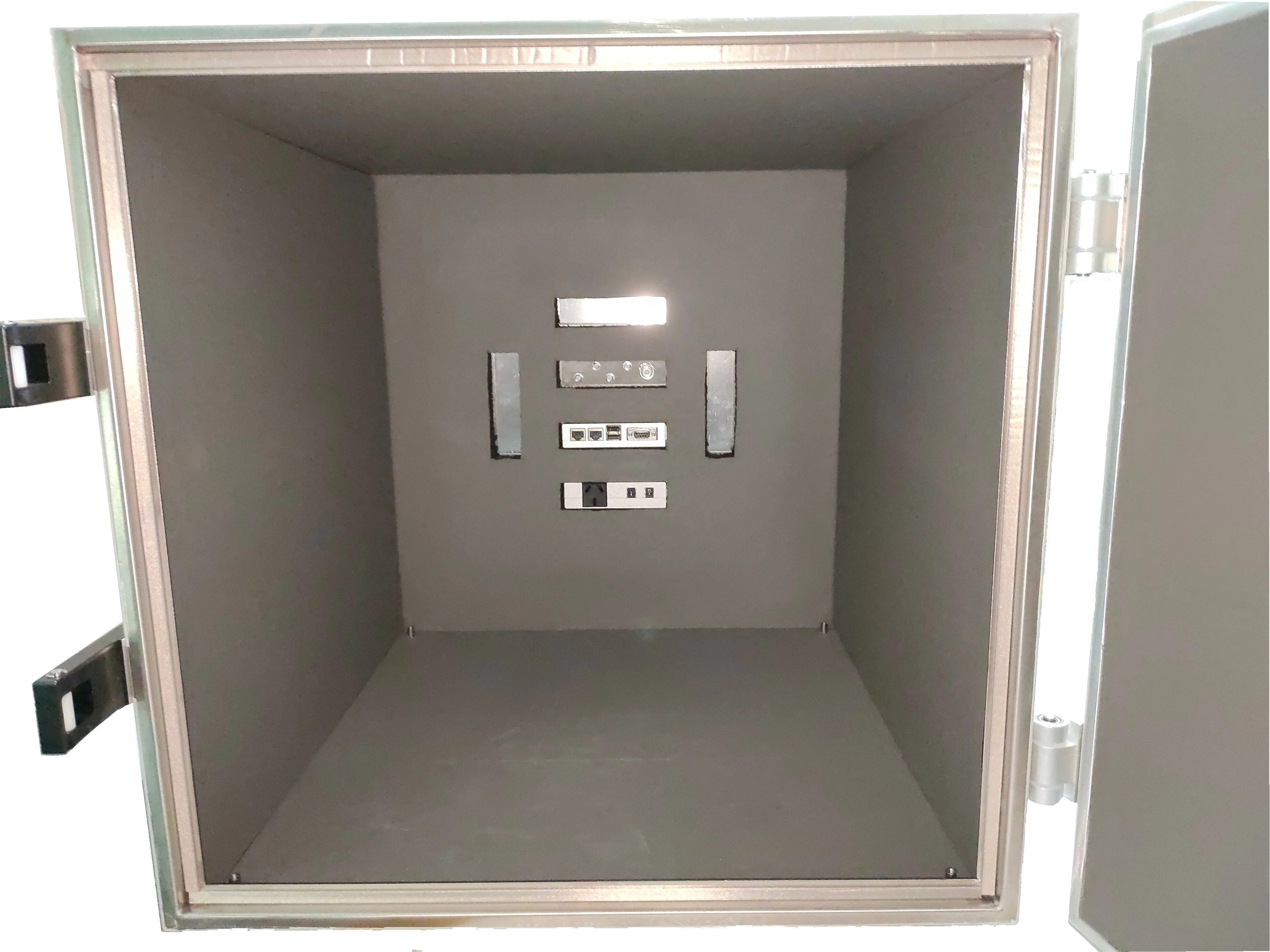

Inside View
Detailes refer to www.rfshieldingbox.com
Desktop type shielded box for testing. Measurement working size 481(W)*494(D)*481(H)MM

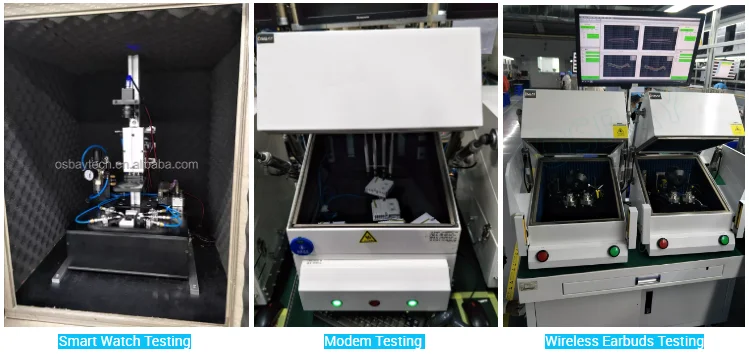

High performance EMI/RFI shield box | Applications | ODM Options (on request) | ||
* Up to 80 dB reduction of RF signals up to 8 GHz. * Ideal for testing cellular handsets, RFID, wireless, Zigbee, WiMax, WLAN or similar wireless devices. * Can be constructed in any size. | * Digital forensics * Wireless testing * R&D * EMC Testing * Smart Products * IoT | This box can be equipped with any or all of the following options: * Shielded ventilation panels(Fan) for heat transfer * Shielded window to maintain visual contact with the devices inside * Coaxial feed-through / signal filters * Ethernet connection * Can be contructed in any size. | ||

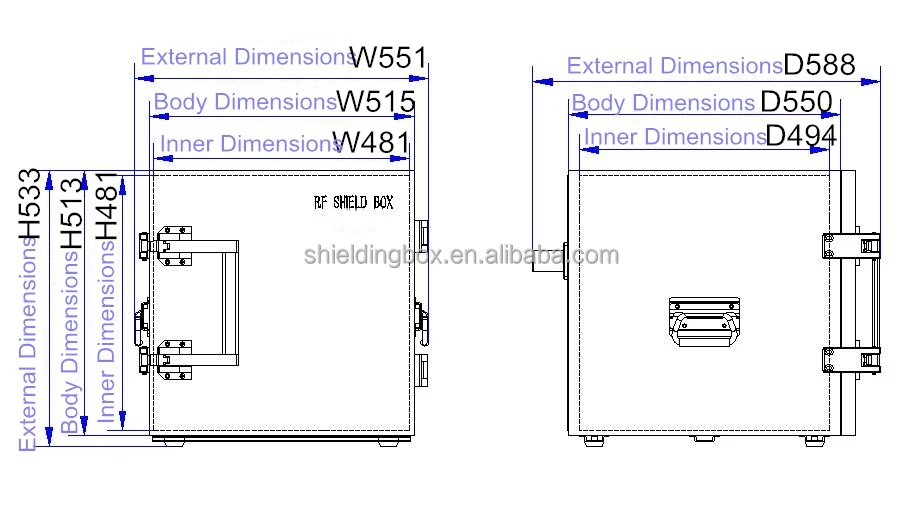

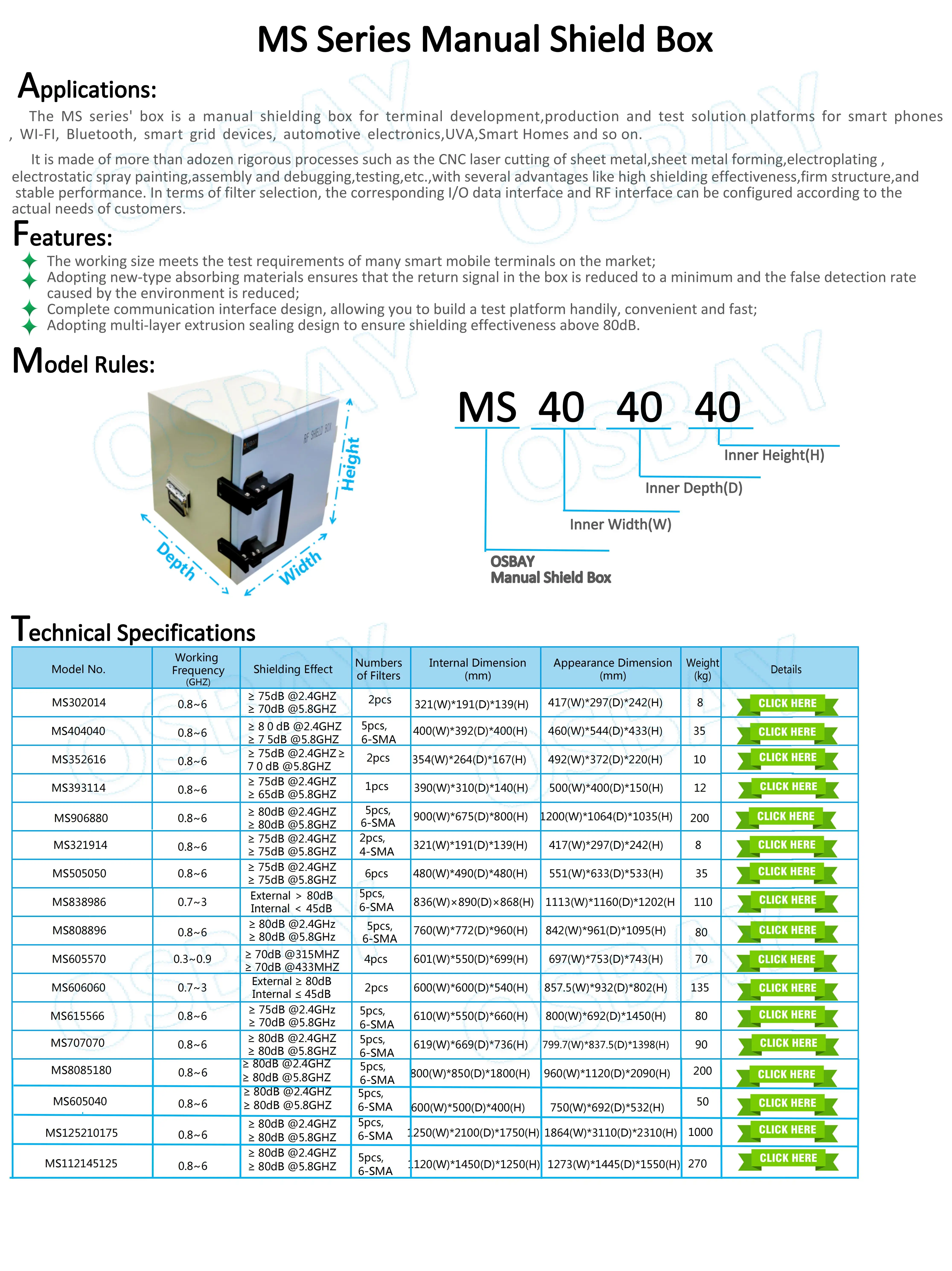

This RF Testing Box Technical Drawing: | ||||
Specifications: | ||
Working frequency(GHz) | 0.8～8Ghz | |
Shielding effect | ≥70dB@2.4GHz/5.8GHz | |
Interface Type (Kindly confirm which interface need) | 1) 1*RS232(or VGA)+2*USB+1*RJ45+1*DC( Included into price)2) 2*RJ45+2*USB+2*DC 3) 4*RJ45+2*USB 4) 1*RS232(or VGA)+2*USB+2*RJ45 5) 1*RF232+1*DB25 6) 1*AC+2*DC 6) 4*Air hole(Φ6 or Φ4) 7) 4*SMA 8) others: HDMI; DC terminal,etc; | |
Numbers of filters | 5 pcs,Exact type refer to below photo; ( But only 1 piece of filter is included into price) | |
Control method | Manual | |
Working size(mm) | 481(W)*494(D)*481(H) | |
Safety protection measures | 551(W)*588(D)*533(H) | |
Weight(Kg) | 26 | |
Appearance of color | Beige+Blue | |

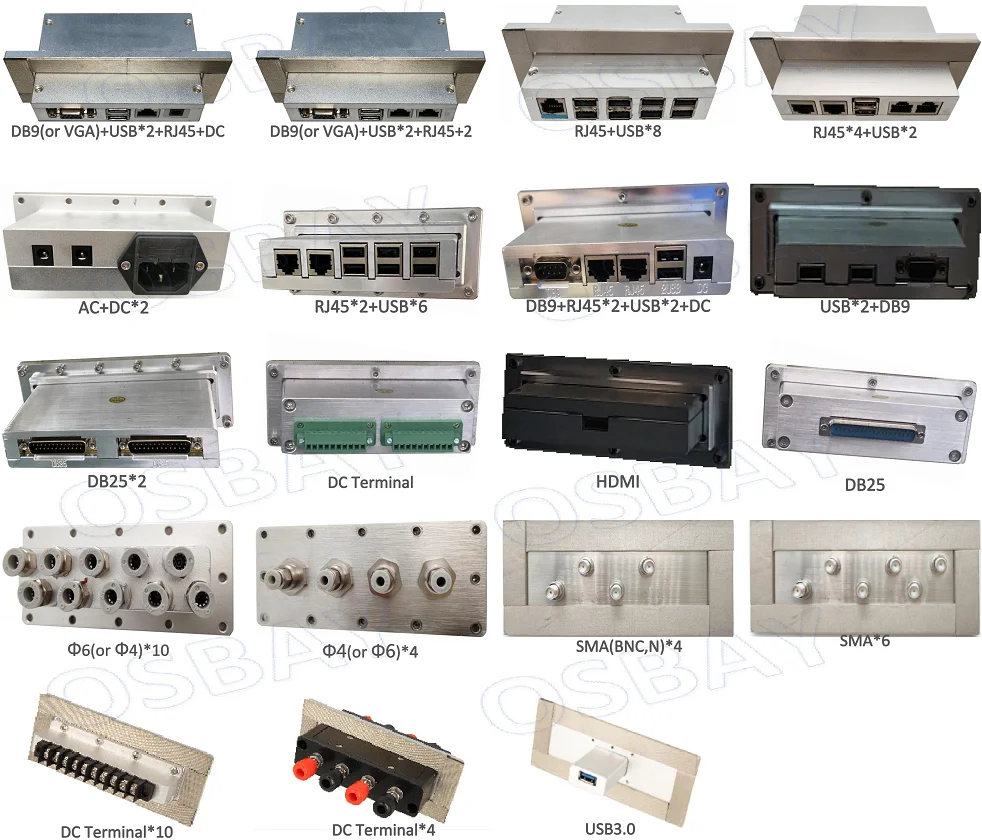

Filter modules options for shielded boxes The RF Shield boxes can be extended with different types of filters. All available types of filters can be found below. | ||
The Manual shield box filter interface is suitable for wireless terminal testing such as routers, set-top boxes, drones,wireless headsets, wireless water meters, mobile phones, etc. It has the following characteristics: Aluminum alloy material,sturdy and durable, excellent shielding performance; Modular design, more humane characteristics, users can choose different interface combinations according to their needs

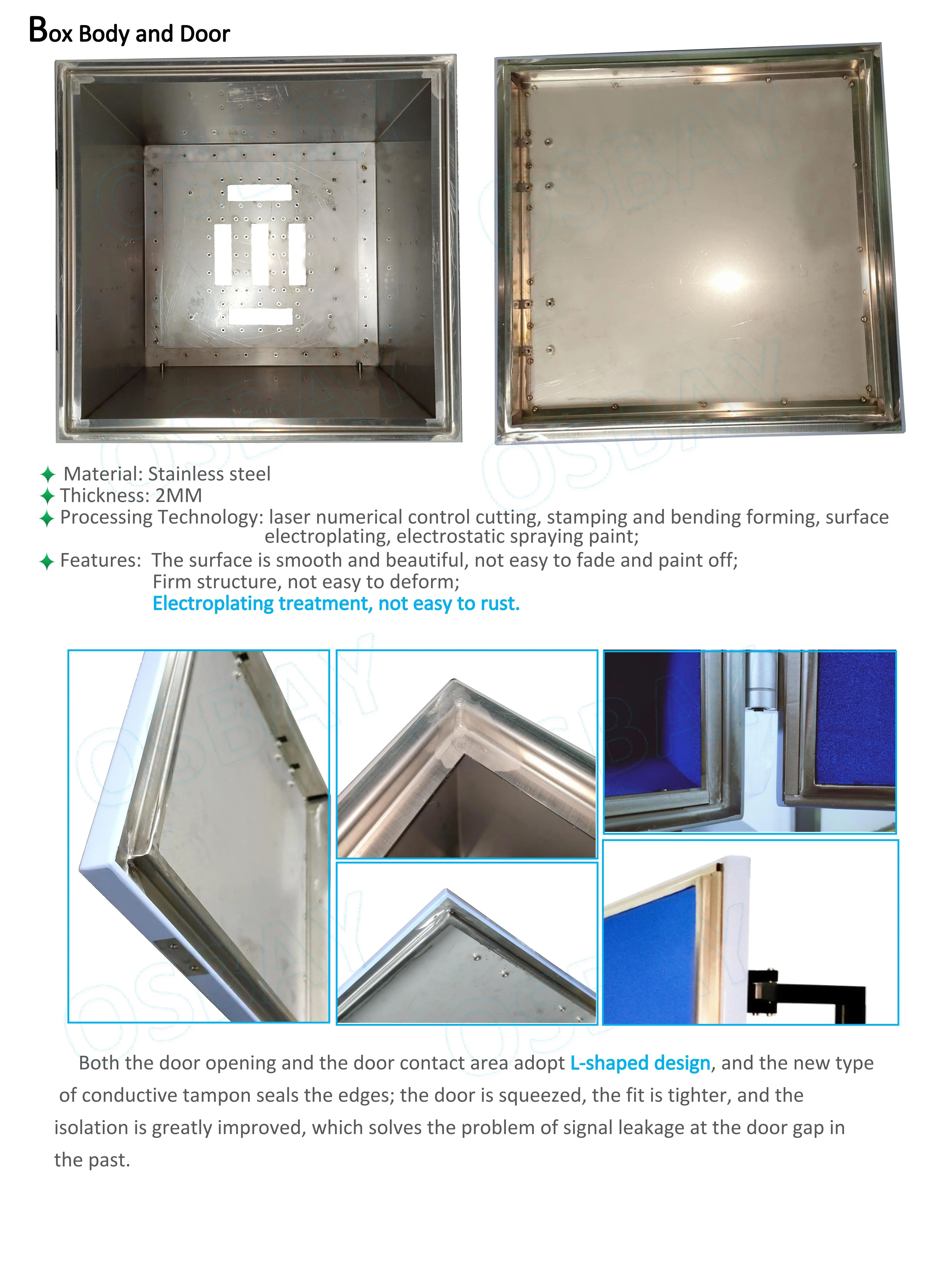

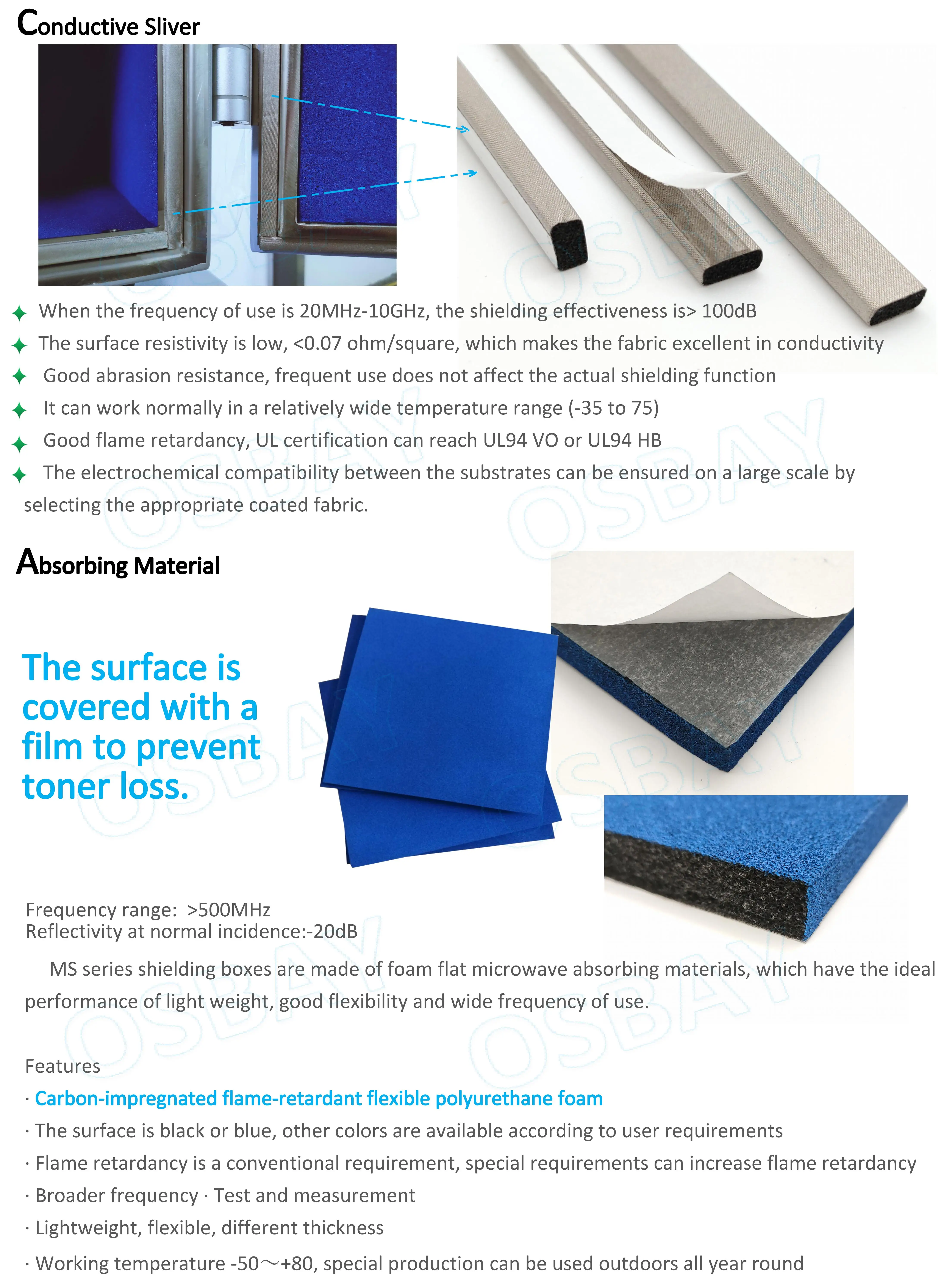

Product Details
Product Test
Testing Data(Front)
Frequency: 2400Mhz-----Isolation: -110.93dB
Frequency: 5800Mhz-----Isolation: -110.55dB
Frequency: 7125Mhz-----Isolation: -98.20dB
Testing Data(Back)
Frequency: 2400Mhz-----Isolation: -106.56dB
Frequency: 5800Mhz-----Isolation: -97.52dB
Frequency: 7125Mhz-----Isolation: -82.23dB
Why Choose Us
Customized design
Offering whatever size you need according to your DUT.
No MOQ
Our OEM/ODM starts at as few as 1-10 pcs of one design to fit your needs.
Fast Delivery
Delivering the products within 3 business days for some models.

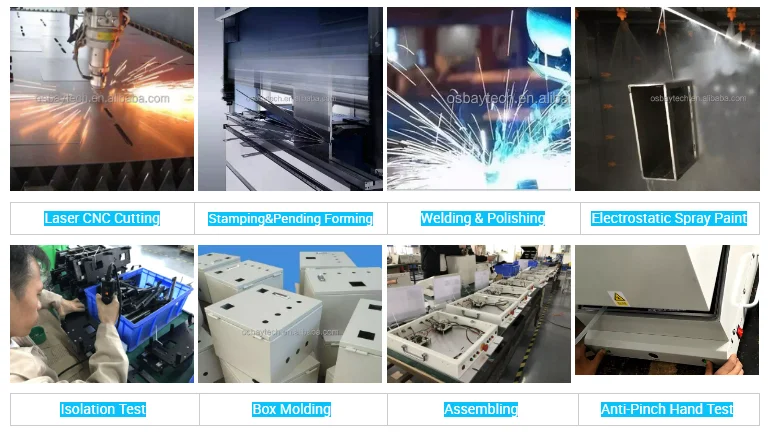

Strict Productiong & Testing Flow:
ODM Project
Product packaging

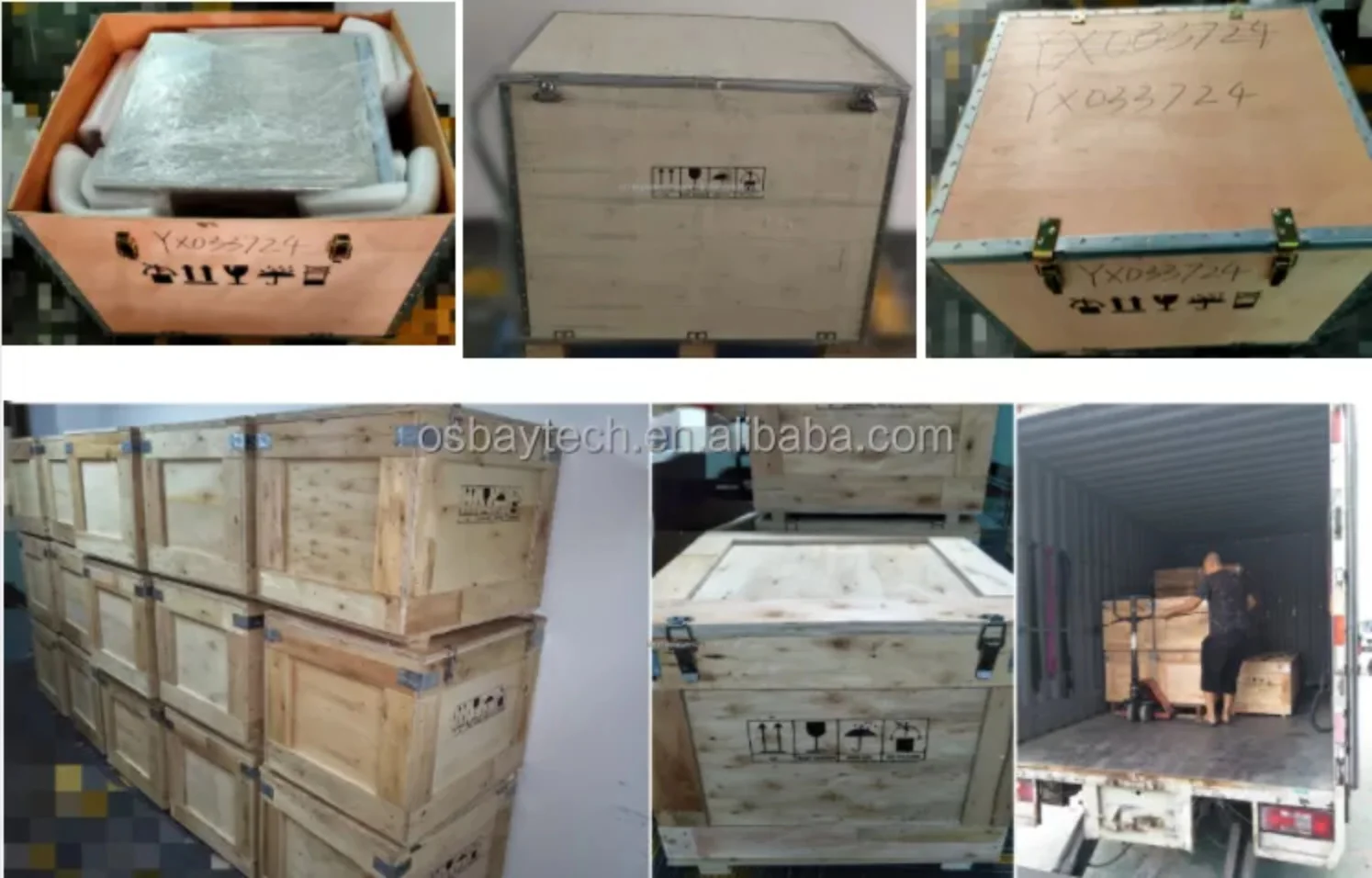

Each shielding chamber has been well packed with wooden package.
225(W)*320(D)*140(H) mm Manual rf shield box with High isolation wifi gsm 5g,wireless signal test single-layer Rf Shield Box is packaged in Export-Free Inspection and Fumigation-Free Wooden Boxes, with a firm structure. Ensure that the shielding box is not easily damaged during transportation. This kind of wooden box is suitable for long-distance transportation, including sea and air transportation, and can be exported to any country in the world.
