2.4G 300Mbps Base station AP Access point internet outdoor long range router wifi hotspot,outdoor router
- Category: >>>
- Supplier: Shenzhen Yunlink Technology Co. Ltd.
Share on (1600345353300):
Product Overview
Description
Product Description

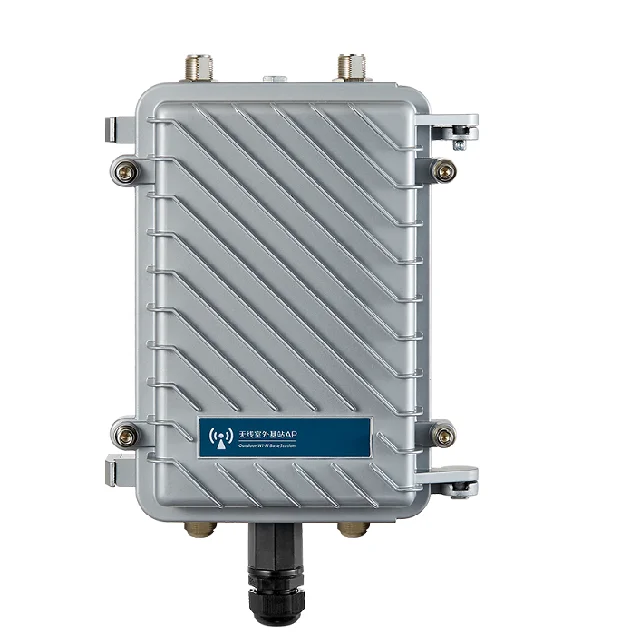

2.4G 300Mbps Base station AP Access point internet outdoor long range router wifi hotspot,outdoor router
Main Features:

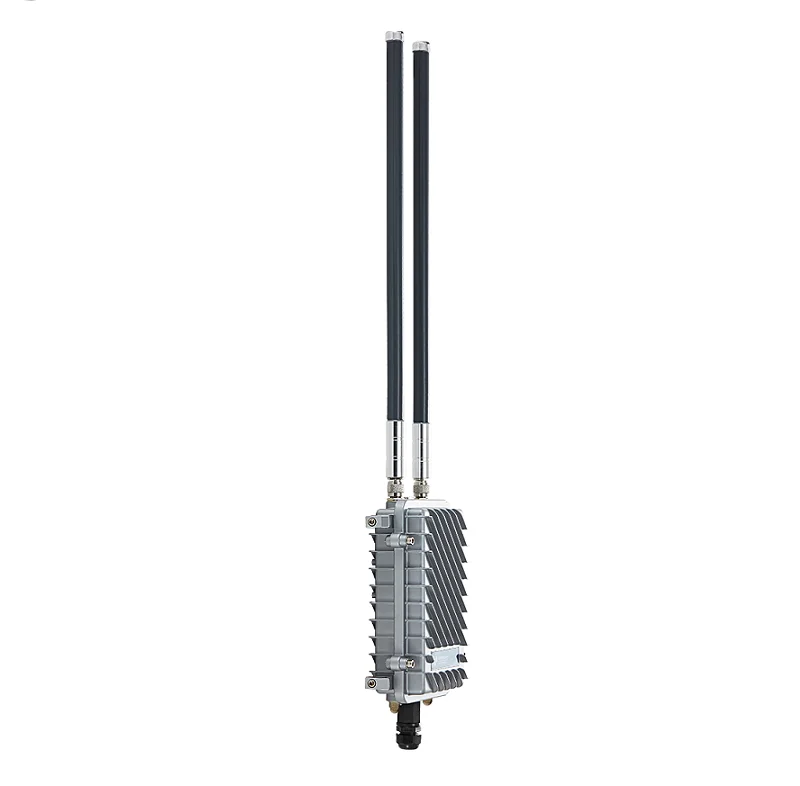

300Mbps 2.4G Outdoor CPE with omni antenna, more than 10KMs distance
• IEEE 802.11b/g/n compliant with 300Mbps high-speed data rate
•Chipset: MTK 7620A, 8M Flash 64M SDRAM
• Power: 1000mW, SMA Connector antenna, can connect with panel or omni antenna
• Wireless modes: Wireless AP, WISP, WiFi Repeater, Gateway
• Wireless security - 64/128bit WEP, WPA/WPA2, 802.1x and WPS
• Passive PoE Support
• Supports UPnP, DDNS, static routing, VPN Pass-through
• With SMA antenna connector, omni antnena optional by extra price
• 1 RJ45 Port
• Power requirement: Output POE 24V, 1A;Input 110V/220V
Specifications
Specification: | |||
Hardware: | |||
Chipset | MT7620A 580MHZ | ||
Wireless | 802.11N, 2T2R 300M MIMO Technology | ||
Memory | 64MB DDR2 RAM (128MB available by extra cost) | ||
Flash | 8MB(16MB available by extra cost) | ||
Interface | 1 10/100 Mbps RJ45 Port, support 12~24V PoE | ||
1 Reset Button | |||

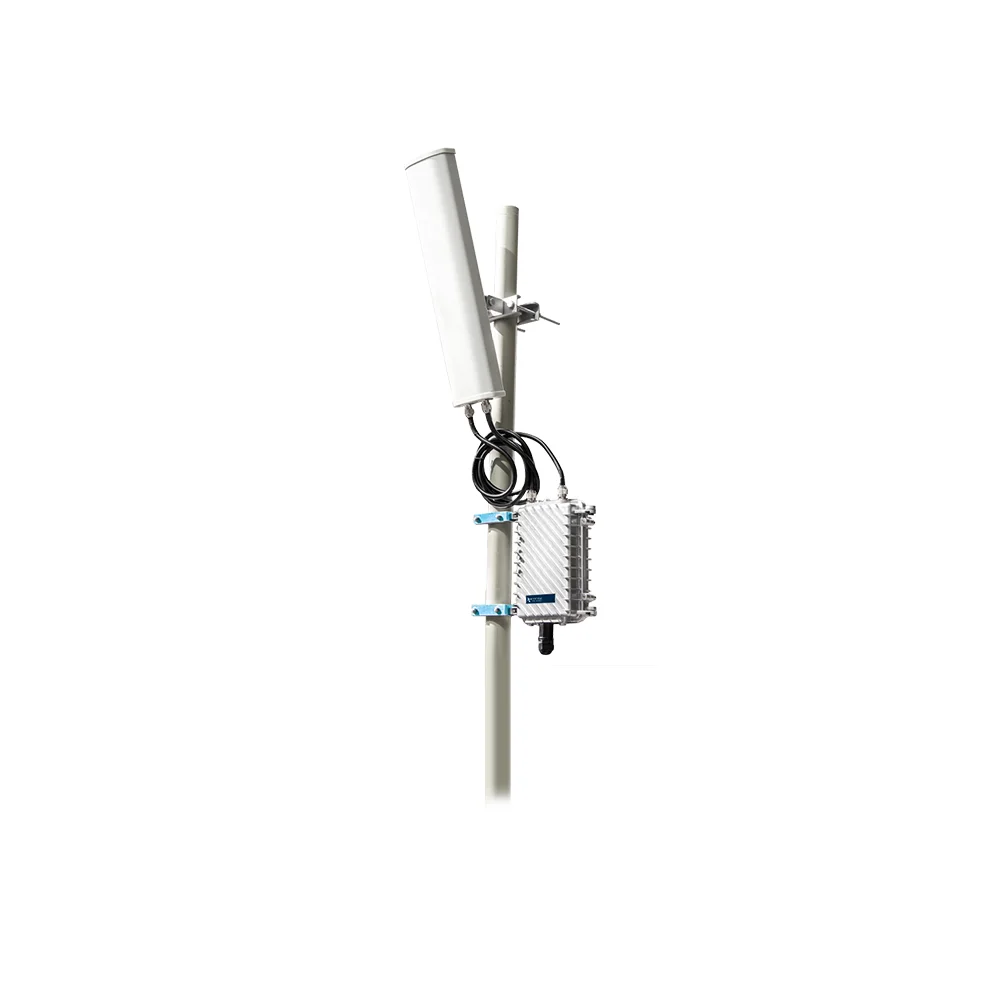

Antenna | 18dBi Panel Antenna | ||
LED Light | POWER WIFI WAN LAN S1(GPIO9) S2(GPIO14) S3(GPIO11) S4(GPIO12) | ||
Size | L: 153.2mm, W: 79.5mm, H: 234.5 mm | ||
Power | POE 24V/1A;110V/220V | ||
RF Data | |||
RF Data | 802.11b/g/n: | ||
2.4~2.4835GHz | |||
Korea,Japan,ETSI,FCC | |||
Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM | ||
DSSS = DBPSK, DQPSK, CCK | |||
Data Rate | 300 Mbps | ||
Receive Sensitivity | 802.11n(2.4GHz) | 802.11g | 802.11b |
-90dBm @ MCS0 | - 90dBm @ 6Mbps | - 95dBm @ 1Mbps | |
-72dBm @ MCS7 | - 72dBm @ 54Mbps | - 90dBm @ 11Mbps | |
-90dBm @ MCS8 |
|
| |
-68dBm @ MCS15 |
|
| |
RF Output Power |
|
|
|
802.11n(2.4GHz)(± 1.5dBm) | 802.11g(± 1.5dBm) | 802.11b(±1.5dBm) | |
28dBm@ MCS0~2/MCS8~10 | 28dBm @ 6~24Mbps | 28dBm @1~11Mbps | |
28dBm @ MCS3/MCS11 | 27dBm @ 36Mbps |
| |
27dBm @ MCS4/MCS12 | 27dBm @ 48Mbps |
| |
27dBm @ MCS5/MCS13 | 26dBm @ 54Mbps |
| |
26dBm @ MCS6/MCS14 |
|
| |
26dBm @ MCS7/MCS15 |
| ||
Firmware | |
Operation Mode | Gateway/AP/WiFi Repeater/WISP |
Protocol/Standard | IEEE 802.3(Ethernet) |
IEEE 802.3u(Fast Ethernet) | |
IEEE 802.11b/g/n(2.4G WLAN) | |
Wireless | Auto-Channel selection |
Distance Control (802.1x Ack timeout) | |
Multiple SSID (4 SSID) | |
BSSID | |
Security | WEP Encryption-64/128/152 bit |
WPA/WPA2 Personal (WPA-PSK using TKIP or AES) | |
WPA/WPA2 Enterprise (WPA-EAP using TKIP) | |
Hide SSID | |
System Setting | Web-based configuration (HTTP/Telnet) |
Firmware upgrade | Upgrade firmware via web browser or TFTP |
Administration | Admin Password can be configured |
System monitoring | Status in hand , useful statistic and Event log |
Log | Supports local logs, logs host, logs file export |
Reset | Reset or factory defaults |
Backup | Restore settings & configuration of the device to local file |
Physical Property | |
Temperature | Working: 0°C~55°C |
Storage: -20°C to 70°C | |
Humidity | 5%~95% (typical) |
Package: | |
AP20 unit
| |
PoE Adapter | |
User Manual | |
LAN Cable | |
Company Information

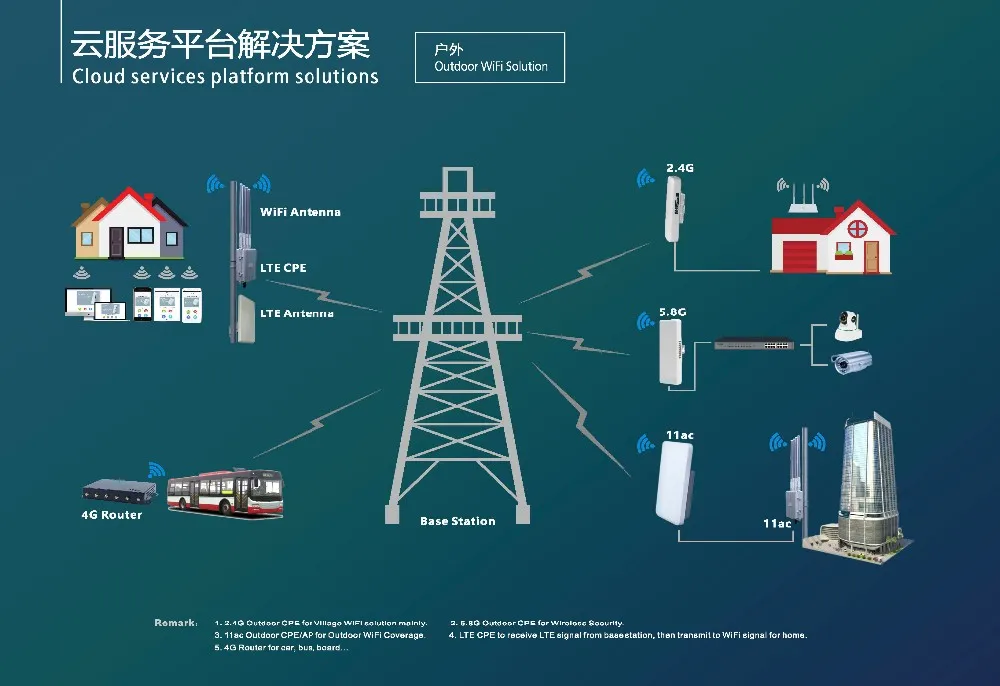

Shenzhen Yunlink Technology Co., Ltd is a professional manufacturer in Wireless Access Point Outdoor CPE, Enterprise Gateway, WLAN Controller PoE Switch, Wireless Router, 3G/4G Router,LTE CPE, WIFI Repeater, provide Multple high performance wireless equipment and different WLAN solution for City,Village, Home,Vehicle, Hospital, Hotel, School, Airport, Restaurant...

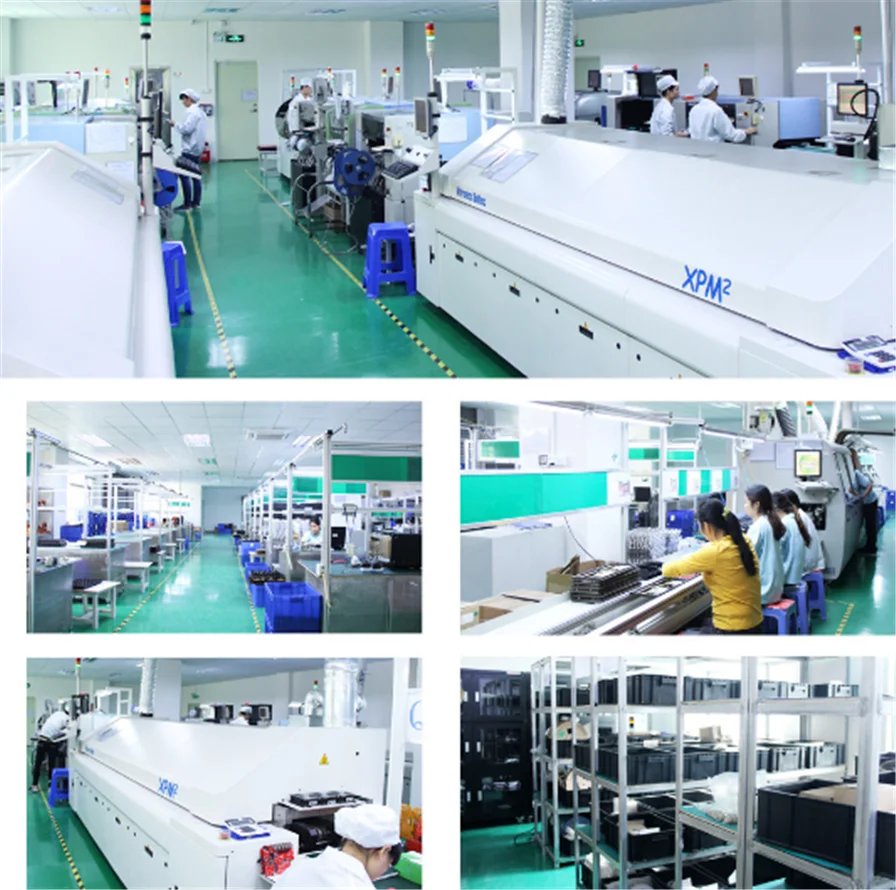

With Innovative R&D team, Yamaha SMT line, RoHS standard DIP line, IQ Flex equipped testing line and Assembling line, we provide fast delivery time within two weeks. More than 5000 square meters factory size, Certified ISO 9001:2015 GB/T 19001-2016 standard, the product passing rate is higher than 99.9% to ensure long time cooperation.
With more than five years OEM/ODM service supplied, experienced sales team and after-sales team, sincerely hope more and more clients know us through Oversea Fairs Such as Taipei Computex, Germany CeBIT, Dubai Gitex, USA CES, India Convergence, like to join us for Win-Win Cooperation
