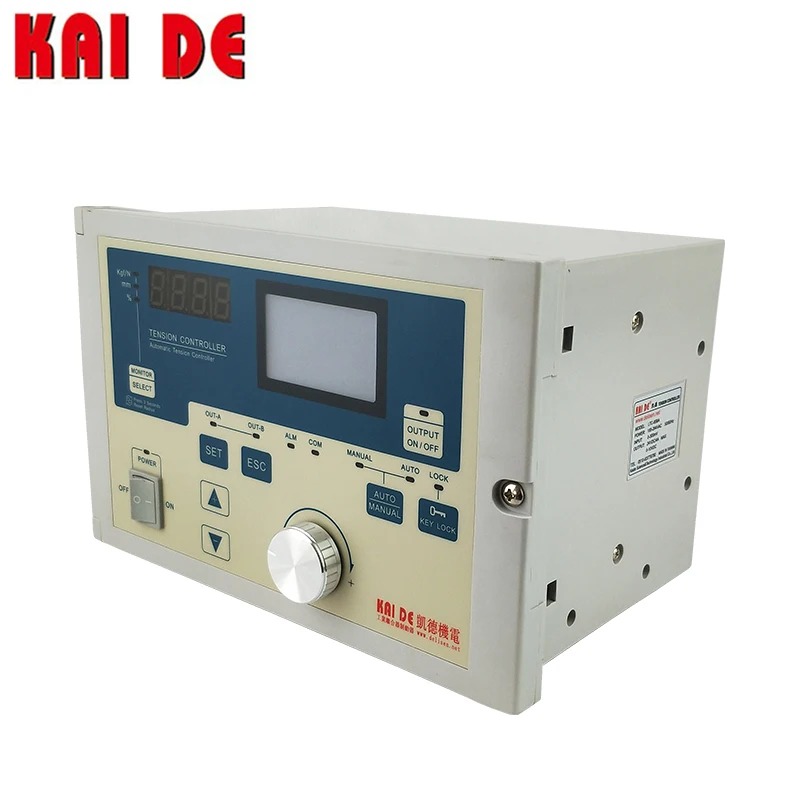

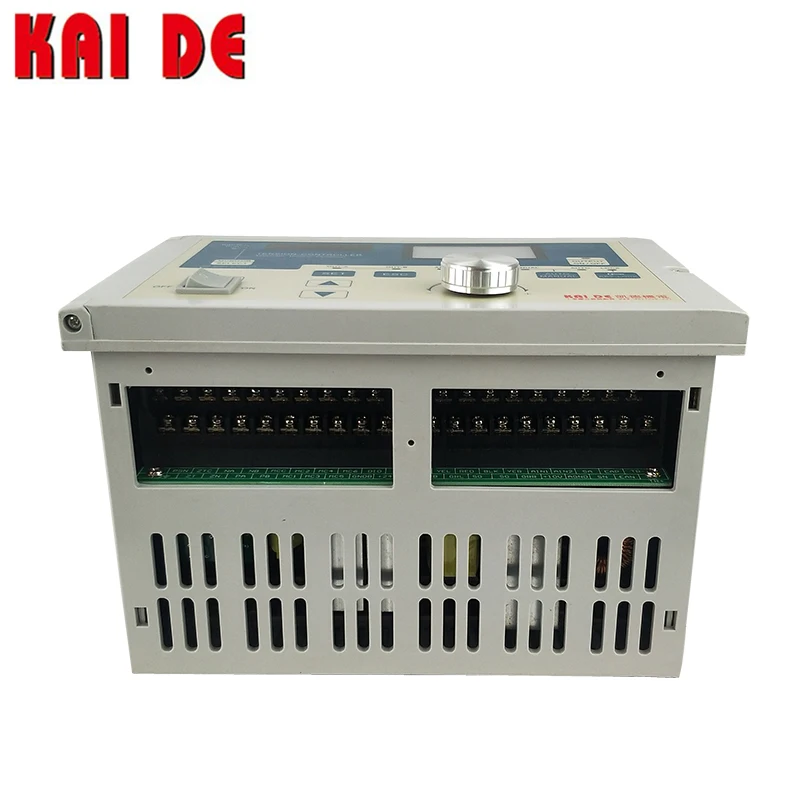

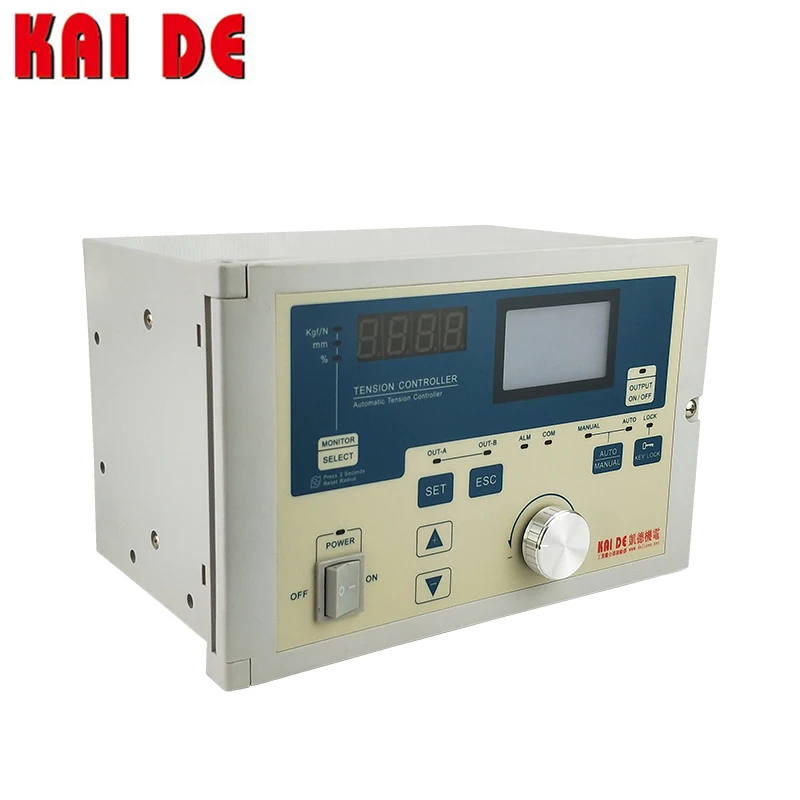

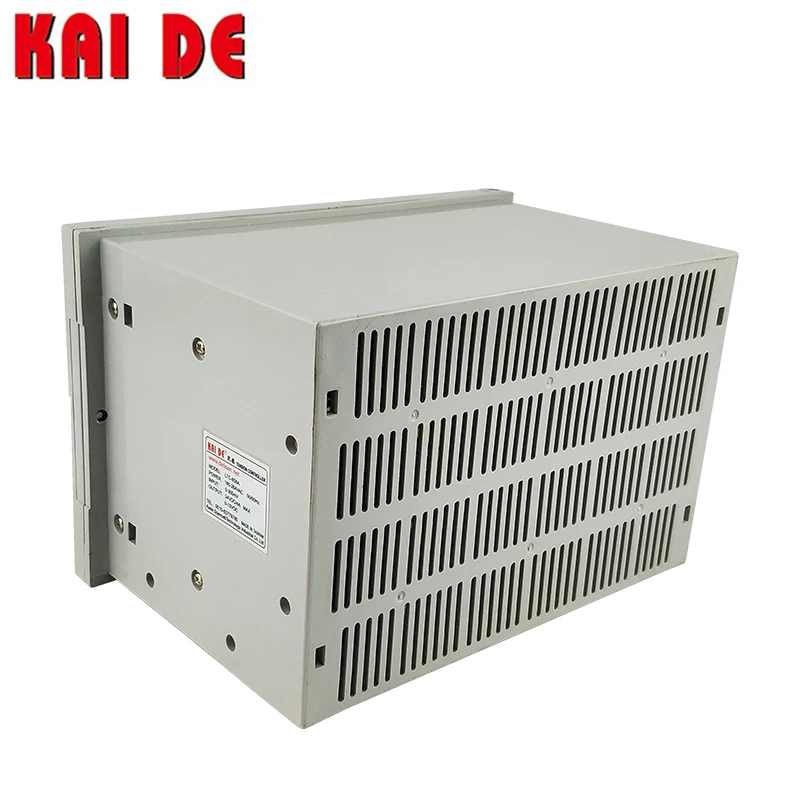

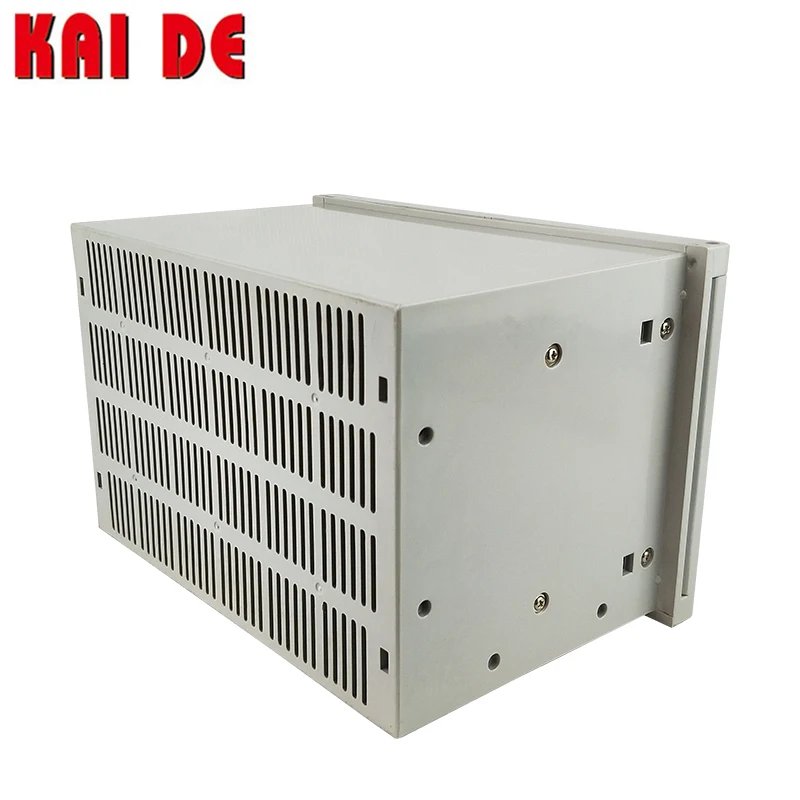

China Factory Supply 0 24VDC Output Magnetic Brake Digital Taper Auto Tension Controller For Printing Machine
- Category: >>>
- Supplier: Wuxi Plisen Drive Technology Co. Ltd.
Share on (1600345357352):
Product Overview
Description
Tension Inputs | Double channel±30mV or ±300mV or ±5V(Made to Order, specify when ordering) |
Radius Detection | Internal calculations |
Measurement Precision | 16-bit AD Converter,±1LSB |
Sample Rate | 50ms |
Control Algorithm | PI(Proportional Integral) |
Main Outputs | Dual 24V/4A, drive magnetic powder brake/clutch |
Auxiliary Outputs | Dual 0~10V, drive inverter or Electric-Pneumatic converter |
Tension Alarm | Relay, Normally Open, 3A/250V AC |
Communications | RS485,Modbus Protocol |

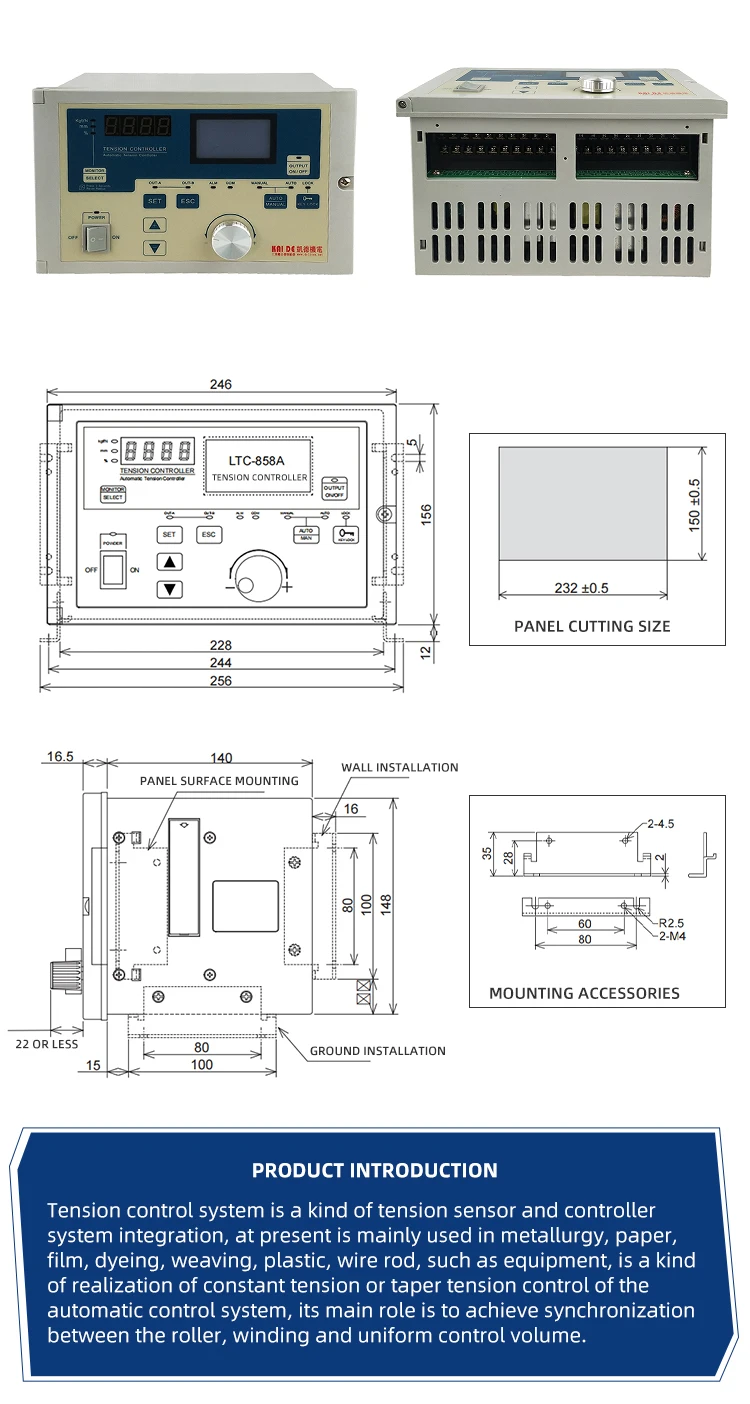

Dimensions | 246(W)x154(H)x156.5(D), unit: mm |
Power Supply | 165~264V AC, 50/60 Hz |
Working condition | Ambient temperature: 0~40 °C |
Environment humidity: 35~85% RH (no frost) | |
Non-corrosiveness, no flammabel gas, no conductive dust, dust free | |
Vibration | 10~50Hz 0.55mm (Max 4.9m/s2) |
Grounding | D type grounding (Fordid to connect with strong electic wires together |
Weight | Approx 3.5kg |
