High Quality Dual Control Hand Operated Small Olive Oil Extraction Press
- Category: >>>
- Supplier: Henan Shuoman Machinery Equipment Co. Ltd.
Share on (1600345489077):
Product Overview
Description
New Product Manual Oil Press Machine Expeller Extractor Stainless Steel#304 Homemade Oil/home use small oil press machine
Products Description
This is a Brand new manual oil press machine that consists of four main parts: frame, press cage, handle and heating part.
Feature of Manual Oil Press Machine Expeller Extractor home use small oil press machine:
Before operation please fix the frame and make sure crank can be turned freely.
Lubricate washer with edible oil and insert on screw shaft from the small end.
Insert screw shaft in press cage.
Screw on press cage cap and screw on terminal adjustment bolt.
Attach crank arm to screw shaft and tighten the bolt.
Fill 80% fuel to the lamp bottle (kerosene or alcohol). Pass a 15cm wick through the washer. Leave 0.5cm of wick outside and put the longer end in the fuel bottle. Place washer at the bottle mouth. Place the lamp under press cage. Secure the lamp with rubber band.
Operation of Manual Oil Press Machine Expeller Extractor home use small oil press machine:
1. Make sure no impurities in the material before pressing.
2. At the beginning of pressing, oil flowing from the terminal adjustment bolt is normal.
3. Loose the terminal adjustment bolt if the discharged cake is too dry and crank turning resistance is too big
4. Tighten the terminal adjustment bolt if the discharged cake contains too much oil residual.
Cleaning of manual small oil press machine:
Clean the oil press immediately after operation. Otherwise residual in the machine will get hard and affect next operation.
Lubricate washer with edible oil and insert on screw shaft from the small end.
Insert screw shaft in press cage.
Screw on press cage cap and screw on terminal adjustment bolt.
Attach crank arm to screw shaft and tighten the bolt.
Fill 80% fuel to the lamp bottle (kerosene or alcohol). Pass a 15cm wick through the washer. Leave 0.5cm of wick outside and put the longer end in the fuel bottle. Place washer at the bottle mouth. Place the lamp under press cage. Secure the lamp with rubber band.
Operation of Manual Oil Press Machine Expeller Extractor home use small oil press machine:
1. Make sure no impurities in the material before pressing.
2. At the beginning of pressing, oil flowing from the terminal adjustment bolt is normal.
3. Loose the terminal adjustment bolt if the discharged cake is too dry and crank turning resistance is too big
4. Tighten the terminal adjustment bolt if the discharged cake contains too much oil residual.
Cleaning of manual small oil press machine:
Clean the oil press immediately after operation. Otherwise residual in the machine will get hard and affect next operation.
Product Paramenters
Product name | Manual oil press machine |
Model | SM-2403 |
Capacity | 1-2kg/h |
Material | Stainless steel 304 |

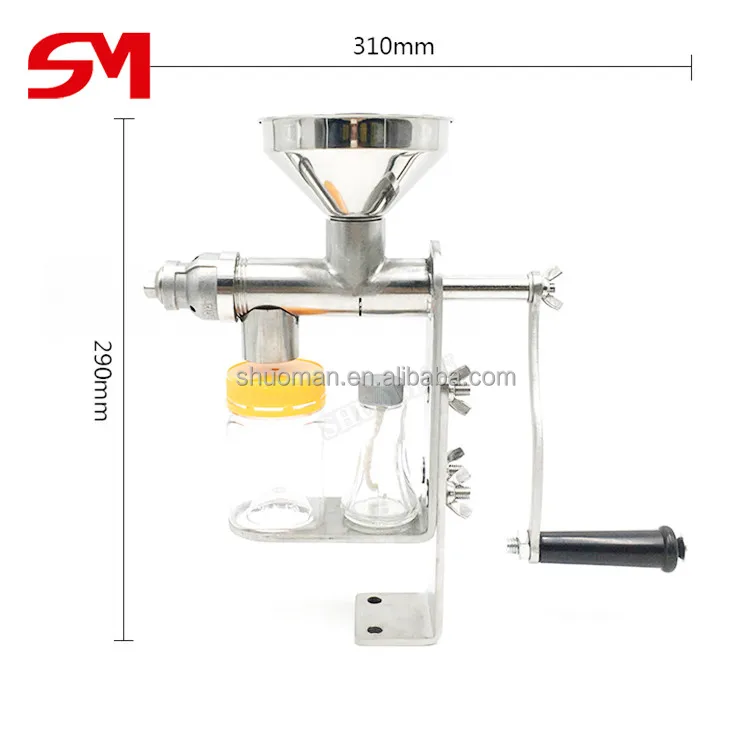

Machine size | 310*290*110mm |

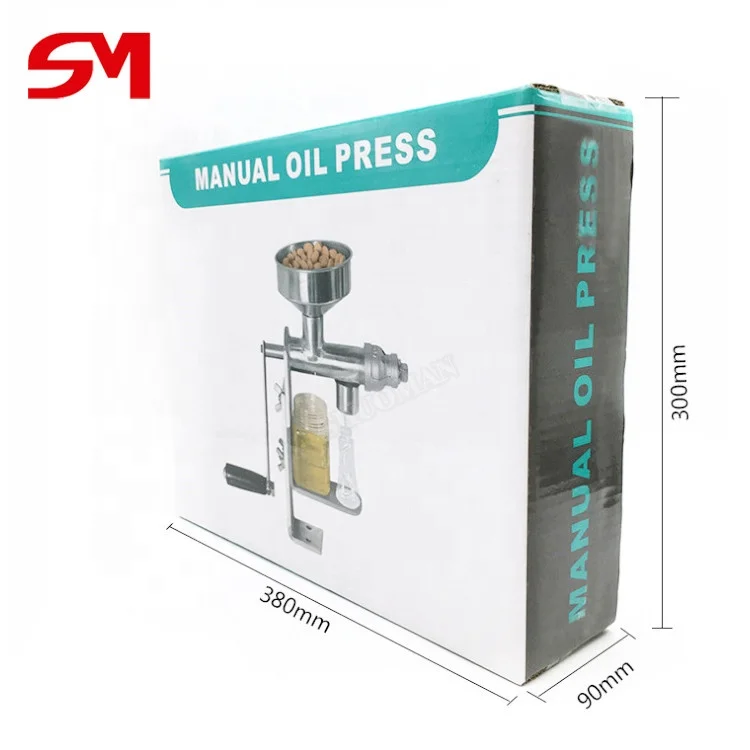

Packing size | 380*90*300mm |
N.W./G.W. | 2.04kg/2.4kg |
Carton size | 45*40*32CM(5 pcs/carton) |
Raw material | Peanut,sesame,sunflower,soybean ,walnut ,etc |

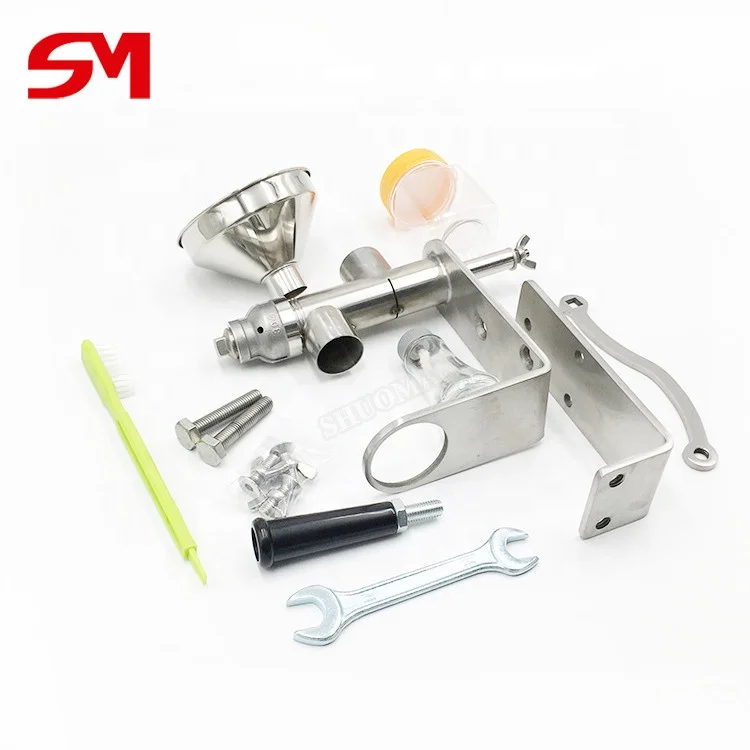

Main parts | Frame,press cage,screw shaft,crank ,etc |
Products Application
Suitable for most of the oil content is more than 25% of the oil crops, such as peanut, sunflower seed, tea seed, sesame seed,walnut, olive, coconut oil, flax seed, etc
Oil press machine Working Principle:
it is through the high pressure in the fuel, such as peanut oil, extrude precipitation after five to eight hours, on the part of
grease is more clear, the part of the sludge can be used for cooking, can also be used to make a peanut butter, etc.
Oil press machine Working Principle:
it is through the high pressure in the fuel, such as peanut oil, extrude precipitation after five to eight hours, on the part of
grease is more clear, the part of the sludge can be used for cooking, can also be used to make a peanut butter, etc.
Details Images
Packaging & Shipping
PACKAGE:
Standard export carton or wooden case packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Standard export carton or wooden case packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Company Profile
Henan Shuoman Machinery Equipment Co.,Ltd is a modern firm integrating scientific research development production design and services.We manufacture food machinery that include wheat processing equipment,meat processing equipment,vegetable and fruit processing equipment, fried food equipment ,cold drink equipment in the market.
Why Choose Us
1.20 year experiences in manufacturing food machine.
2.Alibaba Assessed 6 years Gold Supplier.
3.100% QC inspection Before shipment.
4.OEM accept,Customized services offered.
5.Environment-friendly materials and technology.
6.24 hours technical supports and after sales services.
7.Factory price,High quality,Wholesale price,Fast delivery.
2.Alibaba Assessed 6 years Gold Supplier.
3.100% QC inspection Before shipment.
4.OEM accept,Customized services offered.
5.Environment-friendly materials and technology.
6.24 hours technical supports and after sales services.
7.Factory price,High quality,Wholesale price,Fast delivery.
