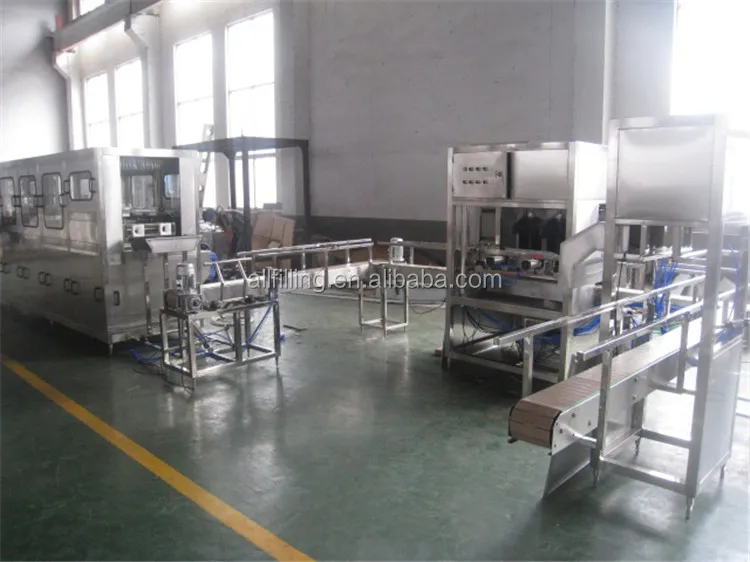

300BPH Automatic barreled 5 gallon bottle washing filling capping machine
- Category: >>>
- Supplier: Zhangjiagang All-Filling Machinery Co. Ltd.
Share on (1600345598441):
Product Overview
Description
Products Description

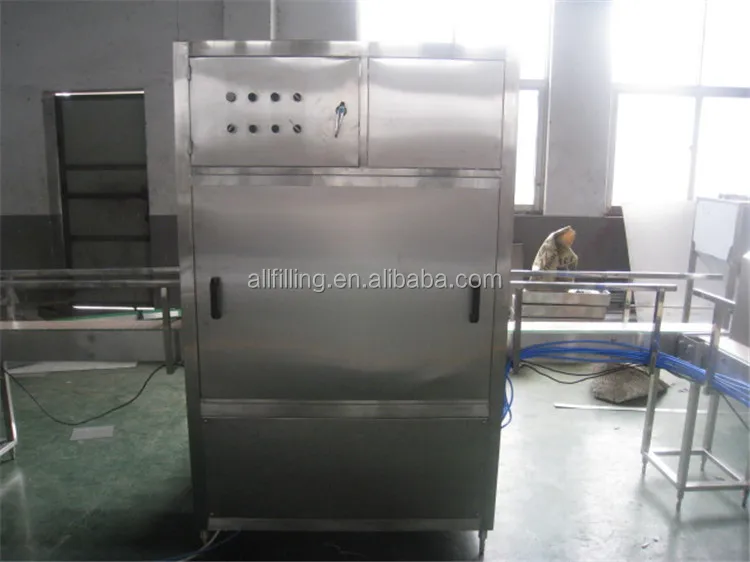

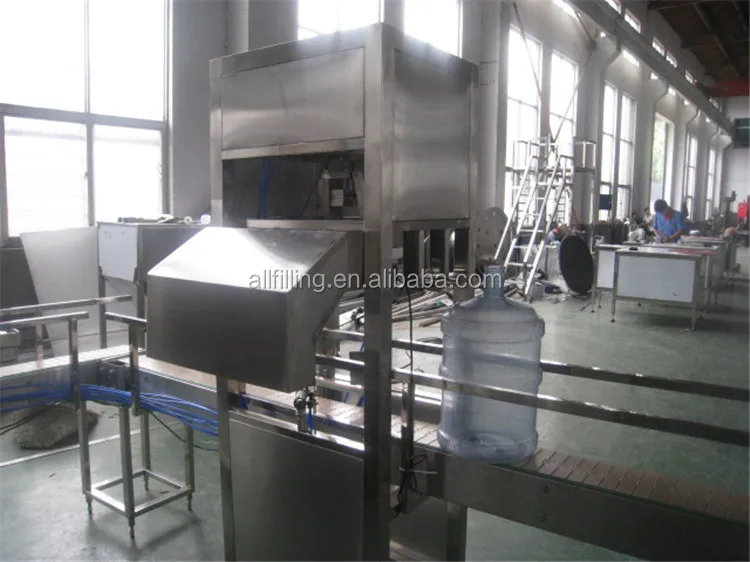

Decapper
Automatic cap remover machine is used to remove 5 gallon bottle cap ,easy operation and maintenance.
1) Simple structure in linear type ,easy in installation and maintation.
2) SUS304 material frame.
3) Need euqipped with air compressor to provide compressor air .
4) Capacity 100-2500caps per hour is optional.
1) Simple structure in linear type ,easy in installation and maintation.
2) SUS304 material frame.
3) Need euqipped with air compressor to provide compressor air .
4) Capacity 100-2500caps per hour is optional.

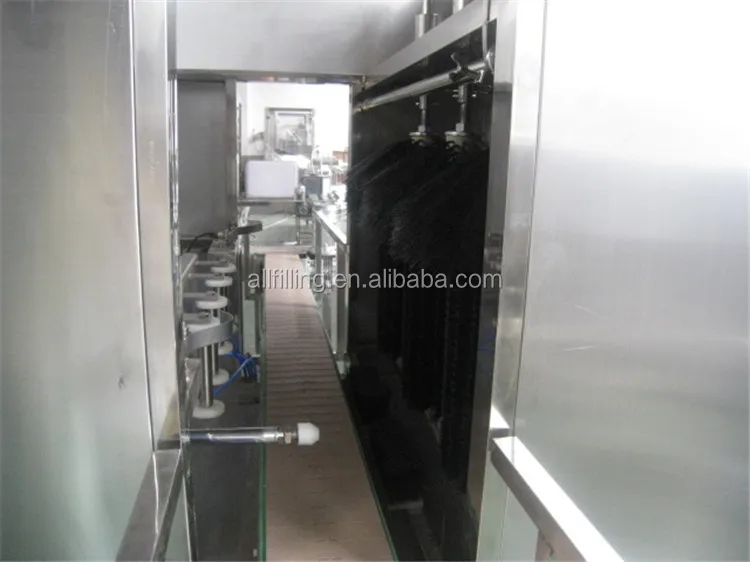

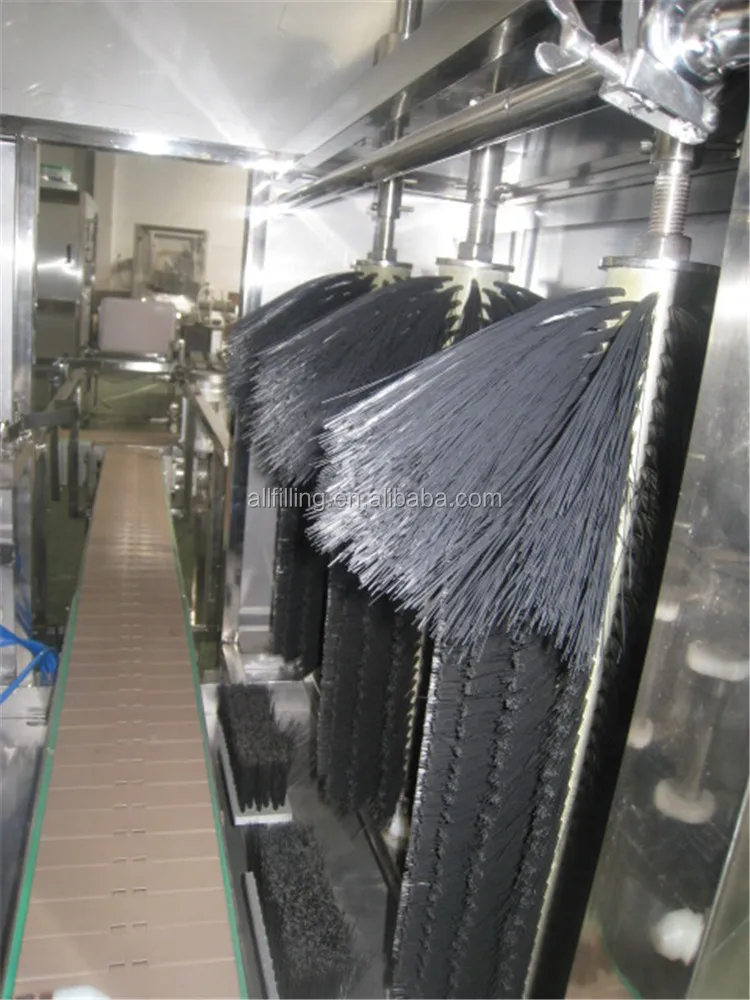

Outside brusher washing
Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the
settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is
made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance.
settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is
made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance.

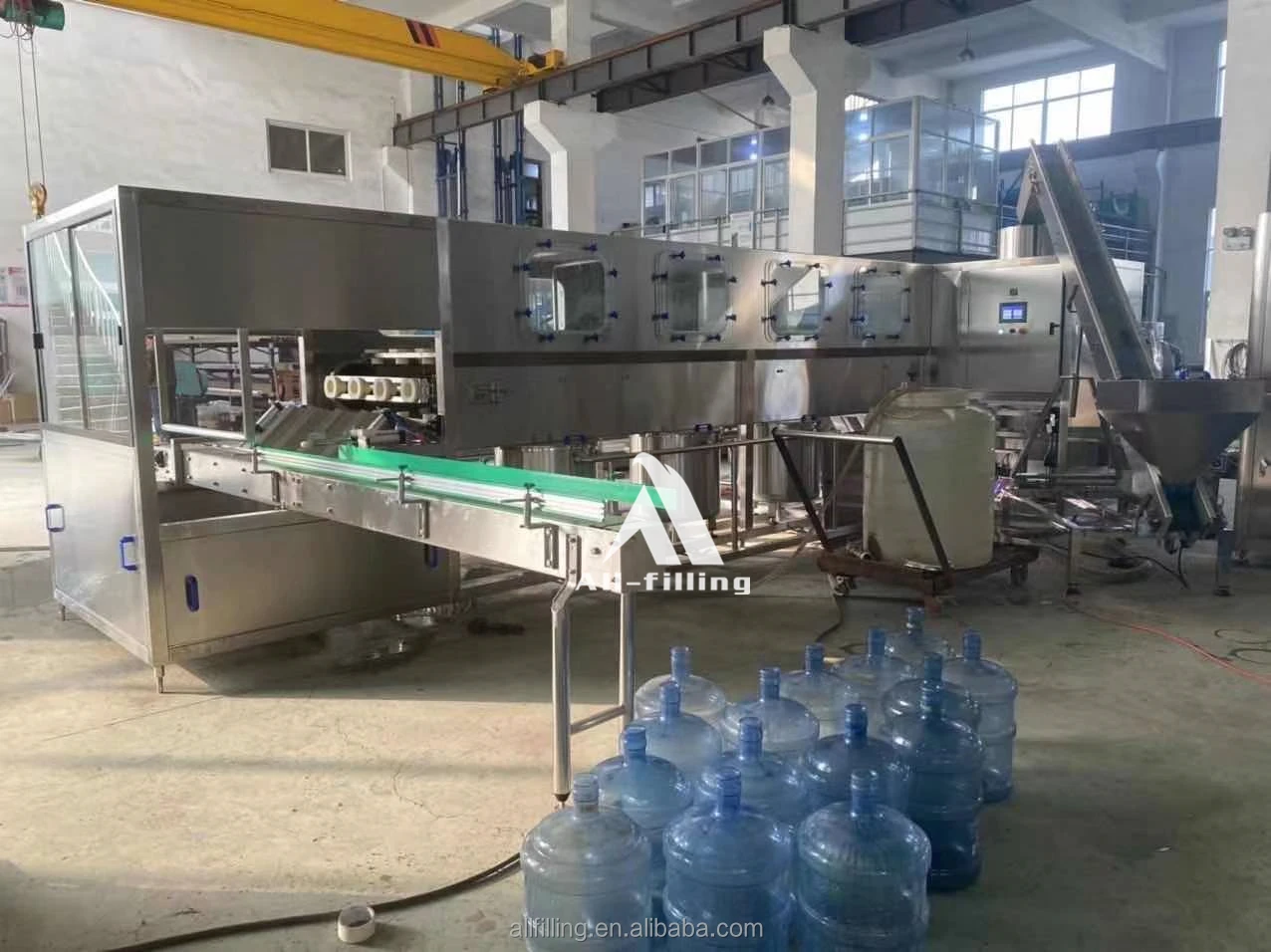

Washing-filling-capping main machine
1)Using three steps to make the barrel inside clean. hot alkali-----disinfectant liquid-----pure water.

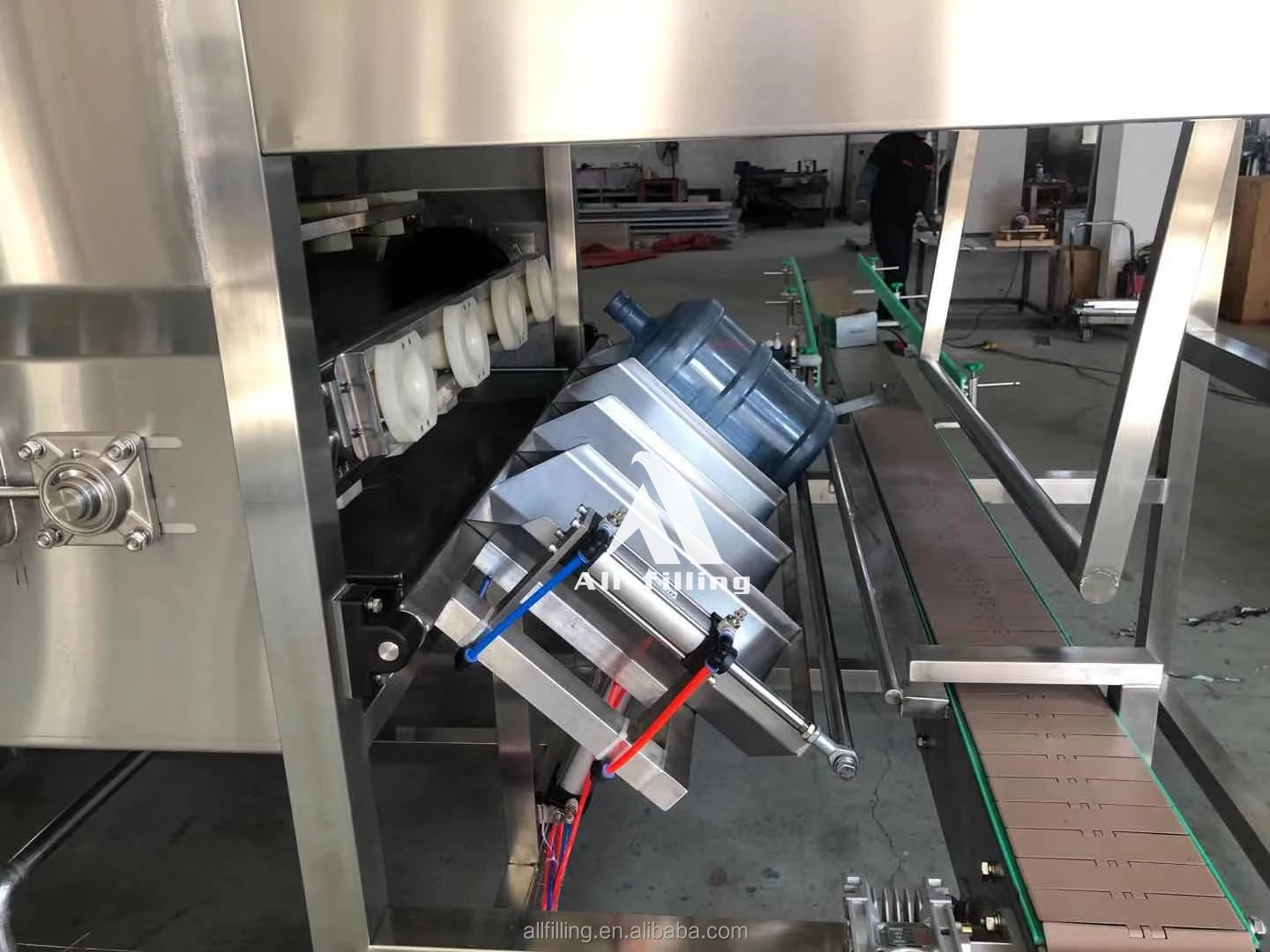

2) 1/Uploading and dropping barrels changed from 45 degree to translatory which is more stable.
2/Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by
different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.
2/Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by
different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.
3)1/Liquid level difference is controlled in 1cm.
2/Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using
sterilization and finished water.
2/Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using
sterilization and finished water.
Model | QF-150 | QF-300 | QF-300 | QF-450 | QF-600 | QF-900 | QF-1200 | ||||||
Filling heads | 1 | 2 | 2 | 3 | 4 | 6 | 12 | ||||||
Volume (Gallon) | 3-5 gallon | 3&5 | 3&5 | 3&5 | 3&5 | 3&5 | 3&5 | ||||||
Barrel size(mm) | φ270*490 | φ270*490 | φ270*490 | φ270*490 | φ270*490 | φ270*490 | φ270*490 | ||||||
Capacity(b/h) | 150 | 240 | 300 | 450 | 600 | 900 | 1200 | ||||||
Gas pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 | ||||||
Gas consumption (m³/min) | 0.37 | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 | ||||||
Motor power(kw) | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.8 | 13.5 | ||||||
Weight(kg) | 680 | 800 | 1500 | 2100 | 3000 | 3500 | 4500 | ||||||
Product Recommendation
Product Applications
Service
Bottle Design
Factory Layout
Installation and commissioning
Company Profile
Production Process
Certifications
Packing & Transportation
FAQ
1. A: Are you factory?How many workers do you have?
B: Yes,we are factory. our factory is located in zhangjiagang near from shanghai. We have about 50 workers in our factory.
2. A: What about after sale service?
B: 12 months of electrical part and 18 months of mechanical part after machine installed and running normally.
3. A: What about installation?
B: Our engineer can be] sent to your country. but customer should pay the air tickets and 100 usd as salary per person per day. besides, customer should arrange the accommodation for them during the trip.
4. A: What do we do if we encounter problem about the machine ?
B: Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from
large machine, our engineer will go to your factory (customer will pay the fee during the trip). 5. A: How can you control thquality and delivery? B: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery
.
.
